M1 Mac mini and 49 inch monitor

[mutsaers-vr.nl]

Is the new Mac mini M1 with 16GB memory capable to drive a 49 inch super ultra wide monitor with a resolution of 5120 * 1440 at 120 Hz without any problems ?

What port at the mac mini M1 has to be used to connect this monitor ?



[Boyd01]

Have you seen these threads?

Anyone getting 5120x1440 Ultra Widescreen with M1 Mini?

Mostly, to date, this seems to be an impossible dream. Hoping there is a workaround. My 16" MBP works fine with my Samsung 46" UltraWide monitor at 5120x1440. I do have ScreenResX installed. This is my connection: MBP -> 4k 60Hz TB3 cable (40Gbps) -> Caldigit Dock -> Display Port Cable ->...

forums.macrumors.com

Mac mini M1 Ultra Wide Monitor Issues

So I am using a iiyama G-Master GB3461WQSU-B1 Red Eagle with a resolution of 3440 x 1440px and just hooked up my base Mac mini M1 to it. It will not put out the correct resolution, neither over HDMI nor through a Thunderbolt 3 Elgato Dock that can do HDMI 4K60. The resolution is limited to...

forums.macrumors.com



[mutsaers-vr.nl]

After a lot of reading on internet about what ultra wide monitor is the sweet spot for video editing it seems to be the LG 38WN95C. This is a 38 inch monitor, IPS, 21:9, 3840*1600 pixels, 1 ms and 144 Hz refresh rate. Now I have seen here a lot of people having problems driving ultra wide monitors. So does anyone tried this monitor on the mac mini M1 16Gb/512 GB ? Were you able to get the full potential out of this monitor ? How did you connect it to the Mac mini M1 (which port and what type/quality cable) ? At the moment I am using an iMac 24 inch from 2009. It served me well but now it is time for a complete new setup which shoals last me again another 11 years. I am just editing 2k video so I not really need a top of the line mac like the mac pro.

edit : an additional question I have is what about the resolution of this LG monitor ? The vertical resolution (pixels/inch) is much lower than my 11 years old 24 inch iMac (silver version).



[iPhil]

I'm currently running a base unit M1 mini to a 50" 4K television.. M1 minis are capable to run max resolution of 6K thru USB4 port and a 4k via HDMI with no issue



[outie2k]

I am running the m1 mini 16GB with a Dell U3818DW 38” ultra wide 3840 x 1600 just fine. I use the included usb-c cable to connect to the mini. The monitor does blank out/black out briefly and back few times a day, but that doesn’t seem to be limited to specific monitor.



[mutsaers-vr.nl]

I am running the m1 mini 16GB with a Dell U3818DW 38” ultra wide 3840 x 1600 just fine. I use the included usb-c cable to connect to the mini. The monitor does blank out/black out briefly and back few times a day, but that doesn’t seem to be limited to specific monitor.

Hi, Thanks for your feed back.



[nightmars]

Already mentioned in a different discussion, but once again:

Can't really explain why, but:

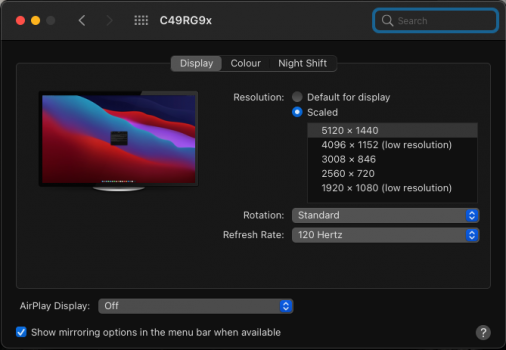

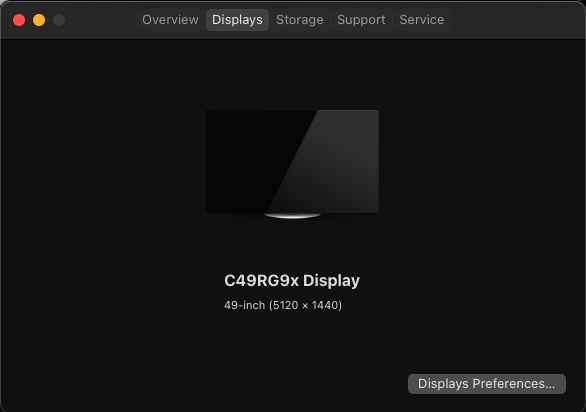

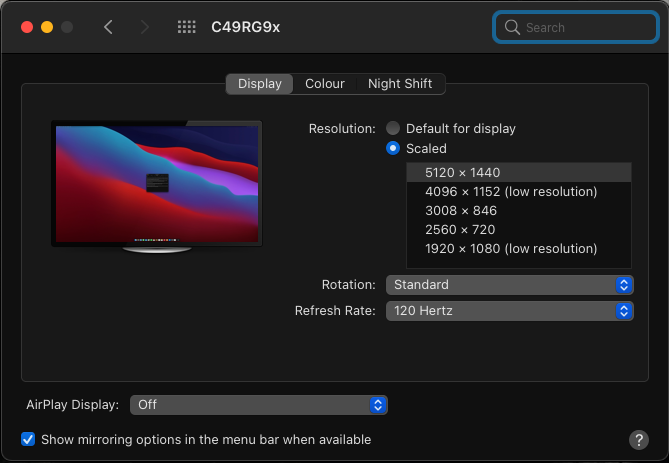

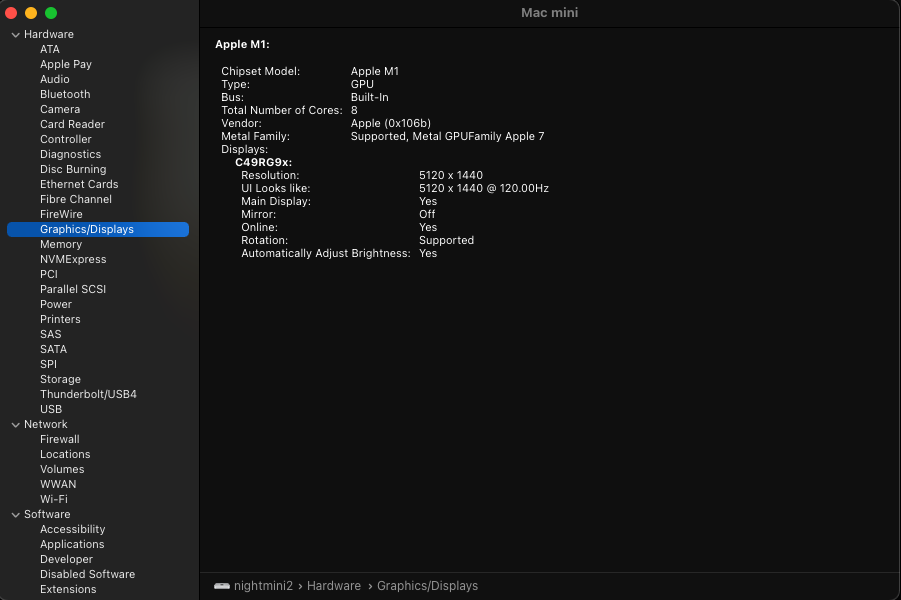

Just got my Samsung C49, hooked it up via TB3->DP Adapter + DP cable (all rated for 8K60Hz) - booted up into macOS - was automatically set to 5120x1440 - only had to switch from 60 to 120Hz in the dropdown menu, didn't do anything else.
After first shutdown behaved a bit flaky, but after setting the DP-Version "down" to 1.2 everything worked nicely (even though 5120x1440@120HZ is supposed to need about 26Gbit and DP 1.2 only delivers about 17Gbit it's working without hiccups...
When set to 60Hz I can also choose HDR in Display settings



[nightmars]

Dear friends,

today I upgraded my Samsung's firmware to Version 1007.2 - immediately lost all issues. Screen wakes up as intended even when running 5120x1440 @ 120Hz @ DP 1.4. For fun 5120x1440@100Hz@ DP1.4 WITH HDR works as well ! Firmware-Upgrade taken from here:

49" CRG90 DQHD Curved 120Hz Monitor | Samsung Support UK

49" CRG90 DQHD Curved 120Hz Monitor. Solutions & Tips, Download Manual, Contact Us. Samsung Support UK

www.samsung.com

Hope it works in general



[MusicEnthusiast]

I just purchased a base model M1 Mini and am curious as to whether it's stable enough to connect to a 65" Roku Smart TV with surround sound?
