Mac Mini Disk Speed Tests + T3 bus's + Q&A!

jrlcopy

macrumors 6502
Original poster
Jun 20, 2007
465
266
Ask me anything, got mine today!
i7/8gb/1TB, planning on adding the eGPU tomorrow + 32gb of ram.

Blackmagic Speed tests added, 2882 Read/2445 Write (APPLE SSD AP1024M).

There are TWO thunderbolt bus's not 1.

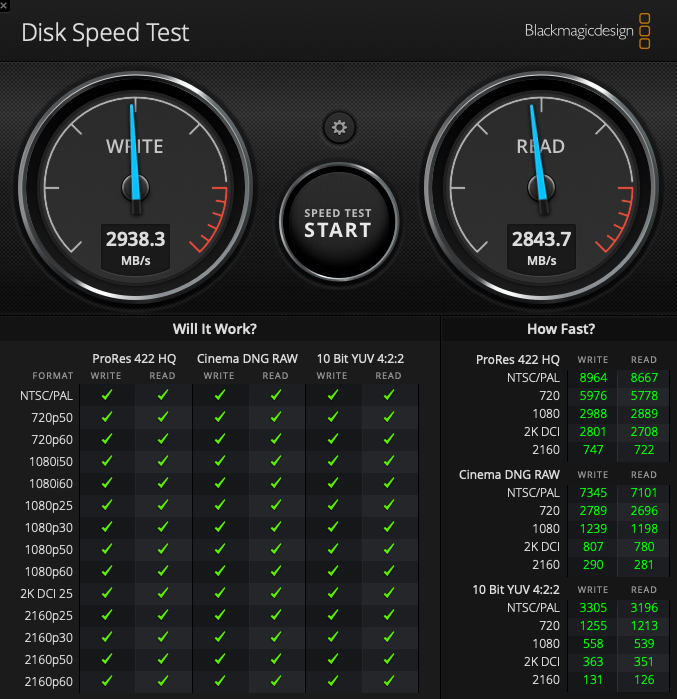

EDIT: I think the mini was syncing data with iCloud last night, my Read/Write speeds are MUCH higher today. https://i.imgur.com/NKRf3Gg.png Write 2938/Read 2843


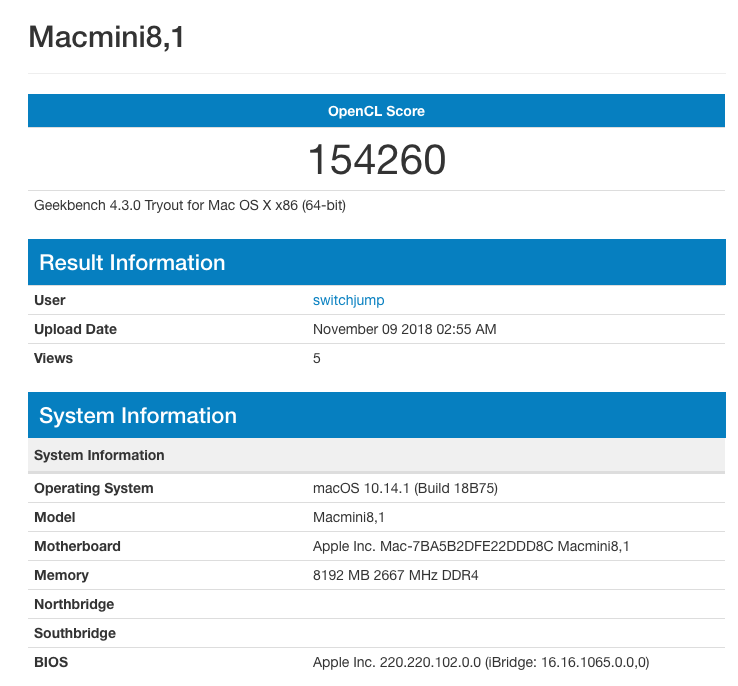

Attachments

Last edited:

xiaosongz

macrumors newbie
Mar 14, 2012
18
1
Ann Arbor, Michigan
Ask me anything, got mine today!
i7/8gb/1TB, planning on adding the eGPU tomorrow + 32gb of ram.

Blackmagic Speed tests added, 2882 Read/2445 Write (APPLE SSD AP1024M).

There are TWO thunderbolt bus's not 1.
I7/8GB/256GB here, very close reading speed, but only half writing speed.


StellarVixen

macrumors 68020
Mar 1, 2018
2,194
3,581
Earth
Ask me anything, got mine today!
i7/8gb/1TB, planning on adding the eGPU tomorrow + 32gb of ram.

Blackmagic Speed tests added, 2882 Read/2445 Write (APPLE SSD AP1024M).

There are TWO thunderbolt bus's not 1.
Which means full 40 Gbps on all 4 ports simultaneously, right?


jrlcopy

macrumors 6502
Original poster
Jun 20, 2007
465
266
Which means full 40 Gbps on all 4 ports simultaneously, right?
No, there's only one 4x PCIe connection per controller + display port link(s) + some USB capability.
This is not my area of expertise, but from looking in System Info:

I'm currently connected over the HDMI port.

Thunderbolt Bus 0:
Vendor Name: Apple Inc.
Device Name: Mac mini
UID: xxx
Route String: 0
Firmware Version: 34.6
Domain UUID: xxx

Port:
Status: No device connected
Link Status: 0x101
Speed: Up to 40 Gb/s x1
Current Link Width: 0x1
Receptacle: 2
Link Controller Firmware Version: 0.97.0

Port:
Status: No device connected
Link Status: 0x101
Speed: Up to 40 Gb/s x1
Current Link Width: 0x1
Receptacle: 1
Link Controller Firmware Version: 0.97.0

Thunderbolt Bus 1:
Vendor Name: Apple Inc.
Device Name: Mac mini
UID: xxx
Route String: 0
Firmware Version: 34.6
Domain UUID: xxx

Port:
Status: No device connected
Link Status: 0x101
Speed: Up to 40 Gb/s x1
Current Link Width: 0x1
Receptacle: 4
Link Controller Firmware Version: 0.97.0

Port:
Status: No device connected
Link Status: 0x101
Speed: Up to 40 Gb/s x1
Current Link Width: 0x1
Receptacle: 3
Link Controller Firmware Version: 0.97.0

  • Like
Reactions: tedson

rmdeluca

macrumors 6502
Oct 30, 2018
250
396
This is not my area of expertise, but from looking in System Info:

I'm currently connected over the HDMI port.

Thunderbolt Bus 0:
Vendor Name: Apple Inc.
Device Name: Mac mini
UID: xxx
Route String: 0
Firmware Version: 34.6
Domain UUID: xxx

Port:
Status: No device connected
Link Status: 0x101
Speed: Up to 40 Gb/s x1
Current Link Width: 0x1
Receptacle: 2
Link Controller Firmware Version: 0.97.0

Port:
Status: No device connected
Link Status: 0x101
Speed: Up to 40 Gb/s x1
Current Link Width: 0x1
Receptacle: 1
Link Controller Firmware Version: 0.97.0

Thunderbolt Bus 1:
Vendor Name: Apple Inc.
Device Name: Mac mini
UID: xxx
Route String: 0
Firmware Version: 34.6
Domain UUID: xxx

Port:
Status: No device connected
Link Status: 0x101
Speed: Up to 40 Gb/s x1
Current Link Width: 0x1
Receptacle: 4
Link Controller Firmware Version: 0.97.0

Port:
Status: No device connected
Link Status: 0x101
Speed: Up to 40 Gb/s x1
Current Link Width: 0x1
Receptacle: 3
Link Controller Firmware Version: 0.97.0
That's ok. The way it works is the thunderbolt controllers ("bus") used in the 2018 Mini can support two ports each. Note how each port says "Up to 40 Gb/s?" That's because it hasn't actually been allocated any bandwidth because nothing is connected to the port.

Thunderbolt controllers get fed bandwidth from PCIe lanes from the CPU or PCH/USB multiplexer and Display Port links from the GPU. The controllers used by the Mini can only handle 4 PCIe lanes (8Gb/s per lane) and two Display Port links total (which are around something like 23Gb/s or so depending on the DP spec).

So, for instance, you could in theory connect a PCIe device like an eGPU and a Display Port monitor into the two ports of one controller and each would be fed properly, but neither port will use 40Gb/s. Or you could plug some combination of daisy chained devices into a single port that adds up to 40Gb/s, but no more.

However, there's no physical way for the CPU to source 160Gb/s simultaneously though all four ports. There simply isn't enough I/O capability in the 16 PCIe lane CPUs used in the Mini to do this - between PCIe lanes and DMI there's 160Gb/s total, but that also has to be shared with the ethernet controller, USB, WiFi, SSD, T2 and so on.

  • Like
Reactions: ElectronGuru

jrlcopy

macrumors 6502
Original poster
Jun 20, 2007
465
266
So, for instance, you could in theory connect a PCIe device like an eGPU and a Display Port monitor into the two ports of one controller and each would be fed properly, but neither port will use 40Gb/s. Or you could plug some combination of daisy chained devices into a single port that adds up to 40Gb/s, but no more.
Got it, sweet, that is following my plan of attack then, eGPU on one bus, and an external SSD for another. Thanks for the detailed reply.

  • Like
Reactions: rmdeluca

StellarVixen

macrumors 68020
Mar 1, 2018
2,194
3,581
Earth
So, let me get this right for all eternity, you can have only one full speed port per bus, right?

I can have eGPU and external NVMe drive on two ports each on separate bus, with full 40 Gbps bandwidth used on both, right? But the moment I add third device, the bandwidth is gonna drop on the bus where I add this third device, right?


rmdeluca

macrumors 6502
Oct 30, 2018
250
396
So, let me get this right for all eternity, you can have only one full speed port per bus, right?

I can have eGPU and external NVMe drive on two ports each on separate bus, with full 40 Gbps bandwidth used on both, right? But the moment I add third device, the bandwidth is gonna drop on the bus where I add this third device, right?
Well, the eGPU and NVMe are only going to get 32Gb/s each because that's all that 4xPCIe lanes can carry. Depending on the third device you add though, it might not affect their bandwidth at all:

* A second eGPU would definitely take bandwidth away from one of the other two

* A second NVMe would definitely take bandwidth away from one of the other two

* A USB-C Gen 1 (5Gb/s) or lower device should not take bandwidth from the other two

* A Display Port connection to a monitor should not take bandwidth from the other two

  • Like
Reactions: DesertSurfer

Mol1n

macrumors member
Jul 12, 2018
61
7
* A USB-C Gen 1 (5Gb/s) or lower device should not take bandwidth from the other two

* A Display Port connection to a monitor should not take bandwidth from the other two
I believe with the external enclosures it was the case that using any of the usb/storage connections would hamper performance because of all the interrupts the second device sends. Is that not the case here as well?


rmdeluca

macrumors 6502
Oct 30, 2018
250
396
So, what can use those 40Gbps on one port then? Nothing?
With the right combination of resolutions, two daisy chained monitors. Or an eGPU/NVMe daisy chained to a monitor. I know, it’s a bit odd.
[doublepost=1541658660][/doublepost]
I believe with the external enclosures it was the case that using any of the usb/storage connections would hamper performance because of all the interrupts the second device sends. Is that not the case here as well?
Yes, if you use the external ports on the enclosure you have to share the PCIe lanes with both the enclosure AND the stuff plugged into it.

Better to plug the USB stuff in directly to the Mac in this case.


CaTOAGU

macrumors 6502a
Jul 15, 2008
705
721
Manchester, UK
I7/8GB/256GB here, very close reading speed, but only half writing speed.
I've got an i5/8GB/256GB and get similar results to you, close on the read speed and half the write speed. I wonder if the 1TB is 2x500GB raided together? Would be interested to see other more results.


Nihilvor

macrumors member
Jan 25, 2010
79
4
I've got an i5/8GB/256GB and get similar results to you, close on the read speed and half the write speed. I wonder if the 1TB is 2x500GB raided together? Would be interested to see other more results.
I'm getting a 256gb model too. I've noticed a disparity with speeds posted online, and I wonder if it is indeed the 256gb drive (I should be getting a 500gb model in the future) or something that might even be corrected via firmware at some point (assuming that the 128 model has comparable speeds). In any case, it will be interesting to other benchmarks. I'd be more upset about this if we were talking read speeds, of course.


killawat

macrumors 65816
Sep 11, 2014
1,451
2,281
I'm getting a 256gb model too. I've noticed a disparity with speeds posted online, and I wonder if it is indeed the 256gb drive (I should be getting a 500gb model in the future) or something that might even be corrected via firmware at some point (assuming that the 128 model has comparable speeds). In any case, it will be interesting to other benchmarks. I'd be more upset about this if we were talking read speeds, of course.
Nope. Nothing is wrong really. Read speeds on NVMe drives these days are limited by the controller and the amount of bandwidth given to the controller. So we haven't really hit the limit of the PCIe 3.0 4x interface allocated to the storage controller, but the posted read speed of 3 GB/s comes pretty close to the 4 GB/s bandwidth available.

On the write side, an SSD in the same class will generally be faster (Depending on the controller) because the controller can write to more modules at a time. 128 GB will be the slowest, 2 TB will be the fastest.


CaTOAGU

macrumors 6502a
Jul 15, 2008
705
721
Manchester, UK
Nope. Nothing is wrong really. Read speeds on NVMe drives these days are limited by the controller and the amount of bandwidth given to the controller. So we haven't really hit the limit of the PCIe 3.0 4x interface allocated to the storage controller, but the posted read speed of 3 GB/s comes pretty close to the 4 GB/s bandwidth available.

On the write side, an SSD in the same class will generally be faster (Depending on the controller) because the controller can write to more modules at a time. 128 GB will be the slowest, 2 TB will be the fastest.
Wait, are you saying larger capacity SSD's are inherently faster than smaller capacity one's, and that it accounts for the disparity in write speeds between the 256GB model Mac mini and the 1TB machine? Am I understanding you correctly?


killawat

macrumors 65816
Sep 11, 2014
1,451
2,281
Wait, are you saying larger capacity SSD's are inherently faster than smaller capacity one's, and that it accounts for the disparity in write speeds between the 256GB model Mac mini and the 1TB machine? Am I understanding you correctly?
Yes.

  • Like
Reactions: CaTOAGU

Chancha

macrumors 6502a
Mar 19, 2014
939
816
If I am not wrong, daisy chain over DisplayPort MST still does not work in macOS? The only chain of display that can work is Apple's own Thunderbolt Displays?


StellarVixen

macrumors 68020
Mar 1, 2018
2,194
3,581
Earth
Hey OP, how is that i7 holding up? Have you pushed it a little bit harder? I’ve heard it overheats, can get to 100 and then throttle little bit, but it is mainly just under 100 when pushed to the limit.


jrlcopy

macrumors 6502
Original poster
Jun 20, 2007
465
266
Hey OP, how is that i7 holding up? Have you pushed it a little bit harder? I’ve heard it overheats, can get to 100 and then throttle little bit, but it is mainly just under 100 when pushed to the limit.
So far so good, I need to pull actual numbers, however before I had the eGPU hooked up, the Mac Mini's case was HOT, like Laptop burning hot, but once the eGPU was installed and I guess took a bunch of the work off of the CPU, it's been pretty cool. I ran a bunch of transcoding tasks last night and haven't it was cool to the touch. I'll pull temp numbers this weekend.
