Hello,

to my knowledge there is unfortunately no schematic available anywhere for the Mac mini Late 2014 (Macmini7,1).

This is sad because no schematics means it is difficult to repair and even upgrade the ram on those models.
And those models are cheap, consume very low power and are very reliable.

I had a few of them available at my office, in either 4GB, 8GB and 16 GB configurations, and I wanted to upgrade at least the 4GB ones to 16GB ram.

so I decided to take note of the different configurations of the resistors on the motherboard, which change between the different RAM configurations.

This let me change the RAM and upgrade it. The ram is LPDDR3 in BGA 178, the exact same RAM as in the MacBook Pro and Air so it is easy to buy some new in Chinese market places or even to get some from dead logic board.

Here are the resistor configuration I noted. Green rectangle means 10k resistor present, red rectangle means 10k resistor missing.

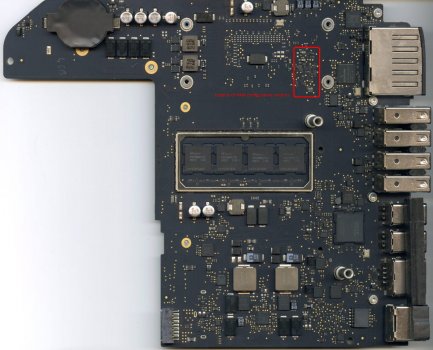

The location of the resistors configuration is on the upper side of the logic board, at the opposite of the CPU.

MM2014 - CM dessus - 4GB resistors.jpg

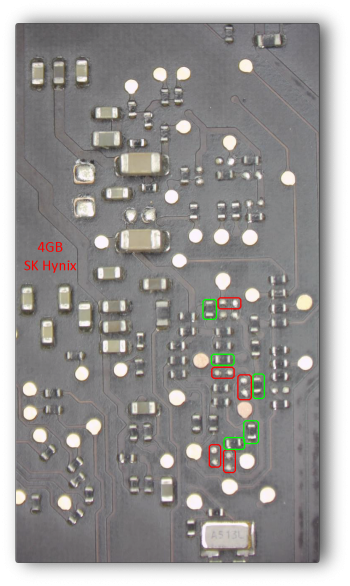

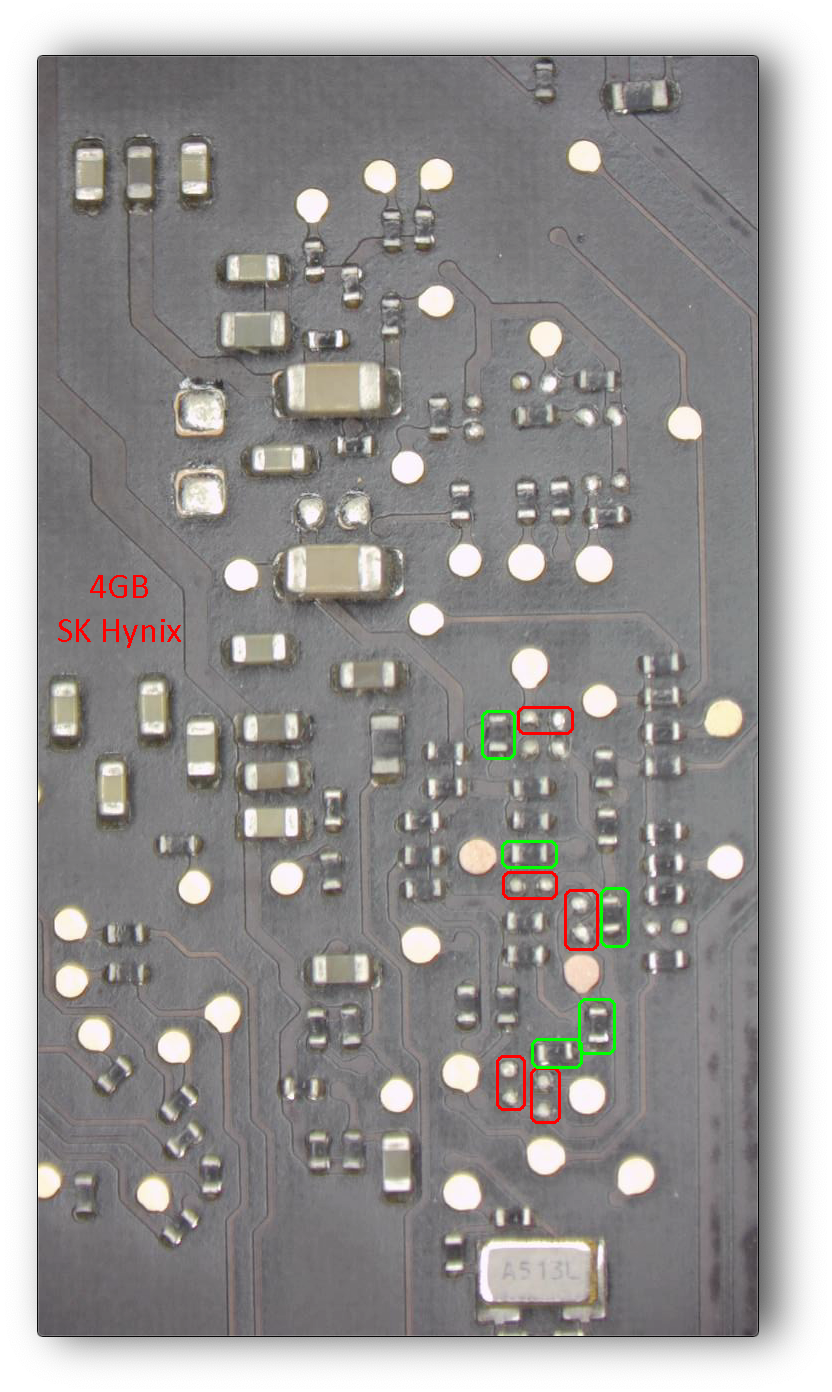

1 - resistors configuration for mac Mini 2014 with 4GB SK Hynix Ram
MM2014 - 4GB - SKHynix1.png

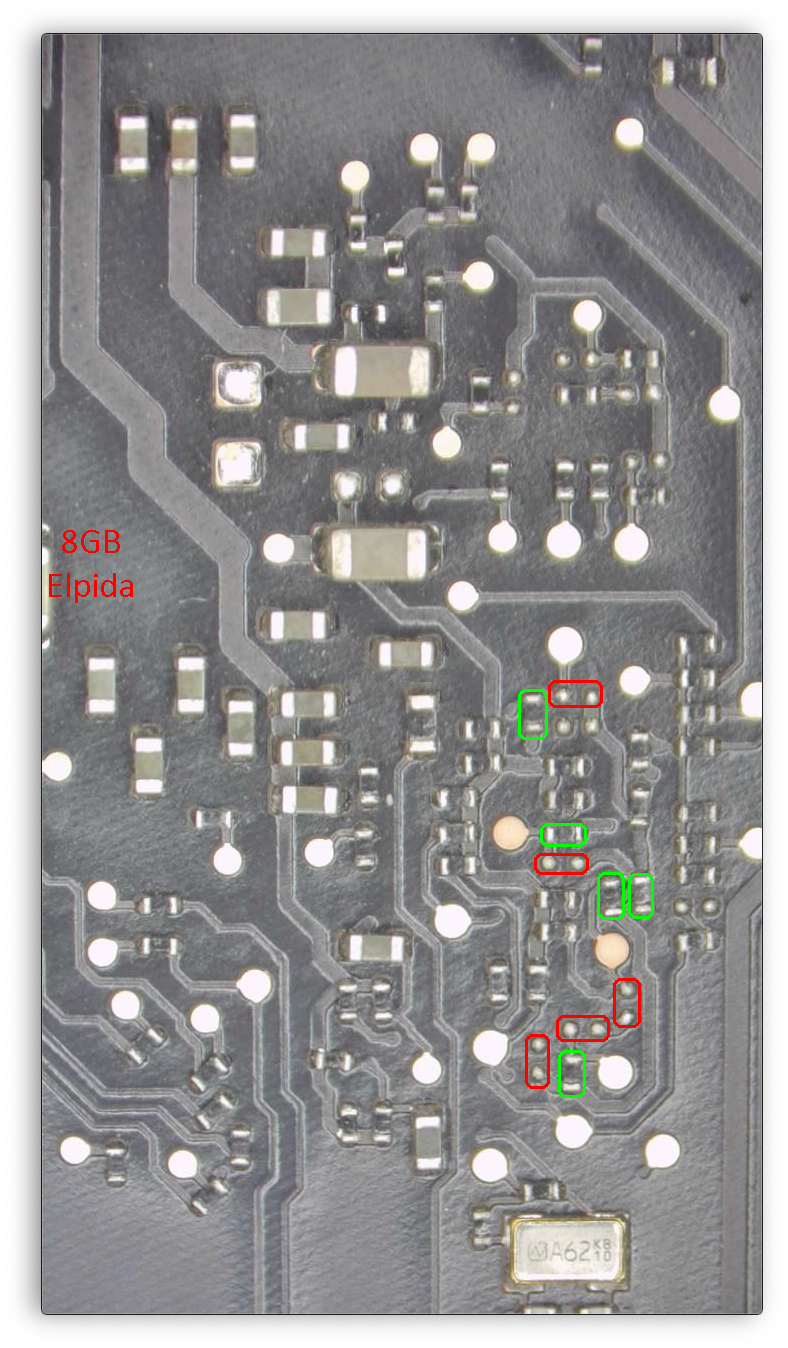

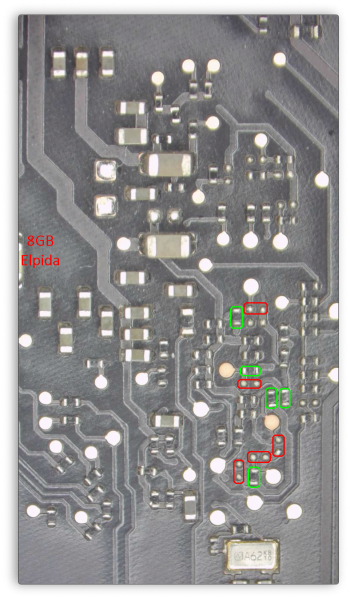

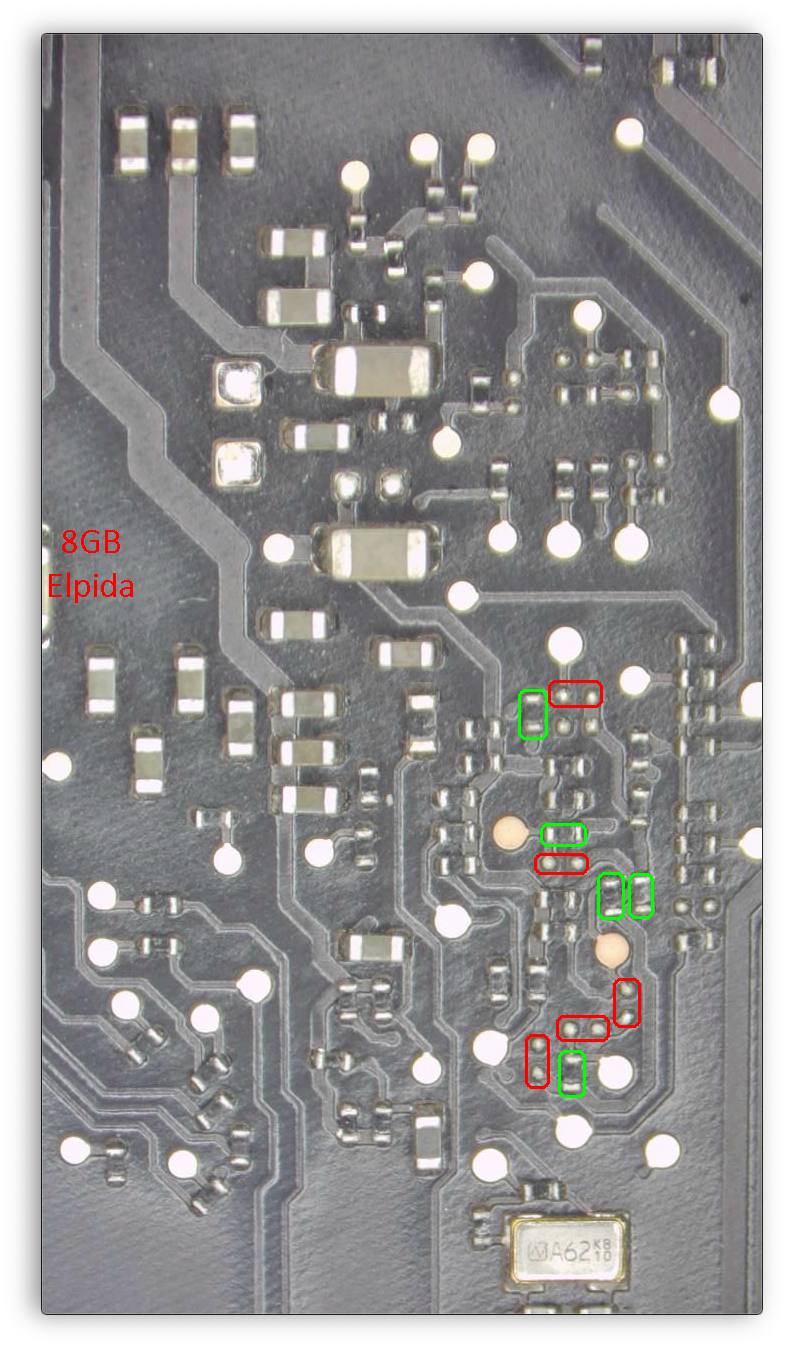

2 - resistors configuration for mac Mini 2014 with 8GB Elpida Ram
MM2014 - 8GB - Elpida1.png

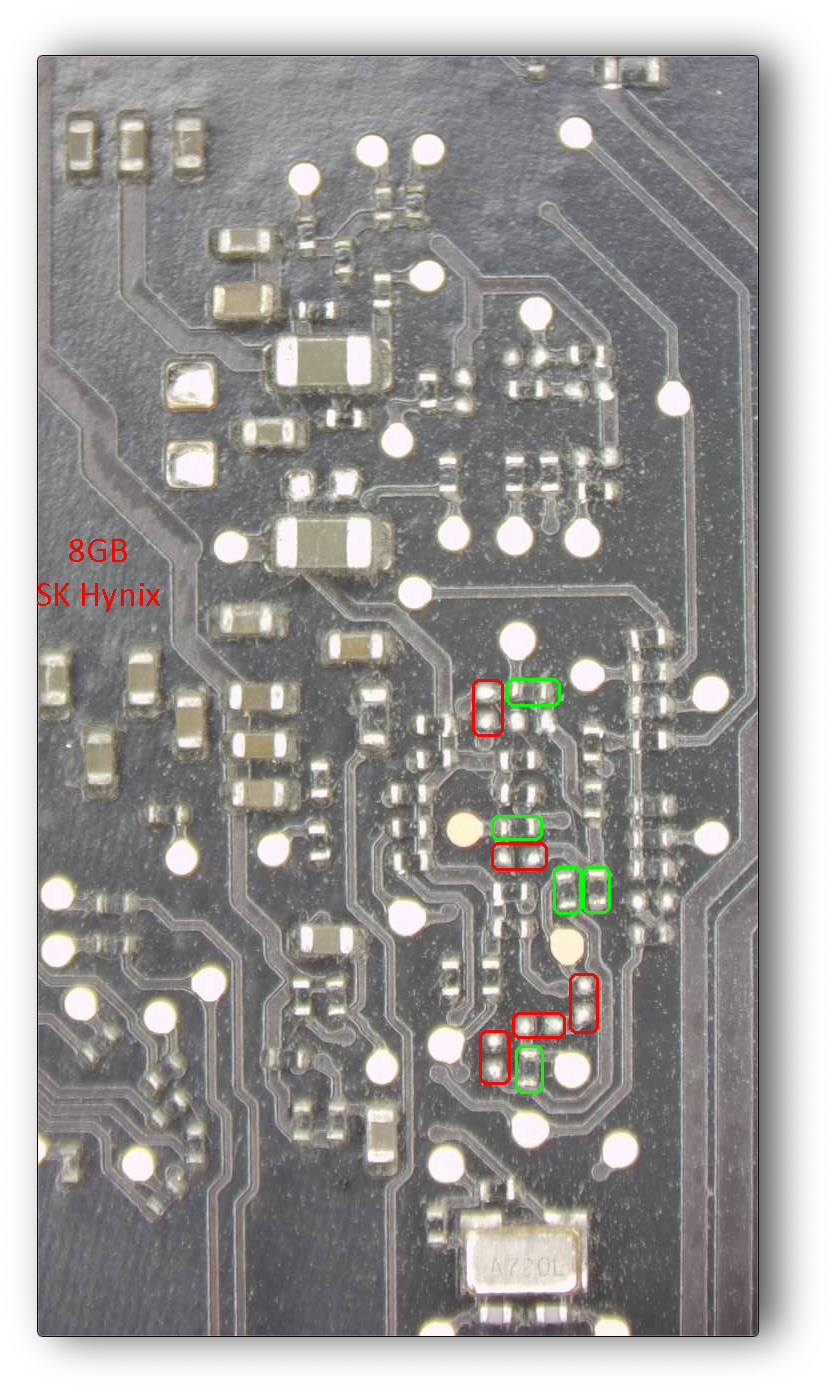

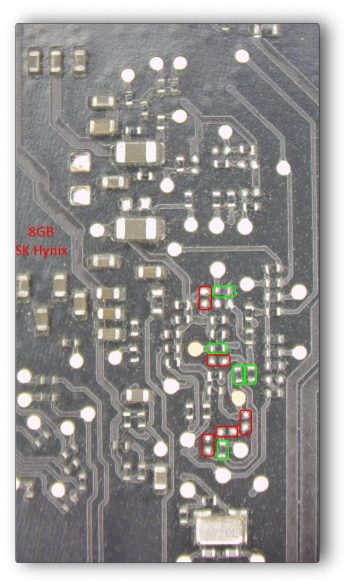

3 - resistors configuration for mac Mini 2014 with 8GB SK Hynix Ram
MM2014 - 8GB - SK Hynix1.png

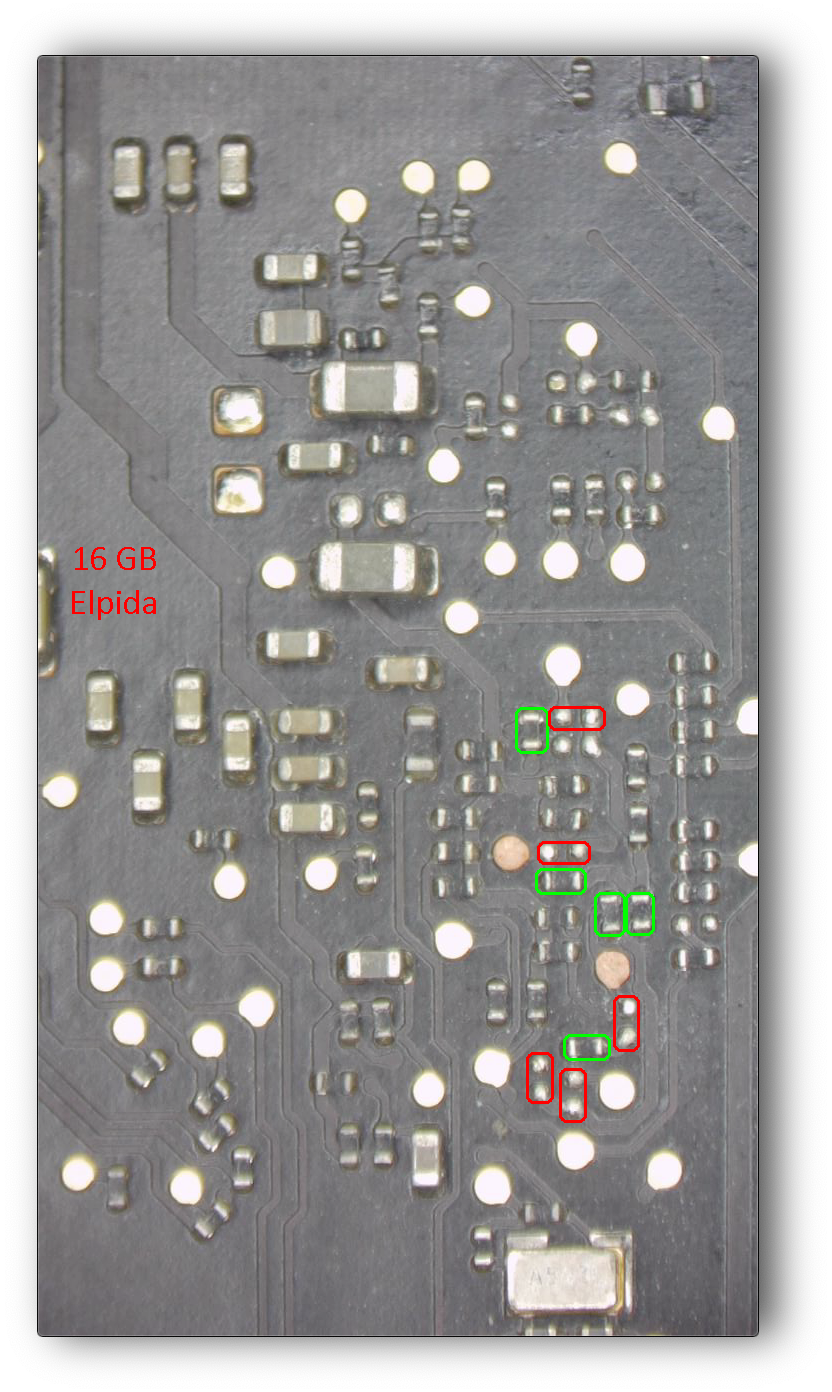

4 - resistors configuration for mac Mini 2014 with 16GB Elipida Ram


MM2014 - 16GB - Elpida1.png



If anyone can help me complete this thread with others RAM capacity / manufacturer configurations, it would be very nice.

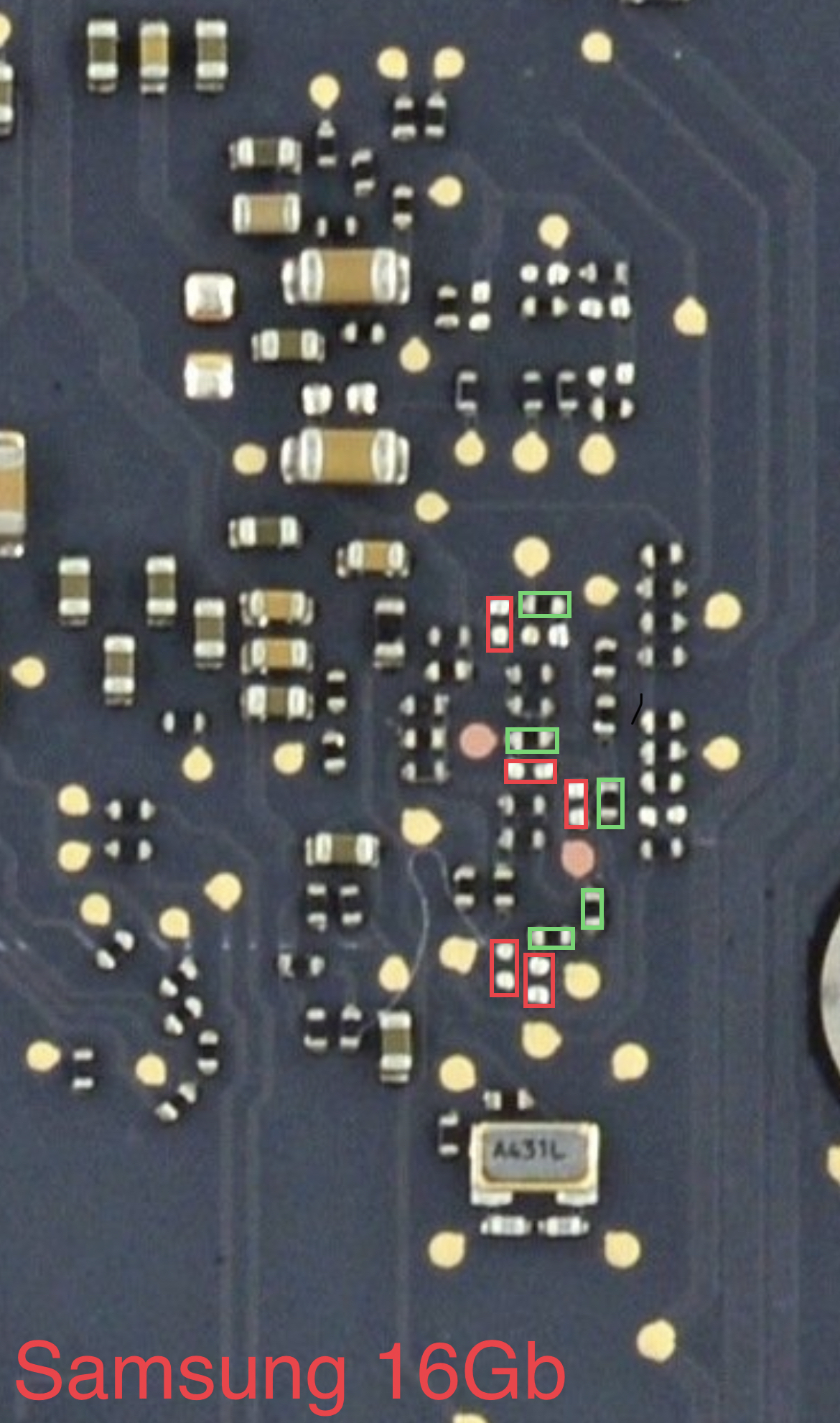

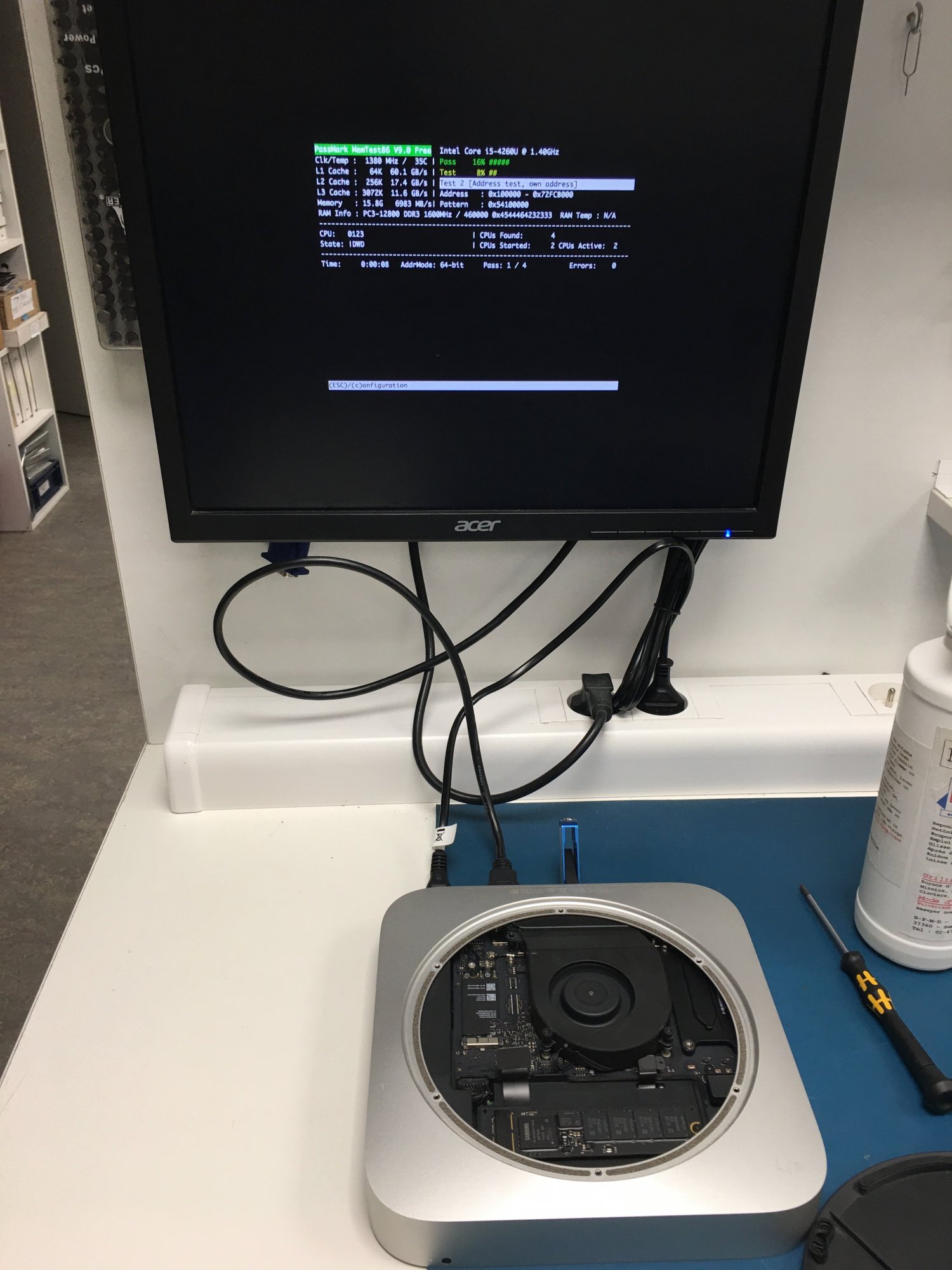

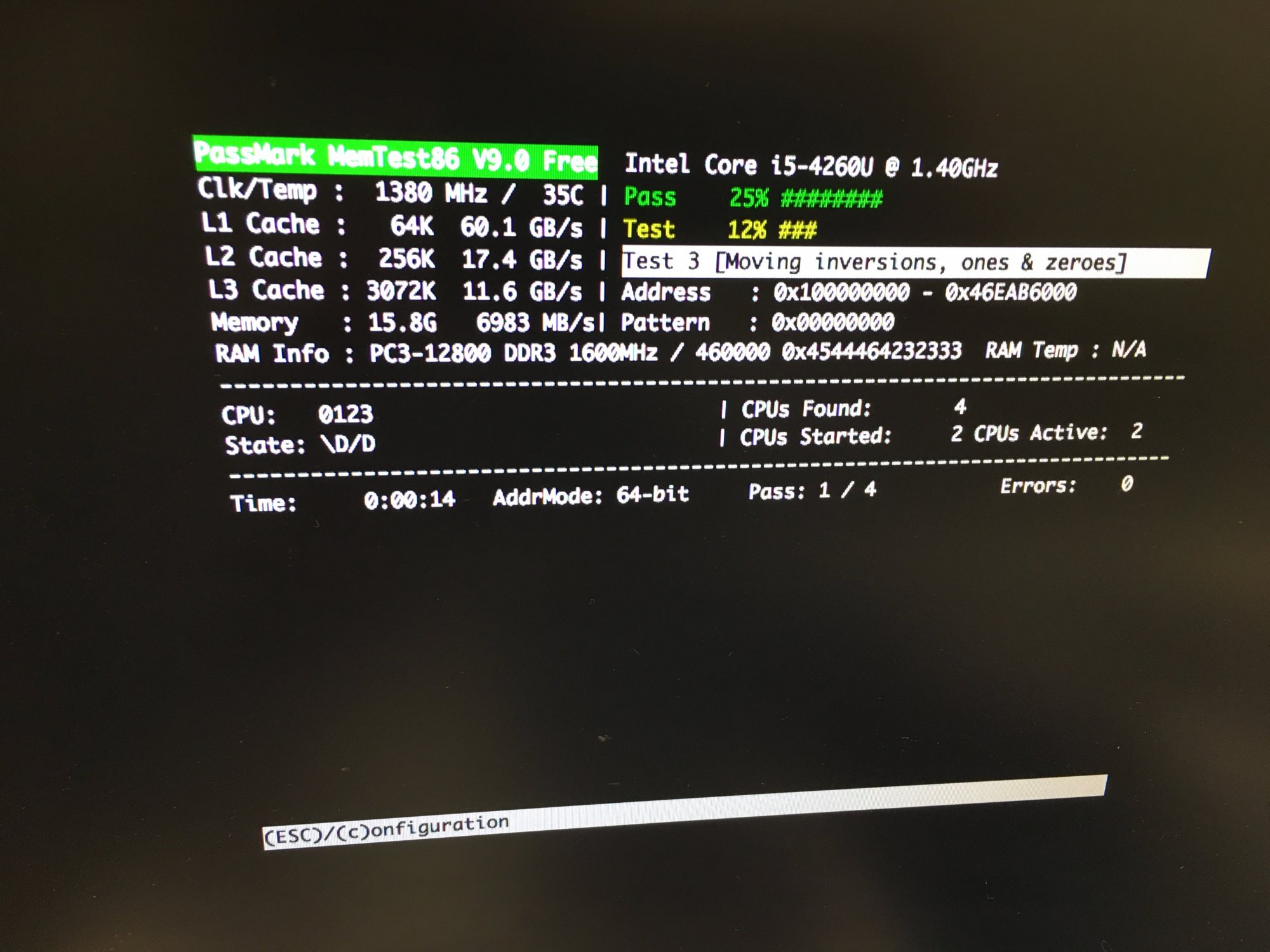

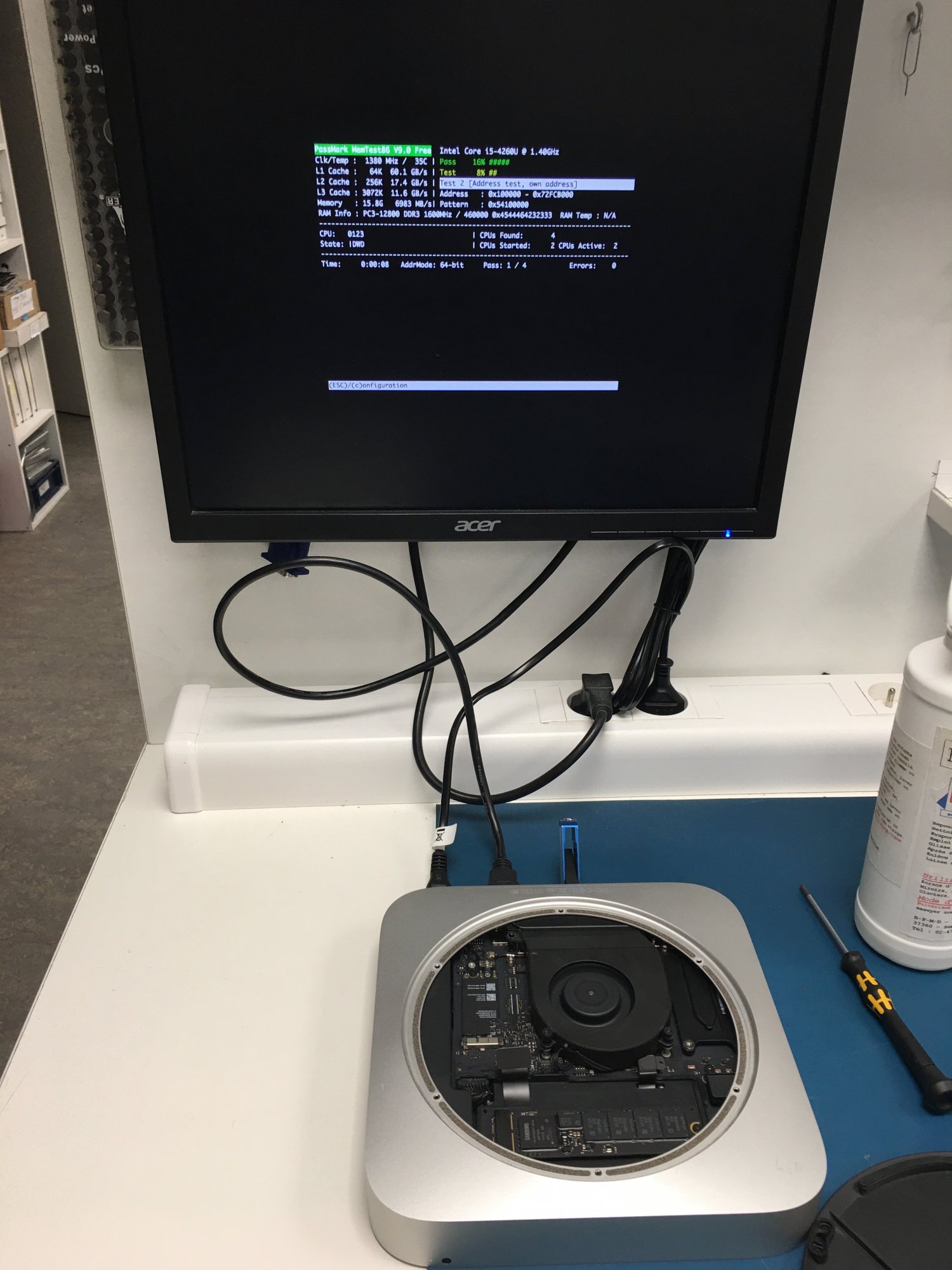

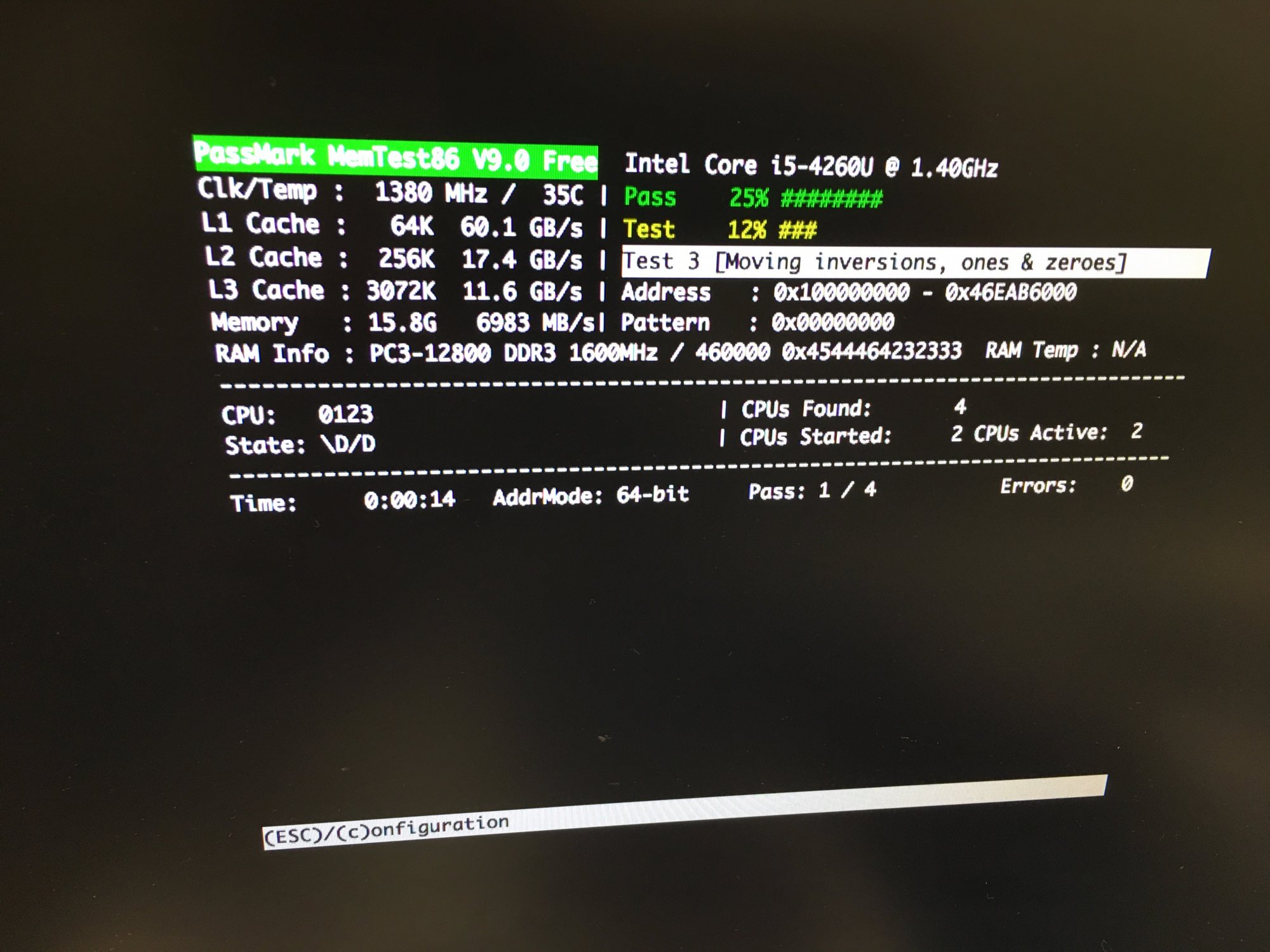

Nevertheless, I was able to change and upgrade 2x Mac mini 2014 1.4Ghz 4GB to 16GB ram, this is not as fast as an M1 mac but this is nice :)





dosdude1

macrumors 68030
Feb 16, 2012
2,716
7,185
Awesome analysis, this will be very helpful for performing RAM upgrades on these. I was considering changing the SPD data in the SPI-ROM to accomplish the same thing, but setting the strap resistors as Apple intended, of course, is the best way to do it.

A side note: The manufacturer info (Elpida, Hynix, etc.) strap setting doesn't really matter; all that serves to do is change what is shown for manufacturer and part number in the Memory section of System Profiler. Since you were able to find a correct 16GB strap config, you can just use that for any 16GB upgrade, regardless of what manufacturer chips you install.


gilles_polysoft

macrumors regular
Original poster
Jul 7, 2017
218
589
Tours (France)
Awesome analysis, this will be very helpful for performing RAM upgrades on these. I was considering changing the SPD data in the SPI-ROM to accomplish the same thing, but setting the strap resistors as Apple intended, of course, is the best way to do it.

A side note: The manufacturer info (Elpida, Hynix, etc.) strap setting doesn't really matter; all that serves to do is change what is shown for manufacturer and part number in the Memory section of System Profiler. Since you were able to find a correct 16GB strap config, you can just use that for any 16GB upgrade, regardless of what manufacturer chips you install.

Thanks a lot ?

Yes I didn't know that, but tried and in my case the 16GB strap for Elpida RAM worked well with SK Hynix RAM.
thanks again ☺️


moyanagy

macrumors newbie
Aug 9, 2019
12
0
UK (born in Hungary)
Sorry if I don't understand here what has been done.

Have you unsoldered the original 4GB RAM and then soldered in new 16GB RAM in its place? I didn't think this was possible. Do you have a guide for this?

Also, do you have a link for this RAM you used?


dosdude1

macrumors 68030
Feb 16, 2012
2,716
7,185
Sorry if I don't understand here what has been done.

Have you unsoldered the original 4GB RAM and then soldered in new 16GB RAM in its place? I didn't think this was possible. Do you have a guide for this?

Also, do you have a link for this RAM you used?
Yes, that’s exactly what he did. I’ve done the same on a MacBook Air recently, which I made a video about here:



Kaida

macrumors 6502
May 28, 2016
350
144
Singapore
i saw that many sellers in China has already done it and advertise on upgrading to 16gb, but they did not say much about the different resistor etc.

Neither links are mine or affilated:



Jwkitler

macrumors newbie
Jul 12, 2022
1
0

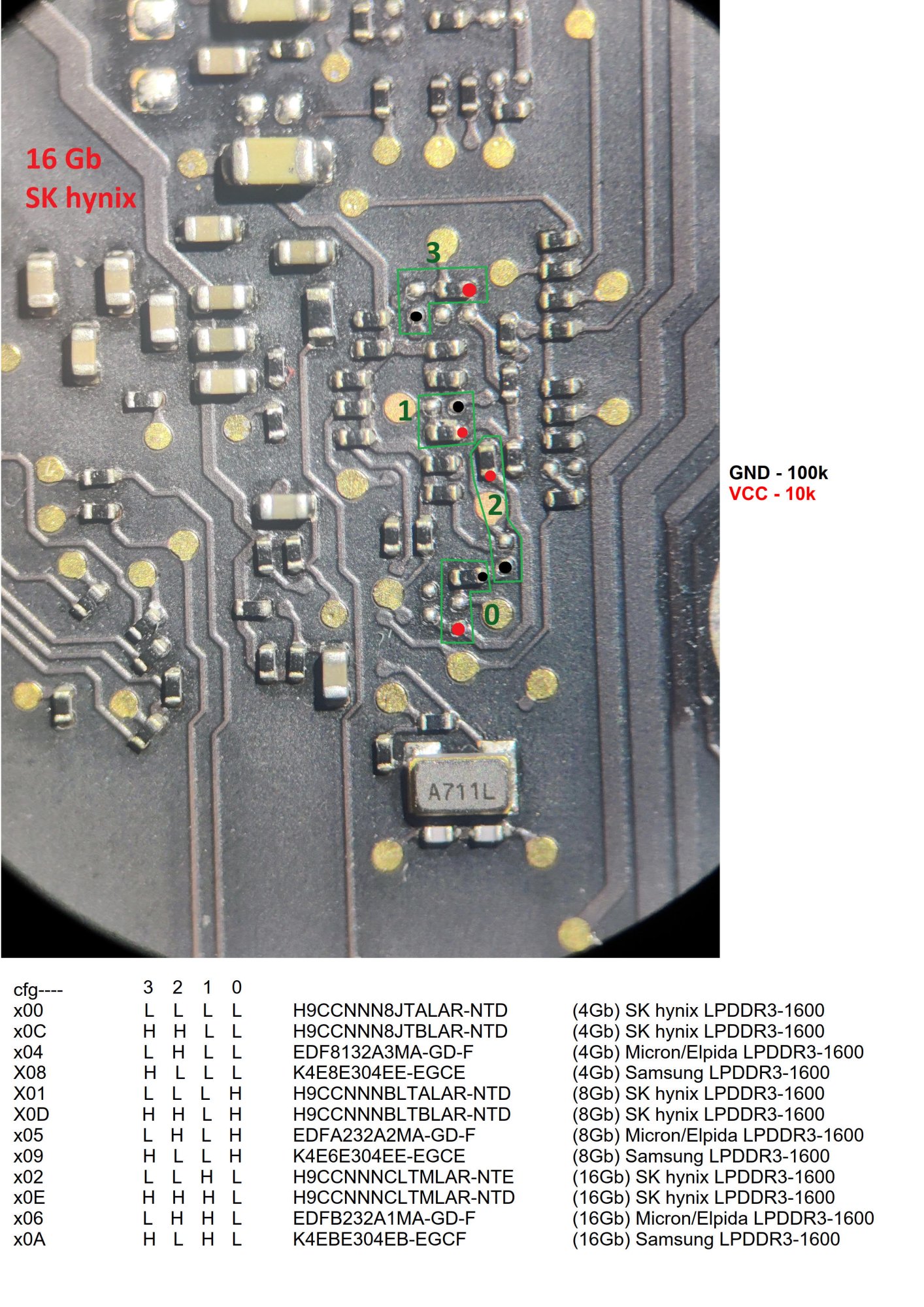

Hello, do you have resistors configuration for mac Mini 2014 with 16GB SK Hynix Ram?

Thank you very much!
Because i don't have the 820-5509-A board view file

100k and 10k resistor , is it same?

Do you know where are R2284 R2282 R2280 and R2291?



Thank


Attachments

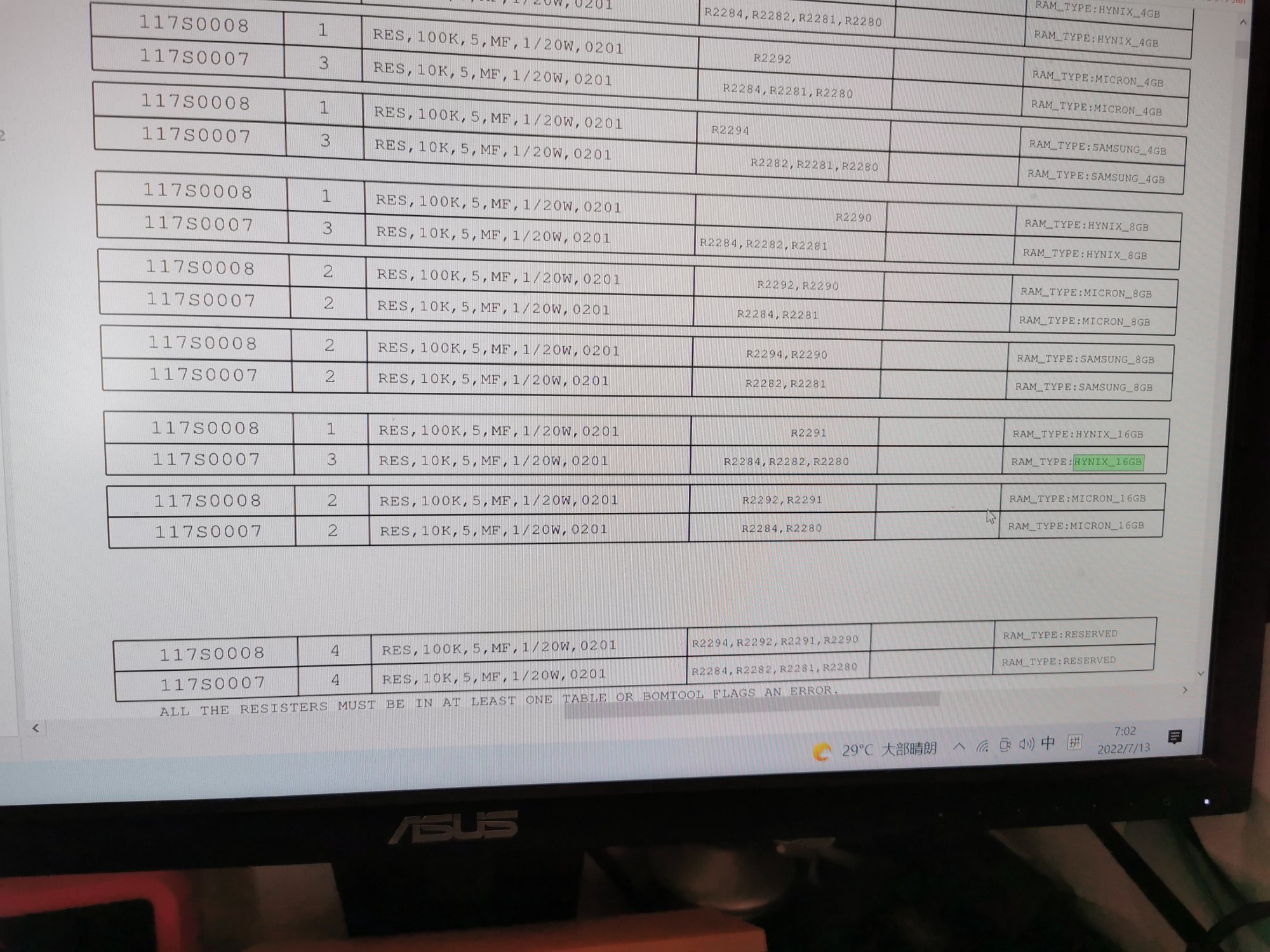

  • IMG_20220713_070221.jpg
    495 KB · Views: 391

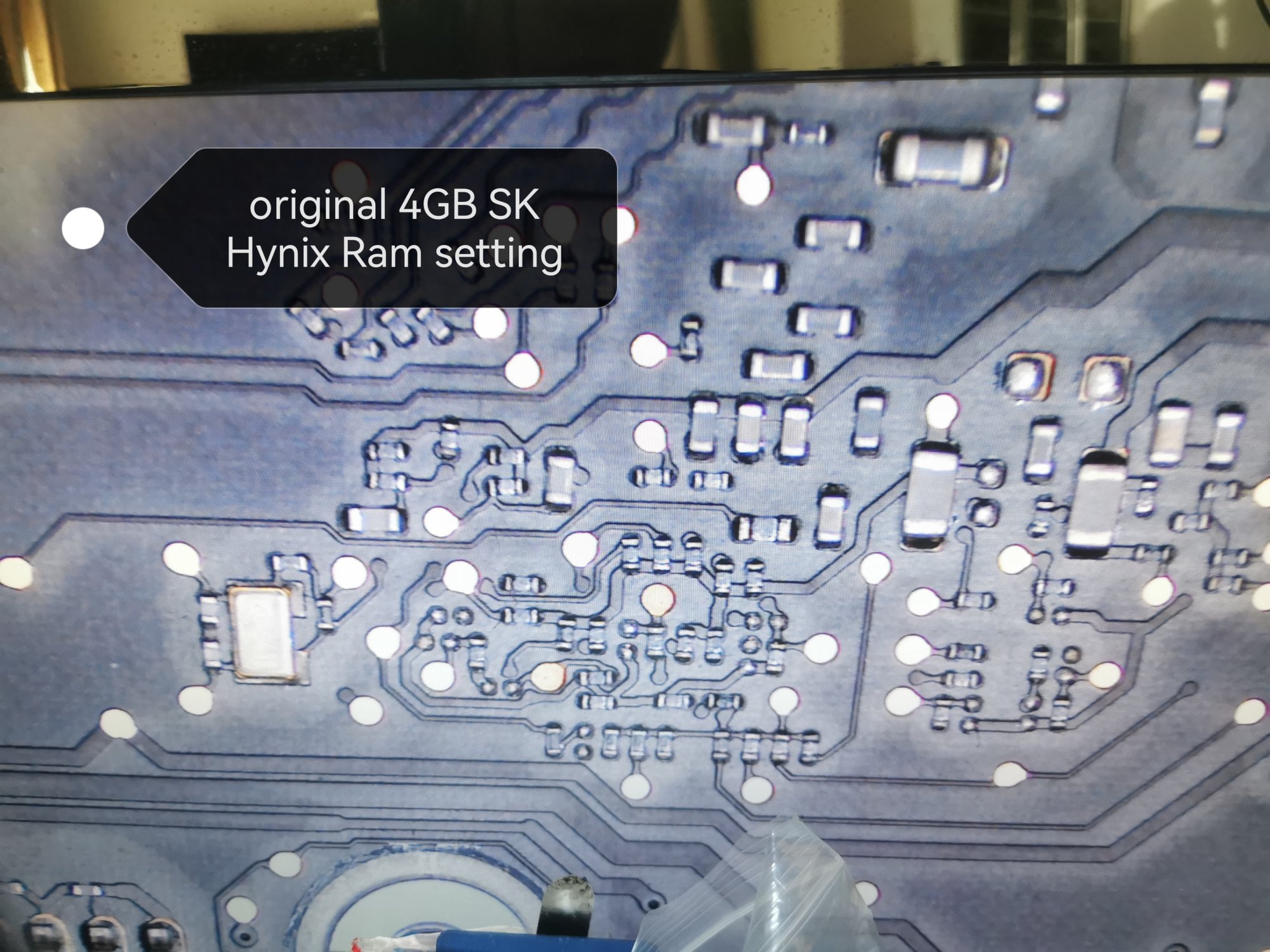

  • IMG_20220713_081240_edit_860491803404114.jpg
    506.5 KB · Views: 428
Last edited:

dosdude1

macrumors 68030
Feb 16, 2012
2,716
7,185
Hello, do you have resistors configuration for mac Mini 2014 with 16GB SK Hynix Ram?

Thank you very much!
Because i don't have the 820-5509-A board view file

100k and 10k resistor , is it same?

Do you know where are R2284 R2282 R2280 and R2291?



Thank
Just use the 16GB Elpida configuration, it literally does not matter what manufacturer data is used (it does nothing but set the part number in the memory section of System Profiler).


tomast

macrumors newbie
Aug 4, 2022
1
0
Hi guys,
I am trying to upgrade my mac mini 2014 from 4GB to 16GB but I cannot find chip numbers. Can you please post here the numbers of 16GB compatible chips?
Thanks


dosdude1

macrumors 68030
Feb 16, 2012
2,716
7,185
Hi guys,
I am trying to upgrade my mac mini 2014 from 4GB to 16GB but I cannot find chip numbers. Can you please post here the numbers of 16GB compatible chips?
Thanks
I use Elpida EDFB232A1MA-GD-F chips for these machines. They are readily available from various sellers on AliExpress.


Rickyandika

macrumors newbie
Dec 30, 2020
9
1
Yes, that’s exactly what he did. I’ve done the same on a MacBook Air recently, which I made a video about here:

Hi, to my understanding based on your video i could just buy some DDR3L 8GB Sticks(the right ram quantity), remove it and solder it to my Mac Mini but how do i know if the RAM uses BGA 178. Or does all DDR3L uses BGA 178?

Also do you know which mac uses BGA 178? I have 2015 MBP and wondering if i could upgrade it as well


EugW

macrumors G5
Jun 18, 2017
13,519
10,959

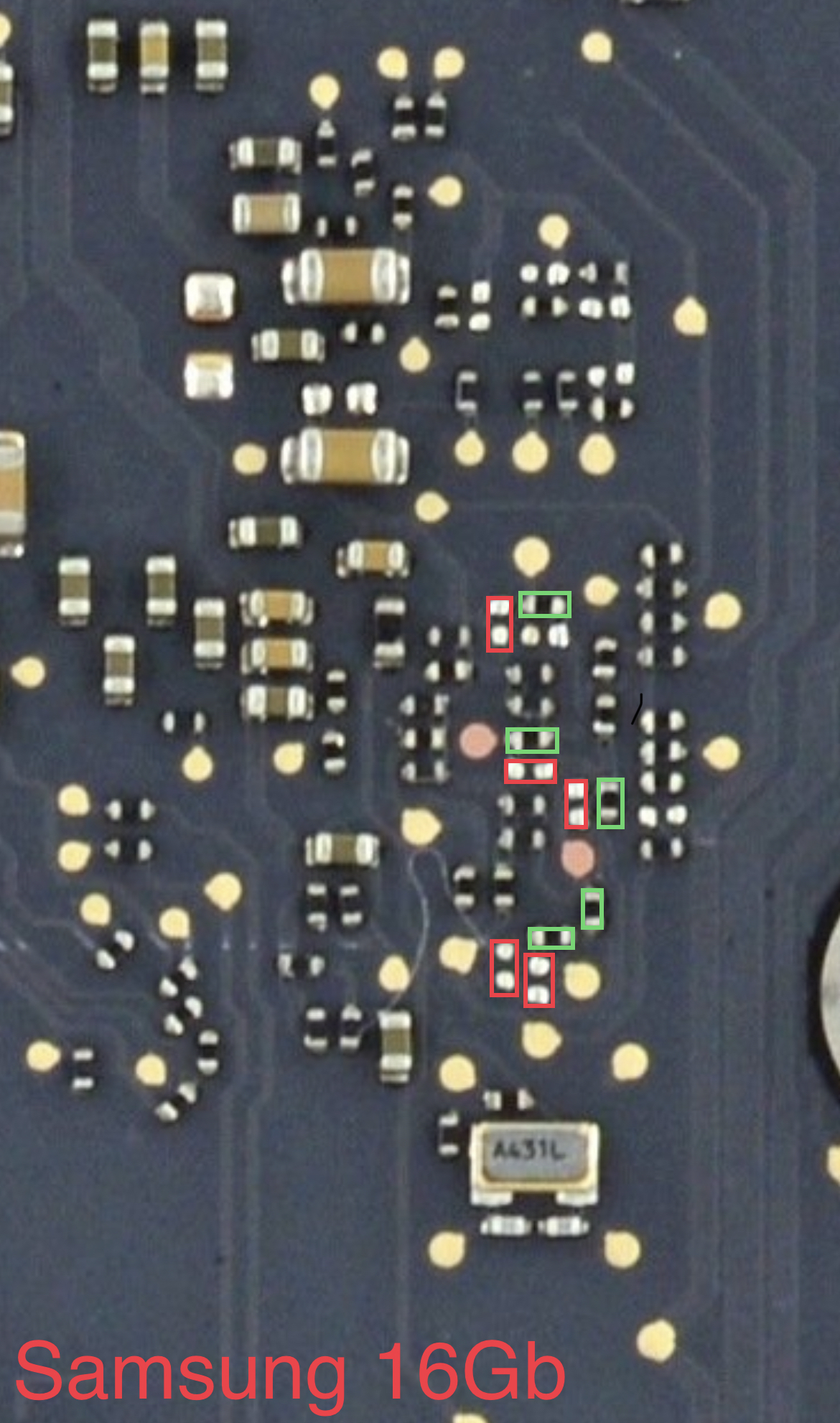

32GB (4x Samsung K4E8E304EE-EGCE 8 Gb)

View attachment 1979468
32 GB RAM works in the 2014 Mac mini? I would be interesting to do that just for kicks, since 32 GB was never offered as an option.

i saw that many sellers in China has already done it and advertise on upgrading to 16gb, but they did not say much about the different resistor etc.

Neither links are mine or affilated:

I'm curious. How much were they charging for the service?


gatchirow

macrumors newbie
Apr 17, 2023
1
0
I do, and have done quite a few machines for people at this point (including MacBook Airs and others). Just send me a PM.
Are you still doing this?? If so, please PM me because I cannot seem to find that option anywhere.


overshoot

macrumors regular
Oct 11, 2018
105
22
Hi guys,
I've tried the upgrade with a 8GB RAM kit from a 2014 MacBook Air, Hynix.
I've set the resistors config according to the pictures above and I am getting the Mac to beep 3 times.
My chips are the H9CCNNNBLTML.
I've tried to look them up in the list that Alex shared but these are not listed.
Is it possible that those chips would not be supported on the MacMini knowing they worked on a MacBook Air A1466 2014?

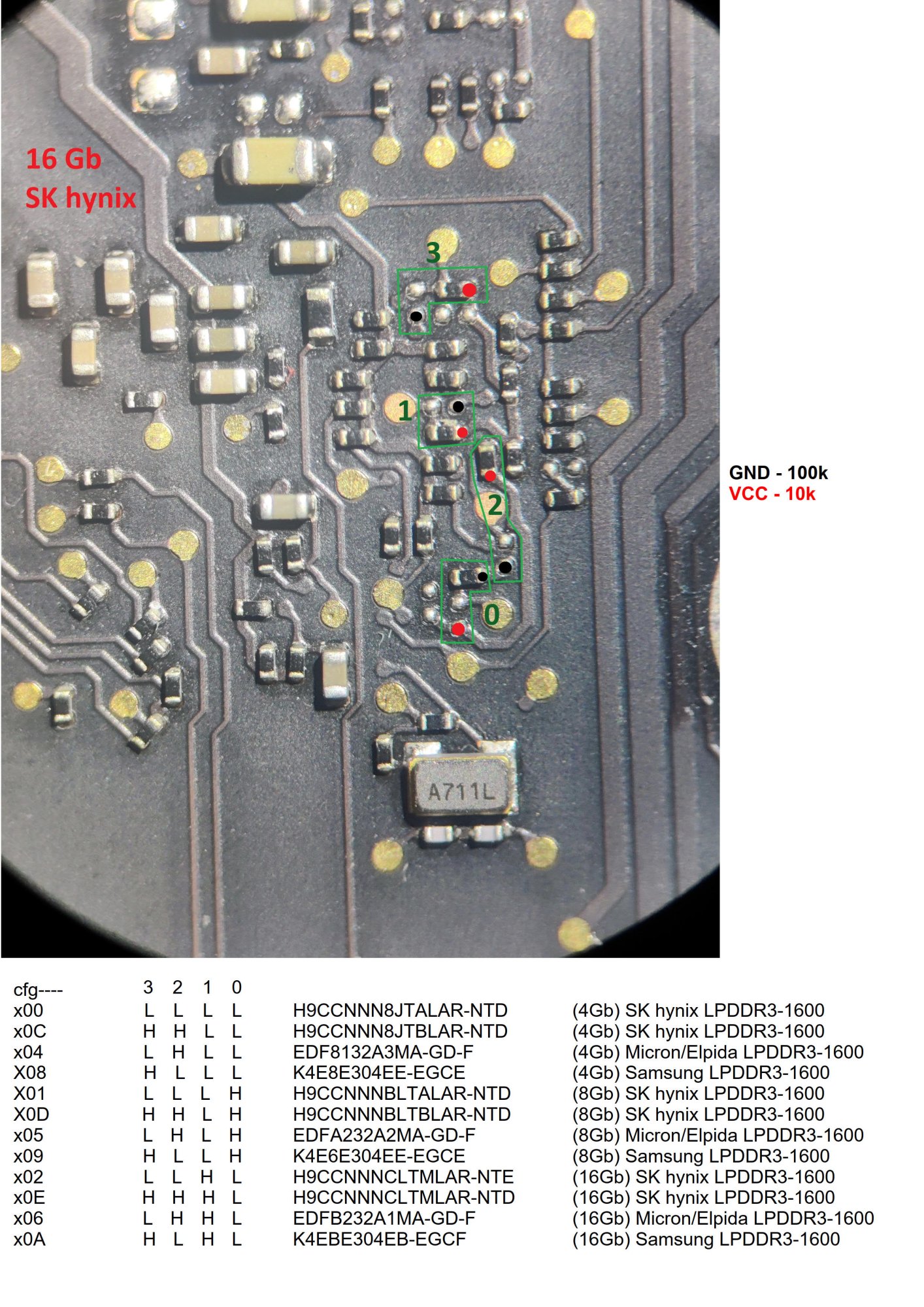

Also from Alex's list, an 8GB Hynix config can have 2 different resistors setup. So I am wondering if there could be a bunch of different combinations for the same vendor/RAMsize...

EDIT: Strangely enough, the first boot, it chimed and worked however I only got 4GB of RAM as the previous config with the 2 banks populated...

Any help would be appreciated.

Last edited:

dosdude1

macrumors 68030
Feb 16, 2012
2,716
7,185
Hi guys,
I've tried the upgrade with a 8GB RAM kit from a 2014 MacBook Air, Hynix.
I've set the resistors config according to the pictures above and I am getting the Mac to beep 3 times.
My chips are the H9CCNNNBLTML.
I've tried to look them up in the list that Alex shared but these are not listed.
Is it possible that those chips would not be supported on the MacMini knowing they worked on a MacBook Air A1466 2014?
Also from Alex's list, an 8GB Hynix config can have 2 different resistors setup. So I am wondering if there could be a bunch of different combinations for the same vendor/RAMsize...

EDIT: Strangely enough, the first boot, it chimed and worked however I only got 4GB of RAM as the previous config with the 2 banks populated...

Any help would be appreciated.
Probably just bad solder joint on one of the chips, or one of the chips is bad. Also, just set the memory config to any 8GB one; the manufacturer info does not matter or make any difference (other than what is printed in System Profiler).


overshoot

macrumors regular
Oct 11, 2018
105
22
Probably just bad solder joint on one of the chips, or one of the chips is bad. Also, just set the memory config to any 8GB one; the manufacturer info does not matter or make any difference (other than what is printed in System Profiler).
Thanks for answering. Well I've redid all the work, re-balled all the RAM chips, re-set the resistor jumpers and it still beeps 3 times.
Can I take RAM chips from 2015/2017 MacBook Air models?
