Mac mini nightmare please help me

Discussion in 'Mac mini' started by WhiteIphone5, Jun 24, 2013.

  1. WhiteIphone5 macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #1
    2011 Mac mini

    I had it connected it to my 55" GT50 via HDMI, worked flawlessly
    Then my brother gave me his 34" Polaroid, I wanted to use my Mac mini with that instead but it doesn't work. I use the same HDMI cable and when I plug it in I see like pixels everywhere looks as if the Mac mini GPU died or is failing, but them when I connect it to the 55 again it works -.-
    So I'm thinking maybe the 34" TV has some issue or the port is not working, so I connect my Apple TV To it and it works fine

    Ugh what's going on?

  2. SVTmaniac macrumors 6502

    Joined:
    Jan 30, 2013
    #2
    Have you plugged any other HDMI device into the Polaroid to see if it's just a bad display?

  3. WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #3
    Yes my Apple TV and Panasonic bluray player and it works.

    ----------

    My Mac mini goes into sleep when my Polaroid detects the tv wtf :(

  4. WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #4
    Shows this when says no signal.


    Attached Files:

  5. WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #5
    It reboots after it shows image


    Attached Files:

  6. WhiteIphone5, Jun 24, 2013
    Last edited: Jun 24, 2013

    WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #6
    Just tried on my moms TV, and it works fine.
    There's something about this Polaroid with the mac that doesn't want to work together

    Update: When the Mac rebooted it plugged it on another tv and copied the code
    can anyone find out why its happening with this specific tv?

    Interval Since Last Panic Report: 44274 sec
    Panics Since Last Report: 3
    Anonymous UUID: 62D09B23-B171-921A-85C8-010E5C514C7E

    Mon Jun 24 17:52:56 2013
    Machine-check capabilities 0x0000000000000c07:
    family: 6 model: 42 stepping: 7 microcode: 26
    Intel(R) Core(TM) i5-2415M CPU @ 2.30GHz
    7 error-reporting banks
    threshold-based error status present
    extended corrected memory error handling present
    Processor 0: machine-check status 0x0000000000000005:
    restart IP valid
    machine-check in progress
    MCA error-reporting registers:
    IA32_MC0_STATUS(0x401): 0x0000000000000000 invalid
    IA32_MC1_STATUS(0x405): 0x0980000000000000 invalid
    IA32_MC2_STATUS(0x409): 0x0000000000000000 invalid
    IA32_MC3_STATUS(0x40d): 0x0000000000000000 invalid
    IA32_MC4_STATUS(0x411): 0xb200000011000402 valid
    MCA error code: 0x0402
    Model specific error code: 0x1100
    Other information: 0x00000000
    Threshold-based status: Undefined
    Status bits:
    Processor context corrupt
    Error enabled
    Uncorrected error
    IA32_MC5_STATUS(0x415): 0x0020000000000000 invalid
    IA32_MC6_STATUS(0x419): 0x0020000000000000 invalid
    Processor 1: machine-check status 0x0000000000000005:
    restart IP valid
    machine-check in progress
    MCA error-reporting registers:
    IA32_MC0_STATUS(0x401): 0x0000000000000000 invalid
    IA32_MC1_STATUS(0x405): 0x0980000000000000 invalid
    IA32_MC2_STATUS(0x409): 0x0000000000000000 invalid
    IA32_MC3_STATUS(0x40d): 0x0000000000000000 invalid
    IA32_MC4_STATUS(0x411): 0xb200000011000402 valid
    MCA error code: 0x0402
    Model specific error code: 0x1100
    Other information: 0x00000000
    Threshold-based status: Undefined
    Status bits:
    Processor context corrupt
    Error enabled
    Uncorrected error
    IA32_MC5_STATUS(0x415): 0x0020000000000000 invalid
    IA32_MC6_STATUS(0x419): 0x0020000000000000 invalid
    Processor 2: no machine-check status reported
    Processor 3: no machine-check status reported
    panic(cpu 0 caller 0xffffff80060b8ec9): "Machine Check at 0xffffff7f877d425f, registers:\n" "CR0: 0x000000008001003b, CR2: 0x00007fff87993a52, CR3: 0x00000000082d4000, CR4: 0x00000000000606e0\n" "RAX: 0xffffff8069e10000, RBX: 0xffffff80102bb000, RCX: 0xffffff800f656400, RDX: 0x0000000000252525\n" "RSP: 0xffffff806360bed0, RBP: 0xffffff806360bed0, RSI: 0x000000000004a894, RDI: 0xffffff8010023000\n" "R8: 0xffffff800f656500, R9: 0xffffff800f656600, R10: 0x0000000000000025, R11: 0xffffff800667def8\n" "R12: 0x0000000000000000, R13: 0xffffff8010117480, R14: 0x0000000000000000, R15: 0xffffff7f86b7e860\n" "RFL: 0x0000000000000202, RIP: 0xffffff7f877d425f, CS: 0x0000000000000008, SS: 0x0000000000000010\n" "Error code: 0x0000000000000000\n"@/SourceCache/xnu/xnu-2050.24.15/osfmk/i386/trap_native.c:280
    Backtrace (CPU 0), Frame : Return Address
    0xffffff8005f0bd20 : 0xffffff800601d626
    0xffffff8005f0bd90 : 0xffffff80060b8ec9
    0xffffff8005f0bf00 : 0xffffff80060cea4f
    0xffffff806360bed0 : 0xffffff7f877c6b99
    0xffffff806360bee0 : 0xffffff7f86b7e3f3
    0xffffff806360bf00 : 0xffffff800644b1ab
    0xffffff806360bf60 : 0xffffff800603e25e
    0xffffff806360bfb0 : 0xffffff80060b3137
    Kernel Extensions in backtrace:
    com.apple.iokit.IOGraphicsFamily(2.3.7)[990D1A42-DF16-3AB9-ABC1-6A88AC142244]@0xffffff7f86b75000->0xffffff7f86bacfff
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f86646000
    com.apple.driver.AppleIntelSNBGraphicsFB(8.1.2)[34C96C82-1E3B-3165-B6AD-85A9EC3376CE]@0xffffff7f877bc000->0xffffff7f877e9fff
    dependency: com.apple.iokit.IOACPIFamily(1.4)[A35915E8-C1B0-3C0F-81DF-5515BC9002FC]@0xffffff7f86ae1000
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f86646000
    dependency: com.apple.iokit.IOGraphicsFamily(2.3.7)[990D1A42-DF16-3AB9-ABC1-6A88AC142244]@0xffffff7f86b75000

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    12E55

    Kernel version:
    Darwin Kernel Version 12.4.0: Wed May 1 17:57:12 PDT 2013; root:xnu-2050.24.15~1/RELEASE_X86_64
    Kernel UUID: 896CB1E3-AB79-3DF1-B595-549DFFDF3D36
    Kernel slide: 0x0000000005e00000
    Kernel text base: 0xffffff8006000000
    System model name: Macmini5,1 (Mac-8ED6AF5B48C039E1)

    System uptime in nanoseconds: 41094435649
    last loaded kext at 39210335782: com.apple.driver.AppleHWSensor 1.9.5d0 (addr 0xffffff7f878b5000, size 36864)
    loaded kexts:
    com.apple.driver.AppleHWSensor 1.9.5d0
    com.apple.driver.AudioAUUC 1.60
    com.apple.iokit.IOBluetoothSerialManager 4.1.4f2
    com.apple.driver.AppleTyMCEDriver 1.0.2d2
    com.apple.driver.ApplePlatformEnabler 2.0.6d1
    com.apple.driver.AGPM 100.12.87
    com.apple.filesystems.autofs 3.0
    com.apple.driver.AppleMikeyHIDDriver 122
    com.apple.driver.AppleHDAHardwareConfigDriver 2.3.7fc4
    com.apple.driver.AppleHDA 2.3.7fc4
    com.apple.iokit.IOBluetoothUSBDFU 4.1.4f2
    com.apple.iokit.BroadcomBluetoothHCIControllerUSBTransport 4.1.4f2
    com.apple.driver.AppleMikeyDriver 2.3.7fc4
    com.apple.driver.AppleUpstreamUserClient 3.5.10
    com.apple.driver.AppleMCCSControl 1.1.11
    com.apple.driver.AppleSMCPDRC 1.0.0
    com.apple.driver.AppleMuxControl 3.4.5
    com.apple.driver.AppleLPC 1.6.0
    com.apple.iokit.IOUserEthernet 1.0.0d1
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.driver.ApplePolicyControl 3.4.5
    com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
    com.apple.driver.AppleIntelHD3000Graphics 8.1.2
    com.apple.driver.AppleIntelSNBGraphicsFB 8.1.2
    com.apple.driver.AppleIRController 320.15
    com.apple.driver.AppleFileSystemDriver 3.0.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.BootCache 34
    com.apple.driver.XsanFilter 404
    com.apple.iokit.IOAHCIBlockStorage 2.3.1
    com.apple.driver.AppleUSBHub 5.5.5
    com.apple.driver.AppleSDXC 1.4.2
    com.apple.iokit.AppleBCM5701Ethernet 3.6.1b4
    com.apple.driver.AirPort.Brcm4331 615.20.17
    com.apple.driver.AppleFWOHCI 4.9.6
    com.apple.driver.AppleUSBEHCI 5.5.0
    com.apple.driver.AppleAHCIPort 2.5.2
    com.apple.driver.AppleUSBUHCI 5.2.5
    com.apple.driver.AppleEFINVRAM 1.7
    com.apple.driver.AppleACPIButtons 1.7
    com.apple.driver.AppleRTC 1.5
    com.apple.driver.AppleHPET 1.8
    com.apple.driver.AppleSMBIOS 1.9
    com.apple.driver.AppleACPIEC 1.7
    com.apple.driver.AppleAPIC 1.6
    com.apple.driver.AppleIntelCPUPowerManagementClient 196.0.0
    com.apple.nke.applicationfirewall 4.0.39
    com.apple.security.quarantine 2.1
    com.apple.driver.AppleIntelCPUPowerManagement 196.0.0
    com.apple.iokit.IOSerialFamily 10.0.6
    com.apple.kext.triggers 1.0
    com.apple.driver.DspFuncLib 2.3.7fc4
    com.apple.iokit.IOAudioFamily 1.8.9fc11
    com.apple.kext.OSvKernDSPLib 1.6
    com.apple.iokit.AppleBluetoothHCIControllerUSBTransport 4.1.4f2
    com.apple.driver.AppleSMBusController 1.0.11d0
    com.apple.driver.AppleBacklightExpert 1.0.4
    com.apple.driver.AppleSMBusPCI 1.0.11d0
    com.apple.driver.AppleHDAController 2.3.7fc4
    com.apple.iokit.IOHDAFamily 2.3.7fc4
    com.apple.iokit.IOFireWireIP 2.2.5
    com.apple.iokit.IOSurface 86.0.4
    com.apple.iokit.IOBluetoothFamily 4.1.4f2
    com.apple.driver.AppleGraphicsControl 3.4.5
    com.apple.driver.AppleSMC 3.1.4d2
    com.apple.driver.IOPlatformPluginLegacy 1.0.0
    com.apple.driver.IOPlatformPluginFamily 5.3.0d51
    com.apple.driver.AppleThunderboltEDMSink 1.1.8
    com.apple.driver.AppleThunderboltEDMSource 1.1.8
    com.apple.iokit.IONDRVSupport 2.3.7
    com.apple.iokit.IOGraphicsFamily 2.3.7
    com.apple.iokit.IOSCSIArchitectureModelFamily 3.5.5
    com.apple.driver.AppleThunderboltDPOutAdapter 1.8.9
    com.apple.driver.AppleThunderboltDPInAdapter 1.8.9
    com.apple.driver.AppleThunderboltDPAdapterFamily 1.8.9
    com.apple.driver.AppleThunderboltPCIDownAdapter 1.2.6
    com.apple.iokit.IOUSBHIDDriver 5.2.5
    com.apple.driver.AppleUSBComposite 5.2.5
    com.apple.driver.AppleThunderboltNHI 1.7.8
    com.apple.iokit.IOThunderboltFamily 2.4.0
    com.apple.iokit.IOUSBUserClient 5.5.5
    com.apple.iokit.IOEthernetAVBController 1.0.2b1
    com.apple.iokit.IO80211Family 530.4
    com.apple.iokit.IONetworkingFamily 3.0
    com.apple.iokit.IOFireWireFamily 4.5.5
    com.apple.iokit.IOAHCIFamily 2.3.1
    com.apple.iokit.IOUSBFamily 5.6.0
    com.apple.driver.AppleEFIRuntime 1.7
    com.apple.iokit.IOHIDFamily 1.8.1
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 220.3
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 7
    com.apple.driver.DiskImages 345
    com.apple.iokit.IOStorageFamily 1.8
    com.apple.driver.AppleKeyStore 28.21
    com.apple.driver.AppleACPIPlatform 1.7
    com.apple.iokit.IOPCIFamily 2.7.3
    com.apple.iokit.IOACPIFamily 1.4
    com.apple.kec.corecrypto 1.0
    Model: Macmini5,1, BootROM MM51.0077.B10, 2 processors, Intel Core i5, 2.3 GHz, 3 GB, SMC 1.76f0
    Graphics: Intel HD Graphics 3000, Intel HD Graphics 3000, Built-In, 288 MB
    Memory Module: BANK 0/DIMM0, 1 GB, DDR3, 1333 MHz, 0x80AD, 0x484D54333132533642465236432D48392020
    Memory Module: BANK 1/DIMM0, 2 GB, DDR3, 1333 MHz, 0x80CE, 0x4D34373142353737334448302D4348392020
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xE4), Broadcom BCM43xx 1.0 (5.106.98.100.17)
    Bluetooth: Version 4.1.4f2 12041, 2 service, 18 devices, 1 incoming serial ports
    Network Service: Wi-Fi, AirPort, en1
    Serial ATA Device: TOSHIBA MK5065GSXF, 500.11 GB
    USB Device: hub_device, 0x0424 (SMSC), 0x2513, 0xfa100000 / 2
    USB Device: BRCM20702 Hub, 0x0a5c (Broadcom Corp.), 0x4500, 0xfa110000 / 3
    USB Device: Bluetooth USB Host Controller, apple_vendor_id, 0x8281, 0xfa113000 / 5
    USB Device: hub_device, 0x0424 (SMSC), 0x2513, 0xfd100000 / 2
    USB Device: USB Receiver, 0x046d (Logitech Inc.), 0xc52e, 0xfd120000 / 4
    USB Device: IR Receiver, apple_vendor_id, 0x8242, 0xfd110000 / 3

  7. opinio macrumors 65816

    Joined:
    Mar 23, 2013
    #7
    You could try a mini display port to VGA or DVI adapter, although as they are only suggestions which may not work it may be a slightly costly method of problem elimination. You will also need seperate sound as well so whilst they may work they are not the best option. Also your TV will need to support VGA or DVI.

    I have a similar problem at home. I have three minis that all work absolutely fine on a Sony Bravia LCD 40". They sort of work on a plasma 50" if I adjust the overscan, and none of them work on an elcheapo 21" TV I have. Although my Apple TV 3 and MacBook Air works fine on that 21" TV even though it is HDMI or DVI to HDMI (respectively) as well. So it appears to be the Mac mini in my case.

  8. WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #8
    i really want to know whats the problem behind it? why is it happening?

  9. opinio macrumors 65816

    Joined:
    Mar 23, 2013
    #9
    I am purely guessing (and don't quote me on this) but...

    I am guessing there are some universally accepted forms of HDMI based video signals that Apple and the TV/monitor companies etc must build their products by. Unfortunately they do not always match up.

    For example USB 2.0 standards call for the amps to be 0.5 Amps, but Apple breaches that standard for its iPad and Super Drive by having them at 2.01 and 1.6 Amps respectively (i believe it is 1.6 from memory?). That is why a super drive will usually not work on any other USB port than a modern Mac port because it only gets 0.5 assigned. And you can not charge an iPad on a standard USB port but can slow chanrge it on a iPhone charger which works at 1 amp. Apple does not always follow standards.

    This doesn't help you I know. Sorry.

  10. WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #10
    Thanks so much for the info wether is wrong or not, I appreciate it!!

    I'm going to order thunderbolt to VGA cable.

  11. fhall1 macrumors 68040

    fhall1

    Joined:
    Dec 18, 2007
    Location:
    (Central) NY State of mind
    #11
    Maybe the Mac is still outputting a 1080P signal from being hooked up to the other TVs (that are 1080P models) and the Polaroid is 720P and the Mac isn't switching to the proper resolution?

  12. WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #12
    I went on the gt50 lowered to 720p and connected to Polaroid and same issue.

    You know what's weird, the first time i did it, it worked. I disconnected Mac mini from gt50 and connected to Polaroid and it worked, until I choose best for display rather than scaled. Then screen went blue and it never worked again.

  13. opinio macrumors 65816

    Joined:
    Mar 23, 2013
    #13
    Are you running pal instead of NTSC or vice versa?

  14. WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #14
    Guide me on that I'm clueless.

  15. philipma1957 macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #15
    pal is a screen display format as is ntsc

  16. opinio macrumors 65816

    Joined:
    Mar 23, 2013
    #16
    In display settings you can set the screen display format as pal or ntsc. ntsc is US/Can/JP etc while Australia (and i think UK) is pal.

  17. philipma1957 macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #17
    yeah and since I have done the mistake of the wrong setting years ago I set it at pal not nstc I think he did the same thing. that messed up screen looks like mine did back in 2007

  18. WhiteIphone5 thread starter macrumors 65816

    WhiteIphone5

    Joined:
    May 27, 2011
    Location:
    Lima, Peru
    #18
    On the tv's menu display? Or on the Mac mini?

  19. philipma1957 macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #19
    My error was on the choice of resolutions for the display.

    it was a 1080i tv crt 32 inch weighed in at 250 pounds.

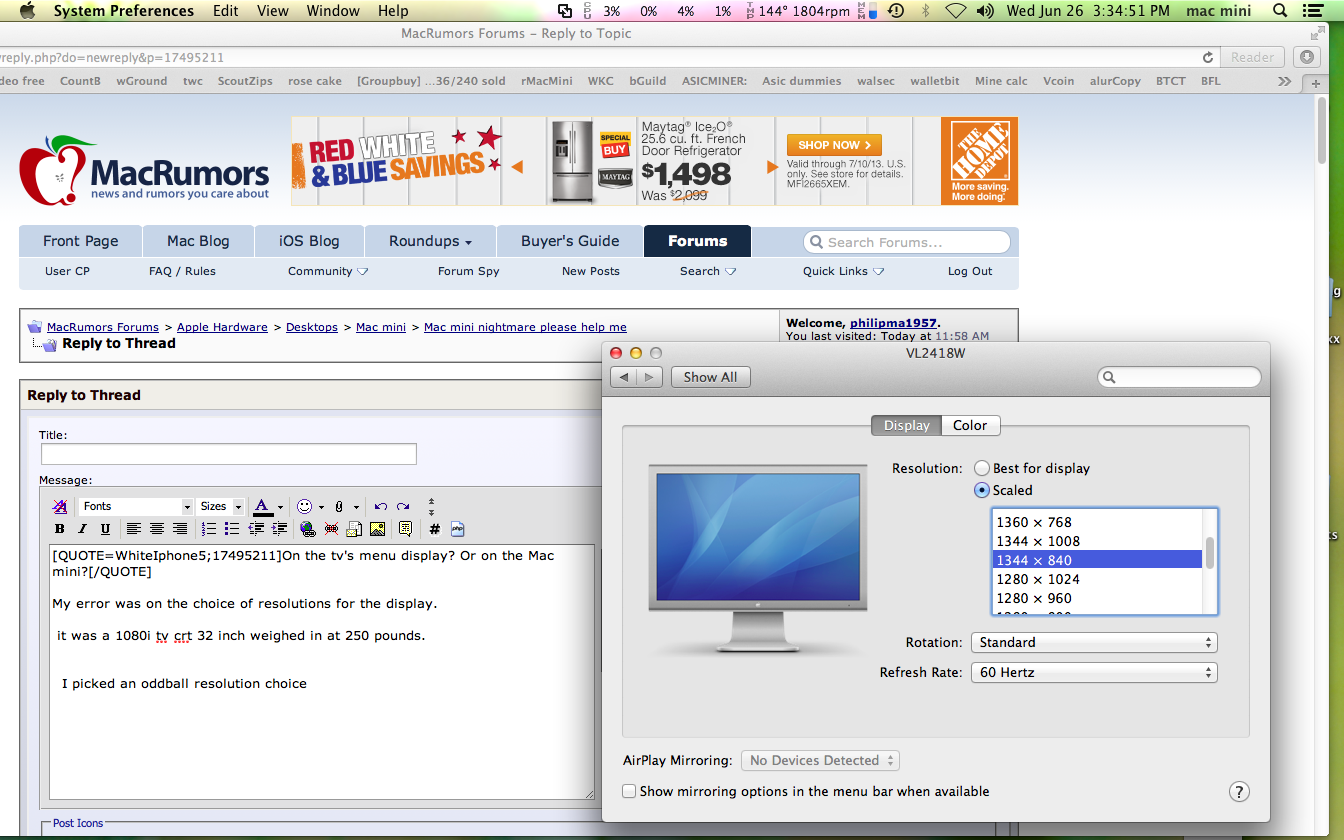

    I picked an oddball resolution choice. something like what you see although this is a monitor and I can not make that mistake


    Attached Files:

Share This Page
