Mac Pro 2009 processor upgrade went wrong

Discussion in 'Mac Pro' started by sebh, Jan 9, 2015.

  1. sebh macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #1
    Hi,

    I wanted to upgrade my early 2009 Mac Pro 8 Core to a 12 Core with Firmware 5.1 upgrade.

    Like the guy on this thread i got almost the same Problem.:mad:

    http://www.anandtech.com/show/2800/upgrading-and-analyzing-apple-s-nehalem-mac-pro/11

    after i changed the cpus i get a red light near the CPU A socket near dimm slots and a CPU A Temperature Overheat warning LED.

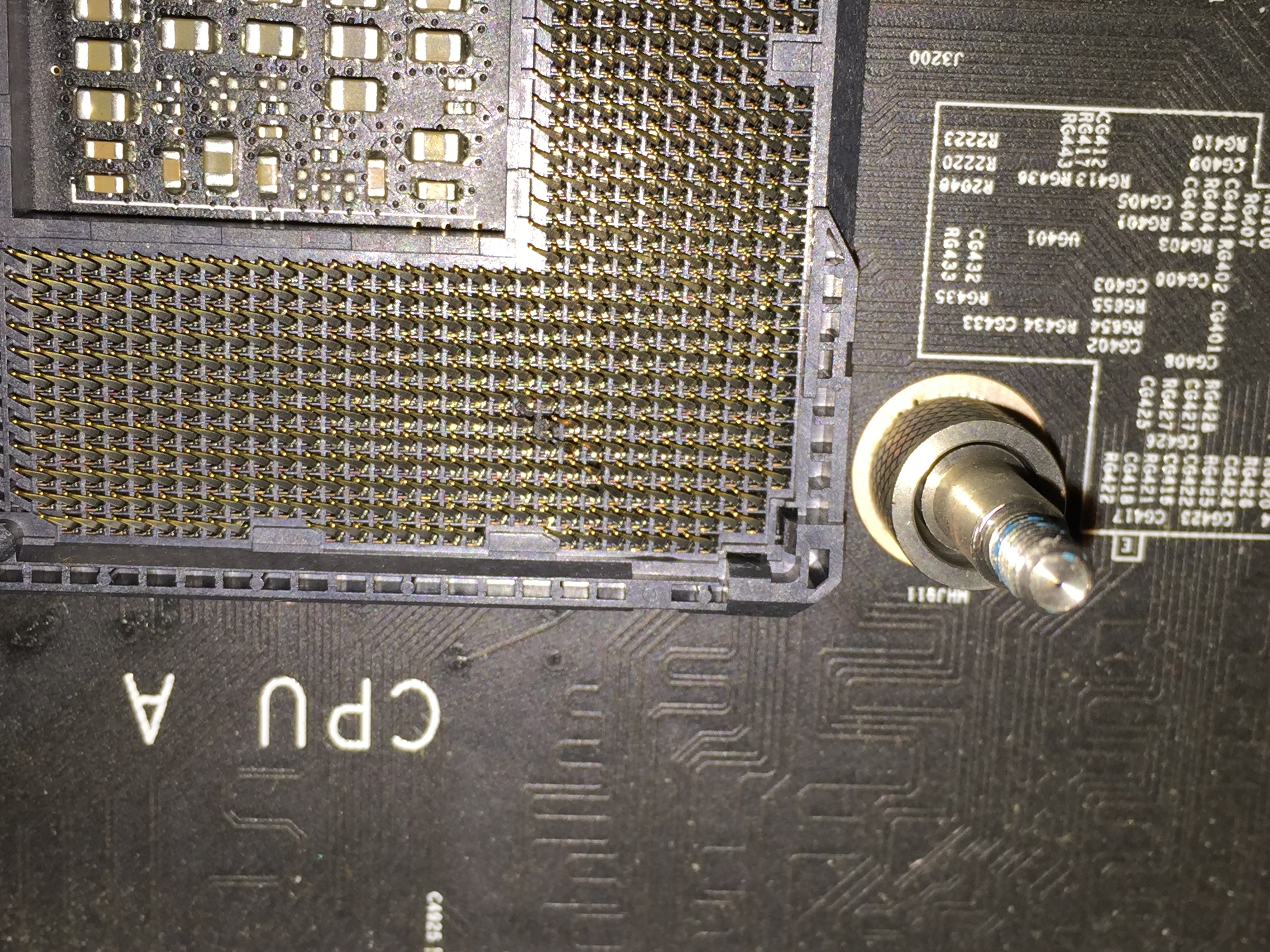

    after i remove the CPU_A heatsink i saw some bended pins hurray!
    So it looks like i killed the processor board. but what happend to cpus is it killed too or how can i know that its shorted or something.
    Has anyone some advice or experience with those problems?

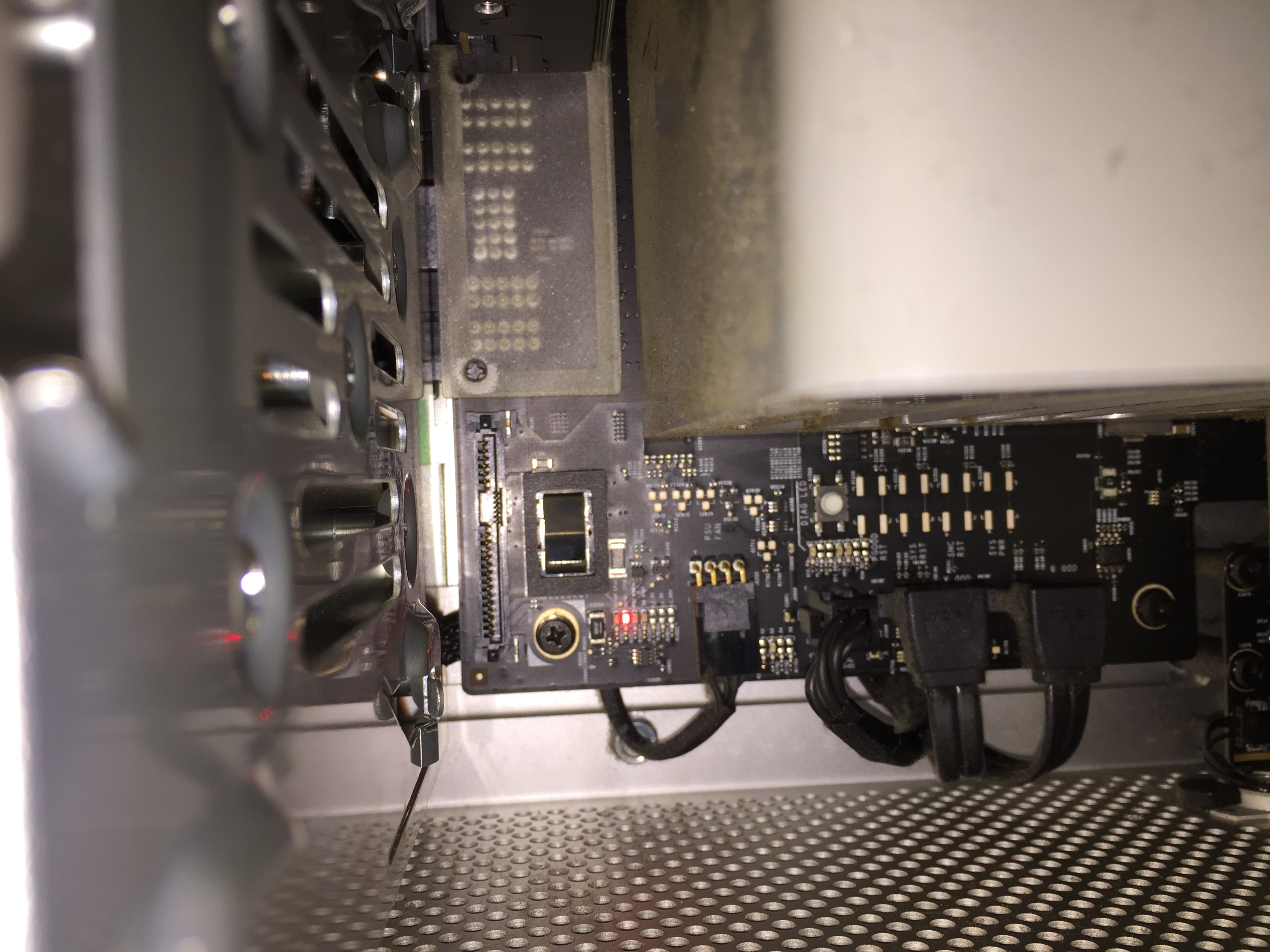

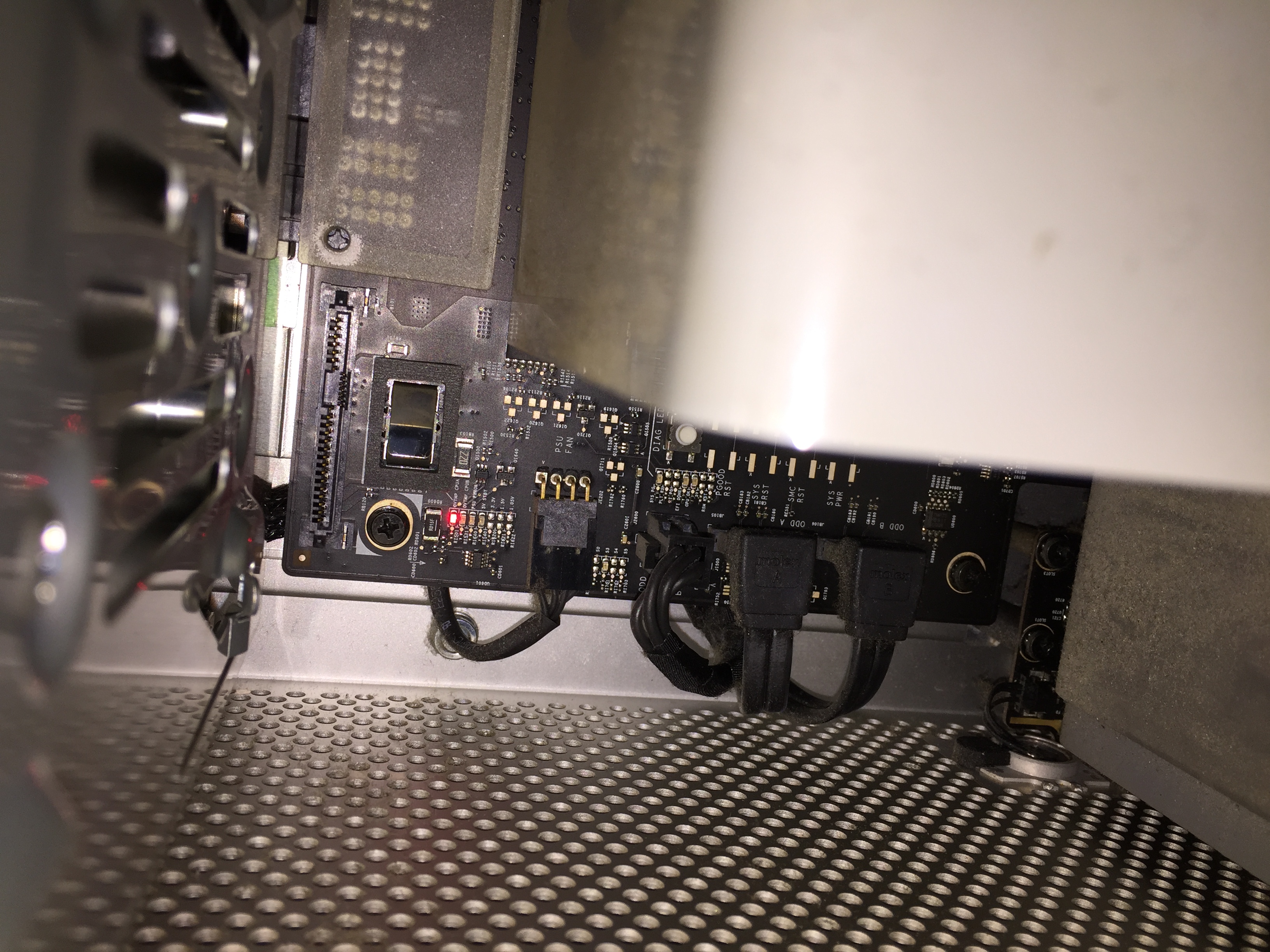

    Attached Files:

  2. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #2
    Try bending the pins back and not using so much pressure next time.

  3. sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #3
    But if i try that and it dosent work is the cpu than in danger.

  4. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #4
    You asked for advice and experience, that is my advice and experience.

  5. Zorn macrumors 6502a

    Zorn

    Joined:
    Feb 14, 2006
    Location:
    Ohio
    #5
    No, the pins are all on the board and not on the CPU. At this point your board is pretty much shot, your only chance would be to very carefully try to bend back the ones that are out of place, but no guarantee it will work. With the dual CPU 4,1 you have to be super careful with how much you tighten and preferably use washers.

    Sorry that happened to ya man =\ but it's definitely a risk you take when going this route.

  6. sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #6
    ok thx

    ----------

    i thought i tight it not much but i did the board is telling ;)
    i'm just confused that the guy from AnandTech killed both board and cpu.

  7. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #7

    You could have killed both the board and CPU but you won't know unless you bend then pins back and give it another go. If you get a dead processor light on the CPU switch them and try again. If you still get a dead processor light on that CPU then buy a processor board. I see them on ebay for $400-$800 put you CPUs in the new one more carefully with the new one or better yet de-lid them while you processor board shopping.

  8. sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #8
    sorry my english is not perfect what is de-lid?
    yeah i found one at uk for about 450 Euro with shipping because i'm from Germany and the customs from USA is expensive.
    http://www.thebookyard.com/product.php?cPath=87_207&products_id=9612

  9. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #9
    To de-lid is to take the integrated heat sink off the silver part.

    I'm also in Germany so it's no big deal, my German is not a good as your English.

  10. sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #10
    Ok Danke ;)

    I didn't know that this is possible.

  11. TruckdriverSean macrumors 6502a

    Joined:
    Feb 28, 2009
    Location:
    Texas, US
    #11
    I'll second the de-lidding suggestion. Yes it adds more expense, but being able to just follow the 2009 technicians guide is priceless IMHO.

  12. Upgrader, Jan 9, 2015
    Last edited: Feb 4, 2015

    Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #12
    Unless you’re an experienced engineer with the relevant equipment, de-lidding a CPU will likely go wrong. There is a guy who has the above credentials and will perform the de-lid for you properly, but obviously at a cost. Better and cheaper to read, re-read and re-read again the guide here: http://pindelski.org/Photography/2013/07/08/mac-pro-2009-part-tbd/
    This is, IMO, head and shoulders above every other guide I found. I followed it to the letter and my 4,1 processor upgrade worked first time. Two things I think need amplification from this guide: the tightness of the heatsink threads can vary *wildly* - regardless, you *must* follow the logic of counting the turns. Secondly, it’s easy to lean on heatsink B whilst working on heatsink A and vice versa. Avoid leaning on the heat sinks.

  13. Macsonic macrumors 65816

    Macsonic

    Joined:
    Sep 6, 2009
    Location:
    Earth
    #13
    Sorry to hear about what happened to your CPU tray. I also vote for what Truckdriversean suggested on De-lidding the CPUs. If you can find someone who specializes de-lidding in Germany would be good. There is a guy who offers de-lidding though he is in the U.S. Just an option.

    http://www.ebay.com/itm/Mac-Pro-200...420&rk=3&rkt=6&mehot=pp&sd=171632017581&rt=nc

  14. sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #14
    ok i tried it again with bending the pins back.
    Now it shows CPU B Temperature Overheat warning.
    But no light at processor Board.

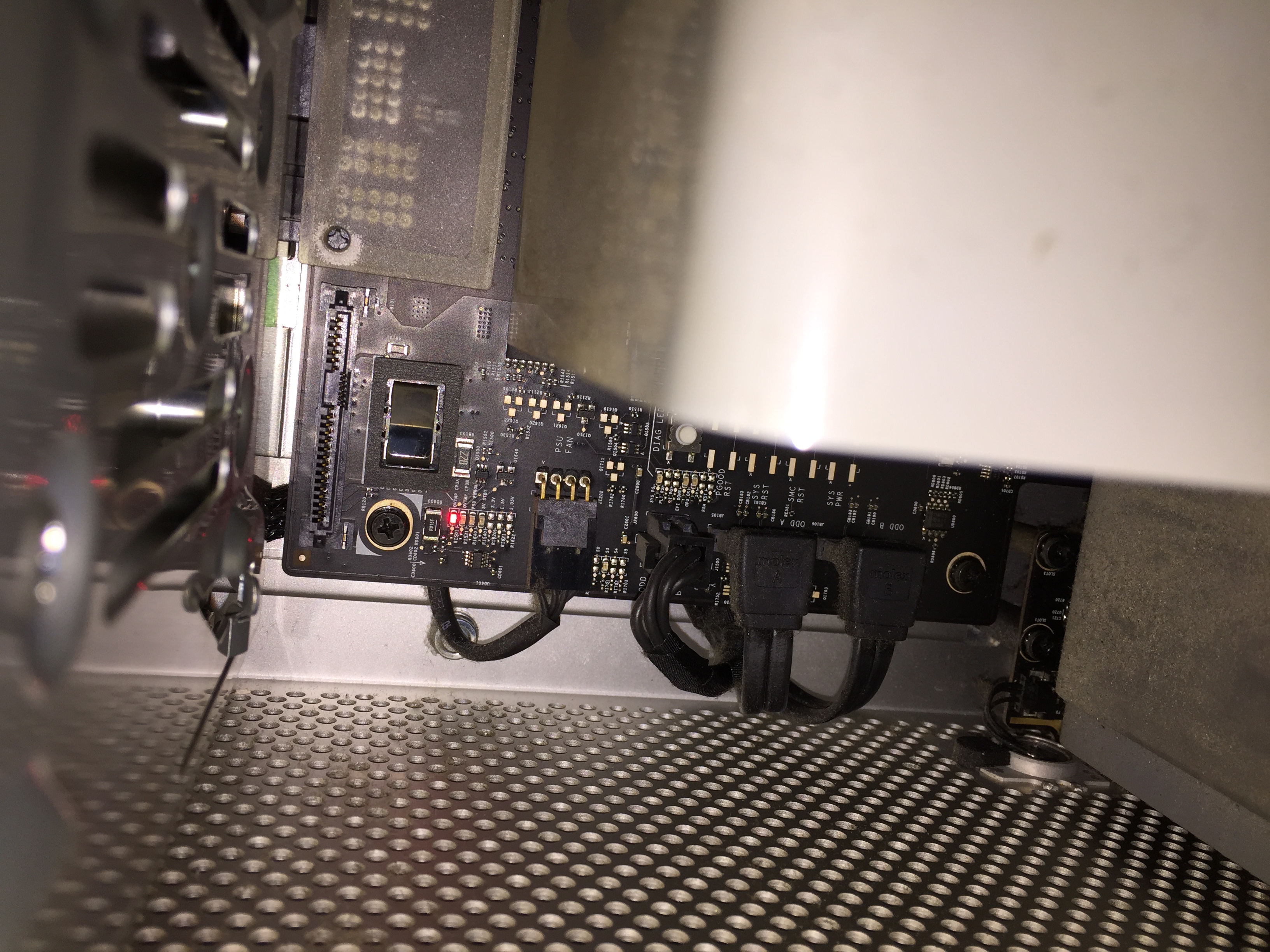

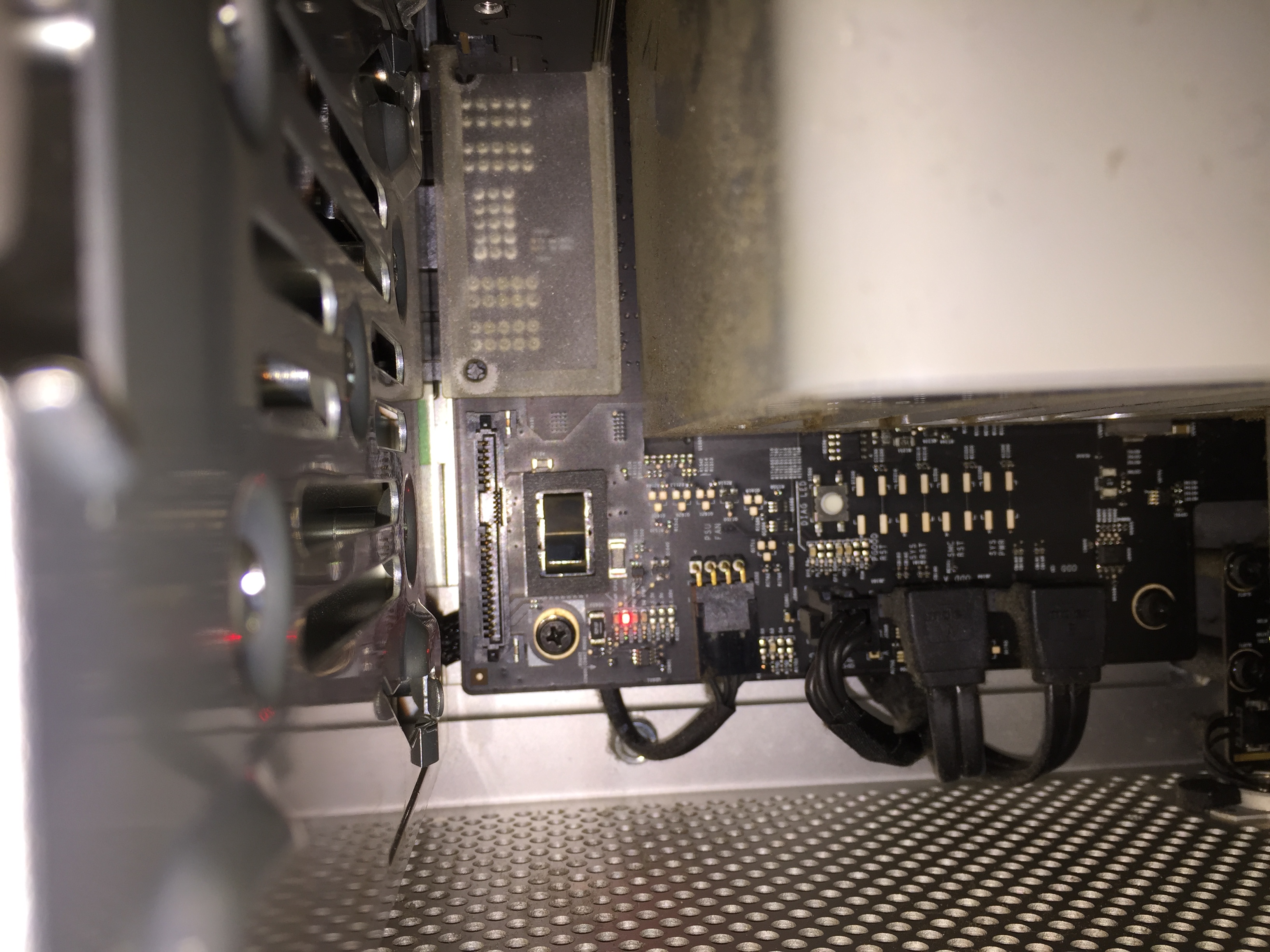

    Attached Files:

  15. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #15
    That means you got it either too loose or tight, but I can't remember which

  16. sebh, Jan 10, 2015
    Last edited: Jan 10, 2015

    sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #16
    another question when i change the processor board is the Mac Pro still on Firmware 5.1 ?

  17. Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #17
    Depends which whether you buy a 4,1 board or a 5,1 board. The seller will be able to tell you.

  18. sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #18
    i would buy a 4.1 board. But for 12 Core Westmere Xeon CPUs you need to do the firmware hack.
    And i don't know on what part of the mac pro the firmware is on.

  19. Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #19
    Ah I see, sorry, didn't quite understand your question. Yes, you'd have to perform the firmware flash again if the firmware was on 4,1 and to do this your boot disk would need mountain lion 10.8.5 or lower installed.

    This raises an interesting question: could you install a 2010 processor board in a 2009 machine? The components between the two models are almost identical. I'm guessing not as I think I would've read this already but it would be handy.

    ----------

    I'd assumed the Firmware was on the board, not the chip.

  20. sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #20
    i think i read somewhere than you have to change both processor board and Backplane/Logic Board.

  21. lowendlinux Contributor

    lowendlinux

    Joined:
    Sep 24, 2014
    Location:
    North Country (way upstate NY)
    #21
    I believe the chip is on the mother board not the country daughter board

  22. Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #22
    Yeah I think that's right. Might be worth digging the Anandtech article out where he crushes his pins and take your cue from there.

    Can I ask, what upgrade guide did you follow?

  23. sebh thread starter macrumors member

    Joined:
    Jan 9, 2015
    Location:
    munich
    #23
  24. asus321 macrumors newbie

    Joined:
    May 21, 2014
    #24
  25. Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #25
    Both YouTube videos miss some fundamental points that need covering. The Mac Observer article is better, but still doesn't afford this subject the gravity and detail it requires. Please, please read and re-read the Pindelski article I posted above. It will arm you with a very thorough understanding of all aspects of the upgrade process and greatly improve your chances of success. The author says that he's upgraded many 2009 machines with this method and not had one failure. I believe him.
