MP 1,1-5,1 Mac Pro 3,1 El Capitan Apple logo bot screen issue

Discussion in 'Mac Pro' started by MAVERICKk2, Jul 16, 2019.

  1. MAVERICKk2 macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #1
    Hi All,

    I have a problem with a Mac Pro 3,1 Early 2008.

    Every single time that I install El Capitan when the computer restarts after completing the installation process, the Mac Pro gets hung and the Apple logo bot screen cannot pass thru half way of the load. I have installed Lion all the way to Yosemite without problems, the problems are when I tried to install El Capitan.
    I have reset the PRAM and SMC and that hasn't done the trick. Not sure what could be causing the problem.

    My Mac Pro es running the next hardware:
    2.8 GHz Quad-Core Intel Xenon
    8GB 800MHz ECC DDR2
    ATI Radeon HD 2600 XT 256MB

  2. jbarley macrumors 68040

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #2
  3. MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #3
    I don't know if it does have the latest version. Is there way to get the version installed from the sys preferences? but I guess I'll install the firmware update anyway! thanks man!

  4. jbarley macrumors 68040

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #4

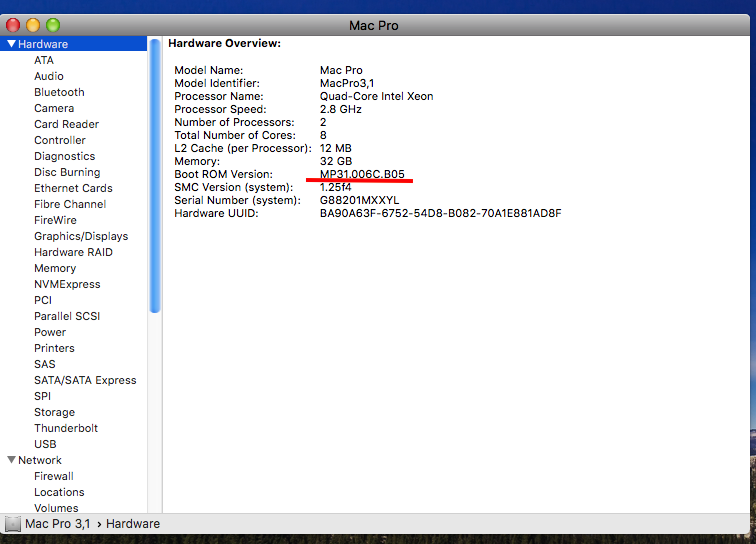

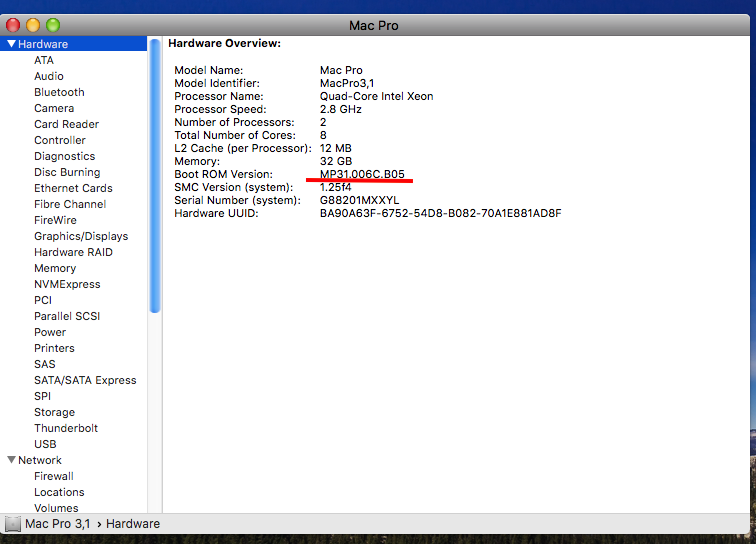

    You can find your rom version under "About this Mac" System Report.

    Screen Shot 2019-07-16 at 10.02.14 AM.png

  5. MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #5
    I'll check it after work, thank again!

  6. Ludacrisvp macrumors 6502

    Joined:
    May 14, 2008
    #6
    The 3,1 bootROM is ancient, I'd really doubt this is related.
    Get a verbose boot and post photos of where it stops loading.

  7. Macschrauber macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #7
    if you run the 2600 gpu this may be the culprit.

    try booting in safe mode (shift - key held on start) to avoid loading the drivers so the gpu just runs in unaccelerated mode.

  8. MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #8
    It does have boot ROM MP31.006C.B05

  9. MAVERICKk2, Jul 16, 2019
    Last edited: Jul 16, 2019

    MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #9

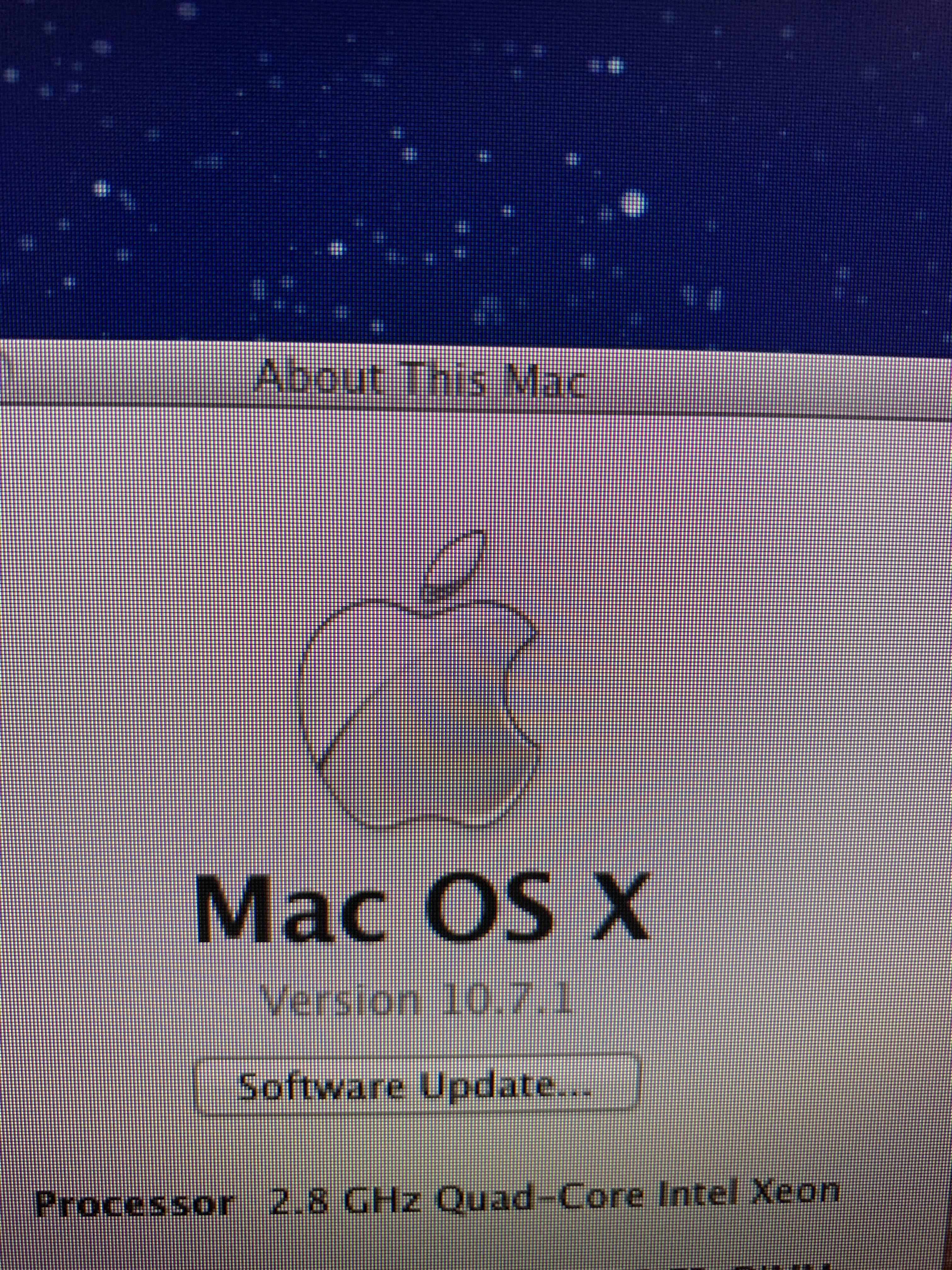

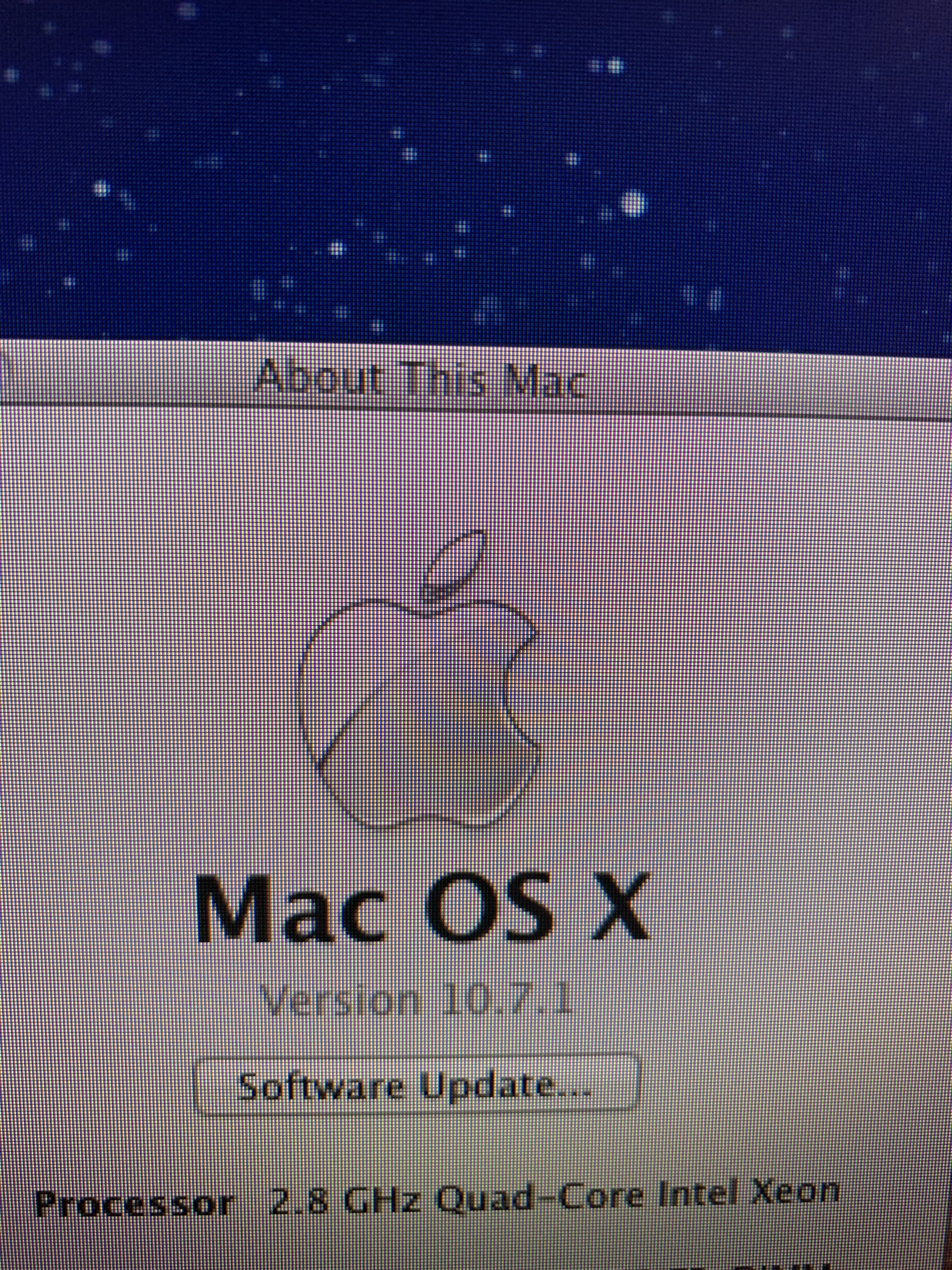

    Ok this is getting really odd. After installing Lion 10.7.1 and upgrading from there to El Capitan, things work correctly I was able to go thru the apple logo boot screen and using El Capitan.

    Now I'm trying to install Mojave using http://dosdude1.com and I'm getting the same problem with the apple log boot screen after the installation is completed. I will upload a picture of verbose log later. Also this could be because the ATI card doesn't support Metal 2?


    Attached Files:

  10. MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #10
    I think I have tried this and It didn't work, but will give it another try.

  11. MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #11

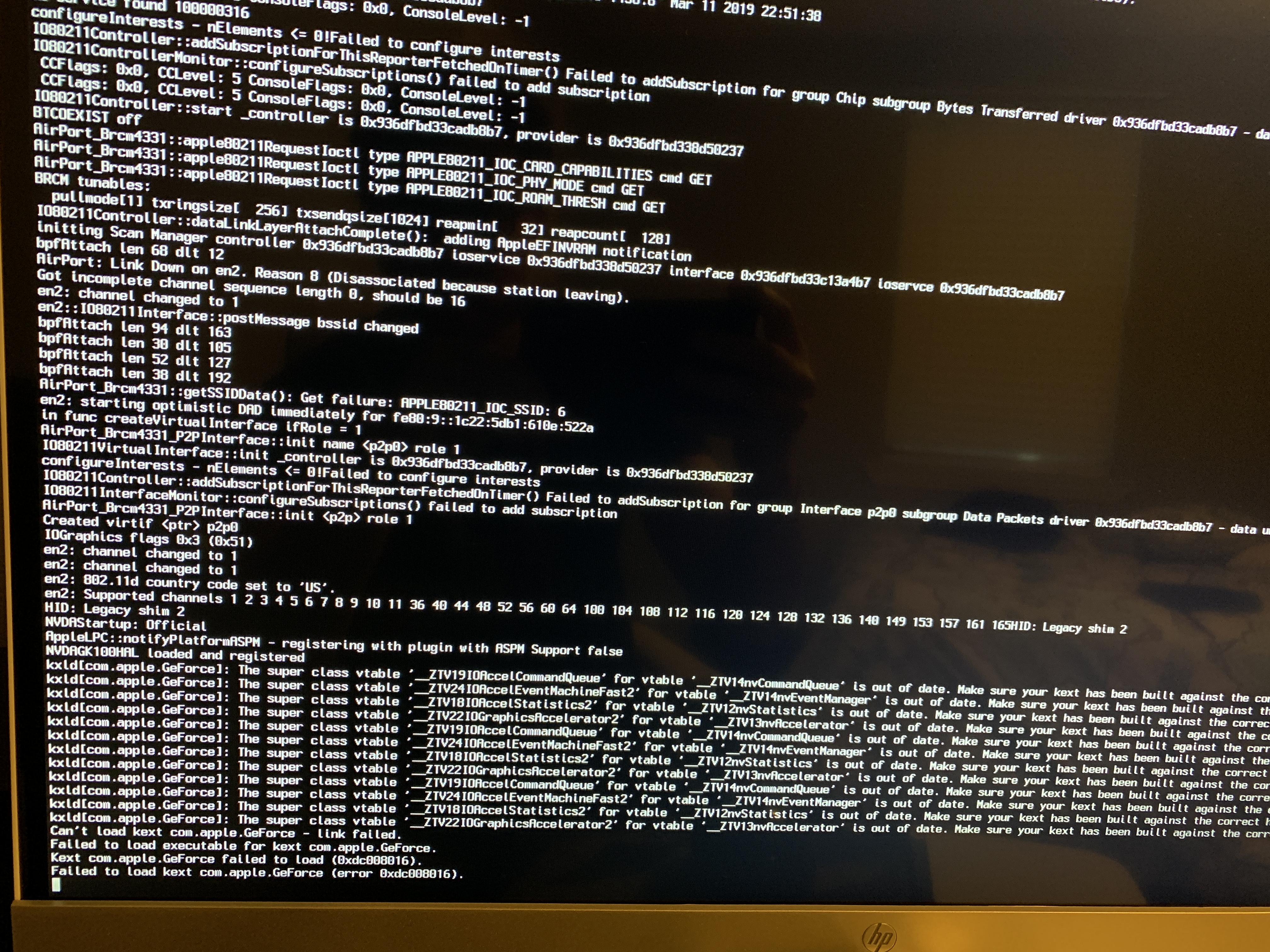

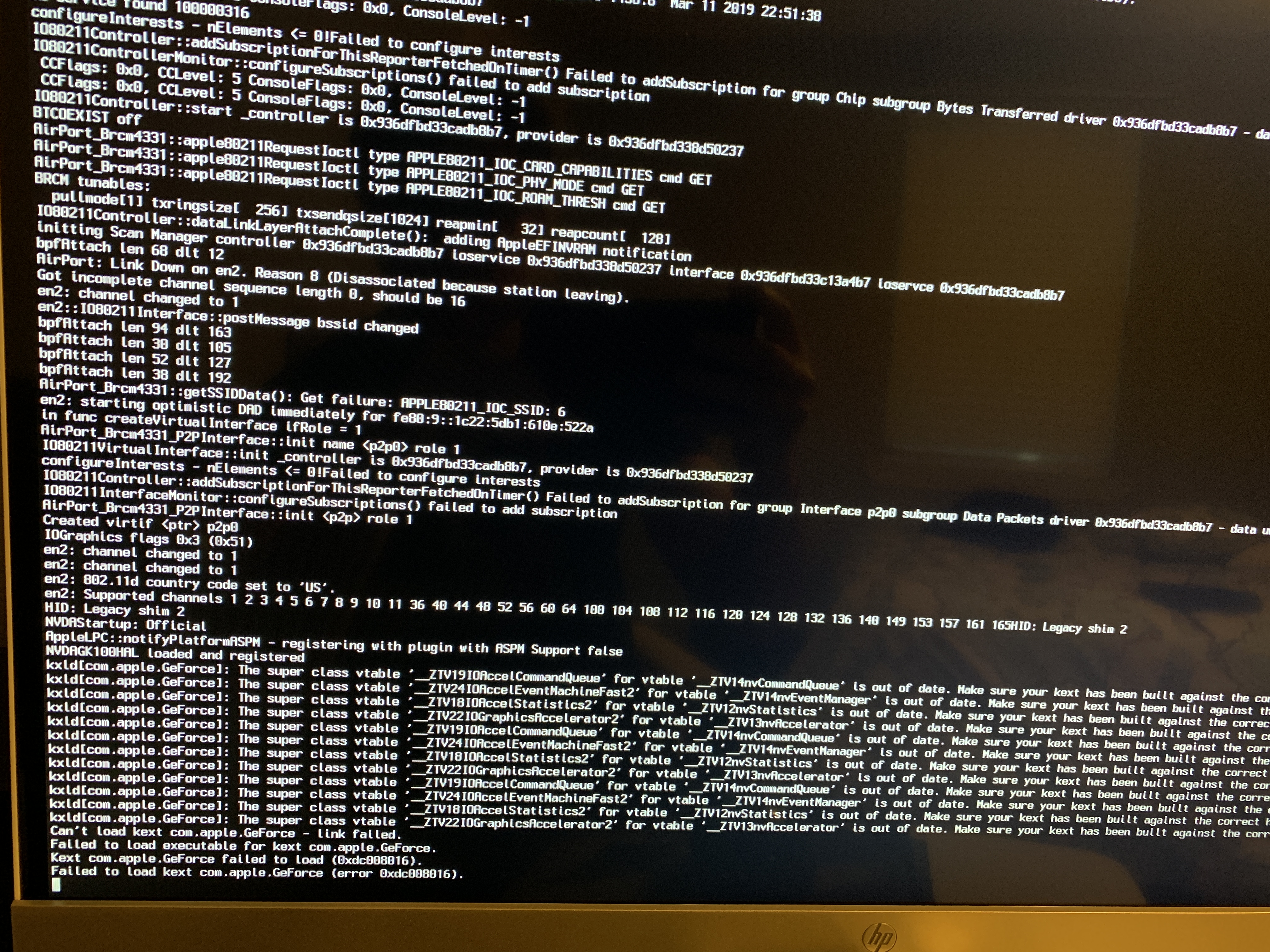

    Ok well, so I have change the GPU for a GTX 680 which works fine, but can't get beyond the apple boot logo after installing Mojave. Leave a picture of where it stops and the error.


    Attached Files:

  12. Ludacrisvp macrumors 6502

    Joined:
    May 14, 2008
    #12
    Looks like it is failing to load the Nvidia driver. To me that sounds like you have a modified or corrupted driver installed. There’s no reason you should have those last dozen or so lines after it loads NVDAGK100HAL.
    --- Post Merged, Jul 20, 2019 ---
    It’s critical that you don’t use patched / legacy video drivers as the GTX680 fully supports Metal.

  13. MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #13
    What I did is flashed my GTX 680 because it was a windows version. What will be the best course of action? I mean I have a backup of the windows rom

  14. Macschrauber macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #14
    Flash it back for test sake. Maybe it is not compatible.

  15. Ludacrisvp macrumors 6502

    Joined:
    May 14, 2008
    #15
    I don’t think the EFI flash has any involvement here. This looks like incompatible drivers.
    When you installed via the dosdude tool what options did you select in the post install patcher?

  16. MAVERICKk2, Jul 21, 2019
    Last edited: Jul 21, 2019

    MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #16

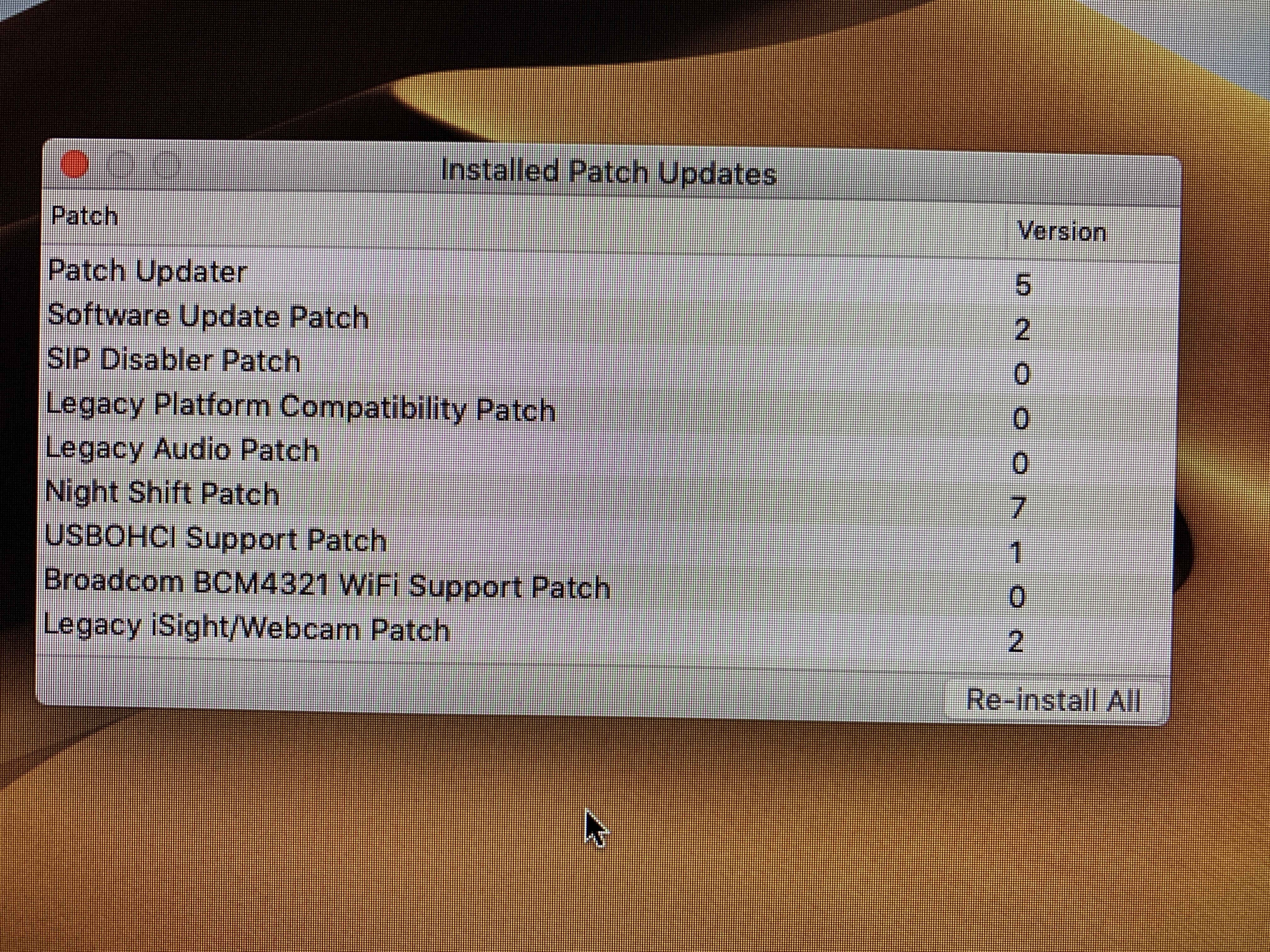

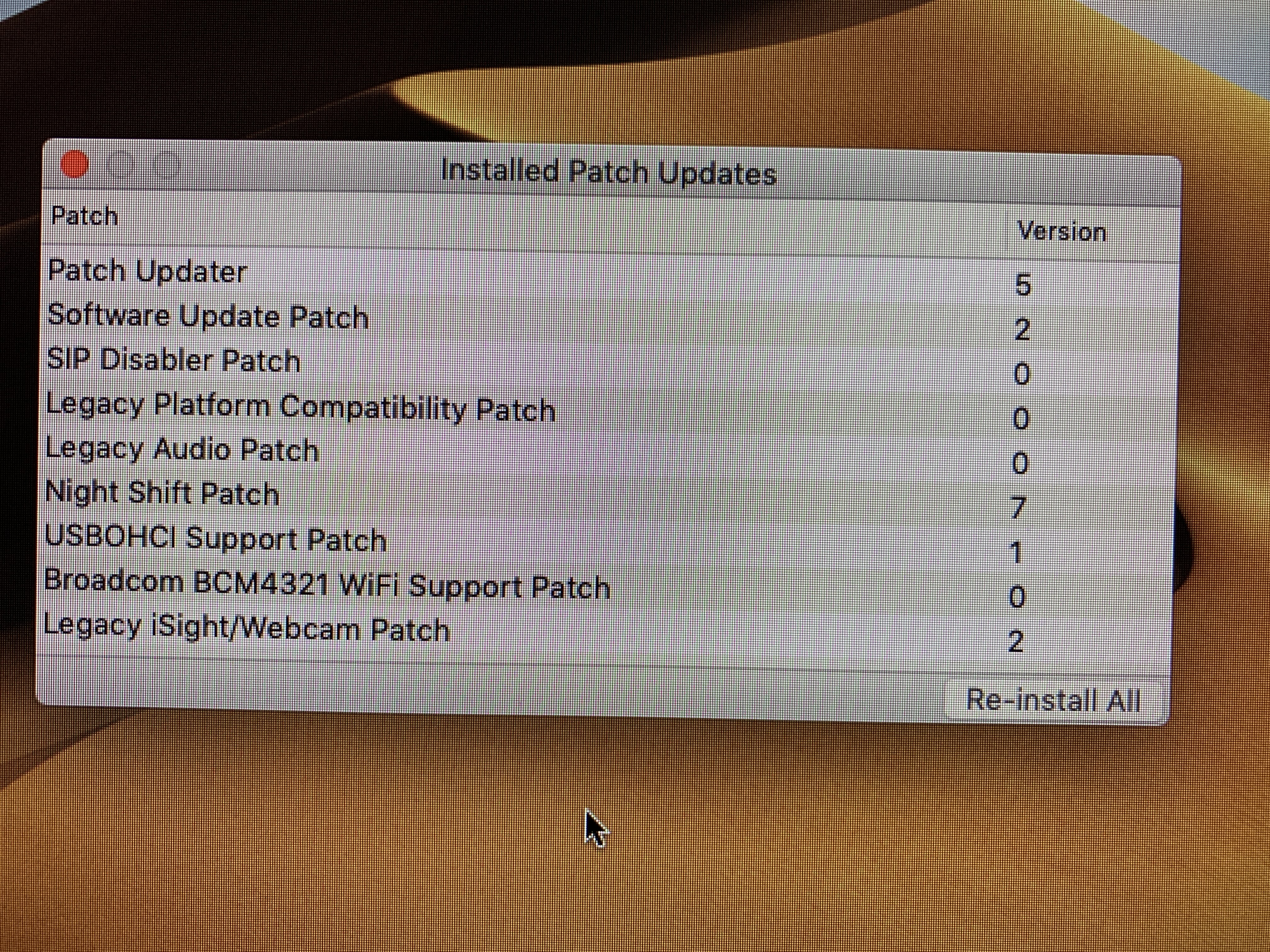

    The dosdue tool selects the default ones according to your Mac version I did not select nothing more. I’m attaching a picture.

    On the other hand all this time I’ve been using dvi-d, playing around this morning. I switched the output video for hdmi and I got signal and I’m using Mojave. But that doesn’t make any sense why it will work with hdmi and not dvi!


    Attached Files:

  17. MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #17
    Well by the end of the day changing the GPU from the ATI to GTX 680 helped. Also using HDMI instead of DVI which is weird, but now I have running El Capitan and Mojave on my machine. Thanks y'all for taking the time to check this post!

  18. drupi macrumors newbie

    drupi

    Joined:
    Sep 26, 2018
    Location:
    italy
    #18
    Excuse me, could anyone tell me which are the latest video cards that work on a mac pro 2008 + mojave?
    for example, do rx 580 8gb or rx 480 8gb work?
    or other video cards but not very old, thanks.

  19. MAVERICKk2 thread starter macrumors newbie

    MAVERICKk2

    Joined:
    Jul 15, 2019
    Location:
    New Orleans
    #19
  20. Ludacrisvp macrumors 6502

    Joined:
    May 14, 2008
    #20
  21. drupi macrumors newbie

    drupi

    Joined:
    Sep 26, 2018
    Location:
    italy
