Mac Pro (Late 2013) Pink Startup Screen Since macOS Sierra Update

Discussion in 'Mac Pro' started by Miscellaneous, Nov 2, 2016.

  1. Miscellaneous macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #1
    Hello!

    I have a Late 2013 nMP bought in early 2014 which originally came with OS X 10.9 Mavericks but was upgraded to OS X 10.10 Yosemite.

    I've recently upgraded to macOS Sierra and am experiencing some strange behaviour on startup where the screen has turned bright purple until I get to the login screen where it goes back to normal.

    The nMP is connected via HDMI to HDMI to an Asus 27" 1080p external monitor. I have tried PRAM and SMC resets using different cables, ports, monitors and adapters. I have also run the Apple Diagnostics test and it has resulted in 'no issues found'.

    Does anyone else have this issue or have an idea what it could be?

    Thanks for reading!


    Attached Files:

  2. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #2
    May be Apple trying to introduce the rose gold boot screen, but just not quite there yet :D

    Anyway, Sierra now load the GPU driver at the beginning of the loading screen. So, it's possible driver issue (if that happen right after the OS upgrade).

  3. BenTrovato macrumors 68020

    BenTrovato

    Joined:
    Jun 29, 2012
    Location:
    Canada
    #3
    I don't have the issue you have but I do have missing text for the log in names since upgrading to Sierra.

  4. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #4
    To OP, which GPU do you have?

    To BenTrovato, how about you, which GPU?

  5. BenTrovato macrumors 68020

    BenTrovato

    Joined:
    Jun 29, 2012
    Location:
    Canada
    #5

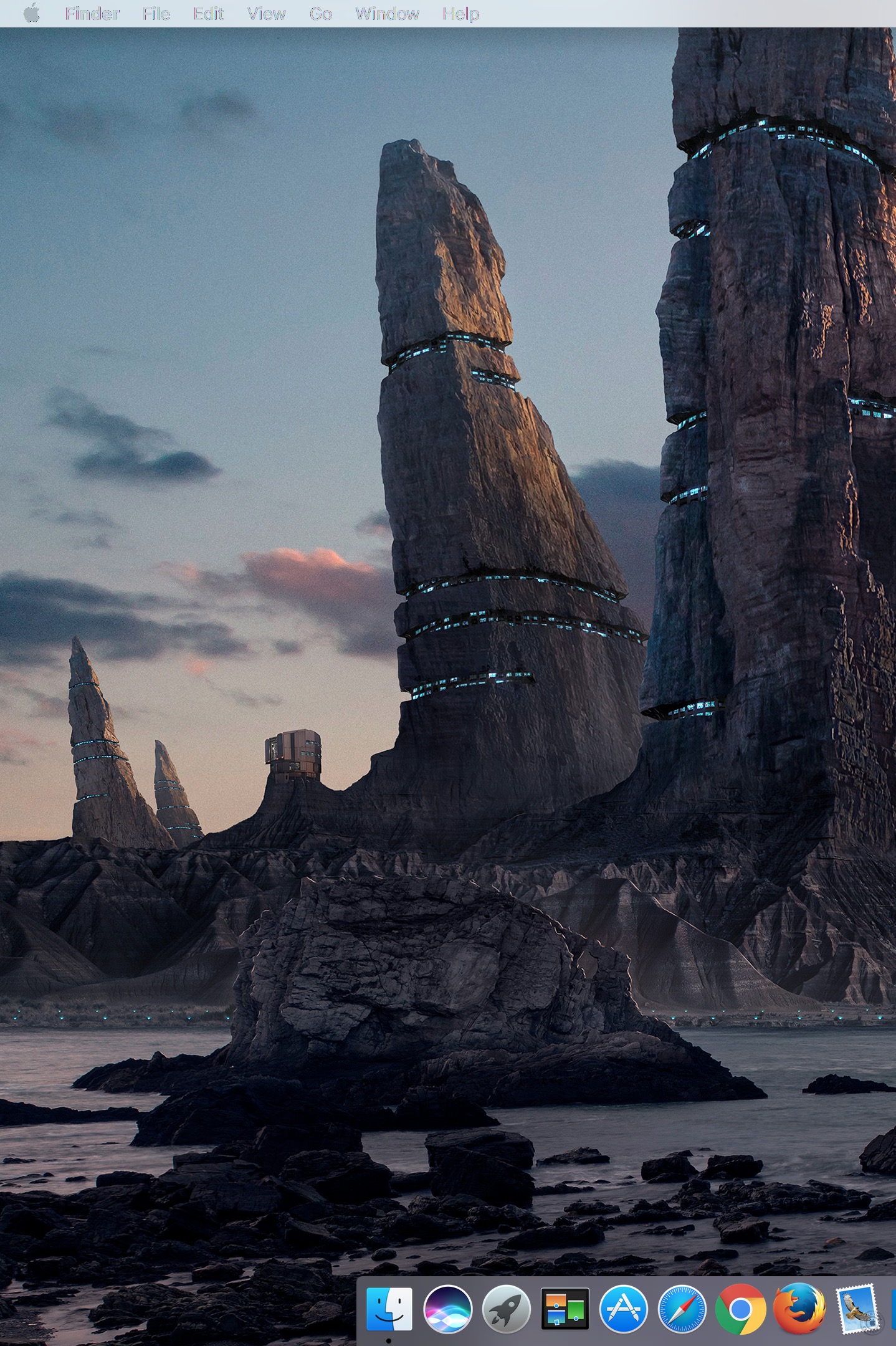

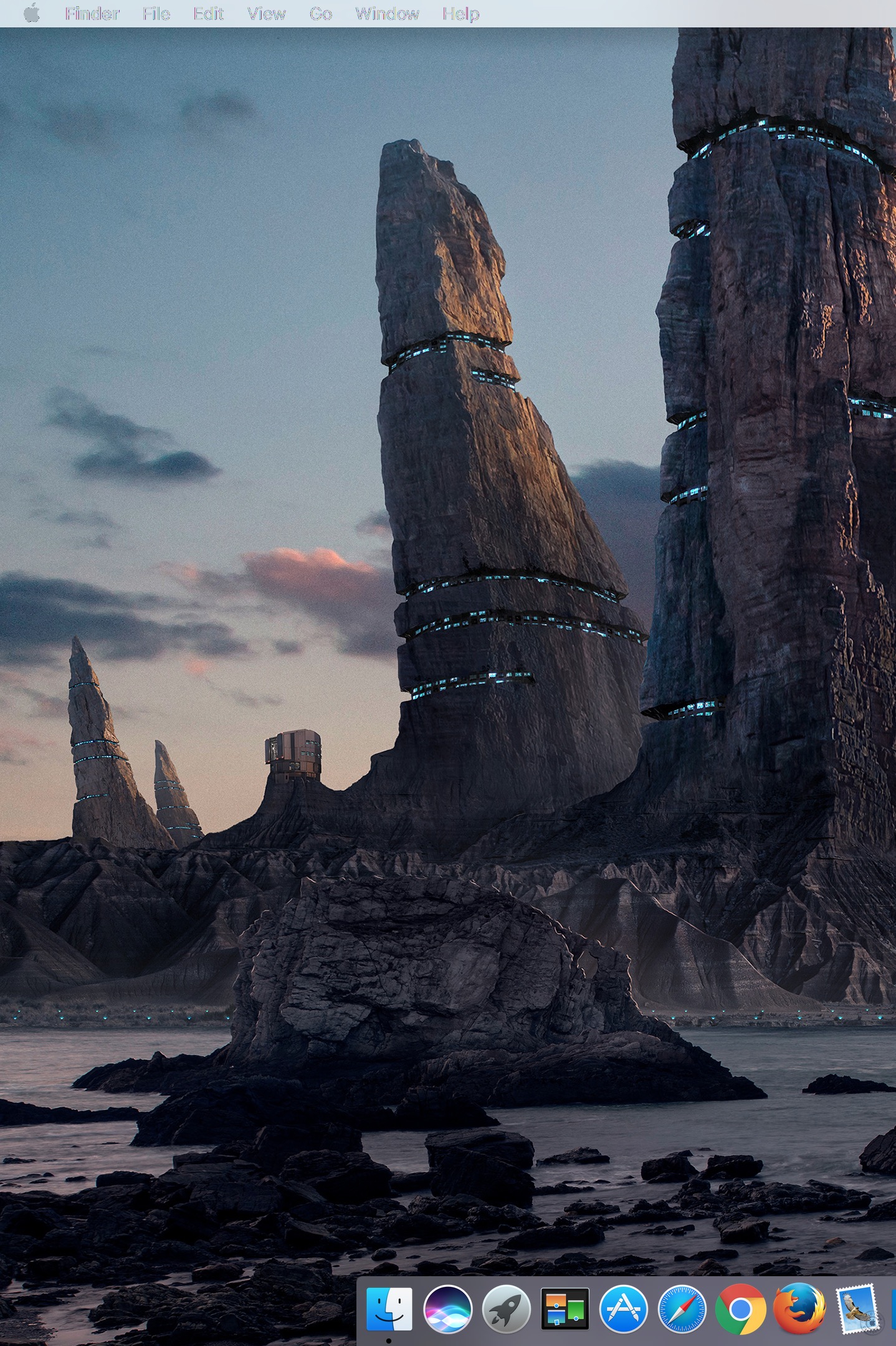

    For me the issue is on the Iris HD 4000. I also get pixelated graphics at some points. Take a look at the menu bar in this pic.


    Attached Files:

  6. Miscellaneous thread starter macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #6
    Yes it started during the macOS Sierra upgrade and has continued since then. I've been in touch with Apple Support who suggested for me to reinstall the OS over itself from the recovery menu. Unfortunately that didn't help and neither has a full factory restore (internet recovery reverting back to OS X 10.9.5 Mavericks). I was chatting to a senior advisor who informed me that it is a known issue and engineers are working on a fix in the 10.12.2 update.

    I've read a couple of threads on here with people having trouble with connecting to external monitors, correct display resolutions and start up graphics errors since upgrading to macOS Sierra.

  7. ActionableMango macrumors 604

    ActionableMango

    Joined:
    Sep 21, 2010
    #7
    Well the good news is that they are aware of the issue and an update is coming.

    Stories like this reaffirm my decision to wait ~6 months before updating the OS.

    Is this a "Hack Pro"? There is no Mac Pro with an HD4000 GPU.

  8. BenTrovato macrumors 68020

    BenTrovato

    Joined:
    Jun 29, 2012
    Location:
    Canada
    #8
    2012 Mac mini.

  9. AkuskaUK macrumors 6502

    AkuskaUK

    Joined:
    Mar 18, 2011
    Location:
    Shanklin, Isle Of Wight
  10. archimacpro macrumors newbie

    Joined:
    Oct 24, 2016
    Location:
    NZ
    #10
    Got the same issue - only since updating to Sierra, and only of my Dell 34" hdmi. No other issues.

  11. Miscellaneous thread starter macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #11
    Do you have a Thunderbolt Display? Apparently the issue is not present when connecting from TB to TB.

    I'm not saying that this is a fix, just another troubleshooting step to isolate the issue.

    Has anyone with this issue managed to find a solution?

  12. AkuskaUK macrumors 6502

    AkuskaUK

    Joined:
    Mar 18, 2011
    Location:
    Shanklin, Isle Of Wight
    #12
    I know this is an issue and a bug, but I really do wish that Apple would change the boot screen from the standard black background to something more prettier, you know... for the spinner drives that don't boot in 4 seconds :)

  13. Miscellaneous thread starter macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #13
    Upgraded to macOS Sierra 10.12.2 earlier this evening and the startup screen is still pink/purple. Anyone had any luck?

  14. Miscellaneous thread starter macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #15
    Has anyone had any luck with this issue? Did the macOS Sierra 10.12.3 update fix it for anybody?

  15. poematik13 macrumors 6502a

    Joined:
    Jun 5, 2014
    #16
    He's referring to another Mac. The HD4000 was a standard base model iGPU in several models in 2012-2013

  16. Miscellaneous thread starter macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #17
    Quick Update...

    I dropped off my Mac Pro and had it assessed by Stormfront over here in London UK. Oddly, they were unable to reproduce the issue and said that my Mac Pro is booting up completely normally. I collected it almost 2 weeks later and the pink startup screen is still there!

    I've also updated to macOS Sierra 10.12.3 last night and unfortunately that didn't fix the problem either.

    I decided to contact Apple Support again this morning. They apologised and advised me to take my Mac Pro to my local Apple Retail Store, assuring me that they will be able to take care of it. They don't have any appointments any time soon that are suitable for me so I'll have to keep checking back.

    Any advice?

  17. Logix1 macrumors newbie

    Joined:
    Feb 18, 2017
    #18
    My boot / startup screen is grey and actually i like the black boot screen, is there any way to change it from grey to black?

  18. AkuskaUK macrumors 6502

    AkuskaUK

    Joined:
    Mar 18, 2011
    Location:
    Shanklin, Isle Of Wight
    #19
    Supposedly, using this tool: https://github.com/w0lfschild/DarkBoot

    Use at your own risk though.

  19. 4God macrumors 68020

    4God

    Joined:
    Apr 5, 2005
    Location:
    My Mac
    #20
    I started getting the pink startup screen a couple of weeks ago and I'm still on El Cap. 6 core, dual D500's, 32GB RAM.

  20. Miscellaneous thread starter macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #21
    I have the same Mac Pro as you 4God but with 16GB RAM. I hope Apple will identify this issue and fix it with an update.

    A lot of people started getting this problem when updating to macOS Sierra but it's obviously also happening with previous versions of OS X.

  21. Miscellaneous thread starter macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #22
    Just wondering if this could be a firmware issue? I understand that firmware and smc updates are now distributed through the Mac App Store updates.

    Did anyone by any chance notice if the firmware was updated when upgrading to macOS Sierra?

    Below is a link to the latest/last firmware for the Mac Pro available from the Apple website. When I checked my firmware version it seems that it has been updated beyond this version. Whether or not the firmware was updated during the macOS Sierra installation, I'm not sure?!?

    https://support.apple.com/en-gb/HT201518

  22. Miscellaneous thread starter macrumors member

    Joined:
    Aug 30, 2014
    Location:
    London, UK
    #23
    Good News!

    I was reading this thread earlier and the issue has been addressed and fixed in the latest update.

    https://forums.macrumors.com/threads/graphical-glitches-on-reboot.2000716/

    I updated to the latest 10.12.4 Public Beta 6 and the pink startup screen is no longer present and I have the regular black boot screen! I thought I would share it with you guys, hoping that you would have the same luck, I'm so happy as I was really worried that my Mac Pro was developing a hardware fault.

    All The Best!

  23. AkuskaUK macrumors 6502

    AkuskaUK

    Joined:
    Mar 18, 2011
    Location:
    Shanklin, Isle Of Wight
    #24
    Glad its sorted, thanks for letting us know :)
