Macbook Pro Late 2013 pcIE ssd Link Speed?

[Motdofer]

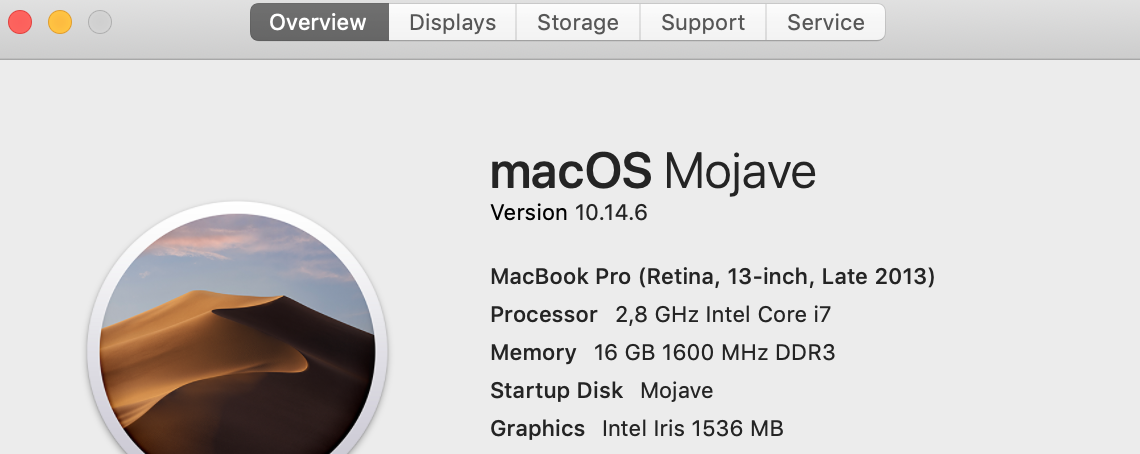

I have mbp late 2013 and i made two partition and two different OS. Then after for a while if i am not wrong, i remember that pcie link width x4 and 8Gt/s... But in fact i am not sure.. It s original stock ssd.

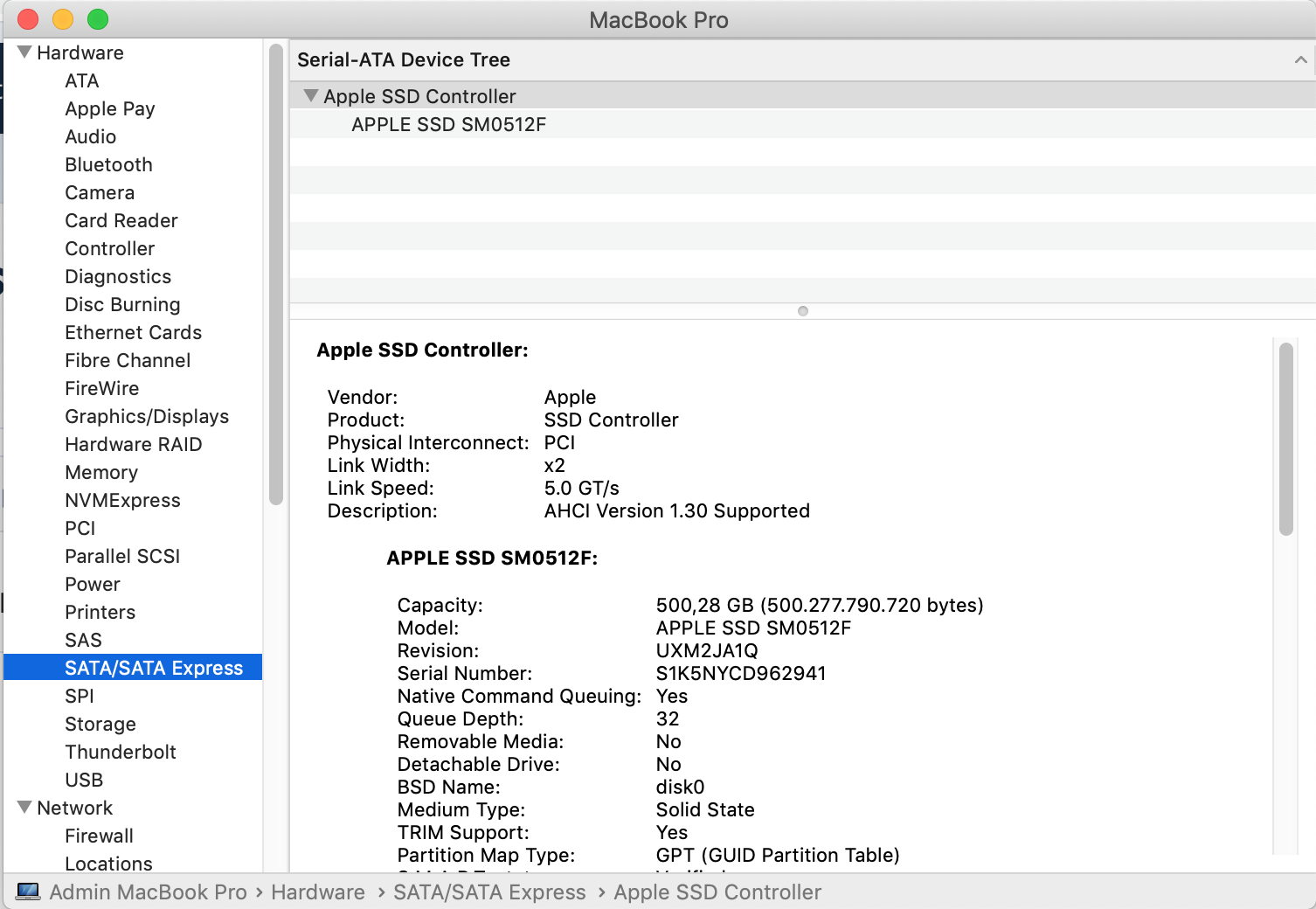

Controller is SM0512F looking 5GT/s and x2 line.

So Is anybody knows link width on this model macbook?



[BradMacPro]

If you look at this page, https://everymac.com/systems/apple/...i7-2.8-13-late-2013-retina-display-specs.html

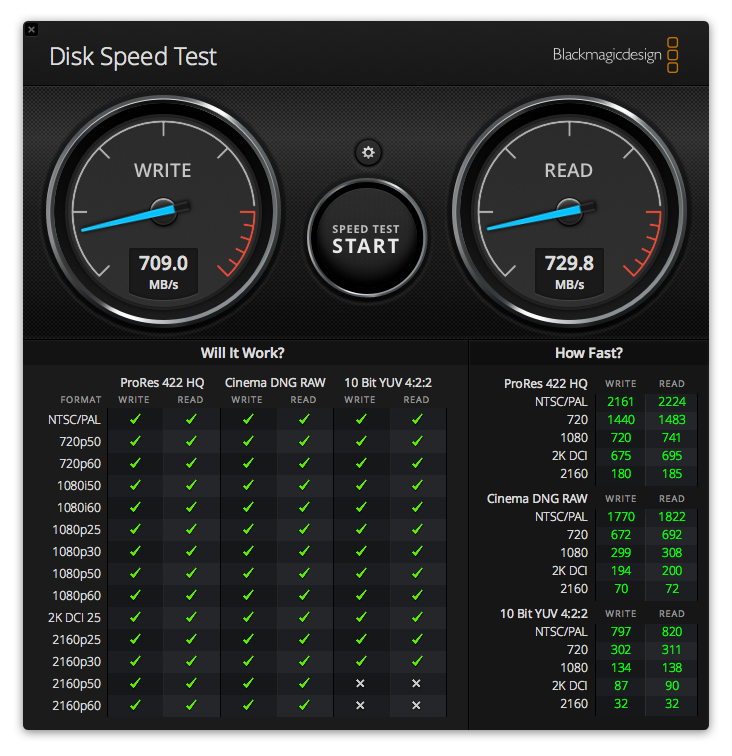

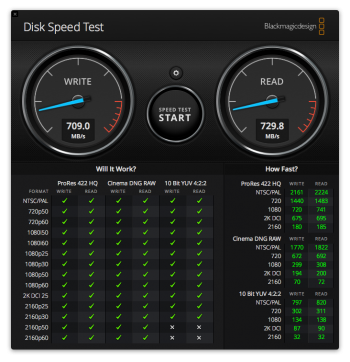

The link speed is right, in fact your test results are a bit higher.



[BradMacPro]

You may want to look at faster and high capacity drives

SSD Upgrades for 2013, 2014, and 2015 MacBook Pro

Upgrade the SSD of any 2013-2015 MacBook Pro for up to 16x the capacity of the original factory drive. Kit includes all tools needed for DIY installation.

eshop.macsales.com

The Aura Pro X2 are NVMe type but use the PCIe 3.1 standard but x4 link, while you screen shot shows only x2 link speed, which accounts for some of the speed shortcoming. The NVMe type SSDs have less latency than the old type.



[Motdofer]

If you look at this page, https://everymac.com/systems/apple/...i7-2.8-13-late-2013-retina-display-specs.html
The link speed is right, in fact your test results are a bit higher.

Thank you for your reply. I found that in specs;

Proprietary

Storage Interface:

Proprietary* (PCIe 2.0 x2)

Details:

*As first documented by site sponsor OWC, this model has a PCIe-based SSD (PCIe 2.0 x2 interface).

So 8GT/s and x4 line not for my pc i was wrong.



[Audit13]

If you decide to upgrade the SSD, I do not recommend the OWC drives because they are so expensive. You are better off getting a NVMe adapter and NVMe drive. This allows you to easily re-purpose the drive in another Mac or PC.

Upgrading 2013/2014 Macbook Pro SSD to M.2 NVMe

Hi everyone. Thanks so much for this thread and your advice. I am very new to upgrading and want to upgrade my MBA 13" early 2014, OS 11.0.1, BootROM 427.0.0.0.0.(Recently just upgraded to Big Sur) I want to go from my 128gb to 512gb SSD. Should I do the Sintech (short) with the Corsair MP510...

forums.macrumors.com



[zhoubolin]

Are you asking if the model 2013 MacBook Pro support Link Width: x4 pcle AHCI ssd ?
I think it should, I have test Link Width: x4 pcle AHCI ssd on 2014 MacBook Pro and I get twice reading and writing speed
