mangled .pdf

Discussion in 'Mac Apps and Mac App Store' started by powers74, Nov 8, 2009.

  1. powers74 macrumors 68000

    powers74

    Joined:
    Aug 18, 2008
    Location:
    At the bend in the river
    #1
    Any ideas why my .pdf files are a mangled mess of random characters?

    To make it even better, it's unpredictable! Sometimes it's only bold headings, sometimes it's the entire document.

    I've got no clue.

  2. Blue Velvet Moderator emeritus

    Joined:
    Jul 4, 2004
    #2
    How are you producing these PDFs? What apps are you using and what fonts do they contain? Does it do the same thing if you use different fonts?

    Try producing a PDF-X, it should be an option in the Print Dialogue box, tell us what happens.

  3. powers74 thread starter macrumors 68000

    powers74

    Joined:
    Aug 18, 2008
    Location:
    At the bend in the river
    #3
    No, these are simply .pdfs that I have dowloaded and opened up in preview. Some are worse than others, but nearly all are affected. When I create them they seem to be fine.

  4. Blue Velvet Moderator emeritus

    Joined:
    Jul 4, 2004
    #4
    Every PDF or just ones from a particular source?

    Try downloading Adobe Reader then, and see if the same problem happens. If you get the same problems, then there's something wrong with the particular PDFs that you're viewing.

    Another question: Do they print OK?

  5. powers74 thread starter macrumors 68000

    powers74

    Joined:
    Aug 18, 2008
    Location:
    At the bend in the river
    #5
    hmmmmm

    I'll look into those suggestions and get back with you. Though, it does not seem to be source specific. Thanks for your help!

  6. xUKHCx Administrator emeritus

    xUKHCx

    Joined:
    Jan 15, 2006
    Location:
    The Kop
    #6
    If you can post a link to the original source where you downloaded those pdf's we can see if the problems shows up on our computers, which would mean the source files are at fault.

  7. powers74 thread starter macrumors 68000

    powers74

    Joined:
    Aug 18, 2008
    Location:
    At the bend in the river
    #7
    here it is

    This is just the most recent file I've had an issue with. There have been many others which were much worse. The mangled portions seemed to be in the headers, or anything bold. And yeah, it prints all jacked up.


    Attached Files:

  8. Blue Velvet Moderator emeritus

    Joined:
    Jul 4, 2004
    #8
    OK, I've opened it up in Acrobat Pro and the main problem with this one is that a number of Windows Truetype fonts are not embedded within the document, which means that if you don't have the fonts on your machine, parts of it won't display properly.

    These Truetype fonts are:

    • Arial-Bold ItalicMT
    • Arial-BoldMT
    • Arial-ItalicMT
    • Verdana

    Check in FontBook and Spotlight to see what you have and whether they're activated.

  9. xUKHCx Administrator emeritus

    xUKHCx

    Joined:
    Jan 15, 2006
    Location:
    The Kop
    #9

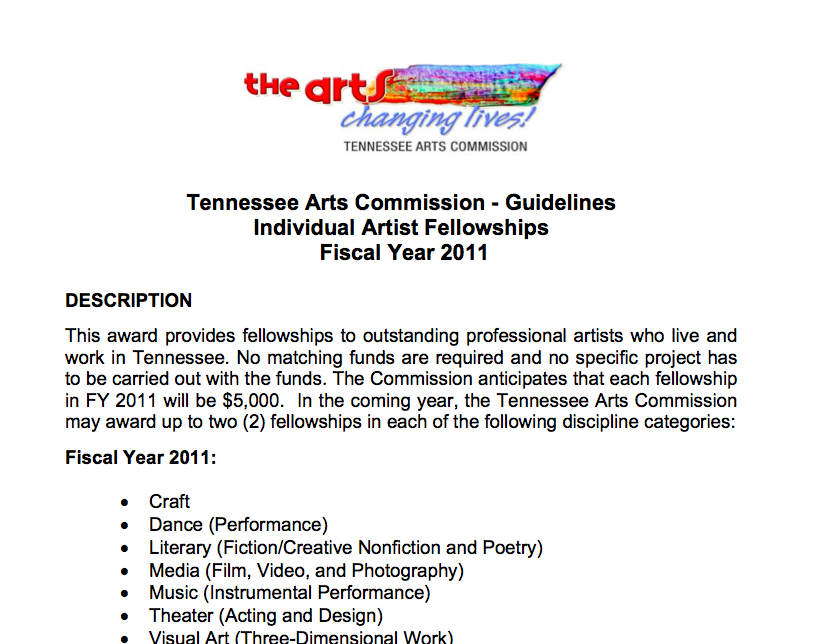

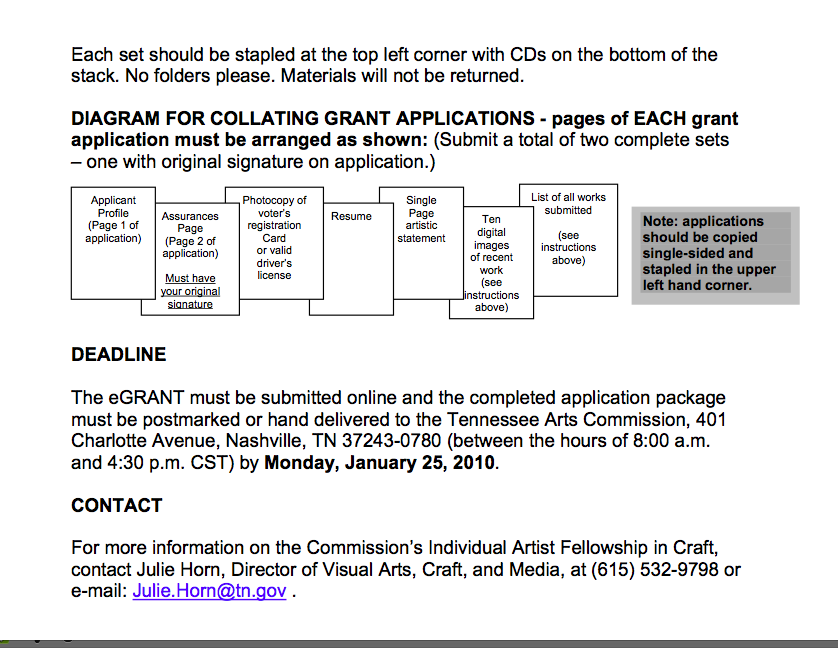

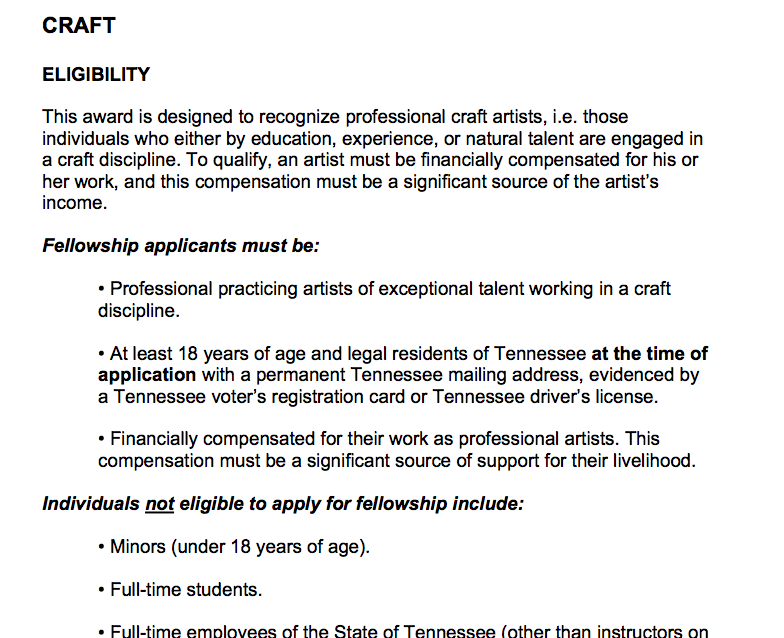

    When you download that pdf from MacRumors is it mangled?

    To me it looks fine:

    Screen shot 2009-11-08 at 15.47.17.png Screen shot 2009-11-08 at 15.47.34.png Screen shot 2009-11-08 at 15.47.43.png



    I'd launch 'Font Book' and then validate your fonts to see if there is an issue with any of your installed fonts that may be causing the issue.

    Or read Blue Velvet's way more insightful post :)

  10. powers74 thread starter macrumors 68000

    powers74

    Joined:
    Aug 18, 2008
    Location:
    At the bend in the river
    #10
    great

    Now WTF do I do?


    Attached Files:

  11. powers74 thread starter macrumors 68000

    powers74

    Joined:
    Aug 18, 2008
    Location:
    At the bend in the river
    #11

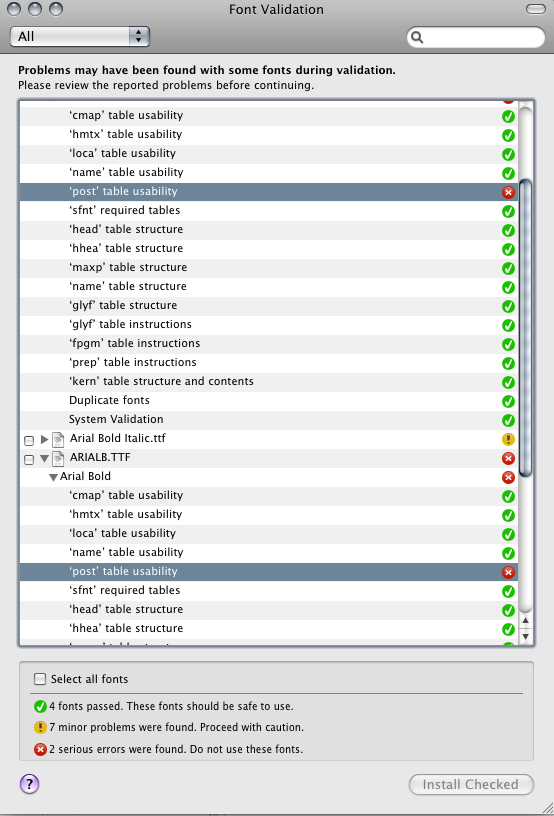

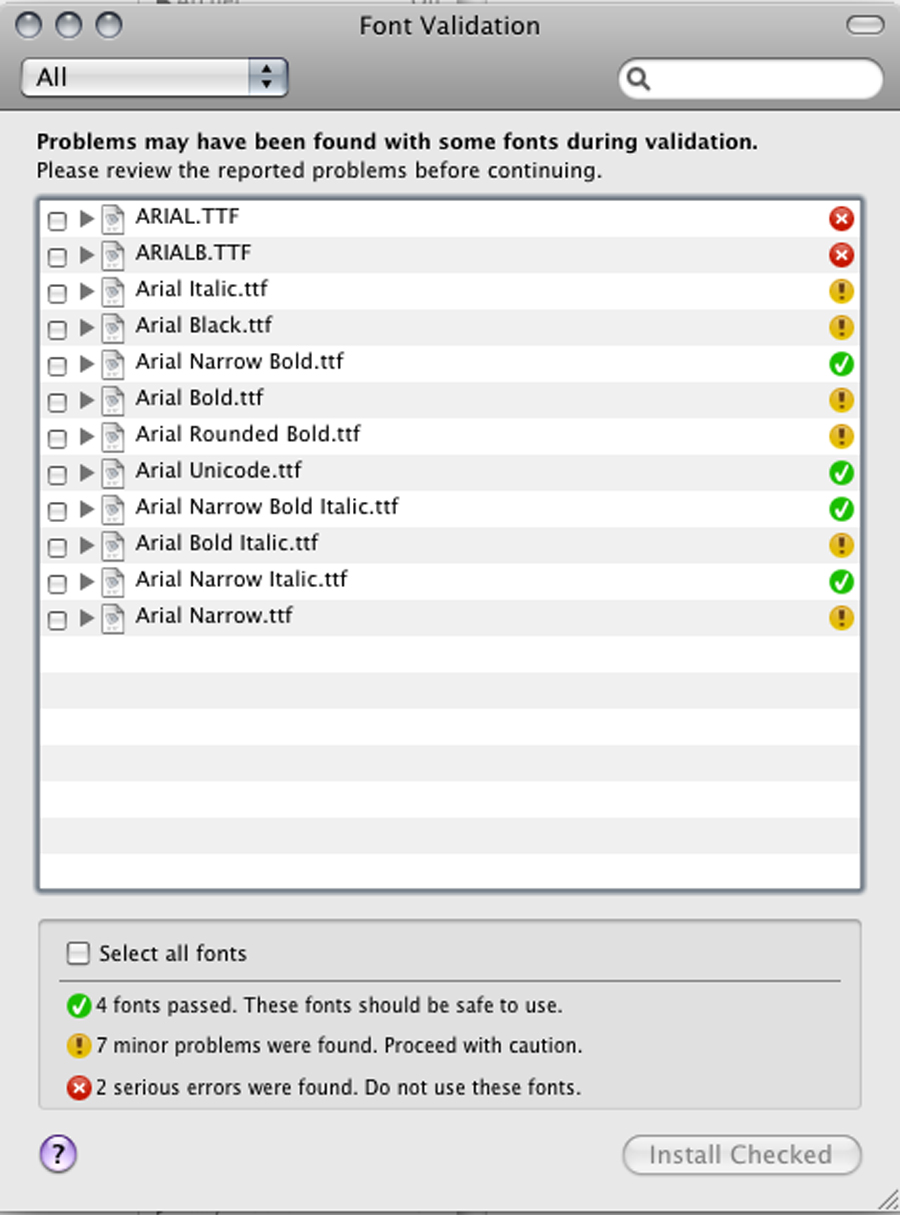

    What does this mean?

    these were the "serious errors". And how do I get rid of "duplicate fonts"?


    Attached Files:

  12. Blue Velvet Moderator emeritus

    Joined:
    Jul 4, 2004
    #12
    One of the ways to get these fonts back is to download and install the Microsoft Office trial.

    You should be able to manage and remove duplicates through FontBook.

  13. powers74 thread starter macrumors 68000

    powers74

    Joined:
    Aug 18, 2008
    Location:
    At the bend in the river
  14. Blue Velvet Moderator emeritus

    Joined:
    Jul 4, 2004
    #14
    Yeah, but delete the corrupted ones before installing new ones. :)
