MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro
- Thread starter cdf
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
Here you go:
Code:
➜ ~ sudo bless --mount /Volumes/EFI --file /Volumes/EFI/EFI/OC/OpenCore.efi --setBoot --verbose
EFI found at IODeviceTree:/efi
Mount point for /Volumes/EFI is /Volumes/EFI
Mount point is '/Volumes/EFI'
No BootX creation requested
No boot.efi creation requested
found ioreg "FirmwareFeaturesMask"; featureMaskValue=0xFF1FFF3F
found ioreg "FirmwareFeatures"; featureFlagsValue=0xC00C5417
isPreBootEnvironmentUEFIWindowsBootCapable=0
preboot environment is not UEFI boot capable
isDVDWithElToritoWithUEFIBootableOS=0
Checking if disk is complex (if it is associated with booter partitions)
GPT detected
Booter partition required at index 2
System partition found
Preferred system partition found: disk4s1
Returning booter information dictionary:
{
"Auxiliary Partitions" = (
);
"Data Partitions" = (
disk3s1
);
"System Partitions" = (
disk4s1,
disk3s1
);
}
Relative path of /Volumes/EFI/EFI/OC/OpenCore.efi is \EFI\OC\OpenCore.efi
IOMedia disk3s1 has UUID DA611DE1-01D6-4520-A987-7D9D74439027
Setting EFI NVRAM:
efi-boot-device='<array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>DA611DE1-01D6-4520-A987-7D9D74439027</string></dict></dict><key>BLLastBSDName</key><string>disk3s1</string></dict><dict><key>IOEFIDevicePathType</key><string>MediaFilePath</string><key>Path</key><string>\EFI\OC\OpenCore.efi</string></dict></array>'
Setting EFI NVRAM:
IONVRAM-DELETE-PROPERTY='efi-boot-file'
Setting EFI NVRAM:
IONVRAM-DELETE-PROPERTY='efi-boot-mkext'
Setting EFI NVRAM:
IONVRAM-DELETE-PROPERTY='efi-boot-kernelcache'
Old boot-args: -no_compat_check cwae=2 shikigva=160 shiki-id=Mac-7BA5B2D9E42DDD94
Got token: -no_compat_check
Preserving: -no_compat_check
Got token: cwae=2
Preserving: cwae=2
Got token: shikigva=160
Preserving: shikigva=160
Got token: shiki-id=Mac-7BA5B2D9E42DDD94
Preserving: shiki-id=Mac-7BA5B2D9E42DDD94
New boot-args unchanged, skipping update.SIP is disabled.
Appreciate your help, thanks!
Edit:
Disk4 is Time machine connected via backplane sata -
Code:
/dev/disk4 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *1.0 TB disk4
1: EFI EFI 209.7 MB disk4s1
2: Apple_CoreStorage TM 1.0 TB disk4s2
3: Apple_Boot Boot OS X 134.2 MB disk4s3Excluding the USB flash drive, I have 3 other ESP partitions - 1 for Catalina (disk0), 1 for Windows 10 (disk1) and the other is automatically created when formatting HFS for use with Time Machine (disk3)
Code:
➜ ~ diskutil list
/dev/disk0 (external, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *1.0 TB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_APFS Container disk2 1.0 TB disk0s2
/dev/disk1 (external, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *2.0 TB disk1
1: EFI NO NAME 104.9 MB disk1s1
2: Microsoft Reserved 16.8 MB disk1s2
3: Windows Recovery 554.7 MB disk1s3
4: Microsoft Basic Data WIN10 2.0 TB disk1s4
/dev/disk2 (synthesized):
#: TYPE NAME SIZE IDENTIFIER
0: APFS Container Scheme - +1.0 TB disk2
Physical Store disk0s2
1: APFS Volume macOS - Data 83.9 GB disk2s1
2: APFS Volume Preboot 23.6 MB disk2s2
3: APFS Volume Recovery 528.5 MB disk2s3
4: APFS Volume VM 1.1 MB disk2s4
5: APFS Volume macOS 11.1 GB disk2s5
6: APFS Volume STOR 432.2 GB disk2s6
/dev/disk3 (external, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *32.0 GB disk3
1: EFI EFI 209.7 MB disk3s1
2: Apple_HFS BOOTER 31.7 GB disk3s2
/dev/disk4 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *1.0 TB disk4
1: EFI EFI 209.7 MB disk4s1
2: Apple_CoreStorage TM 1.0 TB disk4s2
3: Apple_Boot Boot OS X 134.2 MB disk4s3I am trying to boot Catalina using the USB ESP/OC and it's a dual cpu cMP 5,1.
[automerge]1576708936[/automerge]
It appears OC is scanning drives from the USB flash drive on which it resides and onwards but not drives before it.
startergo
macrumors 603
So I started attempts on generating a working ssdt using https://github.com/Piker-Alpha/ssdtPRGen.sh
Does anybody know what this error means? The DSL is attached.
Code:
G5% ./ssdtPRGen.sh -d 2 -p X5690 -turbo 3460 -l 24 -c 1 -target 2
ssdtPRGen.sh v0.9 Copyright (c) 2011-2012 by † RevoGirl
v6.6 Copyright (c) 2013 by † Jeroen
v21.5 Copyright (c) 2013-2019 by Pike R. Alpha
-----------------------------------------------------------
Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues <
System information: Mac OS X 10.14.6 (18G2007)
Brandstring: "Intel(R) Xeon(R) CPU X5690 @ 3.47GHz"
Override value: (-d) debug mode, now using: 2!
Override value: (-p) processor model, now using: X5690!
Override value: (-turbo) maximum (turbo) frequency, now using: 3460 MHz!
Override value: (-l) number of logical processors, now using: 24!
Override value: (-c) CPU workarounds, now set to: 1!
Override value: (-target) CPU, now using: Haswell!
Setting executing bit of extractACPITables ...
_checkForExecutableFile(extractACPITables) Done.
Extracting ACPI tables ... Done.
Checking User Defined processor data ...
Processor data found for the Intel X5690
Version: models.cfg v171 / User Defined.cfg v-1
Name (_HID, "ACPI0004") NOT found in DSDT
1 Scope (\_PR_) {..} object(s) found in DSDT
scopeObjectData: 104f135c5f50525f
Two-byte encoding detected (maximum length 0x0FFF/4095)
pkgLengthByte: 0x4f/79
packageLength: 0x13f/319
scopeLength: 319
scopeLength: 624 (egrep pattern length: 14)
scopeObjectData length 640 (includes egrep pattern)
processorID: 00 CPU0
processorID: 01 CPU1
processorID: 02 CPU2
processorID: 03 CPU3
processorID: 04 CPU4
processorID: 05 CPU5
processorID: 06 CPU6
processorID: 07 CPU7
processorID: 08 CPU8
processorID: 09 CPU9
processorID: 0a CPUA
processorID: 0b CPUB
processorID: 0c CPUC
processorID: 0d CPUD
processorID: 0e CPUE
processorID: 0f CPUF
processorID: 10 CPUG
processorID: 11 CPUH
processorID: 12 CPUI
processorID: 13 CPUJ
processorID: 14 CPUK
processorID: 15 CPUL
processorID: 16 CPUM
processorID: 17 CPUN
Scope (\_PR_) {640 bytes} with ACPI Processor declarations found in DSDT (ACPI 1.0 compliant)
Number of Scopes: 1
Generating ssdt.dsl for a 'MacPro5,1' with board-id [Mac-7BA5B2D9E42DDD94]
Intel X5690 processor [0x206C2] setup [0x0501]
With a maximum TDP of 130 Watt, as specified by Intel
Number logical CPU's: 24 (Core Frequency: 3460 MHz)
Number of Turbo States: 0
Number of P-States: 14 (1600-3460 MHz)
targetCStates: 29
Adding C1
Adding C3
Adding C6
Adding C7
targetCStates: 7
Adding C1
Adding C2
Adding C3
Injected C-States for CPU0 (C1,C3,C6,C7)
Injected C-States for CPU1 (C1,C2,C3)
Warning: 'system-type' may be set improperly (3 instead of 2)
- Clover users should read https://clover-wiki.zetam.org/Configuration/ACPI#acpi_smartups
Compiling: ssdt_pr.dsl
Intel ACPI Component Architecture
ASL+ Optimizing Compiler version 20161210-64(RM)
Copyright (c) 2000 - 2016 Intel Corporation
/Users/g5/Library/ssdtPRGen/ssdt.dsl 49: Name (APSS, Package (0x0E)
Error 6062 - Initializer list longer than declared package length ^
ASL Input: /Users/g5/Library/ssdtPRGen/ssdt.dsl - 482 lines, 13361 bytes, 148 keywords
Compilation complete. 1 Errors, 0 Warnings, 0 Remarks, 0 Optimizations
Error: IASL status: 255 (Failed)
Do you want to open ssdt.dsl (y/n)? yDoes anybody know what this error means? The DSL is attached.
Disable Lilu/WEG and boot to OEM cMP then try building again. First take on it - you may have surpassed the total number of valid cpu count for Mac-7BA5B2D9E42DDD94 so you should try building for Mac-F221BEC8.
No, none of them are mounted besides the USB flash drive's ESP partition
[automerge]1576709675[/automerge]
I may have to fiddle with the ScanPolicy setting to enable scanning of NVME, APFS and USB devices only. Very strange. I'll raise this with the OpenCore dev team.
Not sure, was planning on testing it this weekend. I noticed you used -c 1 -t 2 .. Shouldn't it be -c 2 for dual cpus? Also with cMP 5,1, westmere should be used instead of haswell but the script is lacking an option for it. It requires further developing.
I noticed the developer added X5680 under user defined.cfg - did you try to adding X5690?
[automerge]1576710768[/automerge]
ScanPolicy is already set to 0.
Ok, just looked at the ssdt.dsl file - try changing:
Code:
Name (APSS, Package (0x0E)to
Code:
Name (APSS, Package (0x13f)startergo
macrumors 603
With 0 your USB drive should be visible. Are you using Car with 2 CPU's and spoofed smbios? You may be getting a kernel panic or stalling or constant reboot. Try to disable the watchdog (True)
That did it. What is it doing?
[automerge]1576712404[/automerge]
My guess is expanding the range?
[automerge]1576712667[/automerge]
Yes the script has x5680 and other Xeon processors but they are set around Ivy Bridge (strange) Only if set for Haswel it does not complain.
[automerge]1576712763[/automerge]
This is before the correction:
Code:
G5% ./ssdtPRGen.sh -d 2 -p X5690 -turbo 3460 -cpus 2 -c 1 -target 2
ssdtPRGen.sh v0.9 Copyright (c) 2011-2012 by † RevoGirl
v6.6 Copyright (c) 2013 by † Jeroen
v21.5 Copyright (c) 2013-2019 by Pike R. Alpha
-----------------------------------------------------------
Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues <
System information: Mac OS X 10.14.6 (18G2007)
Brandstring: "Intel(R) Xeon(R) CPU X5690 @ 3.47GHz"
Override value: (-d) debug mode, now using: 2!
Override value: (-p) processor model, now using: X5690!
Override value: (-turbo) maximum (turbo) frequency, now using: 3460 MHz!
Override value: (-cpus) number of processors, now using: 2!
Override value: (-c) CPU workarounds, now set to: 1!
Override value: (-target) CPU, now using: Haswell!
Setting executing bit of extractACPITables ...
_checkForExecutableFile(extractACPITables) Done.
Extracting ACPI tables ... Done.
Checking User Defined processor data ...
Processor data found for the Intel X5690
Version: models.cfg v171 / User Defined.cfg v-1
Name (_HID, "ACPI0004") NOT found in DSDT
1 Scope (\_PR_) {..} object(s) found in DSDT
scopeObjectData: 104f135c5f50525f
Two-byte encoding detected (maximum length 0x0FFF/4095)
pkgLengthByte: 0x4f/79
packageLength: 0x13f/319
scopeLength: 319
scopeLength: 624 (egrep pattern length: 14)
scopeObjectData length 640 (includes egrep pattern)
processorID: 00 CPU0
processorID: 01 CPU1
processorID: 02 CPU2
processorID: 03 CPU3
processorID: 04 CPU4
processorID: 05 CPU5
processorID: 06 CPU6
processorID: 07 CPU7
processorID: 08 CPU8
processorID: 09 CPU9
processorID: 0a CPUA
processorID: 0b CPUB
Scope (\_PR_) {114 bytes} without ACPI Processor declarations ...
1 Scope (\_PR) {..} object(s) found in DSDT
scopeObjectData: 104f135c5f5052
Two-byte encoding detected (maximum length 0x0FFF/4095)
pkgLengthByte: 0x4f/79
packageLength: 0x13f/319
scopeLength: 319
scopeLength: 626 (egrep pattern length: 12)
scopeObjectData length 640 (includes egrep pattern)
processorID: 00 CPU0
processorID: 01 CPU1
processorID: 02 CPU2
processorID: 03 CPU3
processorID: 04 CPU4
processorID: 05 CPU5
processorID: 06 CPU6
processorID: 07 CPU7
processorID: 08 CPU8
processorID: 09 CPU9
processorID: 0a CPUA
processorID: 0b CPUB
Scope (\_PR) {640 bytes} with ACPI Processor declarations found in DSDT (ACPI 1.0 compliant)
Number of Scopes: 1
Generating ssdt.dsl for a 'MacPro5,1' with board-id [Mac-F221BEC8]
Intel X5690 processor [0x206C2] setup [0x0501]
With a maximum TDP of 130 Watt, as specified by Intel
Number logical CPU's: 24 (Core Frequency: 3460 MHz)
Number of Turbo States: 0
Number of P-States: 14 (1600-3460 MHz)
targetCStates: 29
Adding C1
Adding C3
Adding C6
Adding C7
targetCStates: 7
Adding C1
Adding C2
Adding C3
Injected C-States for CPU0 (C1,C3,C6,C7)
Injected C-States for CPU1 (C1,C2,C3)
Warning: File Mac-F221BEC8.plist Not Found!
Warning: 'system-type' may be set improperly (3 instead of 2)
- Clover users should read https://clover-wiki.zetam.org/Configuration/ACPI#acpi_smartups
Compiling: ssdt_pr.dsl
Intel ACPI Component Architecture
ASL+ Optimizing Compiler version 20161210-64(RM)
Copyright (c) 2000 - 2016 Intel Corporation
/Users/g5/Library/ssdtPRGen/ssdt.dsl 38: Name (APSS, Package (0x0E)
Error 6062 - Initializer list longer than declared package length ^
ASL Input: /Users/g5/Library/ssdtPRGen/ssdt.dsl - 327 lines, 9702 bytes, 76 keywords
Compilation complete. 1 Errors, 0 Warnings, 0 Remarks, 0 Optimizations
Error: IASL status: 255 (Failed)
Last edited:
I am using a very basic setup of OC without any advanced configurations ie. SMBIOS/Spoofing etc. Not sure what you mean by 'Car'.
As for the error you were getting, the initializer list was longer than the declared package length so we needed to match their lengths and we already have the initializer length from the debug output "packageLength: 0x13f/319"
startergo
macrumors 603
Gotcha. Yes, only Catalina. No kernel panics in logs or constant reboots ... Just a blank/black screen. I may pop my MVC GTX 780 back in to see what's going on.
Thanks for your help!
startergo
macrumors 603
GitHub - startergo/ssdtPRGen.sh at patch-1
Script to generate a SSDT for Power Management. Contribute to startergo/ssdtPRGen.sh development by creating an account on GitHub.
github.com
startergo
macrumors 603
tried to load Appleintelinfo.kext to see the CPU states but got kernel panic:
Code:
panic(cpu 2 caller 0xffffff8017c6520a): Kernel trap at 0xffffff7f9c953b4c, type 13=general protection, registers:
CR0: 0x000000008001003b, CR2: 0x000070000da6e2d8, CR3: 0x000000001d2f9000, CR4: 0x00000000000226e0
RAX: 0xffffff8118bfb2f8, RBX: 0x0000000000000000, RCX: 0x000000000000060a, RDX: 0xffffff8118bfb2f8
RSP: 0xffffff8e330a2804, RBP: 0xffffff8e330a2810, RSI: 0x0000000000000000, RDI: 0x000000000000060a
R8: 0xffffff8118bfb2f8, R9: 0xffffff810bcc9300, R10: 0x0000000021fed857, R11: 0x000000000000009d
R12: 0x0000000000000000, R13: 0x0000000000000000, R14: 0xffffff810afc3220, R15: 0xffffff8118bfb100
RFL: 0x0000000000010292, RIP: 0xffffff7f9c953b4c, CS: 0x0000000000000008, SS: 0x0000000000000010
Fault CR2: 0x000070000da6e2d8, Error code: 0x0000000000000000, Fault CPU: 0x2, PL: 0, VF: 0
Backtrace (CPU 2), Frame : Return Address
0xffffff8017952220 : 0xffffff8017b3bb1b mach_kernel : _handle_debugger_trap + 0x47b
0xffffff8017952270 : 0xffffff8017c733e5 mach_kernel : _kdp_i386_trap + 0x155
0xffffff80179522b0 : 0xffffff8017c64e5e mach_kernel : _kernel_trap + 0x4ee
0xffffff8017952300 : 0xffffff8017ae2a40 mach_kernel : _return_from_trap + 0xe0
0xffffff8017952320 : 0xffffff8017b3b207 mach_kernel : _DebuggerTrapWithState + 0x17
0xffffff8017952420 : 0xffffff8017b3b5eb mach_kernel : _panic_trap_to_debugger + 0x21b
0xffffff8017952470 : 0xffffff80182d24f9 mach_kernel : _panic + 0x61
0xffffff80179524e0 : 0xffffff8017c6520a mach_kernel : _sync_iss_to_iks + 0x2aa
0xffffff8017952660 : 0xffffff8017c64f08 mach_kernel : _kernel_trap + 0x598
0xffffff80179526b0 : 0xffffff8017ae2a40 mach_kernel : _return_from_trap + 0xe0
0xffffff80179526d0 : 0xffffff7f9c953b4c com.pikeralpha.driver.AppleIntelInfo : __ZL7rdmsr64j + 0x1c
0xffffff8e330a2810 : 0xffffff7f9c95adde com.pikeralpha.driver.AppleIntelInfo : __ZN14AppleIntelInfo10reportMSRsEv + 0x54ae
0xffffff8e330a3ac0 : 0xffffff7f9c95dfbb com.pikeralpha.driver.AppleIntelInfo : __ZN14AppleIntelInfo5startEP9IOService + 0x8fb
0xffffff8e330a3de0 : 0xffffff801821ae46 mach_kernel : __ZN9IOService14startCandidateEPS_ + 0xf6
0xffffff8e330a3e40 : 0xffffff801821a9f1 mach_kernel : __ZN9IOService15probeCandidatesEP12OSOrderedSet + 0xb21
0xffffff8e330a3ef0 : 0xffffff8018219d3e mach_kernel : __ZN9IOService14doServiceMatchEj + 0x2ce
0xffffff8e330a3f50 : 0xffffff801821c4dd mach_kernel : __ZN15_IOConfigThread4mainEPvi + 0x15d
0xffffff8e330a3fa0 : 0xffffff8017ae213e mach_kernel : _call_continuation + 0x2e
Kernel Extensions in backtrace:
com.pikeralpha.driver.AppleIntelInfo(2.9)[9193A175-01D2-3CC0-B6FC-534059A69B84]@0xffffff7f9c950000->0xffffff7f9c966fff
BSD process name corresponding to current thread: kernel_task
Boot args: -v agdpmod=pikera keepsyms=1 -liludbgall liludump=10 debug=0x144 -no_compat_check -wegtree shikigva=144 shiki-id=Mac-7BA5B2D9E42DDD94
Mac OS version:
19C57
Kernel version:
Darwin Kernel Version 19.2.0: Sat Nov 9 03:47:04 PST 2019; root:xnu-6153.61.1~20/RELEASE_X86_64
Kernel UUID: C3E7E405-C692-356B-88D3-C30041FD1E72
Kernel slide: 0x0000000017800000
Kernel text base: 0xffffff8017a00000
__HIB text base: 0xffffff8017900000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: NO (0xe00002bc)
System uptime in nanoseconds: 658026767613
lxmeta
macrumors regular
Sorry for stealing some bandwidth here by not raising an issue, but:
Just installed the latest version of OpenCore exactly as stated in the 1st post on a MacPro 2009 5.1 with a Radeon RX Vega 64, 6c 3,46ghz, 64GB ram with NVMe PCIe SSD, and it simply worked out of the box!
btw.: I had a functioning Mojave running that I modified. I just booted from another disk, mounted the EFI, followed the instructions, and rebooted the Mojave disk. I went into check for update... and everything was there. Update to Catalina worked like a supported MAC should...
I will now read the doc to see what else I should be doing to optimise my system. GUI Boot with the Vega would be nice. Btw.: That VEGA makes the Mac Pro a beast! Next will be my 12c 128gb MPc...
Just installed the latest version of OpenCore exactly as stated in the 1st post on a MacPro 2009 5.1 with a Radeon RX Vega 64, 6c 3,46ghz, 64GB ram with NVMe PCIe SSD, and it simply worked out of the box!
btw.: I had a functioning Mojave running that I modified. I just booted from another disk, mounted the EFI, followed the instructions, and rebooted the Mojave disk. I went into check for update... and everything was there. Update to Catalina worked like a supported MAC should...
I will now read the doc to see what else I should be doing to optimise my system. GUI Boot with the Vega would be nice. Btw.: That VEGA makes the Mac Pro a beast! Next will be my 12c 128gb MPc...
h9826790
macrumors P6

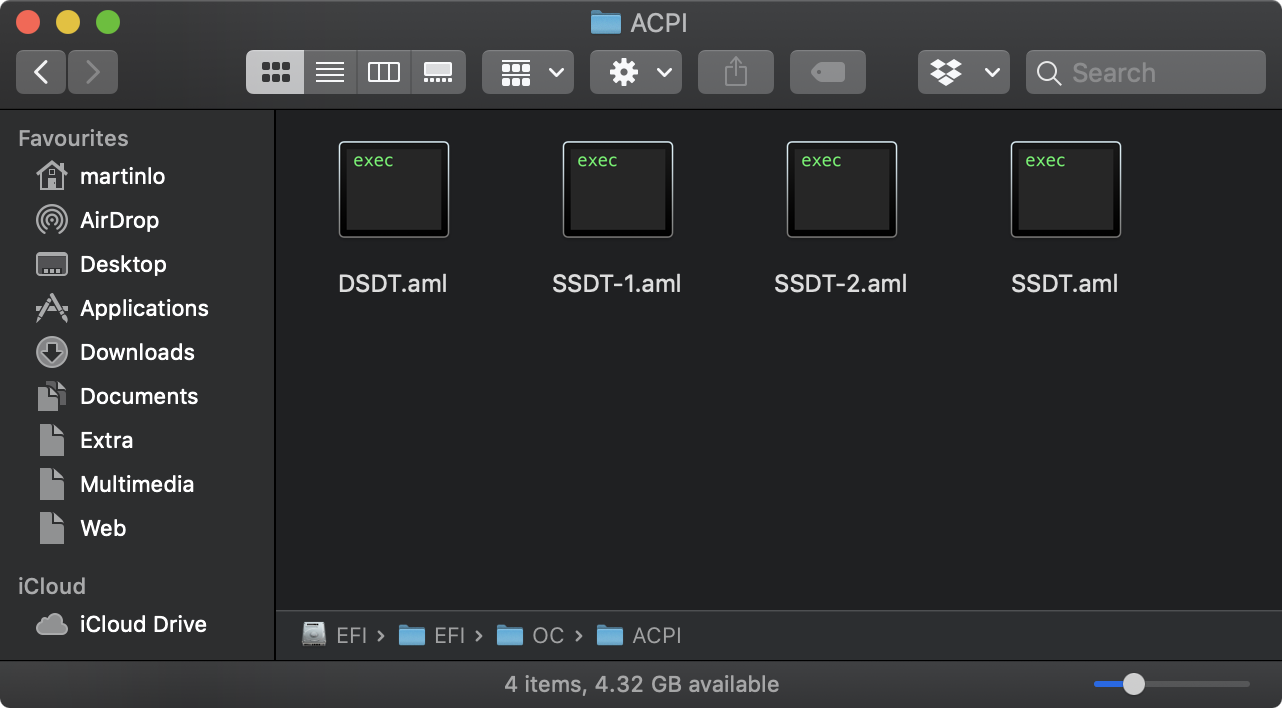

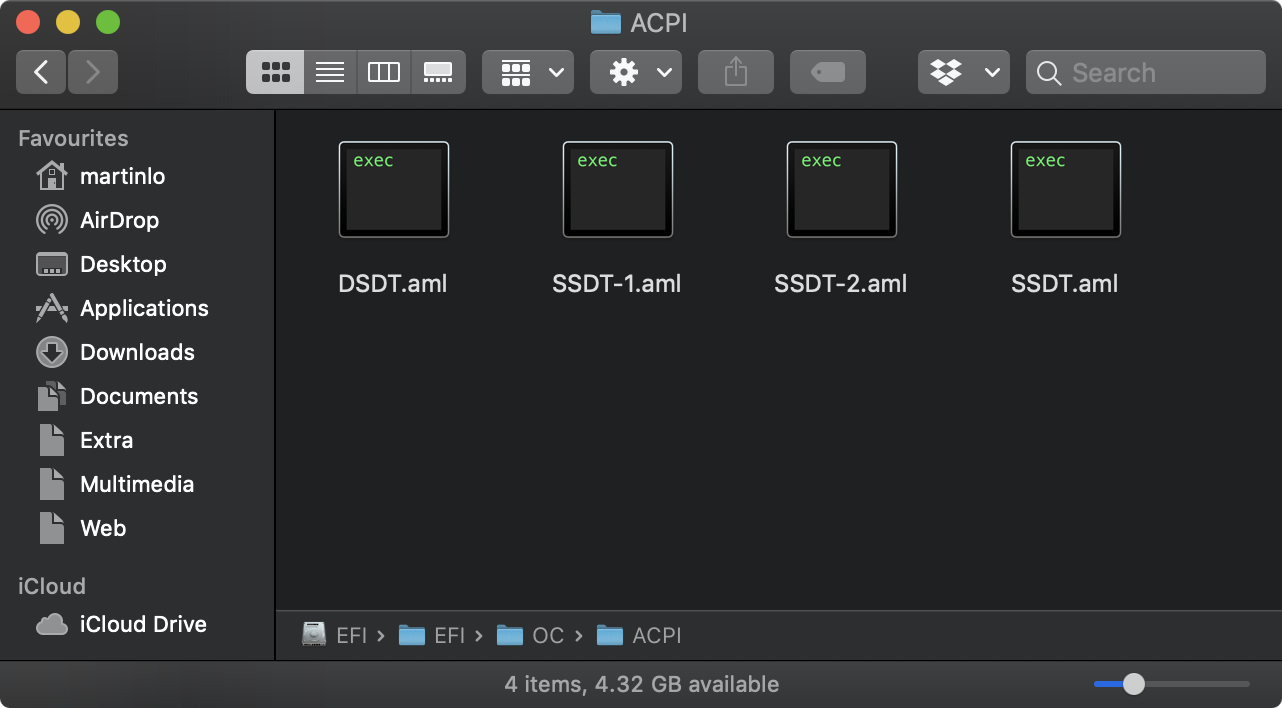

I dump the original SSDT and inject that by OpenCore with SMBIOS Spoofing, nothing changed.
Code:
<key>ACPI</key>
<dict>
<key>Add</key>
<array>
<dict>
<key>Comment</key>
<string>Original 5,1 DSDT</string>
<key>Enabled</key>
<true/>
<key>Path</key>
<string>DSDT.aml</string>
</dict>
<dict>
<key>Comment</key>
<string>Original 5,1 SSDT</string>
<key>Enabled</key>
<true/>
<key>Path</key>
<string>SSDT.aml</string>
</dict>
<dict>
<key>Comment</key>
<string>Original 5,1 SSDT-1</string>
<key>Enabled</key>
<true/>
<key>Path</key>
<string>SSDT-1.aml</string>
</dict>
<dict>
<key>Comment</key>
<string>Original 5,1 SSDT-2</string>
<key>Enabled</key>
<true/>
<key>Path</key>
<string>SSDT-2.aml</string>
</dict>
</array>So, we cannot simply get that fix by using Hackintool.
Last edited:
startergo
macrumors 603
I think there is more to that. First we need to drop the existing power management. Also we need to make sure that all the names for the CPU references are linked correctly to the existing names loaded in the registry. One way of doing it is to compare both SSDT's and see the differences. It is also possible to pach the loaded
[automerge]1576777151[/automerge]
For me SSDT-3 is the CpuPM, but when extracted from spoofed smbios it is labeled CpuPPM. Maybe there are other differences.
Last edited:
h9826790
macrumors P6
When I boot as 5,1 natively.
My SSDT is CpuPPM, but not CpuPM. And I don't have SSDT-3. I just double checked it again. Really CpuPPM when boot without OpenCore, and no SSDT-3. May be that's the difference between single processor and dual processor cMP.
Also, when boot with SMBIOS spoofing (manual mode, only inject board-id), the Hackintool SSDT dump is identical to the dump that when boot as 5,1 (compared by iHex, the only difference is just the time mark).
Last edited:
startergo
macrumors 603
h9826790
macrumors P6

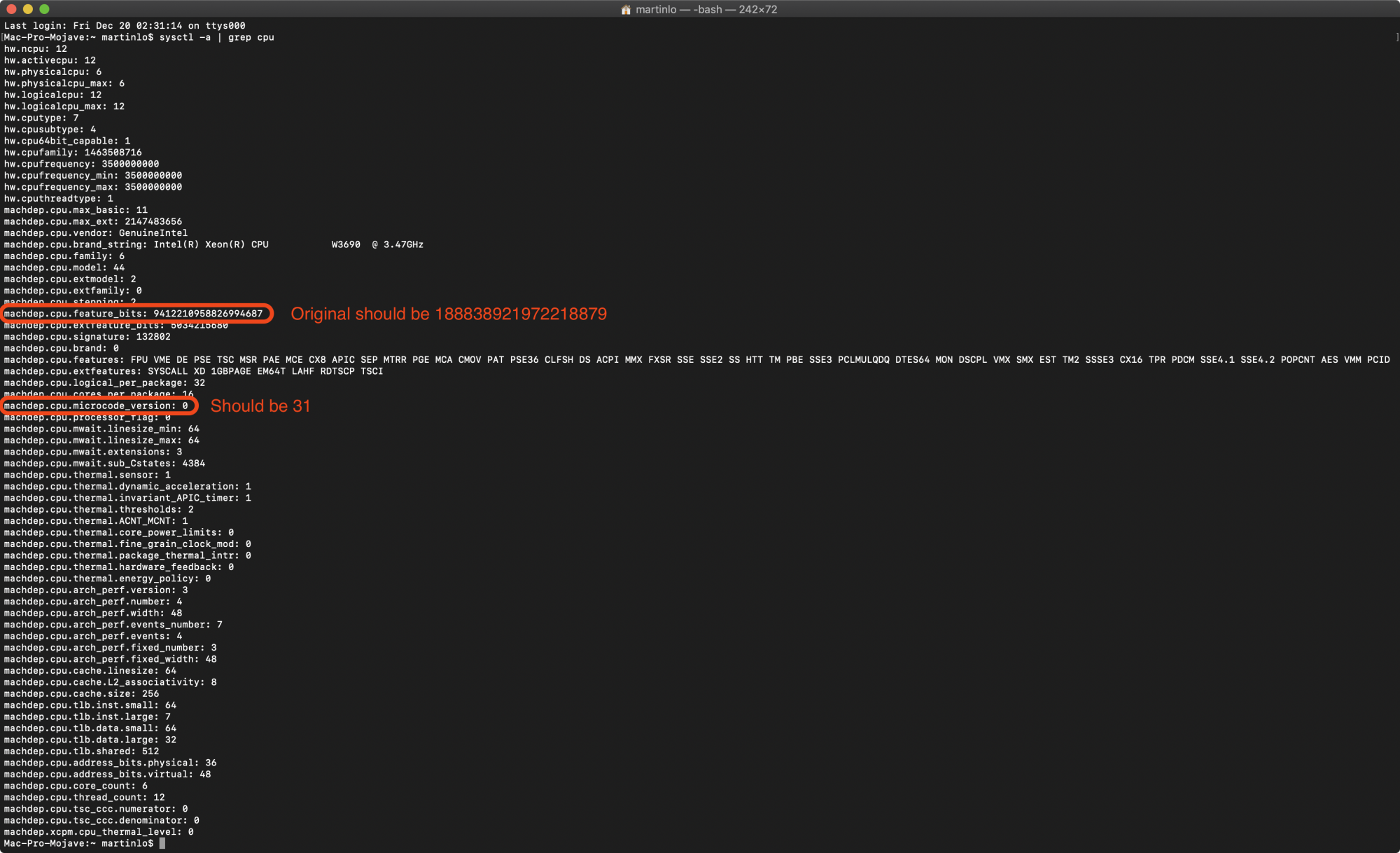

When comparing the info from terminal command
Two difference spotted.
I booted with VMM flag, therefore, can explained why the feature bits changed (I haven't try without VMM flag yet).
But what really catching my eyes is the microcode version. Which fall back to 0.
Code:
sysctl -a | grep cpuI booted with VMM flag, therefore, can explained why the feature bits changed (I haven't try without VMM flag yet).
But what really catching my eyes is the microcode version. Which fall back to 0.
startergo
macrumors 603
Code:
00:000 00:000 OC: OpenCore is now loading (Vault: 0/0, Sign 0/0)...
00:060 00:060 OC: Boot timestamp - 2019.12.19 20:42:34
00:129 00:069 OCCPU: Hypervisor: 0
00:188 00:058 OCCPU: Found Intel(R) Xeon(R) CPU X5690 @ 3.47GHz
00:251 00:062 OCCPU: Signature 206C2 Stepping 2 Model 2C Family 6 Type 0 ExtModel 2 ExtFamily 0
00:310 00:059 OCCPU: Detected Apple Processor Type: 05 -> 0501
00:368 00:058 OCCPU: Ratio Min 12 Max 26 Current 0 Turbo 28 28 27 27
00:428 00:059 OCCPU: Timer address is 408 from LPC
00:587 00:159 OCCPU: CPUFrequencyFromTSC 3457998909Hz 3457MHz
00:645 00:057 OCCPU: CPUFrequency 3457998909Hz 3457MHz
00:704 00:059 OCCPU: FSBFrequency 132999958Hz 132MHz
00:763 00:058 OCCPU: Pkg 1 Cores 6 Threads 12
