mini paired with Hauwei's new 4.5K 3:2 monitor = iMac killer?

[Amethyst1]

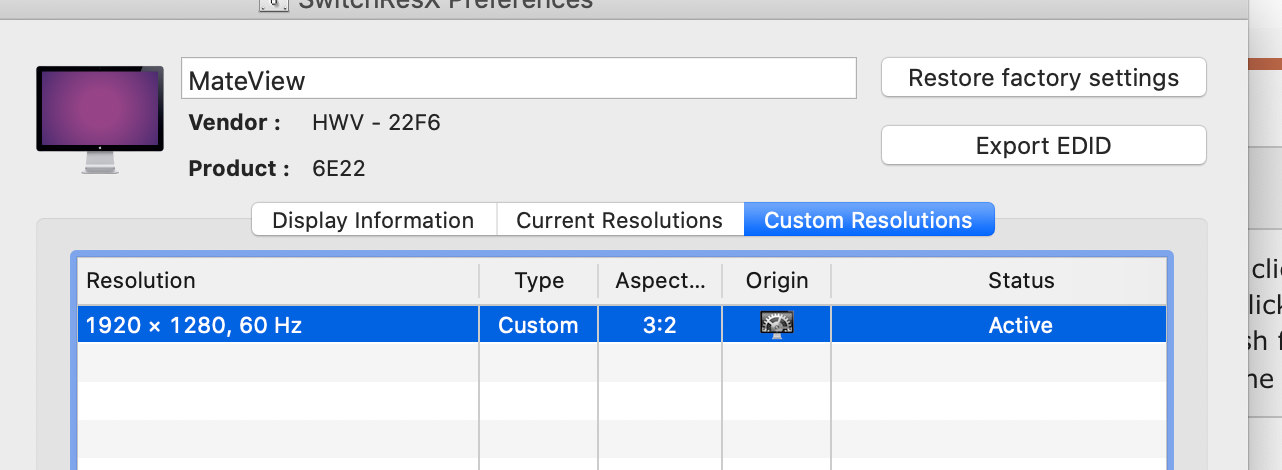

View attachment 1917596

The actual mode has to be 3840×2560, not 1920×1280.
(The "looks like 1920×1280" HiDPI setting is then automatically added by macOS.)

After adding the actual mode, assuming it shows as "Active", switch to the "Available resolutions" tab and select the 1920×1280 HiDPI mode whose refresh rate matches the one of the 3840×2560 mode you just created.



[Grolubao]

The actual mode has to be 3840×2560, not 1920×1280.
(The "looks like 1920×1280" HiDPI setting is then automatically added by macOS.)

After adding the actual mode, assuming it shows as "Active", switch to the "Available resolutions" tab and select the 1920×1280 HiDPI mode whose refresh rate matches the one of the 3840×2560 mode you just created.

Ahhh Gotcha. Managed to get it with 50hz and then switch to 1920x1280 @ 60hz and worked. Thank you!!! Appreciate your help



[howardroark]

My monitor arrived today. 1080p hidpi resolution seems the most ideal option. I wish we could get a better image quality in 2K. However, i must admit that we needing a minimum of 5K resolution for 2k hidpi.

I tested the monitor's microphone with a Facetime call, but when I selected the monitor's microphone, I noticed that the mic is not working. Anyone experiencing a similar issue?

Update: This happens when I connect a headset without a microphone to the monitor. When I disconnect the headset from the monitor, the microphones work.



[howardroark]

I have a question: It looks like RDM hasn't received updates for a long time. (https://github.com/avibrazil/RDM) Is there a macOS Big Sur supported alternative? (Except from switchResX, it required turning off some system security features as I recall.)



[Amethyst1]

Is there a macOS Big Sur supported alternative?

What about EasyRes or QuickRes?



[MrGunnyPT]

As I said in another thread, I'm getting a model... Should I run both via USB-C or 1x DP and another USB-C? I have a Dell Thunderbolt 3 Dock btw.



[Amethyst1]

Should I run both via USB-C or 1x DP and another USB-C? I have a Dell Thunderbolt 3 Dock btw.

Shouldn’t matter. But your dock probably doesn’t have two USB-C ports with DisplayPort Alternate Mode, so…



[MrGunnyPT]

Shouldn’t matter. But your dock probably doesn’t have two USB-C ports with DisplayPort Alternate Mode, so…

Yeah was just thinking of putting a 2nd USB-C between the Mac and monitor but I'd just use the TB3 connector for everything..



[Amethyst1]

Yeah was just thinking of putting a 2nd USB-C between the Mac and monitor but I'd just use the TB3 connector for everything..

I’d hook up one monitor to the dock’s downstream Thunderbolt port (via the USB-C cable) and the other to the dock’s DisplayPort output.



[johnnyturbouk]

Yeah was just thinking of putting a 2nd USB-C between the Mac and monitor but I'd just use the TB3 connector for everything..

This might work - i use it for a triple screen setup with my 2020 iMac i9

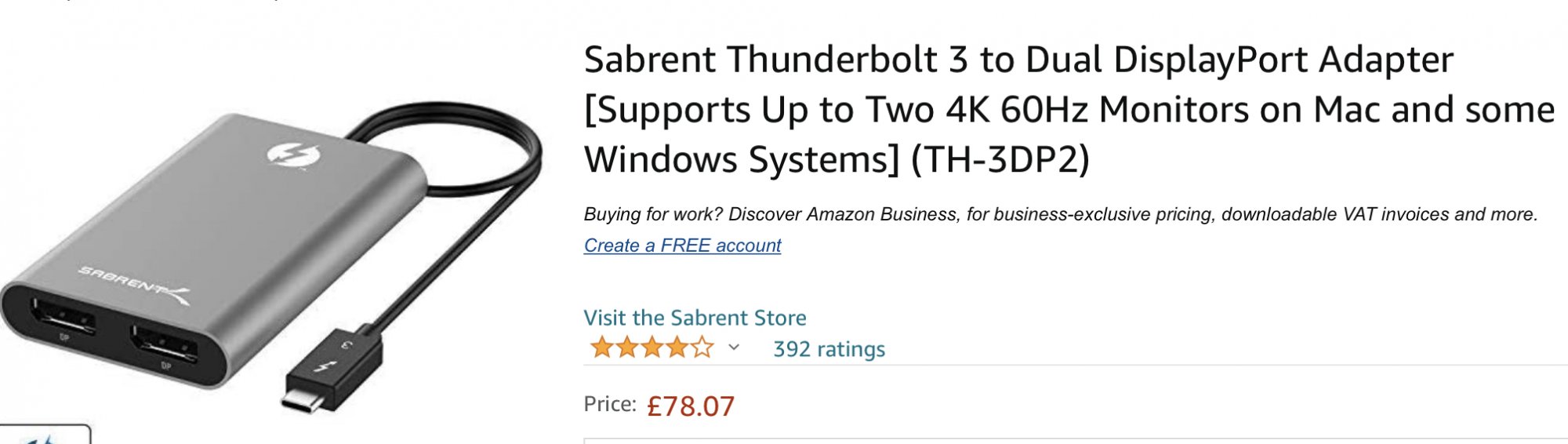

Sabrent Thunderbolt 3 to Dual... https://www.amazon.co.uk/dp/B079JJ2MTR?ref=ppx_pop_mob_ap_share



[johnnyturbouk]

I’d hook up one monitor to the dock’s downstream Thunderbolt port (via the USB-C cable) and the other to the dock’s DisplayPort output.

Many thanks for you tips on this thread. I was really keen on getting a 3:2 screen and loved the aesthetics of this monitor, however for me productivity and functionality mean more, if it looks breath then that is a huge bonus.

My main gripe with this monitor was the ports, no tb3, no DP1.4 and No HDMI 2.1 - really left a lump in my throat. I am glad that this has proved not to be an issue and 4k, at 60hz is feasible.


Out of interest, Is the usbc on the Huawei usb 3 gen 2 20gbs? It's the only way i could figure how it runs 4k @60hz and add further USB ports.



[howardroark]

Do you think it's a problem that this monitor doesn't have dp 1.4? Also, what is the disadvantage of not having thunderbolt3?



[Amethyst1]

Is the usbc on the Huawei usb 3 gen 2 20gbs?

It’s USB 2.0. I just checked. Reason: DisplayPort 1.2 doesn’t allow 3840×2560 at 60 Hz plus USB 3.x via USB-C.

Do you think it's a problem that this monitor doesn't have dp 1.4?

If it did, it would be able to “do” 3840×2560 at 60 Hz plus USB 3.x via USB-C.

Also, what is the disadvantage of not having thunderbolt3?

No ability to “do” 3840×2560 at 60 Hz plus USB 3.x or daisy-chain another DisplayPort/Thunderbolt/USB-C monitor to it (…because there’s no downstream Thunderbolt port), lower power delivery wattage, lower cost ()



[MrGunnyPT]

Many thanks for you tips on this thread. I was really keen on getting a 3:2 screen and loved the aesthetics of this monitor, however for me productivity and functionality mean more, if it looks breath then that is a huge bonus.

My main gripe with this monitor was the ports, no tb3, no DP1.4 and No HDMI 2.1 - really left a lump in my throat. I am glad that this has proved not to be an issue and 4k, at 60hz is feasible.


Out of interest, Is the usbc on the Huawei usb 3 gen 2 20gbs? It's the only way i could figure how it runs 4k @60hz and add further USB ports.

What do you work with the most? For me it was a huge upgrade.. I'm coming from a single 21:9 display to dual 3:2 monitors and it pretty much changes everything for me due to the terminal windows, now I can have more terminals with more vertical space to read logs and put more command chains.

Plus it's great overall browsing and emails



[Amethyst1]

I have to admit to strongly considering picking up another MateView right now.

Just placed the order. It was on sale for 15% off.



[justanothergeordie]

I wonder how this Huawei monitor compares to other 4K's at this price point? I see it's on Amazon UK for 499. That puts it in similar territory to the LGUL850, possibly the Dell Ultrasharp 27 inch if you can get a good deal, Ben Q also... just curious as I have been waiting for what seems like an age to update my old 27 inch iMac for the new M1 larger version – whenever it comes out. I almost bought the LG and a Mac Mini at the weekend but stopped myself...



[grandM]

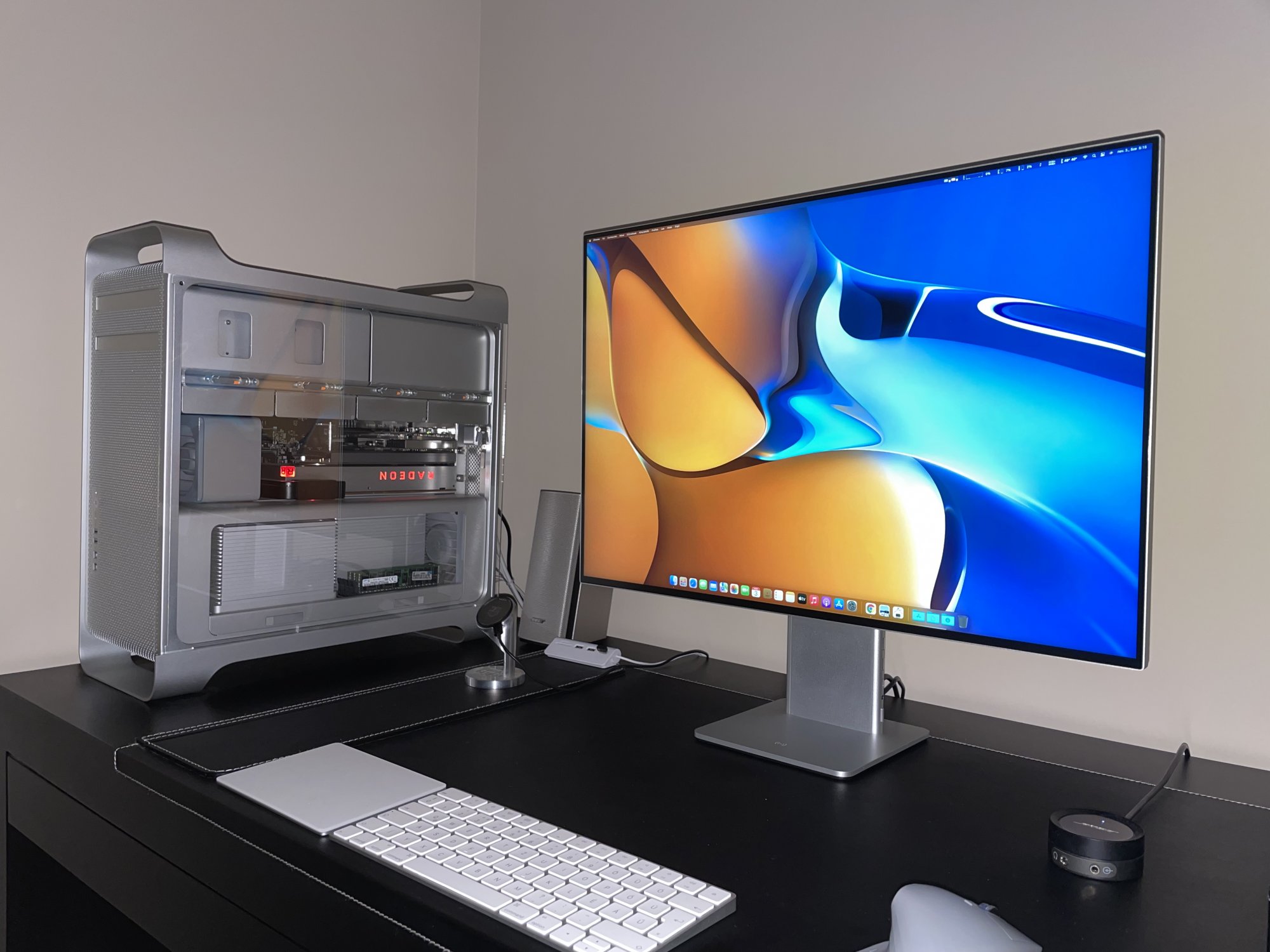

My Mac Pro 5.1-Huawei Mateview Setup.View attachment 1917546

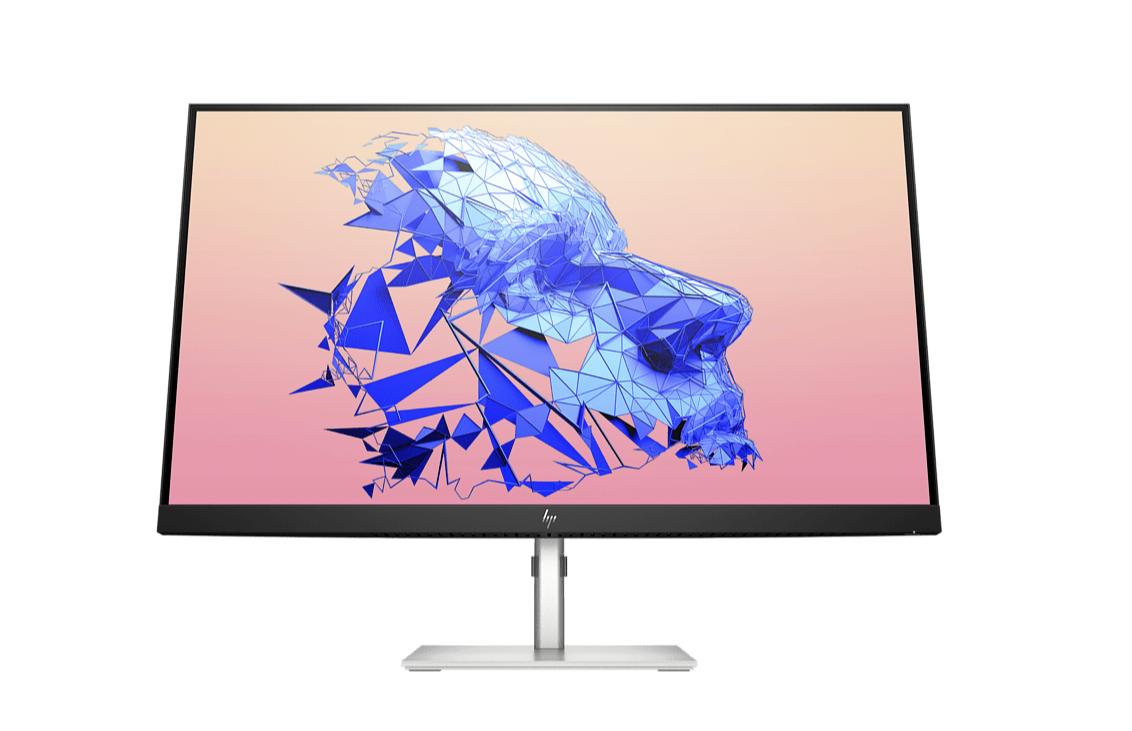

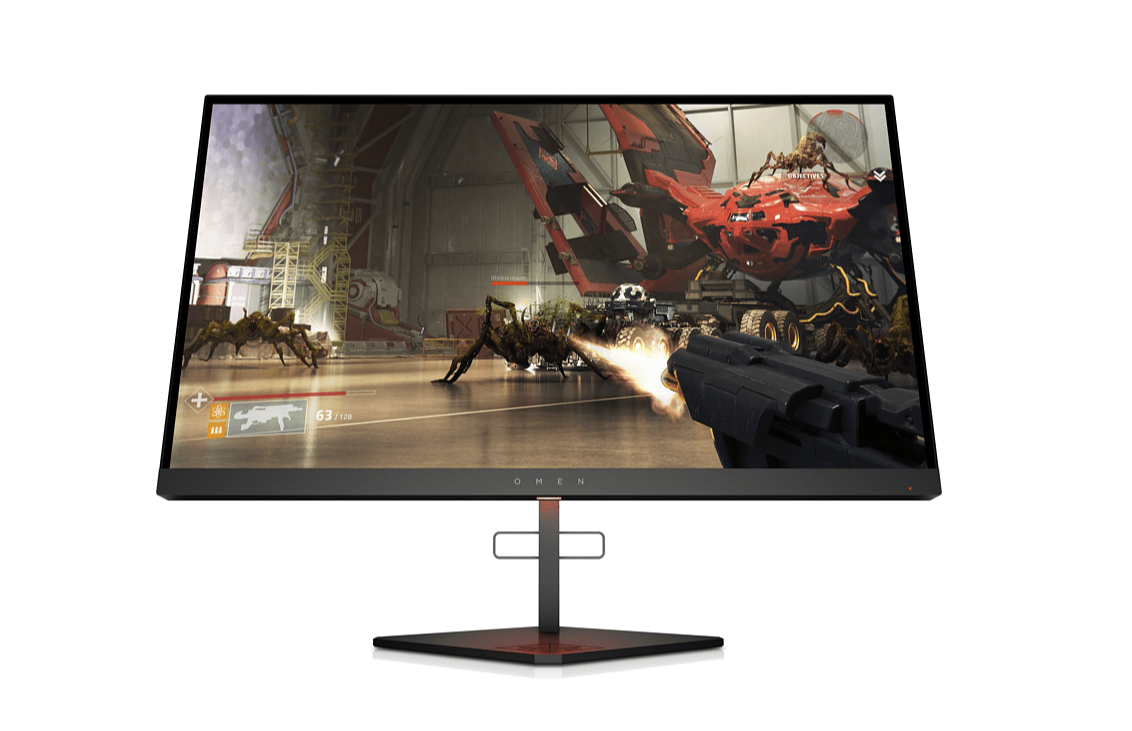

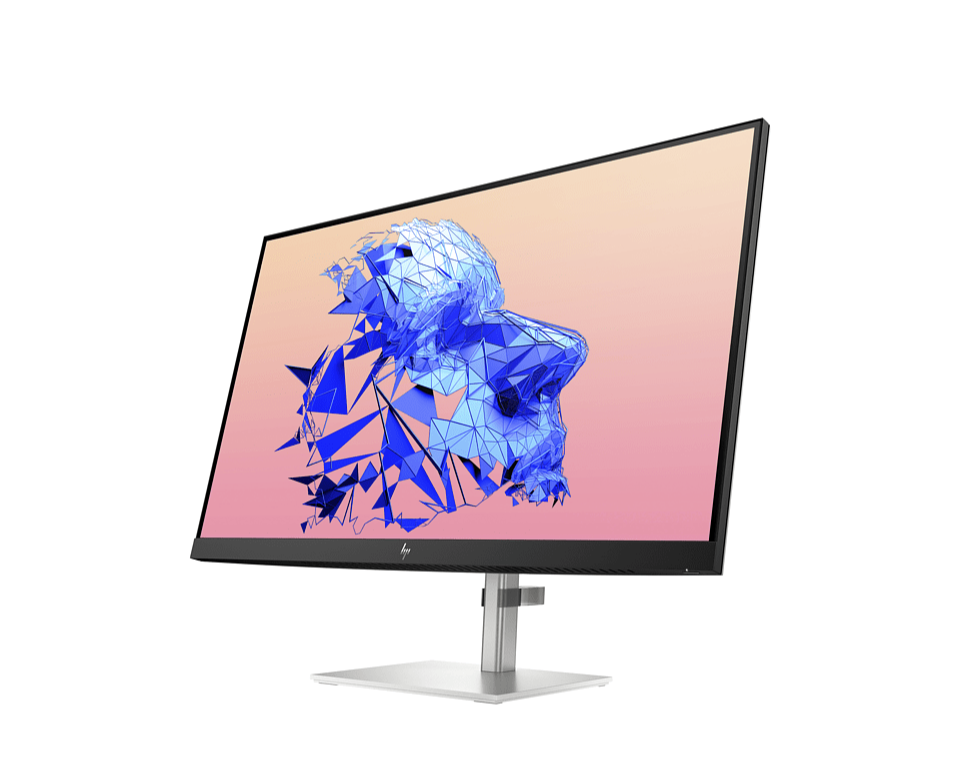

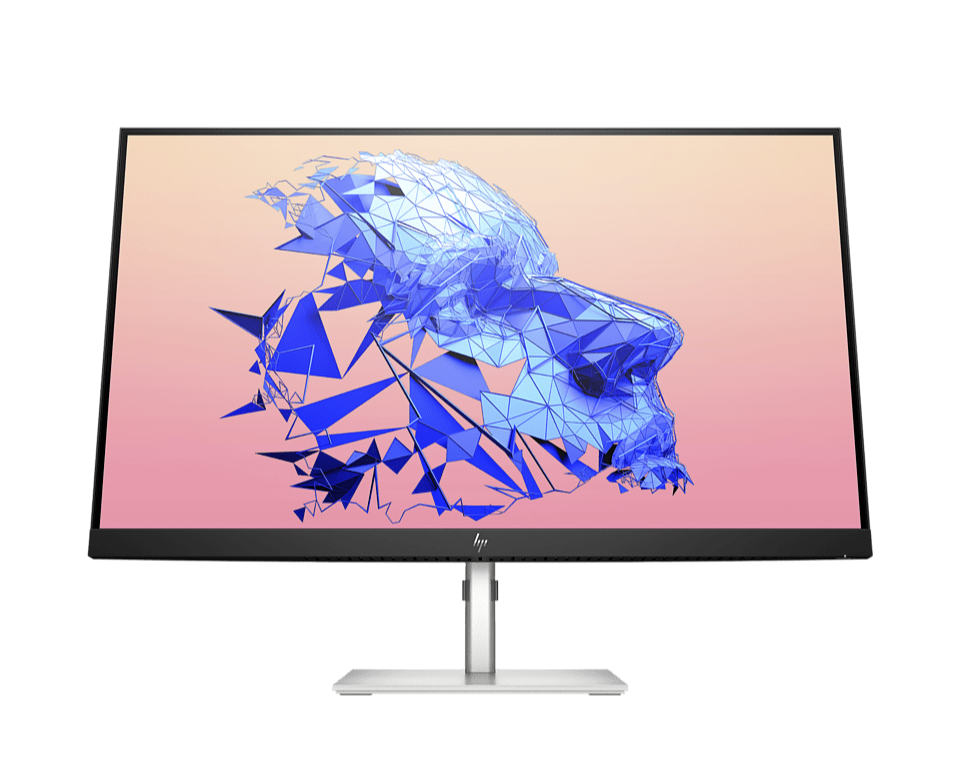

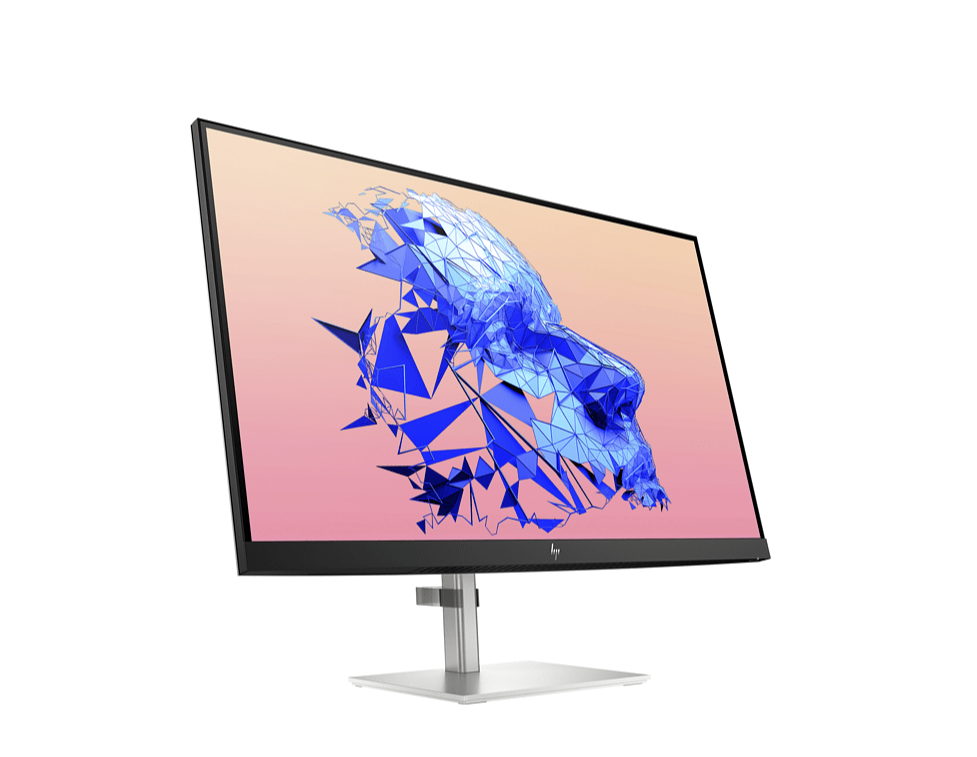

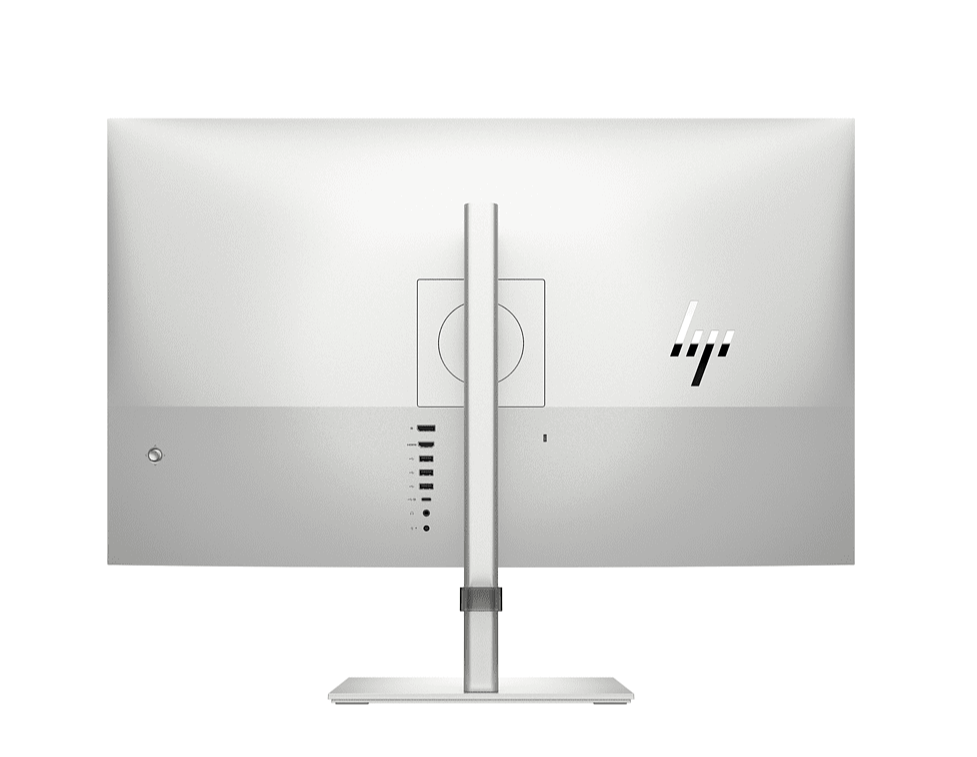

I am sorry but I feel it's ugly. Granted beauty lies in the eyes of the beholder. I am not talking specs here. I prefer the design of this hp for instance. As 5k goes I think a lot of people prefer an affordable screen matching Mac aesthetics with a decent cam, microphone and speakers built-in.



[grandM]

I dig this one

too.



[Moonjumper]

I am sorry but I feel it's ugly. Granted beauty lies in the eyes of the beholder. I am not talking specs here. I prefer the design of this hp for instance. As 5k goes I think a lot of people prefer an affordable screen matching Mac aesthetics with a decent cam, microphone and speakers built-in.View attachment 1920207View attachment 1920204View attachment 1920206View attachment 1920205View attachment 1920208

I like my HP Z27 G3 with barely any bezels, but I also like the Huawei. It certainly isn’t ugly. I’d be happy with either on my desk, but the decision wouldn’t be down to looks, it would be the features, and the 3:2 of the Huawei would be the decider if I didn’t already have the HP.

The problem with monitors (and many other products) is the manufacturers look at what they “think a lot of people prefer” and all produce similar items for that market, meaning they all compete there, and leave others without options. I’m glad Huawei have produced this monitor, and like the way it looks. It has certainly made more of an impact than a me-too product. I just wish they’d gone all out with the 4500x3000 panel used in the Microsoft Surface Studio, and given it the HDMI 2.1 and DP 1.4 it would have needed. Hopefully that comes next.



[howardroark]

It’s USB 2.0. I just checked. Reason: DisplayPort 1.2 doesn’t allow 3840×2560 at 60 Hz plus USB 3.x via USB-C.


If it did, it would be able to “do” 3840×2560 at 60 Hz plus USB 3.x via USB-C.


No ability to “do” 3840×2560 at 60 Hz plus USB 3.x or daisy-chain another DisplayPort/Thunderbolt/USB-C monitor to it (…because there’s no downstream Thunderbolt port), lower power delivery wattage, lower cost ()

Thanks, I'm thinking about buying a mini dp to usb-c cable to prevent the monitor from charging the Macbook. In this case, is it possible to theoretically get 60hz if there is no problem with the cable?



[Amethyst1]

I just wish they’d gone all out with the 4500x3000 panel used in the Microsoft Surface Studio,

Here (MODS: I'm not affiliated with this!!!) is the panel. Here (MODS: I'm not affiliated with this!!!) is a controller board (the same one used for the DIY 5K display projects BTW). Now to find a case/housing...

In this case, is it possible to theoretically get 60hz if there is no problem with the cable?

Should be no problemo.



[johnnyturbouk]

What do you work with the most? For me it was a huge upgrade.. I'm coming from a single 21:9 display to dual 3:2 monitors and it pretty much changes everything for me due to the terminal windows, now I can have more terminals with more vertical space to read logs and put more command chains.

Plus it's great overall browsing and emails

My iMac is my main machine, i use for work [phd informatics and bio stats] and for writing research manuscripts
I also use Autodesk and fusion for working with 3d models. SO im not looking for a gaming monitor and the huawei hits all areas for my user case - main issue is they cheated out in omitting tb3/dp1.3/hdmi2.1 - i mean even one of the would of been great!

My current setup:

For my new setup, the huawei will go on the right where the LG is and LG will now move to the left-side and be rotated vertical to replace the dell 27" ultra sharp which ill take to work

Here (MODS: I'm not affiliated with this!!!) is the panel. Here (MODS: I'm not affiliated with this!!!) is a controller board (the same one used for the DIY 5K display projects BTW). Now to find a case/housing...


Should be no problemo.

interesting


I wish huawei would release updated version of this monitor with tb3



[Amethyst1]

I wish huawei would release updated version of this monitor with tb3

Maybe next year…



[MrGunnyPT]

Maybe next year…

Still hoping for a Apple Display next year, I would definitely upgrade from both Huawei Mateview if it happens eventually



[Amethyst1]

Still hoping for a Apple Display next year,

What aspect ratio is that likely to have though?
