Mojave Kernel Panic Quadro K5000

djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
Hello, I am trying to ID and hopefully stop Kernel Panics with my K5000 (supposed to be native support in Mojave).

Any help or ideas?

I think I may try a re-install of Mojave and just port over my docs/apps.

Seems to happen when the computer is booted from a period of inactivity, ie. sleep mode.

any help or suggestions are appreciated.
[doublepost=1554316286][/doublepost]Additional: I did look at a crash report, I think it is Adobe that is causing the issue, however, I am not sure how to read or upload the crash reports here at MacRumors...that being said, I have deleted all Adobe files that I can find (I use HitFilm and FCPX, so I don't use any Adobe at this time).


bsbeamer

macrumors 68030
Sep 19, 2012
2,621
1,281
Did you uninstall NVIDIA Web Drivers and CUDA correctly? They are incompatible with Mojave. You are relying on the macOS driver for K5000 Mac Edition in Mojave.

If your GPU is NOT the Mac Edition, it's technically not officially compatible.

If you flashed the GPU (or paid someone else to), there MAY be a different issue. Have seen a few of these recently with non-Authentic K5000's that were flashed behaving poorly. Likely better using the non-EFI version than poorly flashed.

How are you powering GPU?
No issues on COLD start?
Did you try a clean install of Mojave onto a blank/empty SATA SSD or SATA HDD?
What monitor(s) do you have connected and via what ports?


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
Did you uninstall NVIDIA Web Drivers and CUDA correctly? They are incompatible with Mojave. You are relying on the macOS driver for K5000 Mac Edition in Mojave.

If your GPU is NOT the Mac Edition, it's technically not officially compatible.

If you flashed the GPU (or paid someone else to), there MAY be a different issue. Have seen a few of these recently with non-Authentic K5000's that were flashed behaving poorly. Likely better using the non-EFI version than poorly flashed.

How are you powering GPU?
No issues on COLD start?
Did you try a clean install of Mojave onto a blank/empty SATA SSD or SATA HDD?
What monitor(s) do you have connected and via what ports?
It is a flashed card.
It was a carbon clone if ordinal drive (so I might try clean install in the NVMe drive, or go back to high Sierra)

I’m using two monitors via display port, one hdmi to display the other vga to display port.

Cold starts seem normal but upon wake that I’ve experienced these issues.

The GPU is powered via one 6pin cord, no other powers save pci lane itself.

To my best knowledge and search, there are no other Nvidia drivers.

I’m thinking a clean install might be best.

I contacted the seller of the card and waiting to hear if he has any solutions or trouble shooting.


bsbeamer

macrumors 68030
Sep 19, 2012
2,621
1,281
In System Report > Software > Extensions, sort by name and scroll down to NVDAG. If any of those say "Web" at the end, NVIDIA Web Drivers are still installed. You can disable from startup, but better to uninstall completely.

Some DP converter adapters have been funky with Mojave. Believe it's related to HDCP protections. Straight DP>mDP are fine. If you can eliminate converters or go to another monitor source, see if that helps.


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
In System Report > Software > Extensions, sort by name and scroll down to NVDAG. If any of those say "Web" at the end, NVIDIA Web Drivers are still installed. You can disable from startup, but better to uninstall completely.

Some DP converter adapters have been funky with Mojave. Believe it's related to HDCP protections. Straight DP>mDP are fine. If you can eliminate converters or go to another monitor source, see if that helps.
Thanks, I’ll give it a try


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
In System Report > Software > Extensions, sort by name and scroll down to NVDAG. If any of those say "Web" at the end, NVIDIA Web Drivers are still installed. You can disable from startup, but better to uninstall completely.

Some DP converter adapters have been funky with Mojave. Believe it's related to HDCP protections. Straight DP>mDP are fine. If you can eliminate converters or go to another monitor source, see if that helps.

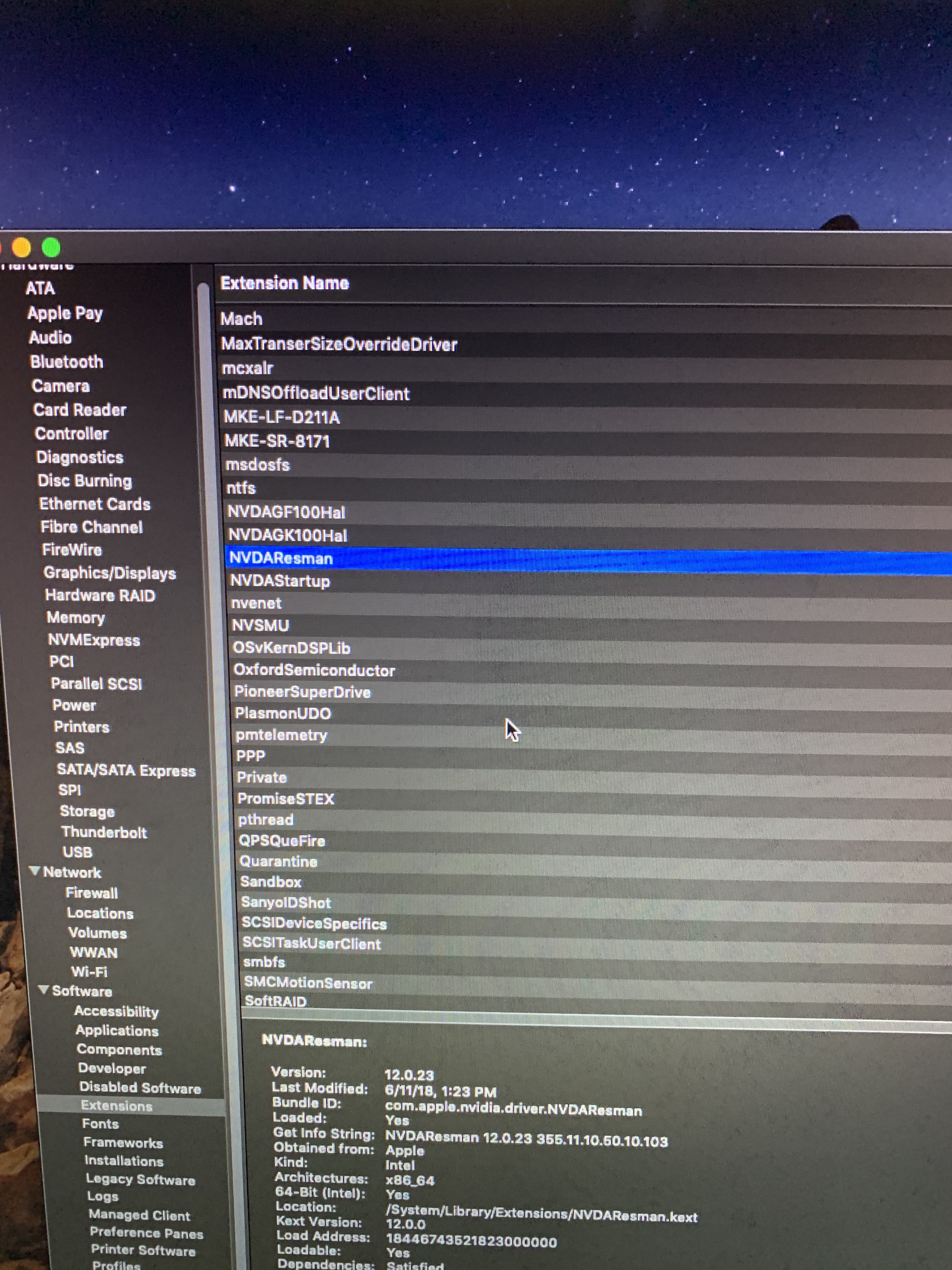

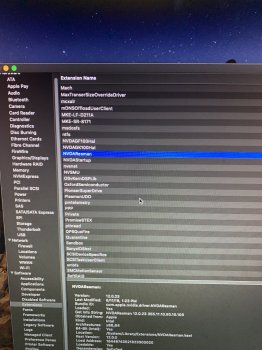

I did not see the Web drivers but these.


Attachments

bsbeamer

macrumors 68030
Sep 19, 2012
2,621
1,281
Those are the NVIDIA drivers built into macOS for Fermi and Kepler (above the blue line). Nothing wrong with them and they should be there.


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
Those are the NVIDIA drivers built into macOS for Fermi and Kepler (above the blue line). Nothing wrong with them and they should be there.
thanks, I'll still play the wait-n-see...I'll try the other options.


Ludacrisvp

macrumors 6502
May 14, 2008
410
168
In System Report > Software > Extensions, sort by name and scroll down to NVDAG. If any of those say "Web" at the end, NVIDIA Web Drivers are still installed. You can disable from startup, but better to uninstall completely.

Some DP converter adapters have been funky with Mojave. Believe it's related to HDCP protections. Straight DP>mDP are fine. If you can eliminate converters or go to another monitor source, see if that helps.
There aren’t web drivers for Mojave.

OP:
Do you have a copy of the panic stack?
That will typically give you some insight into why you are panicking.


bsbeamer

macrumors 68030
Sep 19, 2012
2,621
1,281
Correct - no web drivers for Mojave. If they weren’t removed from High Sierra upgrade it can cause startup issue.


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
There aren’t web drivers for Mojave.

OP:
Do you have a copy of the panic stack?
That will typically give you some insight into why you are panicking.
How do I find that? I’ve been looking and cannot locate the file

Last edited:

djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South

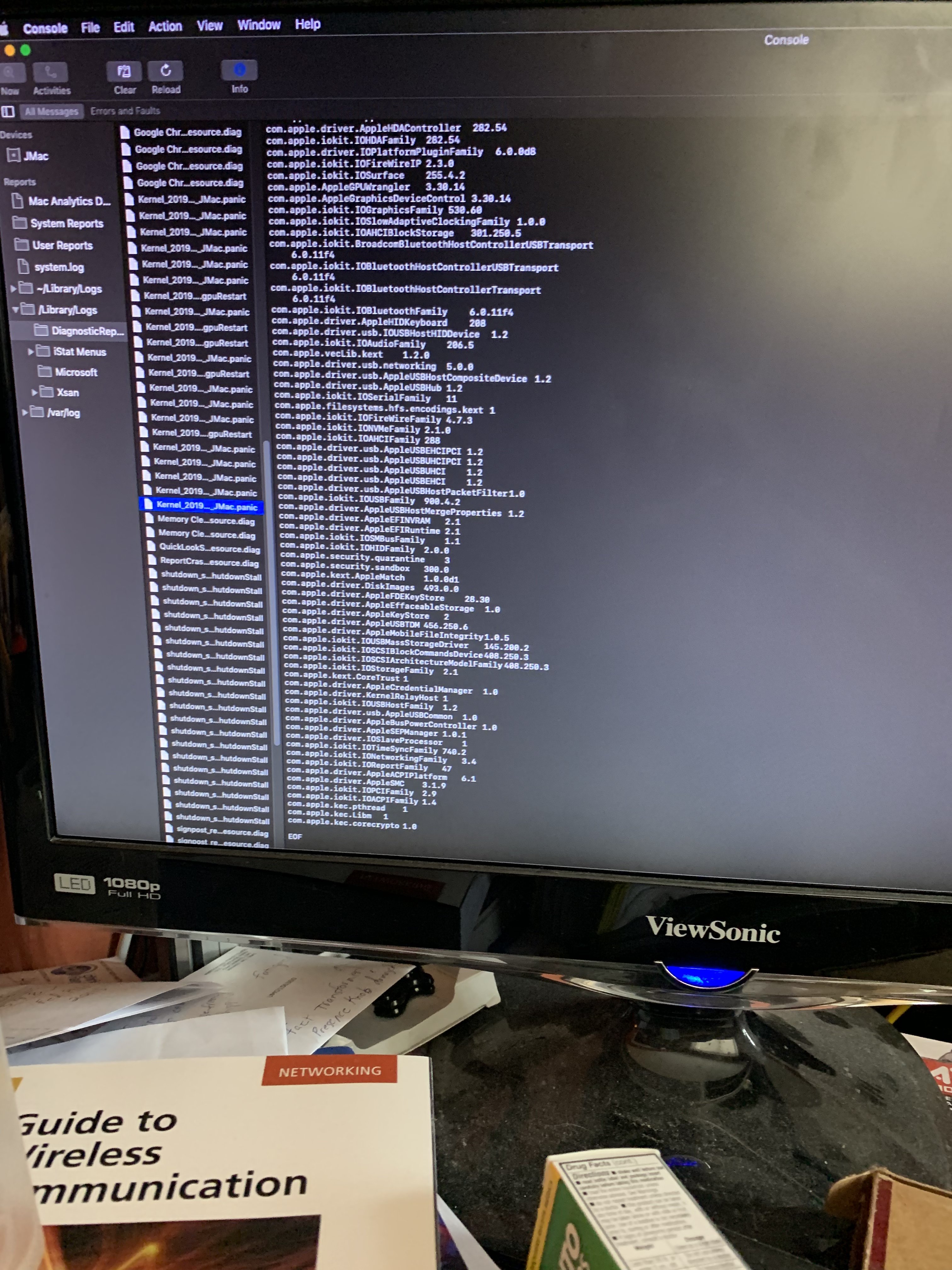

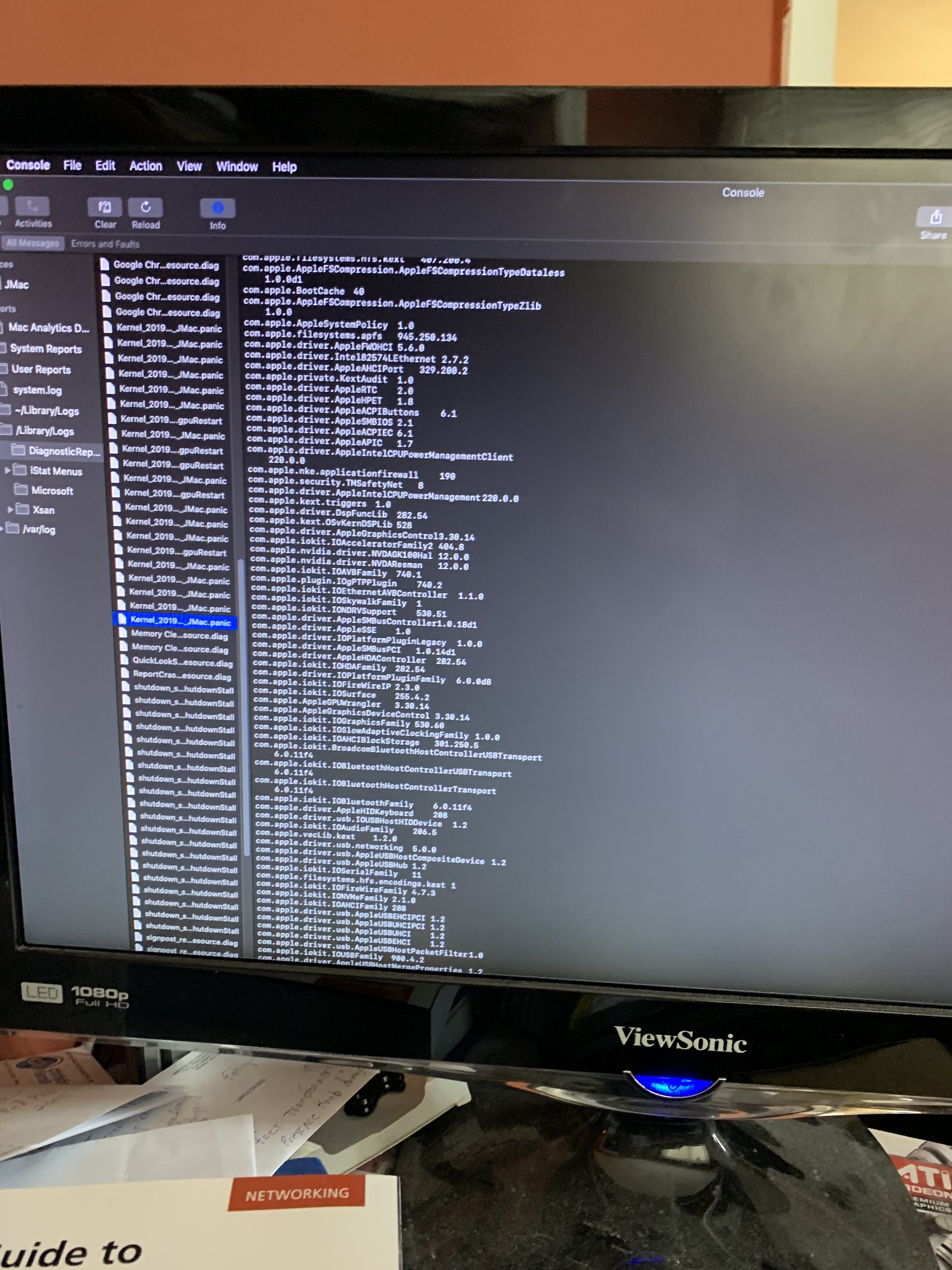

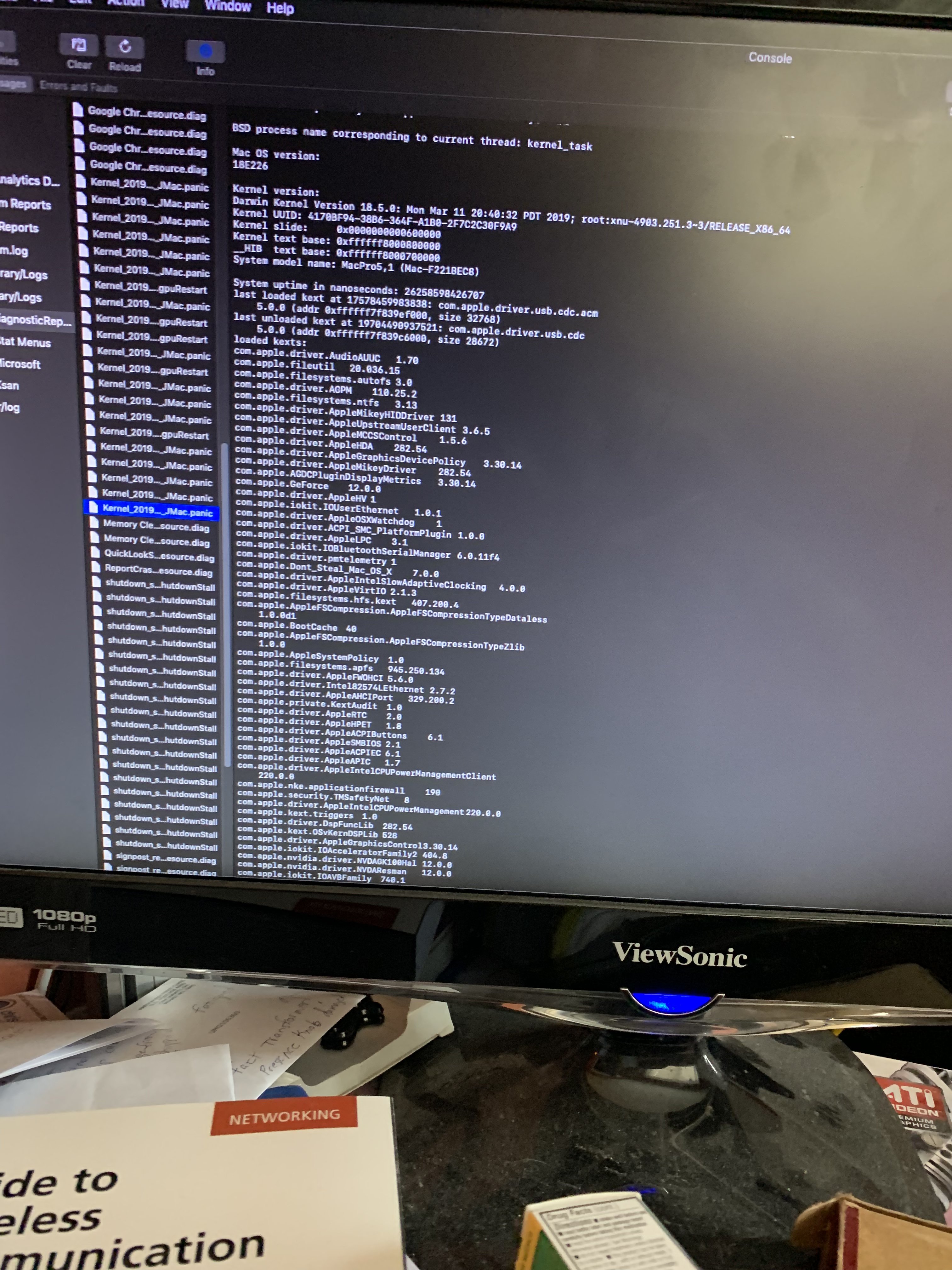

Ok, I think it’s the Nvidia drive but I cannot find it to delete it...see the screen captures for the latest panic.

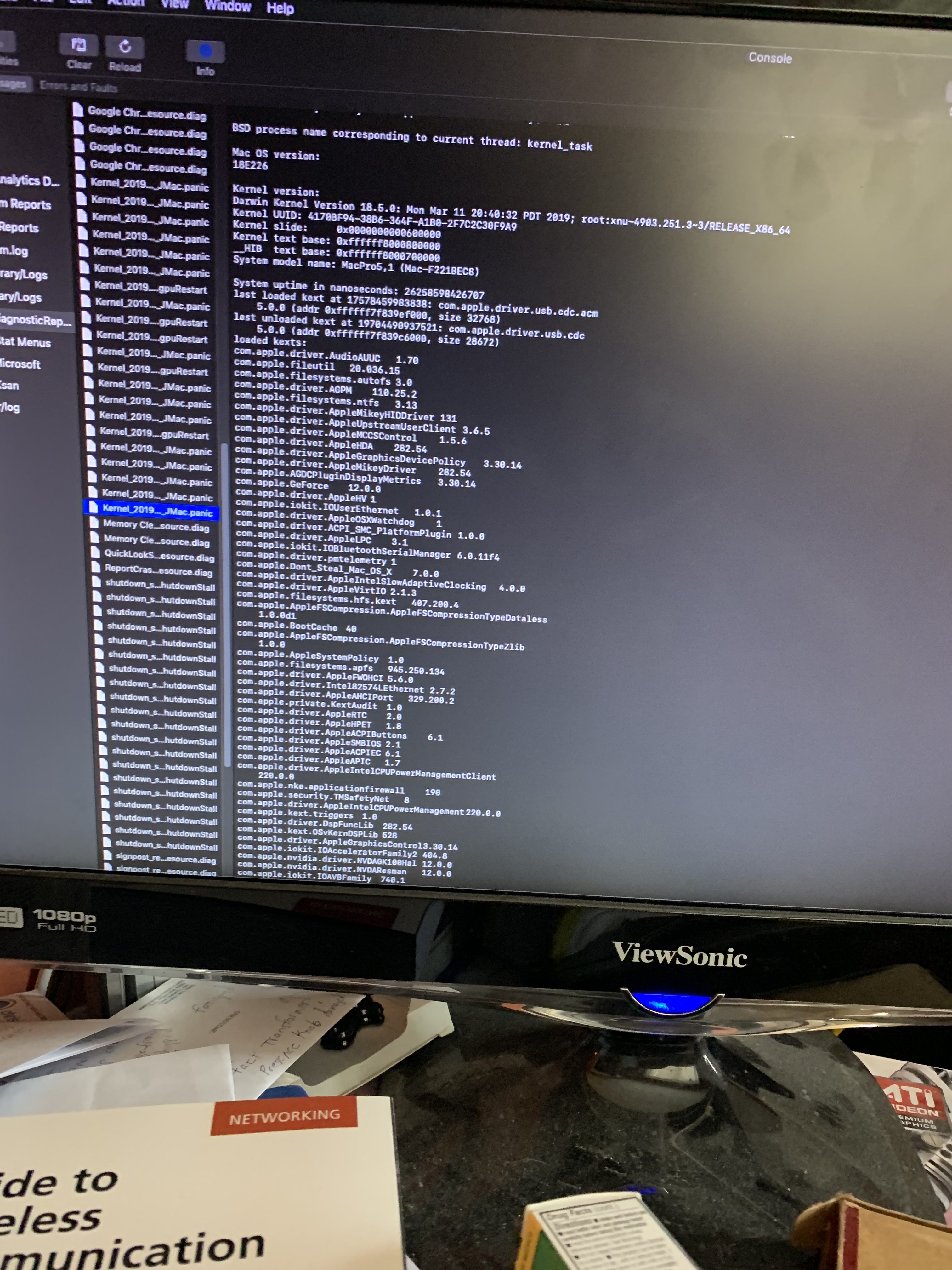

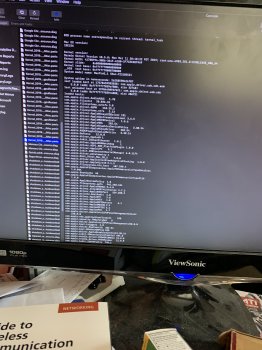

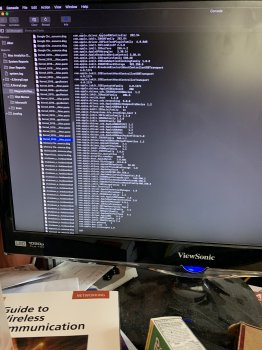

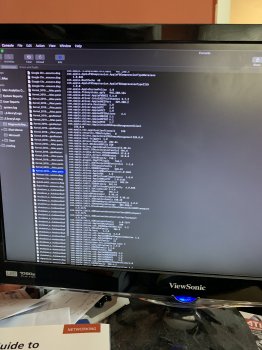

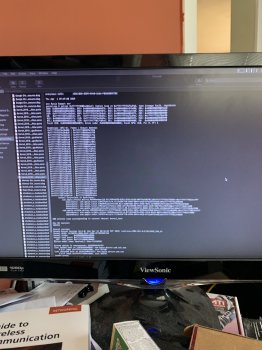

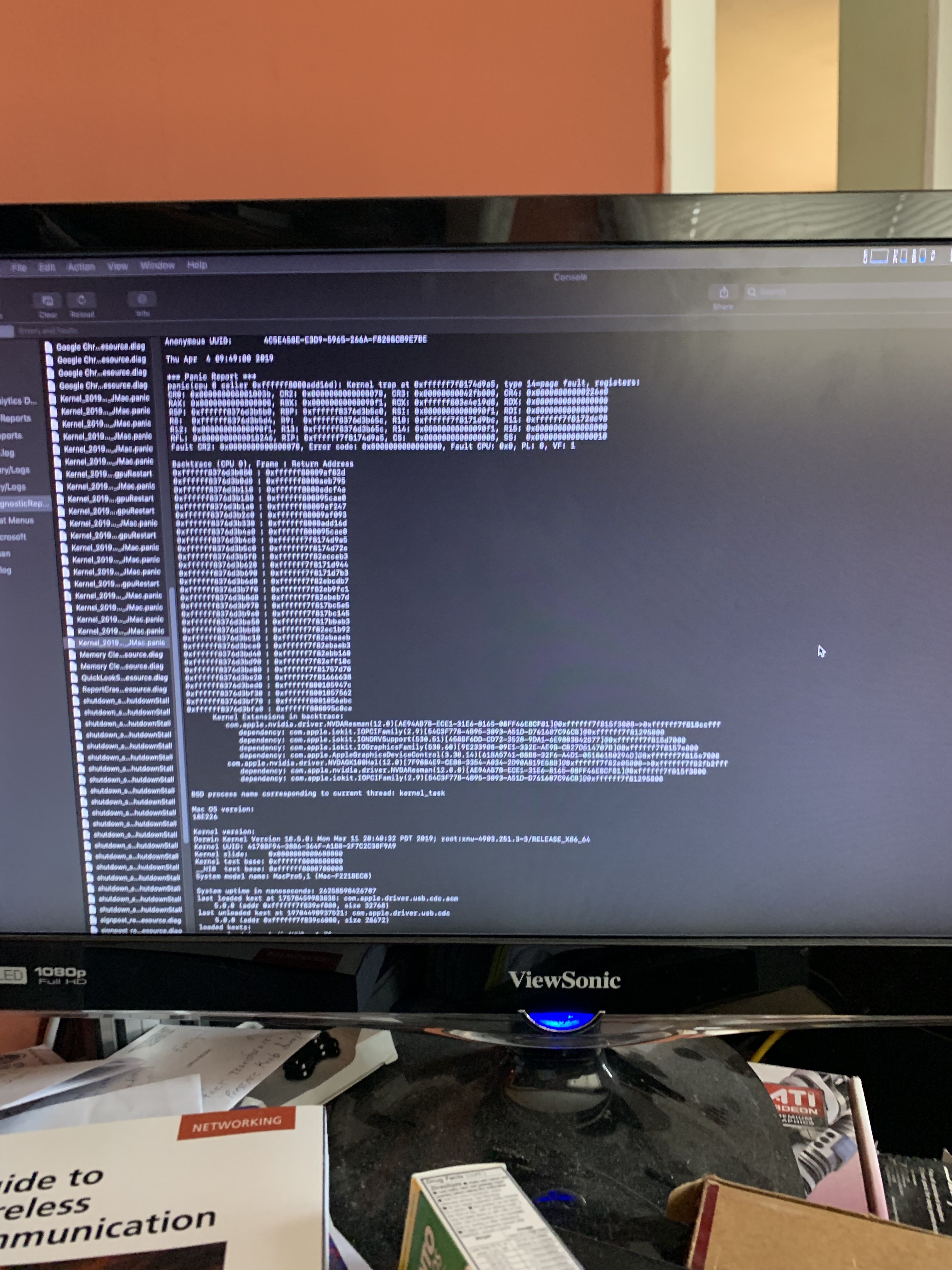

[doublepost=1554399883][/doublepost]I search in the Library files but I cannot find the NV driver that’s causing the issue...perhaps a fresh install might fix?


Attachments


bsbeamer

macrumors 68030
Sep 19, 2012
2,621
1,281
I'd recommend you at least try a fresh, clean install onto a blank/empty SATA SSD or SATA HDD to test if there is any difference.


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
I'd recommend you at least try a fresh, clean install onto a blank/empty SATA SSD or SATA HDD to test if there is any difference.
Thanks, may be best option...it’s just odd I can not locate the driver causing issues..


Ludacrisvp

macrumors 6502
May 14, 2008
410
168
Well yes the panic is certainly related to the GPU. Those are Apple versions of Nvidia kexts for sure. No hint of web driver kexts exist.

I’d test on a clean install of Mojave and if it continues test on a clean install of high Sierra. It’s possible your GPU May be near end of its life.

  • Like
Reactions: djjaes

bsbeamer

macrumors 68030
Sep 19, 2012
2,621
1,281
This is/was a “new” GPU that you hadn’t been using previously, correct?

If the issue persists in High Sierra without NVIDIA Web Drivers installed, it may point to a poorly flashed GPU. You can try to install the Web Drivers to see if they help at all, but figuring out how to return or get your money back may be best solution.

Hopefully clean Mojave fixes your issues.

  • Like
Reactions: djjaes

djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
This is/was a “new” GPU that you hadn’t been using previously, correct?

If the issue persists in High Sierra without NVIDIA Web Drivers installed, it may point to a poorly flashed GPU. You can try to install the Web Drivers to see if they help at all, but figuring out how to return or get your money back may be best solution.

Hopefully clean Mojave fixes your issues.
I am working on the clean install. Hopefully this will fix the issue.


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
Ok, I installed a fresh copy of Mojave on the spare SSD, and it crashed as well....so frustrating.

Here is the panic report, not sure if you all could make any sense of it or point to solutions.


Anonymous UUID: 7335C460-40BB-542E-A86E-4B9D6251A326

Sat Apr 6 15:06:43 2019

*** Panic Report ***
panic(cpu 0 caller 0xffffff80150dd16d): Kernel trap at 0xffffff7f95d4d9a5, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x0000000000000070, CR3: 0x00000000188fd000, CR4: 0x00000000000226e0
RAX: 0x0000000000000000, RBX: 0x00000000000090f1, RCX: 0xffffff8052fc9d58, RDX: 0x0000000000000000
RSP: 0xffffff83c072b5b0, RBP: 0xffffff83c072b5c0, RSI: 0x00000000000090f1, RDI: 0x0000000000000000
R8: 0xffffff83c072b5d4, R9: 0xffffff83c072b65c, R10: 0xffffff7f95d1d9bc, R11: 0xffffff7f95d2dc98
R12: 0x00000000000090f1, R13: 0xffffff83c072b65c, R14: 0x00000000000090f1, R15: 0x0000000000000000
RFL: 0x0000000000010246, RIP: 0xffffff7f95d4d9a5, CS: 0x0000000000000008, SS: 0x0000000000000010
Fault CR2: 0x0000000000000070, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1

Backtrace (CPU 0), Frame : Return Address
0xffffff83c072b080 : 0xffffff8014faf82d
0xffffff83c072b0d0 : 0xffffff80150eb795
0xffffff83c072b110 : 0xffffff80150dcf4a
0xffffff83c072b180 : 0xffffff8014f5cae0
0xffffff83c072b1a0 : 0xffffff8014faf247
0xffffff83c072b2c0 : 0xffffff8014faf093
0xffffff83c072b330 : 0xffffff80150dd16d
0xffffff83c072b4a0 : 0xffffff8014f5cae0
0xffffff83c072b4c0 : 0xffffff7f95d4d9a5
0xffffff83c072b5c0 : 0xffffff7f95d4d72e
0xffffff83c072b5f0 : 0xffffff7f974cceb3
0xffffff83c072b620 : 0xffffff7f95d1d944
0xffffff83c072b690 : 0xffffff7f95d1d7b3
0xffffff83c072b6d0 : 0xffffff7f974bcdb7
0xffffff83c072b7f0 : 0xffffff7f974b9fc1
0xffffff83c072b8d0 : 0xffffff7f974beb7d
0xffffff83c072b970 : 0xffffff7f95dbc5e5
0xffffff83c072b9e0 : 0xffffff7f95dbc145
0xffffff83c072ba50 : 0xffffff7f95dbbab3
0xffffff83c072bb80 : 0xffffff7f974c1b92
0xffffff83c072bc10 : 0xffffff7f974baaeb
0xffffff83c072bce0 : 0xffffff7f974baeb3
0xffffff83c072bd40 : 0xffffff7f974bb160
0xffffff83c072bd90 : 0xffffff7f974ff10c
0xffffff83c072be00 : 0xffffff7f95d57d70
0xffffff83c072be20 : 0xffffff7f95c66638
0xffffff83c072bed0 : 0xffffff801565947c
0xffffff83c072bf30 : 0xffffff8015657562
0xffffff83c072bf70 : 0xffffff8015656abc
0xffffff83c072bfa0 : 0xffffff8014f5c0ce
Kernel Extensions in backtrace:
com.apple.nvidia.driver.NVDAResman(12.0)[AE94AB7B-ECE1-31E6-8165-08FF46E8CF81]@0xffffff7f95bf3000->0xffffff7f95eccfff
dependency: com.apple.iokit.IOPCIFamily(2.9)[54C3F778-4B95-3093-A51D-D761607C96CB]@0xffffff7f95895000
dependency: com.apple.iokit.IONDRVSupport(530.51)[458BF6DD-CD72-3528-9DA1-6E9803B42B77]@0xffffff7f95bd7000
dependency: com.apple.iokit.IOGraphicsFamily(530.60)[9E233908-09E1-332E-AE9B-CB27D514707B]@0xffffff7f95b7e000
dependency: com.apple.AppleGraphicsDeviceControl(3.30.14)[61BA5741-B8B8-32F6-A4D1-051861B0294D]@0xffffff7f95be7000
com.apple.nvidia.driver.NVDAGK100Hal(12.0)[7F98B4E9-CEB0-3354-A034-2D90A819E58B]@0xffffff7f97405000->0xffffff7f975b2fff
dependency: com.apple.nvidia.driver.NVDAResman(12.0.0)[AE94AB7B-ECE1-31E6-8165-08FF46E8CF81]@0xffffff7f95bf3000
dependency: com.apple.iokit.IOPCIFamily(2.9)[54C3F778-4B95-3093-A51D-D761607C96CB]@0xffffff7f95895000

BSD process name corresponding to current thread: kernel_task

Mac OS version:
18E226

Kernel version:
Darwin Kernel Version 18.5.0: Mon Mar 11 20:40:32 PDT 2019; root:xnu-4903.251.3~3/RELEASE_X86_64
Kernel UUID: 4170BF94-38B6-364F-A1B0-2F7C2C30F9A9
Kernel slide: 0x0000000014c00000
Kernel text base: 0xffffff8014e00000
__HIB text base: 0xffffff8014d00000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 6399728402574
last loaded kext at 256492353844: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f97fc3000, size 69632)
last unloaded kext at 317175168178: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f97fc3000, size 61440)
loaded kexts:
com.apple.driver.AudioAUUC 1.70
com.apple.fileutil 20.036.15
com.apple.filesystems.autofs 3.0
com.apple.driver.AGPM 110.25.2
com.apple.filesystems.ntfs 3.13
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.driver.AppleUpstreamUserClient 3.6.5
com.apple.driver.AppleMCCSControl 1.5.6
com.apple.driver.AppleHDA 282.54
com.apple.driver.AppleMikeyDriver 282.54
com.apple.driver.AppleGraphicsDevicePolicy 3.30.14
com.apple.GeForce 12.0.0
com.apple.AGDCPluginDisplayMetrics 3.30.14
com.apple.driver.AppleHV 1
com.apple.driver.AppleLPC 3.1
com.apple.driver.AppleOSXWatchdog 1
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.iokit.IOBluetoothSerialManager 6.0.11f4
com.apple.driver.pmtelemetry 1
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.AppleVirtIO 2.1.3
com.apple.filesystems.hfs.kext 407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.BootCache 40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.AppleSystemPolicy 1.0
com.apple.filesystems.apfs 945.250.134
com.apple.driver.AppleFWOHCI 5.6.0
com.apple.driver.Intel82574LEthernet 2.7.2
com.apple.driver.AppleAHCIPort 329.200.2
com.apple.private.KextAudit 1.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleACPIButtons 6.1
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 6.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0
com.apple.nke.applicationfirewall 190
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 220.0.0
com.apple.kext.triggers 1.0
com.apple.driver.DspFuncLib 282.54
com.apple.kext.OSvKernDSPLib 528
com.apple.driver.AppleGraphicsControl 3.30.14
com.apple.iokit.IOAcceleratorFamily2 404.8
com.apple.nvidia.driver.NVDAGK100Hal 12.0.0
com.apple.nvidia.driver.NVDAResman 12.0.0
com.apple.iokit.IONDRVSupport 530.51
com.apple.iokit.IOAVBFamily 740.1
com.apple.plugin.IOgPTPPlugin 740.2
com.apple.iokit.IOEthernetAVBController 1.1.0
com.apple.iokit.IOSkywalkFamily 1
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.iokit.IOFireWireIP 2.3.0
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.driver.AppleHDAController 282.54
com.apple.iokit.IOHDAFamily 282.54
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.driver.AppleSSE 1.0
com.apple.iokit.IOSurface 255.4.2
com.apple.AppleGPUWrangler 3.30.14
com.apple.AppleGraphicsDeviceControl 3.30.14
com.apple.iokit.IOGraphicsFamily 530.60
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.iokit.IOAHCIBlockStorage 301.250.5
com.apple.driver.AppleHIDKeyboard 208
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.11f4
com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.11f4
com.apple.iokit.IOBluetoothHostControllerTransport 6.0.11f4
com.apple.iokit.IOBluetoothFamily 6.0.11f4
com.apple.driver.usb.IOUSBHostHIDDevice 1.2
com.apple.iokit.IOAudioFamily 206.5
com.apple.vecLib.kext 1.2.0
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
com.apple.driver.usb.AppleUSBHub 1.2
com.apple.iokit.IOSerialFamily 11
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOFireWireFamily 4.7.3
com.apple.iokit.IONVMeFamily 2.1.0
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBEHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCI 1.2
com.apple.driver.usb.AppleUSBEHCI 1.2
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.2
com.apple.driver.AppleUSBHostMergeProperties 1.2
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOSMBusFamily 1.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.security.quarantine 3
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.DiskImages 493.0.0
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleEffaceableStorage 1.0
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleUSBTDM 456.250.6
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.iokit.IOUSBMassStorageDriver 145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice 408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily 408.250.3
com.apple.iokit.IOStorageFamily 2.1
com.apple.kext.CoreTrust 1
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.2
com.apple.driver.usb.AppleUSBCommon 1.0
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.AppleSEPManager 1.0.1
com.apple.driver.IOSlaveProcessor 1
com.apple.iokit.IOTimeSyncFamily 740.2
com.apple.iokit.IONetworkingFamily 3.4
com.apple.iokit.IOReportFamily 47
com.apple.driver.AppleACPIPlatform 6.1
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0

EOF

System Profile:
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:
Boot Volume File System Type: apfs
PCI Card: NVIDIA Quadro K5000, Display Controller, Slot-1
PCI Card: NVIDIA Quadro K5000, NVDA,Parent, Slot-1
PCI Card: pci144d,a808, NVM Express Controller, Slot-4
PCI Card: pci1b21,625, AHCI Controller, Slot-3
Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304448302D5948392020
Memory Module: DIMM 2, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304448302D5948392020
Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304448302D5948392020
Memory Module: DIMM 4, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304448302D5948392020
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: G500s Laser Gaming Mouse
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB 2.0 Bus
USB Device: USB 2.0 Bus
USB Device: Keyboard Hub
USB Device: Apple Keyboard
Serial ATA Device: Samsung SSD 860 EVO 250GB, 250.06 GB
Serial ATA Device: WDC WD10EZEX-08WN4A0, 1 TB
Serial ATA Device: WDC WD10EZEX-08WN4A0, 1 TB
Serial ATA Device: WDC WD20EZRX-00D8PB0, 2 TB
Serial ATA Device: APPLE HDD HTS547550A9E384, 500.11 GB
Model: MacPro5,1, BootROM 141.0.0.0.0, 4 processors, Quad-Core Intel Xeon, 3.46 GHz, 32 GB, SMC 1.39f5
Graphics: NVIDIA Quadro K5000, NVIDIA Quadro K5000, spdisplays_pcie_device, 4 GB
Network Service: Ethernet 1, Ethernet, en0
Bluetooth: Version 6.0.11f4, 3 services, 27 devices, 1 incoming serial ports


Attachments

tsialex

macrumors 603
Jun 13, 2016
5,601
6,420
Brazil
Ok, I installed a fresh copy of Mojave on the spare SSD, and it crashed as well....so frustrating.

Here is the panic report, not sure if you all could make any sense of it or point to solutions.


Anonymous UUID: 7335C460-40BB-542E-A86E-4B9D6251A326

Sat Apr 6 15:06:43 2019

*** Panic Report ***
panic(cpu 0 caller 0xffffff80150dd16d): Kernel trap at 0xffffff7f95d4d9a5, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x0000000000000070, CR3: 0x00000000188fd000, CR4: 0x00000000000226e0
RAX: 0x0000000000000000, RBX: 0x00000000000090f1, RCX: 0xffffff8052fc9d58, RDX: 0x0000000000000000
RSP: 0xffffff83c072b5b0, RBP: 0xffffff83c072b5c0, RSI: 0x00000000000090f1, RDI: 0x0000000000000000
R8: 0xffffff83c072b5d4, R9: 0xffffff83c072b65c, R10: 0xffffff7f95d1d9bc, R11: 0xffffff7f95d2dc98
R12: 0x00000000000090f1, R13: 0xffffff83c072b65c, R14: 0x00000000000090f1, R15: 0x0000000000000000
RFL: 0x0000000000010246, RIP: 0xffffff7f95d4d9a5, CS: 0x0000000000000008, SS: 0x0000000000000010
Fault CR2: 0x0000000000000070, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1

Backtrace (CPU 0), Frame : Return Address
0xffffff83c072b080 : 0xffffff8014faf82d
0xffffff83c072b0d0 : 0xffffff80150eb795
0xffffff83c072b110 : 0xffffff80150dcf4a
0xffffff83c072b180 : 0xffffff8014f5cae0
0xffffff83c072b1a0 : 0xffffff8014faf247
0xffffff83c072b2c0 : 0xffffff8014faf093
0xffffff83c072b330 : 0xffffff80150dd16d
0xffffff83c072b4a0 : 0xffffff8014f5cae0
0xffffff83c072b4c0 : 0xffffff7f95d4d9a5
0xffffff83c072b5c0 : 0xffffff7f95d4d72e
0xffffff83c072b5f0 : 0xffffff7f974cceb3
0xffffff83c072b620 : 0xffffff7f95d1d944
0xffffff83c072b690 : 0xffffff7f95d1d7b3
0xffffff83c072b6d0 : 0xffffff7f974bcdb7
0xffffff83c072b7f0 : 0xffffff7f974b9fc1
0xffffff83c072b8d0 : 0xffffff7f974beb7d
0xffffff83c072b970 : 0xffffff7f95dbc5e5
0xffffff83c072b9e0 : 0xffffff7f95dbc145
0xffffff83c072ba50 : 0xffffff7f95dbbab3
0xffffff83c072bb80 : 0xffffff7f974c1b92
0xffffff83c072bc10 : 0xffffff7f974baaeb
0xffffff83c072bce0 : 0xffffff7f974baeb3
0xffffff83c072bd40 : 0xffffff7f974bb160
0xffffff83c072bd90 : 0xffffff7f974ff10c
0xffffff83c072be00 : 0xffffff7f95d57d70
0xffffff83c072be20 : 0xffffff7f95c66638
0xffffff83c072bed0 : 0xffffff801565947c
0xffffff83c072bf30 : 0xffffff8015657562
0xffffff83c072bf70 : 0xffffff8015656abc
0xffffff83c072bfa0 : 0xffffff8014f5c0ce
Kernel Extensions in backtrace:
com.apple.nvidia.driver.NVDAResman(12.0)[AE94AB7B-ECE1-31E6-8165-08FF46E8CF81]@0xffffff7f95bf3000->0xffffff7f95eccfff
dependency: com.apple.iokit.IOPCIFamily(2.9)[54C3F778-4B95-3093-A51D-D761607C96CB]@0xffffff7f95895000
dependency: com.apple.iokit.IONDRVSupport(530.51)[458BF6DD-CD72-3528-9DA1-6E9803B42B77]@0xffffff7f95bd7000
dependency: com.apple.iokit.IOGraphicsFamily(530.60)[9E233908-09E1-332E-AE9B-CB27D514707B]@0xffffff7f95b7e000
dependency: com.apple.AppleGraphicsDeviceControl(3.30.14)[61BA5741-B8B8-32F6-A4D1-051861B0294D]@0xffffff7f95be7000
com.apple.nvidia.driver.NVDAGK100Hal(12.0)[7F98B4E9-CEB0-3354-A034-2D90A819E58B]@0xffffff7f97405000->0xffffff7f975b2fff
dependency: com.apple.nvidia.driver.NVDAResman(12.0.0)[AE94AB7B-ECE1-31E6-8165-08FF46E8CF81]@0xffffff7f95bf3000
dependency: com.apple.iokit.IOPCIFamily(2.9)[54C3F778-4B95-3093-A51D-D761607C96CB]@0xffffff7f95895000

BSD process name corresponding to current thread: kernel_task

Mac OS version:
18E226

Kernel version:
Darwin Kernel Version 18.5.0: Mon Mar 11 20:40:32 PDT 2019; root:xnu-4903.251.3~3/RELEASE_X86_64
Kernel UUID: 4170BF94-38B6-364F-A1B0-2F7C2C30F9A9
Kernel slide: 0x0000000014c00000
Kernel text base: 0xffffff8014e00000
__HIB text base: 0xffffff8014d00000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 6399728402574
last loaded kext at 256492353844: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f97fc3000, size 69632)
last unloaded kext at 317175168178: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f97fc3000, size 61440)
loaded kexts:
com.apple.driver.AudioAUUC 1.70
com.apple.fileutil 20.036.15
com.apple.filesystems.autofs 3.0
com.apple.driver.AGPM 110.25.2
com.apple.filesystems.ntfs 3.13
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.driver.AppleUpstreamUserClient 3.6.5
com.apple.driver.AppleMCCSControl 1.5.6
com.apple.driver.AppleHDA 282.54
com.apple.driver.AppleMikeyDriver 282.54
com.apple.driver.AppleGraphicsDevicePolicy 3.30.14
com.apple.GeForce 12.0.0
com.apple.AGDCPluginDisplayMetrics 3.30.14
com.apple.driver.AppleHV 1
com.apple.driver.AppleLPC 3.1
com.apple.driver.AppleOSXWatchdog 1
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.iokit.IOBluetoothSerialManager 6.0.11f4
com.apple.driver.pmtelemetry 1
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.AppleVirtIO 2.1.3
com.apple.filesystems.hfs.kext 407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.BootCache 40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.AppleSystemPolicy 1.0
com.apple.filesystems.apfs 945.250.134
com.apple.driver.AppleFWOHCI 5.6.0
com.apple.driver.Intel82574LEthernet 2.7.2
com.apple.driver.AppleAHCIPort 329.200.2
com.apple.private.KextAudit 1.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleACPIButtons 6.1
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 6.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0
com.apple.nke.applicationfirewall 190
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 220.0.0
com.apple.kext.triggers 1.0
com.apple.driver.DspFuncLib 282.54
com.apple.kext.OSvKernDSPLib 528
com.apple.driver.AppleGraphicsControl 3.30.14
com.apple.iokit.IOAcceleratorFamily2 404.8
com.apple.nvidia.driver.NVDAGK100Hal 12.0.0
com.apple.nvidia.driver.NVDAResman 12.0.0
com.apple.iokit.IONDRVSupport 530.51
com.apple.iokit.IOAVBFamily 740.1
com.apple.plugin.IOgPTPPlugin 740.2
com.apple.iokit.IOEthernetAVBController 1.1.0
com.apple.iokit.IOSkywalkFamily 1
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.iokit.IOFireWireIP 2.3.0
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.driver.AppleHDAController 282.54
com.apple.iokit.IOHDAFamily 282.54
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.driver.AppleSSE 1.0
com.apple.iokit.IOSurface 255.4.2
com.apple.AppleGPUWrangler 3.30.14
com.apple.AppleGraphicsDeviceControl 3.30.14
com.apple.iokit.IOGraphicsFamily 530.60
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.iokit.IOAHCIBlockStorage 301.250.5
com.apple.driver.AppleHIDKeyboard 208
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.11f4
com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.11f4
com.apple.iokit.IOBluetoothHostControllerTransport 6.0.11f4
com.apple.iokit.IOBluetoothFamily 6.0.11f4
com.apple.driver.usb.IOUSBHostHIDDevice 1.2
com.apple.iokit.IOAudioFamily 206.5
com.apple.vecLib.kext 1.2.0
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
com.apple.driver.usb.AppleUSBHub 1.2
com.apple.iokit.IOSerialFamily 11
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOFireWireFamily 4.7.3
com.apple.iokit.IONVMeFamily 2.1.0
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBEHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCI 1.2
com.apple.driver.usb.AppleUSBEHCI 1.2
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.2
com.apple.driver.AppleUSBHostMergeProperties 1.2
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOSMBusFamily 1.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.security.quarantine 3
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.DiskImages 493.0.0
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleEffaceableStorage 1.0
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleUSBTDM 456.250.6
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.iokit.IOUSBMassStorageDriver 145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice 408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily 408.250.3
com.apple.iokit.IOStorageFamily 2.1
com.apple.kext.CoreTrust 1
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.2
com.apple.driver.usb.AppleUSBCommon 1.0
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.AppleSEPManager 1.0.1
com.apple.driver.IOSlaveProcessor 1
com.apple.iokit.IOTimeSyncFamily 740.2
com.apple.iokit.IONetworkingFamily 3.4
com.apple.iokit.IOReportFamily 47
com.apple.driver.AppleACPIPlatform 6.1
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0

EOF

System Profile:
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:
Boot Volume File System Type: apfs
PCI Card: NVIDIA Quadro K5000, Display Controller, Slot-1
PCI Card: NVIDIA Quadro K5000, NVDA,Parent, Slot-1
PCI Card: pci144d,a808, NVM Express Controller, Slot-4
PCI Card: pci1b21,625, AHCI Controller, Slot-3
Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304448302D5948392020
Memory Module: DIMM 2, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304448302D5948392020
Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304448302D5948392020
Memory Module: DIMM 4, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304448302D5948392020
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: G500s Laser Gaming Mouse
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB 2.0 Bus
USB Device: USB 2.0 Bus
USB Device: Keyboard Hub
USB Device: Apple Keyboard
Serial ATA Device: Samsung SSD 860 EVO 250GB, 250.06 GB
Serial ATA Device: WDC WD10EZEX-08WN4A0, 1 TB
Serial ATA Device: WDC WD10EZEX-08WN4A0, 1 TB
Serial ATA Device: WDC WD20EZRX-00D8PB0, 2 TB
Serial ATA Device: APPLE HDD HTS547550A9E384, 500.11 GB
Model: MacPro5,1, BootROM 141.0.0.0.0, 4 processors, Quad-Core Intel Xeon, 3.46 GHz, 32 GB, SMC 1.39f5
Graphics: NVIDIA Quadro K5000, NVIDIA Quadro K5000, spdisplays_pcie_device, 4 GB
Network Service: Ethernet 1, Ethernet, en0
Bluetooth: Version 6.0.11f4, 3 services, 27 devices, 1 incoming serial ports
Just my two cents:

One of my Mac Pros have Mojave 10.14.4 and GTX 680 4GB, same drivers almost the same GPU as yours Quadro K5000, and I’m not having any kernel panics.

Did you checked the northbridge rivets?

Tested your GPU with a PC/another Mac Pro?


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
Just my two cents:

One of my Mac Pros have Mojave 10.14.4 and GTX 680 4GB, same drivers almost the same GPU as yours Quadro K5000, and I’m not having any kernel panics.

Did you checked the northbridge rivets?

Tested your GPU with a PC/another Mac Pro?
I have Win10 on another drive, and when I was in Windows, it seemed fine, but I wasn't in there for that long to test...perhaps, I should again.

I may just go back to High Sierra, but I wanted to be able to boot from my NVMe drive for better speeds.

I have contacted the seller to see what solutions or support that he may have.
[doublepost=1554583462][/doublepost]
Just my two cents:

One of my Mac Pros have Mojave 10.14.4 and GTX 680 4GB, same drivers almost the same GPU as yours Quadro K5000, and I’m not having any kernel panics.

Did you checked the northbridge rivets?

Tested your GPU with a PC/another Mac Pro?
I'll take a look at the North Bridge later this weekend and then try even moving the card to the next slot.


tsialex

macrumors 603
Jun 13, 2016
5,601
6,420
Brazil
I have Win10 on another drive, and when I was in Windows, it seemed fine, but I wasn't in there for that long to test...perhaps, I should again.

I may just go back to High Sierra, but I wanted to be able to boot from my NVMe drive for better speeds.

I have contacted the seller to see what solutions or support that he may have.
[doublepost=1554583462][/doublepost]

I'll take a look at the North Bridge later this weekend and then try even moving the card to the next slot.
High Sierra works nicely with 1xx.0.0.0.0 BootROMs. You can boot from NVMe and have NVIDIA web drivers.


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
High Sierra works nicely with 1xx.0.0.0.0 BootROMs. You can boot from NVMe and have NVIDIA web drivers.
Awesome, my bootROM is 141.0.0.0.0. I'll probably go with High Sierra....I'm still rocking it on my 2010 white MacBook.
[doublepost=1554595409][/doublepost]
High Sierra works nicely with 1xx.0.0.0.0 BootROMs. You can boot from NVMe and have NVIDIA web drivers.
As well, the seller said that if I thought the card was the issue, he would take it back....I'm not ready to give up on it yet...as well, do you all think the CPU could be at fault? As it said CPU 5 or so on the panic report?


MIKX

macrumors 65816
Dec 16, 2004
1,277
477
Japan
I highly recommend getting iStat Menus then check your Northbridge temps.
You can also use nuts & bolts instead of the plastic rivets.

On my spare DUAL 4,1 CPU tray I am testing the " Nut & Bolt " technique.
Thus far it's working well.


Nut & Bolt Norhbridge technique ( of course, clean and reapply thermal paste. )

From the Northbridgetop . .

1. M3 bolt ( from memory length 20mm ).
2. 1/2 of a ballpoint pen spring.
Northbridge heatsink top

Northbridge heatsink bottom
3. Non-conductive M3 washer
4. M3 Metal washer
5. M3 nut
6. Me nut = to lock the upper M3 nut at about the same tension that the spring
of a plastic rivet would normally be set at.
( gently pull one of the OK rivets to get a 'feel' for it.

If indeed you have broken rivet ( or rivetS ) this may be interesting https://forums.macrumors.com/threads/cooler-northbridge-on-the-mac-pro-5-1-dual-cpu.2173519/

If you have a SINGLE CPu tray i doubt rivet problems unless your Northbridge has been up above 80 ~ 90°C for an extender period.

========================================

I also suggest that you make a Mac Rumors member .sig file to describe your cMP.
You can see my ".sig" at the bottom of this post it allows MacRumors members to instantly know your cMP setup.

Good luck.


djjaes

macrumors regular
Original poster
Jan 24, 2015
114
43
US South
I highly recommend getting iStat Menus then check your Northbridge temps.
You can also use nuts & bolts instead of the plastic rivets.

On my spare DUAL 4,1 CPU tray I am testing the " Nut & Bolt " technique.
Thus far it's working well.


Nut & Bolt Norhbridge technique ( of course, clean and reapply thermal paste. )

From the Northbridgetop . .

1. M3 bolt ( from memory length 20mm ).
2. 1/2 of a ballpoint pen spring.
Northbridge heatsink top

Northbridge heatsink bottom
3. Non-conductive M3 washer
4. M3 Metal washer
5. M3 nut
6. Me nut = to lock the upper M3 nut at about the same tension that the spring
of a plastic rivet would normally be set at.
( gently pull one of the OK rivets to get a 'feel' for it.

If indeed you have broken rivet ( or rivetS ) this may be interesting https://forums.macrumors.com/threads/cooler-northbridge-on-the-mac-pro-5-1-dual-cpu.2173519/

If you have a SINGLE CPu tray i doubt rivet problems unless your Northbridge has been up above 80 ~ 90°C for an extender period.

========================================

I also suggest that you make a Mac Rumors member .sig file to describe your cMP.
You can see my ".sig" at the bottom of this post it allows MacRumors members to instantly know your cMP setup.

Good luck.
I have iStats, I’ll review the data on the Northbridge...thanks for the suggestion.


Ludacrisvp

macrumors 6502
May 14, 2008
410
168
... do you all think the CPU could be at fault? As it said CPU 5 or so on the panic report?
I don't.
I only noted CPU 0 in the panic reports that you've shared and this simply says this is the CPU thread / core that was executing something at the time that the panic was observed.
I don't know if you upgraded your CPU to this one or if it was factory option (I don't recall if 5,1 was sold single CPU 3.46GHz and your panic lists your machine as having a single socket system), but considering this is a new to you GPU and a new problem that mentions drivers (kexts) that specifically are for this hardware I'm really leaning on this being a bad GPU.
Maybe you'll get lucky and be able to run High Sierra just fine, but considering the fresh install of Mojave's failure I don't see it being all too likely unless what is killing the card is the stress of 'metal' which to me still says bad GPU.
