Following the release of several photos of a claimed display assembly for the "iPhone 6s" over the weekend, Macfixit Australia has shared additional images of what appears to be the same display assembly, further suggesting the leaked images to be real internal parts for the next-generation iPhone.

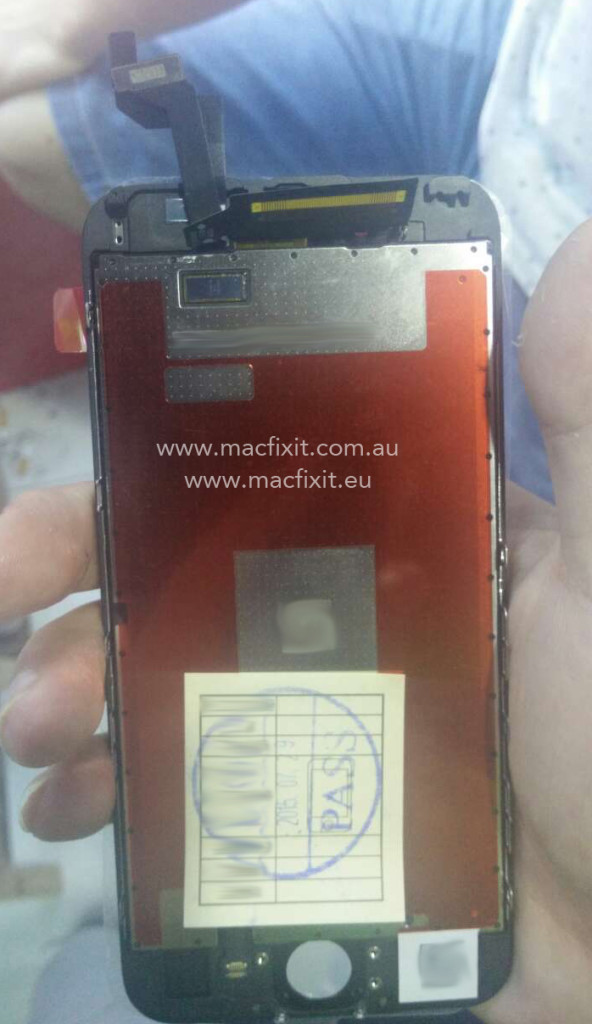

One of Macfixit's photos includes a quality control label showing a pass date of July 29, which, if legitimate, would put the assembly in a correct time frame for Apple's traditional September iPhone launches. The image also appears identical to those released over the weekend by repair company GeekBar, with the same possible cutouts for a taptic engine to fuel Force Touch and a slightly thicker frame.

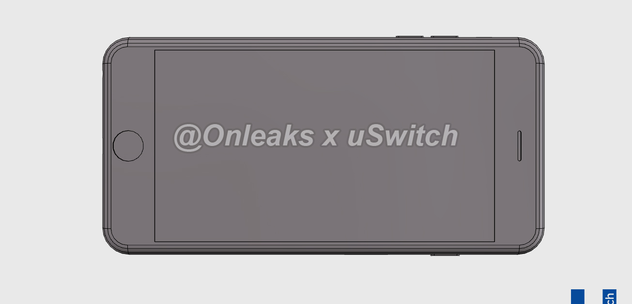

A few possible third-party case manufacturer design renders have also been shared by uSwitch and Nowhereelse.fr's OnLeaks channel, backing the theory that this year's iPhone line will be slightly thicker than the iPhone 6 and iPhone 6 Plus. Theories that support Apple's reasoning behind increasing the iPhone's thickness -- other than the inclusion of Force Touch -- include attempts to avoid another "Bendgate" controversy from last year with a stronger body. Height and width of the iPhones shown in the renderings are also marginally larger than the measurements for the current lineup.

While the iPhone 6 came in at 6.9mm thick, the iPhone 6S is 7.1mm, according to our source.

The iPhone 6S Plus, which was the model most often cited in the so-called 'bendgate' scandal, has also been body-building. It's gone from 7.1mm thick to 7.3mm, we were told.
The renders also suggest that the "iPhone 6s" could be missing the slightly protruding camera found on the current lineup, perhaps made possible by the slightly thicker body. The "iPhone 6s Plus" renderings, however, continue to show a protruding rear camera. uSwitch does note the renders could simply be incomplete, so Apple's plans for rear camera designs remain unconfirmed. Otherwise, the site notes an overall similarity between generations, with a home button, volume rockers, lock switch, and screen size that make the new phones "largely indistinguishable" from last year's models.


Even with the possibility of a thicker frame, the size increase of the so-called iPhone 6s would be small enough to allow most accessories and cases to function with both generations of the device. News and rumors regarding the "iPhone 6s" and "iPhone 6s Plus" have begun to proliferate in the past few weeks, and will no doubt continue to do so as we head into the iPhone launch season.

Article Link: More 'iPhone 6s' Display Assembly Photos and Renderings Revealed


Jsameds

Suspended
Apr 22, 2008
3,525
7,986
Do we know whether they've made the jump to OLED yet? Apple usually are industry leader when it comes to displays but they have festered since the iPhone 5 and other phone screens have taken the top spot in terms of good quality image reproduction.

  • Like
Reactions: AleXXXa

JimmyHook

macrumors 6502a
Apr 7, 2015
644
1,351
You'll soon find out. Just wait for the onslaught of "the camera lens is still protruding" comments.
It's hilarious the number of people who hate apple and post here, like they think they'll talk people out of buying Apple products. They should know it will never work. It's worth mentioning that Samsung and other cheap low end manufacturers that try to be like Apple and fail have protruding camera lenses too.

  • Like
Reactions: Jstuts5797

melgross

macrumors 6502
Jan 23, 2004
345
209
New York City
The lens bump is almost a mm, so unless other things have changed, I don't see how a thickness increase of 0.3mm is going to eliminate it.


HenryDJP

Suspended
Nov 25, 2012
5,084
843
United States
Do we know whether they've made the jump to OLED yet? Apple usually are industry leader when it comes to displays but they have festered since the iPhone 5 and other phone screens have taken the top spot in terms of good quality image reproduction.
Yet the phones with those "other screens" haven't beat the iPhone 6/6Plus is in sales however. Just sayin'. ;)


Dave245

macrumors G3
Sep 15, 2013
8,054
5,814
It seems every year there are more and more leaks, sometimes I wonder if Apple are doing it on purpose. I'm not complaining it helps me make my mind up if it's something I want. This year however I'm more looking forward to iPad Pro leaks (if it exists and is being released this year).


TMRJIJ

macrumors 68040
Dec 12, 2011
3,248
5,418
South Carolina, United States
Do we know whether they've made the jump to OLED yet? Apple usually are industry leader when it comes to displays but they have festered since the iPhone 5 and other phone screens have taken the top spot in terms of good quality image reproduction.
The difference between OLED and LCD is simply lighting. Blacks are washed out on LCD but OLED draws a lot more power if the whole screen is bright or white. Brightness is also OLED's weakness.
I find nothing wrong with the retina LCD displays on my iPhone 6. It produces excellent picture quality.

Last edited:

Rogifan

macrumors Core
Nov 14, 2011
21,904
27,379
Do we know whether they've made the jump to OLED yet? Apple usually are industry leader when it comes to displays but they have festered since the iPhone 5 and other phone screens have taken the top spot in terms of good quality image reproduction.
Who all is using OLED besides Samsung? Is OLED objectively better than LCD?


Jsameds

Suspended
Apr 22, 2008
3,525
7,986
The difference between OLED and LED is simply lighting. Blacks are washed out on LED but OLED draws a lot more power if the whole screen is bright or white. Brightness is also OLED's weakness.
I find nothing wrong with the retina LED displays on my iPhone 6. It produces excellent picture quality.
Here's an interesting read.
http://www.displaymate.com/Galaxy_S6_ShootOut_1.htm

Particularly this paragraph:

"Comparison with LCDs and the iPhone 6 and 6 Plus
LCDs and OLEDs are the two leading mobile display technologies. The technologies are significantly different and each one has its own inherent strengths – and both continue to evolve and improve independently.


We recently evaluated and rated the iPhone 6 and 6 Plus as the current Best Mobile LCD Displays, while the Galaxy S6 and Galaxy Note 4 are the currentBest Mobile OLED Displays. All are impressive and excellent displays with great state-of-the-art display technology. However, OLED displays have been advancing at a relentless and fast pace with a constant series of systematic and strategic improvements, while LCDs have been coasting on their laurels for years. So although OLEDs started from behind in 2010 they have now pulled ahead on performance and innovation based on the Lab test and measurement results reported here. To get back in the game and become more competitive, LCDs will need to adopt Quantum Dots and Dynamic Color Management.


The Galaxy S6 has more than double the resolution and more than 4 times the number of pixels as the iPhone 6. It also has significantly higher peak Brightness, significantly higher Contrast Ratio in both low and high Ambient Light, significantly higher Absolute Color Accuracy, significantly better Viewing Angel performance, and has 4 selectable screen modes instead of a single fixed one on the iPhones.


You can directly compare the data and measurement results for all four of these displays in detail by using a Tabbed web browser with our comprehensive Lab measurements and analysis for each of the displays. For each Tab click on a Link below. The entries are mostly identical with only minor formatting differences, so it’s easy to make detailed side-by-side comparisons by simply clicking through the Tabs."


currentinterest

macrumors 6502
Aug 22, 2007
473
248
I get a new phone every year. This time around I plan on getting a 6S plus since I use the phone less as a result of having an Apple Watch. For a better camera and more extended browsing, email, and video consumption I figure I would give the larger one a try. I also have high hopes for FourceTouch.
