NEED HELP - 13 Mini restarting randomly SMC PANIC - BSC failure

[zyd]

Hi,

my Iphone13 Mini restarts every three minutes. The error log shows a SMC BSC error of type 0x1000, which should be a damaged proximity flex cable. Disconnecting the cable should in theory fix this problem (or not?). However, the problem continues to exist even after disconnecting it. Should I still replace the cable or is there another problem?

To eliminate the possibility of a software problem, I then tried to reset my Phone in DFU mode via iTunes with no success as it still restarts during the reset process. Now it is also stuck in DFU mode 😀 and I can't get out of it unless i resolve this issue.

I would really appreciate the help!



[Harbin ebiz]

Hi, my iPhone 14 has the same issue. Can you please tell how you resolved it ?

This link says possible three reasons : charge port , battery , and power button ribbon . Sounds like I have to try battery and ribbon coz I changed charge port and not working.

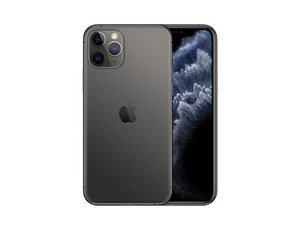

iPhone reboots after 3 minutes if I go into unlock screen - iPhone 11 Pro

Hi, Recently I was using my iPhone to take some pictures during a rainy day when it suddenly shut down and started to go into a boot loop. It eventually managed to boot, and long story made short, the situation is now as follows: (1) If I leave the iPhone as it is when it boots, i.e., without...

www.ifixit.com



[Harbin ebiz]

This post says 0x4000 array is battery .

Troubleshooting iPhone Reboot Problems

TROUBLESHOOTING IPHONE REBOOT: How to Fix an iPhone that Restarts Every Three Minutes Why does my phone keep restarting? My phone will only stay on for three mi

www.ipadrehab.com



[zyd]

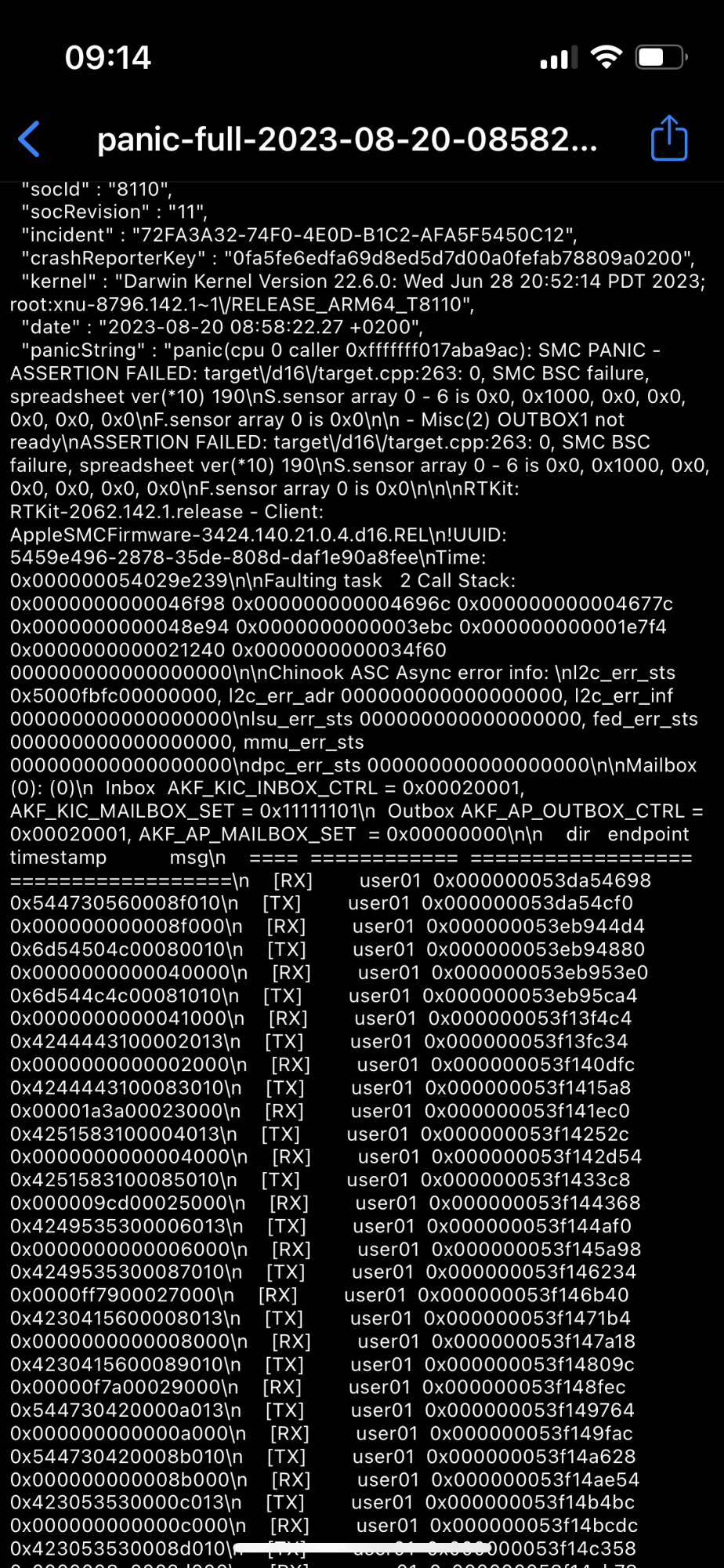

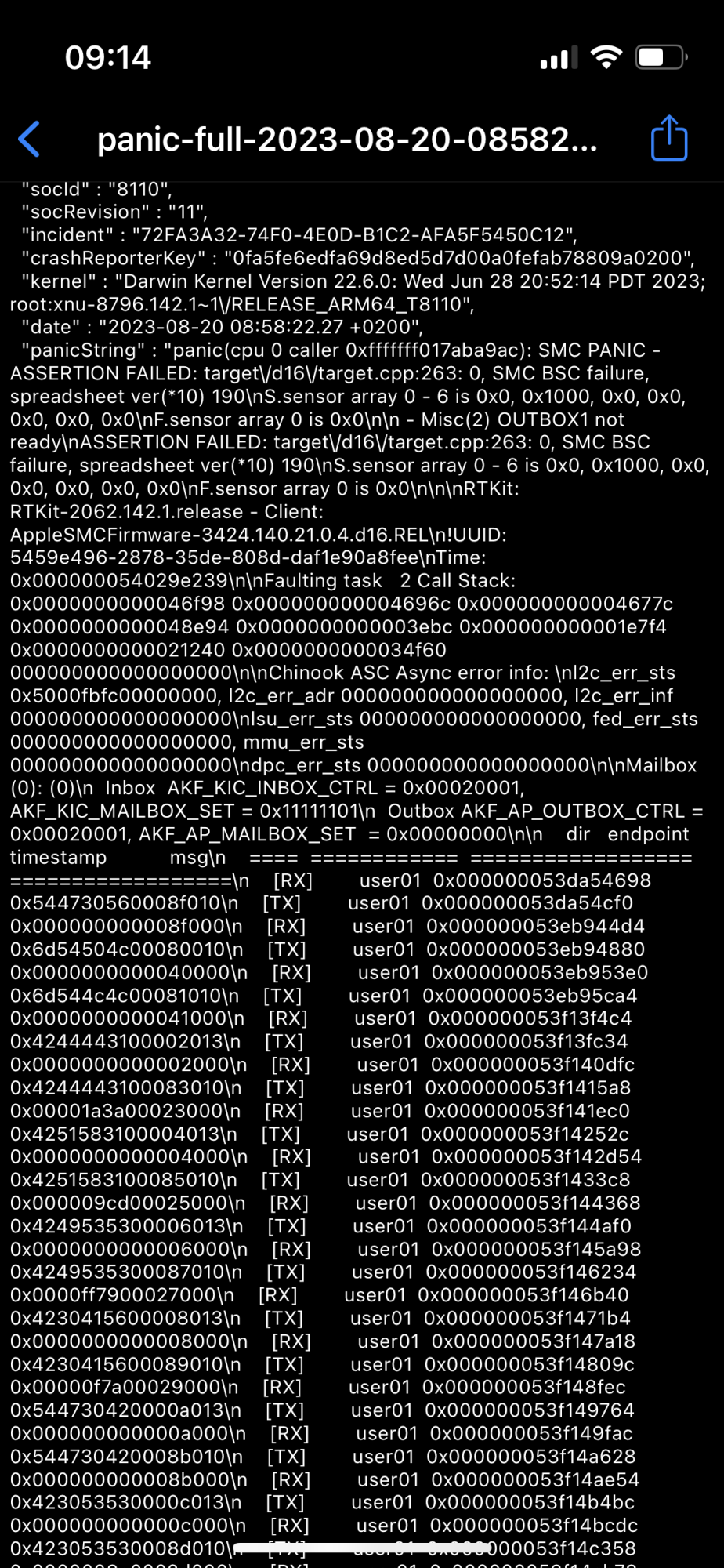

hey, can you send a screenshot of your panic log? my issue was a SMC BSC error of type 0x1000, which meant that the proximity flex cable was damaged and needed replacement.
