philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey

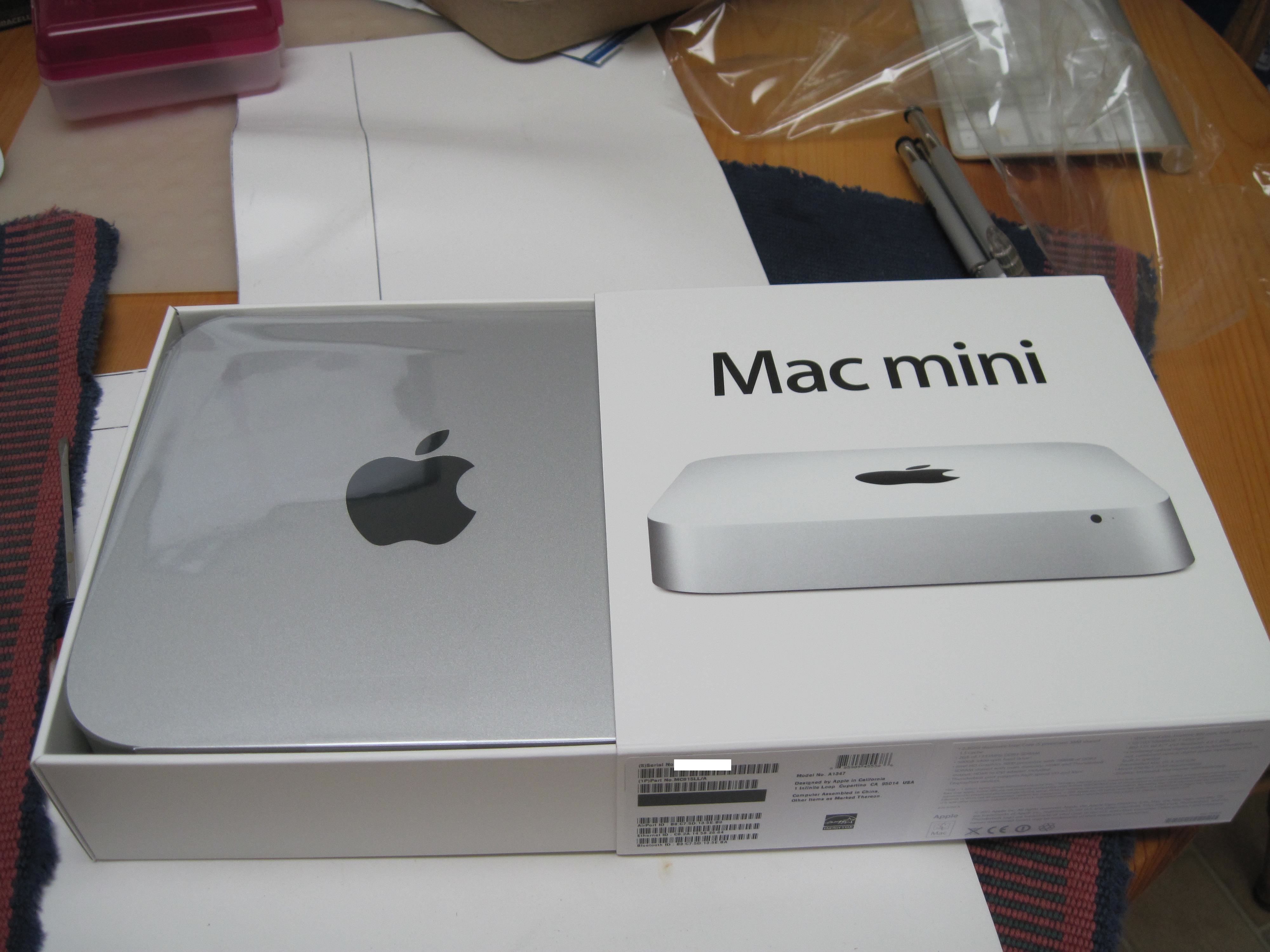

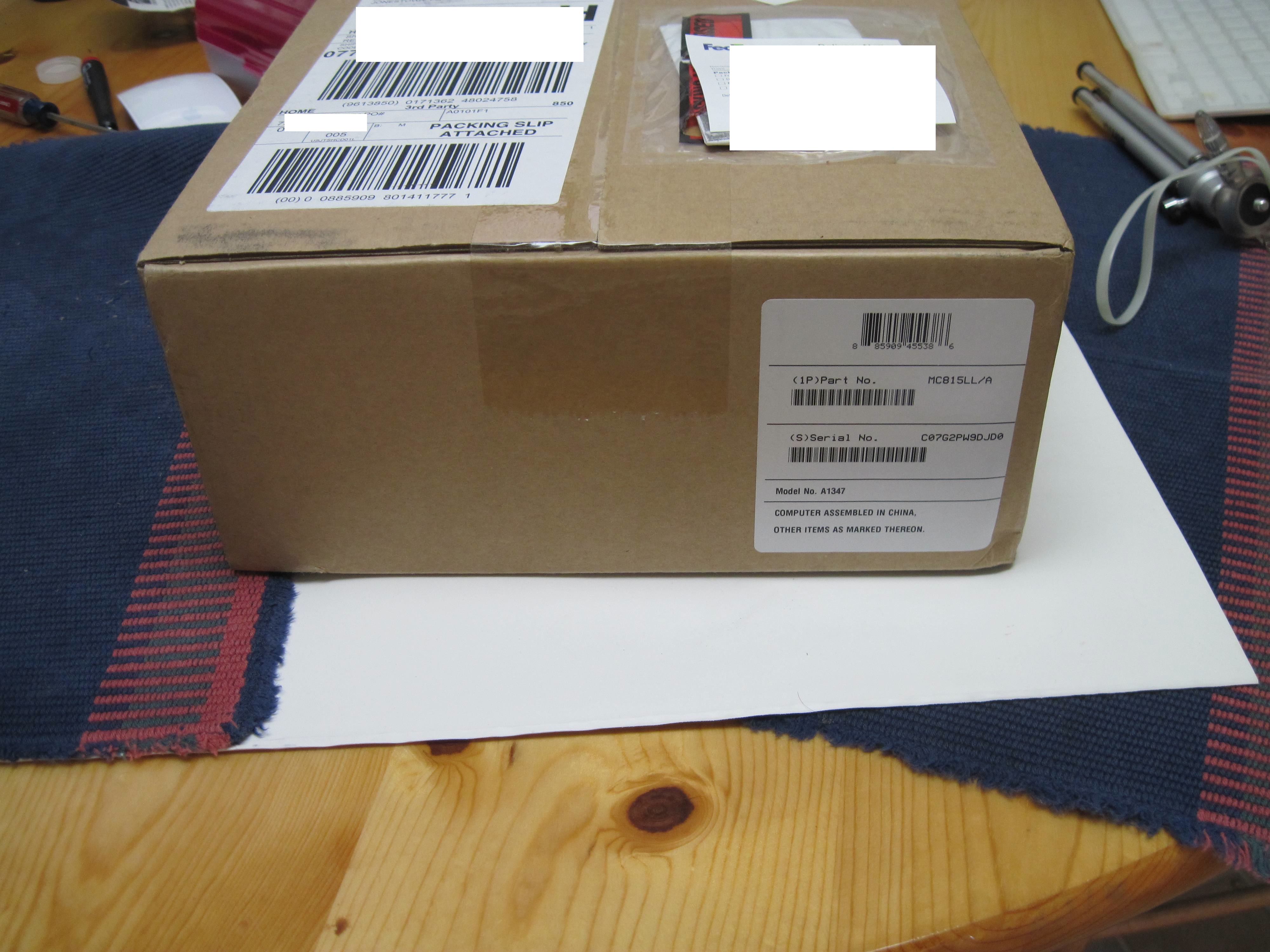

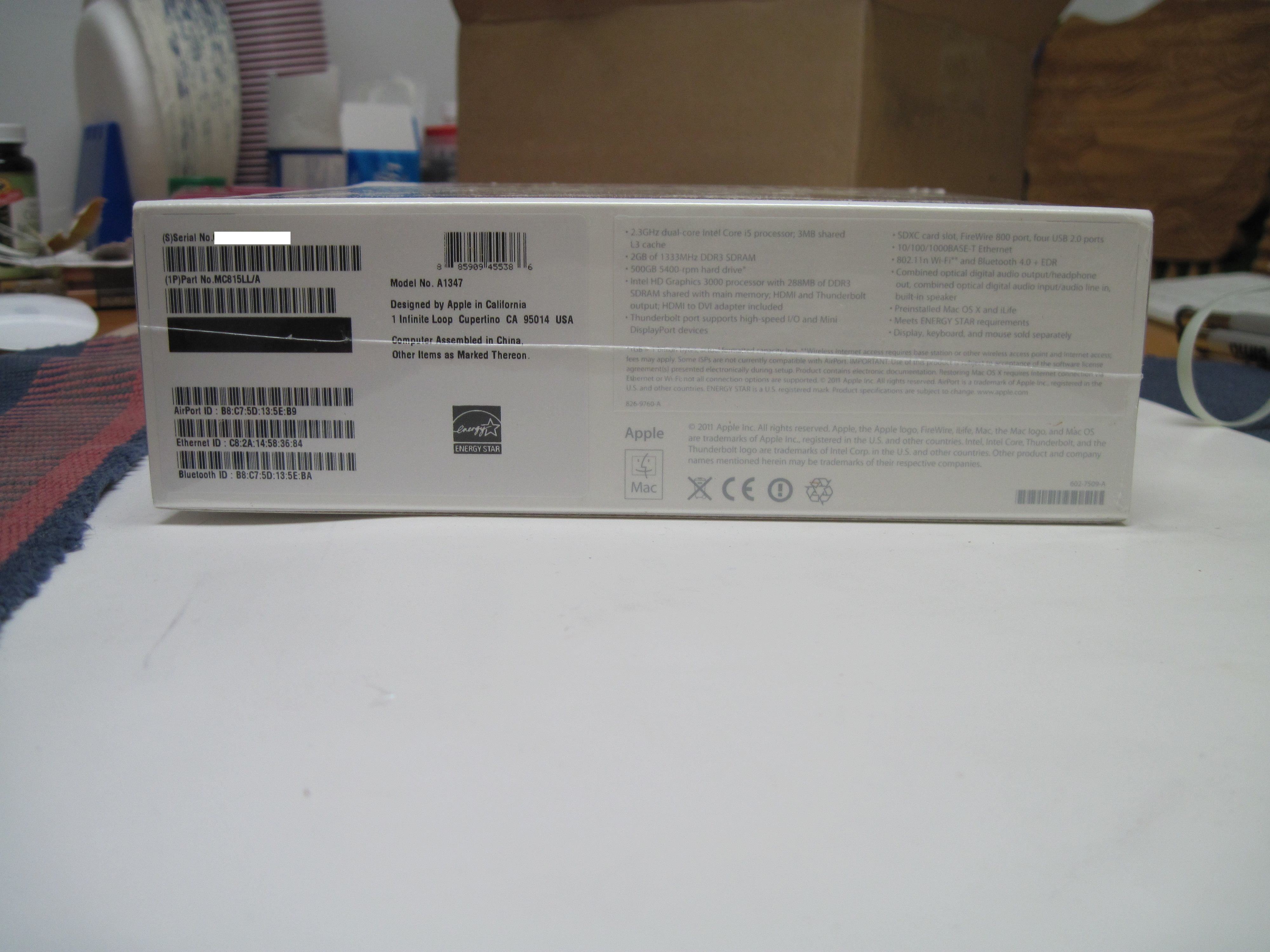

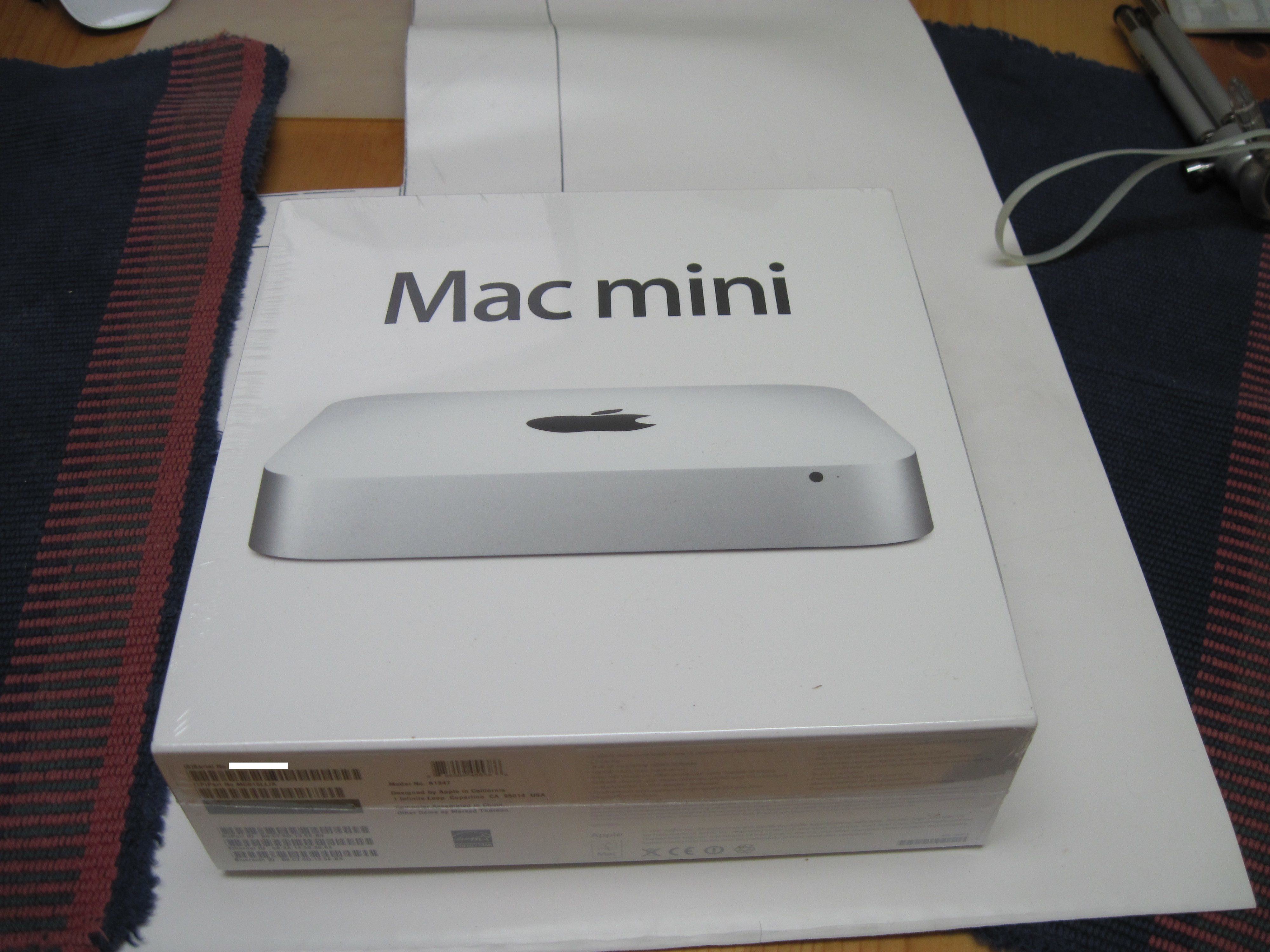

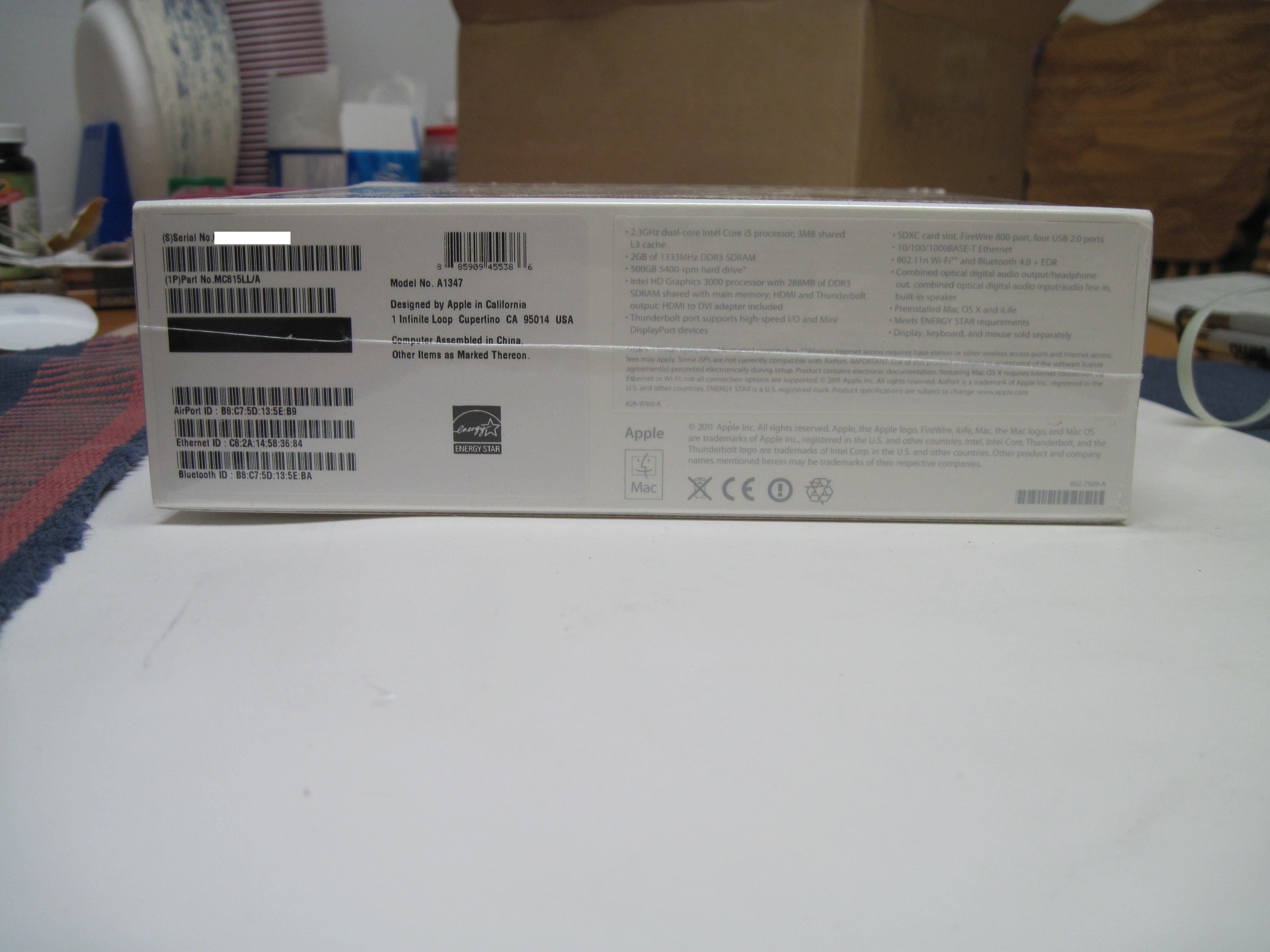

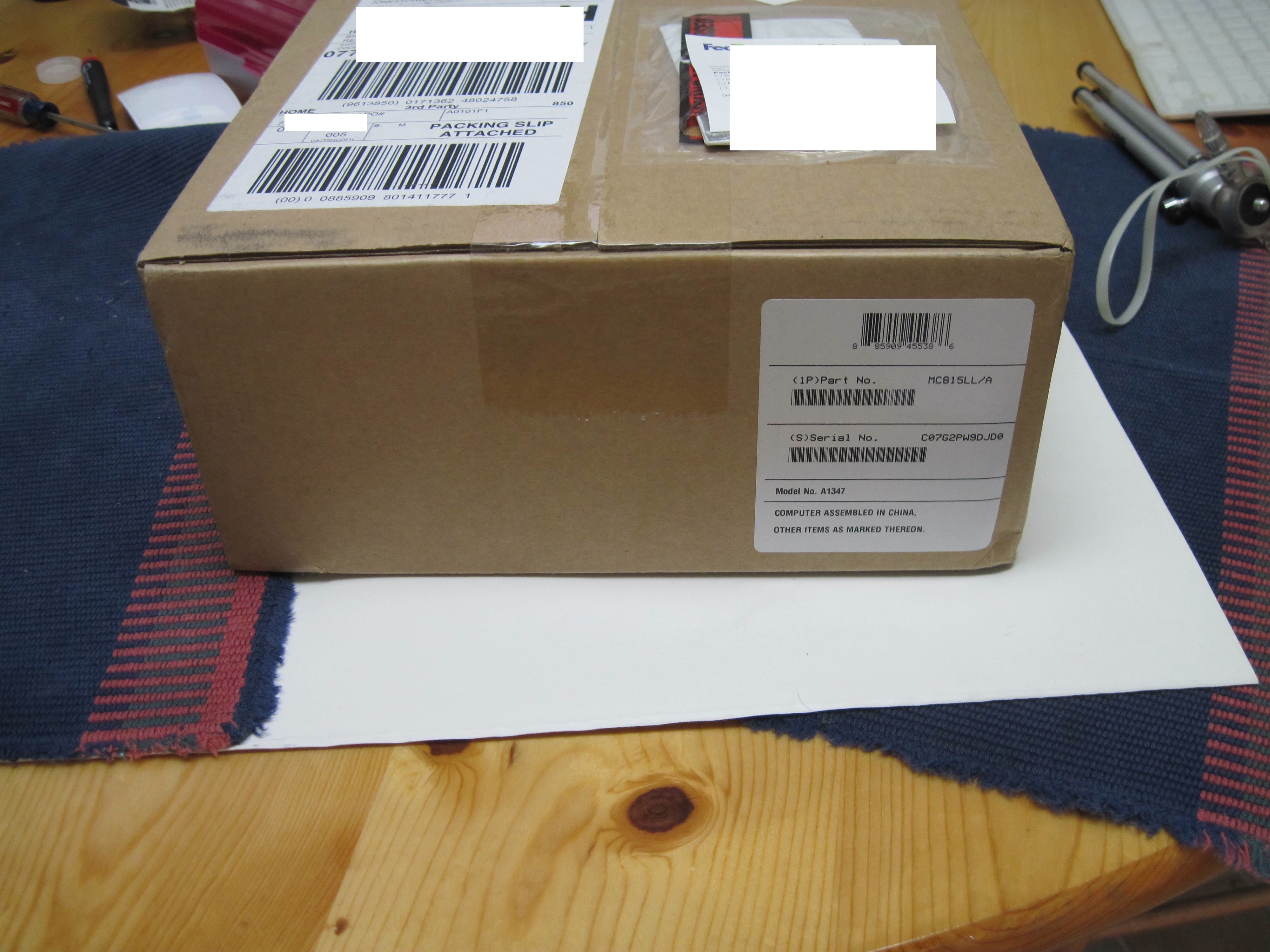

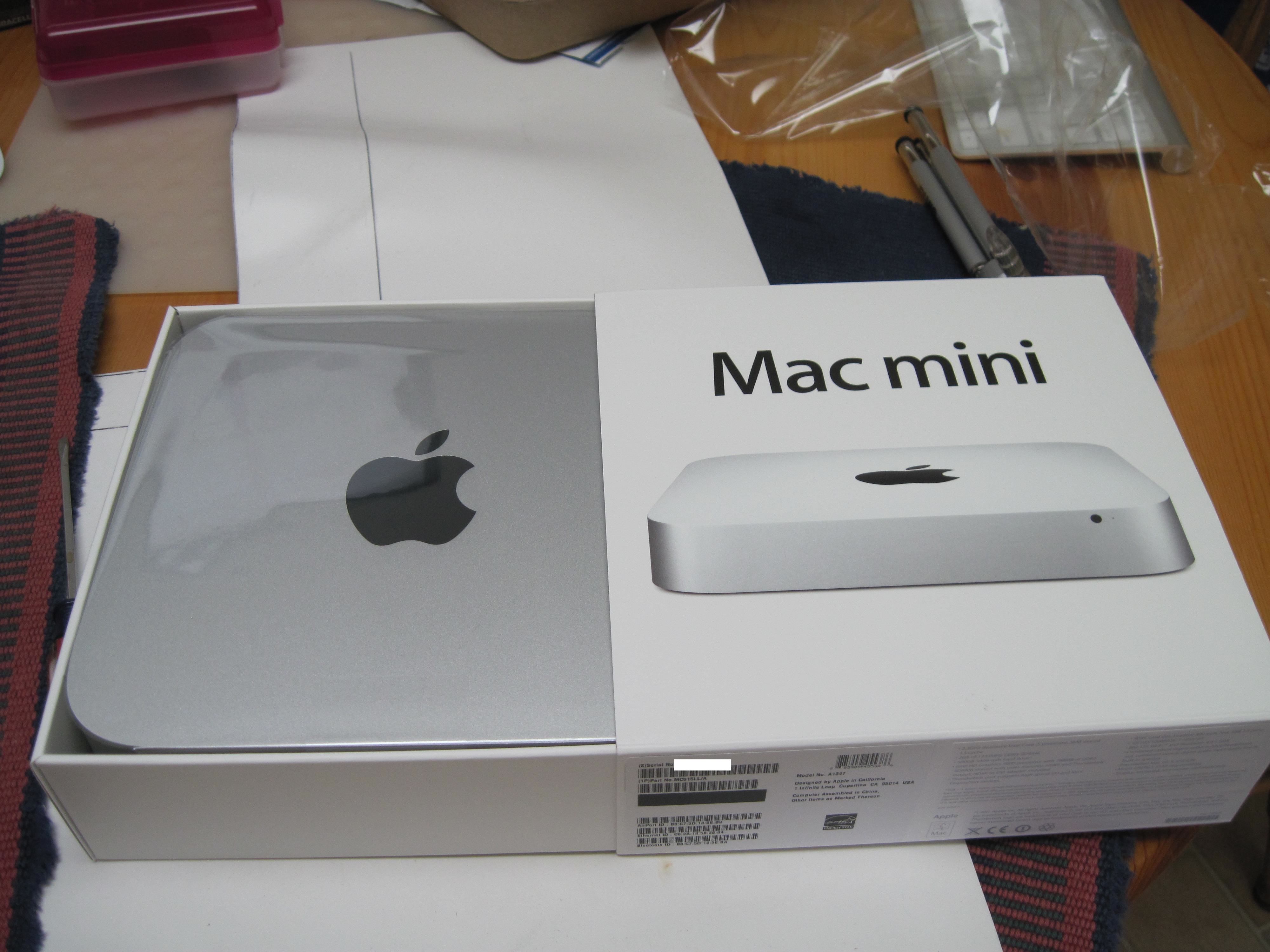

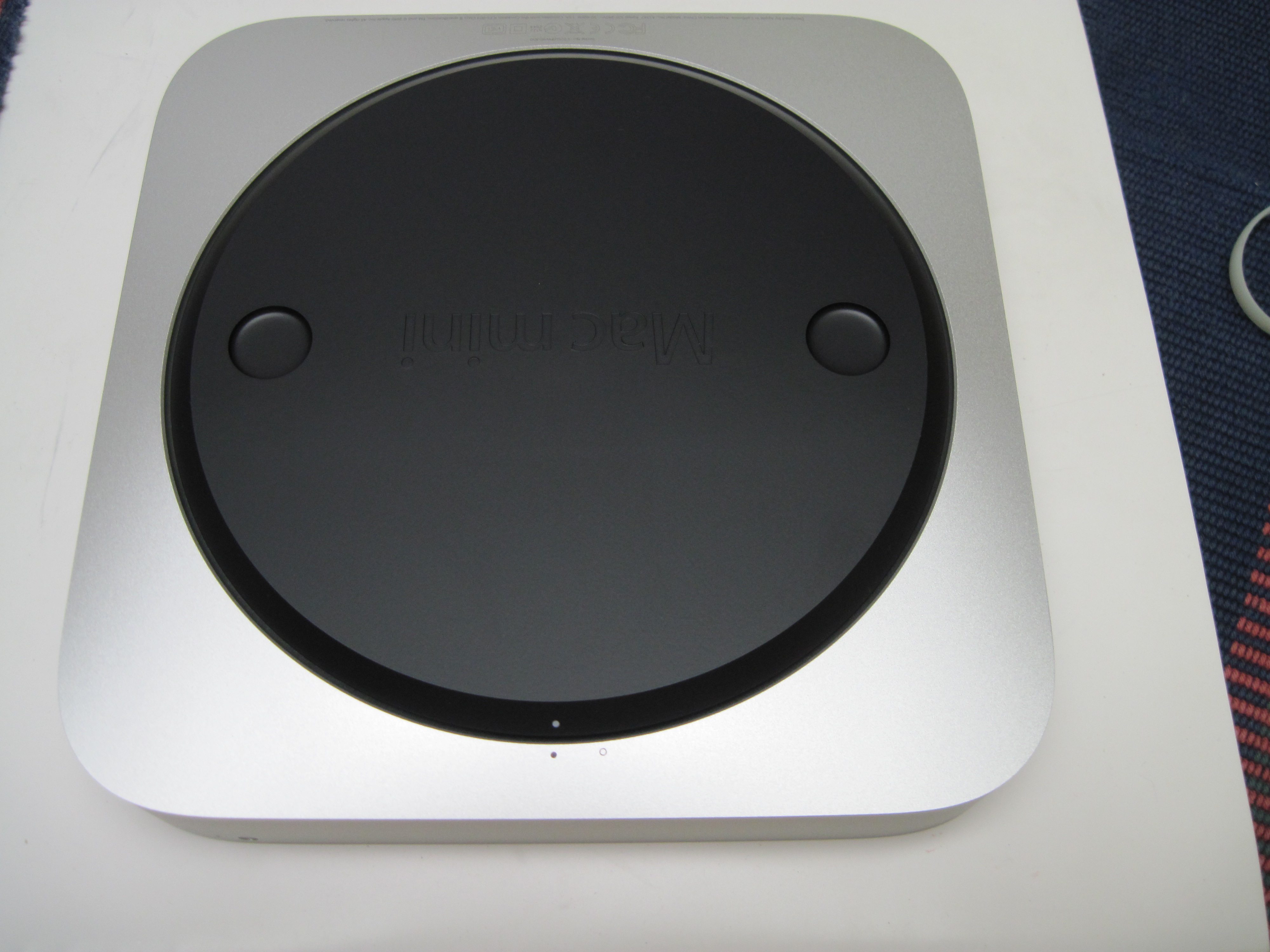

Okay Just dropped off I will take a lot of photos. some unboxing. I can't stress more that since you don't get a cd/dvd of software my clone before power on method is a good idea.


Attachments

  • IMG_1085small.jpg
    973.7 KB · Views: 491
  • IMG_1086small.jpg
    1,018 KB · Views: 358
  • IMG_1087small.jpg
    1 MB · Views: 349
  • IMG_1088small.jpg
    967.9 KB · Views: 397
  • IMG_1089small.jpg
    872.9 KB · Views: 406
Last edited:

philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey
first photos of oem hdd

These were taken in the middle of the job.

many earlier shots and later shots on ;
1) disassembly
2)clone
3)assembly

are in the thread later!

_________________________________________________________________
I am pulling this drive and going to clone it without ever booting the mini.

the good news is you don't need to slide the entire inside chassis out to pull the hdd.

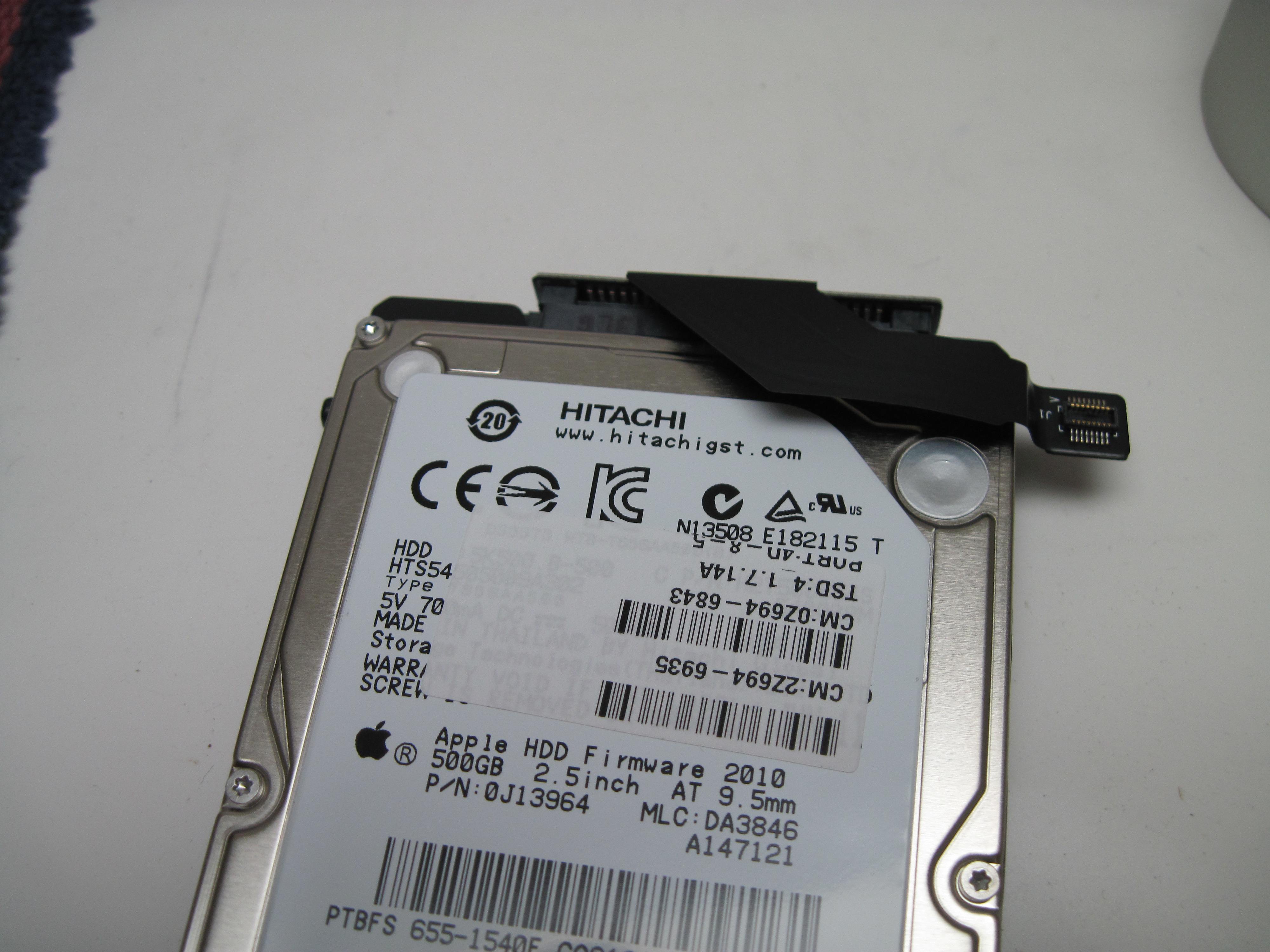

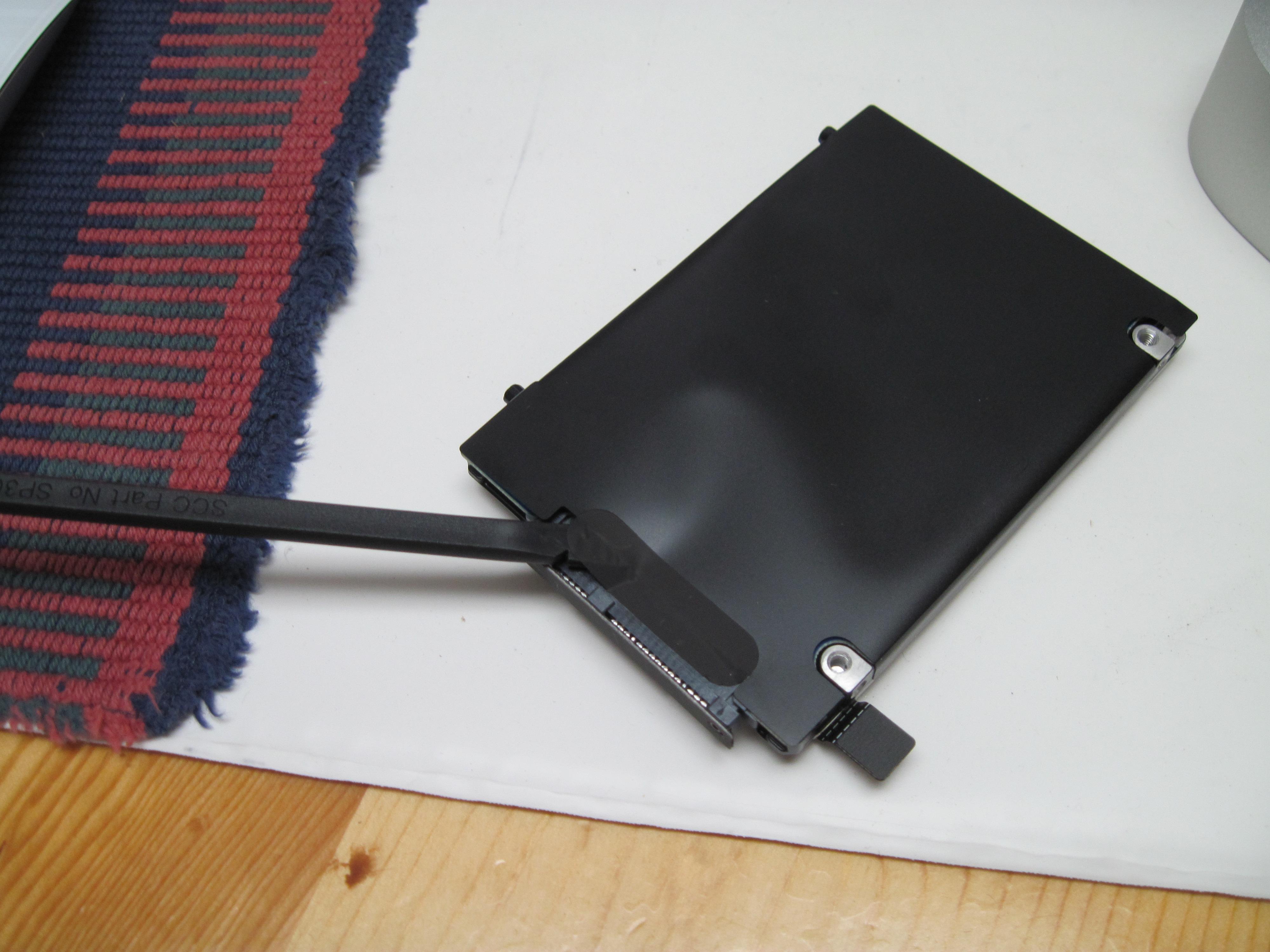

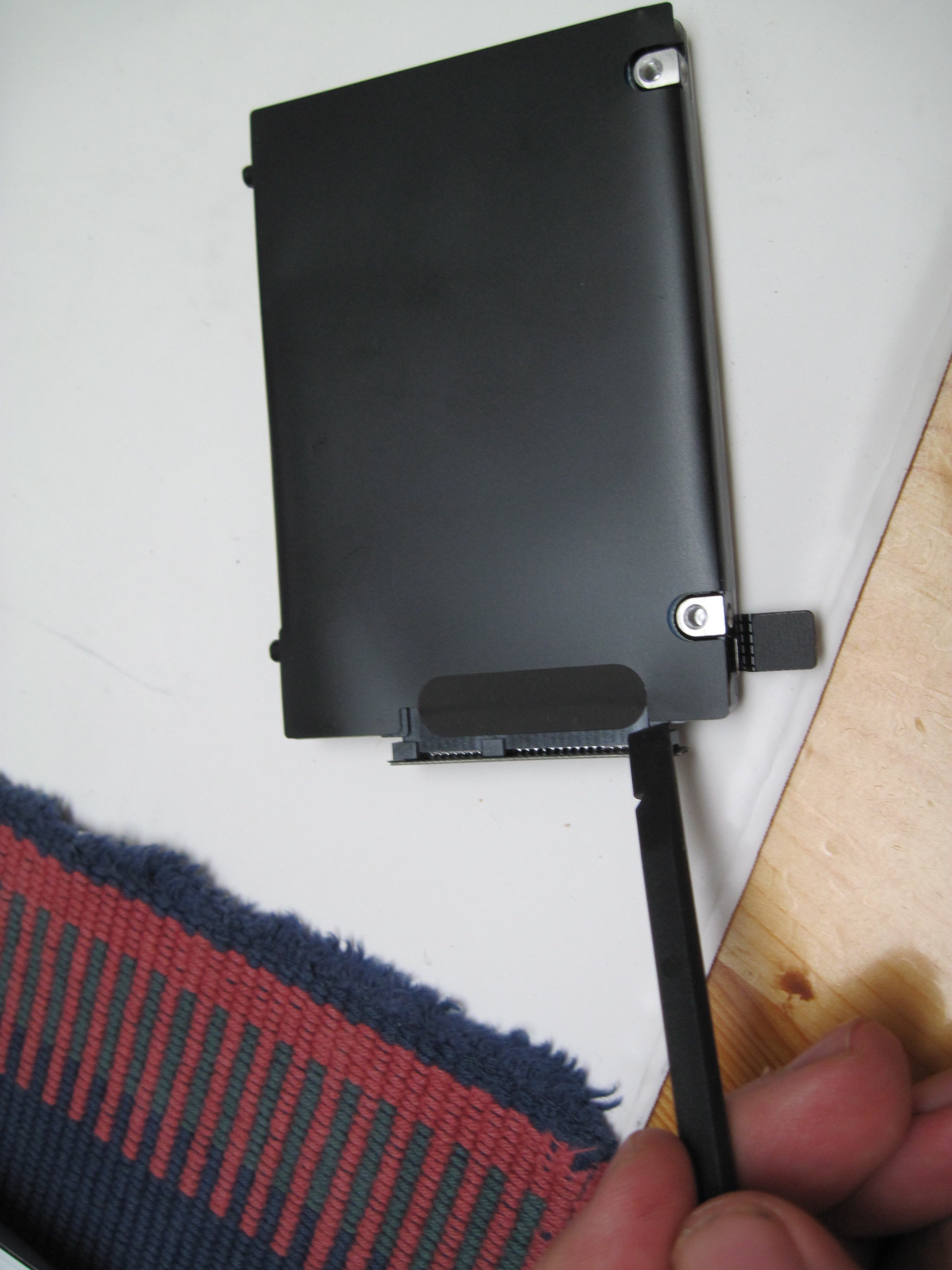

first shot shows the hdd pulled but still wrapped up

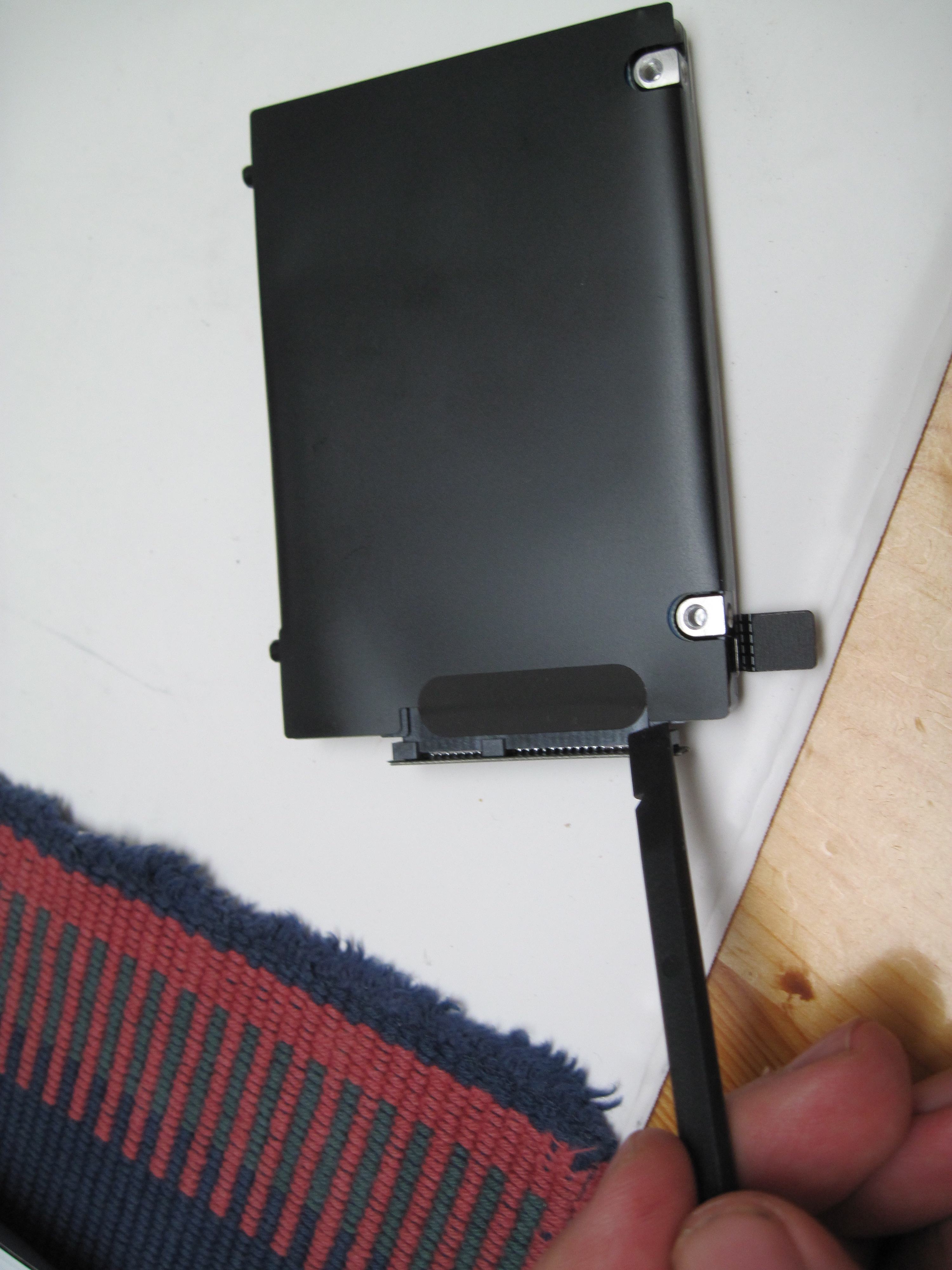

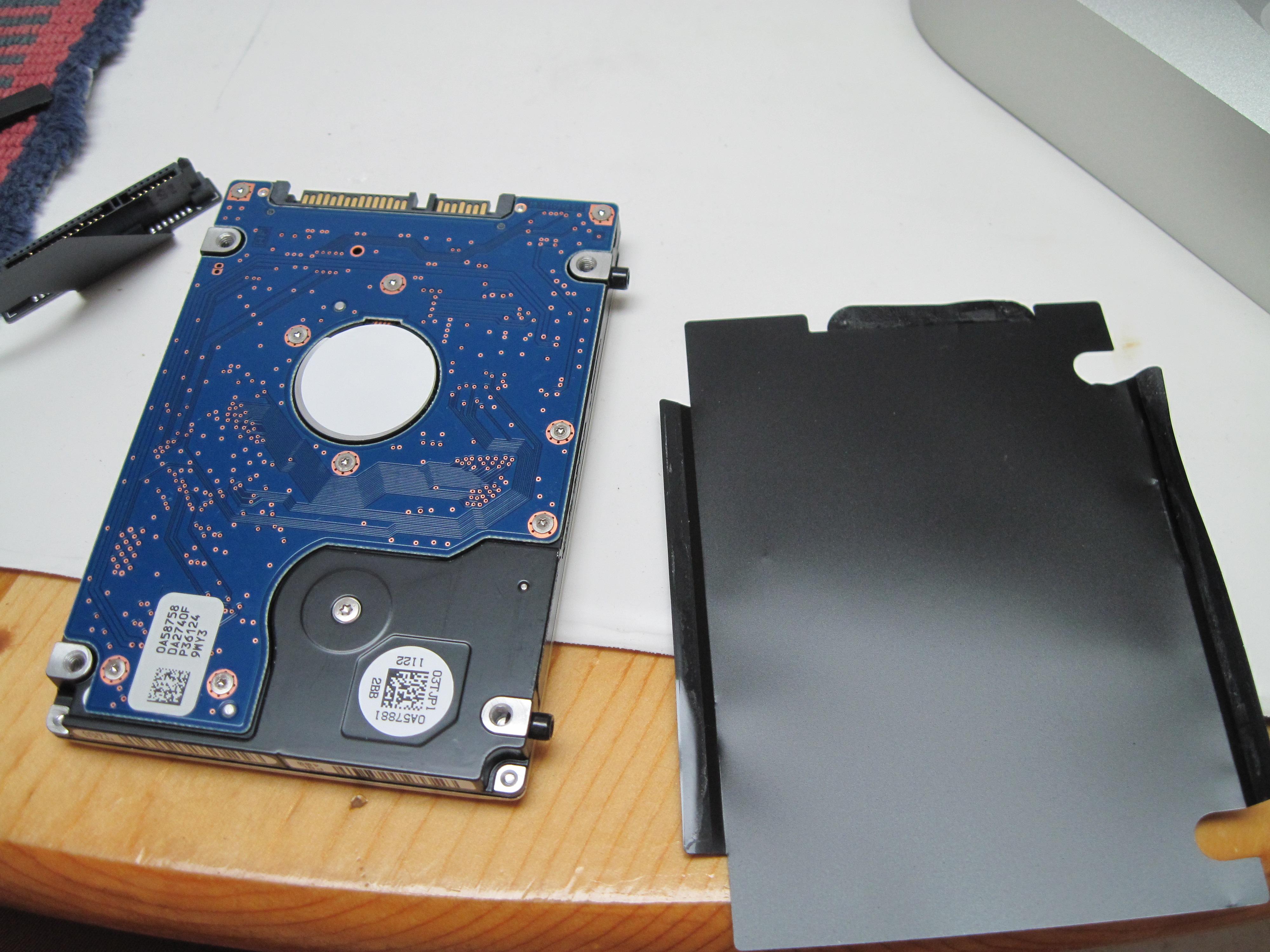

second is the plastic wrap note black tape

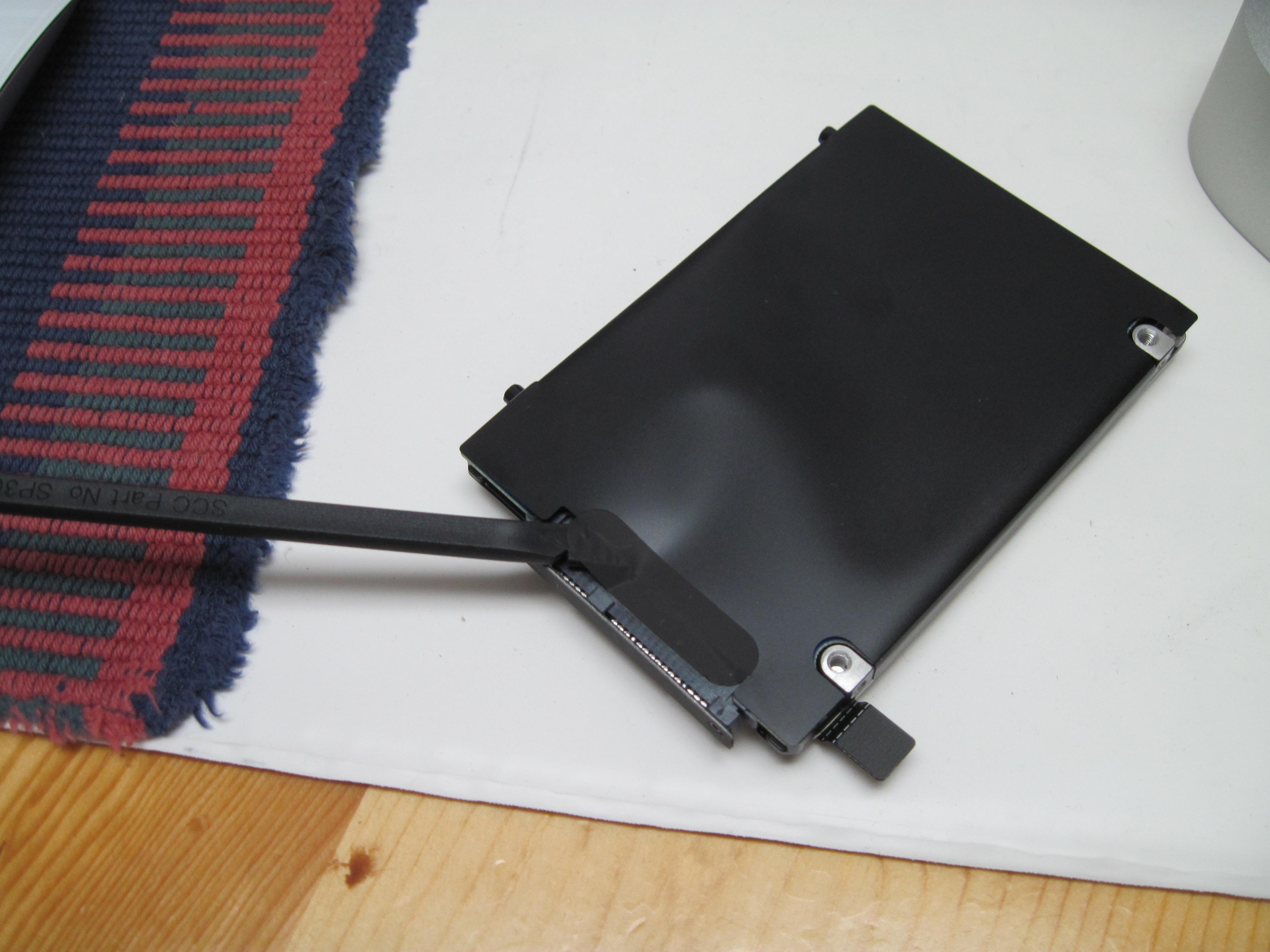

third shot shows me being very careful with cover

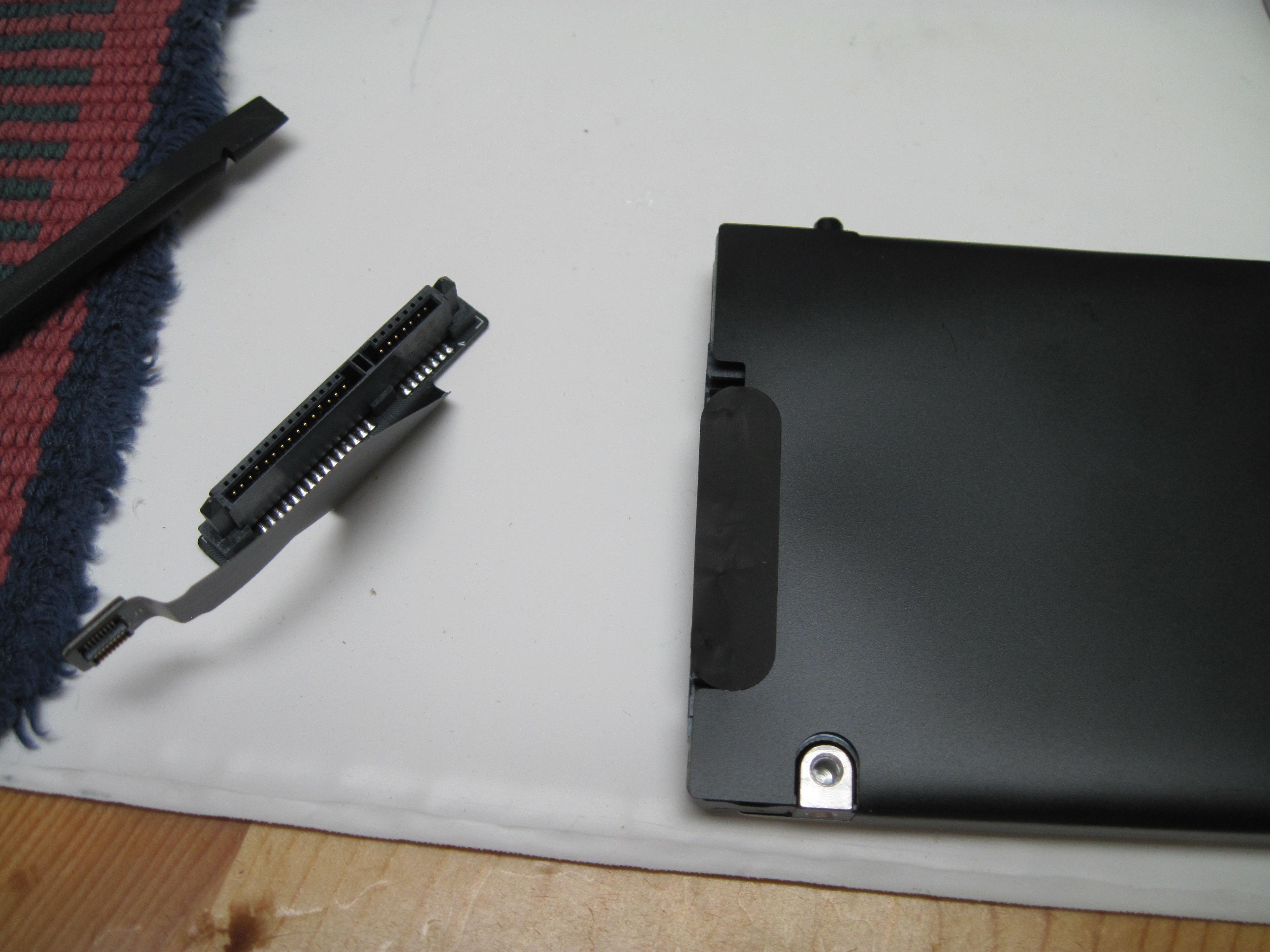

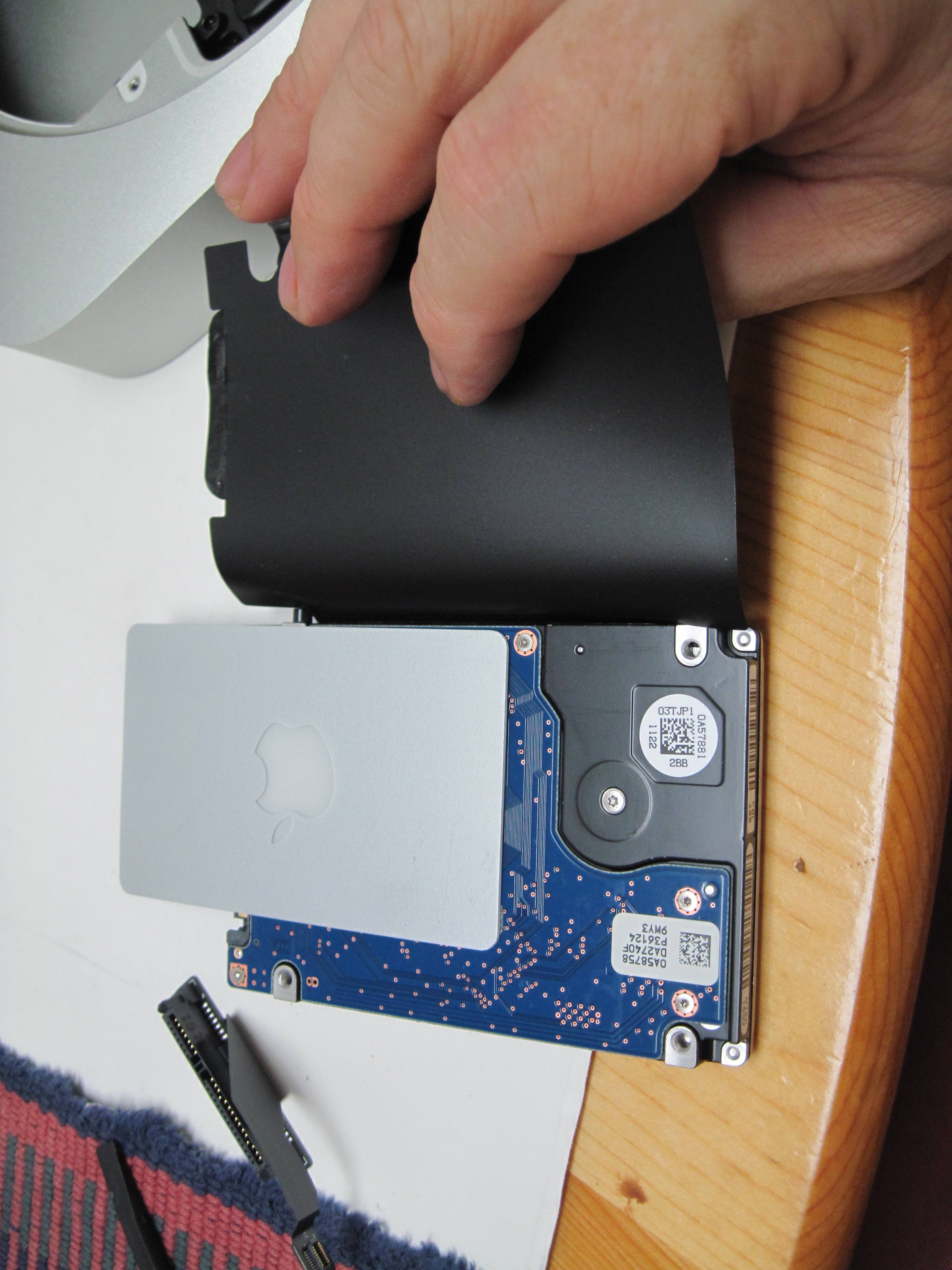

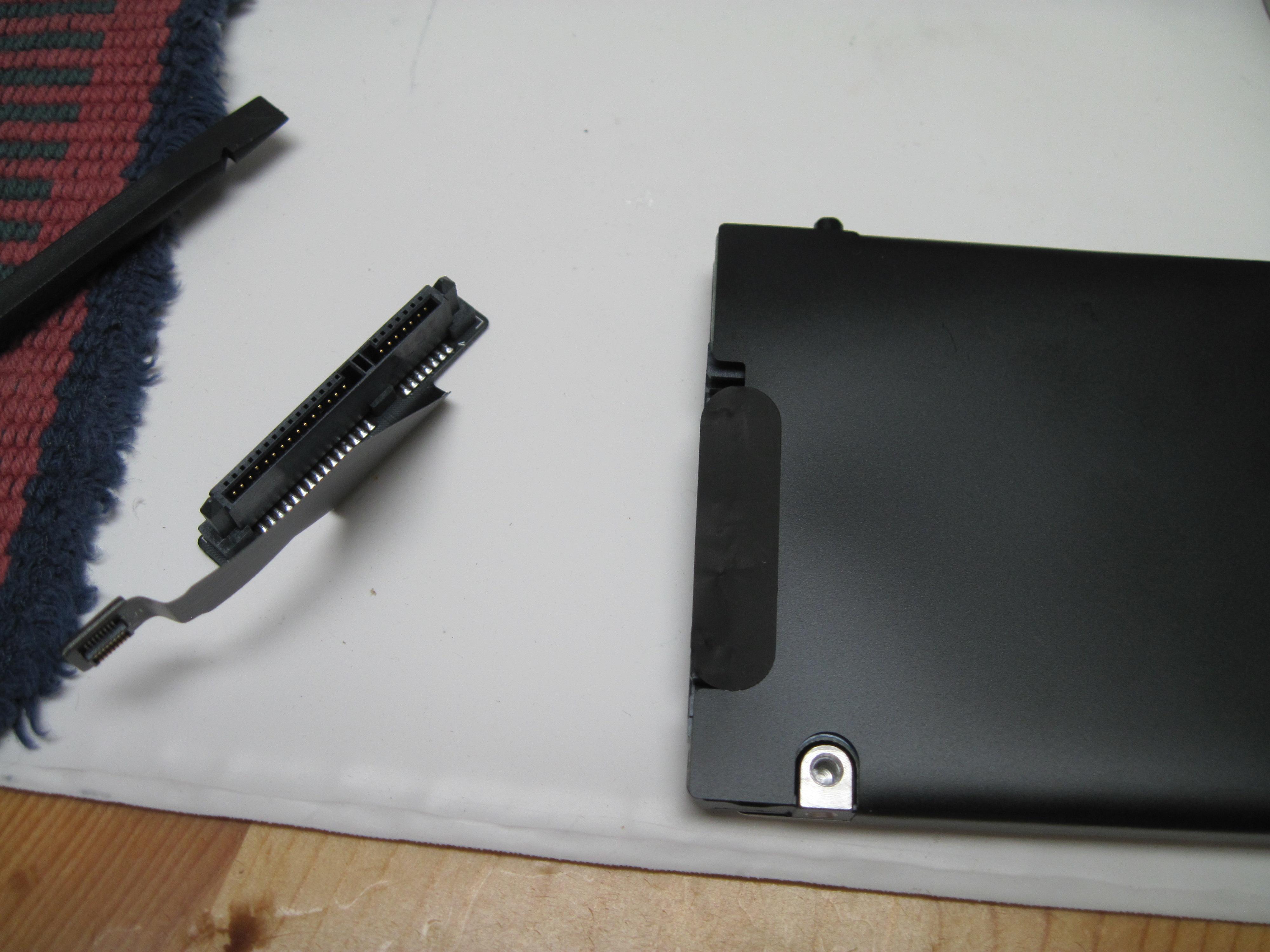

fourth shot shows cable pulled

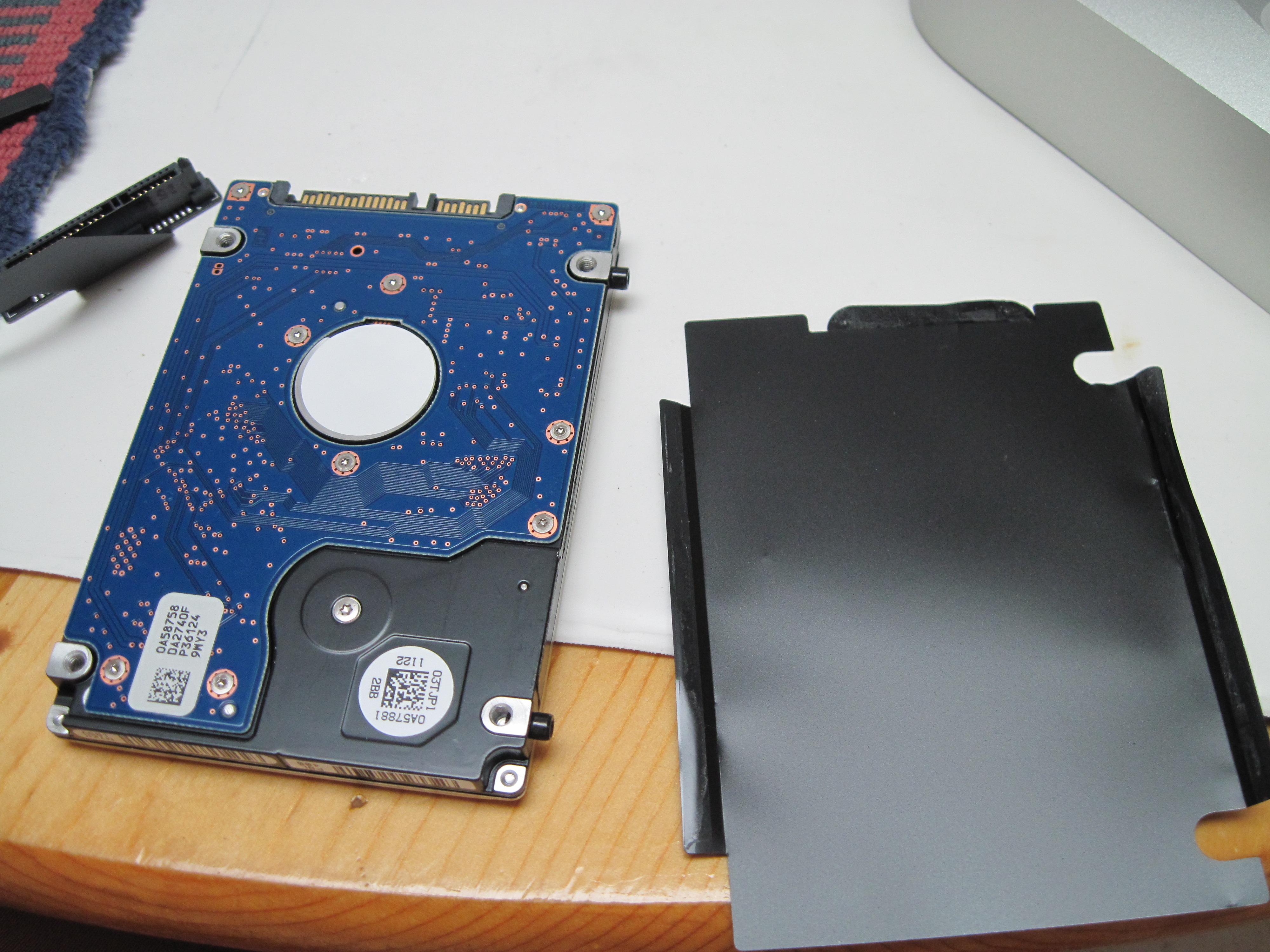

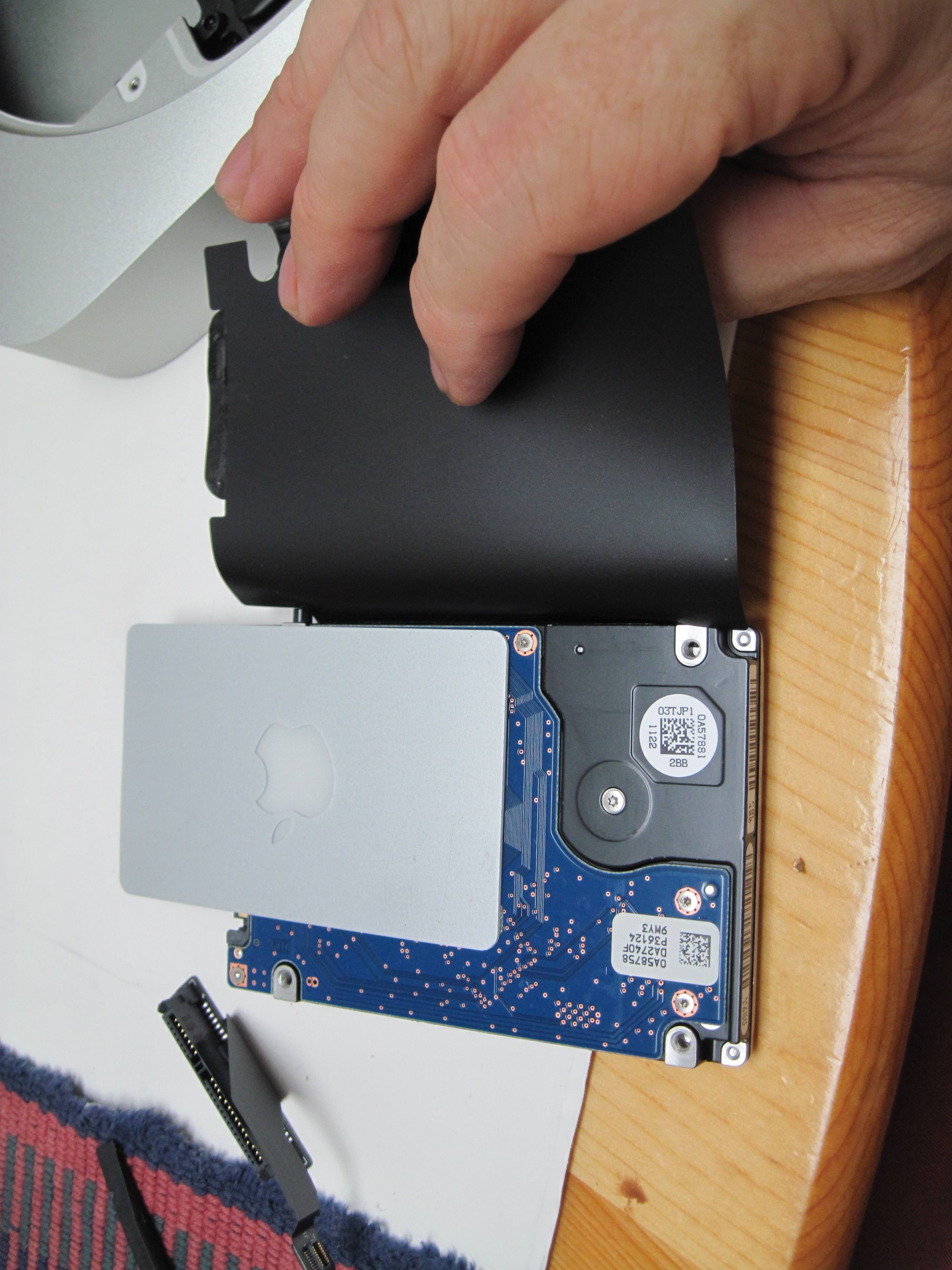

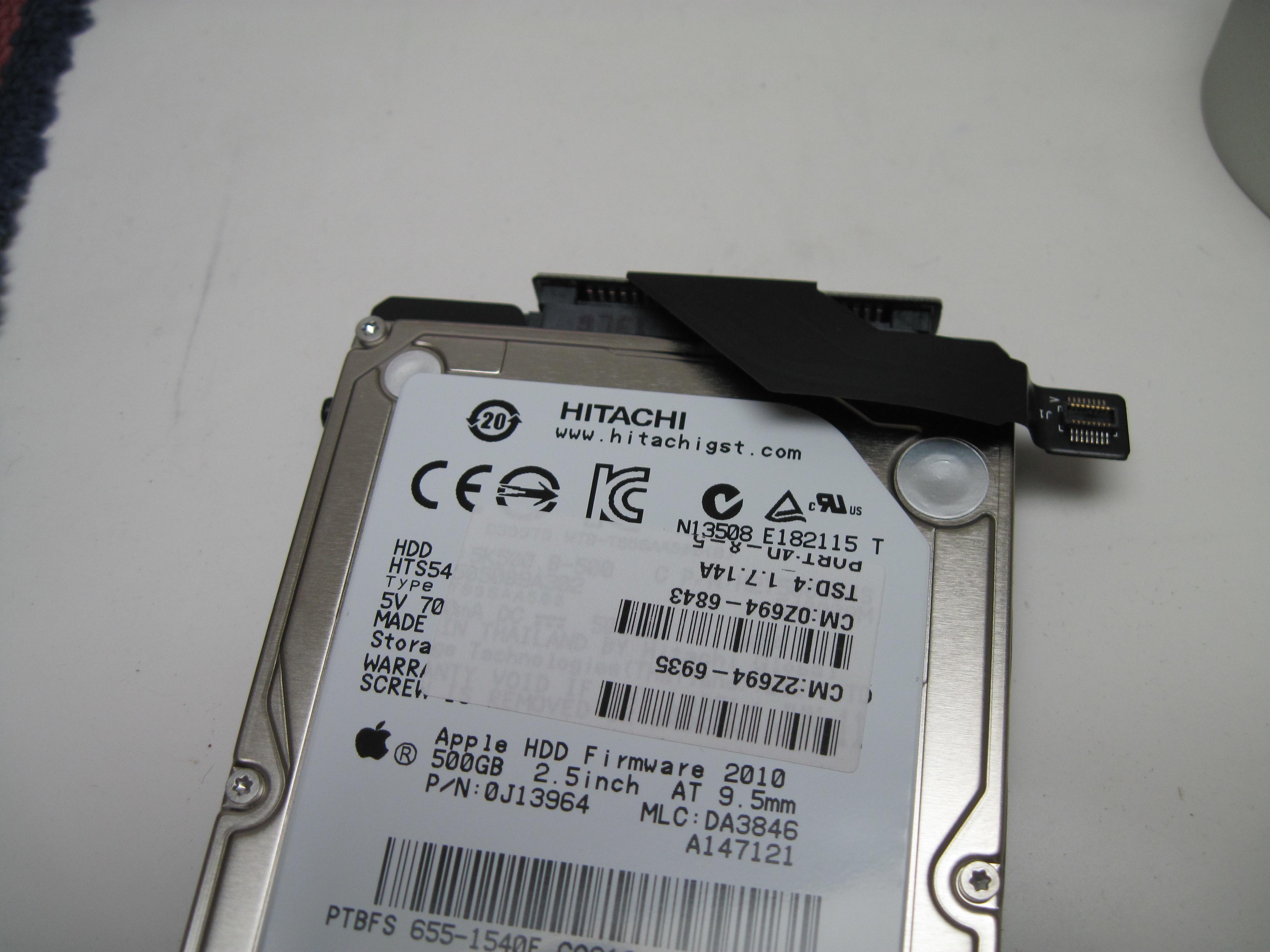

last shot shows plastic cover removal

i did this to clone the drive to an ssd.

I never booted or powered the machine on.


Attachments

  • IMG_1110small.jpg
    845.1 KB · Views: 409
  • IMG_1111small.jpg
    933.1 KB · Views: 384
  • IMG_1112small.jpg
    851 KB · Views: 374
  • IMG_1113small.jpg
    890.6 KB · Views: 370
  • IMG_1114small.jpg
    902.2 KB · Views: 449
Last edited:

FeaRThiS

macrumors 6502
Mar 25, 2011
273
0
I am pulling this drive and going to clone it without ever booting the mini.

the good news is you don't need to slide the entire inside chassis out to pull the hdd.

first shot shows the hdd pulled but still wrapped up

second is the plastic wrap note black tape

third shot shows me being very careful with cover

Once you have it up and running can you post your geek bench score.


TheBaconKing

macrumors regular
Dec 2, 2010
108
0
Northwest Arkansas
Thanks for the pics!

Quick question though.
What are you planning on using the mini for?
I am going to use it as an HTPC and store most of my media on it. I just cannot justify 400+ for a 256GB ssd. I could get an external, but an external wouldn't look as good sitting next to my tv compared to just the Mini.


philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey
more info

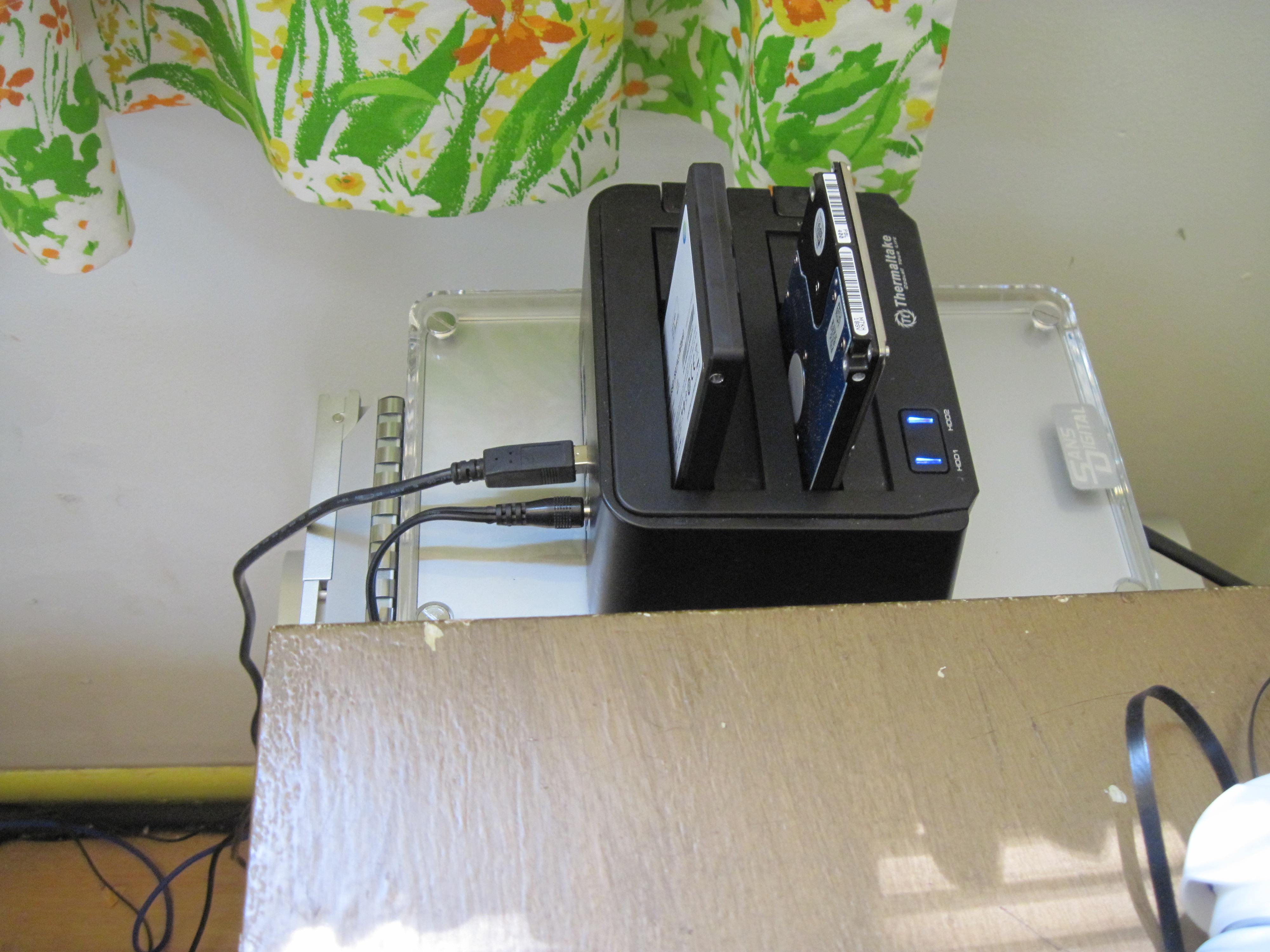

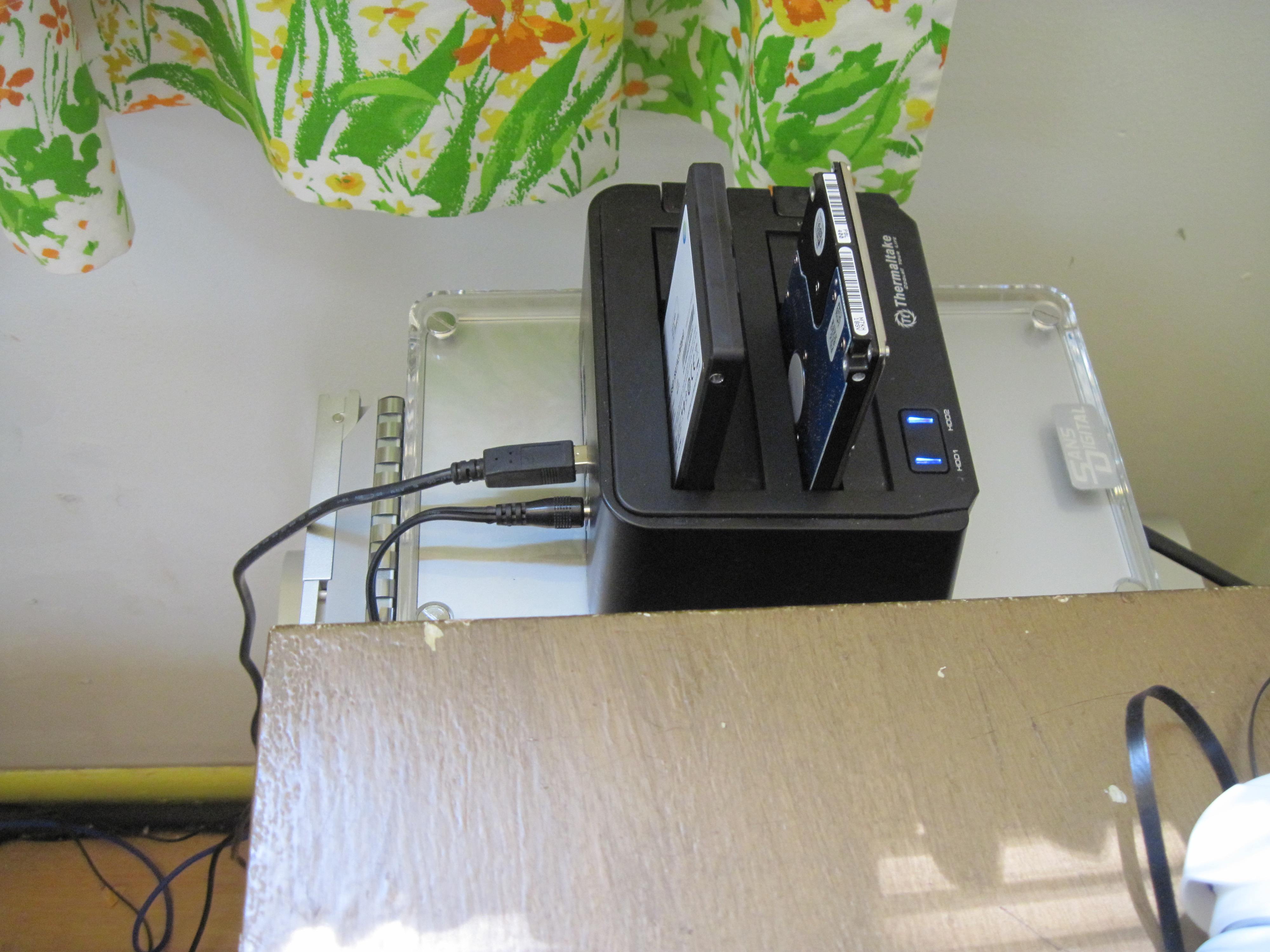

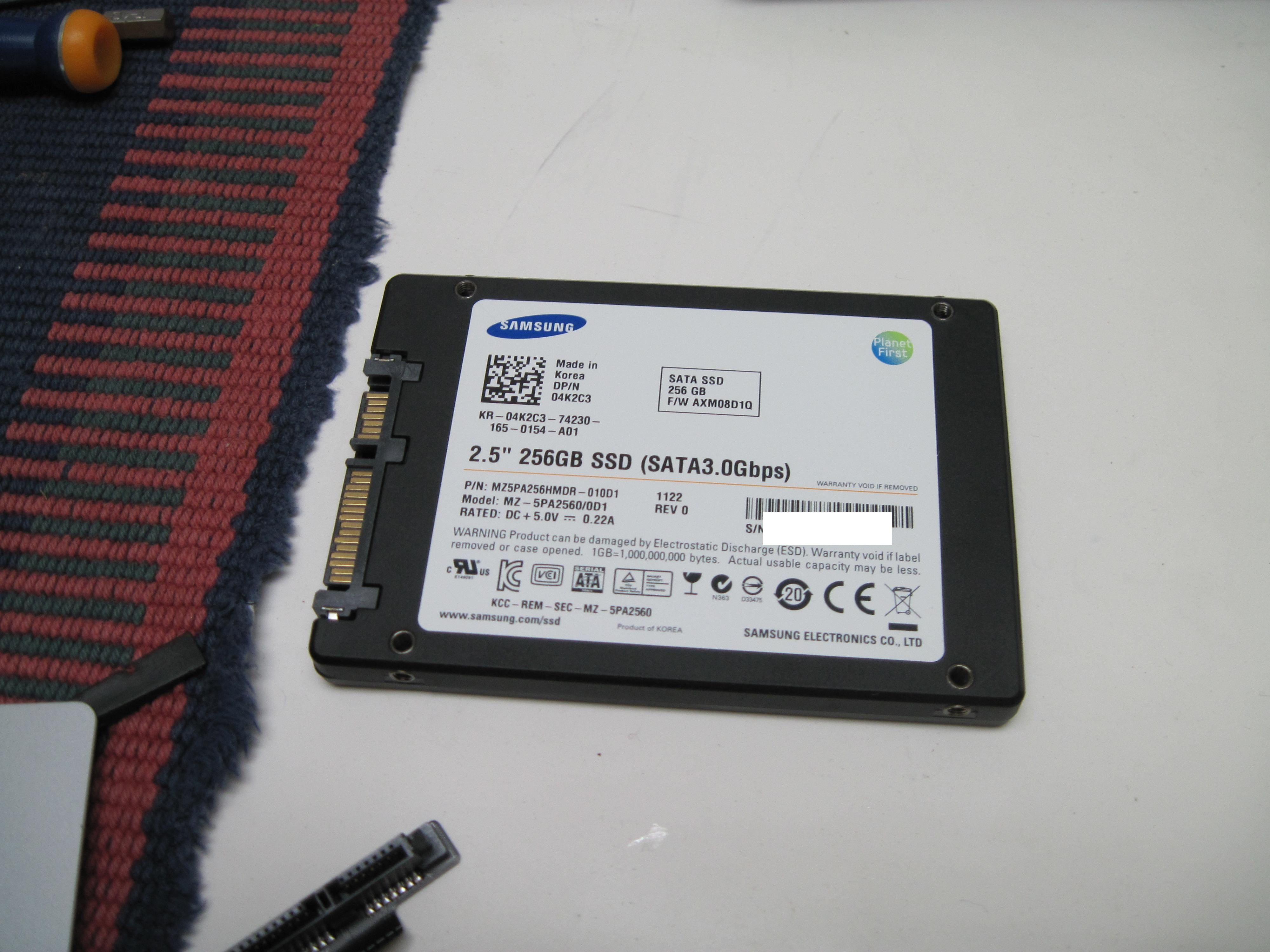

okay I grabbed the oem hdd and the samsung 256gb ssd put them in a 2 bay thermaltake dock and I am using superduper to clone. I never turned the mini on or did anything to to the hdd.

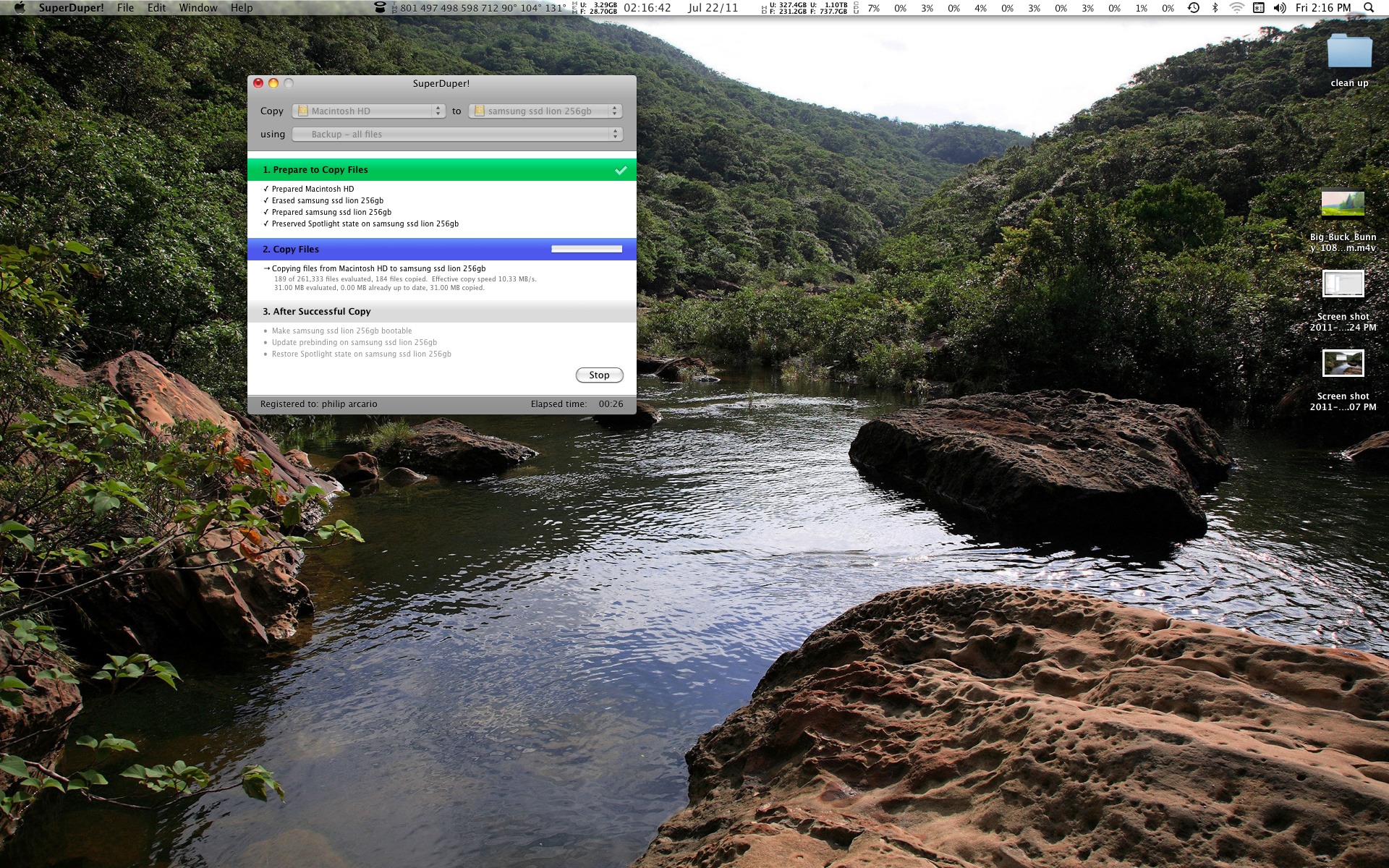

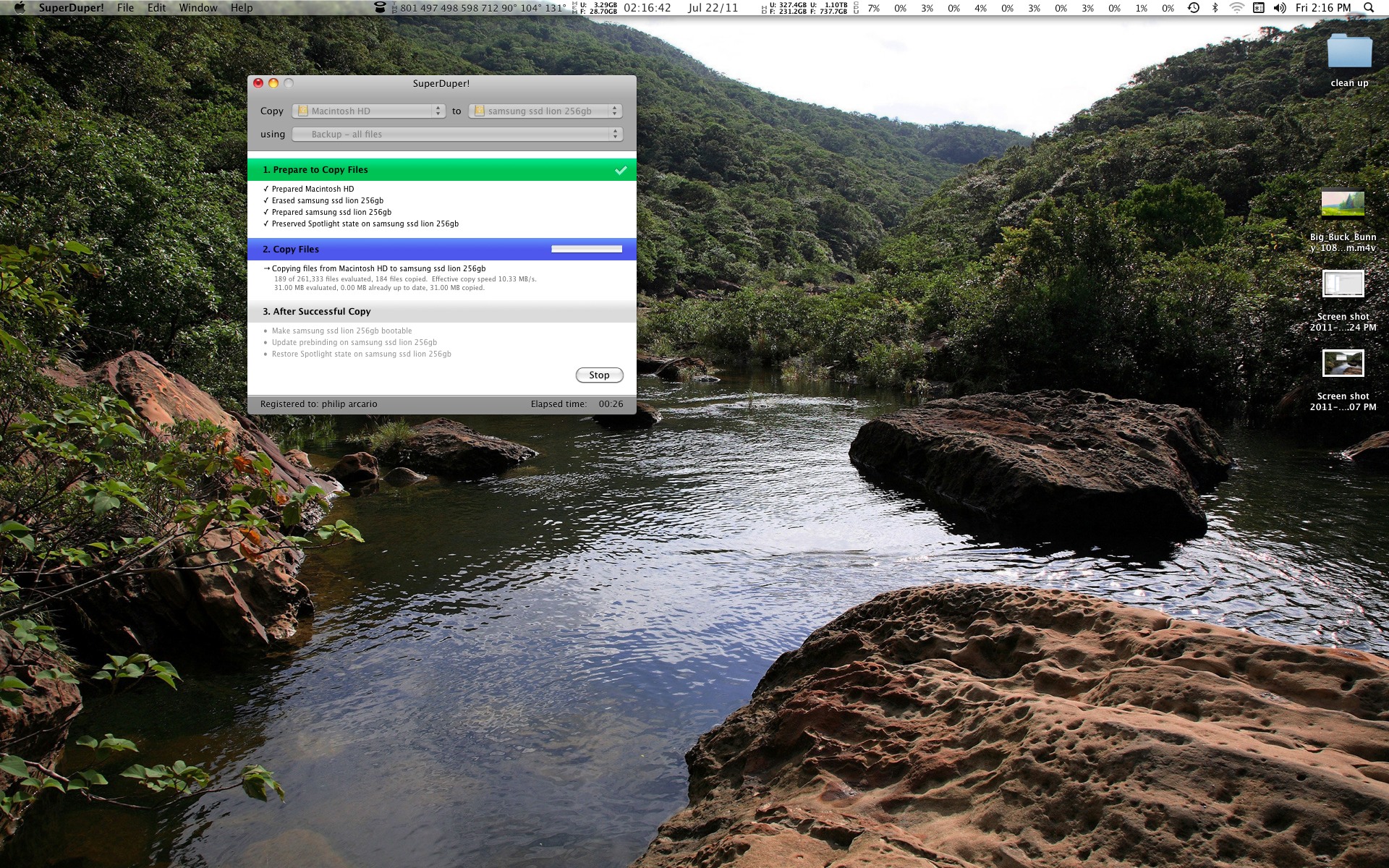

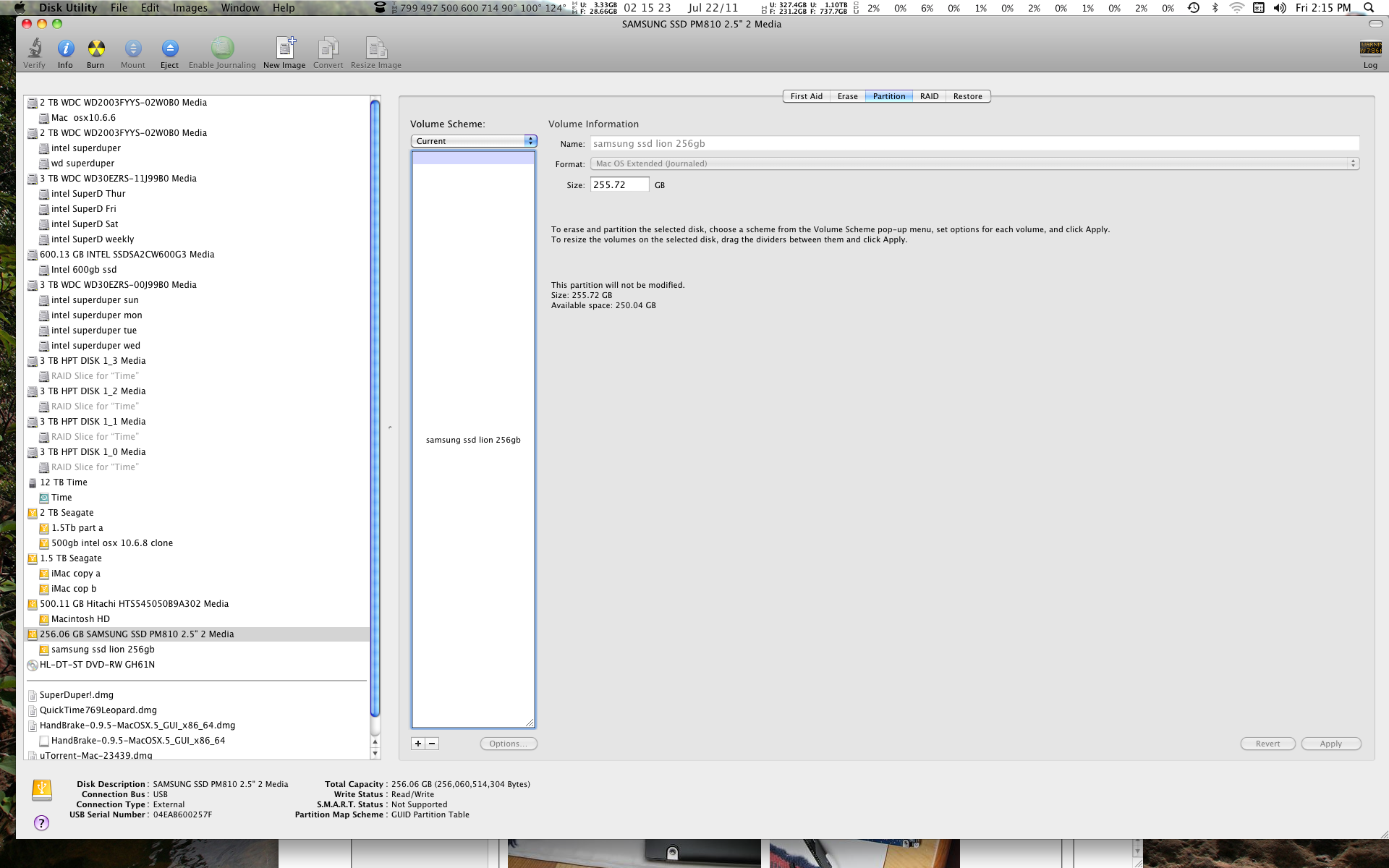

this shows the 2011 mini oem hdd and the samsung hdd hooked up to the dock. second shot shows beginning of clone


Attachments

  • Screen shot 2011-07-22 at 2.15.24 PM.png
    Screen shot 2011-07-22 at 2.15.24 PM.png
    451.5 KB · Views: 1,378
  • superduper clone of mini.jpg
    superduper clone of mini.jpg
    982.7 KB · Views: 1,109
Last edited:

Sodner

macrumors 68020
Jan 12, 2011
2,112
78
Pittsburgh, PA
I picked up a Mini yesterday morning. Screwed around with Lion server all day yesterday and this morning and finally came to the conclusion that for me, Lion Server is not going to be of any use AND that its NOT that simple to get everything configured. So sadly I returned it.

Damn now I really wish I had gotten my new iMac with the dual drives option as I saved that money for a Mini I did not even keep.


philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey

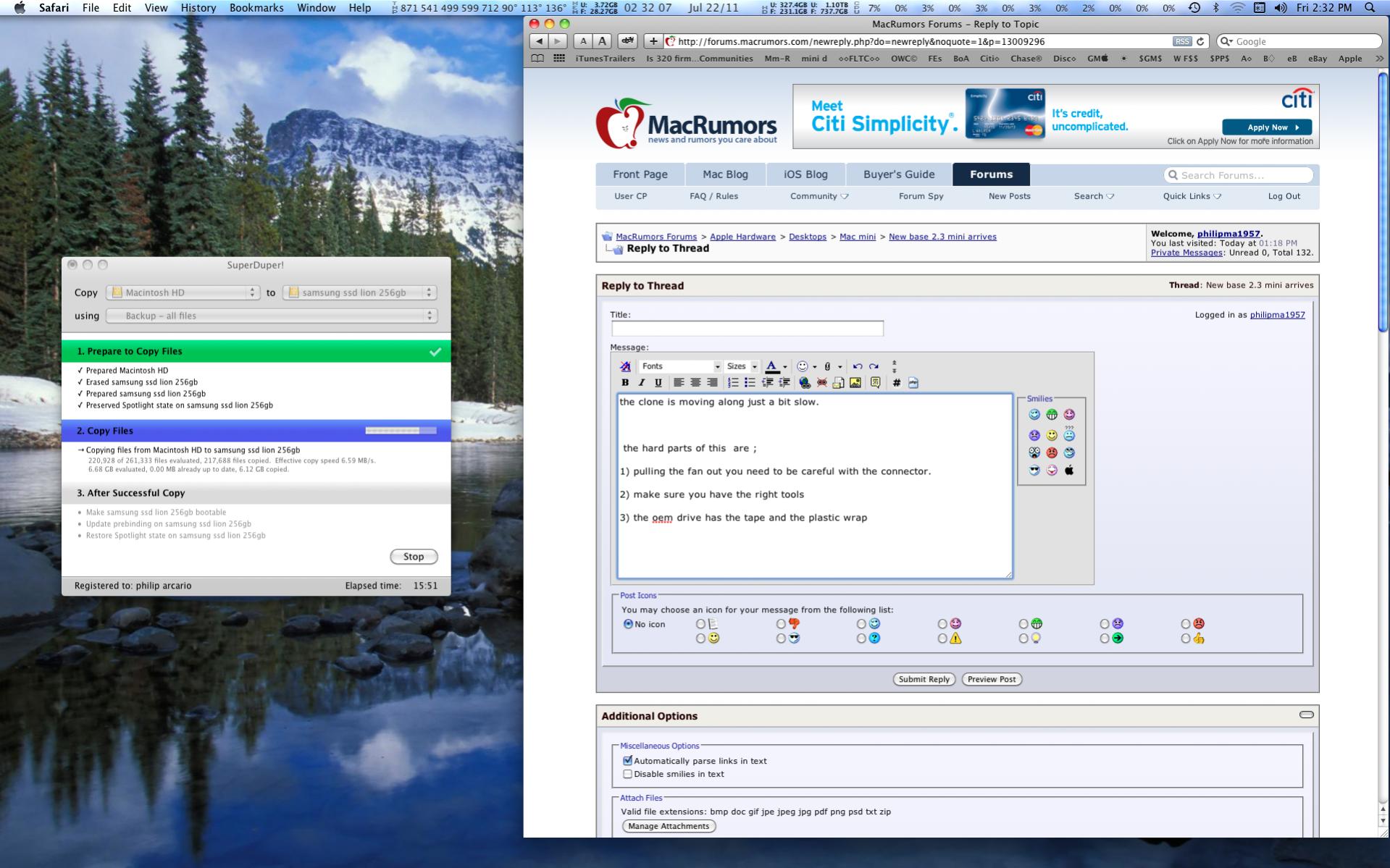

the clone is moving along just a bit slow. clone is done 20 mins to do the clone. now to assemble!



the hard parts of this are ;

1) pulling the fan out you need to be careful with the connector.

2) make sure you have the right tools

3) the oem drive has the tape and the plastic wrap


Attachments

  • Screen shot 2011-07-22 at 2.32.08 PM.jpg
    Screen shot 2011-07-22 at 2.32.08 PM.jpg
    268.7 KB · Views: 622

philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey
success!

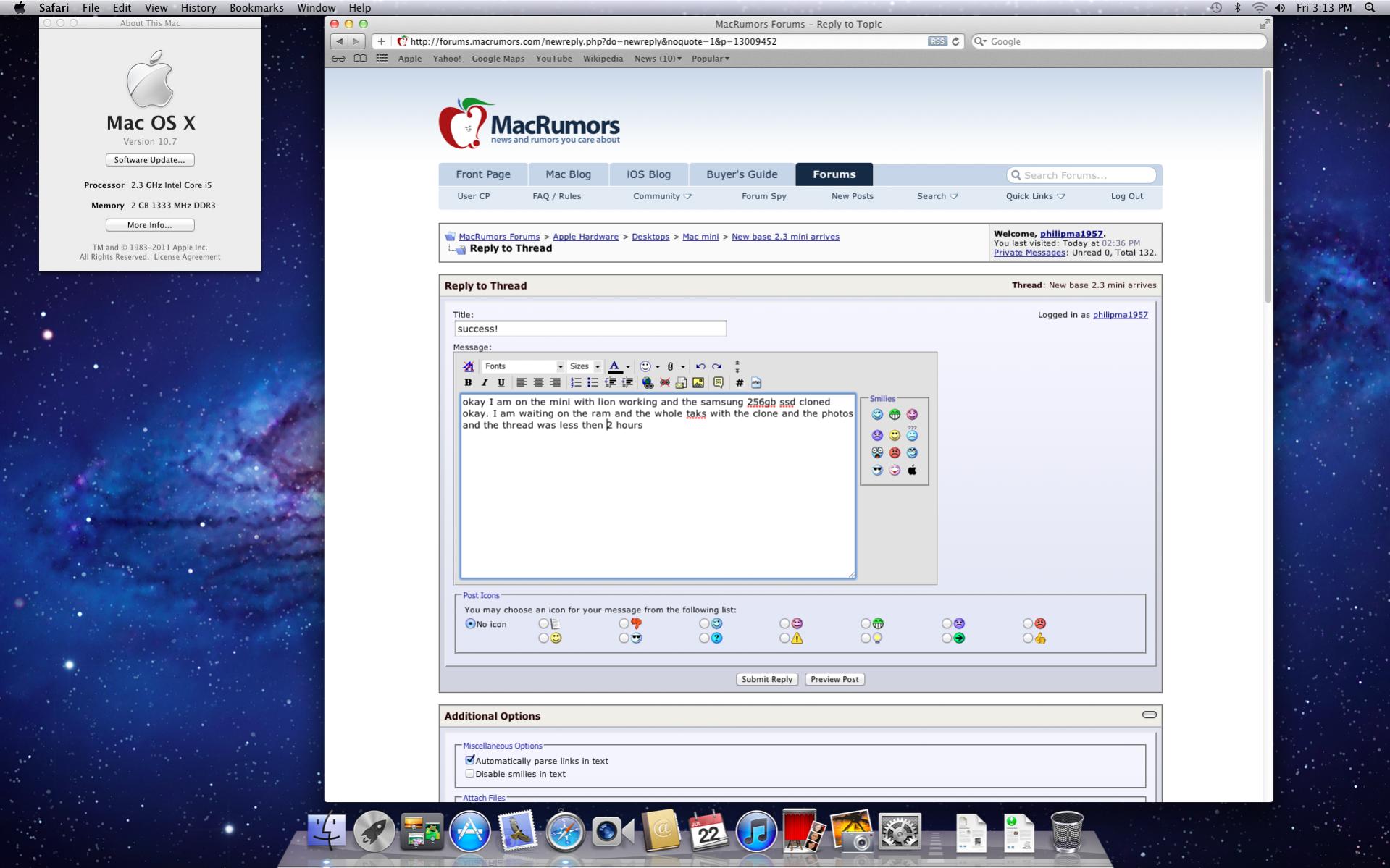

okay I am on the mini with lion working and the samsung 256gb ssd cloned okay. I am waiting on the ram for another day. the whole task with the clone and the photos and the thread was less then 2 hours.


first problem I can't access my synology server oh well. my geek bench score for 32 bit was 5889. I need to power this off for a bit i want to see how much juice this pulls I will put a kill a watt meter to it


Attachments

  • Screen Shot 2011-07-22 at 3.13.05 PM.jpg
    Screen Shot 2011-07-22 at 3.13.05 PM.jpg
    225.7 KB · Views: 736
Last edited:

profets

macrumors 603
Mar 18, 2009
5,122
6,240
Thanks for sharing.

What do you think it is that's preventing you from connecting to the synology?


Minicube

macrumors regular
Jun 5, 2011
158
1
Thanks for posting this infomation! So, working with the HD was much easier than the 2010 model, correct?


philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey
Thanks for sharing.

What do you think it is that's preventing you from connecting to the synology?


it reads your servers software is not compatible with lion please contact your servers company for support.



Thanks for posting this infomation! So, working with the HD was much easier than the 2010 model, correct?

Absolutely it is easier not easy but easier. the fan needs to be pulled with care. the sata cable is weak. the black plastic wrap looks to be needed. All in all it is not hard to do a replacement. I really suggest you clone the hdd like I did before you ever turn the machine on/ I now have a virgin back up in the oem hdd.


Marky

macrumors regular
Jan 4, 2005
163
0
Adjustable overscan??? It's the only question I have keeping me from getting one. Thanks!

Bought the 2.5ghz Mac Mini this morning and it certainly has adjustable overscan, I know for sure as I used it.

The standard screen was overshooting which meant that the menu bar across the top was 'off the screen' and the very bottom edge of the dock was off the screen in the opposite direction.

Within displays in system preferences is a slider for adjusting the overscan, you can adjust using this slider by huge amounts not just small adjustments and it works a treat!


philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey
synology has a beta for your server on their web site that add's Lion support.

thanks for the info. So far the machine has nice response very quick.

I do have the 256gb samsung ssd in it but only 2gb ram.

The one thing that is surprising me so far is the hand brake is slow. same speed as the 2009 mini. not sure if it is the lack of ram 2gb or the intel graphics or that I am running a lot of stuff.


rw3

macrumors 6502a
May 13, 2008
679
41
DFW, TX
thanks for the info. So far the machine has nice response very quick.

I do have the 256gb samsung ssd in it but only 2gb ram.

The one thing that is surprising me so far is the hand brake is slow. same speed as the 2009 mini. not sure if it is the lack of ram 2gb or the intel graphics or that I am running a lot of stuff.

HandBrake LOVES more RAM. Add some and you will see the numbers improve.


Shaun.P

macrumors 68000
Jul 14, 2003
1,601
24
Omicron Persei 8
Hi there,

I opened a Mac Mini today too and I found my Torx T6 screw driver wouldn't lock into the fan screws.

It is a cheap screwdriver and was thinking that it wasn't made to a high enough standard.

Did you manage to unlock the fan screws easily enough?

Is the machine entirely silent with the SSD (except fan noise)? Mines is making clicking noises every now and then despite me changing the drive to a Scorpio Blue. Since the SSD install, there are no clicks or anything?


philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey
Hi there,

I opened a Mac Mini today too and I found my Torx T6 screw driver wouldn't lock into the fan screws.

It is a cheap screwdriver and was thinking that it wasn't made to a high enough standard.

Did you manage to unlock the fan screws easily enough?

Is the machine entirely silent with the SSD (except fan noise)? Mines is making clicking noises every now and then despite me changing the drive to a Scorpio Blue. Since the SSD install, there are no clicks or anything?

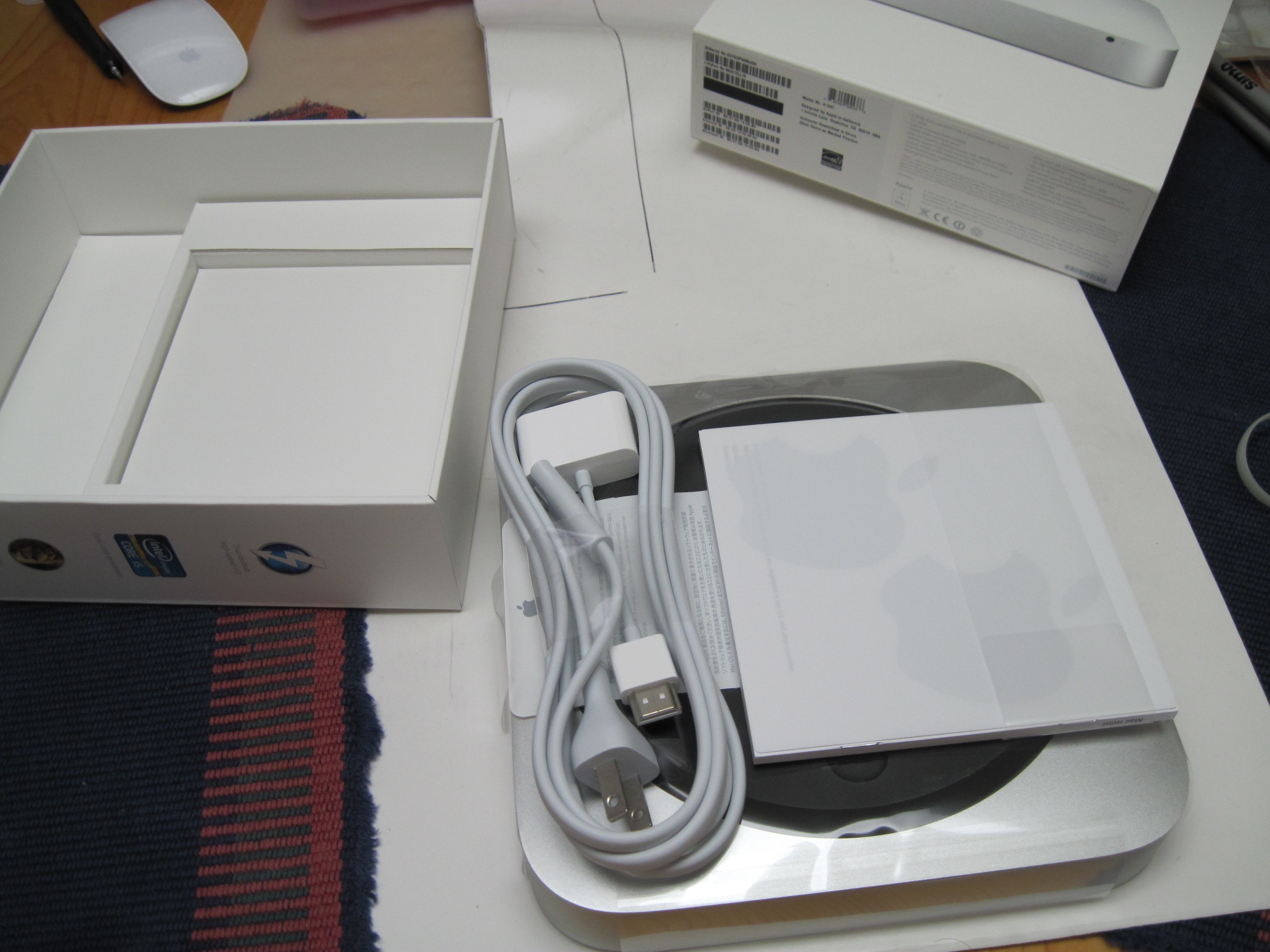

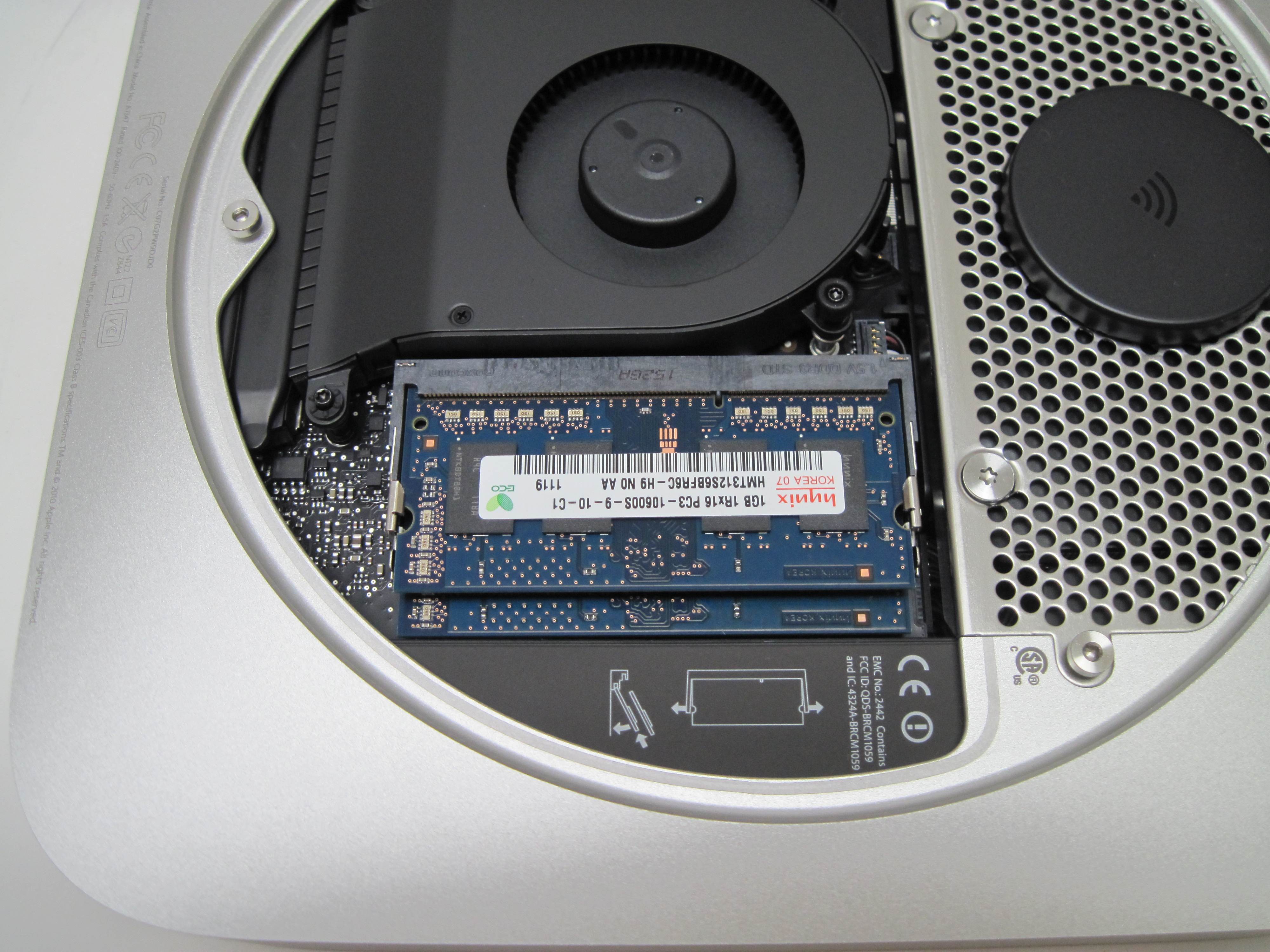

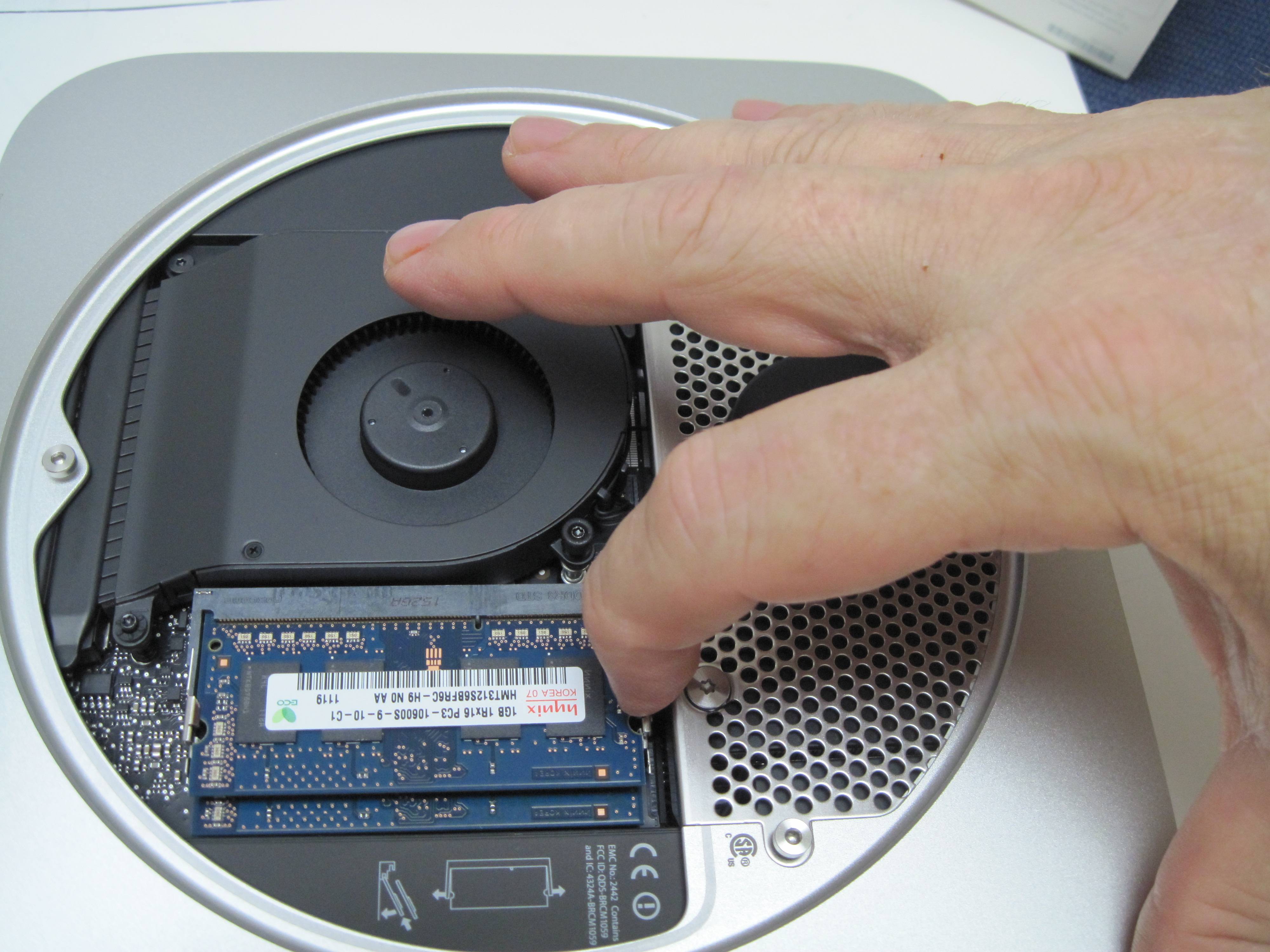

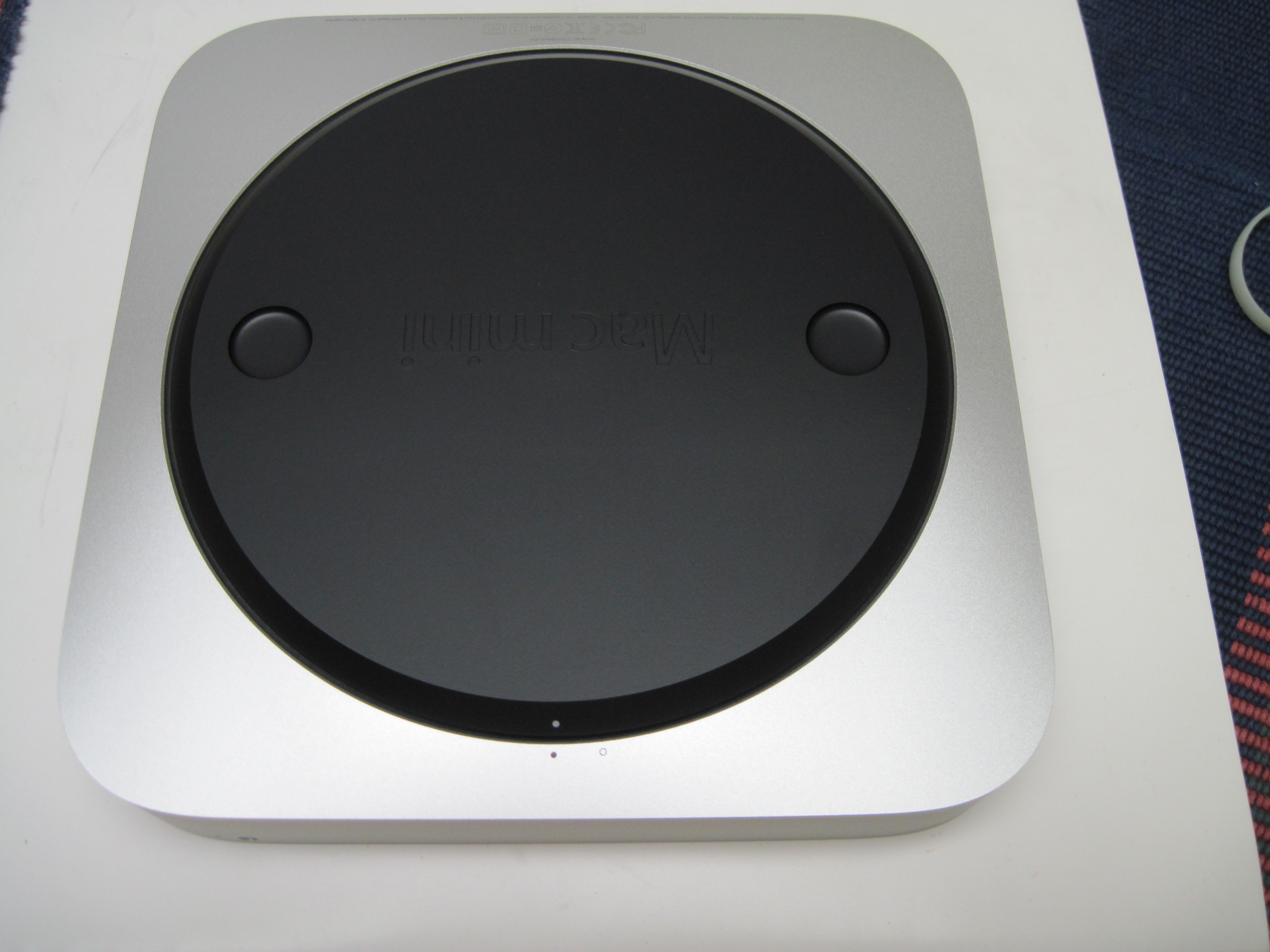

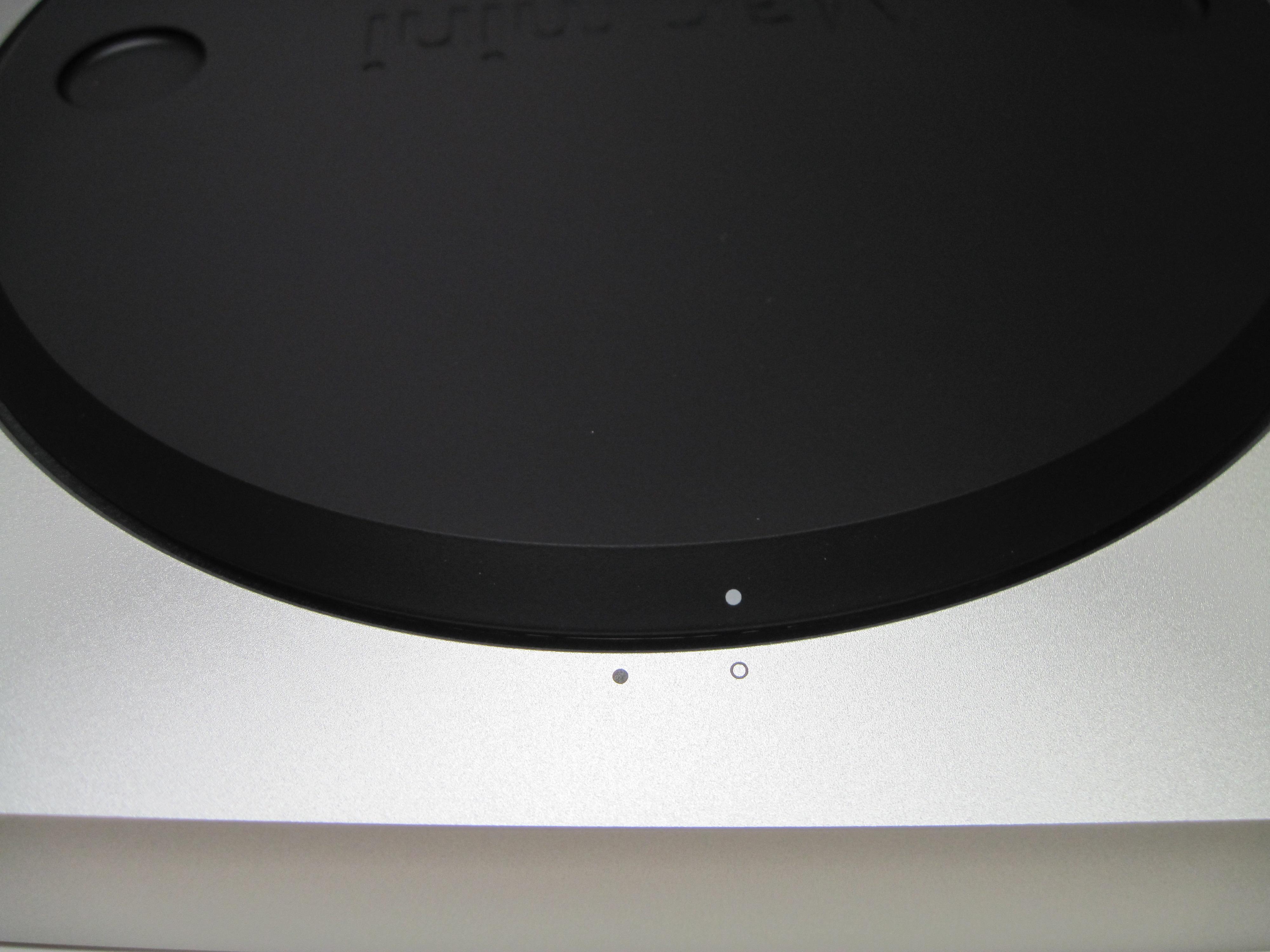

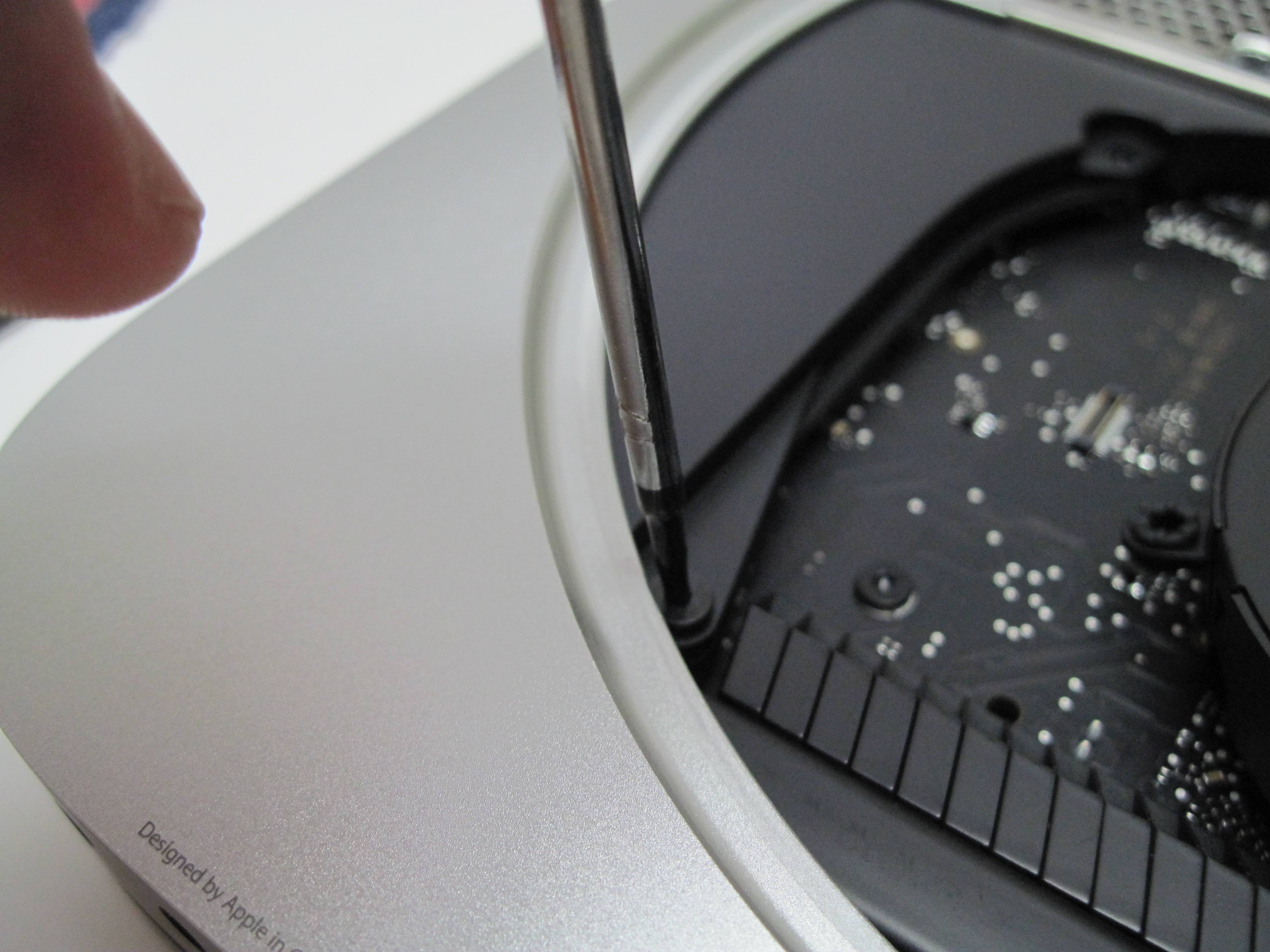

very quiet. now i ran handbrake and that gets the cpu going so the fans kicked up but with normal use it is really quiet. I have a lot of shots of the opening of the case.


Attachments

  • IMG_1090small.jpg
    935.2 KB · Views: 316
  • IMG_1091small.jpg
    914.3 KB · Views: 302
  • IMG_1093small.jpg
    947.3 KB · Views: 306
  • IMG_1094small.jpg
    916.3 KB · Views: 359
  • IMG_1095small.jpg
    844.1 KB · Views: 353
Last edited:

philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey

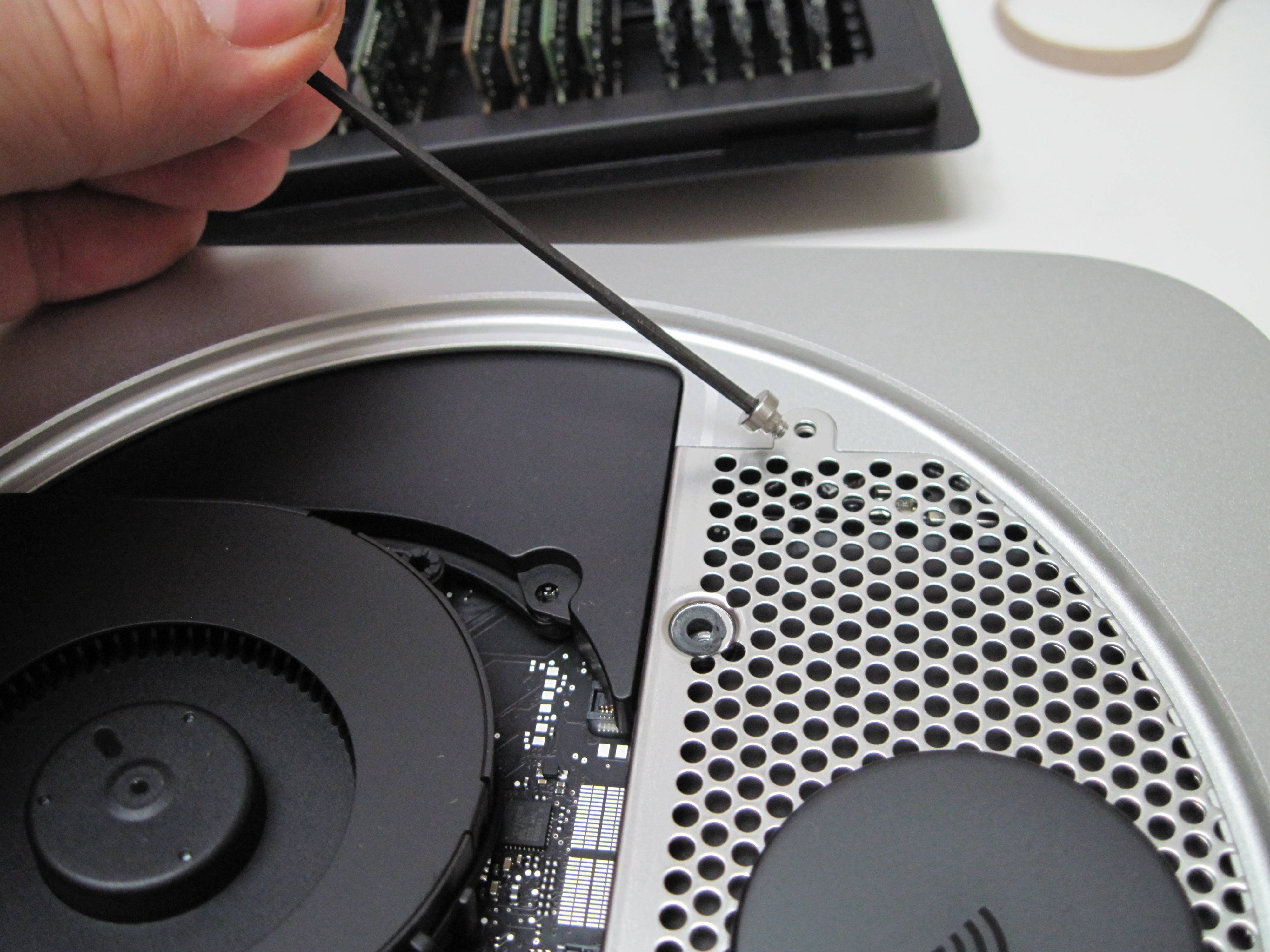

What about the fan screws?

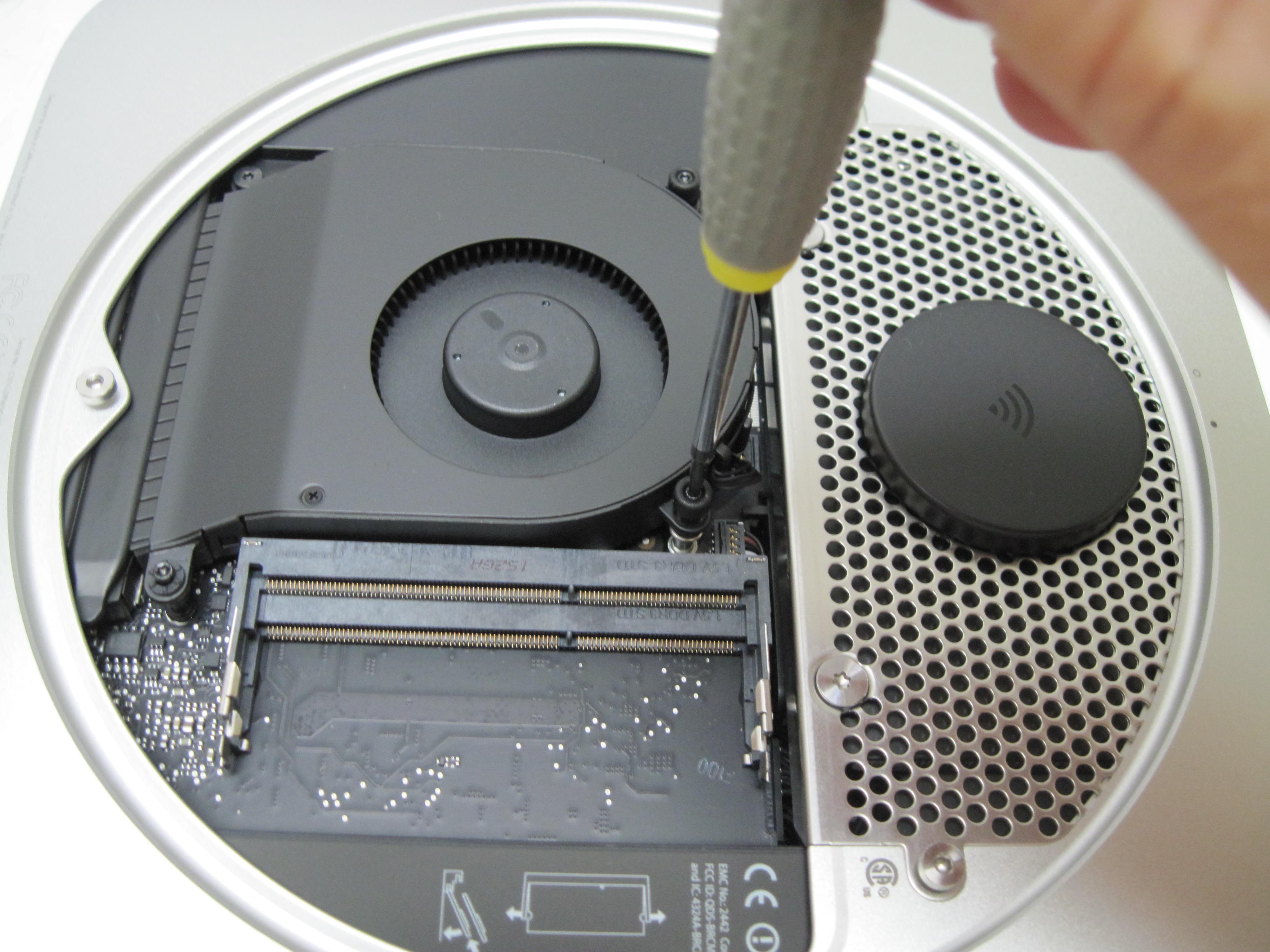

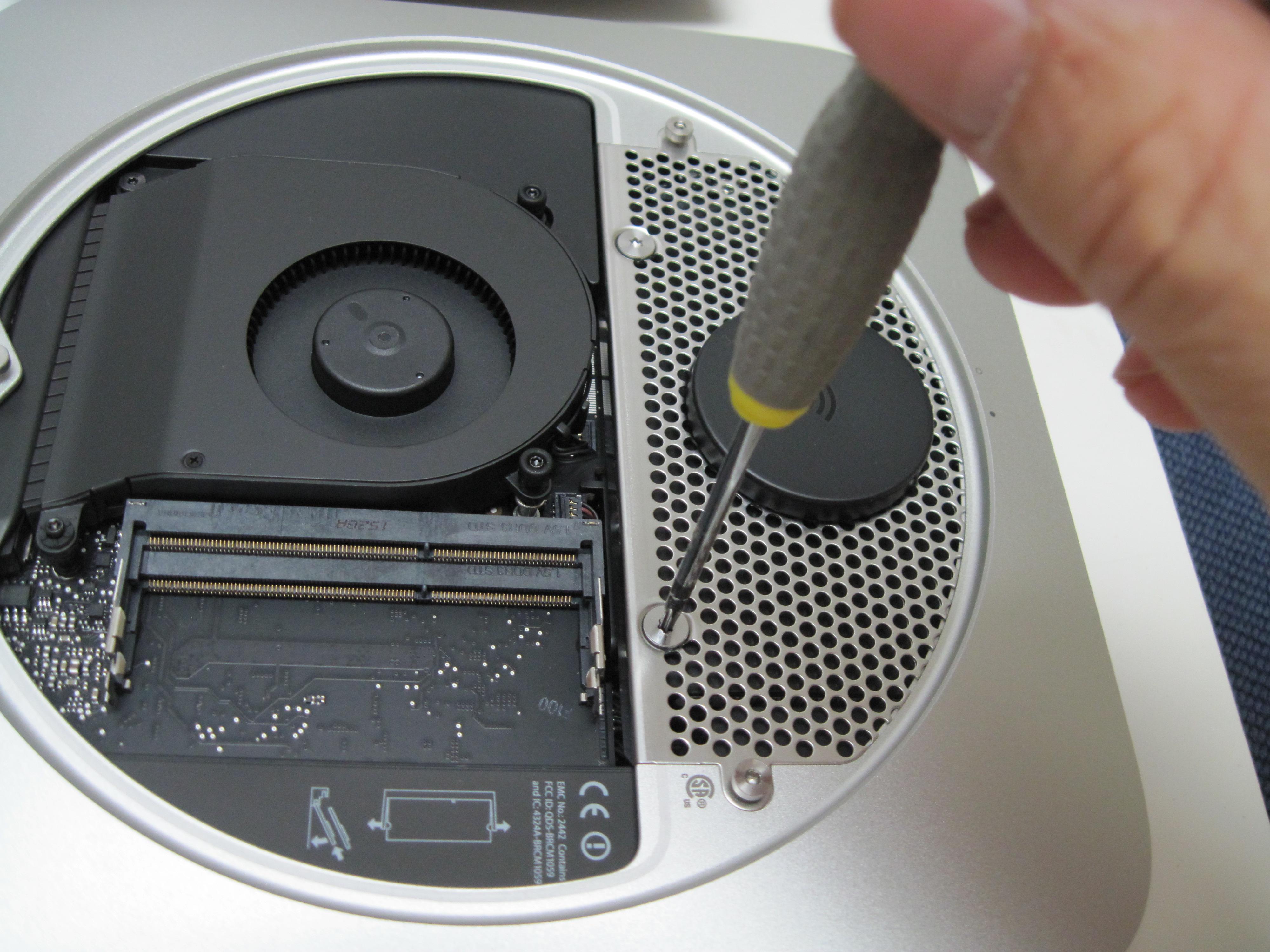

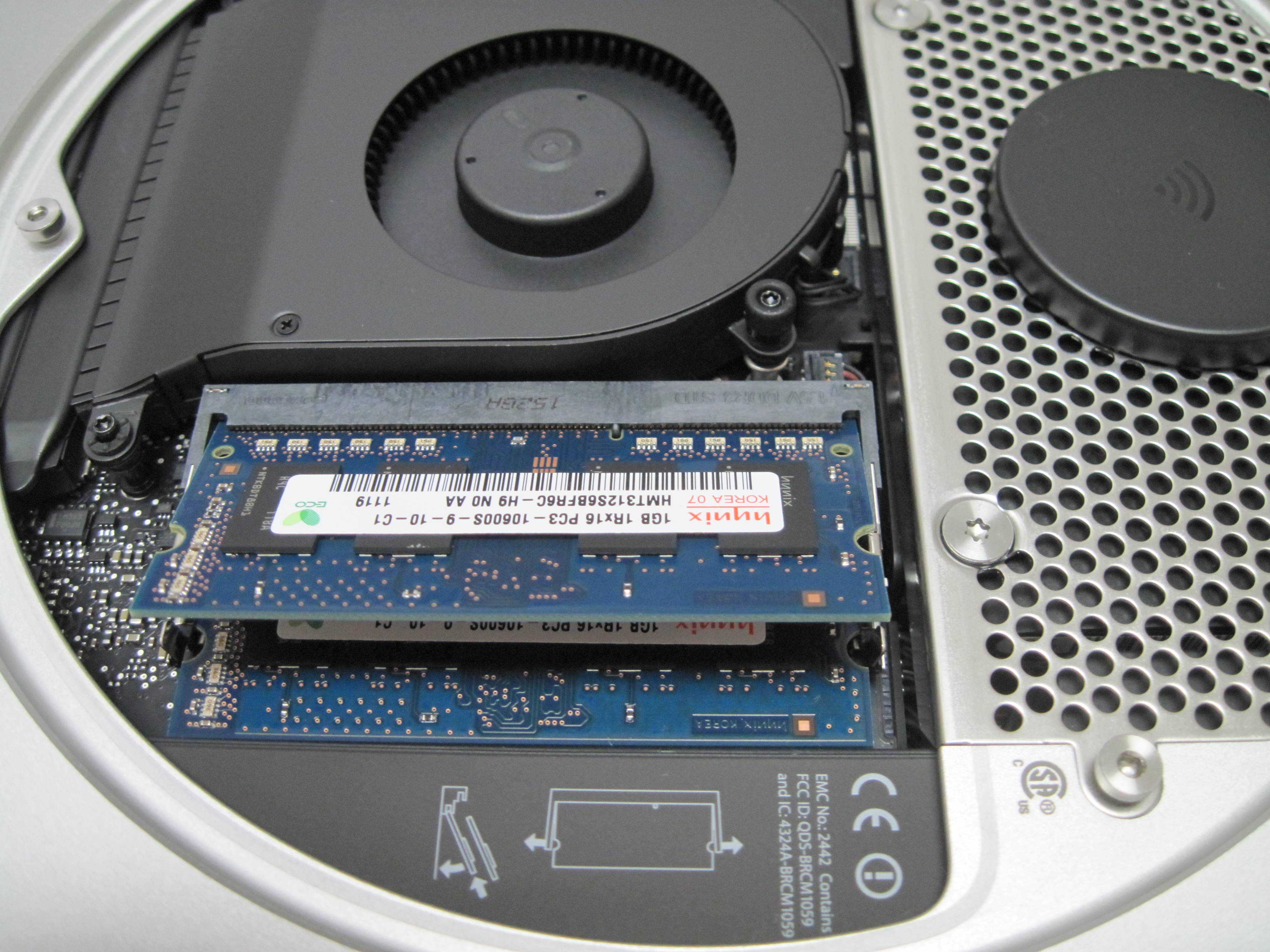

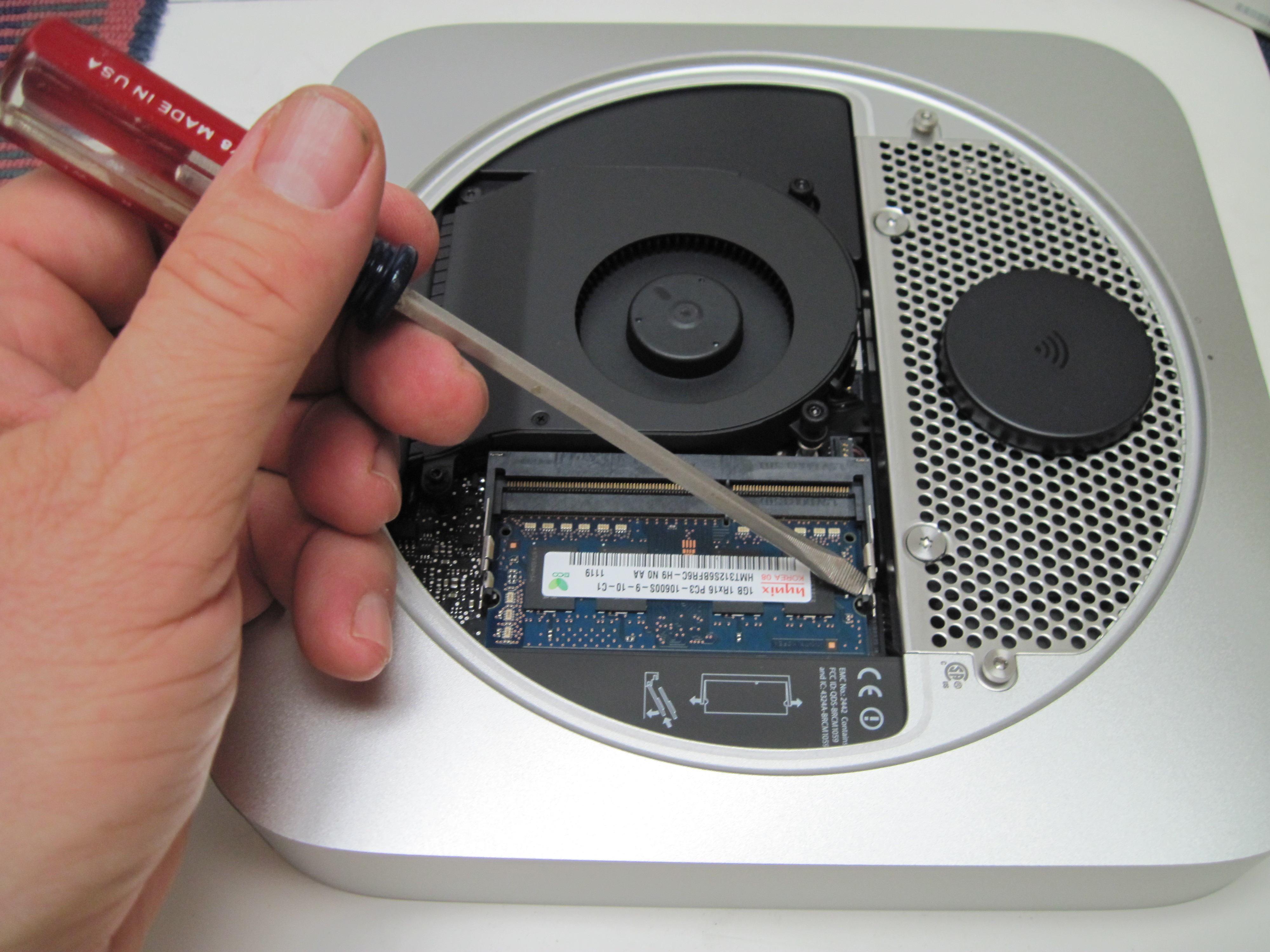

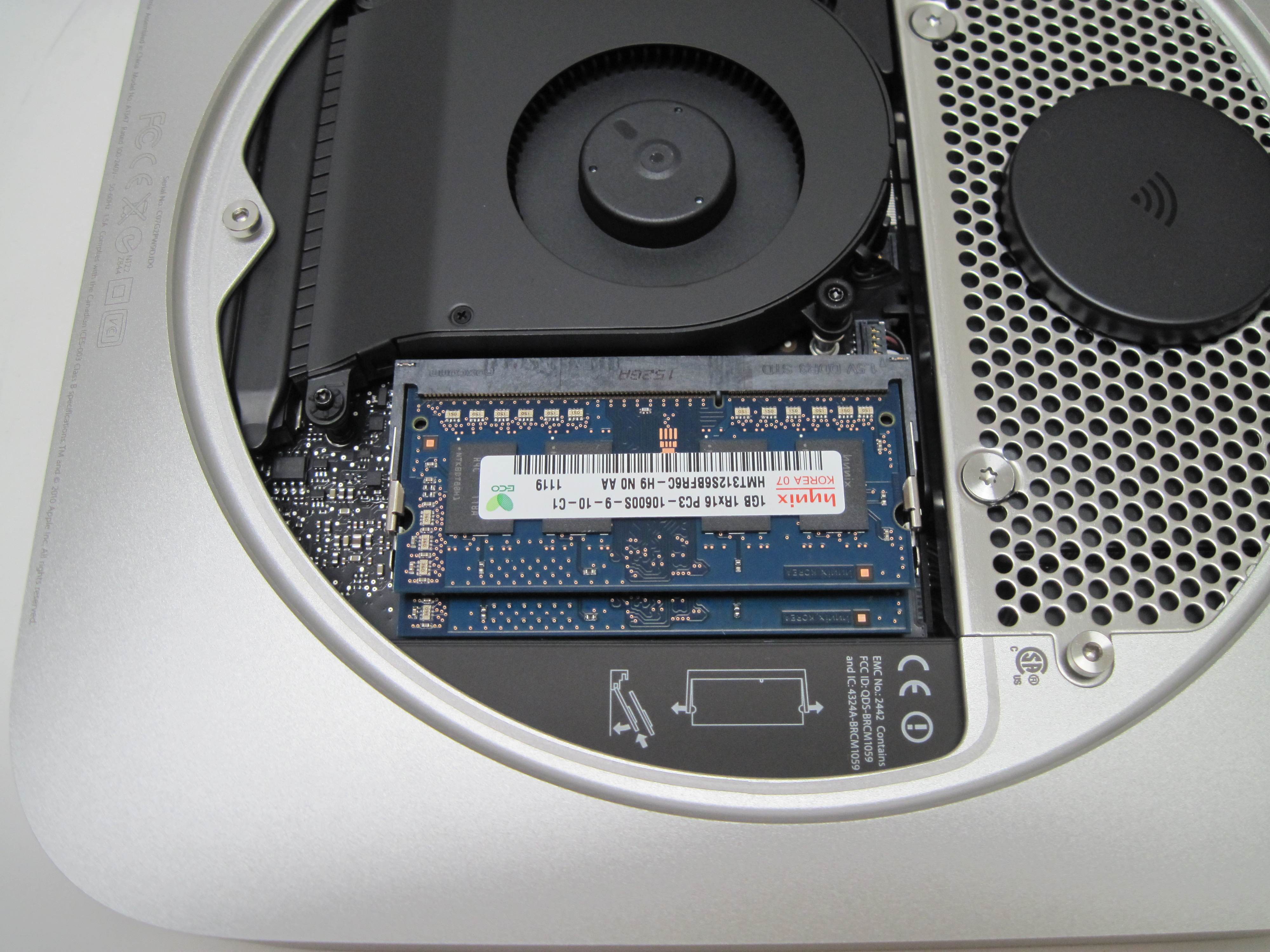

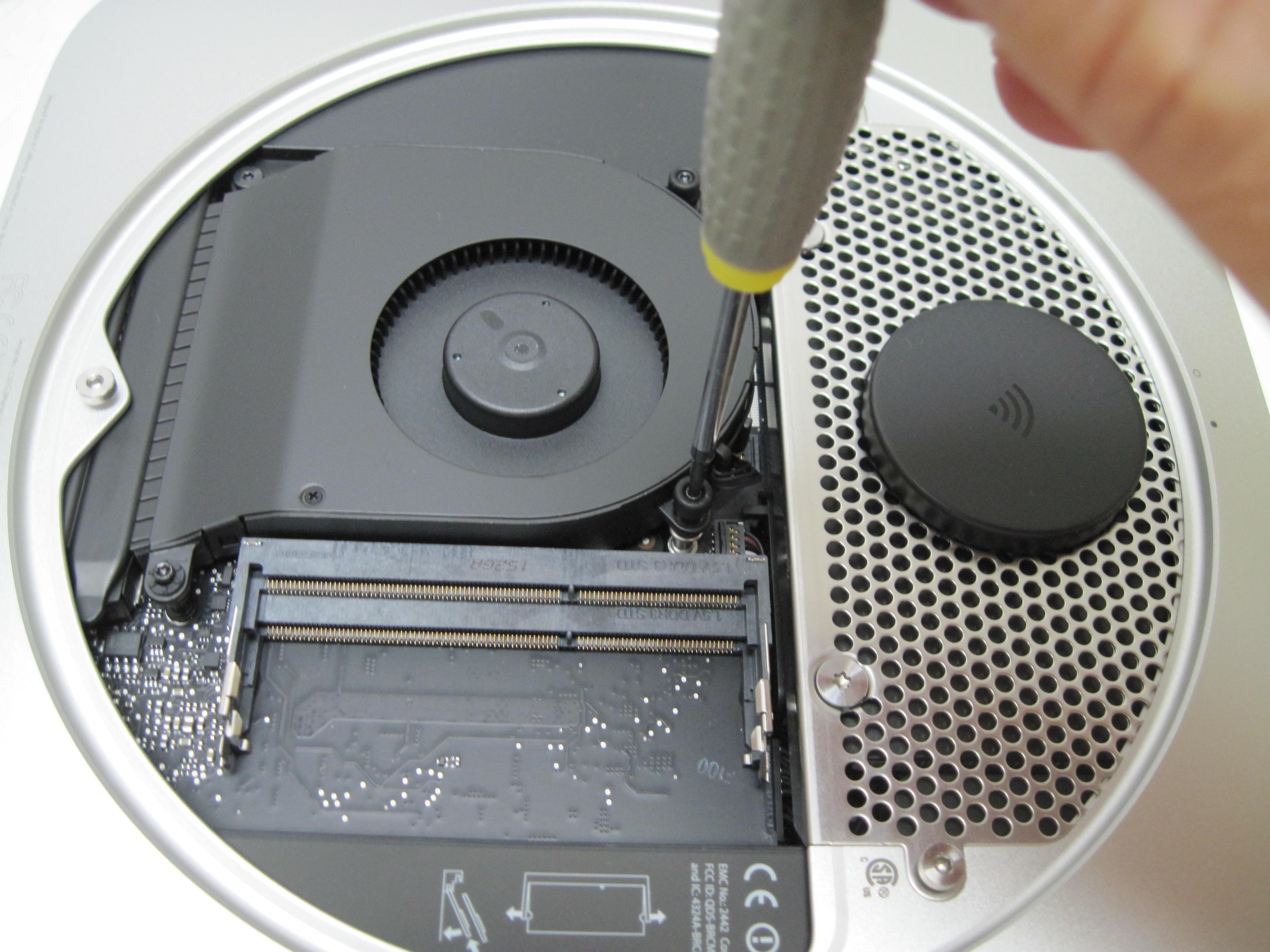

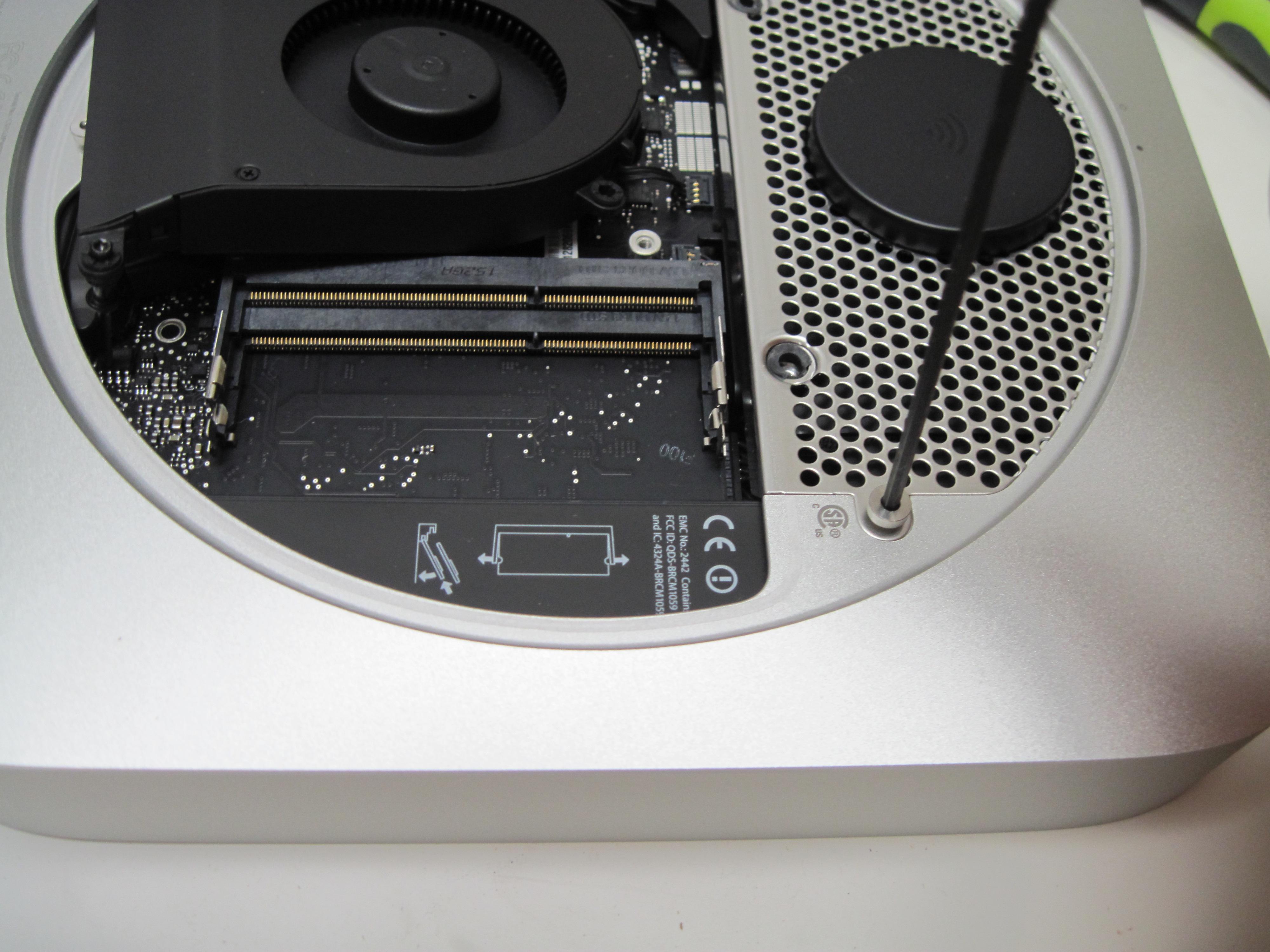

they were no problem I am posting more photos i have some shots of them top left all ram removed started with the fan.
second left the little clip

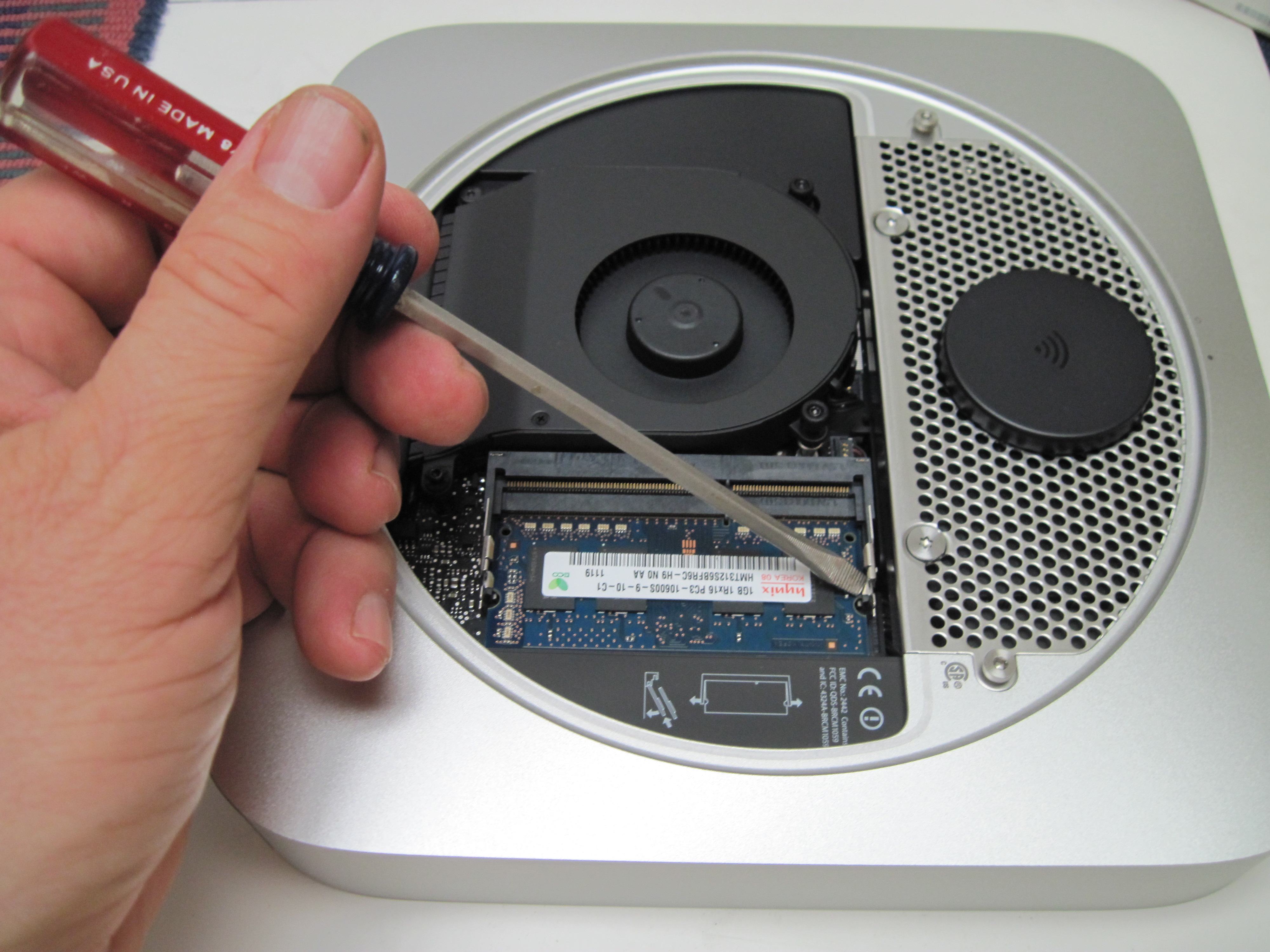

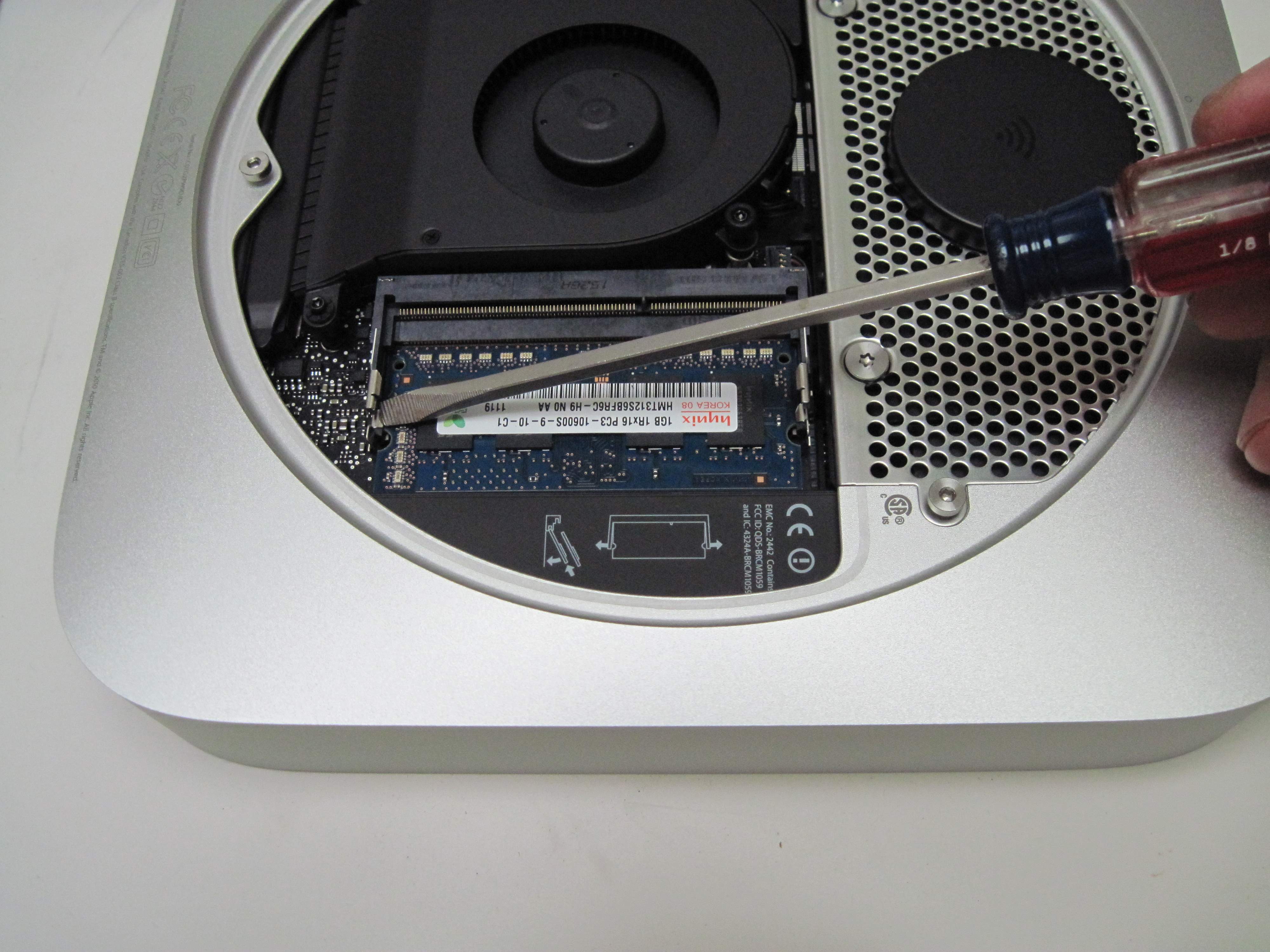

third left the other little ram clip be gentle they can be broken

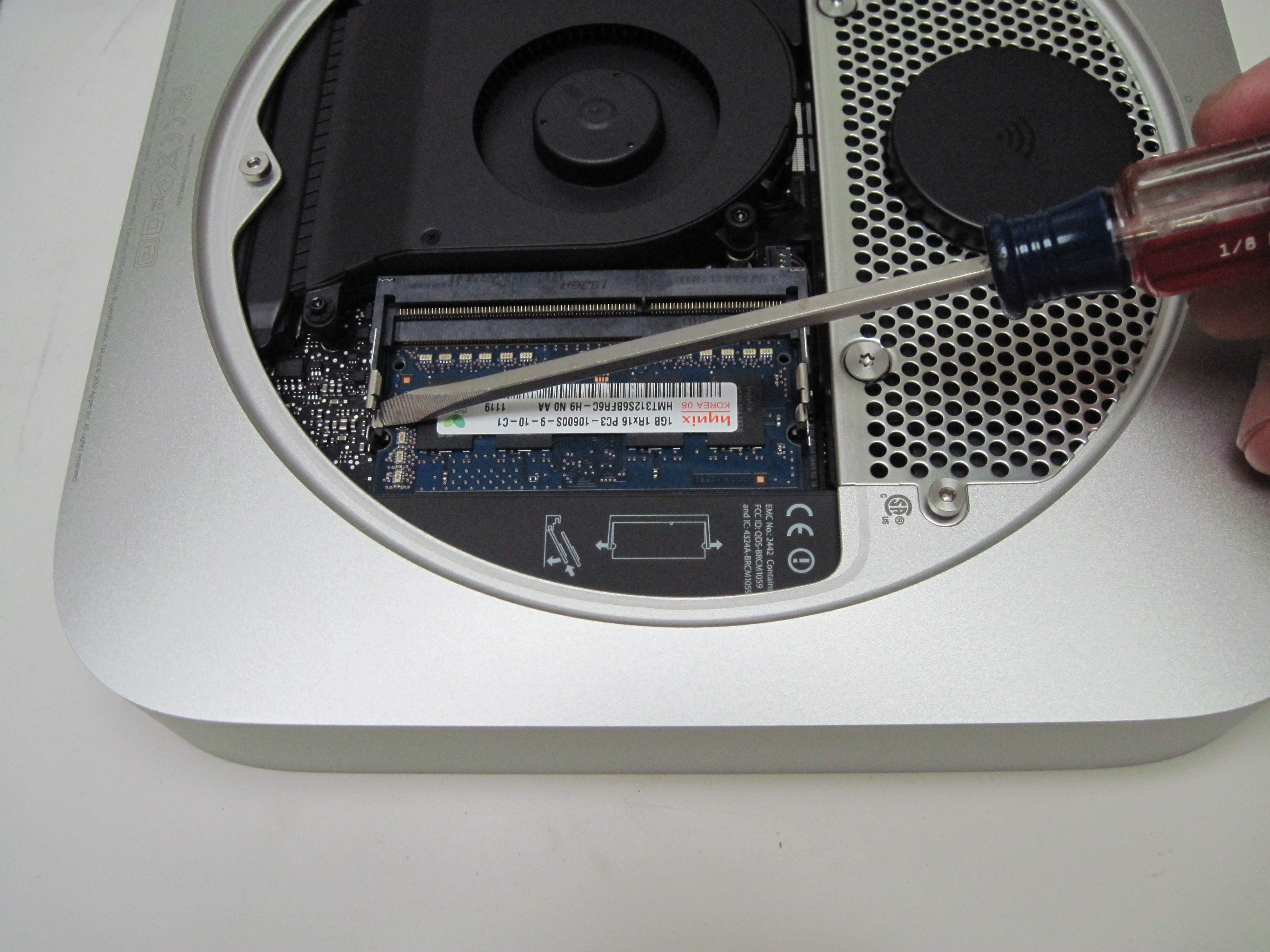

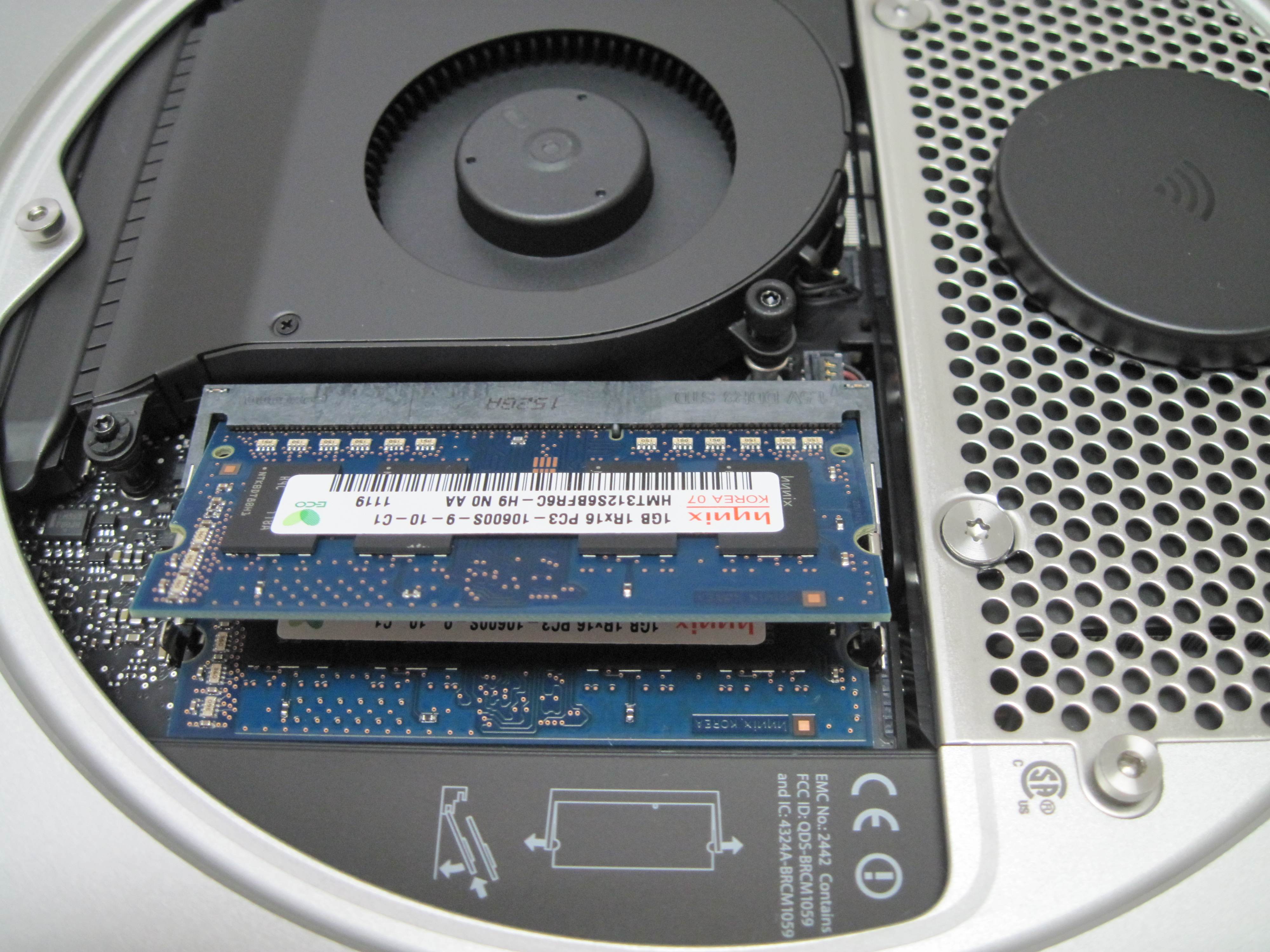

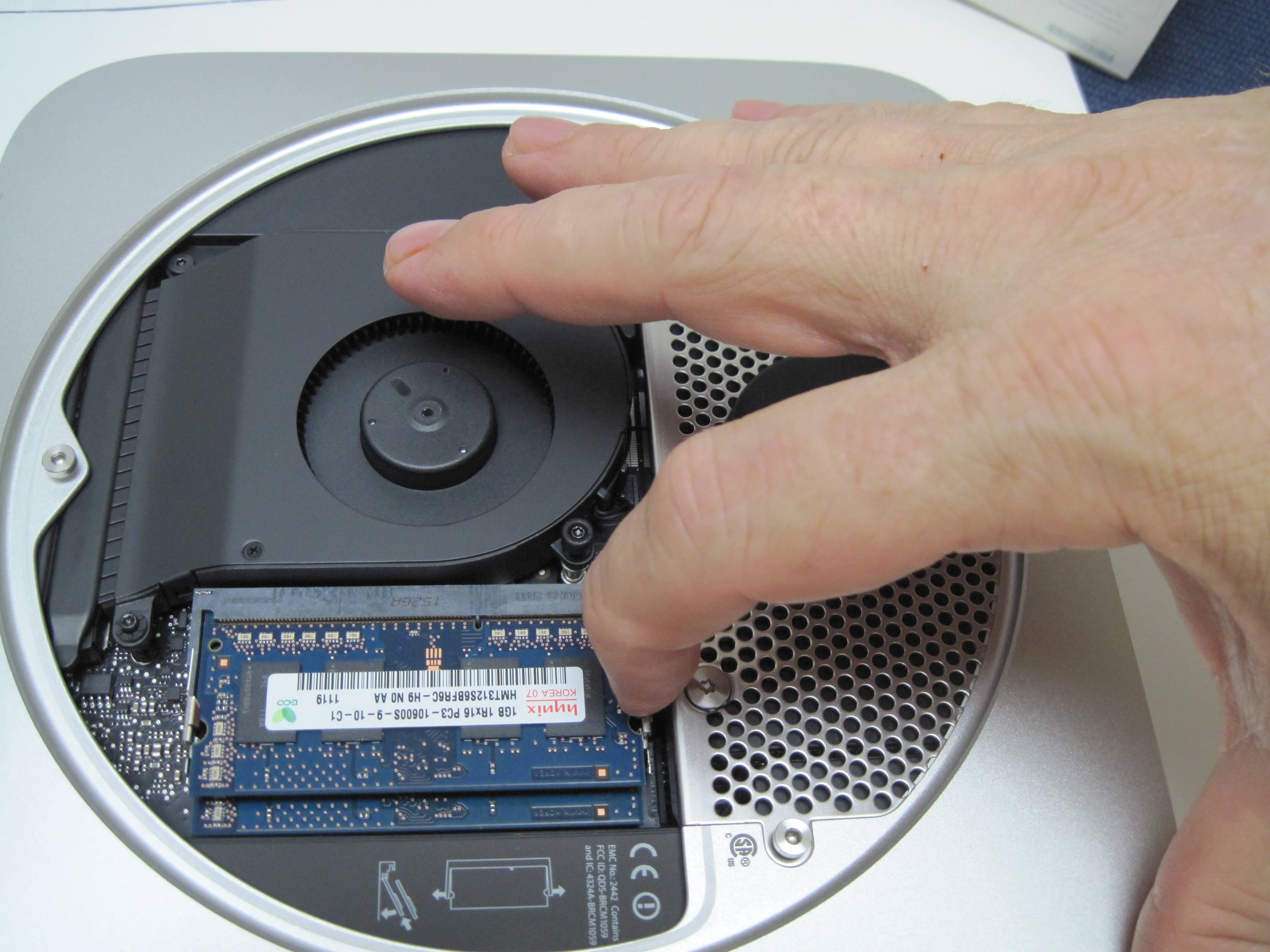

top right the first stick of ram is loose

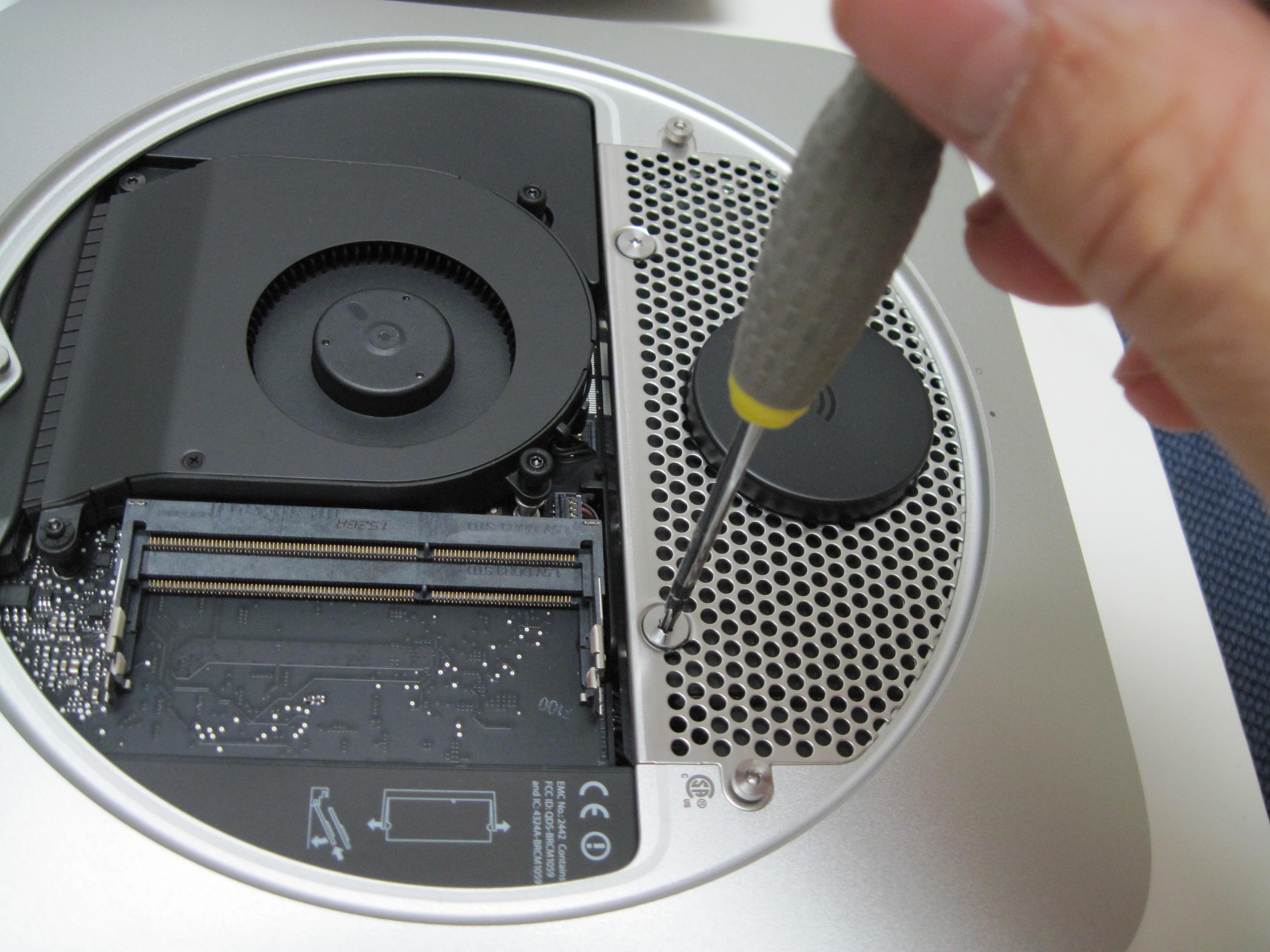

bottom right that screw holds the hdd


Attachments

  • IMG_1100small.jpg
    887.3 KB · Views: 348
  • IMG_1096small.jpg
    953 KB · Views: 333
  • IMG_1097small.jpg
    921 KB · Views: 343
  • IMG_1098small.jpg
    888.4 KB · Views: 330
  • IMG_1099small.jpg
    1,009.3 KB · Views: 305
Last edited:

philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey
more photos

to the mods I really took a lot of shots so please forgive the consecutive posts

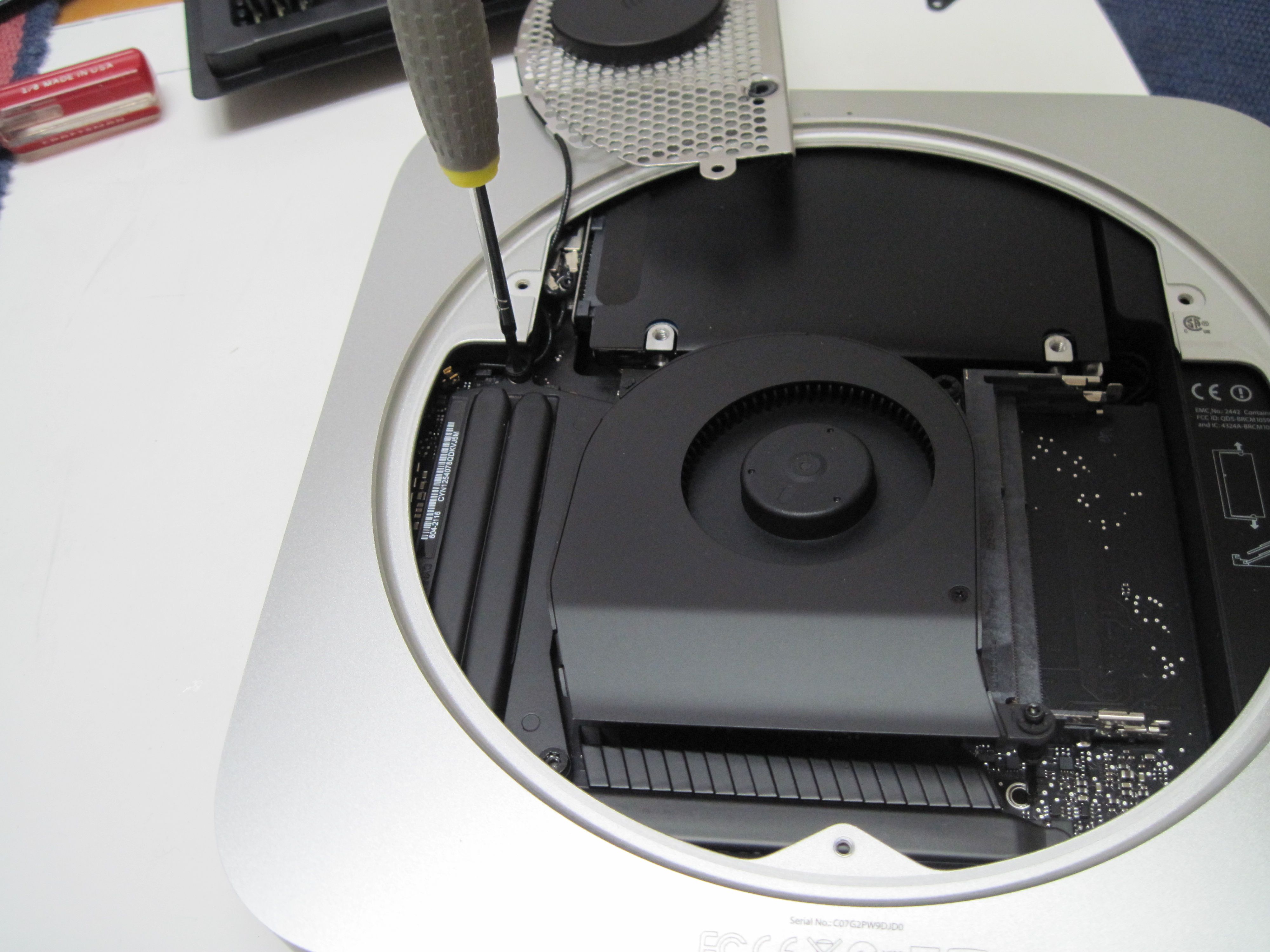

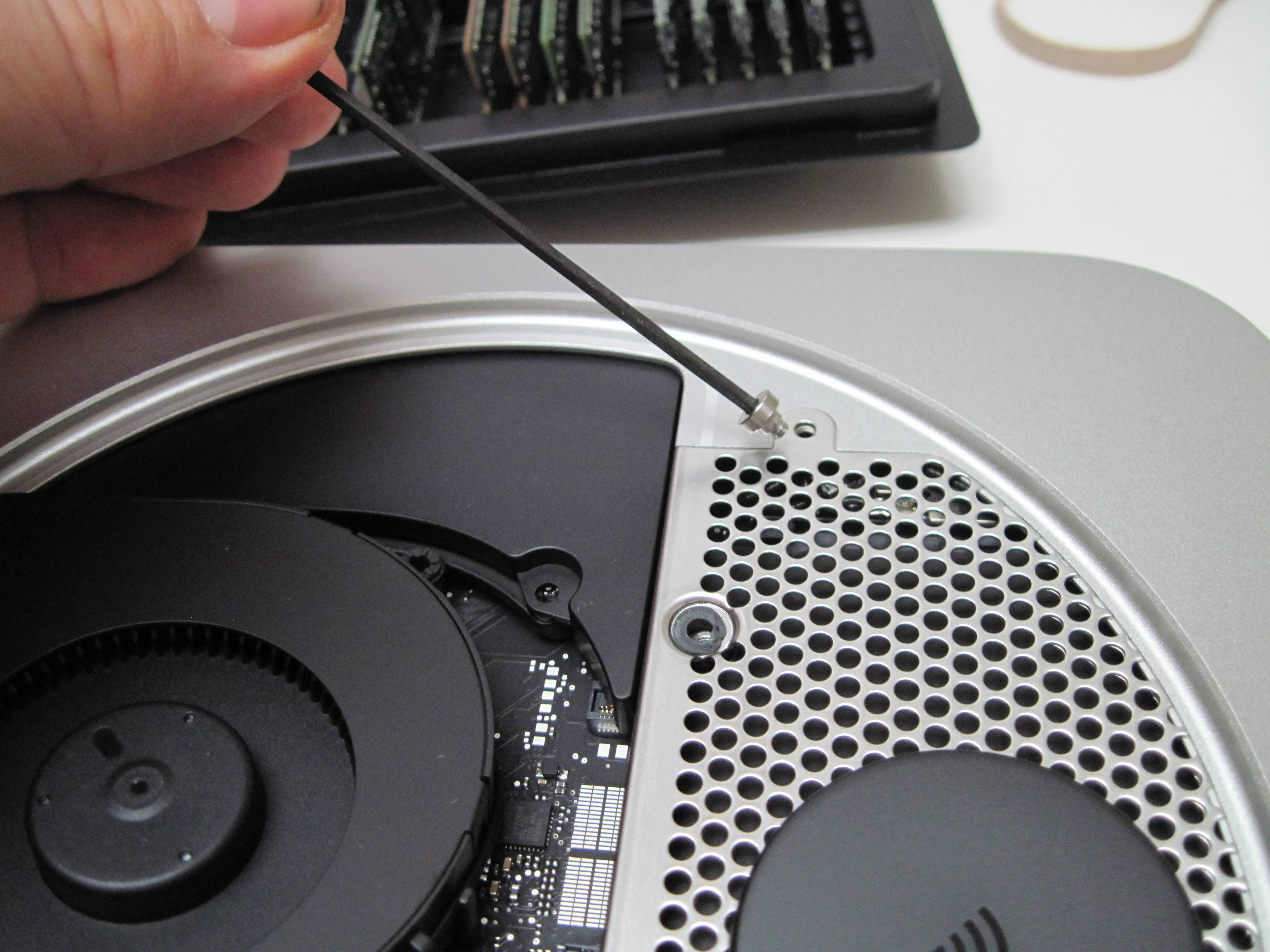

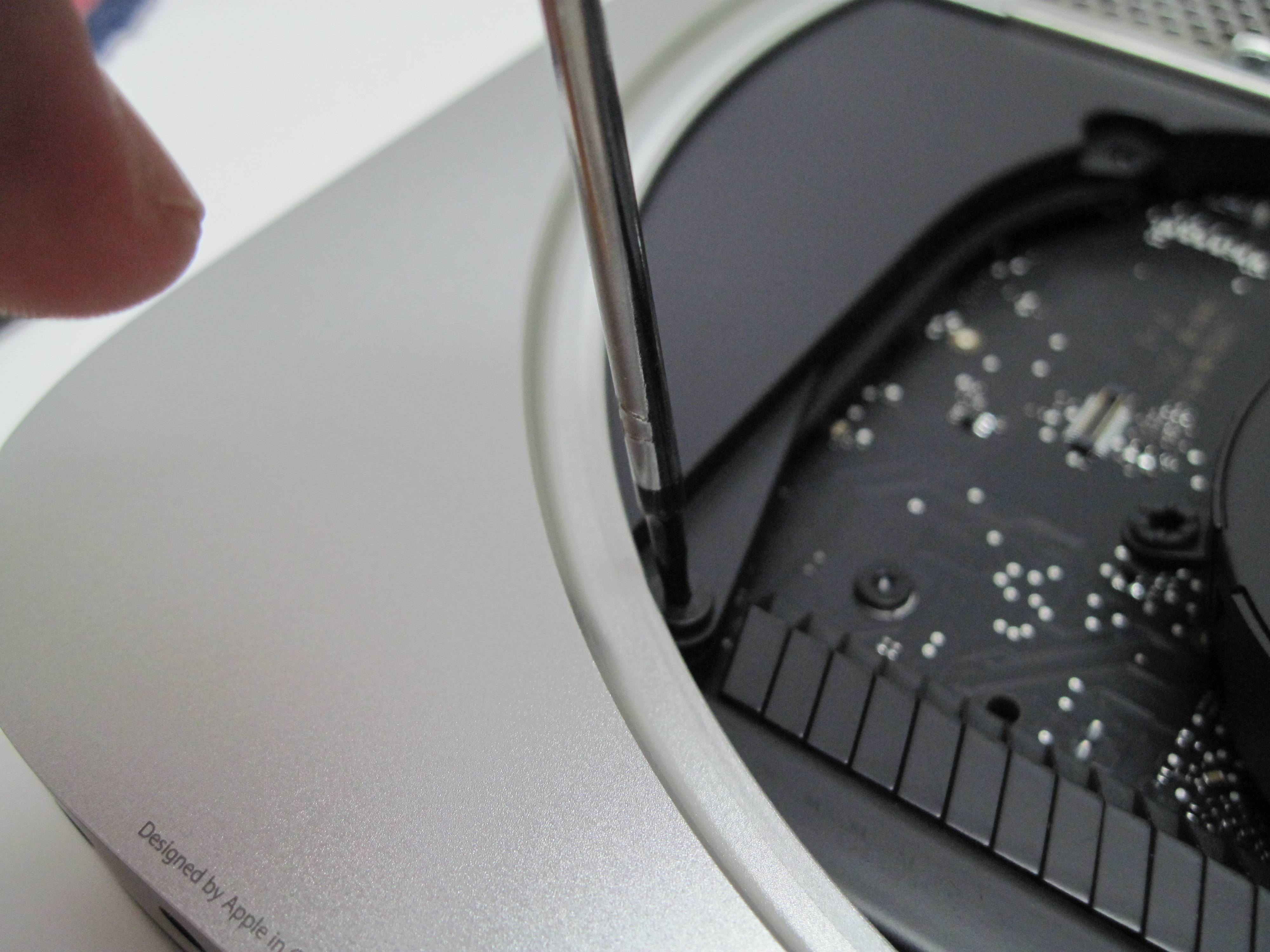

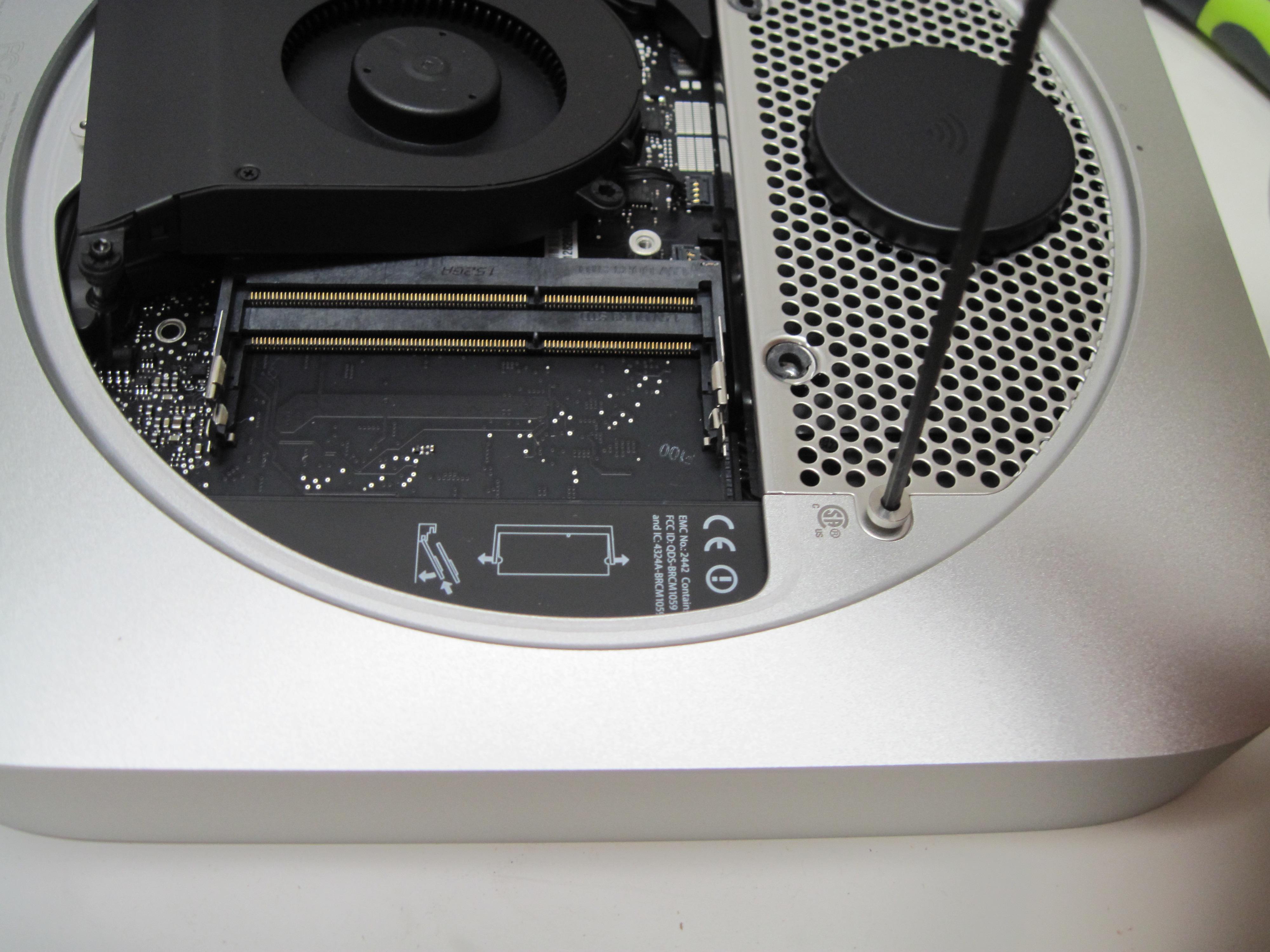

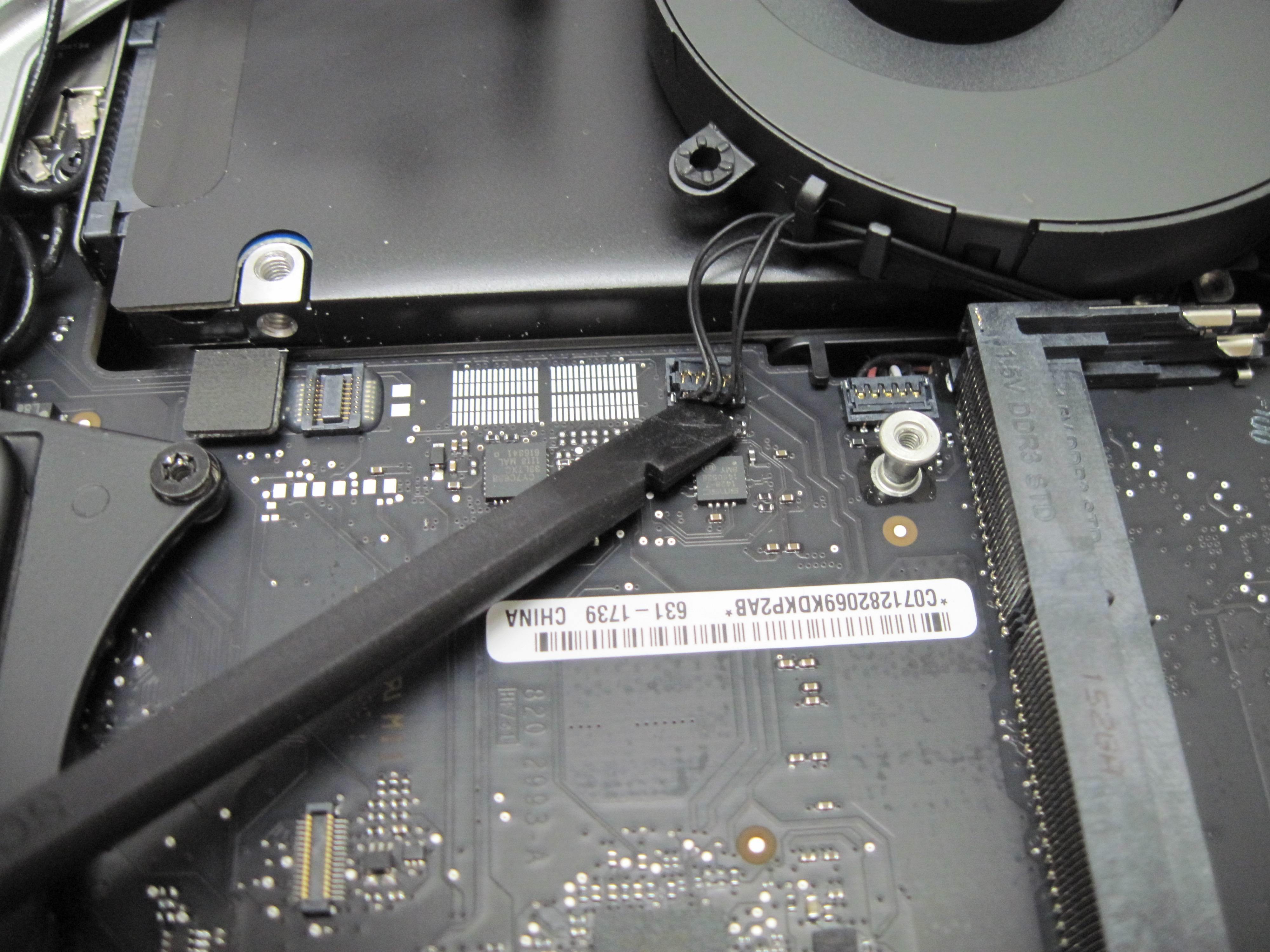

the bottom right shot shows me prying the fan up do it with the right tool owc has the black plastic tool as does ifixit


Attachments

  • IMG_1101small.jpg
    876.7 KB · Views: 331
  • IMG_1102small.jpg
    909 KB · Views: 299
  • IMG_1103small.jpg
    874.4 KB · Views: 327
  • IMG_1106small.jpg
    942.4 KB · Views: 342
  • img_1107small.jpg
    1,016.9 KB · Views: 460

philipma1957

macrumors 603
Original poster
Apr 13, 2010
6,381
264
Howell, New Jersey
still more shots

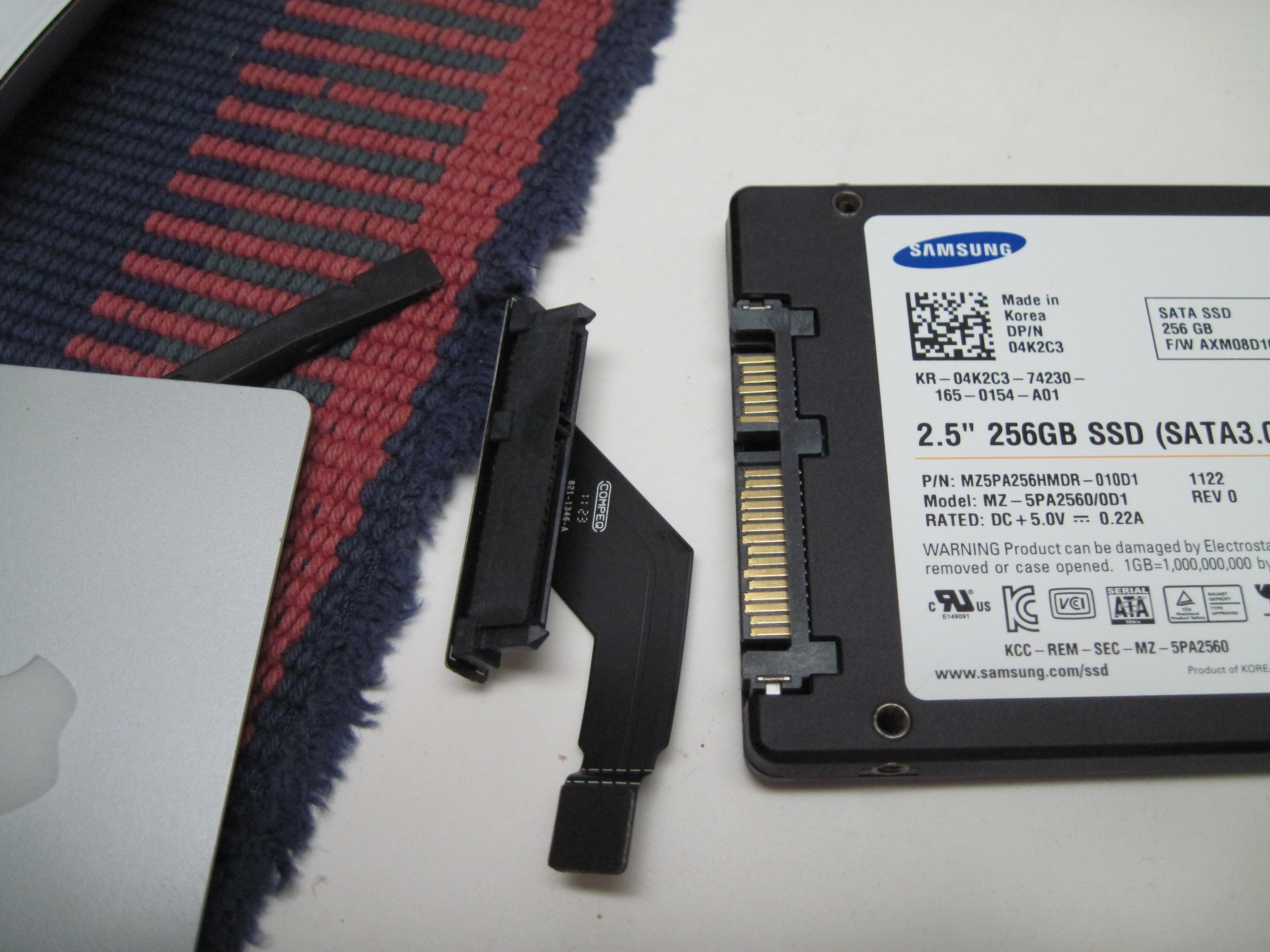

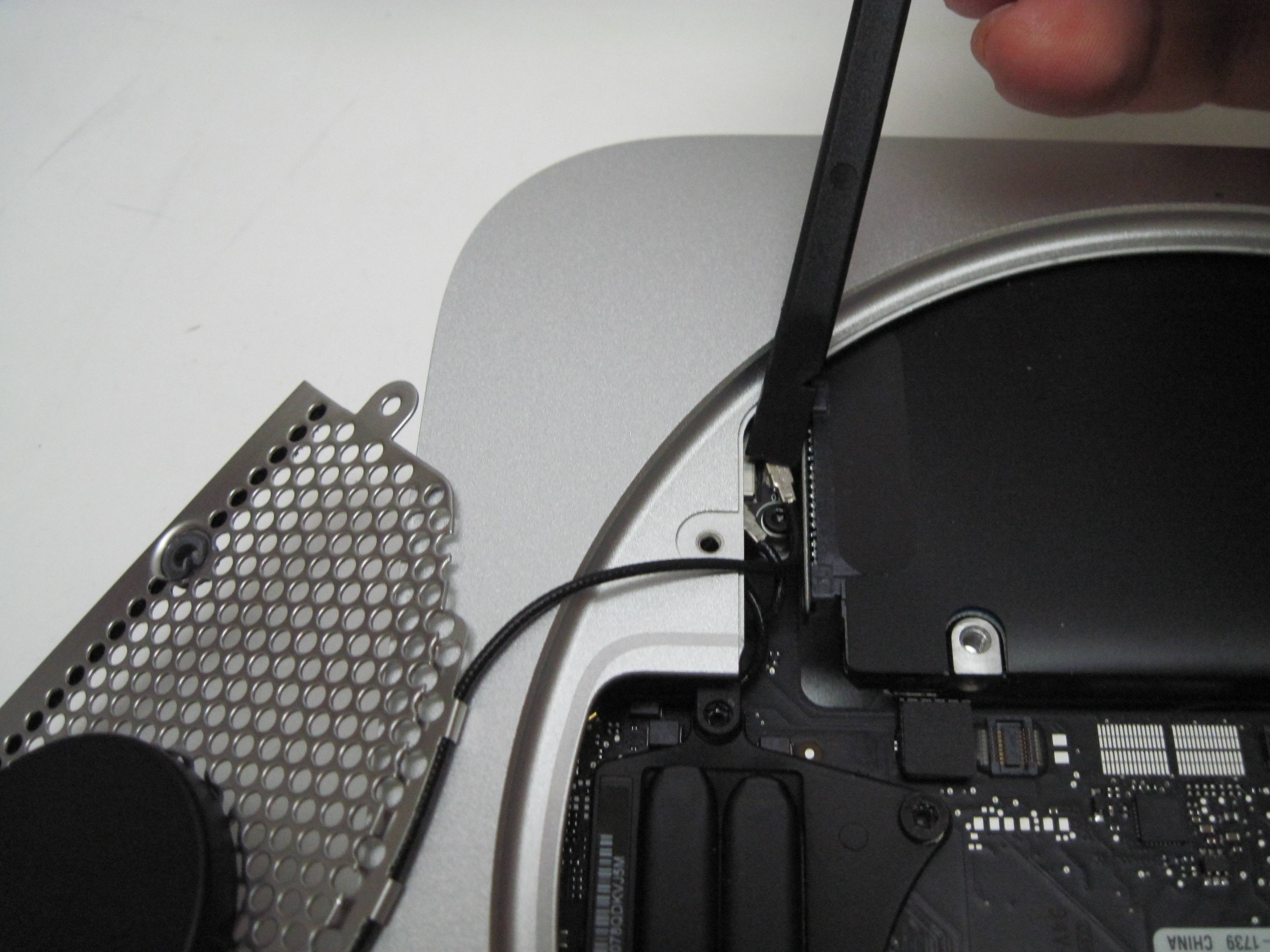

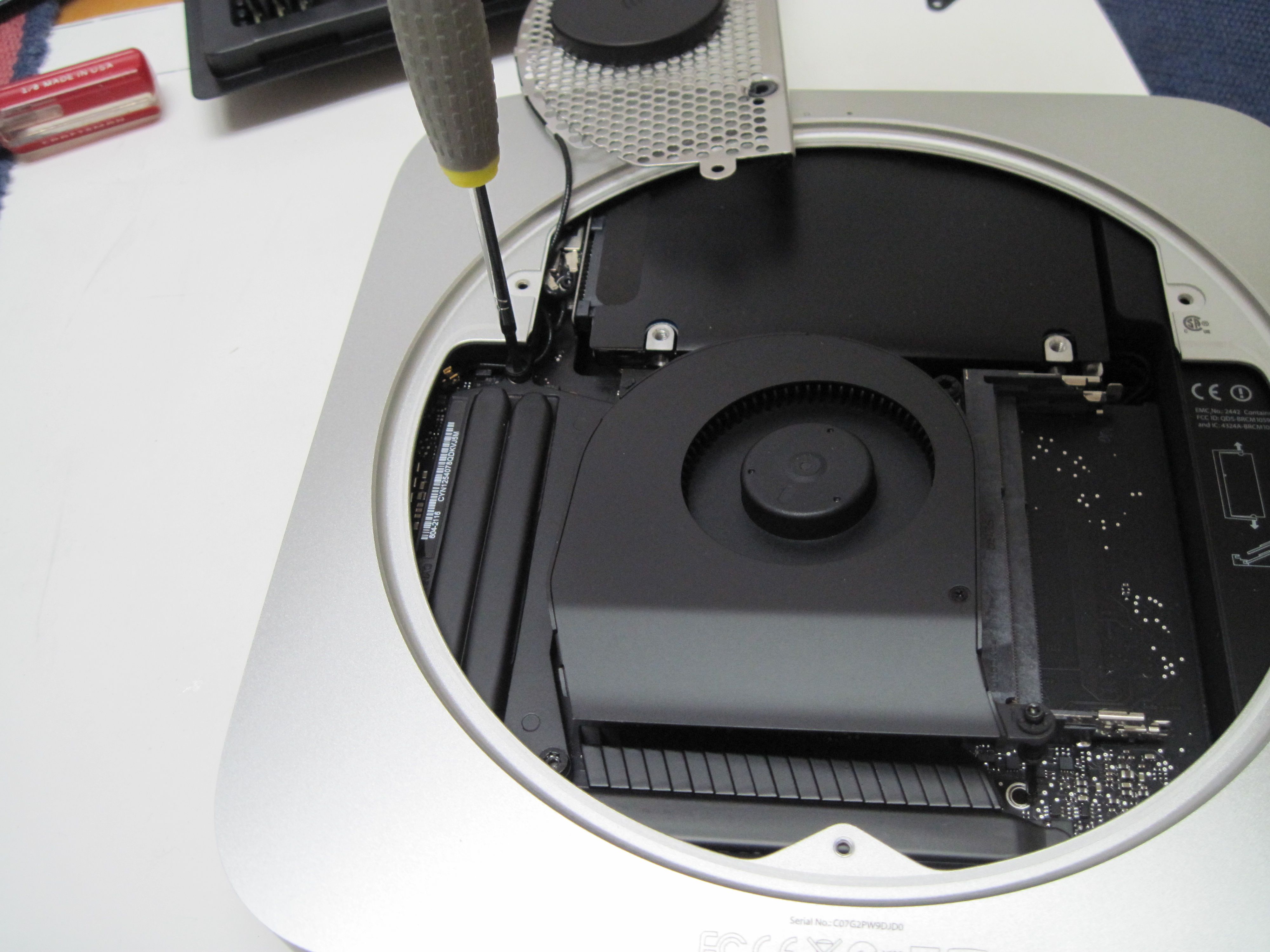

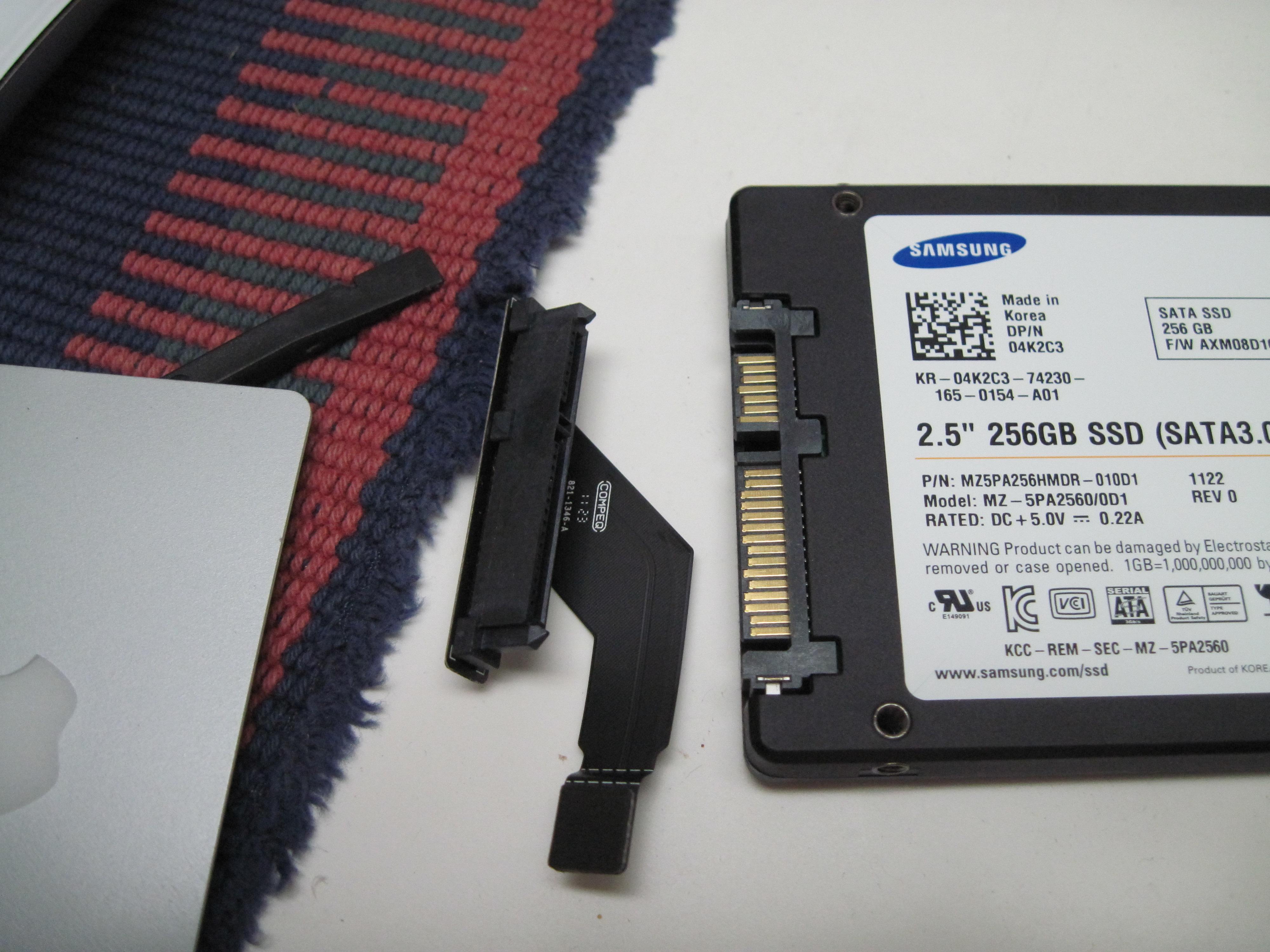

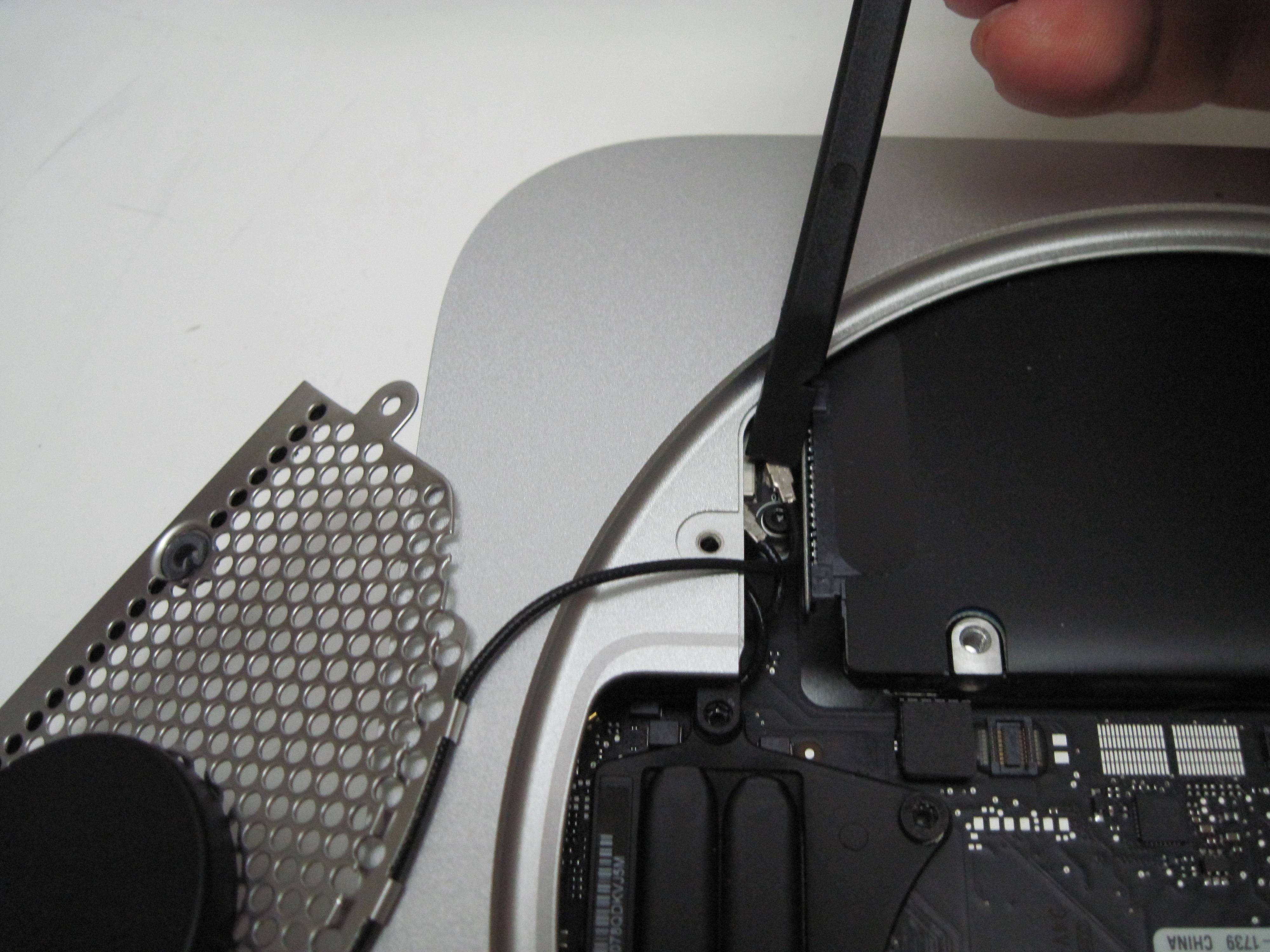

this is the antenna removal. early in the thread I have photos on it the oem virgin hdd removed. after the oem was removed it was placed in a thermaltake doc along with a samsung 256gb ssd. clone made then the ssd was put in the mini bottom two photos show prep to put it in place see cable in the last photo


Attachments

  • IMG_1108small.jpg
    936.6 KB · Views: 398
  • IMG_1115small.jpg
    1.1 MB · Views: 380
  • IMG_1116small.jpg
    898.1 KB · Views: 461
  • IMG_1117small.jpg
    880.5 KB · Views: 490
  • IMG_1118small.jpg
    1 MB · Views: 350
Last edited:
