New Display with TB are out, when new MP TB? :-)

Discussion in 'Mac Pro' started by imaximuss, Jul 20, 2011.

  1. imaximuss macrumors newbie

    Joined:
    Jul 20, 2011
    #1
    Hi guys!
    Well today is new on Apple Store also Apple Cinema Display 27'' with Thunderbolt.. the Mac Pro 2010 don't have this port.. so I presume that an upgrade in this way will come soon..
    What do u think about that?

    Thanks (and sorry for my bad english!)

    :)

  2. G4DP macrumors 65816

    Joined:
    Mar 28, 2007
    #2
    You've got to laugh at Apples Big "Up yours". Everything but the "Pro" towers now has Cripple Peak technology.

    A Display that costs more than a desktop it can be plugged into. Woohoo, go Apple.

  3. Inconsequential macrumors 68000

    Joined:
    Sep 12, 2007
    #3
    Have a search, the 2011 Mac Pro update has been debated over and over.

    Q4 2011 is when most people think it will happen.

    /End of thread.

  4. sinser macrumors 6502a

    sinser

    Joined:
    Sep 16, 2003
    #4
    I don't know, but i feel that Apple is kinda forced to do some kind of update on the MP very, very soon. All Apple HW now has TB and Sandy Bridge, the MP feels completely out of place. Q4 looks way too far away.

  5. imaximuss thread starter macrumors newbie

    Joined:
    Jul 20, 2011
  6. theSeb macrumors 604

    theSeb

    Joined:
    Aug 10, 2010
    Location:
    Poole, England
    #6
    Yup, that's exactly how large corporate companies work.

  7. Inconsequential macrumors 68000

    Joined:
    Sep 12, 2007
    #7
    And whats the point adding this hardware for a socket that is obsolete in a few months?

    Answer: There isn't.

    Mac Pro will be updated when X79 and LGA2011 is ready.

    No sooner. No later.

    They could start using AMD chips but Bulldozer is also delayed.

  8. xgman macrumors 601

    xgman

    Joined:
    Aug 6, 2007
    #8
    Does the displayport out of the current mac pro work going into the new monitors thunderbolt connector. I assume it would. Is it a special cable or just the normal DP cable?

  9. TheAnalogue macrumors member

    TheAnalogue

    Joined:
    May 12, 2011
    Location:
    Clearwater, Fl
    #9
    Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_3_3 like Mac OS X; en-us) AppleWebKit/533.17.9 (KHTML, like Gecko) Version/5.0.2 Mobile/8J2 Safari/6533.18.5)

    No it does not. The Thunderbolt Display tech specs page lists system requirements, and the Mac pro is not listed as compatible.

  10. Shivetya macrumors 65816

    Joined:
    Jan 16, 2008
    #10
    If you option up your Mac Mini enough you can get to the same price range! Or is that not a valid solution?

  11. goMac macrumors 603

    Joined:
    Apr 15, 2004
    #11
    I'm pretty sure it should work, but the ports on the back would not.

    That said, there were promo pictures of the Mac Pro hooked to the new display about a week back, so either it works, or the Mac Pro is about to be rev'd.

  12. deconstruct60, Jul 20, 2011
    Last edited: Jul 20, 2011

    deconstruct60 macrumors 604

    Joined:
    Mar 10, 2009
    #12
    Not necessarily. Your presuming the TB controller is bi-direction in backward compatibility with Display Port. Even if it is Apple wanting to deal with folks who call in complaining the ports don't work.


    You mean the "leaked" pictures that are not currently being used at

    http://www.apple.com/displays/

    Yeah. that is a solid foundation for actual specifications for a device.

  13. occamsrazor macrumors 6502

    occamsrazor

    Joined:
    Feb 25, 2007
    #13
    You can't add PCIe cards or other types of expansion, can't use internal desktop-class drives, can't have dual-ethernet ports.... yes, it's not really a replacement. I have two Mac Minis, I love them, but they are not a replacement for a Pro machine for Pro users.

  14. goMac macrumors 603

    Joined:
    Apr 15, 2004
    #14
    ...as opposed to them taking the picture for completely no reason?

    It hints at what may be coming. That's all. Obviously, they have plans to sell the display with Mac Pros.

    I'm pretty sure it is. The display signal on a Thunderbolt cable isn't even done under the Thunderbolt protocol. It's just a bog standard Displayport protocol. Nothing special. Even for dual mode devices.

    Hence them using the same port.

  15. anim8or macrumors 65816

    anim8or

    Joined:
    Aug 16, 2006
    Location:
    Scotland, UK
    #15
    With the last few revisions it seems apple has pushed its displays as 'hubs' for it portable systems..... i hope, i really hope... i really really hope that this trend doesn't continue and that the new TB Display is a precursor to a new Mac Pro model complete with TB... i don't really care if it has the latest chips.... if they refresh now and add a speed bump and TB capabilities then i would bite...

    If they refreshed the MP in early 2012 with new procs it wouldn't bother me too much.

  16. deconstruct60, Jul 20, 2011
    Last edited: Jul 20, 2011

    deconstruct60 macrumors 604

    Joined:
    Mar 10, 2009
    #16

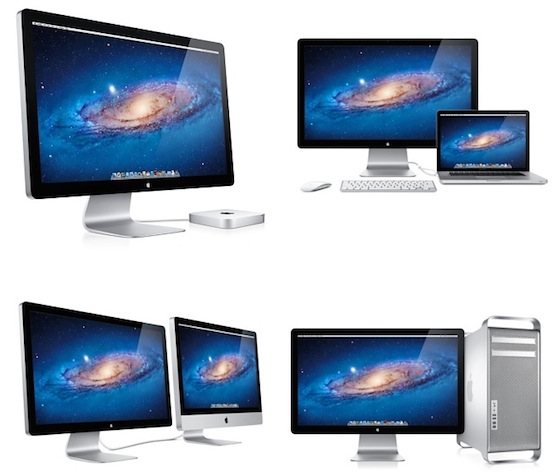

    What picture? It is a bunch of photoshopped stuff. Are you refering to
    [​IMG]

    If so please note the Mac Pro is not connected to the display. How's that for significance in through pictures?

    A "pro" monitor, following in the legacy of the ACD 30" , would be a 30 bit color , 100+% gamut monitor like what the "pro" NEC , Ezio , etc. monitors are like. What Apple is doing is adding "more stuff" to a monitor that will probably go for $700-800 in the next year and tying to Apple only set-ups.


    Apple could strong arm some video card vendor into doing a GPU + TB card but that just putting a round peg into a square hole. Typically Apple doesn't do that.




    Not by the can't be.

    Thunderbolt.

    "Dual-channel 10 Gbps per port "
    http://www.intel.com/technology/io/thunderbolt/index.htm


    "... Bitrate 1.62, 2.7, or 5.4 Gbit/s data rate per lane; ... "
    http://en.wikipedia.org/wiki/Display_Port

    Note that DP gets max 5.4Gps per lane (graphic in right column). Intel was quoted as both the PCI-e and DP traffic travelling on separate lanes at 10Gps. Guess what? that isn't DP. It also makes sense if shipping the data for two large screens down one lane you'd need something faster than DP's top speed. Also the topology of the network is going to be "know" to TB so it should be shuttling the data from source to destination.




    Physically they are using a socket with the same 4 lanes. The protocol on those two lanes is different that DP or PCI-e .

    It is quite another thing when a non-TB cable plugs up and starts using legacy DP singals. That that point the TB control can switch to legacy mode and pass along DP over the 4 lanes and audio over the aux if they are all hooked up to the controller.

  17. FluJunkie macrumors 6502a

    Joined:
    Jul 17, 2007
    #17
    Depends on what you need. If its anything approaching a solid graphics card, or expansion, the Mini is a nonstarter.

  18. deconstruct60, Jul 20, 2011
    Last edited: Jul 20, 2011

    deconstruct60 macrumors 604

    Joined:
    Mar 10, 2009
    #18
    On the conference call Tim Cook mentioned that MacBookPros were the majority of the Macs that apple sells. That means 50+% .

    If you look at the motherboards of all of the mac products all of them except the Mac Pro have the GPU and CPU on the same board. Of course they are tilting the sole remaining monitor they make toward that architecture.

    Frankly, unless someone is manically infatuated with Apple's brushed Alum design for displays it really makes do difference to Mac Pros. The Pros have "standard" connectors which means they can connect to standard monitors. Just like the Mac Pro can hook to standard networking. Printers, FW devices , USB devices etc. Apple does not have to make all of those external devices. In fact they should stay away from most of them.

  19. goMac macrumors 603

    Joined:
    Apr 15, 2004
    #19
    Look, no need to blow this out or proportion. All I'm saying was Apple was ready to advertise the Mac Pro with the new display.

    The old one isn't hooked to the Mac Pro either in the promo picture. ZOMG! The Mac Pro must not support the old cinema display!

    Seriously now.

    I'm still researching on this one. Where I disagree with you is that DP and PCI-e travel on different lanes. I don't think they do. I can't find any details supporting you, and the Intel documentation refers to a packet switching layer for DP and PCI-e traffic which heavily implies they travel on the same lanes. I just can't find any details of that specific part of the architecture. I'll get back to you.

  20. deconstruct60 macrumors 604

    Joined:
    Mar 10, 2009
    #20
    Not sure what Intel document you are reading.

    "A Thunderbolt connector is capable of providing two full-duplex channels. Each channel provides bi-directional 10 Gbps of band- width. A Thunderbolt connector on a computer is capable of connecting with a cable to Thunderbolt products or to DisplayPort devices. "
    http://www.intel.com/technology/io/thunderbolt/325136-001US_secured.pdf

    Unless they want to put some complex layered isochronous overhead on top ( they don't ) if you separate the PCI-e and DP traffic you don't have to worry about timing contraints to the two flows getting in each other ways.

    The old Intel diagrams like

    [​IMG]

    Were used back in the days when this was optical fiber. For optical fiber it makes more sense to single channel them. With copper wires it does not.

  21. xper macrumors 6502

    xper

    Joined:
    Dec 15, 2005
    Location:
    Sweden - Halmstad
    #21
    Yes, the new Thunderbolt Display works with current Mac Pros, no problem.


    No, that means 20+%.

  22. occamsrazor macrumors 6502

    occamsrazor

    Joined:
    Feb 25, 2007
    #22
  23. gullySn0wCat macrumors 6502

    Joined:
    Dec 7, 2010
    #23
    I'm going to go out on a limb and say that the display part will work, but not the ports on the back of the monitor. How's that.:D

  24. Dnix macrumors 6502

    Joined:
    Dec 9, 2010
    #24

    That's what I'm thinking. But people are claiming both sides, I'm not sure what the right answer is.

    :(

  25. FrankHahn macrumors 6502a

    Joined:
    May 17, 2011
    #25
    No, the new Thunderbolt Display does not work with the current Mac Pro. The Thunderbolt is backward compatible with the mini Display Port, whereas the mini DisplayPort is not forward compatible with the Thunderbolt.

    When a Thunderbolt cable is plugged into a mini DisplayPort port, the mini DisplayPort port can not resolve the signal sent to it because of the PCI-e part of the Thunderbolt signal.

    On the other hand, when a mini DisplayPort cable is plugged into a Thunderbolt port, the Thunderbolt port can resolve the signal from the DisplayPort signal. This is actually what is meant by back compatibility.
