New MBA Rev.2, had to take apart.

Discussion in 'MacBook Air' started by NC MacGuy, Nov 1, 2008.

  1. NC MacGuy macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #1

    Attached Files:

  2. deriko100 macrumors 6502

    Joined:
    Jul 29, 2008
    Location:
    New York
    #2
    Thanks for the pics, Id be scared doing that.

  3. HeadForTheHills macrumors member

    Joined:
    Oct 19, 2008
    Location:
    Edinburgh
    #3
    Superb and you are certainly braver than me :eek:

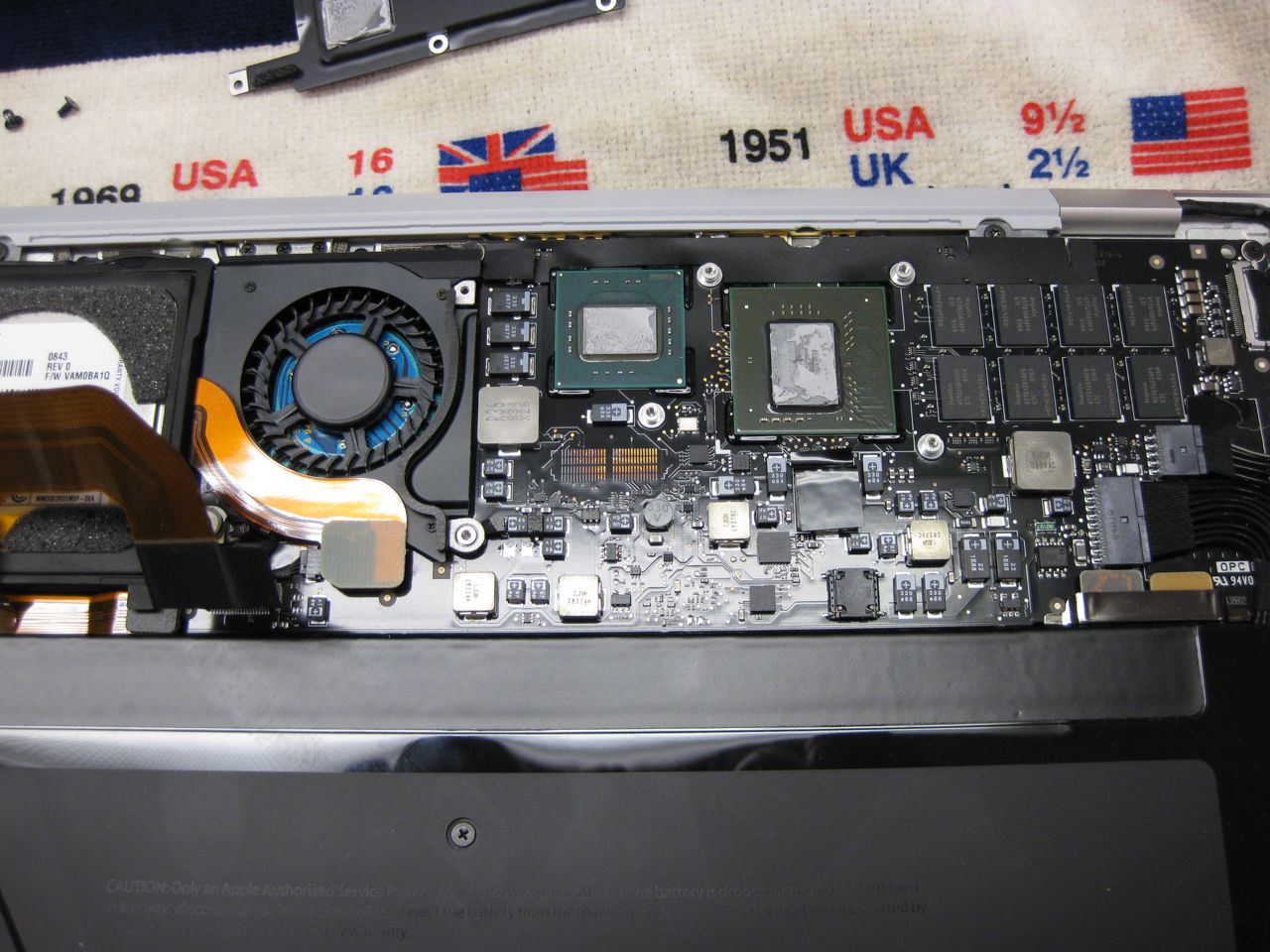

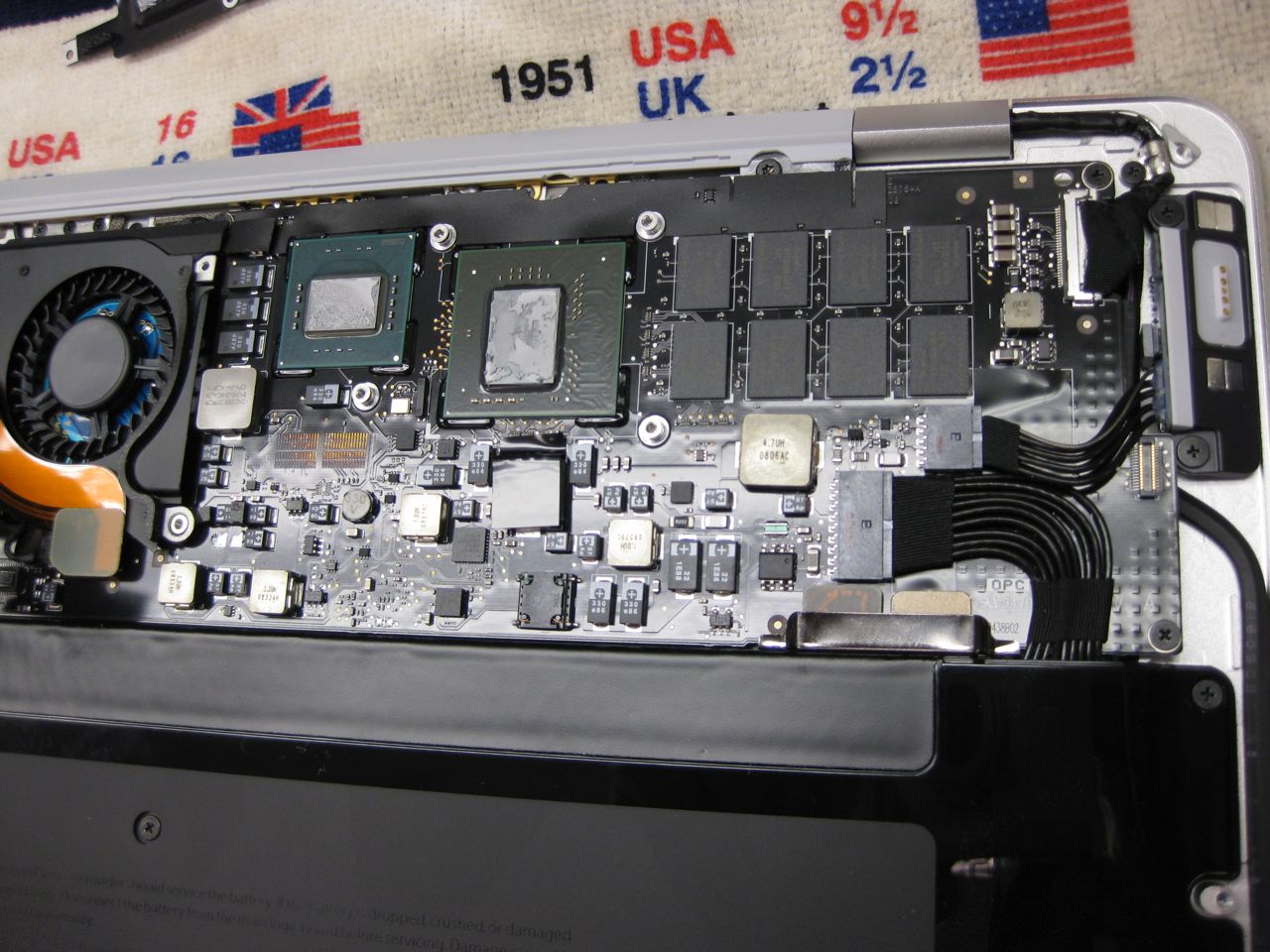

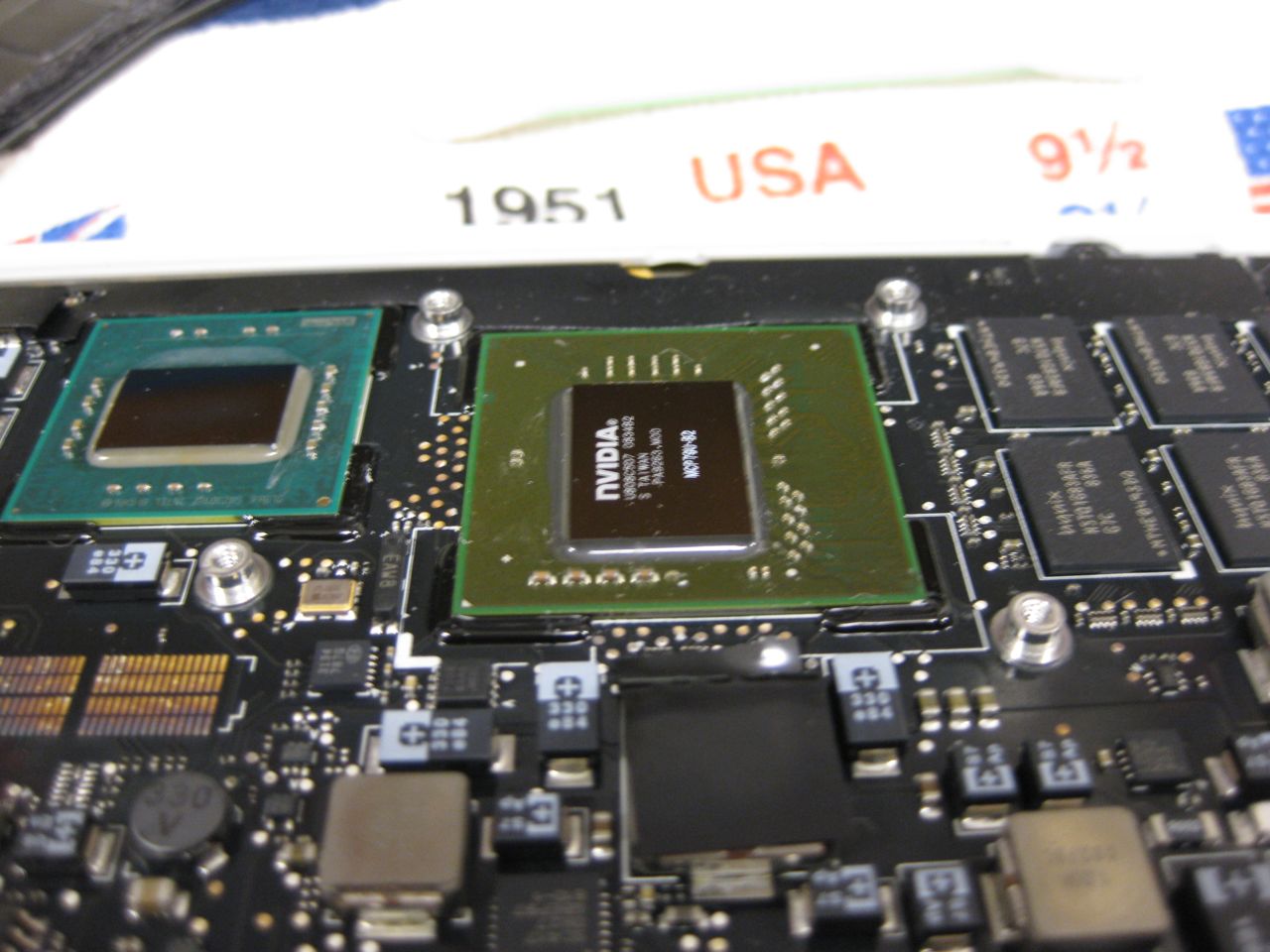

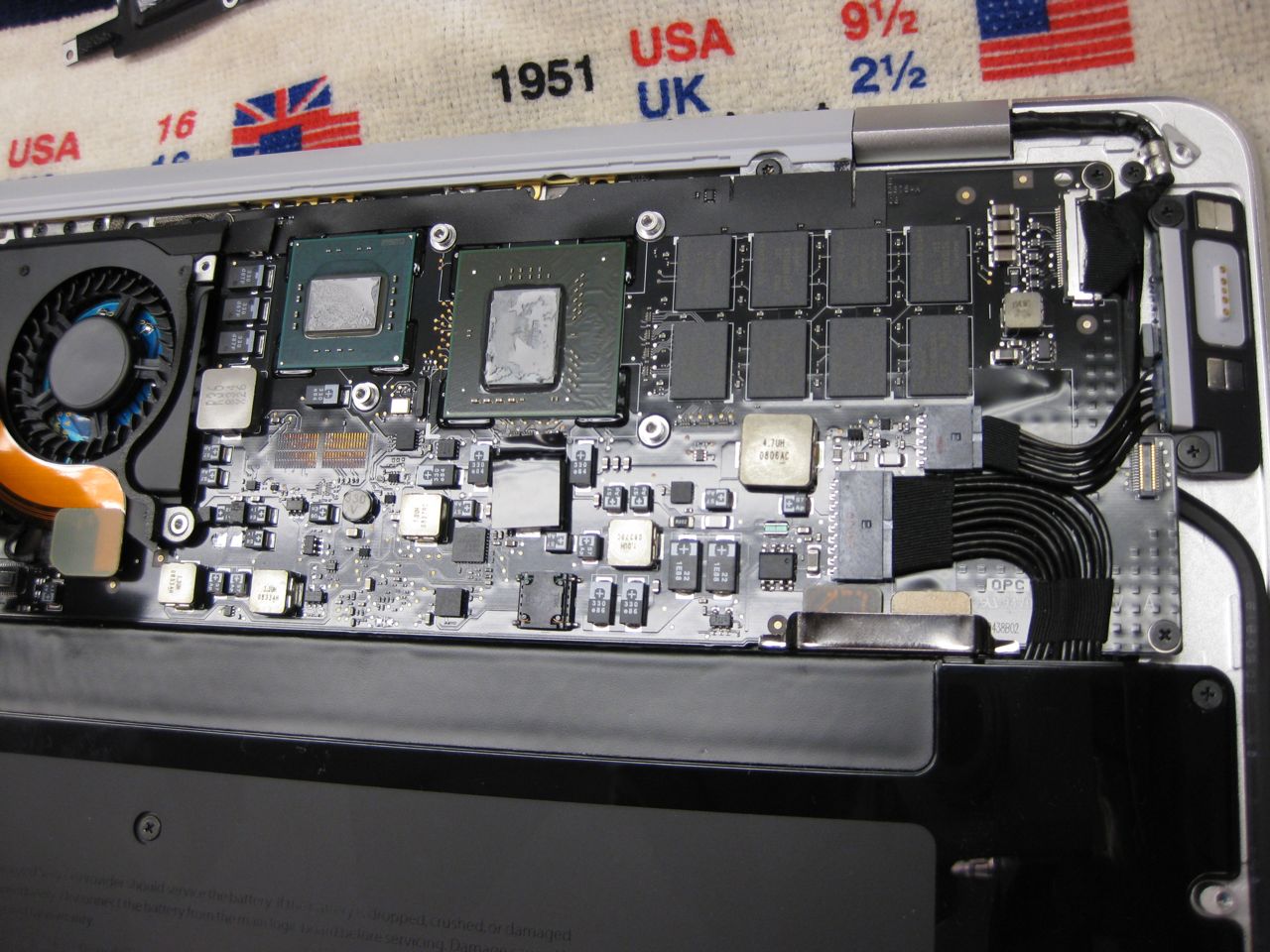

    Looks like the RAM is in BGA packages - I don't seem many people having the equipment to upgrade those !

    And big changes to the heat-sink area

  4. NC MacGuy thread starter macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #4
    Rev. 1:


    Attached Files:

  5. NC MacGuy thread starter macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #5

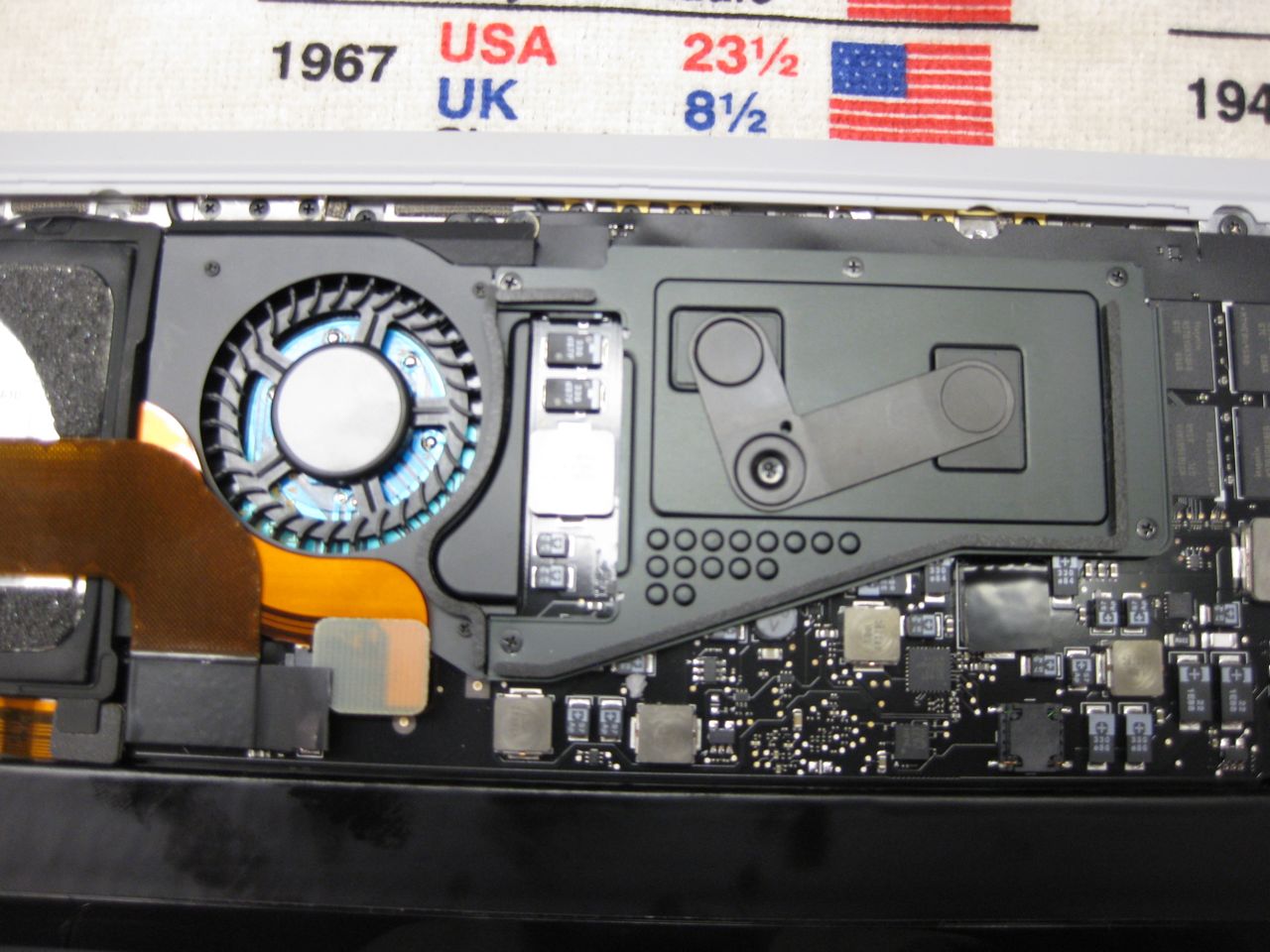

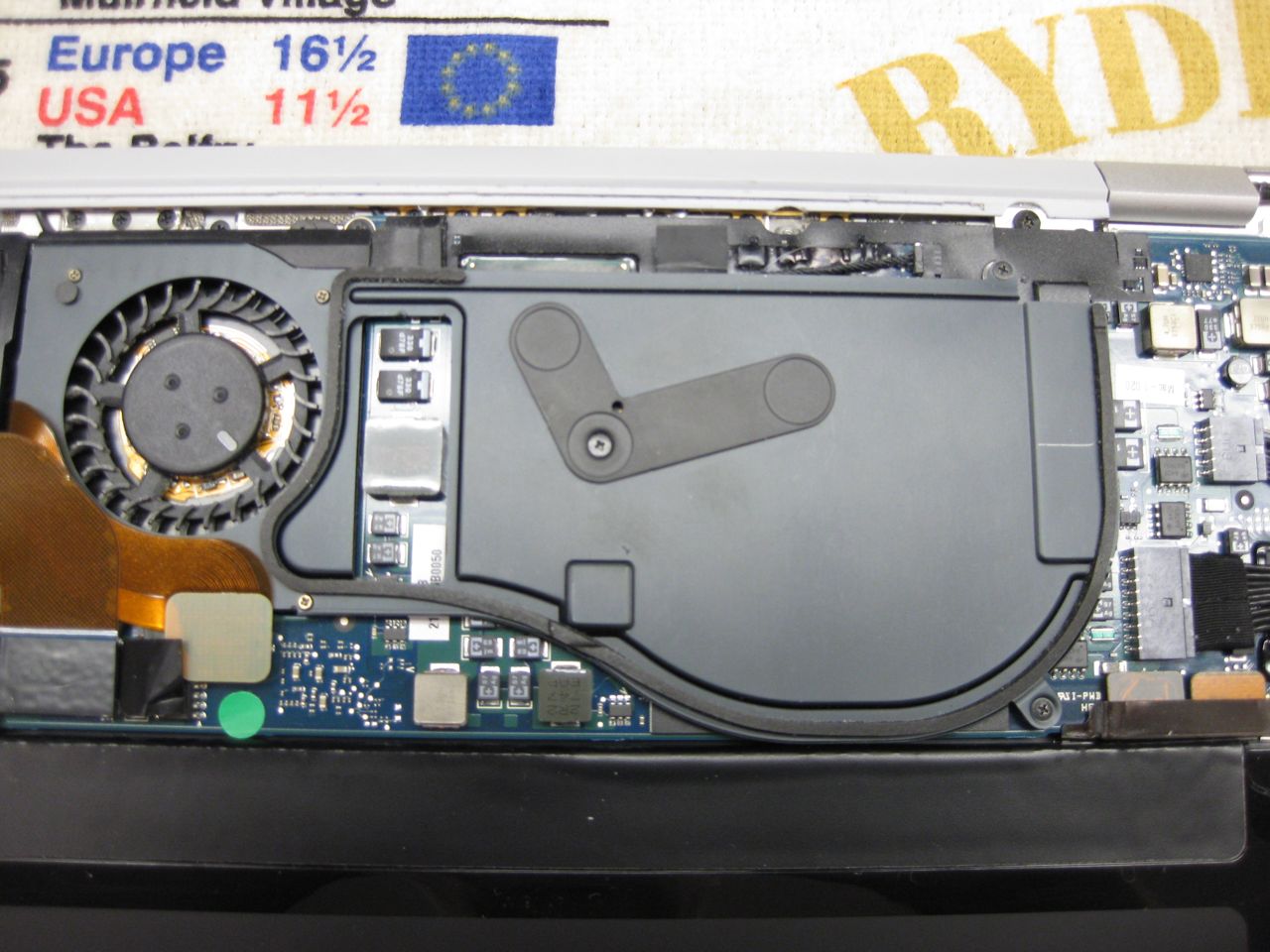

    Exactly. They aren't purely soldered in sticks. Heatsink is way different.

  6. lenselijer macrumors member

    Joined:
    Sep 3, 2008
    #6
    Wow the new heatsink is looking good. Can you take some more pictures of it? Maybe it will also fit in the MBA rev.1?

  7. HeadForTheHills macrumors member

    Joined:
    Oct 19, 2008
    Location:
    Edinburgh
    #7

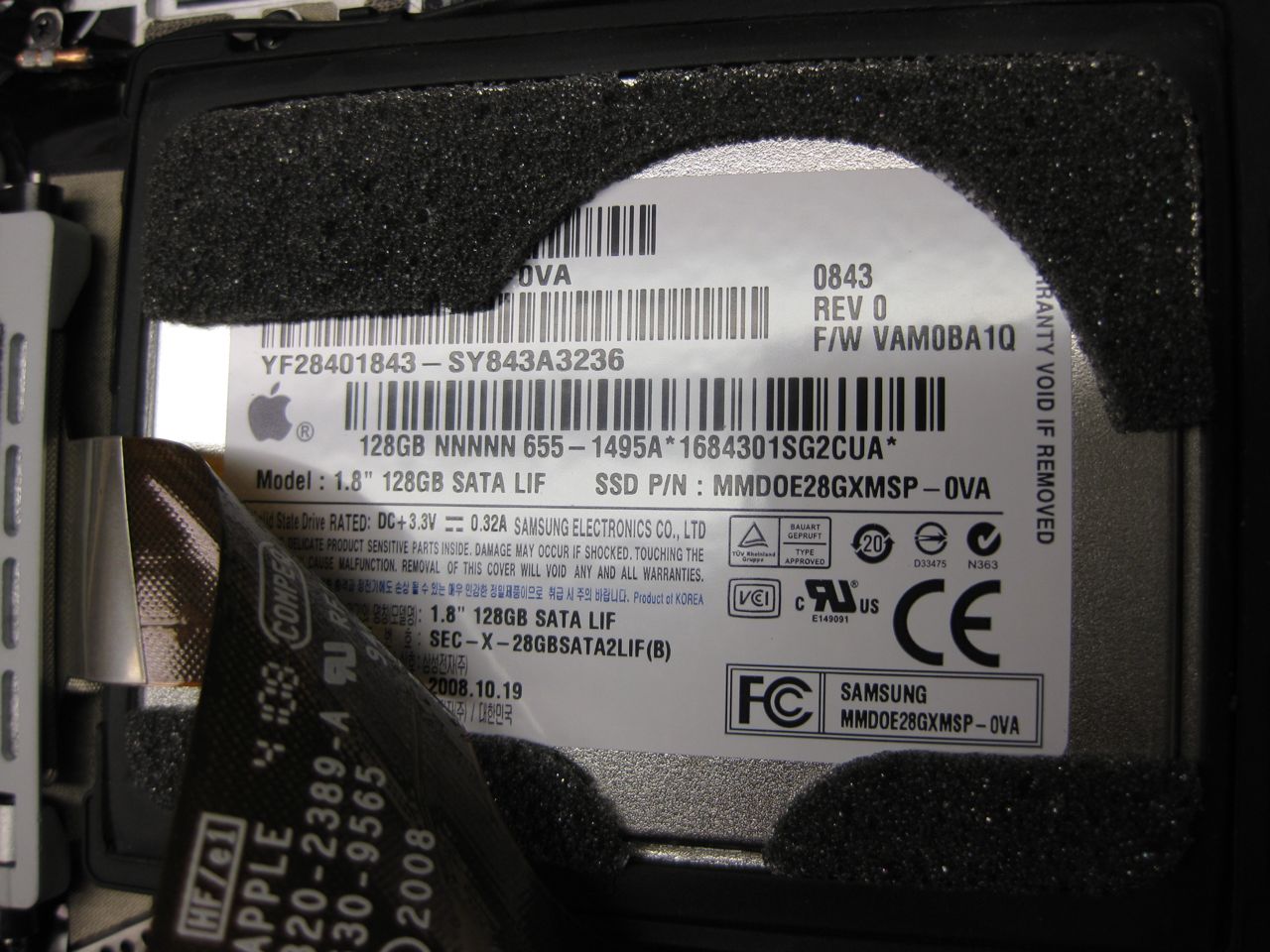

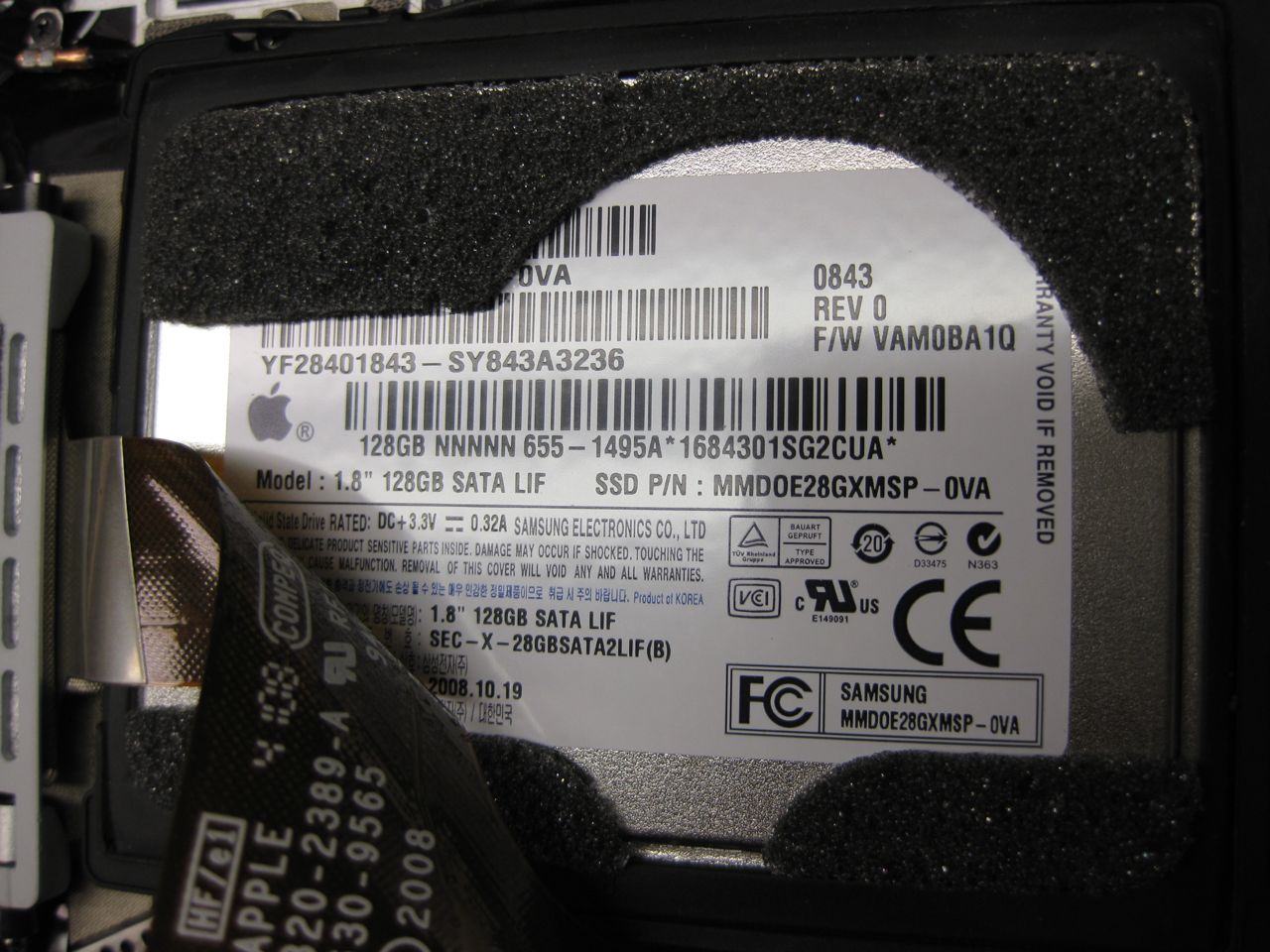

    The manufacturing date of your SSD is 19th October !

    Guess that was the component holding back shipments.

  8. NC MacGuy thread starter macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #8
    It definitely won't. Haven't put all the screws back in this one yet, just testing it to make sure the sucker still works..:p

    Will take out the two screws and take some more pics.

    Yepp, right off the prod. line. Probably why no HDD's are being sent. Looks like they're cutting it close on product components being ready for announced releases - ya' think??

  9. Grimace macrumors 68040

    Grimace

    Joined:
    Feb 17, 2003
    Location:
    with Hamburglar.
    #9
    Well Done!

    How is the thermal paste in revB compared to revA? That was always an issue with other Apple laptops.

  10. HeadForTheHills macrumors member

    Joined:
    Oct 19, 2008
    Location:
    Edinburgh
    #10

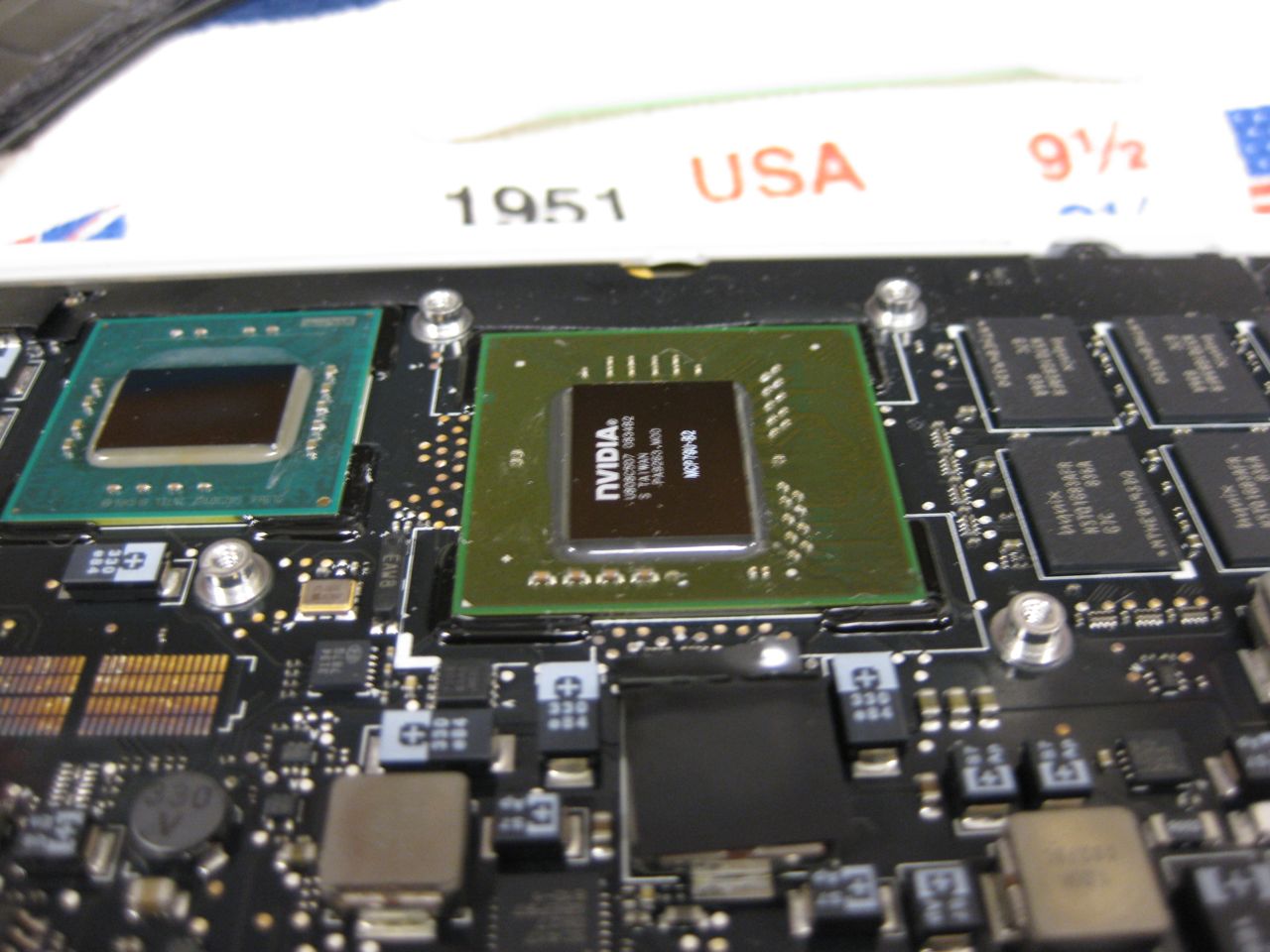

    Strange bumps on the RHS of the PCB - is it a composite board with bonded in heatsink or even copper Invar copper layers ?

  11. pilotError macrumors 68020

    pilotError

    Joined:
    Apr 12, 2006
    Location:
    Long Island
    #11
    I see the SSD is Apple branded like the MB and MBP drives, but that confirms its made by Samsung.

  12. NC MacGuy thread starter macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #12

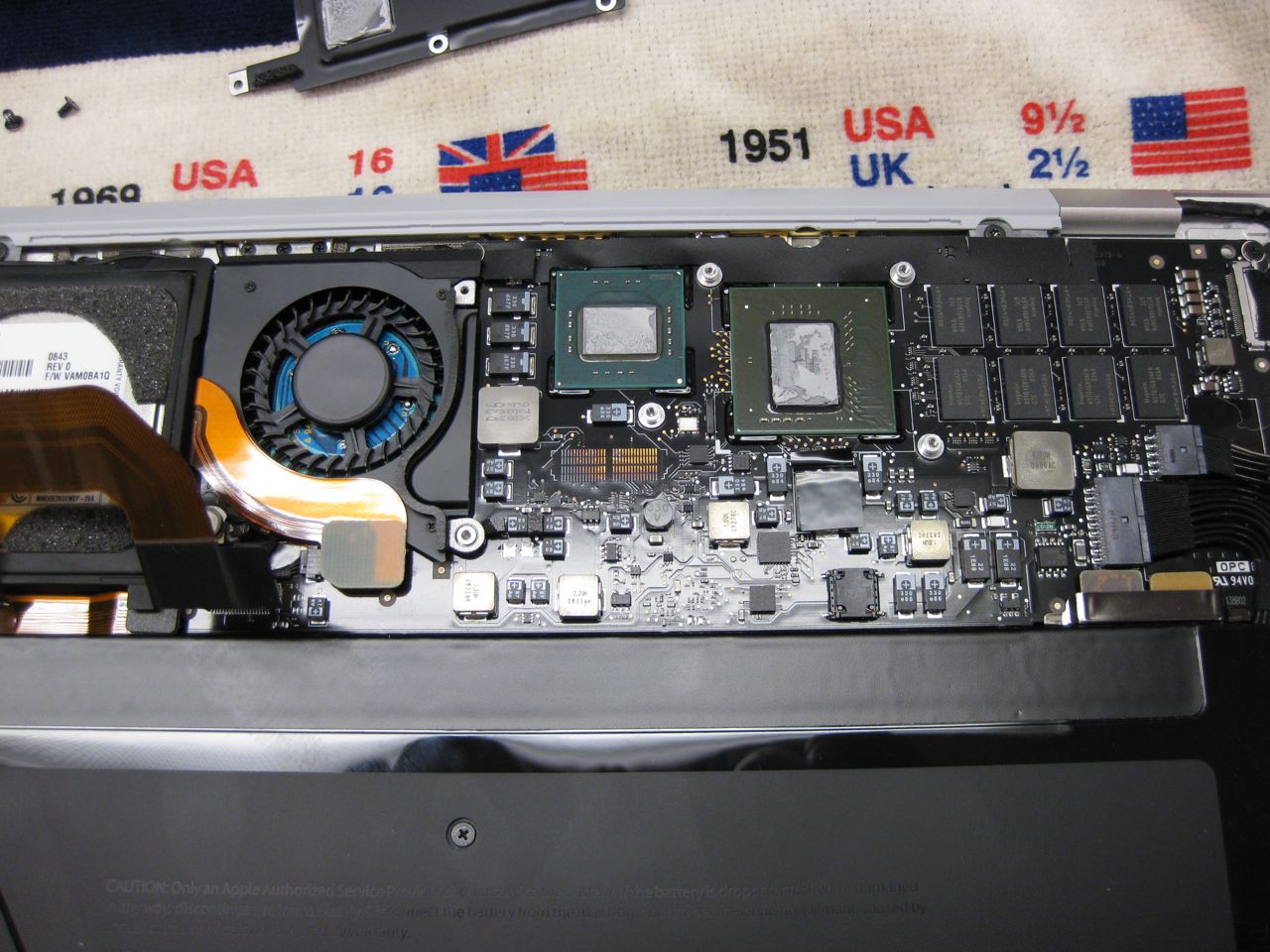

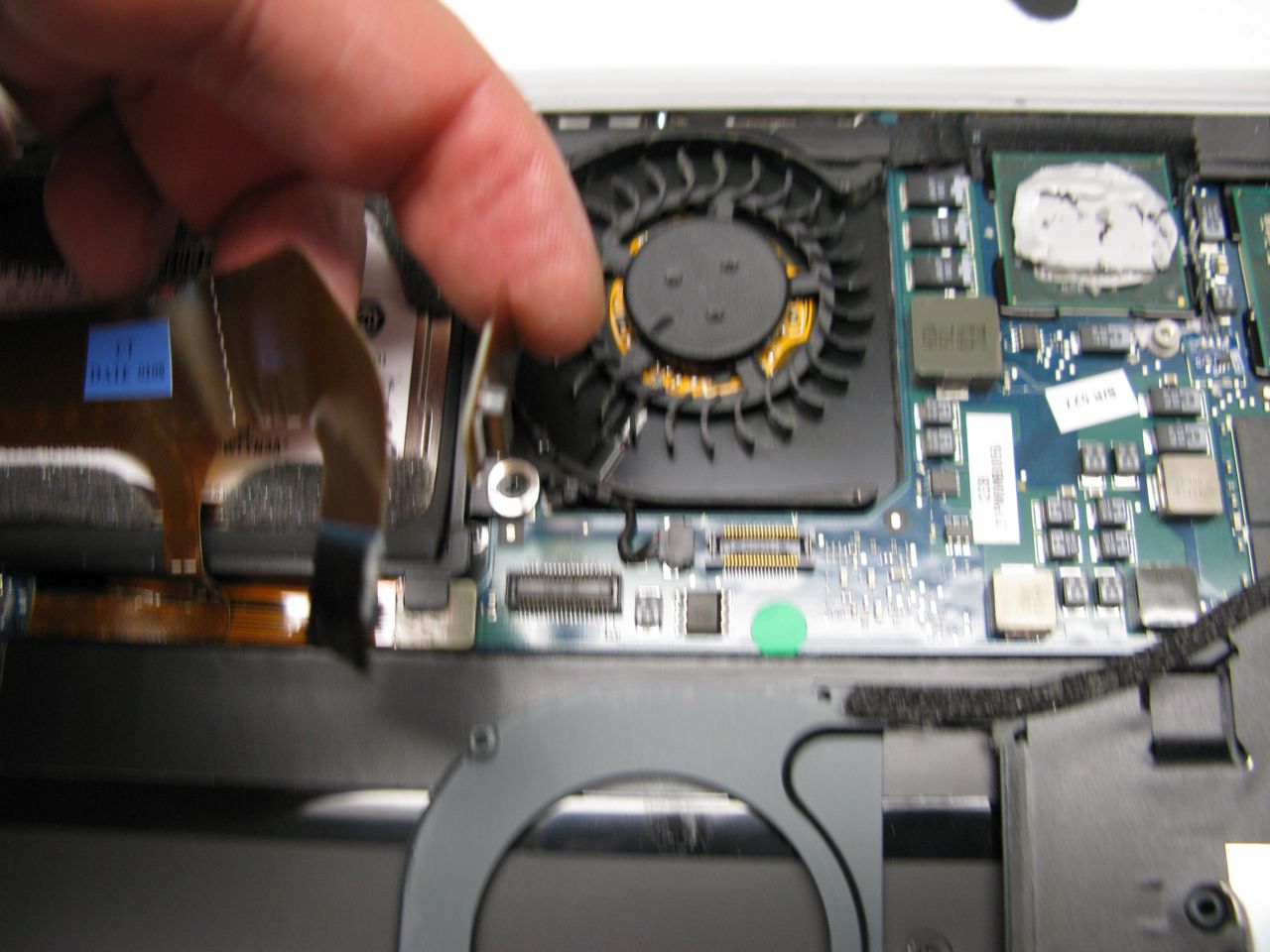

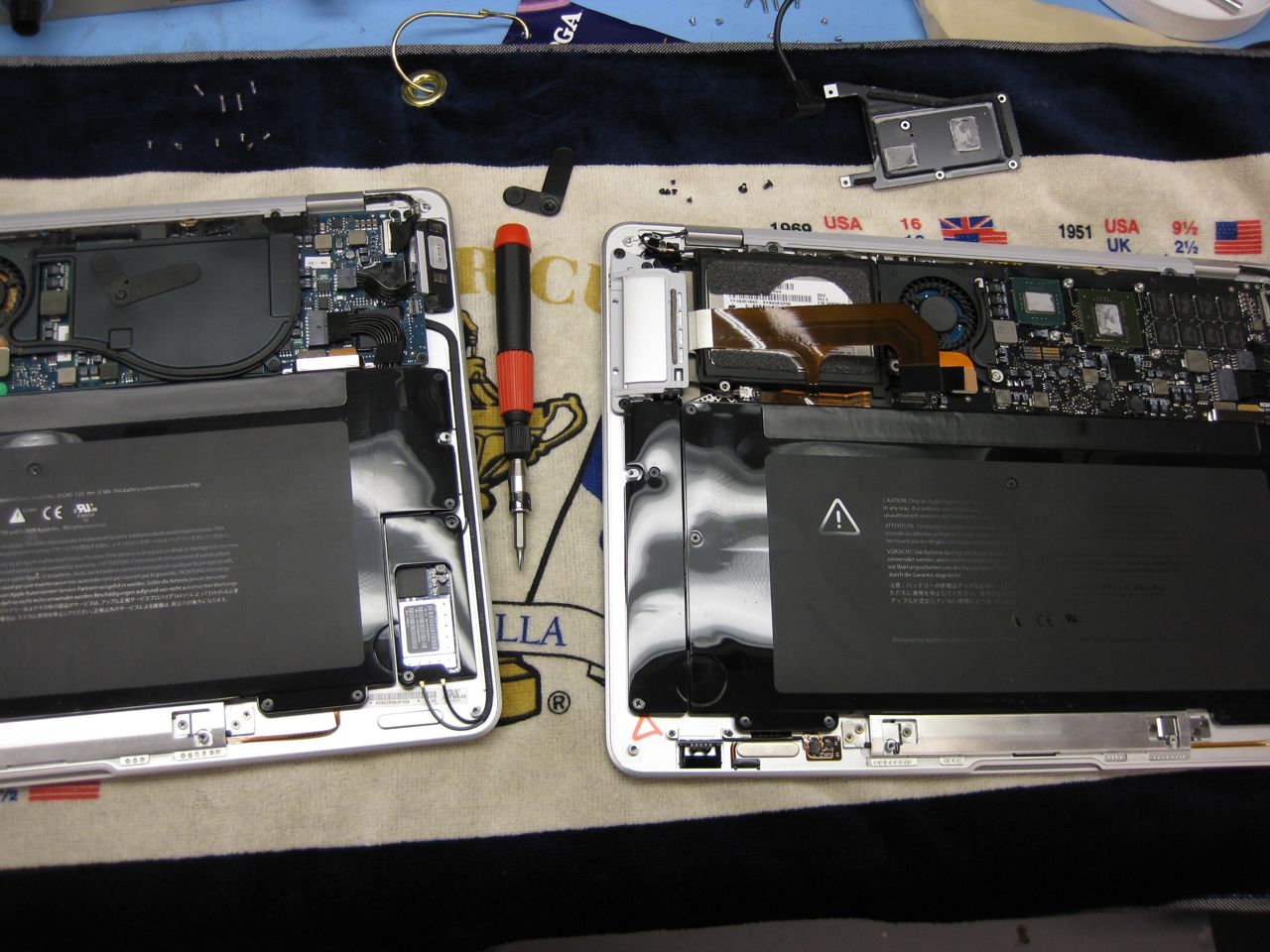

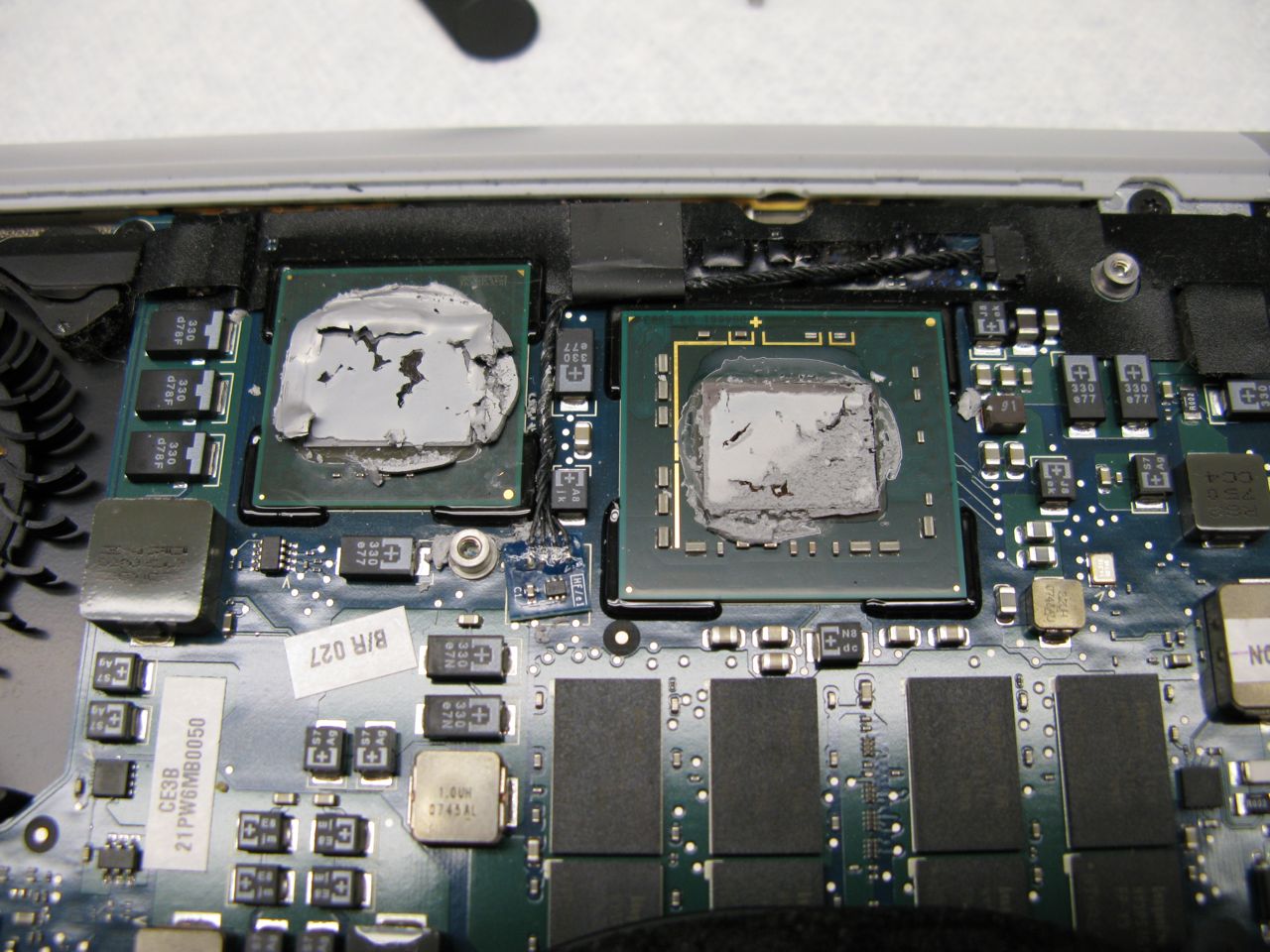

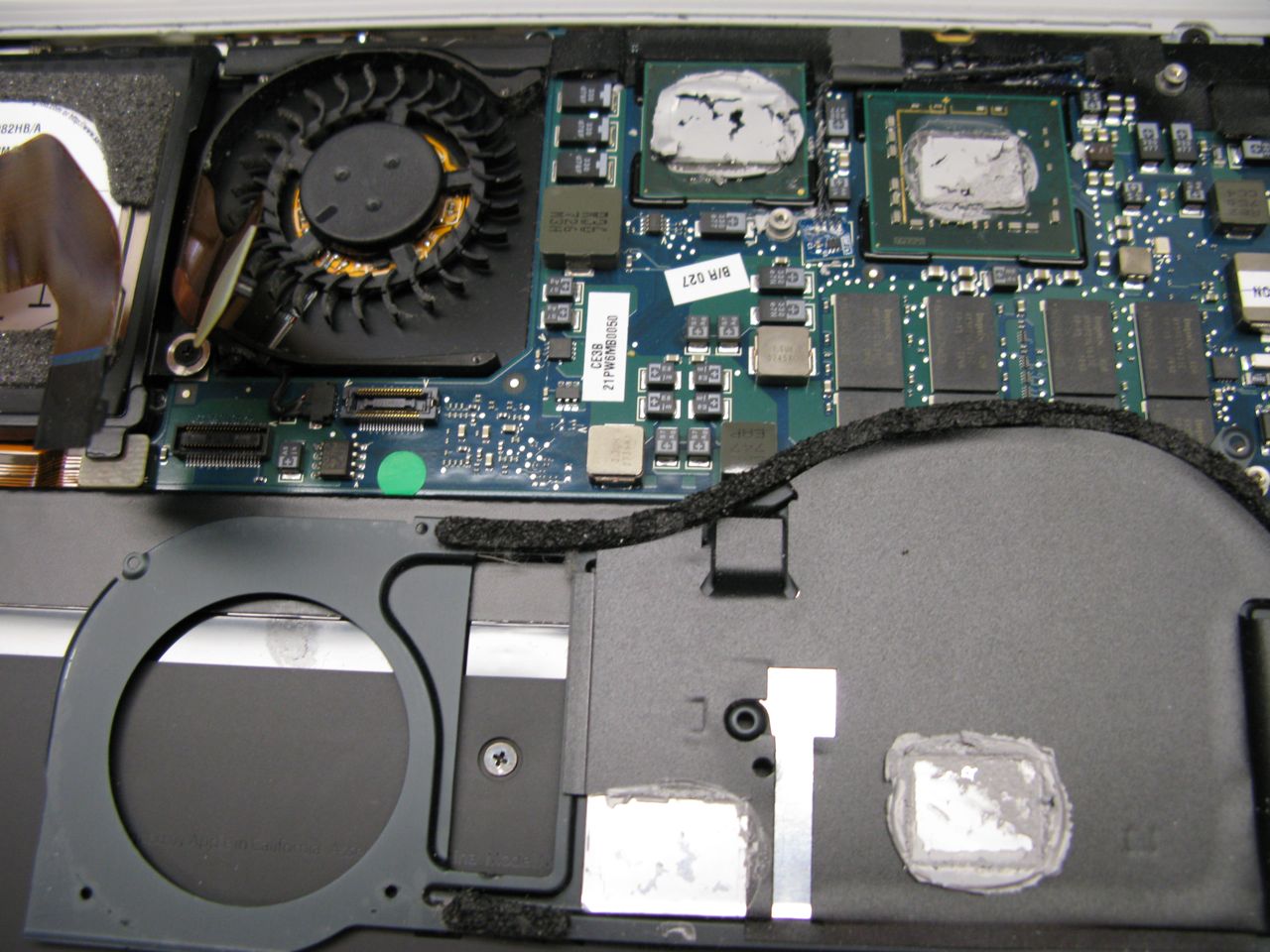

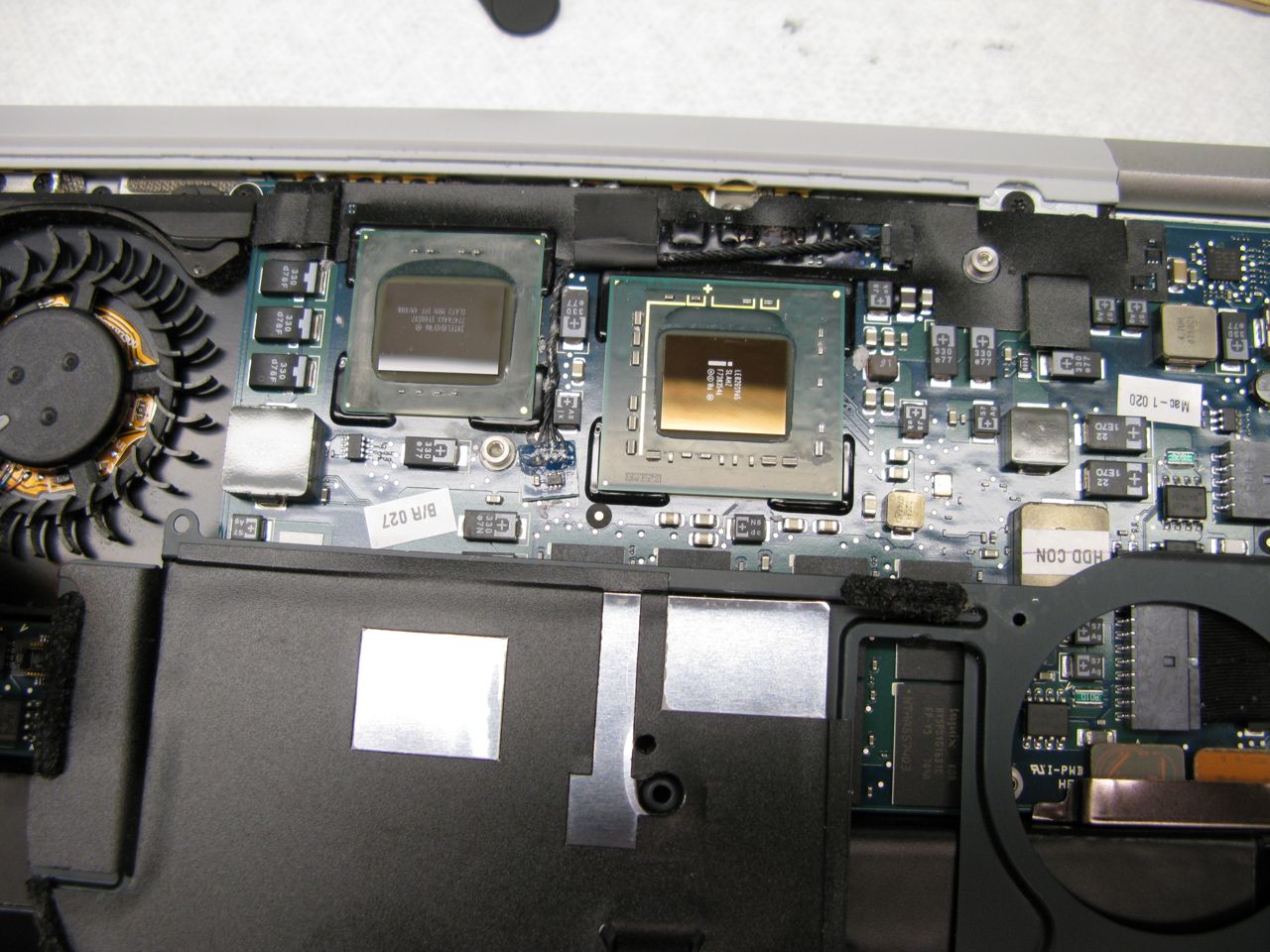

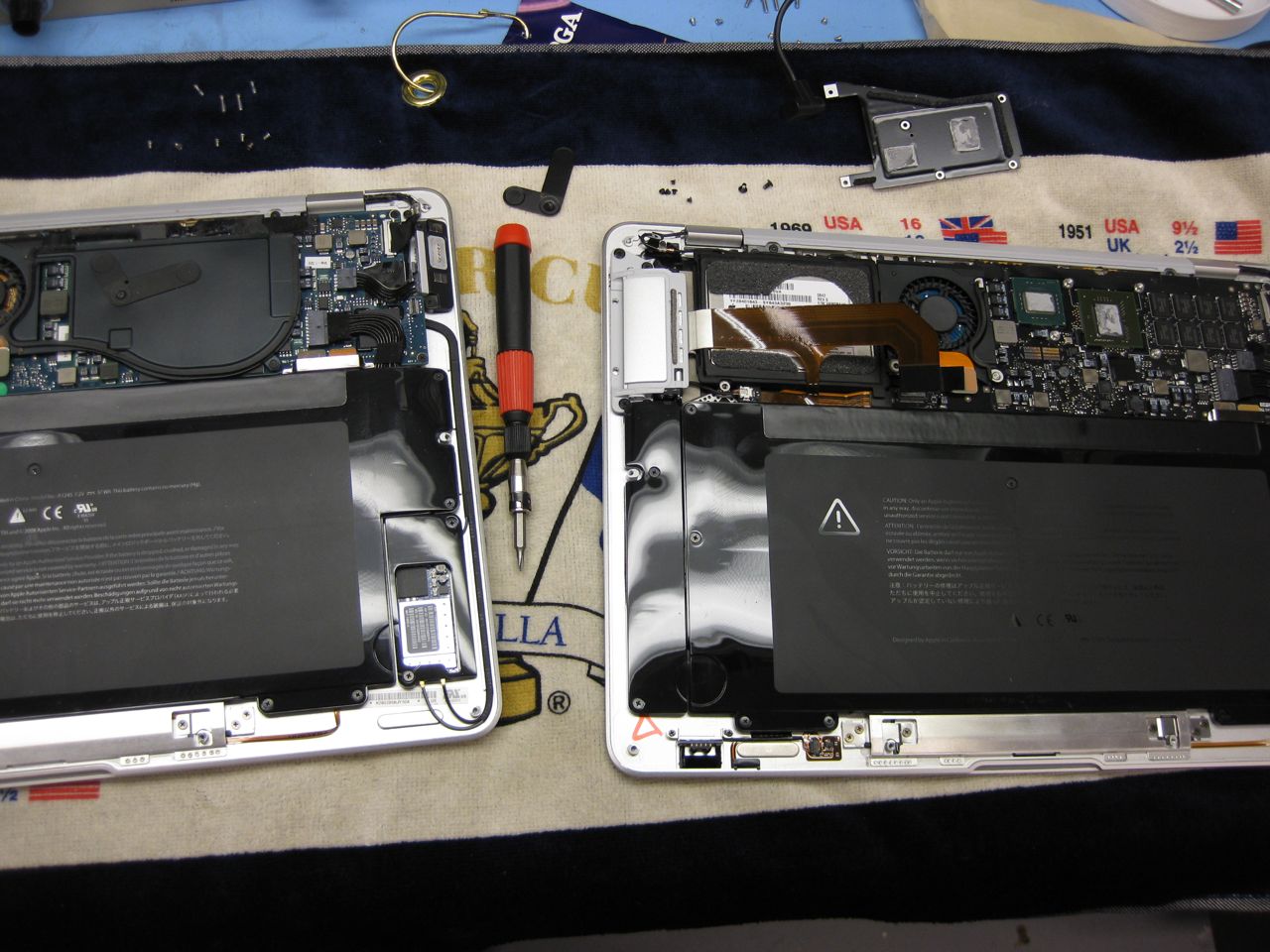

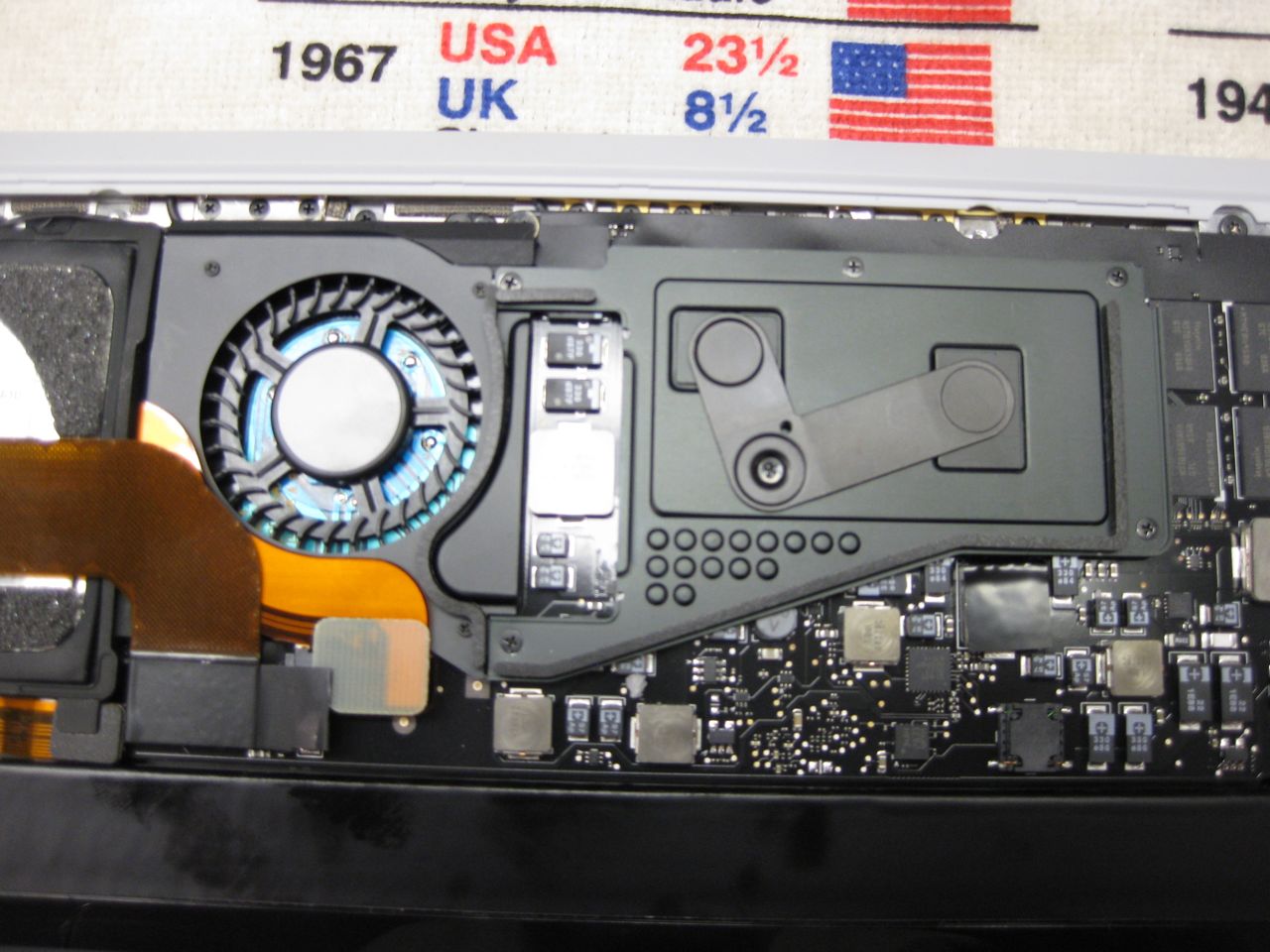

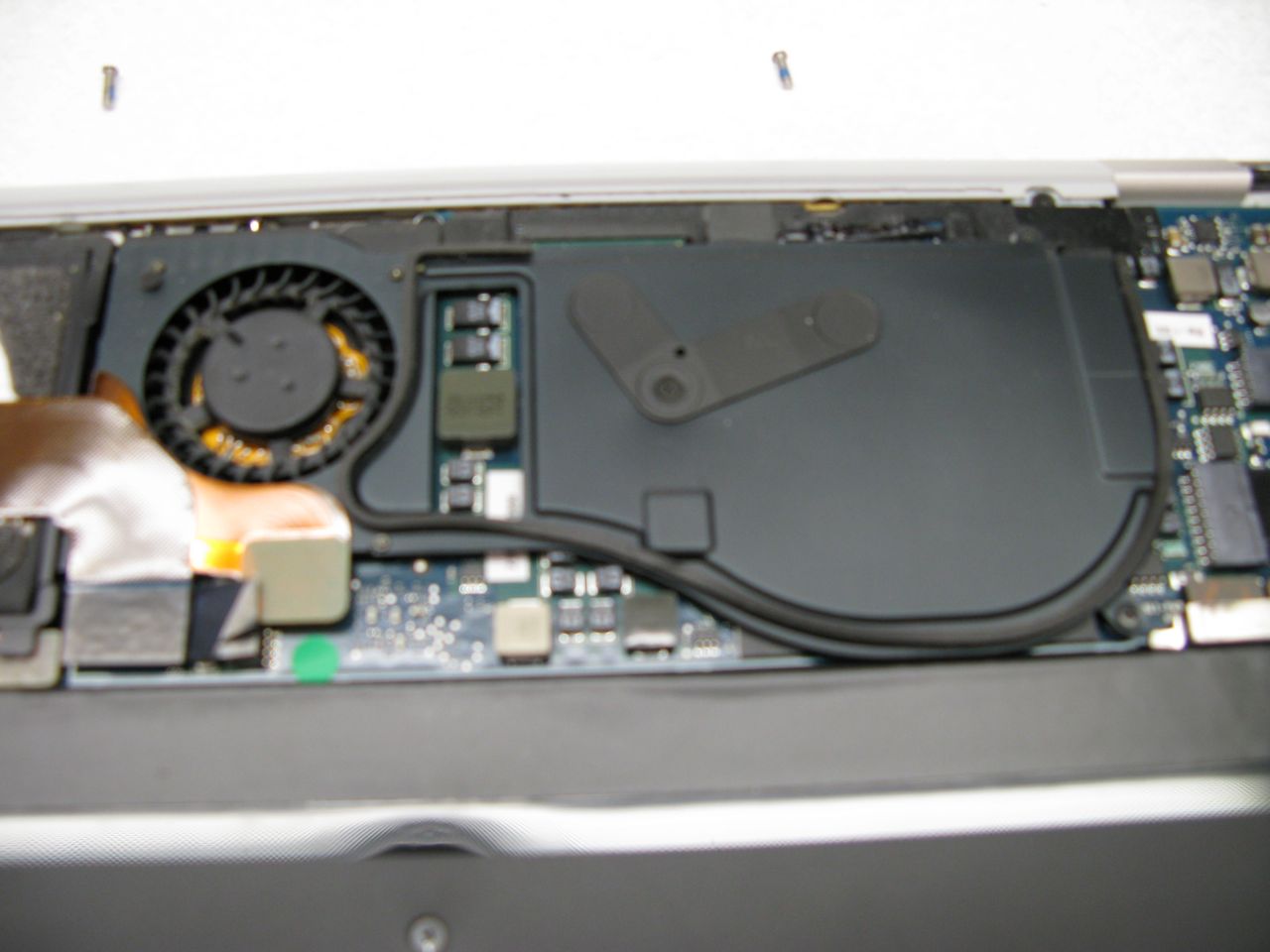

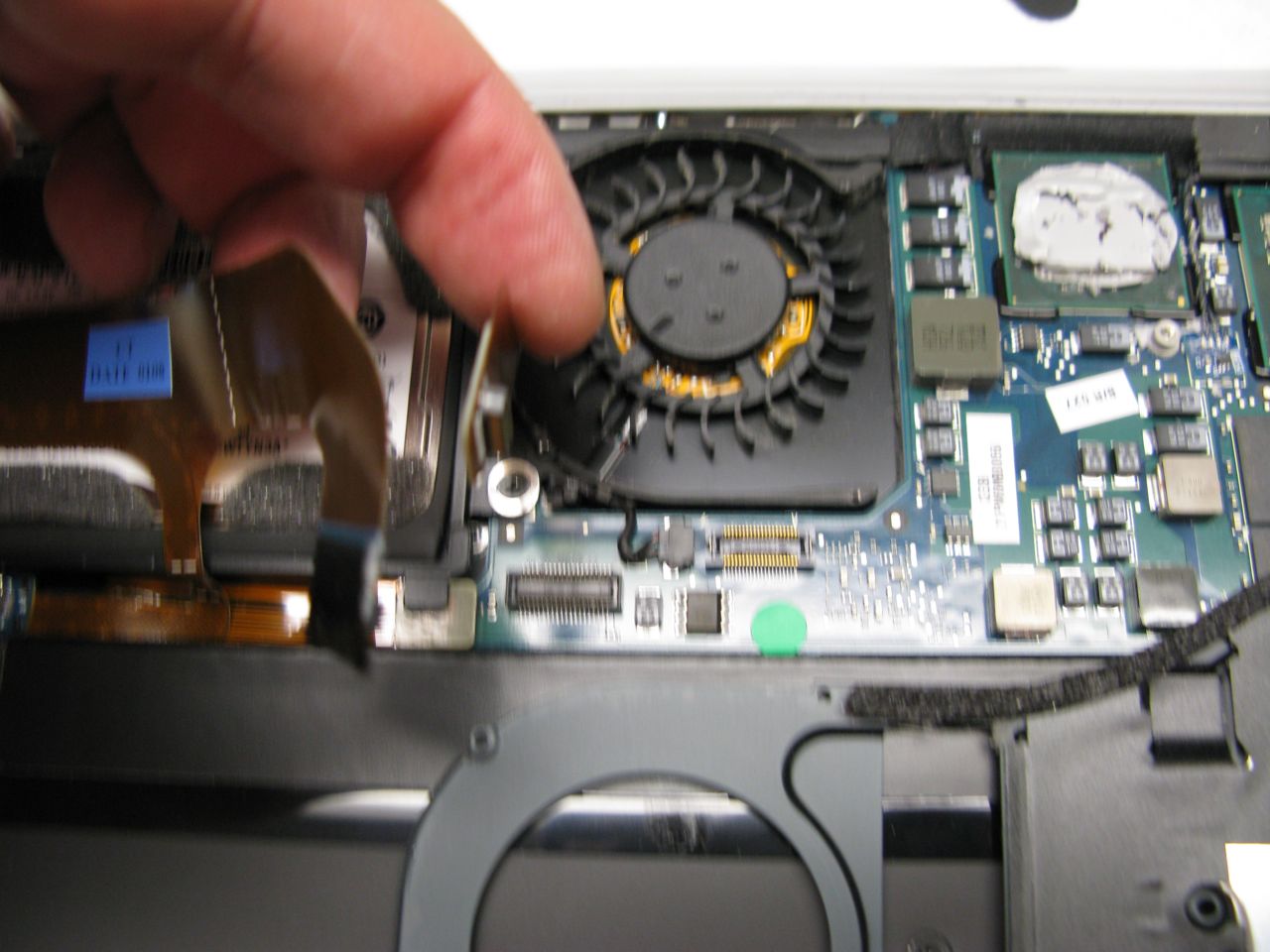

    I uploaded some of Rev A. You can see the difference. Clearly, REV B is way better.

  13. GoCubsGo macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
    #13
    It almost looks "neater", but the OP would have to say for sure.

    OP: Niiiiice! And nice use of a Ryder Cup golf towel!

  14. NC MacGuy thread starter macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #14
    It certainly looks like heat dissipating copper - you can already see it got some hot.. Without taking the whole board out to see what they are actually tethered to, it's just conjecture.

    Didn't have enough time for full blown autopsy since I did want to get backing using it today.;)

  15. mkrishnan Moderator emeritus

    mkrishnan

    Joined:
    Jan 9, 2004
    Location:
    Grand Rapids, MI, USA
    #15
    Nice analysis. Thread temporarily stuck per Jessica's request. :)

  16. GoCubsGo macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
    #16
    Thanks :)
    This is serious geek porn if you ask me. I think I need a shower I feel so dirty.

  17. NC MacGuy thread starter macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #17
    Kick ass way to spend a Saturday, ehh???:rolleyes: At least this keeps me out of the PRSI cesspool.:p

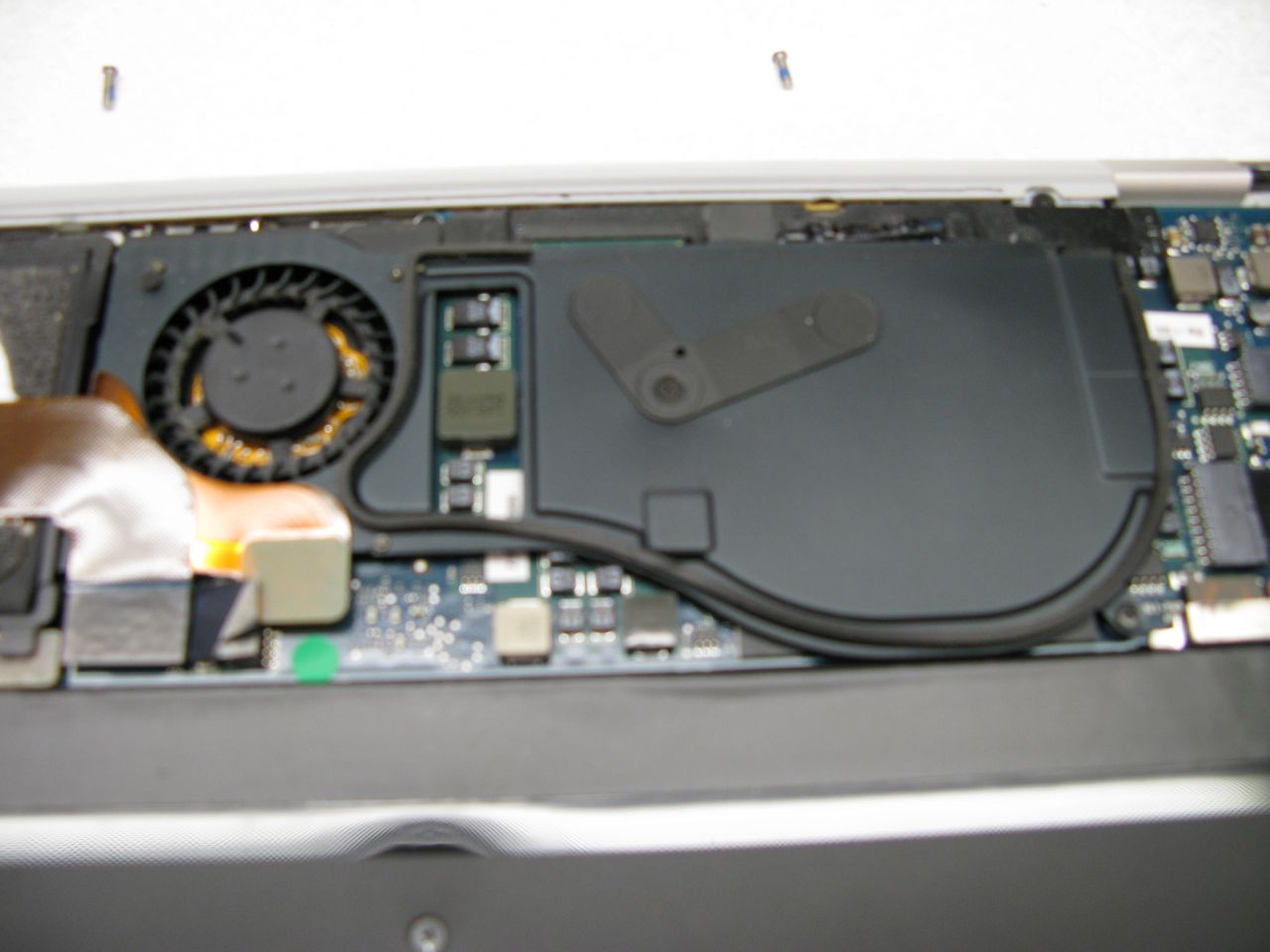

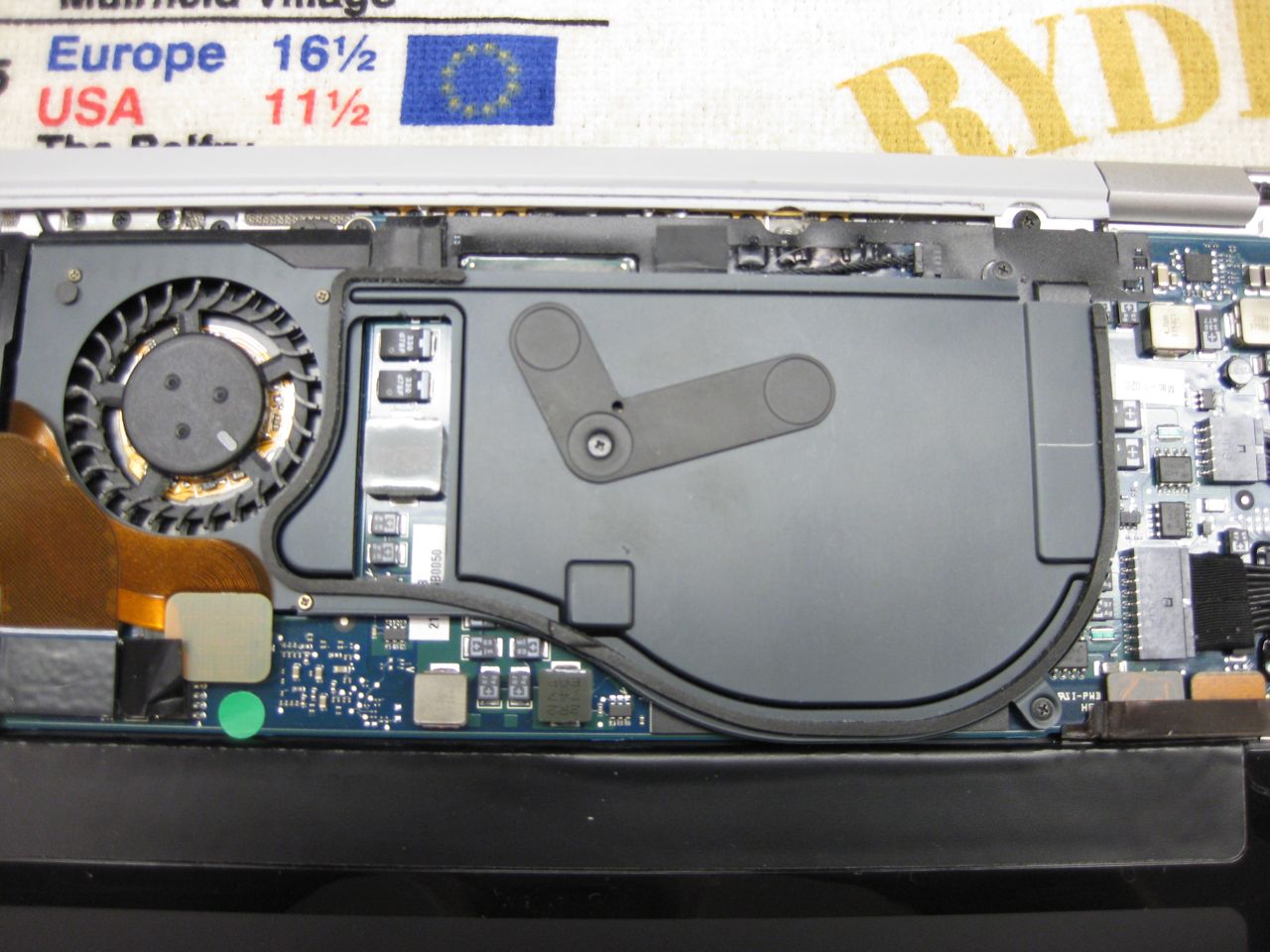

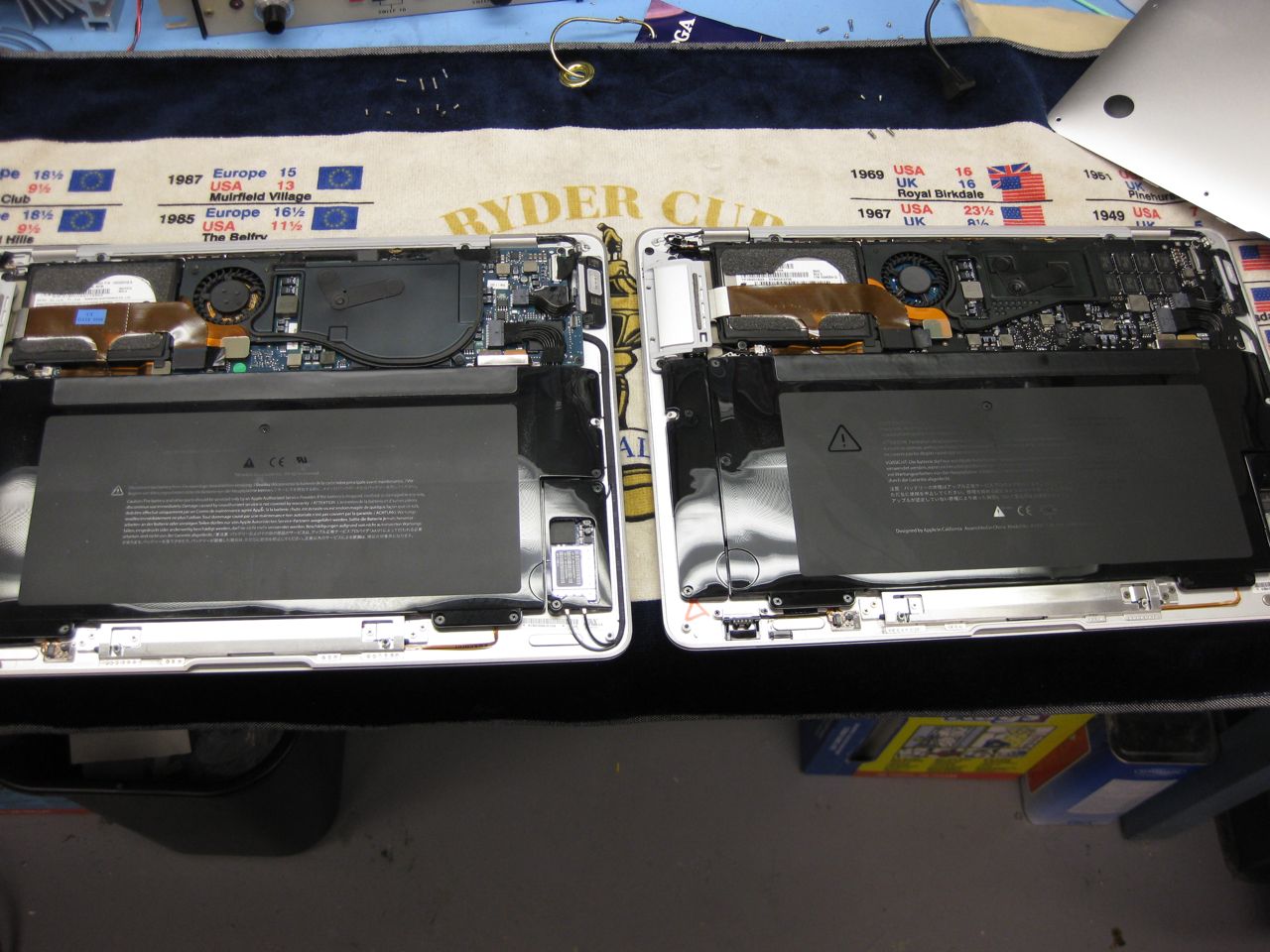

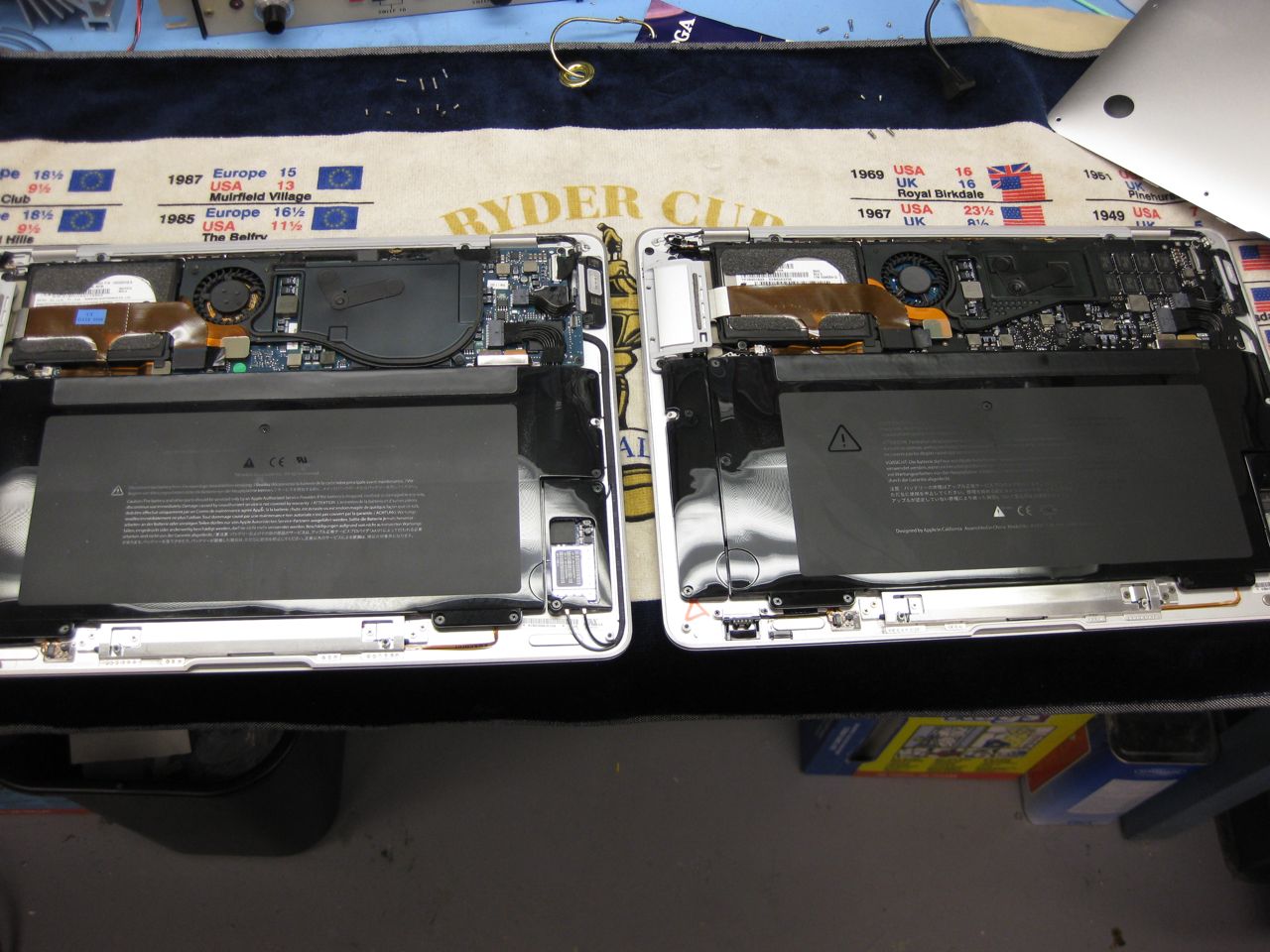

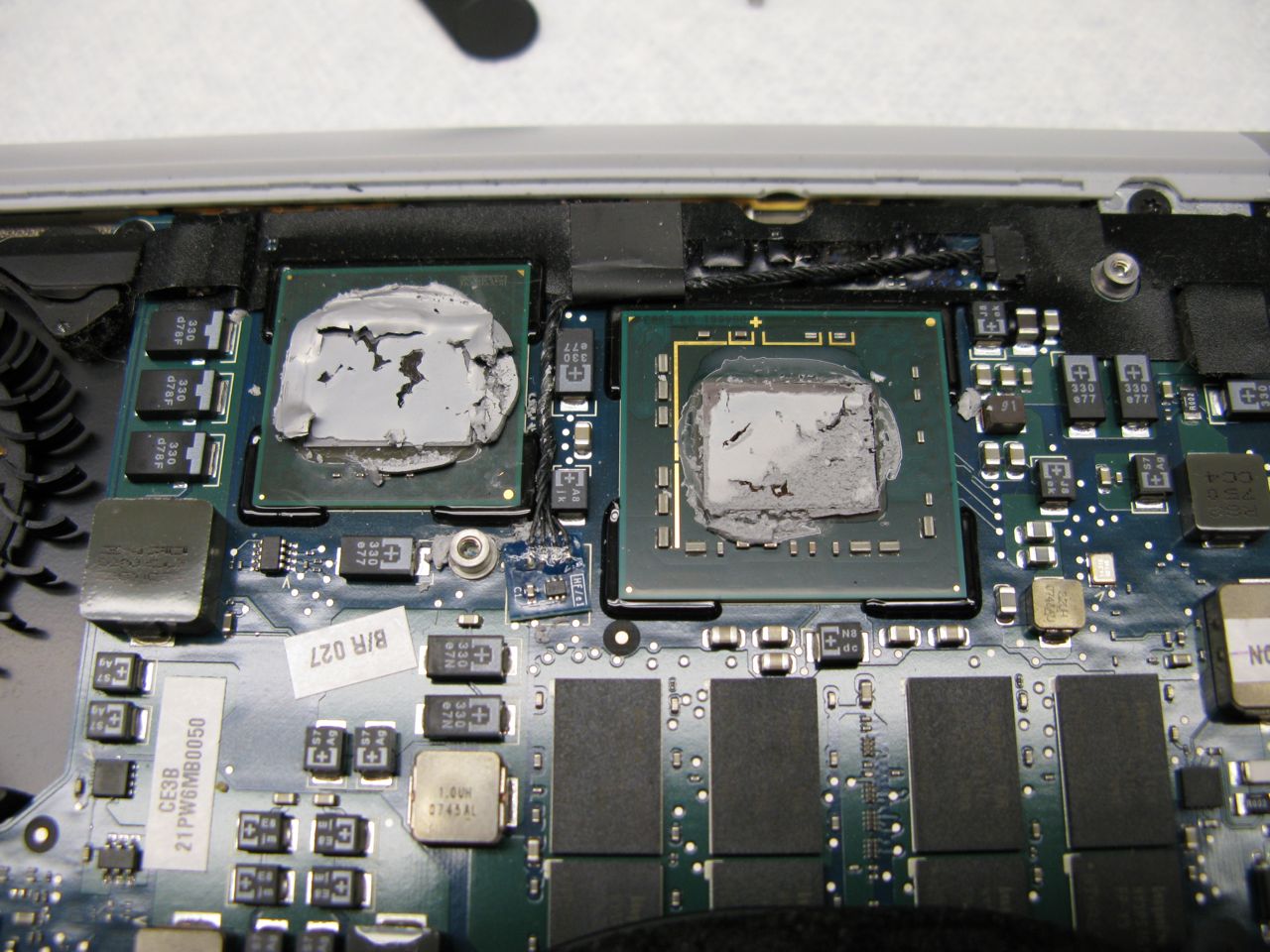

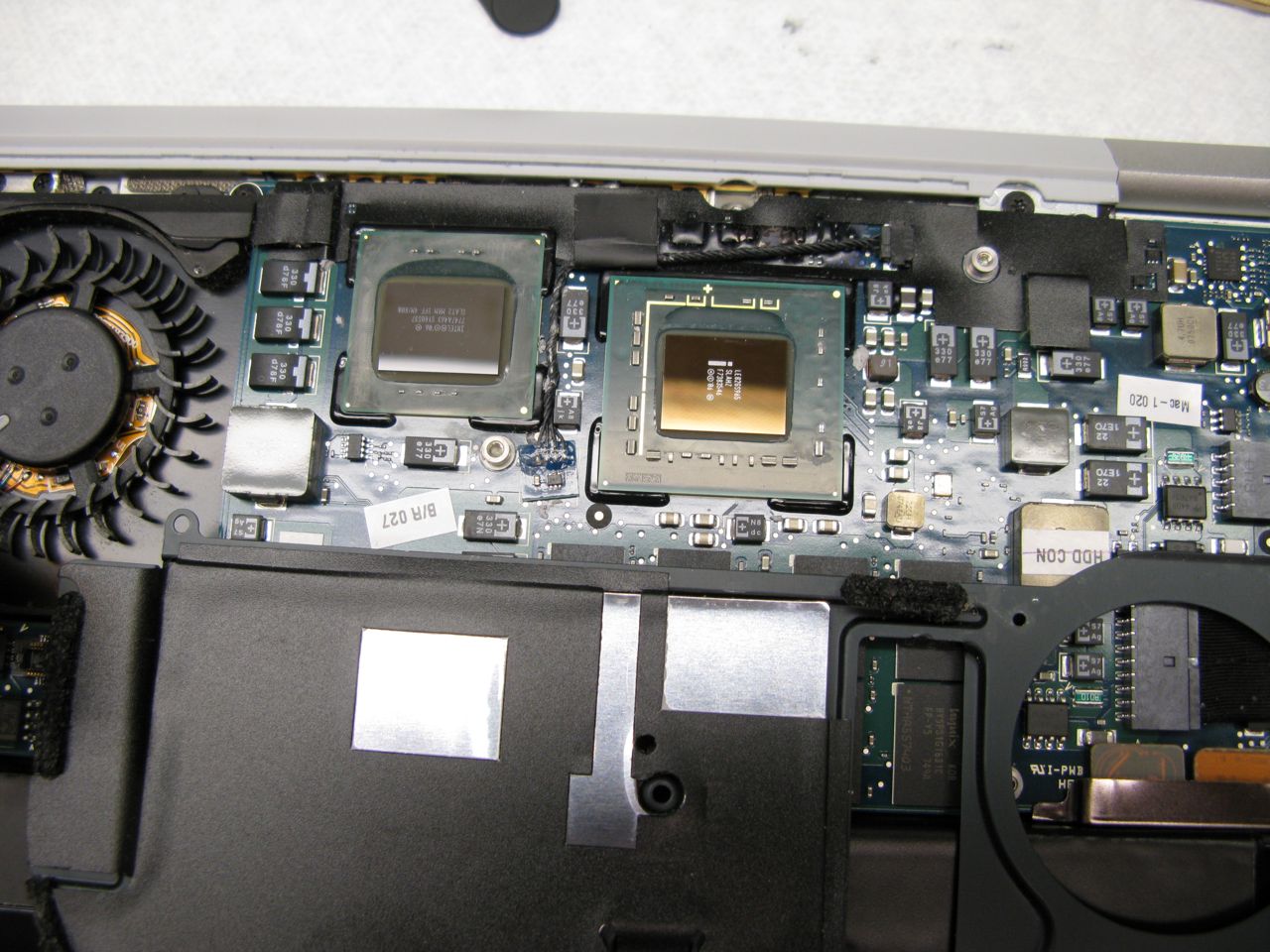

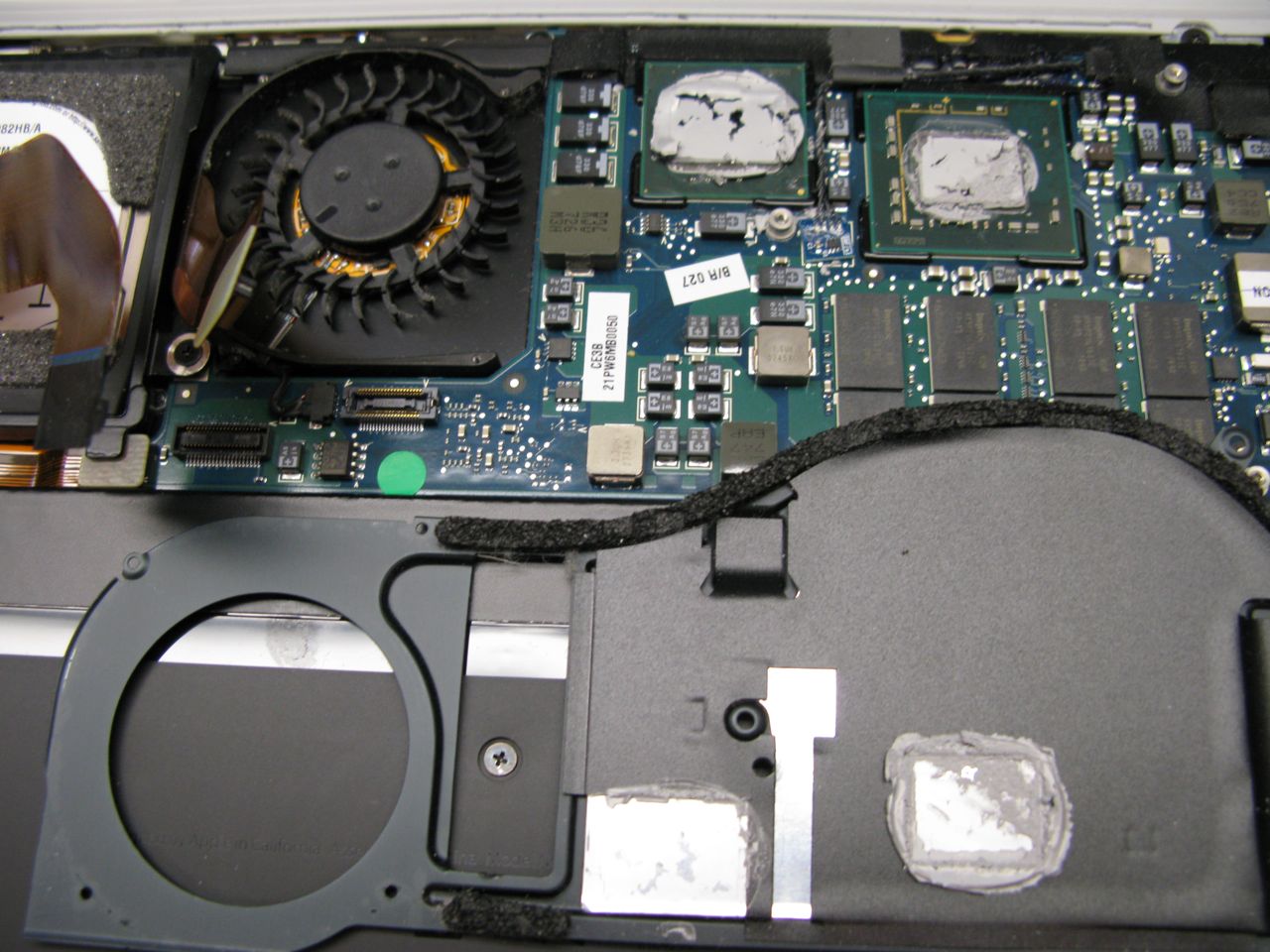

    1st pic is new MBA. You can see the heat sink is much smaller and not attached to the fan shroud as in Gen 1 MBA. Much cleaner design.


    Attached Files:

  18. GoCubsGo macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
    #18
    Weeeeell, I have a few other Saturday ideas, but yes, this sure is cool!

  19. lenselijer macrumors member

    Joined:
    Sep 3, 2008
    #19
    Would be nice if you could run 2 terminal windows with yes > /dev/null and tell the cpu temperature from istat pro after 15 minutes.

  20. mac jones macrumors 68040

    Joined:
    Apr 6, 2006
    #20
    Check to see if the dispay connector is the same.

    Some of these part may be interchangeable, if not the whole motherboard (you would lose the display port though)

  21. NC MacGuy thread starter macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #21
    What? Do you want me to break it?:p Running as I type...

    Put it all back together. Sorry
    I think some photos I took have high enough resolution to tell. Can enlarge them.

  22. NC MacGuy thread starter macrumors 603

    NC MacGuy

    Joined:
    Feb 9, 2005
    Location:
    The good side of the grass.
    #22

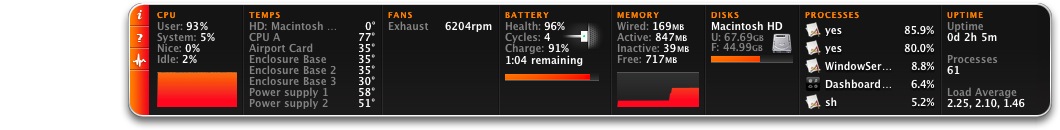

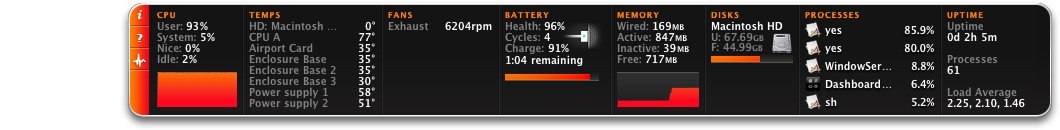

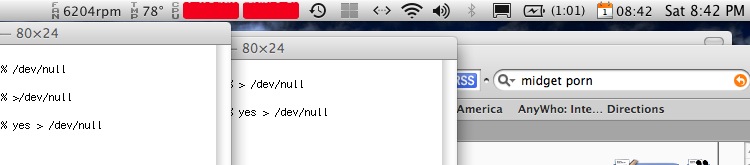

    Okay, a few people keep asking for this. Ran two terminal windows w. yes >/dev/null concurrently for 18 minutes now. Also ran Handbrake today.

    Here's the dev/null screenshots:


    Attached Files:

  23. zer0tails macrumors 65816

    zer0tails

    Joined:
    Mar 23, 2008
    Location:
    Canada
    #23
    I would like to say thank you to NC Macguy. Really appreciate you doing all this for us :)

    I always knew I was getting the Air, but this just makes the decision all the more easier.

    much thanks!

  24. GoCubsGo macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
