Discussion in 'MacBook Pro' started by alphaod, Jun 4, 2008.

  1. alphaod macrumors Core

    alphaod

    Joined:
    Feb 9, 2008
    Location:
    NYC
    #1
    So I got the drive today, took several pictures, installed it and all; I'm still trying to figure out how to clone my Windows partition.

    This drive does feel bit faster than my previous drive; however it is also louder; I can hear the spinning disk, but it's not annoying; therefore if you want a silent computer, this isn't for you.

    Anyways here are the pictures:
    Package
    [​IMG]

    Unboxing
    [​IMG]

    Product Box
    [​IMG]

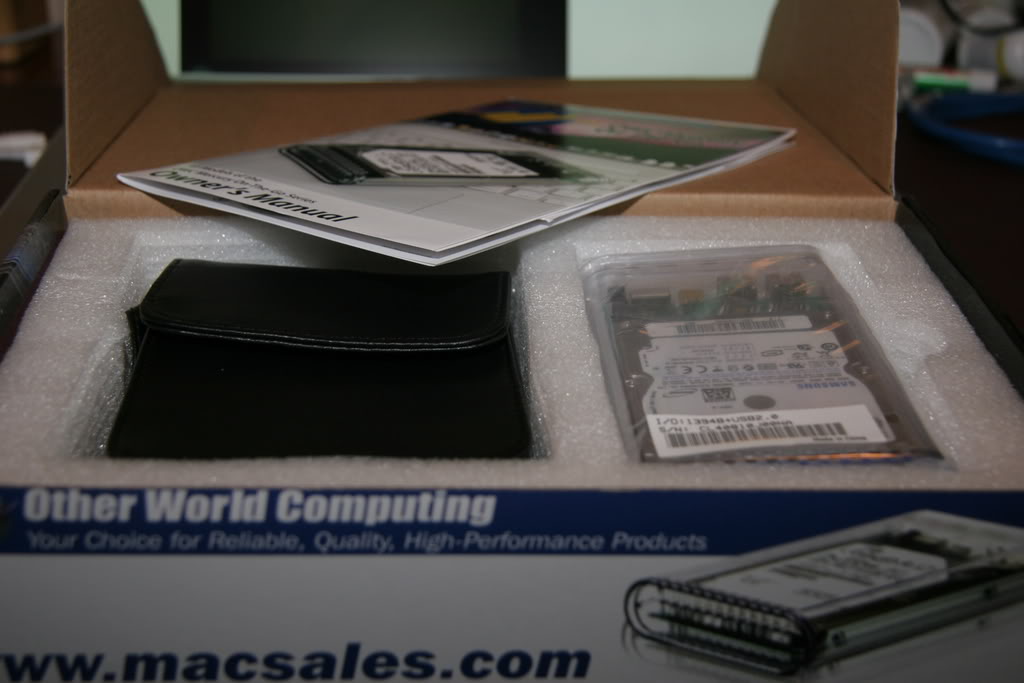

    The entire package
    [​IMG]

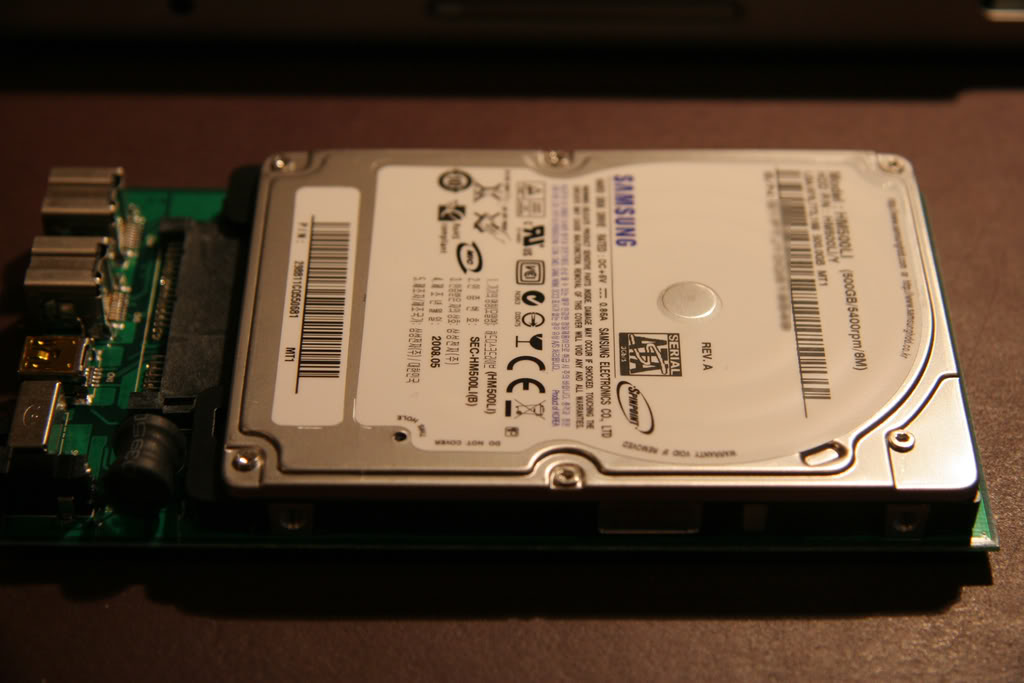

    Drive itself with Samsung HDD inside
    [​IMG]

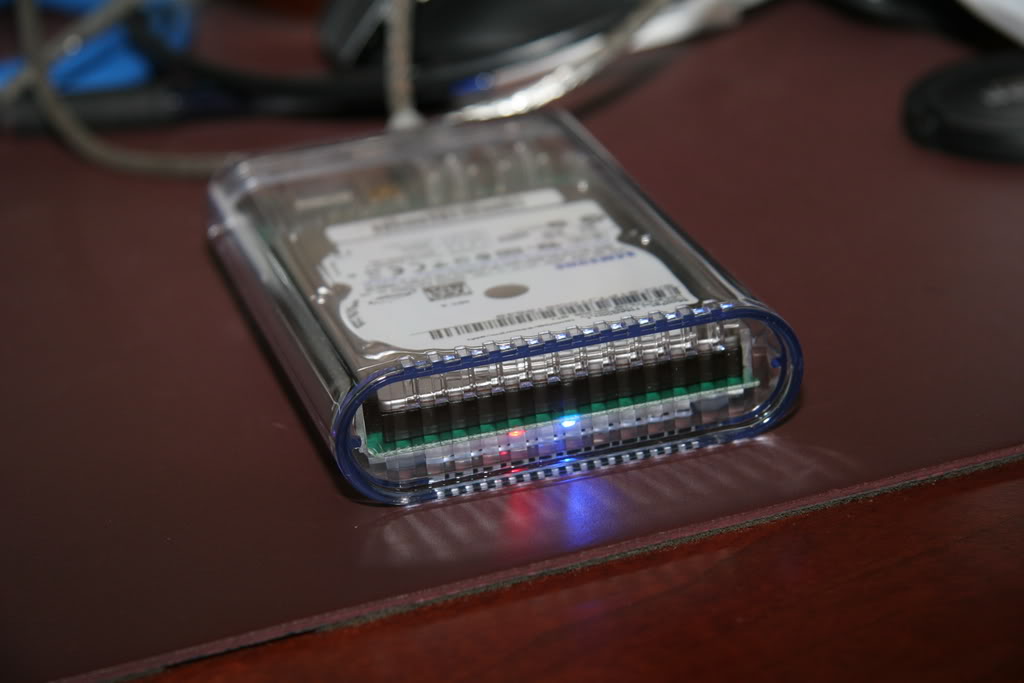

    External drive running
    [​IMG]

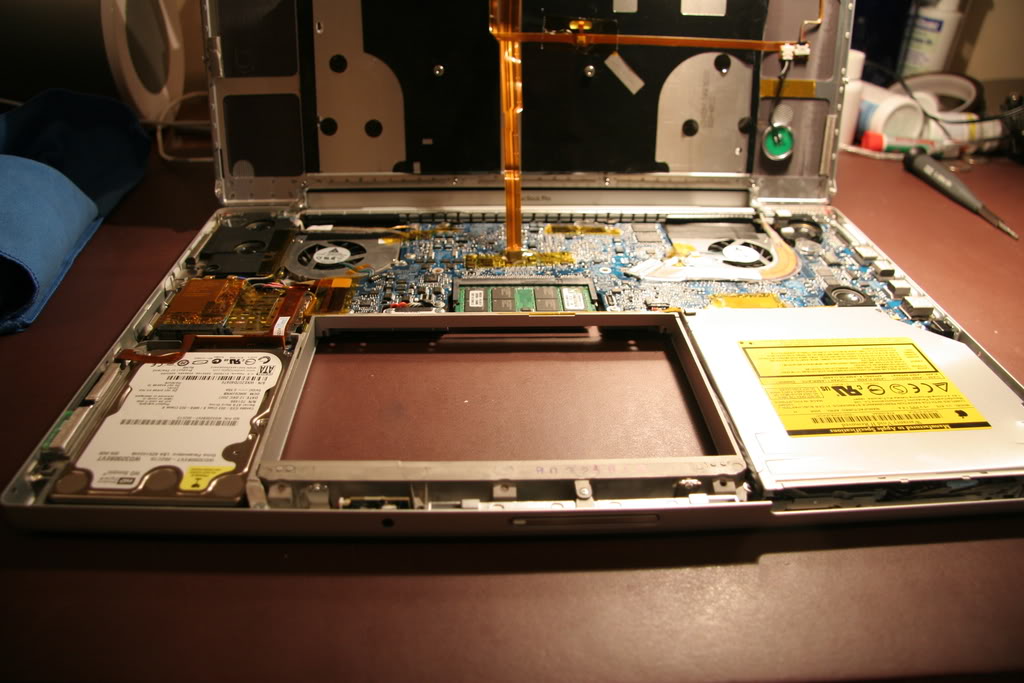

    Computer opened up
    [​IMG]

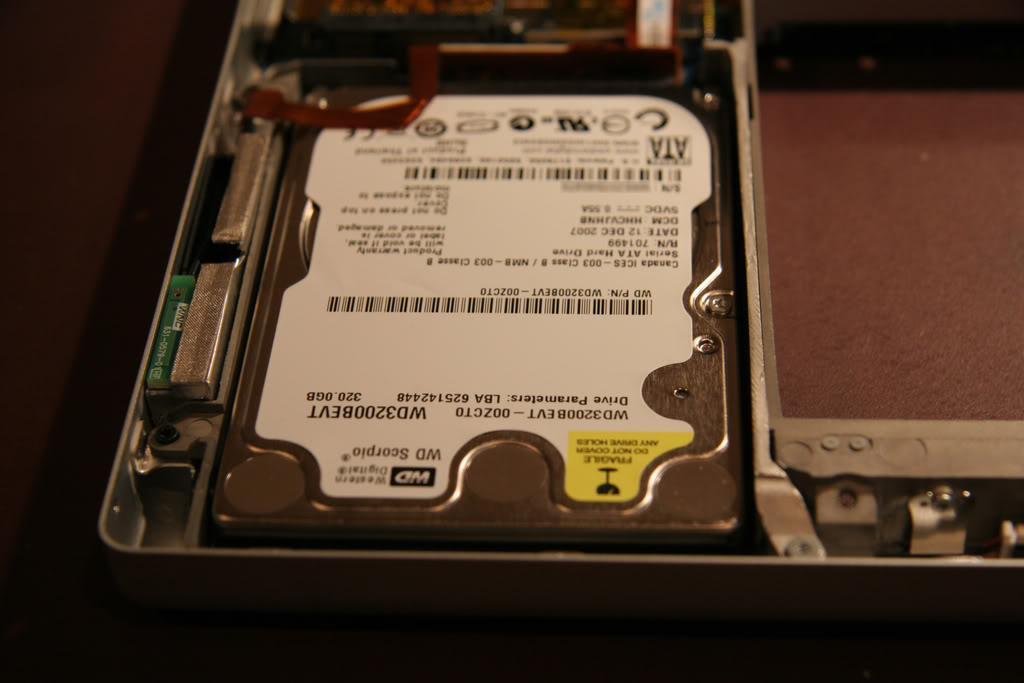

    What I had previously
    [​IMG]

    New drive outside of enclosure
    [​IMG]

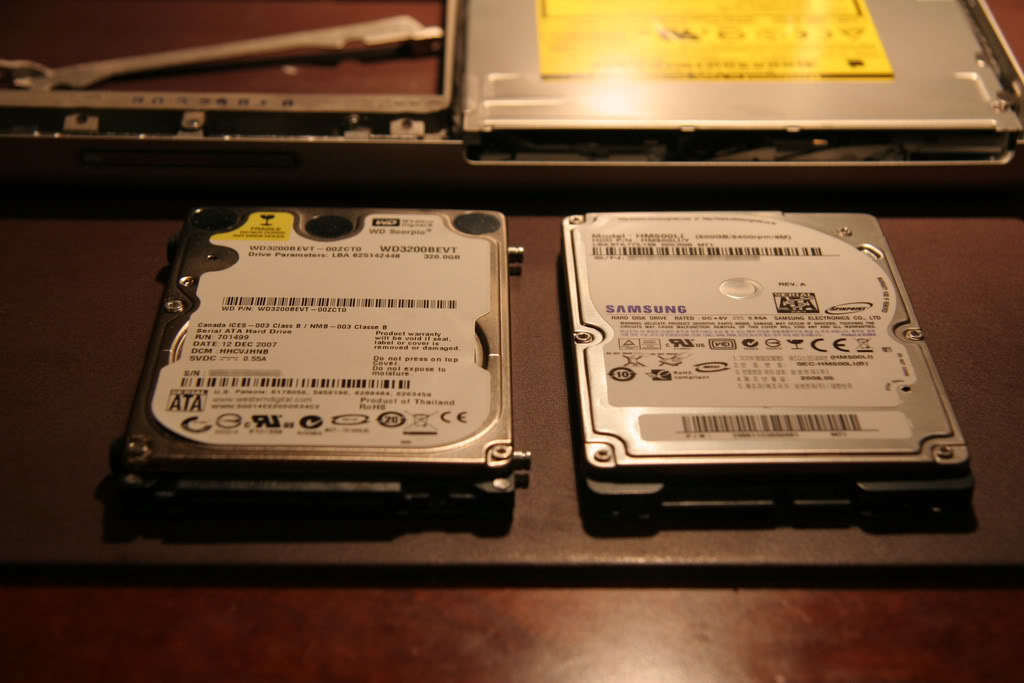

    Side by side comparison
    [​IMG]

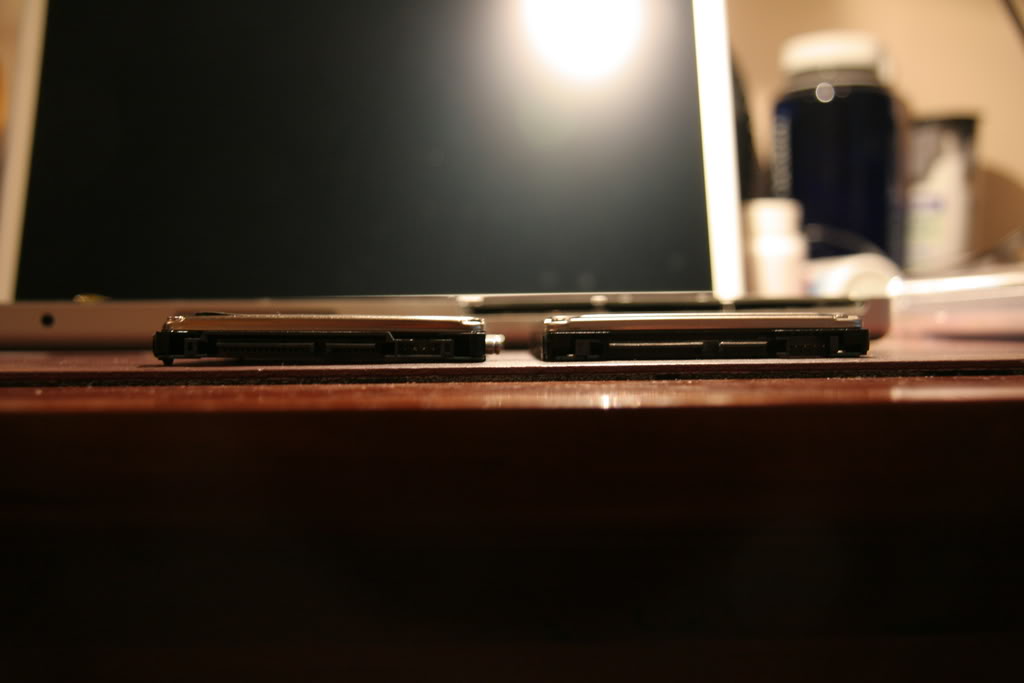

    Same height (9.5mm)
    [​IMG]

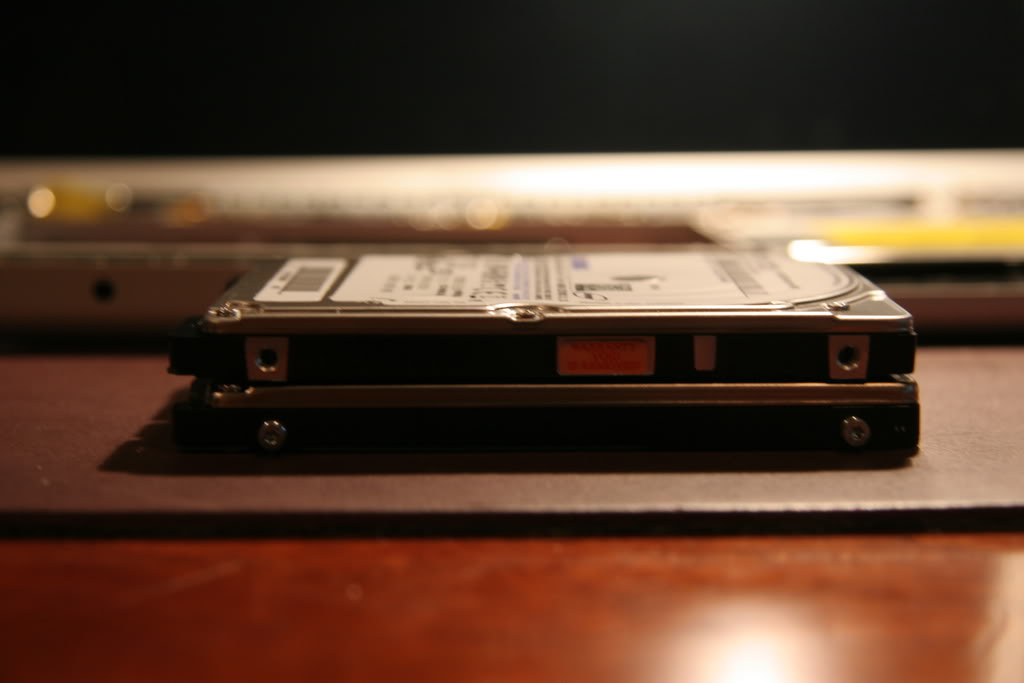

    Stacked to show they are dimensionally the same
    [​IMG]

    Installed!
    [​IMG]

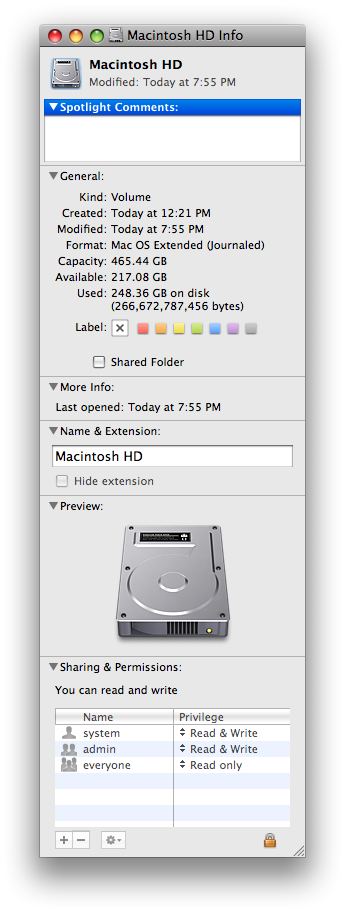

    Mmmm... Space!
    [​IMG]

  2. Tallest Skil macrumors P6

    Tallest Skil

    Joined:
    Aug 13, 2006
    Location:
    1 Geostationary Tower Plaza
    #2
    No 3G. It's a fake!

    Wait...

    Oh, it's not the iPhone...

    This place sure takes a toll on you before Keynotes.

  3. alphaod thread starter macrumors Core

    alphaod

    Joined:
    Feb 9, 2008
    Location:
    NYC
    #3
    No it's not 3G it's 500G mate ;)

  4. kgeier82 macrumors 65816

    Joined:
    Feb 18, 2008
    #4
    you can use Winclone to image the bootcamp partition, just make sure to have an external disc ready, which you do.

    any annoying noises with the drive? the 320's, in my experience, 1/2 of the click every 3-5 seconds. The other half is fine. Its not accessing either, its the disc parking the heads, very annoying.

  5. kgeier82 macrumors 65816

    Joined:
    Feb 18, 2008
  6. italiano40 macrumors 65816

    italiano40

    Joined:
    Oct 7, 2007
    Location:
    NY
  7. bigandy macrumors G3

    bigandy

    Joined:
    Apr 30, 2004
    Location:
    Murka
    #7
    *wants one for 15" MBP*

    For the love of god, please TIMG your large pictures!

  8. kgeier82 macrumors 65816

    Joined:
    Feb 18, 2008
    #8
    yea, i cant find the samsung 9.5mm version on their site anywhere :(

  9. Chrysaor macrumors 6502

    Joined:
    May 16, 2006
  10. techlover828 macrumors 68020

    techlover828

    Joined:
    Jun 28, 2007
    #10
    here it is I think

  11. kgeier82 macrumors 65816

    Joined:
    Feb 18, 2008
    #11
    thats it, but no FW800? they only offer that enclosure on the hitachi? ill pass if thats the case.

  12. alphaod thread starter macrumors Core

    alphaod

    Joined:
    Feb 9, 2008
    Location:
    NYC
    #12
    Thank you for the BootCamp thingy.

    As with the noises, there is the clicking and there is the spinning sound. It's actually pretty annoying if you listen closely...

    Forgot sorry; lucky I didn't put up the full 8MP images... :rolleyes:

    Will do.

    https://eshop.macsales.com/item/Other World Computing/MS8U5500SB8/

  13. zamboni52 macrumors regular

    Joined:
    Feb 17, 2008
    Location:
    Colorado Springs
    #13
    So...do you not like the drive because of the clicking and spinning noise? Is it louder than your original HD or is it obnoxiously loud? I have the 7200RPM 200GB. I wonder if it is louder than it. I hope its not too bad. How's the heat...any difference that you notice. I should have mine tomorrow. Is there any things I should look out for when opening up my MBP. Thanks in advance for the info.

  14. EMAGDNIM macrumors member

    EMAGDNIM

    Joined:
    Oct 6, 2006
    Location:
    Toronto, Canada
    #14
    Oh man...I wish I didn't click on this thread...I have to remember that I can't buy this just yet... Thanks for the pics BTW...

  15. wakeborder556 macrumors regular

    Joined:
    May 31, 2008
    #15
    So you bought a harddrive+enclosure but just used the HDD?

  16. shoppy macrumors 6502a

    Joined:
    Mar 4, 2007
    Location:
    Hants
    #16
    Congrats, it looks great, How much space do you have after formatting?

  17. Neil321 macrumors 68040

    Neil321

    Joined:
    Nov 6, 2007
    Location:
    Britain, Avatar Created By Bartelby
    #17
    At present AFAIK those drives only come in enclosures,but you use say CCC first to clone your drive to the new one,boot from it,so you know your drive is not DOA and then swap them over,you then have a nice new external that was once your internal.The Only drawback of this is you have probably voided the warranty on the new drive for taking out of it's enclosure

  18. dgdosen macrumors 65816

    dgdosen

    Joined:
    Dec 13, 2003
    Location:
    Seattle
    #18
    Is that case bus powered? Or do you need AC power at all time?

  19. alphaod thread starter macrumors Core

    alphaod

    Joined:
    Feb 9, 2008
    Location:
    NYC
    #19
    It's not obnoxious; it's a bit louder than the 320GB WD Scorpio; It does not get hotter; I can't say what you should watch for except be careful and use the right tools; don't compromise.

    They only sell the combo at the moment; no I used the enclosure for my old 320GB drive.

    I posted the screenshot above.

    Yes I called to asked about the enclosure and yes it voids the enclosure warranty; the HDD has it's own 3 year warranty backed by Samsung. In short, after removal, enclosure=no warranty, drive=3 years.

    Yes as long as you use a 5400RPM drive it is bus powered; if you use a 7200RPM drive, it would be bus powered on Firewire, possibly not USB (some drives can be USB bus powered)

  20. zamboni52 macrumors regular

    Joined:
    Feb 17, 2008
    Location:
    Colorado Springs
    #20
    I'll try my 7200RPM drive in the enclosure tonight...after I swap it out for my 500 GB one. I'll let you know if you can use USB bus power for a 7200RPM drive. I pretty sure FW will work though.

  21. alphaod thread starter macrumors Core

    alphaod

    Joined:
    Feb 9, 2008
    Location:
    NYC
    #21
    I do have a the 200GB 7200RPM drive that came with the computer and it does run on USB bus; I just don't know if all 7200RPM drives will.

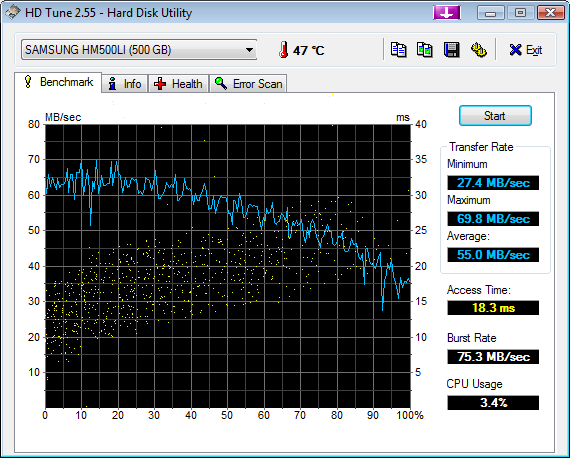

    Anyways, here is HDTune:
    [​IMG]

  22. DeVizardofOZ macrumors regular

    DeVizardofOZ

    Joined:
    Jan 12, 2006
    Location:
    Antarctica City;)
    #22
    Samsung 256 GB solid state drive...:) SSHDD

    Hey, gals/guys,
    I wonder what that SSHDD will cost(?) eegh, probably shoot expensive. Still I like where this is going. Nothing moves mechanically.

  23. Kaupa macrumors regular

    Joined:
    Apr 16, 2008
    Location:
    Germany
    #23
    Wow,
    wtf is going on with the temperature?

  24. Chrysaor macrumors 6502

    Joined:
    May 16, 2006
    #24
    Looks like transfer rates are similar to 200GB 7200RPM/320GB 5400RPM, too bad 500GB comes with 3 platters and doesn't have increased platter density.

  25. alphaod thread starter macrumors Core

    alphaod

    Joined:
    Feb 9, 2008
    Location:
    NYC
    #25
    SSHDD? Is that a hybrid or the Solid State you're refering to; and yes the SSDs are expensive and the cheaper ones with MLC are the suck.
