Onboard sound card not recognized

Discussion in 'Mac mini' started by Valalvax, May 20, 2011.

  1. Valalvax macrumors newbie

    May 15, 2009
    After installing 8 gigs of RAM in my Early 2009 Mac Mini the onboard sound card is no longer recognized, I opened it back up and could not figure out where a loose connection may be, there's the expansion card style connection from the top half of the Mini to the bottom (holds the disk drive, I think the harddrive and the sound stuff), and then the little orange cable that has a bend in it, but both of those are firmly connected... so I'm not sure where the problem could be.

    Does anyone know what the problem might be?
  2. Valalvax thread starter macrumors newbie

    May 15, 2009
  3. philipma1957 macrumors 603


    Apr 13, 2010
    Howell, New Jersey

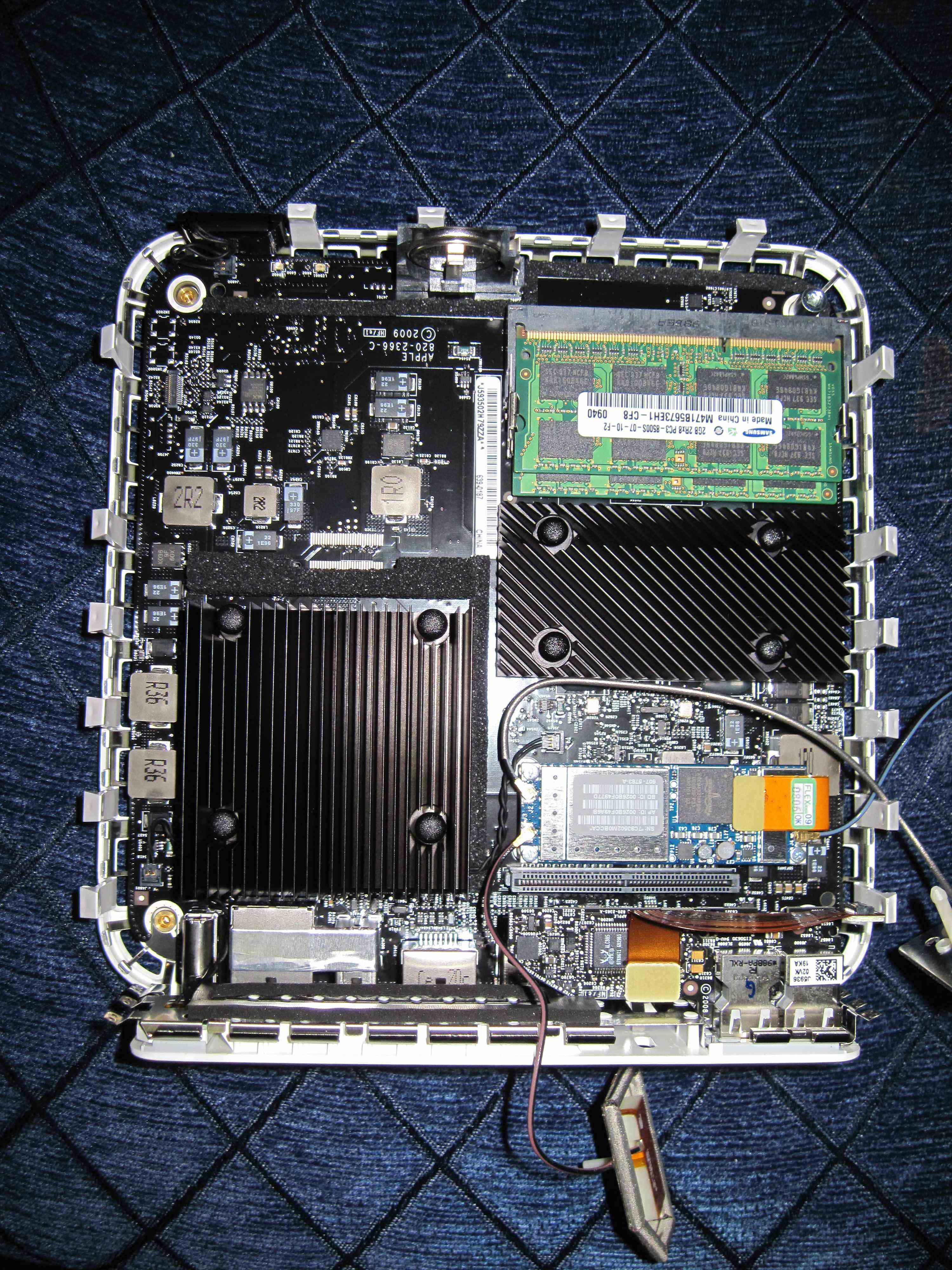

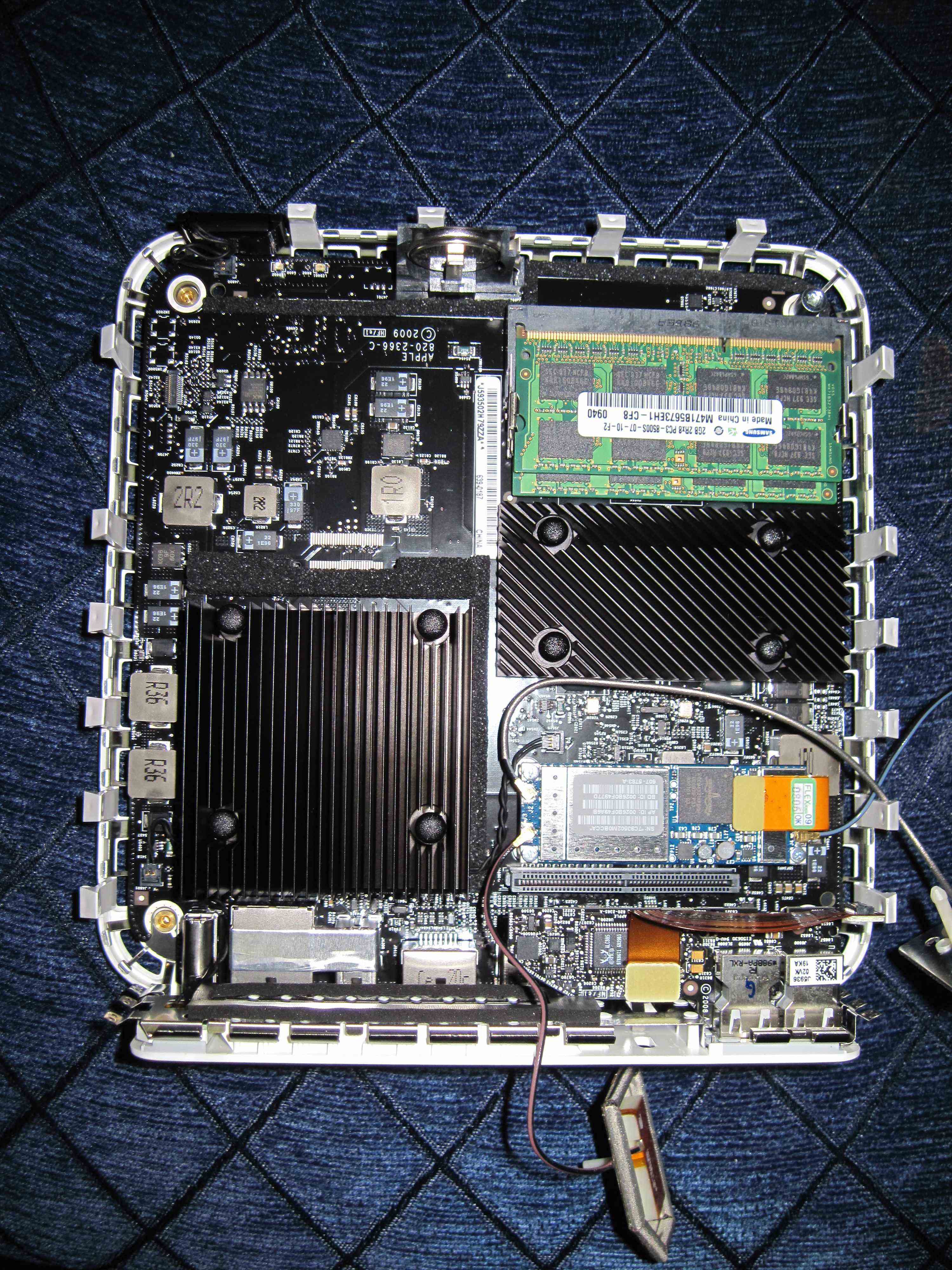

    if that cable is attached you are in trouble.. here is a photo this is the mother board. on bottom right is the copper cable it is attached to the mobo correctly.


    look at the link and see the fully assembled mobo and top with the cable

    Attached Files:

  4. Valalvax, Jun 15, 2011
    Last edited: Jun 15, 2011

    Valalvax thread starter macrumors newbie

    May 15, 2009
    I assume you mean that is the one thing I could possibly fix? :(

    Definitely investing in one of those dumb little wristband things at some point, I don't know anyone who uses them, but losing hardware due to it is sucky
  5. Tucom macrumors 65816


    Jul 29, 2006
    I've had this exact same issue; I actually opened up one of my two gifted from bigger/older bro who owns his own graphics design and animation company - Avatar Labs - because it went through a flood and, to my surprise, had very absolutely no water damage at all, 'cept some rust colored stuff on the outside of the case here and there, but perfect overall, though the DVD drive sounded rusted out initially but after a month or two it all of the sudden started initializing at boot faster and eventually read DVD's, pretty interesting and sweet. It's a miracle! No, but cool.

    Ok so, that's just a back story, sorry, fact is I've had the same issue after opening up one of my Minis and I'd bet $100+ that the DVD drive cable just isn't in **ALL THE WAY**. I opened it up after Googling your exact issue, refitted it, still didn't work.

    Then tried it again, but this time since I accidently broke the very small plastic retaining clips that I thought came off a different way then they really did (I know I know, rule of thumb *never* force anything regarding computers), so I took a piece of strong tape and held the cable in place and now works perfectly.

    I *HIGHLY* doubt anything's fried as I honestly have worked on PS2's, Xbox 360's, Xbox 1's, completely rebuilt and cleaned out a PowerMac G5 (took all out including the Mobo and procs from their sockets), Mac Minis, and numerous PC's and have *NEVER* fried anything and have *NEVER* used one of those wrist straps. Ever. Never any issues. I think as long as the parts are placed intelligently and handled w/ care, you should be fine.

    So I'd just try checking the cable - multiple times if necessary - before assuming anything else. Let us know if it fixes it?
  6. Valalvax thread starter macrumors newbie

    May 15, 2009
    That's insane about there being no flood damage, was it submerged?

    Also, that's what I was thinking, but it looks to be in place... I think... I could give it another go, not exactly doing anything right now
