PCIe raid controller with 4x SSD in Raid 0...

Discussion in 'Mac Pro' started by LAHegarty, Dec 21, 2016.

  1. LAHegarty macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #1
    Hello,
    I'm looking to increase my Mac Pro 5,1 SSD Read/Write speeds for an all around better workflow/user experience.

    Is anyone using a PCIe raid controller in raid 0 to achieve greater R/W performance, if so what speeds are you getting and what card(s) are you using?

    At present, I have 4x SATA3 SSD's in software raid 0 using the onboard 4x SATA2 ports, the SSD's are independently capable of 500MBps R/W via a SATA3, using the onboard SATA2 ports with my 4x SSD's I am achieving under 600MBps Read/Write speeds, which is ok but not all that great considering the independent R/W of the SSD's.

    I'd rather stick with my current 2.5 SSD's then move over to M.2 with an M.2 PCIe card, plus it's hard to find AHCI M.2 sticks at reasonable prices, if at all.

    So what are my options here? I would like to be achieving at least 1GBps reads & writes.

    I'd like to see benchmarks of cards, some PCIe 2.0 SATA3 raid cards hit a wall in raid 0, I'm looking for a card that will utilise the full speeds of all my SSD's.

    Reference of card that does raid0 but hits a wall: 'Finally, we tried RAID0 with three C300 256GB SSDs..."
    http://www.bit-tech.net/hardware/2011/01/04/high-point-rocketraid-640-review/5

  2. nigelbb macrumors 6502a

    Joined:
    Dec 22, 2012
    #2
    I am using an Apricorn Velocity Duo with 2 x 1TB EVO 850 SSDs configured as a 2TB RAID-0 volume. I get read/write speeds of about 700MBps. This is in slot 2 of a 2008 Mac Pro 3,1.

  3. LAHegarty, Dec 23, 2016
    Last edited: Dec 25, 2016

    LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #3
    I'm hoping for faster speeds with 4x drives, I guess I could buy two of these and then software RAID them but it'll be $150 each for the cards.

    I've gone for a Highpoint 640L SATA RAID Controller Card PCI 2.0 x4 (2000MB/s) and I'm also getting a 4 drive caddy from startech which I will use, for now, I do need to find a spare Molex power connector, I'm sure I'll figure it out.

    4x 240Gb, SATA 3, 500Mb R/W SSD's - £175 (http://wave-gadgets.co.uk/)

    Highpoint 640L £25 (eBay find)
    http://www.highpoint-tech.com/USA_new/series_r600-overview.htm

    4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives £25 (eBay find)
    https://www.startech.com/uk/HDD/Mobile-Racks/4-bay-mobile-rack-backplane~SATSASBP425

    We'll see how I get on.

    I'd love to achieve 3.5GB/s, I will aim for that in my next upgrade.

    I will post how I get on, for anyone looking to get the best speeds on a budget.

  4. LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #5
    Would love this but as mentioned it's hard to find AHCI M.2, and as Amfeltec seem to be the only one making these boards it's holding the price way up there.

  5. LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #7
    Bit pricey.

  6. William_si macrumors regular

    William_si

    Joined:
    Apr 4, 2016
    Location:
    Croatia
    #8
    As i noted elsewhere, this is not the problem. This card is NOT just splitting 4x 4 PCIe lane tracks up to 4 slots, it has a PLX chip with 32 lanes configured as 16i + 4x4o, this chip alone - by the Avago/PLX monopoly - sells fot upwards of 100$ in the small source market. Not like Amfeltec buys them container load wise as SuperMicro....

  7. LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #9
    What does the 'c' stand for in cMP?

    I've asked for pricing shipped to the UK of a Squid PCI Express Carrier board for M.2 SSD, I am awaiting their reply.

  8. sunnyj macrumors 6502

    Joined:
    Oct 18, 2010
    Location:
    Vancouver, British Columbia
    #10
    The c stands for classic which are the tower Mac Pro's

  9. LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
  10. nigelbb macrumors 6502a

    Joined:
    Dec 22, 2012
    #12
    It was almost exactly $350 when I asked last February.

  11. slughead, Dec 25, 2016
    Last edited: Dec 25, 2016

    slughead macrumors 68040

    slughead

    Joined:
    Apr 28, 2004
    #13
    WAIT!! 640L doesn't go that fast!

    read the fine print, it only does about 1GBps IIRC, due to the controller. I think I had to figure out the controller and google the specs. what I found is all cheap SATA controllers for mac use the same 1GBps one.

    best option last I checked was miniSAS or if you're fine iwth just 2, use the velocity 2

  12. Slash-2CPU macrumors member

    Joined:
    Dec 14, 2016
    Location:
    New Orleans, USA
    #14
    cMP PCIe 2.0 lanes are good for about 345MB/S each.

    PCIe x1 2.0 USB 3.0 card will top out at 345 MB/S

    PCIe x4 2.0 SSD tops out at 1366-1380MB/S

    Advantage of the Squid card is lane width scales in an almost perfectly linear fashion to throughput . (As long as you're in a true x16 slot) ;)

  13. LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #15
    I know 640L has limitations, I was thinking maybe I'll get 2 of these and software raid the two cards.

    If anyone does know of any bootable Mac compatible SAS/SATA cards with good speeds...

    For reference:
    PCIe 2.0 x1 - 500 MB/s
    PCIe 2.0 x4 - 2,000 MB/s
    PCIe 2.0 x8 - 4,000 MB/s
    PCIe 2.0 x16 - 8,000 MB/s

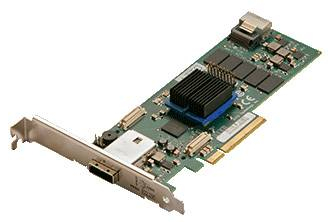

    I found this card: ATTO's R644
    Reff: http://barefeats.com/ssd6g03.html

    I think I've found the card I've been looking for, I will report back after testing.

  14. Slash-2CPU, Dec 26, 2016
    Last edited: Dec 27, 2016

    Slash-2CPU macrumors member

    Joined:
    Dec 14, 2016
    Location:
    New Orleans, USA
    #16
    [QUOTE="LAHegarty, post: 24117705, member
    For reference:
    PCIe 2.0 x1 - 500 MB/s
    PCIe 2.0 x4 - 2,000 MB/s
    PCIe 2.0 x8 - 4,000 MB/s
    PCIe 2.0 x16 - 8,000 MB/s[/QUOTE]


    Max you'll see in practice is 375MB/s per PCIe 2.0 lane over any X58 type chipset.

  15. LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #17
    Hit's almost 6Gb/s


    I'm going to test Highpoint 640L in raid0 I'm guessing about 700Mb/s, then I'll be testing the SAS card in software raid, I should hit over 1Gb/s with 4 drives... maybe more I'm unsure, we'll see.

  16. Slash-2CPU macrumors member

    Joined:
    Dec 14, 2016
    Location:
    New Orleans, USA
    #18

    6 GB/s,

    6GB/s = 368MB/s per lane on an x16 link.

  17. LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #19
    I should theoretically have faster speeds with the SAS card I'm testing, it's an 8 lane card.

  18. Slash-2CPU, Dec 27, 2016
    Last edited: Dec 27, 2016

    Slash-2CPU macrumors member

    Joined:
    Dec 14, 2016
    Location:
    New Orleans, USA
    #20
    It'll max out around 2850MB/s. Roughly 355*8. Give or take 100MB/s total.

    One thing to watch is that the card is negotiating PCIe 2.0 link speeds. System Profiler will tell you. I've had cards in a couple cMP's I put together that would only do PCIe 1.0 in slot 1,3,4 and only properly run at 2.0 speed in slot 2. Also had it where a certain card won't do 2.0 speeds in slot 1 but will in 2,3,4. Samsung SM 951 was one card that I remember would do PCIe 2.0 in only 2 or 3 out of 4 slots.

  19. LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #21
    Before I post results, would anyone like any specific benchmarks running?

    I'm using Blackmagic Disk Speed Test using 5Gb stress test setting, which other software tests would be good to run?

    I can confirm both cards work and boot with macOS 10.12.2
    Both cards being Highpoint's 640L PCIe x4 & ATTO's H644 PCIe x8
    --- Post Merged, Dec 31, 2016 ---
    Also, the Amfeltec sales team got back to me and they are charging $367.38 USD plus shipping for their PCI Express Gen 2 Carrier Board for 4x M.2 SSD modules.

    Link: http://amfeltec.com/products/pci-express-carrier-board-for-m-2-ssd-modules/

  20. Slash-2CPU macrumors member

    Joined:
    Dec 14, 2016
    Location:
    New Orleans, USA
    #22
    AJA System test is another free benchmark. It and Black Magic Speed Test both use sequential tests, but they do usually show different results.

  21. LAHegarty, Jan 8, 2017
    Last edited: Jan 8, 2017

    LAHegarty thread starter macrumors member

    LAHegarty

    Joined:
    Aug 17, 2013
    Location:
    York, UK.
    #23
    All results are software RAID0 across the aforementioned SSD's.

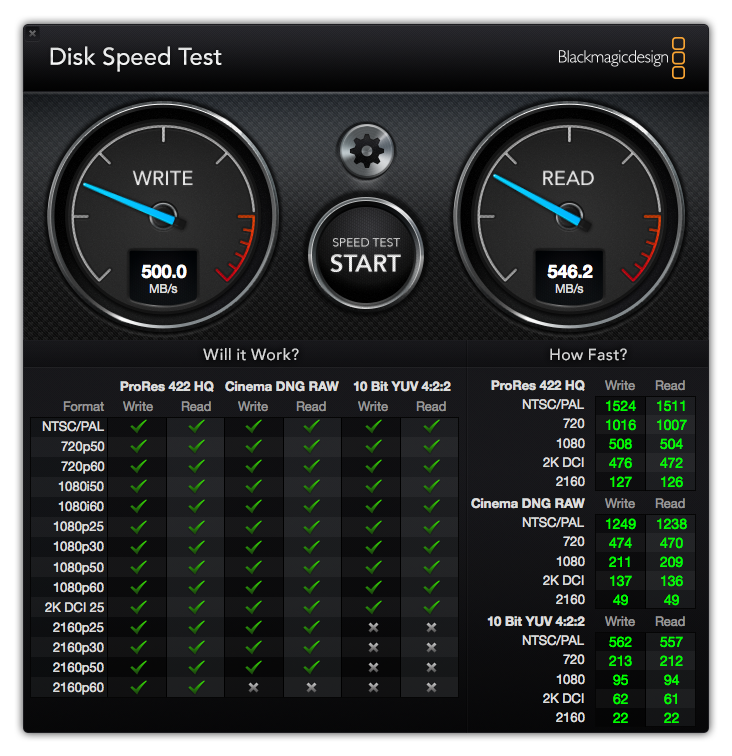

    Onboard SATA 2

    [​IMG]

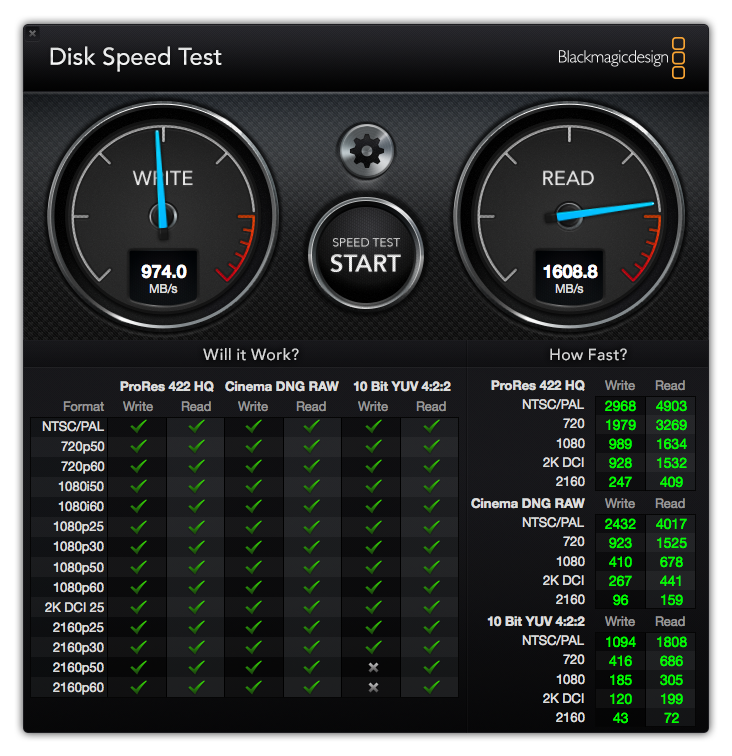

    Highpoint 640L

    [​IMG]



    ATTO's H644

    [​IMG]

  22. pandroid macrumors newbie

    Joined:
    Mar 28, 2017
    #24
    hey LAHegarty

    What SSDs you're specifically using with ATTO Card?

  23. OS6-OSX macrumors 6502a

    OS6-OSX

    Joined:
    Jun 13, 2004
    Location:
    California
    #25
    Asleep at the switch!:confused: Don't know how I missed this thread from 12-2016! I have the R644 in my 3,1 with 8 spinners getting 1436 (W) 1076 (R). There is always that speed vs size trade off. 8 1TB SSD's would be around $2800 but the speed, oh the speed! :D
