Playback from MBP to an HDMI in on TV possible?

Discussion in 'Mac Basics and Help' started by Peter Franks, Dec 10, 2014.

  1. Peter Franks macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #1
    I have an early 2011 MBP running SL 10.6.8., still...

    Is it possible to playback from this laptop onto a TV that has an HDMI input connection?

    Which out would do that from the MBP, and what lead would I need. Does it act as a monitor like that, would it play back AVI from laptop onto the telly or ..? Just wondered.

  2. Mr_Brightside_@ macrumors 68020

    Mr_Brightside_@

    Joined:
    Sep 23, 2005
    Location:
    The 6ix
    #2
  3. VI™ macrumors 6502a

    Joined:
    Aug 27, 2010
    Location:
    Shepherdsturd, WV
    #3
    If its only a mini display port and not a thunder bolt, it probably won't play sound through the TV. You'd have to get an audio out cable to an input on the TV that will play with the HDMI input at the same time.

  4. Mr_Brightside_@ macrumors 68020

    Mr_Brightside_@

    Joined:
    Sep 23, 2005
    Location:
    The 6ix
    #4
    Wrong, anything since mid 2010 supports audio over mini DP

  5. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #6
    Thanks guys. I think it had thunderbolt or did I imagine it. Will have to look up when am back home. Can't for the life of me remember! If it does. So it may or may not

  6. Mr_Brightside_@ macrumors 68020

    Mr_Brightside_@

    Joined:
    Sep 23, 2005
    Location:
    The 6ix
    #7
    An early 2011 would be thunderbolt for what it's worth

  7. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
  8. Peter Franks, Dec 12, 2014
    Last edited: Dec 12, 2014

    Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #9
    Playback from MBP to an HDMI in on TV possible?

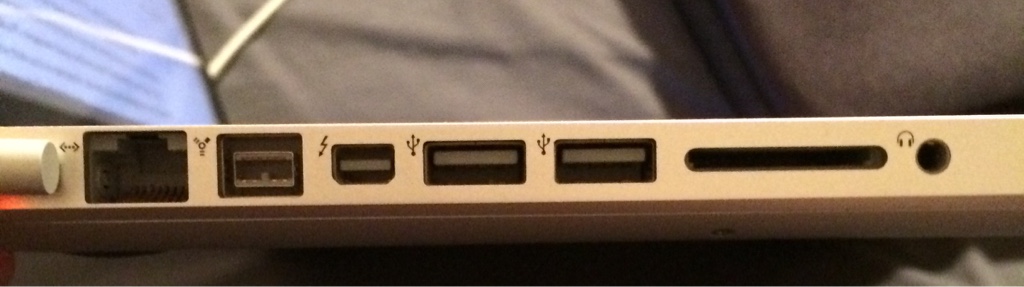

    So would appear there is a thunderbolt on my almost 4 year old MBP. Does this mean a thunderbolt to hdmi lead into tv should playback OK. [​IMG]

    Which was mini display port? The lightning looking one and left of that is thunderbolt? Wrong...

    EDIT:

    If my specs are
    MagSafe power port
    Gigabit Ethernet port
    FireWire 800 port (up to 800 Mbps)
    Two USB 2.0 ports (up to 480 Mbps)
    Thunderbolt port (up to 10 Gbps)

    then presume the thunderbolt replaced the mini display port, or I'm missing something. What's the difference between firewire and the thunderbolt out of interest?

  9. dXTC macrumors 68020

    dXTC

    Joined:
    Oct 30, 2006
    Location:
    Up, up in my studio, studio
    #10
    FireWire in your case is 800 Mbit/sec. Thunderbolt is 10Gbit/sec-- way faster. Plus, it's backward compatible with Mini-DisplayPort for video output and will carry audio as well. I sometimes use a Rocketfish Mini-Displayport to HDMI adaptor from my 2010 MBP out via HDMI to a hotel TV, for when there's nothing else on when I'm on the road. Works like a charm, and with only one cable.

  10. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #11
    Was the mini display port discontinued in favour of the thunderbolt on this model?

  11. dXTC macrumors 68020

    dXTC

    Joined:
    Oct 30, 2006
    Location:
    Up, up in my studio, studio
    #12
    Yes, the Thunderbolt port replaced the Mini DisplayPort on yours and every MBP model afterward. Thunderbolt does everything the Mini DisplayPort did, and more.

  12. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #13
    Thank you. I'll give that Thunder/HDMI lead a go and see how it goes.

  13. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #14

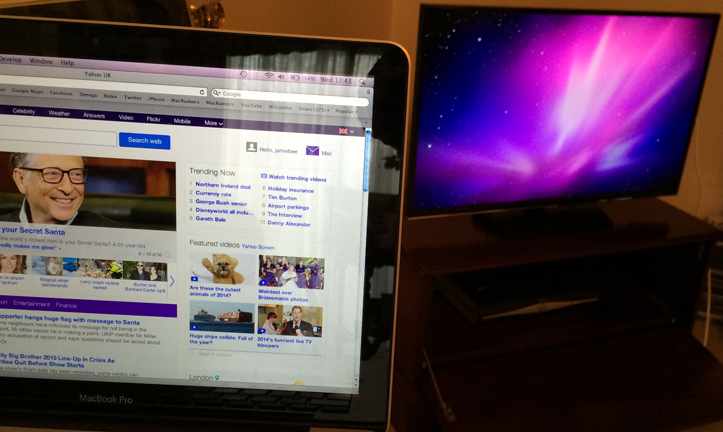

    I've plugged lead into HDMI on telly and thunderbolt this end, but I either get a flash of blue screen, which always worries me, or just the desktop wallpaper, and what's going on with the MBP is never shown on the telly. Also, the cursor disappears so I can't do anything with the computer when lead plugged in.

    Anyone got any idea why it won't show what's on my MBP screen before I take the lead back and give up?
    thanks

    [​IMG]

  14. Mr_Brightside_@ macrumors 68020

    Mr_Brightside_@

    Joined:
    Sep 23, 2005
    Location:
    The 6ix
    #15
    Go into system preferences - displays and change it from extended desktop to mirroring. Your cable is working fine

  15. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #16
    Will check this out. Thank you for your help. Hope that sorts blue screen on plug in too. Will report back when home.

  16. Mr_Brightside_@ macrumors 68020

    Mr_Brightside_@

    Joined:
    Sep 23, 2005
    Location:
    The 6ix
    #17
    The blue screen is expected behaviour. It's the Mac determining the proper resolution etc

  17. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
  18. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #19
    Still can't get it to work, only see desktop on the telly.

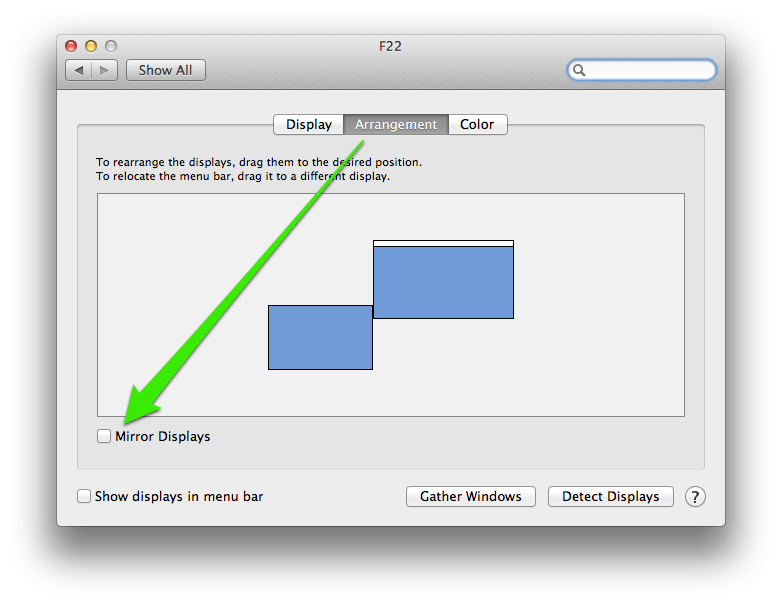

    I don't have anything that says extended desktop to mirroring in display options, only see these options on mine

    [​IMG]
    Any ideas?

  19. Mr_Brightside_@ macrumors 68020

    Mr_Brightside_@

    Joined:
    Sep 23, 2005
    Location:
    The 6ix
    #20
    Click arrangement

  20. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #21
    tried that too, the only thing I got was my Mac mail, an inch of the right hand side on telly, but moving off screen on MBP. Really weird, Tried all the setting on telly too. Just shows me the wallpaper, and the display box on the screen

  21. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #22
    I give up! I have now moved the screen icon on top on the arrangement and got as far as it showing me the desktop, which looks like the MBP, but then it wouldn't give me the access to move my cursor to put anything up on screen. Frustration has now done it for me. I thought it was going to be so simple, plug in and play.... It isn't

  22. Peter Franks thread starter macrumors 65816

    Joined:
    Jun 9, 2011
    Location:
    London UK
    #24
    Playback from MBP to an HDMI in on TV possible?

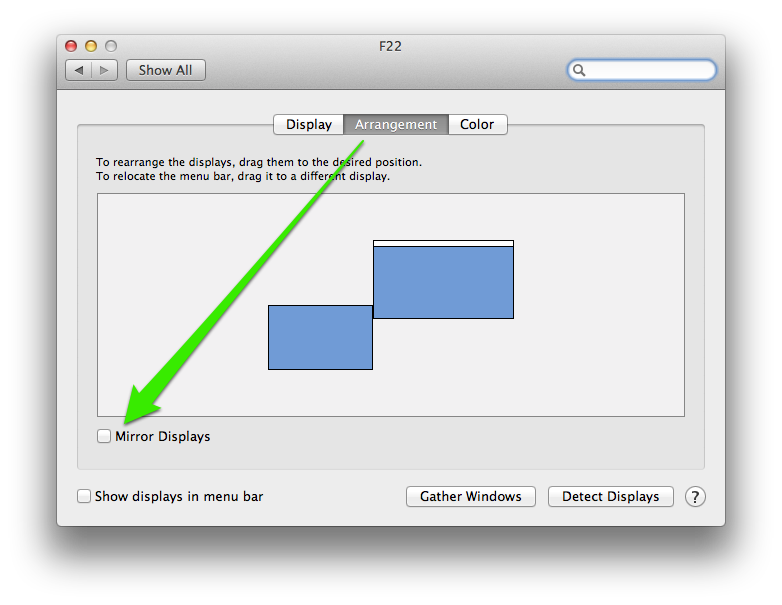

    Yep done all that but I can't access the cursor to do anything on it after I've done that bit in your pic

  23. dan1eln1el5en macrumors 6502

    dan1eln1el5en

    Joined:
    Jan 3, 2012
    Location:
    Copenhagen, Denmark
    #25
    no you haven't. that little box should be ticked, then the screen will be the same on both screens.
    don't panic, this is a working cable , operating system and TV.
    read the apple documents linked above and see how it works.

    I would like to hear how you had expected it to work ? I've met people who think it will only transfer movies etc. to the screen, but it's actually more like adding a second screen to your computer. the cursor going big can be changed in accessibility I think.
