prvt.donut

macrumors 6502a
Jan 1, 2008
522
26
I have a pair of de-lidded x5677 CPUs in my 4.1 and CPU A runs at 49C and B at 38C idle.

Is that big a gap normal? I am thinking if I should redo the thermal paste.

Ran a CPU stress test to see what temps it goes up to. Maxes out at 70C for CPU A and 54C for CPU B.


Attachments

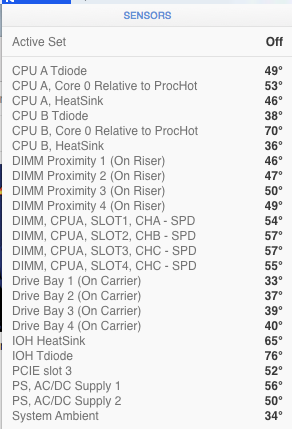

  • Screen Shot 2016-04-17 at 2.13.11 AM.png
    Screen Shot 2016-04-17 at 2.13.11 AM.png
    38.9 KB · Views: 216
  • Screen Shot 2016-04-17 at 2.23.18 AM.png
    Screen Shot 2016-04-17 at 2.23.18 AM.png
    84.6 KB · Views: 173
Last edited:

h9826790

macrumors P6
Apr 3, 2014
15,664
7,867
Hong Kong
I have a pair of de-lidded x5677 CPUs in my 4.1 and CPU A runs at 49C and B at 38C idle.

Is that big a gap normal? I am thinking if I should redo the thermal paste.

Ran a CPU stress test to see what temps it goes up to. Maxes out at 70C for CPU A and 54C for CPU B.

CPU A is in the downstream of the airflow, 10C difference is normal.

What looks strange to me is the PSU temperature. Do you have something installed in the optical bay? The PSU 1 temperature is exceptionally high. For iStat, the PSU 1 temperature usually few degrees lower than PSU 2 temperature. From other software, which define PSU 1 as the PSU ambient temperature, and PSU 2 as the PSU component temperature. And in my experience, a dusty PSU (or something in the optical bay block the airflow) may cause the PSU 1 temperature very close or equals to PSU 2 temperature, but I never see anything like yours. For me, it looks like you have something in the optical bay which will general heat as well (another PSU?).

Of course, it can just be a faulty sensor, or the calibration is wrong. Or another version of iStat which read the sensor in different order.

Last edited:

prvt.donut

macrumors 6502a
Jan 1, 2008
522
26
CPU A is in the downstream of the airflow, 10C difference is normal.

What looks strange to me is the PSU temperature. Do you have something installed in the optical bay? The PSU 1 temperature is exceptionally high. For iStat, the PSU 1 temperature usually few degrees lower than PSU 2 temperature. From other software, which define PSU 1 as the PSU ambient temperature, and PSU 2 as the PSU component temperature. And in my experience, a dusty PSU (or something in the optical bay block the airflow) may cause the PSU 1 temperature very close or equals to PSU 2 temperature, but I never see anything like yours. For me, it looks like you have something in the optical bay which will general heat as well (another PSU?).

Of course, it can just be a faulty sensor, or the calibration is wrong. Or another version of iStat which read the sensor in different order.

I have 2 super drives and the PSU is the only part I haven't removed, opened and dusted.

If it looks really high then I will get to it ASAP.


m4v3r1ck

macrumors 68020
Nov 2, 2011
2,420
421
The Netherlands
IMO, it's hard to tell. They all have different meaning and may indicate different problem.

e.g.

1) Diode hot but heatsink cold -> may be poor thermal paste application.
2) Both Diode and heatsink hot -> may be a dusty heatsink / poor ventilation.
3) CPU diode cool, but northbridge core hot -> may be the rivet broken.

Also, you can't just focus on one temperature and decide if the machine is good or not. And in different condition, the focus will be on different variable.

e.g.

a) In a hot day, under light loading -> may play more focus on the northbridge temperature
b) In a hot day, heavy loading -> may play more attention on the CPU temperature

Anyway, that "CPU A Core" is NOT the actual core temperature, but "how many more degrees to core can go", which means the higher the better, and zero is the worse.

Hi @h9826790,

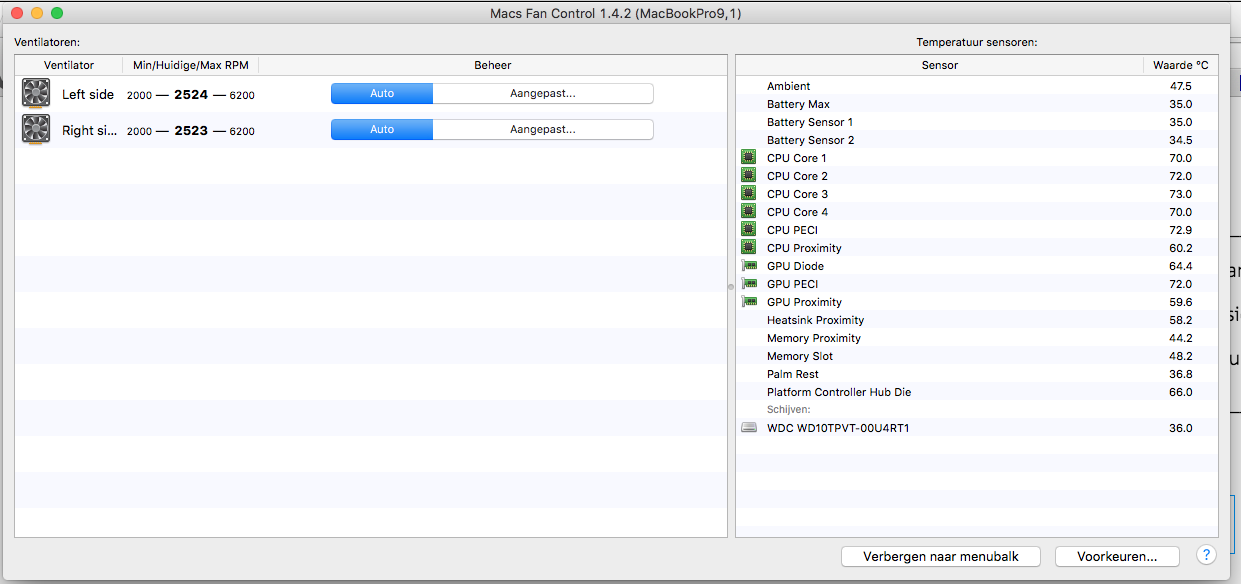

Could you please advise me for making the settings for a Mac Book Pro 9.1 (mid 2012) for the Mac Fans Control app? As I don't own a MBP I can't tweak the app myself, but I'm trying to help a fellow member on a Dutch forum. When he's making a back-up his temps rise to ~95*C, what is the best tweak to keep his MBP cooler. Which settings in the custom section would you advise for both the right and left side fans.

Your input would be much appreciated!



Cheers


Kipsley

macrumors member
Nov 12, 2015
93
23
Western Australia
2006 Mac Pro 1,1 flashed to 2,1 on El Capitan. 2 x 3 GHz Quad Core Intel Xeons

CPU A 34 degrees centigrade
CPU B 34 degrees centigrade
Ambient 24 degrees centigrade

CPU A 48 under load
CPU B 52 under load

Never seen them above those


h9826790

macrumors P6
Apr 3, 2014
15,664
7,867
Hong Kong
Hi @h9826790,

Could you please advise me for making the settings for a Mac Book Pro 9.1 (mid 2012) for the Mac Fans Control app? As I don't own a MBP I can't tweak the app myself, but I'm trying to help a fellow member on a Dutch forum. When he's making a back-up his temps rise to ~95*C, what is the best tweak to keep his MBP cooler. Which settings in the custom section would you advise for both the right and left side fans.

Your input would be much appreciated!



Cheers

Sorry for the late reply. I don't have this Mac either. So I can't test the setting and give you any safe suggestion.

However, I will suggest those owners did some test before they make the custom fan profile.

Firstly, they need to find out which fan regulate which parts' temperature.

e.g. if left fan regulate the CPU, and right fan regulate the GPU, then it's not too hard to customise a fan profile base on the CPU / GPU temperature.

On the other hand, if one fan regulate both CPU and GPU, then it will be very hard to customise an automatic fan profile that safe for both CPU and GPU

  • Like
Reactions: m4v3r1ck

m4v3r1ck

macrumors 68020
Nov 2, 2011
2,420
421
The Netherlands
Sorry for the late reply. I don't have this Mac either. So I can't test the setting and give you any safe suggestion.

However, I will suggest those owners did some test before they make the custom fan profile.

Firstly, they need to find out which fan regulate which parts' temperature.

e.g. if left fan regulate the CPU, and right fan regulate the GPU, then it's not too hard to customise a fan profile base on the CPU / GPU temperature.

On the other hand, if one fan regulate both CPU and GPU, then it will be very hard to customise an automatic fan profile that safe for both CPU and GPU

Thanks for your reply! Never mind the timestamp...

Cheers


macpro00

macrumors member
Original poster
Feb 7, 2016
83
7
MP 5,1 still running good; OSX 10.14.6 / Boot ROM 144.0.0.0.0

Curious to see if I upgraded to OSX Catalina if it would have any impact on MP temps. Thoughts?


Attachments

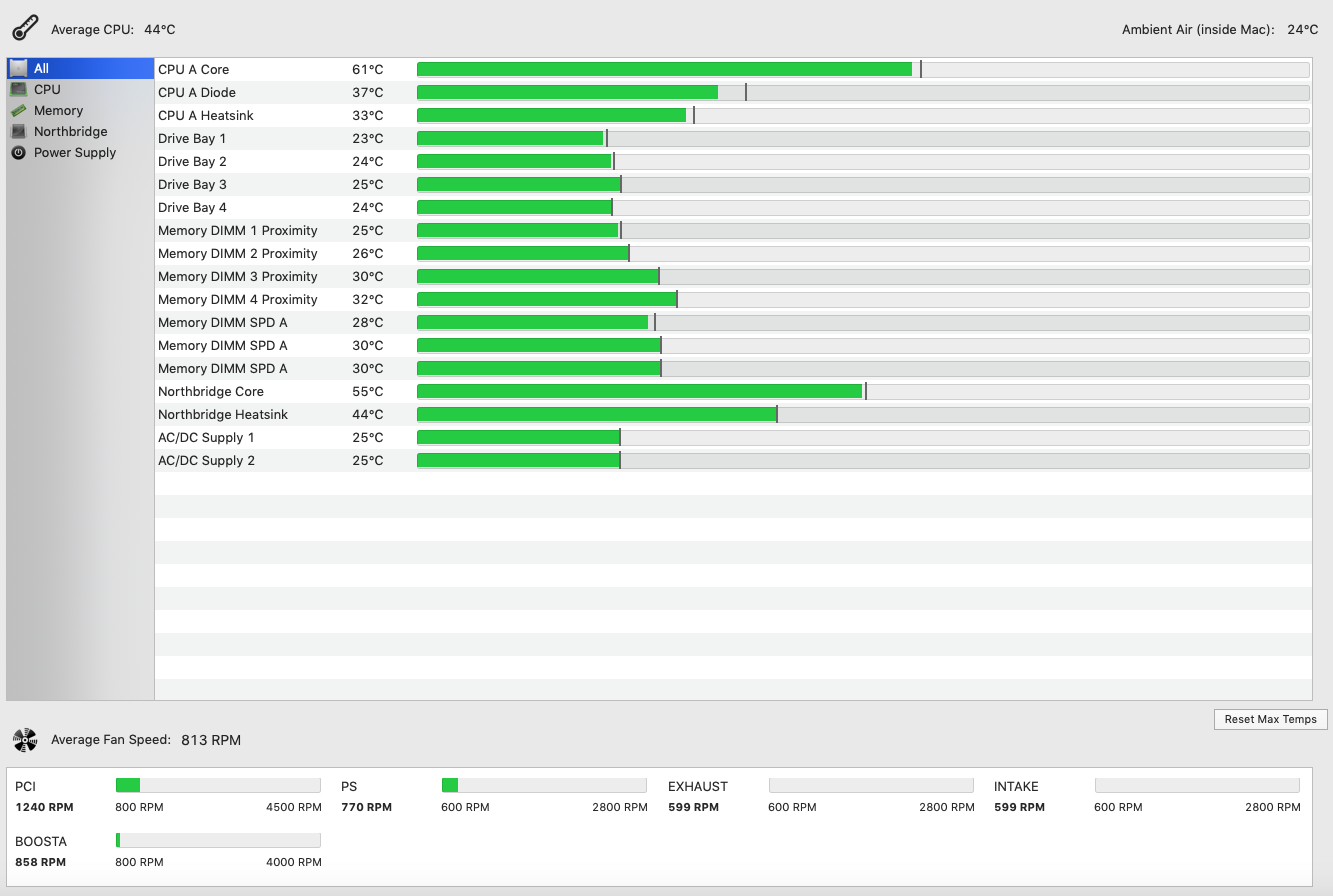

  • x5675_gtx760.png
    244.8 KB · Views: 69

h9826790

macrumors P6
Apr 3, 2014
15,664
7,867
Hong Kong

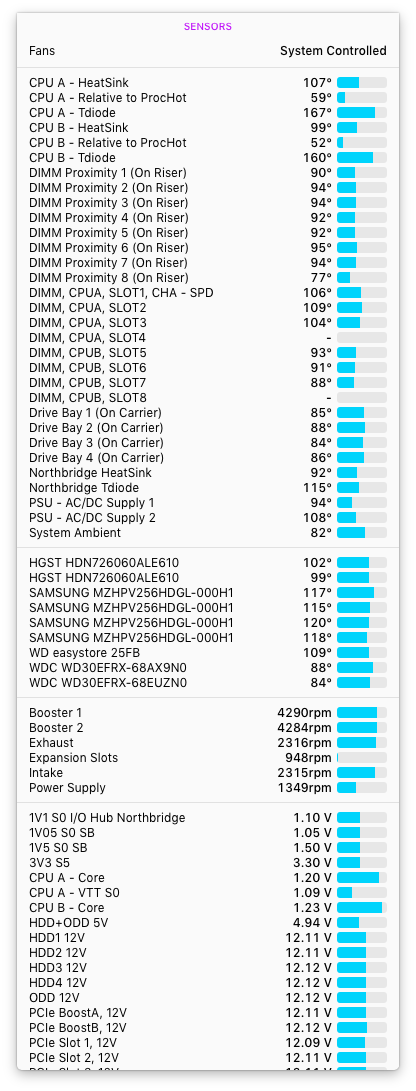

De-lidded dual X5680's busily working away on a 4,1:
All temps are Fahrenheit.

View attachment 881971

TBH, looks quite bad to me, not because the temperatures are dangerously high, but the fans’ speed are to high. And the delta temperature between heatsink and diode are too large.

If the cooling system is working properly, the delta T between CPU diode and heatsink should be well within 20°C.

If you spin up the fans to max, the CPU should be way cooler than that.

If you delidded the CPU by yourself, and didn’t clean those silicon seal completely. You better not to install that black plastic spacer. Which will increase the gap between the die and the heatsink, causing poor cooling.

For info, these are some references for you.

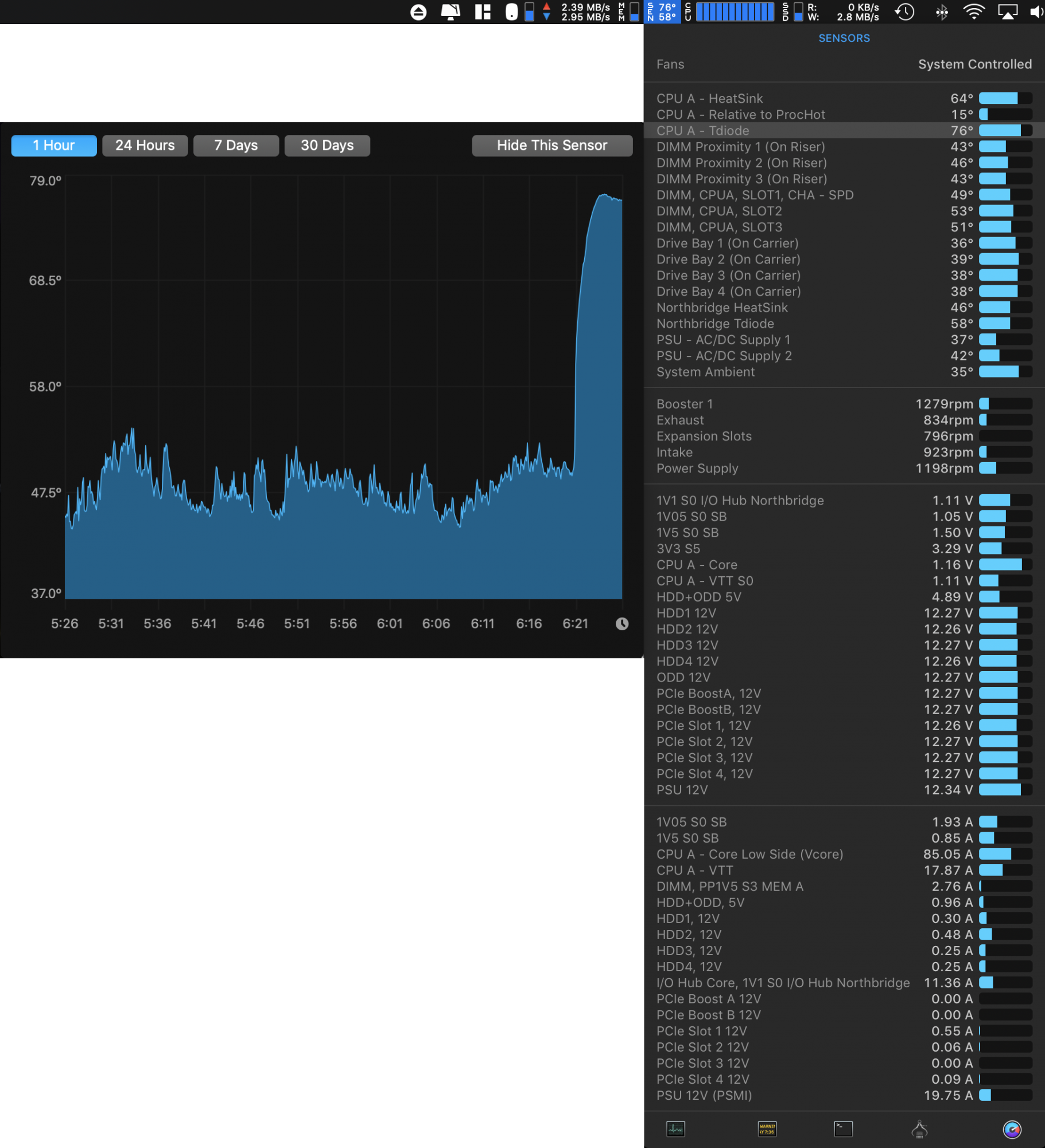

Using Prime95 to stress the CPU for few minutes. Even my system ambient is 35°C, my CPU still able to stabilise at ~75°C with just a bit above 1000RPM (booster, Intake and Exhaust still below 1000RPM). If the system ambient is 28°C, that will be even lower.

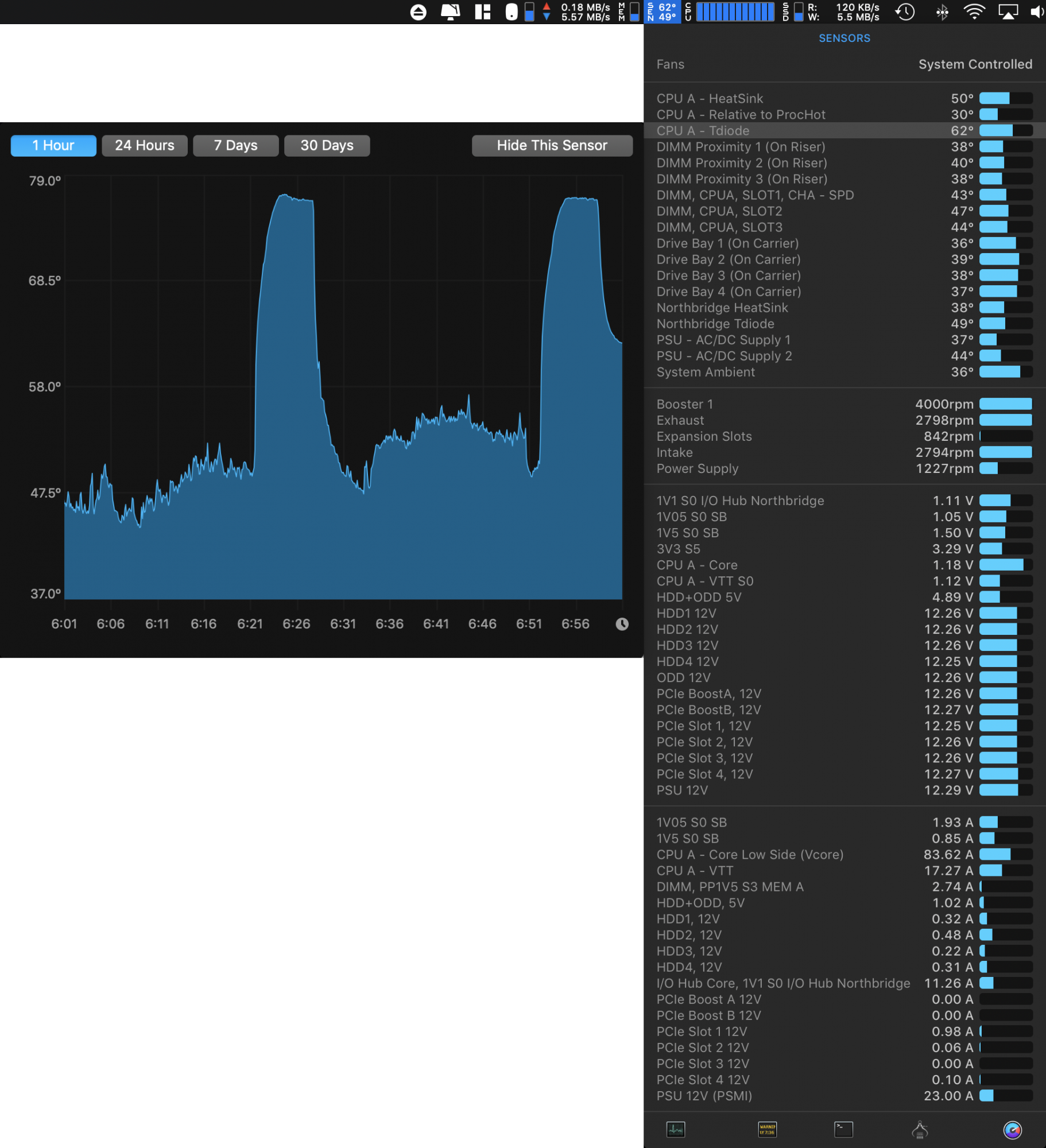

For max fan speed, the CPU diode should be much cooler. And as you can see, the delta temperature between CPU diode and heatsink should be way below 20°C.
Prime95 max fan.png

Last edited:
  • Like
Reactions: flyproductions

startergo

macrumors 601
Sep 20, 2018
4,136
1,875
Has somebody tried controlling the fans in Linux with pwmconfig when Lm-sensors and fancontrol are installed? I can see much more sensors from Linux plus the fan and the temperature for the videocards.

Last edited:

startergo

macrumors 601
Sep 20, 2018
4,136
1,875
Code:
Macs Fan Control 1.4.12
MacPro5,1
CPU: Intel(R) Xeon(R) CPU X5690 @ 3.47GHz [100]
GPU: Radeon RX 480 [active], Radeon RX 480
macOS 10.15.2

Fans:
PCI-min{800}curr{798}max{4500}mode{2,TA0P,32,40}
PS-min{600}curr{914}max{2800}mode{2,Tp1C,38,48}
EXHAUST-min{600}curr{599}max{2800}mode{0}
INTAKE-min{600}curr{1864}max{2800}mode{2,TN0D,53,63}
BOOSTA-min{800}curr{3168}max{5200}mode{2,TN0D,53,63}
BOOSTB-min{800}curr{1113}max{5200}mode{0}


TempSensors:
TA0P (Ambient) - 31.625, 31.625
TCAC (CPU A core from PCECI) - 41.3125, 58.6875
TCAD (CPU A Diode) - 43.25, 43.25
TCAG () - 80, 80
TCAH (CPU A HeatSink) - 39.75, 39.75
TCAS () - 39.75, 39.75
TCBC (CPU B core from PCECI) - 33.625, 66.375
TCBD (CPU B Diode) - 36.875, 36.875
TCBG () - 80, 80
TCBH (CPU B HeatSink) - 32.875, 32.875
TCBS () - 33, 33
TH1F () - 32.5391, 32.5391
TH1P (Drive Bay 0) - 32.5, 32.5
TH1V () - 35.2227, 35.2227
TH2F () - 34.1992, 34.1992
TH2P (Drive Bay 1) - 34.375, 34.375
TH2V () - 33.4062, 33.4062
TH3F () - 33.9375, 33.9375
TH3P (Drive Bay 2) - 34, 34
TH3V () - 32.8633, 32.8633
TH4F () - 33.082, 33.082
TH4P (Drive Bay 3) - 33.125, 33.125
TH4V () - 35.3047, 35.3047
THPS () - 35.2969, 35.2969
THTG () - 58, 58
TM1P (DIMM Proximity 1) - 36.5, 36.5
TM2P (DIMM Proximity 2) - 37.375, 37.375
TM3P (DIMM Proximity 3) - 38.625, 38.625
TM4P (DIMM Proximity 4) - 38.25, 38.25
TM5P (DIMM Proximity 5) - 38.5, 38.5
TM6P (DIMM Proximity 6) - 40.625, 40.625
TM7P (DIMM Proximity 7) - 37.5, 37.5
TM8P (DIMM Proximity 8) - 29.5, 29.5
TMA1 () - 40.75, 40.75
TMA2 () - 42.5, 42.5
TMA3 () - 42.75, 42.75
TMA4 () - 42.25, 42.25
TMB1 () - 34, 34
TMB2 () - 33.5, 33.5
TMB3 () - 33.75, 33.75
TMB4 () - 32, 32
TMHS () - 42.75, 42.75
TMLS () - 32, 32
TMPS () - 42.75, 42.75
TMPV () - 40.0859, 40.0859
TMTG () - 75, 75
TN0D (IOH Diode) - 59.25, 59.25
TN0H (IOH HeatSink) - 47.125, 47.125
TNTG () - 65, 65
Te1F () - 128, 128
Te1P (PCIE Ambient) - 34.375, 34.375
Te1S () - 128, 128
Te2F () - 129, 129
Te2S () - 129, 129
Te3F () - 129, 129
Te3S () - 129, 129
Te4F () - 129, 129
Te4S () - 129, 129
Te5F () - 129, 129
Te5S () - 129, 129
TeGG () - 85, 85
TeGP () - 0, 0
TeRG () - 60, 60
TeRP () - 0, 0
Tp0C (PSMI Supply AC/DC Supply 1) - 39.8125, 39.8125
Tp1C (PSMI Supply AC/DC Supply 2) - 40.3906, 40.3906
TpPS () - 40.3906, 40.3906
TpTG () - 90, 90


Disk drives:
Samsung SSD 840 Series - 35
OWC Mercury Electra 6G SSD - 37
ADATA SU800 - 30
WDC WD50EZRX-00MVLB1 - 35
WDC WD2500AAJS-75M0A0 - 33
WDC WD1001FALS-403AA0 - 35
Hmm. So if we know where is the config file we can setup fans control directly. In linux too.:
Code:
PCI-min{800}curr{798}max{4500}mode{2,TA0P,32,40}
PS-min{600}curr{914}max{2800}mode{2,Tp1C,38,48}
EXHAUST-min{600}curr{599}max{2800}mode{0}
INTAKE-min{600}curr{1864}max{2800}mode{2,TN0D,53,63}
BOOSTA-min{800}curr{3168}max{5200}mode{2,TN0D,53,63}
BOOSTB-min{800}curr{1113}max{5200}mode{0}
[automerge]1576089289[/automerge]
Code:
[2019-12-11 13:16:39:922] [thread 43505] [app.cpp#132] Macs Fan Control 1.4.12
[2019-12-11 13:16:39:922] [thread 43505] [app.cpp#133] macOS 10.15.2
[2019-12-11 13:16:39:922] [thread 43505] [app.cpp#134] MacPro5,1
[2019-12-11 13:16:39:922] [thread 43505] [app.cpp#135] Intel(R) Xeon(R) CPU X5690 @ 3.47GHz
[2019-12-11 13:16:39:922] [thread 43505] [app.cpp#136] Qt 5.6.3
[2019-12-11 13:16:39:927] [thread 43505] [SMC/Service.cpp#78] detectSmcFanKeySize KeyType fpe2
[2019-12-11 13:16:39:927] [thread 43505] [SMC/Service.cpp#79] detectSmcFanKeySize KeyLen 2
[2019-12-11 13:16:40:498] [thread 43585] [core/FanControl.cpp#253] InitialLoadThread
[2019-12-11 13:16:40:498] [thread 43585] [core/FanControl.cpp#108] QFanControl::loadFansFromSMC
[2019-12-11 13:16:40:500] [thread 43585] [core/FanControl.cpp#114] Fans count - 6
[2019-12-11 13:16:40:510] [thread 43585] [core/FanControl.cpp#137] PCI
[2019-12-11 13:16:40:516] [thread 43585] [core/FanControl.cpp#137] PS
[2019-12-11 13:16:40:522] [thread 43585] [core/FanControl.cpp#137] EXHAUST
[2019-12-11 13:16:40:528] [thread 43585] [core/FanControl.cpp#137] INTAKE
[2019-12-11 13:16:40:535] [thread 43585] [core/FanControl.cpp#137] BOOSTA
[2019-12-11 13:16:40:541] [thread 43585] [core/FanControl.cpp#137] BOOSTB
[2019-12-11 13:16:40:541] [thread 43585] [core/FanControl.cpp#257] InitialLoadThread - smc_get_fans_control_mode
[2019-12-11 13:16:40:545] [thread 43585] [core/FanControl.cpp#77] Fan 0 mode is auto
[2019-12-11 13:16:40:545] [thread 43585] [core/FanControl.cpp#77] Fan 1 mode is auto
[2019-12-11 13:16:40:545] [thread 43585] [core/FanControl.cpp#77] Fan 2 mode is auto
[2019-12-11 13:16:40:545] [thread 43585] [core/FanControl.cpp#77] Fan 3 mode is auto
[2019-12-11 13:16:40:545] [thread 43585] [core/FanControl.cpp#77] Fan 4 mode is auto
[2019-12-11 13:16:40:545] [thread 43585] [core/FanControl.cpp#77] Fan 5 mode is auto
[2019-12-11 13:16:40:545] [thread 43585] [core/FanControl.cpp#261] InitialLoadThread - QTempSensorSmart::loadAvailableSensors
[2019-12-11 13:16:40:560] [thread 43585] [core/FanControl.cpp#265] InitialLoadThread - FilterSupportedTempSensors
[2019-12-11 13:16:40:563] [thread 43585] [SMC/Service.cpp#47] getSMCKeysCount: 2365652992 397
[2019-12-11 13:16:40:932] [thread 43585] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te1S with value of 128
[2019-12-11 13:16:40:932] [thread 43585] [core/TempSensorSmc.cpp#329] FilterSupportedTempSensors - skipping sensor Te1S
[2019-12-11 13:16:40:935] [thread 43585] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te2S with value of 129
[2019-12-11 13:16:40:935] [thread 43585] [core/TempSensorSmc.cpp#329] FilterSupportedTempSensors - skipping sensor Te2S
[2019-12-11 13:16:40:937] [thread 43585] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te3S with value of 129
[2019-12-11 13:16:40:937] [thread 43585] [core/TempSensorSmc.cpp#329] FilterSupportedTempSensors - skipping sensor Te3S
[2019-12-11 13:16:40:941] [thread 43585] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te4S with value of 129
[2019-12-11 13:16:40:941] [thread 43585] [core/TempSensorSmc.cpp#329] FilterSupportedTempSensors - skipping sensor Te4S
[2019-12-11 13:16:40:944] [thread 43585] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te5S with value of 129
[2019-12-11 13:16:40:944] [thread 43585] [core/TempSensorSmc.cpp#329] FilterSupportedTempSensors - skipping sensor Te5S
[2019-12-11 13:16:40:950] [thread 43585] [core/FanControl.cpp#278] InitialLoadThread: number of supported SMC sensors: 24
[2019-12-11 13:16:40:950] [thread 43585] [core/FanControl.cpp#279] InitialLoadThread: number of supported SMART sensors: 6
[2019-12-11 13:16:41:014] [thread 43585] [SMC/Service.cpp#461] Set fans mode 1
[2019-12-11 13:16:41:078] [thread 43585] [SMC/Service.cpp#461] Set fans mode 3
[2019-12-11 13:16:41:141] [thread 43585] [SMC/Service.cpp#461] Set fans mode 11
[2019-12-11 13:16:41:205] [thread 43585] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:16:42:231] [thread 43633] [core/SensorControl.cpp#393] PCI: Setting fan speed to 800
[2019-12-11 13:16:42:295] [thread 43633] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:16:42:360] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3200 for F0Tg
[2019-12-11 13:16:42:360] [thread 43633] [core/SensorControl.cpp#109] PS: HALF INCREASE ON
[2019-12-11 13:16:42:360] [thread 43633] [core/SensorControl.cpp#114] PS: Tendency is set to TendencyIncrease, Temperature 40, RPM=596
[2019-12-11 13:16:42:360] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 821
[2019-12-11 13:16:42:423] [thread 43633] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:16:42:487] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3284 for F1Tg
[2019-12-11 13:16:42:487] [thread 43633] [core/SensorControl.cpp#109] INTAKE: HALF INCREASE ON
[2019-12-11 13:16:42:487] [thread 43633] [core/SensorControl.cpp#114] INTAKE: Tendency is set to TendencyIncrease, Temperature 59, RPM=907
[2019-12-11 13:16:42:487] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1701
[2019-12-11 13:16:42:552] [thread 43633] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:16:42:616] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6804 for F3Tg
[2019-12-11 13:16:42:616] [thread 43633] [core/SensorControl.cpp#109] BOOSTA: HALF INCREASE ON
[2019-12-11 13:16:42:616] [thread 43633] [core/SensorControl.cpp#114] BOOSTA: Tendency is set to TendencyIncrease, Temperature 59, RPM=984
[2019-12-11 13:16:42:616] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3001
[2019-12-11 13:16:42:679] [thread 43633] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:16:42:744] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12004 for F4Tg
[2019-12-11 13:16:43:746] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 822
[2019-12-11 13:16:43:810] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3288 for F1Tg
[2019-12-11 13:16:43:810] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1702
[2019-12-11 13:16:43:874] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6808 for F3Tg
[2019-12-11 13:16:43:874] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3002
[2019-12-11 13:16:43:938] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12008 for F4Tg
[2019-12-11 13:16:44:938] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 823
[2019-12-11 13:16:45:003] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3292 for F1Tg
[2019-12-11 13:16:45:003] [thread 43633] [core/SensorControl.cpp#212] INTAKE: Temperature INCREASED to 60
[2019-12-11 13:16:45:003] [thread 43633] [core/SensorControl.cpp#226] INTAKE: HALF INCREASE OFF
[2019-12-11 13:16:45:003] [thread 43633] [core/SensorControl.cpp#290] INTAKE: Tendency is set to TendencyIncrease
[2019-12-11 13:16:45:003] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1704
[2019-12-11 13:16:45:067] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6816 for F3Tg
[2019-12-11 13:16:45:067] [thread 43633] [core/SensorControl.cpp#212] BOOSTA: Temperature INCREASED to 60
[2019-12-11 13:16:45:067] [thread 43633] [core/SensorControl.cpp#226] BOOSTA: HALF INCREASE OFF
[2019-12-11 13:16:45:067] [thread 43633] [core/SensorControl.cpp#290] BOOSTA: Tendency is set to TendencyIncrease
[2019-12-11 13:16:45:067] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3004
[2019-12-11 13:16:45:132] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12016 for F4Tg
[2019-12-11 13:16:46:132] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 824
[2019-12-11 13:16:46:196] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3296 for F1Tg
[2019-12-11 13:16:46:196] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1706
[2019-12-11 13:16:46:260] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6824 for F3Tg
[2019-12-11 13:16:46:260] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3006
[2019-12-11 13:16:46:325] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12024 for F4Tg
[2019-12-11 13:16:46:936] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te1F with value of 128
[2019-12-11 13:16:46:938] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te1S with value of 128
[2019-12-11 13:16:46:942] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te2F with value of 129
[2019-12-11 13:16:46:943] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te2S with value of 129
[2019-12-11 13:16:46:946] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te3F with value of 129
[2019-12-11 13:16:46:947] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te3S with value of 129
[2019-12-11 13:16:46:951] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te4F with value of 129
[2019-12-11 13:16:46:951] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te4S with value of 129
[2019-12-11 13:16:46:955] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te5F with value of 129
[2019-12-11 13:16:46:957] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor Te5S with value of 129
[2019-12-11 13:16:46:963] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor TeGP with value of 0
[2019-12-11 13:16:46:969] [thread 43505] [SMC/Service.cpp#630] WARNING: getTemperature - skipping sensor TeRP with value of 0
[2019-12-11 13:16:47:329] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 825
[2019-12-11 13:16:47:394] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3300 for F1Tg
[2019-12-11 13:16:47:394] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1708
[2019-12-11 13:16:47:457] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6832 for F3Tg
[2019-12-11 13:16:47:457] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3008
[2019-12-11 13:16:47:522] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12032 for F4Tg
[2019-12-11 13:16:48:525] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 826
[2019-12-11 13:16:48:589] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3304 for F1Tg
[2019-12-11 13:16:48:589] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1710
[2019-12-11 13:16:48:653] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6840 for F3Tg
[2019-12-11 13:16:48:653] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3010
[2019-12-11 13:16:48:717] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12040 for F4Tg
[2019-12-11 13:16:49:719] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 827
[2019-12-11 13:16:49:784] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3308 for F1Tg
[2019-12-11 13:16:49:784] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1712
[2019-12-11 13:16:49:847] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6848 for F3Tg
[2019-12-11 13:16:49:847] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3012
[2019-12-11 13:16:49:912] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12048 for F4Tg
[2019-12-11 13:16:50:913] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 828
[2019-12-11 13:16:50:977] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3312 for F1Tg
[2019-12-11 13:16:50:977] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1714
[2019-12-11 13:16:51:042] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6856 for F3Tg
[2019-12-11 13:16:51:042] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3014
[2019-12-11 13:16:51:106] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12056 for F4Tg
[2019-12-11 13:16:52:108] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 829
[2019-12-11 13:16:52:172] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3316 for F1Tg
[2019-12-11 13:16:52:172] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1716
[2019-12-11 13:16:52:236] [thread 43633] [SMC/Service.cpp#318] se
tFanRPM 6864 for F3Tg
[2019-12-11 13:16:52:236] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3016
[2019-12-11 13:16:52:300] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12064 for F4Tg
[2019-12-11 13:16:53:301] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 830
[2019-12-11 13:16:53:366] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3320 for F1Tg
[2019-12-11 13:16:53:366] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1718
[2019-12-11 13:16:53:431] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6872 for F3Tg
[2019-12-11 13:16:53:431] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3018
[2019-12-11 13:16:53:495] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12072 for F4Tg
[2019-12-11 13:16:54:500] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 831
[2019-12-11 13:16:54:565] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3324 for F1Tg
[2019-12-11 13:16:54:565] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1720
[2019-12-11 13:16:54:629] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6880 for F3Tg
[2019-12-11 13:16:54:629] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3020
[2019-12-11 13:16:54:693] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12080 for F4Tg
[2019-12-11 13:16:55:695] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 832
[2019-12-11 13:16:55:760] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3328 for F1Tg
[2019-12-11 13:16:55:760] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1722
[2019-12-11 13:16:55:824] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6888 for F3Tg
[2019-12-11 13:16:55:824] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3022
[2019-12-11 13:16:55:888] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12088 for F4Tg
[2019-12-11 13:16:56:891] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 833
[2019-12-11 13:16:56:956] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3332 for F1Tg
[2019-12-11 13:16:56:956] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1724
[2019-12-11 13:16:57:024] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6896 for F3Tg
[2019-12-11 13:16:57:024] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3024
[2019-12-11 13:16:57:088] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12096 for F4Tg
[2019-12-11 13:16:58:090] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 834
[2019-12-11 13:16:58:155] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3336 for F1Tg
[2019-12-11 13:16:58:155] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1726
[2019-12-11 13:16:58:218] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6904 for F3Tg
[2019-12-11 13:16:58:218] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3026
[2019-12-11 13:16:58:283] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12104 for F4Tg
[2019-12-11 13:16:59:284] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 835
[2019-12-11 13:16:59:349] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3340 for F1Tg
[2019-12-11 13:16:59:349] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1728
[2019-12-11 13:16:59:413] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6912 for F3Tg
[2019-12-11 13:16:59:413] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3028
[2019-12-11 13:16:59:477] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12112 for F4Tg
[2019-12-11 13:17:00:479] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 836
[2019-12-11 13:17:00:544] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3344 for F1Tg
[2019-12-11 13:17:00:544] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1730
[2019-12-11 13:17:00:610] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6920 for F3Tg
[2019-12-11 13:17:00:610] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan s
peed to 3030
[2019-12-11 13:17:00:676] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12120 for F4Tg
[2019-12-11 13:17:01:676] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 837
[2019-12-11 13:17:01:740] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3348 for F1Tg
[2019-12-11 13:17:01:740] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1732
[2019-12-11 13:17:01:805] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6928 for F3Tg
[2019-12-11 13:17:01:805] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3032
[2019-12-11 13:17:01:869] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12128 for F4Tg
[2019-12-11 13:17:02:872] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 838
[2019-12-11 13:17:02:936] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3352 for F1Tg
[2019-12-11 13:17:02:936] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1734
[2019-12-11 13:17:03:000] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6936 for F3Tg
[2019-12-11 13:17:03:000] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3034
[2019-12-11 13:17:03:064] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12136 for F4Tg
[2019-12-11 13:17:04:068] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 839
[2019-12-11 13:17:04:132] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3356 for F1Tg
[2019-12-11 13:17:04:132] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1736
[2019-12-11 13:17:04:197] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6944 for F3Tg
[2019-12-11 13:17:04:197] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3036
[2019-12-11 13:17:04:262] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12144 for F4Tg
[2019-12-11 13:17:05:262] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 840
[2019-12-11 13:17:05:326] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3360 for F1Tg
[2019-12-11 13:17:05:326] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1738
[2019-12-11 13:17:05:390] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6952 for F3Tg
[2019-12-11 13:17:05:390] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3038
[2019-12-11 13:17:05:453] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12152 for F4Tg
[2019-12-11 13:17:06:454] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 841
[2019-12-11 13:17:06:519] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3364 for F1Tg
[2019-12-11 13:17:06:519] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1740
[2019-12-11 13:17:06:583] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6960 for F3Tg
[2019-12-11 13:17:06:583] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3040
[2019-12-11 13:17:06:647] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12160 for F4Tg
[2019-12-11 13:17:07:649] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 842
[2019-12-11 13:17:07:713] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3368 for F1Tg
[2019-12-11 13:17:07:713] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1742
[2019-12-11 13:17:07:777] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6968 for F3Tg
[2019-12-11 13:17:07:777] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3042
[2019-12-11 13:17:07:843] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12168 for F4Tg
[2019-12-11 13:17:08:846] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 843
[2019-12-11 13:17:08:910] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3372 for F1Tg
[2019-12-11 13:17:08:910] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1744
[2019-12-11 13:17:08:975] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6976 for F3Tg
[2019-12-11 13:17:08:975] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3044
[2019-12-11 13:17:09:038] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12176 for F4Tg
[2019-12-11
13:17:10:039] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 844
[2019-12-11 13:17:10:103] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3376 for F1Tg
[2019-12-11 13:17:10:103] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1746
[2019-12-11 13:17:10:167] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6984 for F3Tg
[2019-12-11 13:17:10:167] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3046
[2019-12-11 13:17:10:231] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12184 for F4Tg
[2019-12-11 13:17:11:231] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 845
[2019-12-11 13:17:11:297] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3380 for F1Tg
[2019-12-11 13:17:11:297] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1748
[2019-12-11 13:17:11:363] [thread 43633] [SMC/Service.cpp#318] setFanRPM 6992 for F3Tg
[2019-12-11 13:17:11:363] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3048
[2019-12-11 13:17:11:430] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12192 for F4Tg
[2019-12-11 13:17:12:430] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 846
[2019-12-11 13:17:12:495] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3384 for F1Tg
[2019-12-11 13:17:12:495] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1750
[2019-12-11 13:17:12:560] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7000 for F3Tg
[2019-12-11 13:17:12:560] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3050
[2019-12-11 13:17:12:624] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12200 for F4Tg
[2019-12-11 13:17:13:690] [thread 43633] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:17:13:755] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3200 for F0Tg
[2019-12-11 13:17:13:755] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 847
[2019-12-11 13:17:13:819] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3388 for F1Tg
[2019-12-11 13:17:13:819] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1752
[2019-12-11 13:17:13:884] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7008 for F3Tg
[2019-12-11 13:17:13:884] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3052
[2019-12-11 13:17:13:949] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12208 for F4Tg
[2019-12-11 13:17:14:954] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 848
[2019-12-11 13:17:15:018] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3392 for F1Tg
[2019-12-11 13:17:15:018] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1754
[2019-12-11 13:17:15:083] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7016 for F3Tg
[2019-12-11 13:17:15:083] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3054
[2019-12-11 13:17:15:146] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12216 for F4Tg
[2019-12-11 13:17:16:147] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 849
[2019-12-11 13:17:16:211] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3396 for F1Tg
[2019-12-11 13:17:16:211] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1756
[2019-12-11 13:17:16:276] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7024 for F3Tg
[2019-12-11 13:17:16:276] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3056
[2019-12-11 13:17:16:340] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12224 for F4Tg
[2019-12-11 13:17:17:345] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 850
[2019-12-11 13:17:17:410] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3400 for F1Tg
[2019-12-11 13:17:17:410] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1758
[2019-12-11 13:17:17:474] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7032 for F3Tg
[2019-12-11 13:17:17:474] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3058
[2019-12-11 13:17:17:538] [thread 43633] [SMC/
Service.cpp#318] setFanRPM 12232 for F4Tg
[2019-12-11 13:17:18:543] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 851
[2019-12-11 13:17:18:608] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3404 for F1Tg
[2019-12-11 13:17:18:608] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1760
[2019-12-11 13:17:18:672] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7040 for F3Tg
[2019-12-11 13:17:18:672] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3060
[2019-12-11 13:17:18:737] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12240 for F4Tg
[2019-12-11 13:17:19:737] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 852
[2019-12-11 13:17:19:802] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3408 for F1Tg
[2019-12-11 13:17:19:802] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1762
[2019-12-11 13:17:19:867] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7048 for F3Tg
[2019-12-11 13:17:19:867] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3062
[2019-12-11 13:17:19:931] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12248 for F4Tg
[2019-12-11 13:17:20:936] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 853
[2019-12-11 13:17:21:001] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3412 for F1Tg
[2019-12-11 13:17:21:001] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1764
[2019-12-11 13:17:21:065] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7056 for F3Tg
[2019-12-11 13:17:21:065] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3064
[2019-12-11 13:17:21:130] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12256 for F4Tg
[2019-12-11 13:17:22:135] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 854
[2019-12-11 13:17:22:199] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3416 for F1Tg
[2019-12-11 13:17:22:199] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1766
[2019-12-11 13:17:22:263] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7064 for F3Tg
[2019-12-11 13:17:22:263] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3066
[2019-12-11 13:17:22:327] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12264 for F4Tg
[2019-12-11 13:17:23:329] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 855
[2019-12-11 13:17:23:394] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3420 for F1Tg
[2019-12-11 13:17:23:394] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1768
[2019-12-11 13:17:23:458] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7072 for F3Tg
[2019-12-11 13:17:23:458] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3068
[2019-12-11 13:17:23:523] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12272 for F4Tg
[2019-12-11 13:17:24:527] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 856
[2019-12-11 13:17:24:591] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3424 for F1Tg
[2019-12-11 13:17:24:591] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1770
[2019-12-11 13:17:24:655] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7080 for F3Tg
[2019-12-11 13:17:24:655] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3070
[2019-12-11 13:17:24:720] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12280 for F4Tg
[2019-12-11 13:17:25:721] [thread 43633] [core/SensorControl.cpp#212] PS: Temperature INCREASED to 41
[2019-12-11 13:17:25:721] [thread 43633] [core/SensorControl.cpp#226] PS: HALF INCREASE OFF
[2019-12-11 13:17:25:721] [thread 43633] [core/SensorControl.cpp#290] PS: Tendency is set to TendencyIncrease
[2019-12-11 13:17:25:721] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 858
[2019-12-11 13:17:25:786] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3432 for F1Tg
[2019-12-11 13:17:25:786] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1772
[2019-12-11 13:17:25:849] [thread 43633] [SMC/
Service.cpp#318] setFanRPM 7088 for F3Tg
[2019-12-11 13:17:25:849] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3072
[2019-12-11 13:17:25:914] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12288 for F4Tg
[2019-12-11 13:17:26:915] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 860
[2019-12-11 13:17:26:979] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3440 for F1Tg
[2019-12-11 13:17:26:979] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1774
[2019-12-11 13:17:27:044] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7096 for F3Tg
[2019-12-11 13:17:27:044] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3074
[2019-12-11 13:17:27:109] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12296 for F4Tg
[2019-12-11 13:17:28:112] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 862
[2019-12-11 13:17:28:177] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3448 for F1Tg
[2019-12-11 13:17:28:177] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1776
[2019-12-11 13:17:28:241] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7104 for F3Tg
[2019-12-11 13:17:28:241] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3076
[2019-12-11 13:17:28:305] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12304 for F4Tg
[2019-12-11 13:17:29:310] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 864
[2019-12-11 13:17:29:374] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3456 for F1Tg
[2019-12-11 13:17:29:374] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1778
[2019-12-11 13:17:29:438] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7112 for F3Tg
[2019-12-11 13:17:29:438] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3078
[2019-12-11 13:17:29:502] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12312 for F4Tg
[2019-12-11 13:17:30:503] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 866
[2019-12-11 13:17:30:568] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3464 for F1Tg
[2019-12-11 13:17:30:568] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1780
[2019-12-11 13:17:30:633] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7120 for F3Tg
[2019-12-11 13:17:30:633] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3080
[2019-12-11 13:17:30:698] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12320 for F4Tg
[2019-12-11 13:17:31:699] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 868
[2019-12-11 13:17:31:764] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3472 for F1Tg
[2019-12-11 13:17:31:764] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1782
[2019-12-11 13:17:31:828] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7128 for F3Tg
[2019-12-11 13:17:31:828] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3082
[2019-12-11 13:17:31:892] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12328 for F4Tg
[2019-12-11 13:17:32:896] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 870
[2019-12-11 13:17:32:960] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3480 for F1Tg
[2019-12-11 13:17:32:960] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1784
[2019-12-11 13:17:33:024] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7136 for F3Tg
[2019-12-11 13:17:33:024] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3084
[2019-12-11 13:17:33:088] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12336 for F4Tg
[2019-12-11 13:17:34:093] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 872
[2019-12-11 13:17:34:157] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3488 for F1Tg
[2019-12-11 13:17:34:157] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1786
[2019-12-11 13:17:34:223] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7144 for F3Tg
[2019-12-11 13:17:34:223] [thread 43633] [core/SensorControl.cpp#393] BO
OSTA: Setting fan speed to 3086
[2019-12-11 13:17:34:288] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12344 for F4Tg
[2019-12-11 13:17:35:288] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 874
[2019-12-11 13:17:35:352] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3496 for F1Tg
[2019-12-11 13:17:35:352] [thread 43633] [core/SensorControl.cpp#159] INTAKE: Temperature DECREASED to 59
[2019-12-11 13:17:35:352] [thread 43633] [core/SensorControl.cpp#208] INTAKE: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:35:352] [thread 43633] [core/SensorControl.cpp#159] BOOSTA: Temperature DECREASED to 59
[2019-12-11 13:17:35:352] [thread 43633] [core/SensorControl.cpp#208] BOOSTA: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:36:353] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 876
[2019-12-11 13:17:36:418] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3504 for F1Tg
[2019-12-11 13:17:36:418] [thread 43633] [core/SensorControl.cpp#212] INTAKE: Temperature INCREASED to 60
[2019-12-11 13:17:36:418] [thread 43633] [core/SensorControl.cpp#283] INTAKE: Ignoring temperature change
[2019-12-11 13:17:36:418] [thread 43633] [core/SensorControl.cpp#290] INTAKE: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:36:418] [thread 43633] [core/SensorControl.cpp#212] BOOSTA: Temperature INCREASED to 60
[2019-12-11 13:17:36:418] [thread 43633] [core/SensorControl.cpp#283] BOOSTA: Ignoring temperature change
[2019-12-11 13:17:36:418] [thread 43633] [core/SensorControl.cpp#290] BOOSTA: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:37:421] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 878
[2019-12-11 13:17:37:485] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3512 for F1Tg
[2019-12-11 13:17:37:485] [thread 43633] [core/SensorControl.cpp#212] INTAKE: Temperature INCREASED to 60
[2019-12-11 13:17:37:485] [thread 43633] [core/SensorControl.cpp#283] INTAKE: Ignoring temperature change
[2019-12-11 13:17:37:485] [thread 43633] [core/SensorControl.cpp#290] INTAKE: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:37:485] [thread 43633] [core/SensorControl.cpp#212] BOOSTA: Temperature INCREASED to 60
[2019-12-11 13:17:37:486] [thread 43633] [core/SensorControl.cpp#283] BOOSTA: Ignoring temperature change
[2019-12-11 13:17:37:486] [thread 43633] [core/SensorControl.cpp#290] BOOSTA: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:38:486] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 880
[2019-12-11 13:17:38:551] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3520 for F1Tg
[2019-12-11 13:17:38:551] [thread 43633] [core/SensorControl.cpp#212] INTAKE: Temperature INCREASED to 60
[2019-12-11 13:17:38:551] [thread 43633] [core/SensorControl.cpp#283] INTAKE: Ignoring temperature change
[2019-12-11 13:17:38:551] [thread 43633] [core/SensorControl.cpp#290] INTAKE: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:38:551] [thread 43633] [core/SensorControl.cpp#212] BOOSTA: Temperature INCREASED to 60
[2019-12-11 13:17:38:551] [thread 43633] [core/SensorControl.cpp#283] BOOSTA: Ignoring temperature change
[2019-12-11 13:17:38:551] [thread 43633] [core/SensorControl.cpp#290] BOOSTA: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:39:554] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 882
[2019-12-11 13:17:39:619] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3528 for F1Tg
[2019-12-11 13:17:40:621] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 884
[2019-12-11 13:17:40:685] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3536 for F1Tg
[2019-12-11 13:17:41:687] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 886
[2019-12-11 13:17:41:752] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3544 for F1Tg
[2019-12-11 13:17:42:754] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 888
[2019-12-11 13:17:42:818] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3552 for F1Tg
[2019-12-11 13:17:43:820] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fa
n speed to 890
[2019-12-11 13:17:43:884] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3560 for F1Tg
[2019-12-11 13:17:44:952] [thread 43633] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:17:45:016] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3200 for F0Tg
[2019-12-11 13:17:45:016] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 892
[2019-12-11 13:17:45:080] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3568 for F1Tg
[2019-12-11 13:17:45:080] [thread 43633] [core/SensorControl.cpp#212] INTAKE: Temperature INCREASED to 60
[2019-12-11 13:17:45:080] [thread 43633] [core/SensorControl.cpp#283] INTAKE: Ignoring temperature change
[2019-12-11 13:17:45:080] [thread 43633] [core/SensorControl.cpp#290] INTAKE: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:45:080] [thread 43633] [core/SensorControl.cpp#212] BOOSTA: Temperature INCREASED to 60
[2019-12-11 13:17:45:080] [thread 43633] [core/SensorControl.cpp#283] BOOSTA: Ignoring temperature change
[2019-12-11 13:17:45:080] [thread 43633] [core/SensorControl.cpp#290] BOOSTA: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:46:085] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 894
[2019-12-11 13:17:46:150] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3576 for F1Tg
[2019-12-11 13:17:46:150] [thread 43633] [core/SensorControl.cpp#212] INTAKE: Temperature INCREASED to 60
[2019-12-11 13:17:46:150] [thread 43633] [core/SensorControl.cpp#283] INTAKE: Ignoring temperature change
[2019-12-11 13:17:46:150] [thread 43633] [core/SensorControl.cpp#290] INTAKE: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:46:150] [thread 43633] [core/SensorControl.cpp#212] BOOSTA: Temperature INCREASED to 60
[2019-12-11 13:17:46:150] [thread 43633] [core/SensorControl.cpp#283] BOOSTA: Ignoring temperature change
[2019-12-11 13:17:46:150] [thread 43633] [core/SensorControl.cpp#290] BOOSTA: Tendency is set to TendencyDoNothing
[2019-12-11 13:17:47:154] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 896
[2019-12-11 13:17:47:219] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3584 for F1Tg
[2019-12-11 13:17:47:219] [thread 43633] [core/SensorControl.cpp#212] INTAKE: Temperature INCREASED to 60
[2019-12-11 13:17:47:219] [thread 43633] [core/SensorControl.cpp#290] INTAKE: Tendency is set to TendencyIncrease
[2019-12-11 13:17:47:219] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1788
[2019-12-11 13:17:47:283] [thread 43633] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:17:47:347] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7152 for F3Tg
[2019-12-11 13:17:47:347] [thread 43633] [core/SensorControl.cpp#212] BOOSTA: Temperature INCREASED to 60
[2019-12-11 13:17:47:347] [thread 43633] [core/SensorControl.cpp#290] BOOSTA: Tendency is set to TendencyIncrease
[2019-12-11 13:17:47:347] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3088
[2019-12-11 13:17:47:412] [thread 43633] [SMC/Service.cpp#461] Set fans mode 27
[2019-12-11 13:17:47:476] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12352 for F4Tg
[2019-12-11 13:17:48:478] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 898
[2019-12-11 13:17:48:543] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3592 for F1Tg
[2019-12-11 13:17:48:543] [thread 43633] [core/SensorControl.cpp#159] INTAKE: Temperature DECREASED to 59
[2019-12-11 13:17:48:543] [thread 43633] [core/SensorControl.cpp#183] INTAKE: Ignoring temperature change
[2019-12-11 13:17:48:543] [thread 43633] [core/SensorControl.cpp#208] INTAKE: Tendency is set to TendencyIncrease
[2019-12-11 13:17:48:543] [thread 43633] [core/SensorControl.cpp#393] INTAKE: Setting fan speed to 1790
[2019-12-11 13:17:48:607] [thread 43633] [SMC/Service.cpp#318] setFanRPM 7160 for F3Tg
[2019-12-11 13:17:48:607] [thread 43633] [core/SensorControl.cpp#159] BOOSTA: Temperature DECREASED to 59
[2019-12-11 13:17:48:607] [thread 43633] [core/SensorControl.cpp#183] BOOSTA: Ignoring temperature change
[2019-12-11 13:17:48:607] [thread 43633] [core/SensorControl.cp
p#208] BOOSTA: Tendency is set to TendencyIncrease
[2019-12-11 13:17:48:607] [thread 43633] [core/SensorControl.cpp#393] BOOSTA: Setting fan speed to 3090
[2019-12-11 13:17:48:671] [thread 43633] [SMC/Service.cpp#318] setFanRPM 12360 for F4Tg
[2019-12-11 13:17:49:674] [thread 43633] [core/SensorControl.cpp#393] PS: Setting fan speed to 900
[2019-12-11 13:17:49:738] [thread 43633] [SMC/Service.cpp#318] setFanRPM 3600 for F1Tg
[2019-12-11 13:17:49:738] [thread 43633] [core/SensorControl.cpp#159] INTAKE: Temperature
[CODE]


jscipione

macrumors 6502
Mar 27, 2017
407
198
TBH, looks quite bad to me, not because the temperatures are dangerously high, but the fans’ speed are to high. And the delta temperature between heatsink and diode are too large. If the cooling system is working properly, the delta T between CPU diode and heatsink should be well within 20°C.

I agree with you that my temps were looking pretty bad. I took the black spacers out and scraped some more solder off the cpu dies to make sure I was getting nice contact and reapplied thermal paste. After doing this my temps have changed to the following:

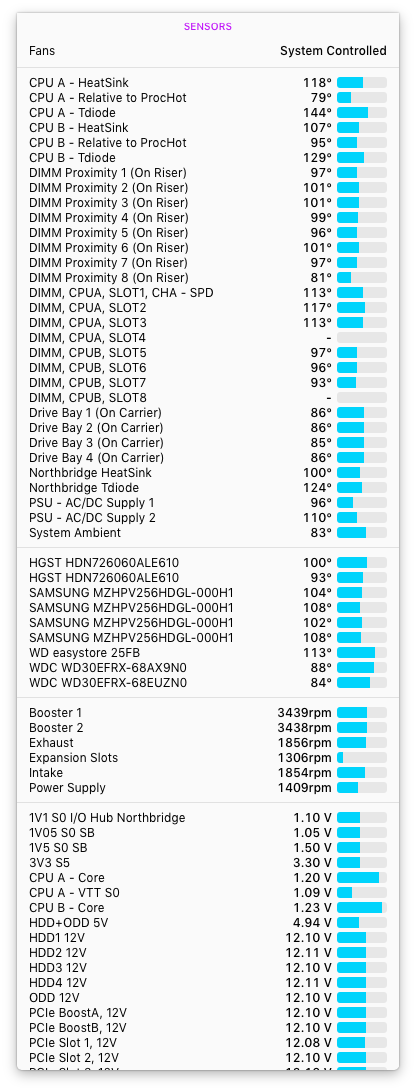

Mac Pro busily working after scraping processors.png

I am a little concerned about the CPU A is at 144°F and CPU B is 129°F but I'm hoping that is explained by the fact that hot air is coming out of B and going into A. I tried swapping the processors and the results were approximately the same. Overall I'm a lot happier with these temperatures and I'm able to encode 3 h.265 videos simultaneous instead of 2 before so thanks for pointing out that my temps looked bad.


h9826790

macrumors P6
Apr 3, 2014
15,664
7,867
Hong Kong
I agree with you that my temps were looking pretty bad. I took the black spacers out and scraped some more solder off the cpu dies to make sure I was getting nice contact and reapplied thermal paste. After doing this my temps have changed to the following:

View attachment 882673
I am a little concerned about the CPU A is at 144°F and CPU B is 129°F but I'm hoping that is explained by the fact that hot air is coming out of B and going into A. I tried swapping the processors and the results were approximately the same. Overall I'm a lot happier with these temperatures and I'm able to encode 3 h.265 videos simultaneous instead of 2 before so thanks for pointing out that my temps looked bad.

The temperature looks much better now.

Anyway, if you need to encode HEVC a lot, you may consider get yourself a Radeon VII, or Vega, then use the HEVC hardware encoding.

https://forums.macrumors.com/threads/activate-amd-hardware-acceleration.2180095/

That can be 10x faster than CPU encoding. AMD accept unlimited parallel encoding, but in my experience, the system perform better if keep that at or below 5.
[automerge]1576307728[/automerge]
This is what a Radeon VII can do in HEVC encoding.

Please use Chromium base browser to watch the video in 4k, otherwise, may be hard to read the text.

As you can see, the card can encode 4K HEVC at about 40FPS with almost no CPU usage.

Besides, the GPU also encoding the screen recording, this is why I can record the cMP screen smoothly at that resolution.

If I let the CPU to decode the source video, and stop recording the screen, the Radeon VII can do even better than that.

Last edited:
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
