Power Supply Cable Sleeving; Any Tips?

Discussion in 'Community Discussion' started by Orange Furball, Sep 15, 2013.

  1. Orange Furball macrumors 65816

    Orange Furball

    Joined:
    May 18, 2012
    Location:
    Scranton, PA, USA
    #1
    Hello all,

    I've been wanting to try this for a while, cable sleeving seems really cool. I finally decided to buy the supplies I need, so now as I await their arrival, I'm trying to plan this all out...

    I have never done a modification of this kind before. I know it'll be hard and time consuming but the end result will hopefully be beautiful.

    Has anyone here custom sleeved their power supply? I'm doing single wire sleeves of two alternating colors, orange and grey, with orange heatshrink and orange connectors (24 pin, molex, 8 pin, SATA, PCI-E, etc). The only tools I bought were an ATX pin removal tool and a Molex pin removal tool. I hope that's enough!

    If you have any tips other than "Don't do it!" Please share them. I'm really nervous that I'm gonna waste some cash and a perfectly good power supply!

  2. hallux macrumors 68020

    hallux

    Joined:
    Apr 25, 2012
    #2
    Do you have an old one you can use to test your process?

  3. Orange Furball thread starter macrumors 65816

    Orange Furball

    Joined:
    May 18, 2012
    Location:
    Scranton, PA, USA
    #3
    An old power supply?

  4. hallux macrumors 68020

    hallux

    Joined:
    Apr 25, 2012
    #4
    Yes, that's what I mean

  5. Orange Furball thread starter macrumors 65816

    Orange Furball

    Joined:
    May 18, 2012
    Location:
    Scranton, PA, USA
    #5
    Yes I have a couple laying around

  6. Orange Furball, Sep 17, 2013
    Last edited: Sep 17, 2013

    Orange Furball thread starter macrumors 65816

    Orange Furball

    Joined:
    May 18, 2012
    Location:
    Scranton, PA, USA
    #6

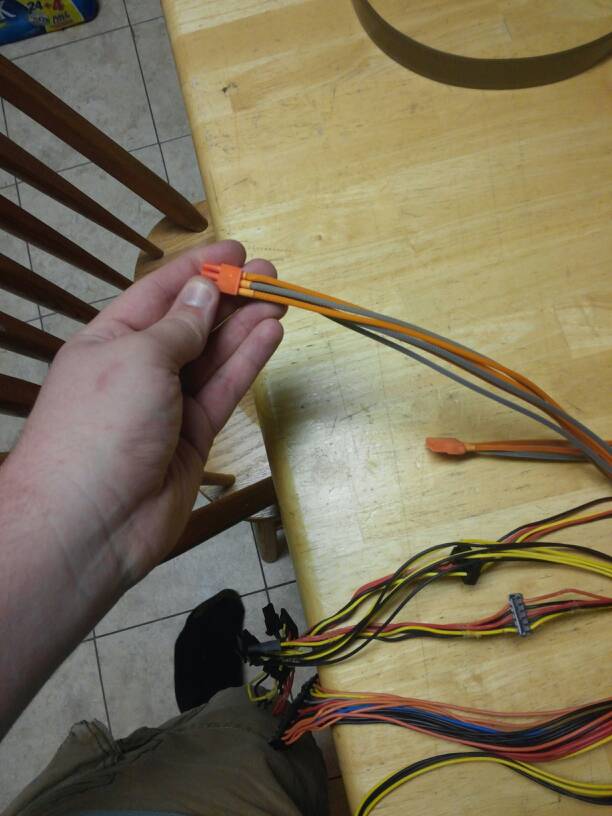

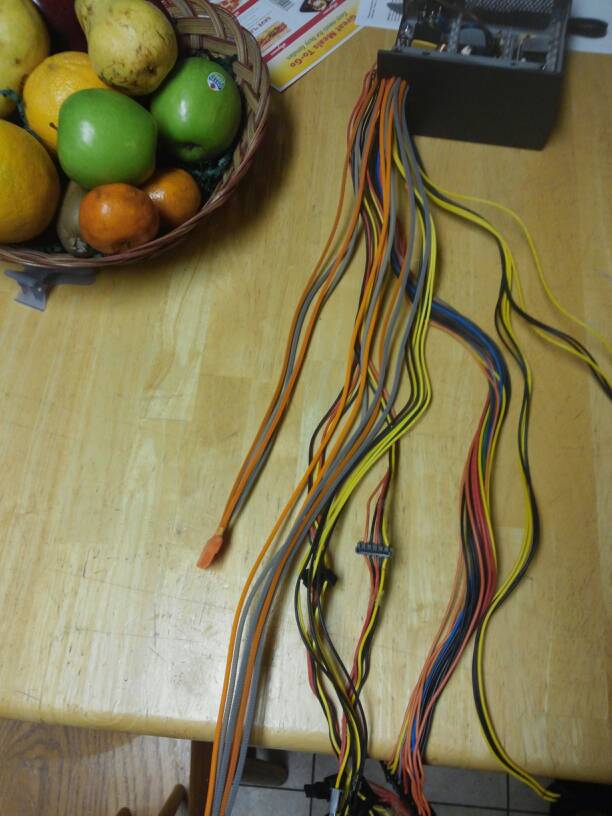

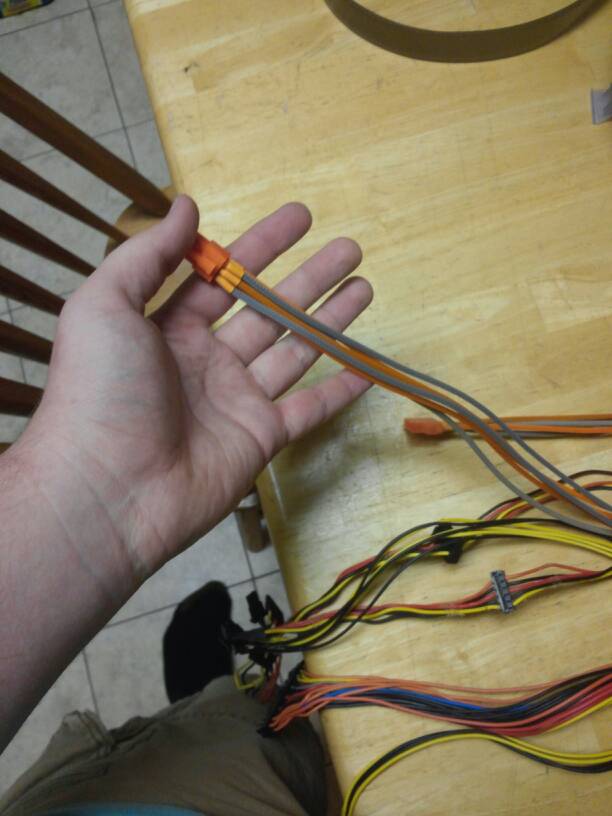

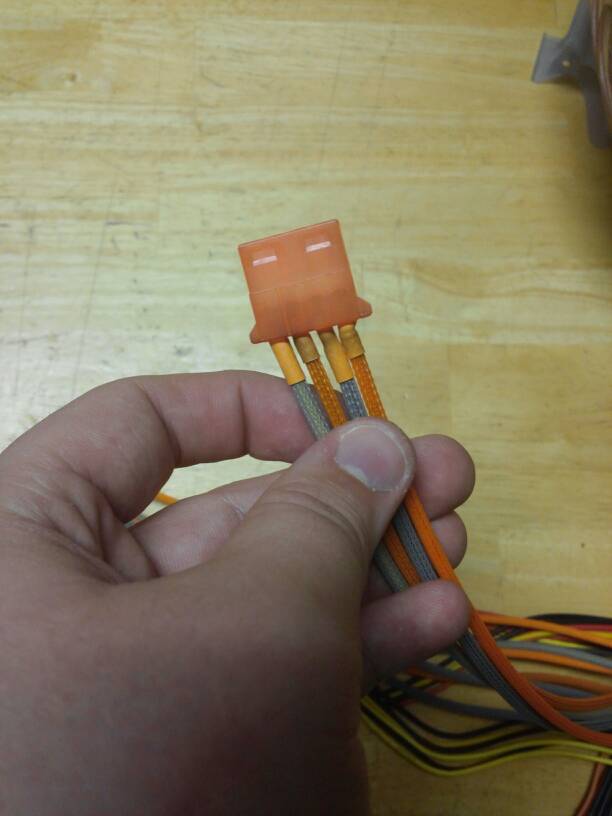

    Well here's the progress so far uploadfromtaptalk1379473902378.jpg uploadfromtaptalk1379473911761.jpg uploadfromtaptalk1379473918961.jpg uploadfromtaptalk1379473928825.jpg

    The sleeving I'm using isnt the greatest, but I wasn't planning on it being the greatest. This is just me testing how well I can do it. So far my only problem is the heatshrink. I cut all the pieces to the same length yet still cant get them to line up.

    The connector changing is easy, I bougjt all the tools from FrozenCPU.com. I wouldn't use a lighter on the heatshrink though, go to your local Harbor Freight or something and get a heat gun... That's why the molex heatshrink is a little blackened!

    I'll probably have this done by tomorrow. What you see there took 45 minutes.


    Attached Files:

  7. wordoflife macrumors 604

    wordoflife

    Joined:
    Jul 6, 2009
    #7
    That's pretty cool. Not something I'd try doing, but still cool nonetheless.

  8. Orange Furball, Sep 18, 2013
    Last edited: Sep 18, 2013

    Orange Furball thread starter macrumors 65816

    Orange Furball

    Joined:
    May 18, 2012
    Location:
    Scranton, PA, USA
    #8

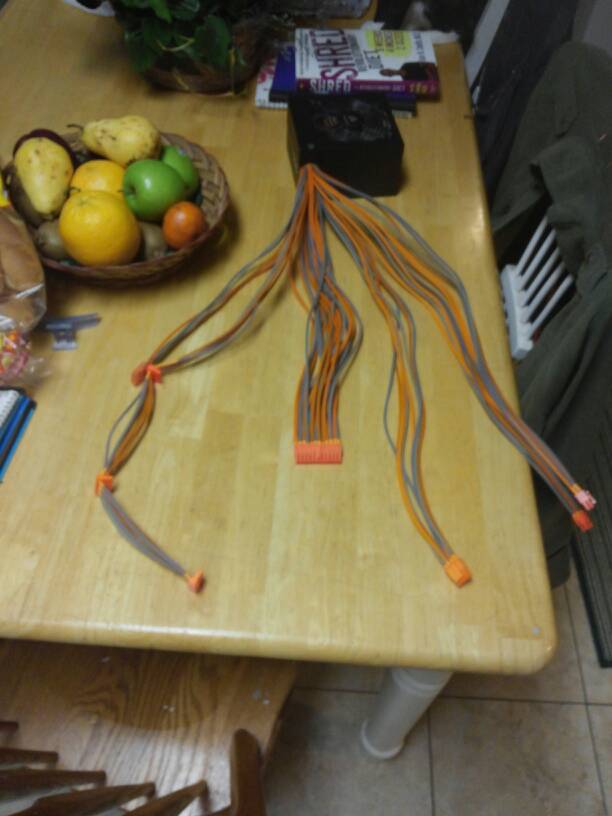

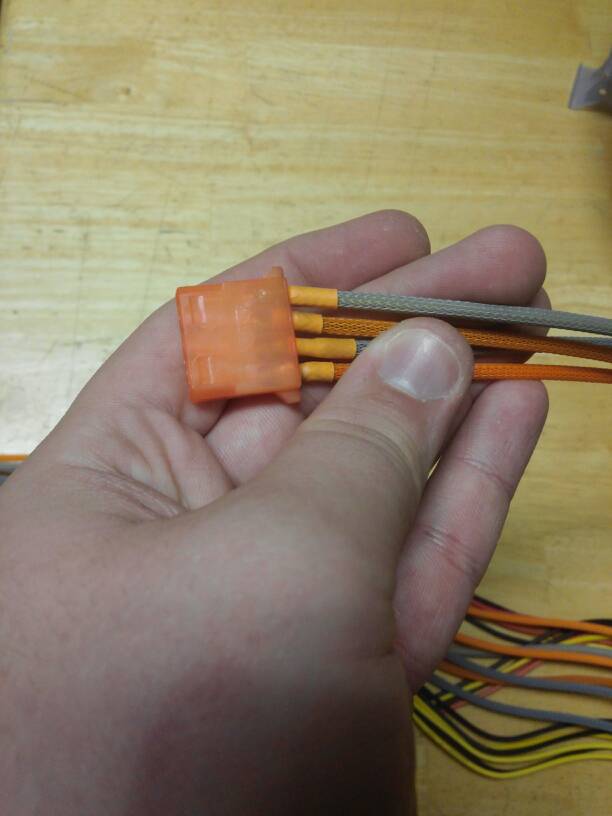

    Done!


    Not perfect but I think it's ok for a first try, plus the power supply was just a corsair cx500... Nothing fancy!


    Edit: I just ordered some black heatshrink, a crimping tool and all new pins. I'm going to shorten the cables and redo this whole thing. All the final parts will be in Friday. I'll reuse the sleeving as it comes off really easily.

    This little experiment has cost me almost $200 so far, better be worth it.
