PowerBook G4 12" Repair Thread

Discussion in 'PowerPC Macs' started by 128keaton, Jul 25, 2015.

  1. 128keaton macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #1
    I finally got my 12" powerbook in the mail. Its a bit rough, but nothing more than I was expecting. First, the battery holds about 30% of its original capacity. Not bad for 523 cycles. The RAM is maxxed already and it has an AirPort card. I've already stripped it down to replace the CD drive (more on that). Now I'd like to discuss issues. First, the case looks pretty bent, and beat up in the corners. I can work on that. Next, the DVD drive keeps acting like its trying to read something (there is nothing in it) and it makes the 'reading' noise over and over. The drive was working, pulled out of a 17" PowerBook. It also wont physically allow DVDs to enter the slot. I have no idea what might be causing that. I'd like to ask more questions, but for now, I'd like to resolve the CD/DVD issue.

  2. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #2
    Are you sure the DVD drive was not pulled with a disc inside? Generally, an inability to insert a disc means one is in there already.

  3. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #3
    These do normally power the up the optical drive momentarily when booting or waking from sleep.

    I'd double check the seating of the connector as a good starting point.

  4. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #4
    I actually took it apart before putting it in to make sure of this. It had a DVD of Leopard on it (I was trying to reinstall it on the broken powerbook :p) but I removed it.

  5. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #5
    Ok, good idea. I might've not put it on properly. All in all, I really love (I think its my favorite, over my original Ti) this machine and would love to see it in better shape.

  6. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #6
    Hmmm. Then I can only guess that something internally with the drive still thinks a DVD is in there.

  7. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #7
    If that is the case, I might remove it since it came with a fresh Leopard install. And I have a FireWire drive incase everything goes haywire.

  8. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #8
    Ok, I reseated the drive connector and it works like az charm. Which brings me to my next issue, sometimes it adds a ZZ when typing. Mystifying. Also, @eyoungren, where is your 'extreme black' customizzation guide? I'd love to have a black GUI on this thing.

  9. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
  10. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #11
    My next 'quirk' that needs fixing is the top latch. It worked when I got it, but now it doesn't. what?
    It doesn't swing down very easily and doesn't latch at all.

  11. MacCubed macrumors 68000

    MacCubed

    Joined:
    Apr 26, 2014
    Location:
    Florida
    #12
    That's probably an issue with the internal latch mechanism, but it could be with the screen. The easiest way to tell would be to close the lid and use a tooth pick to pull the metal piece to a position where it would be aligned with the latch. If that dosent work look at the internal mechanism to see wheat her or not it is out of place or something is blocking the latch from coming down. And the z after everything is funny! But you should get that fixed

  12. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #13
    Just a suggestion if you are messing with the hooks. It's a PITA to get them to come out when things aren't working so I use a refrigerator magnet (no cracks about hard drives, this is the display, LOL). Once you can get them to pop out you can work with them.

    Had to do this for the screen on my previous 17". Once I had the hooks out I was able to tweak them with needlenose pliers.

  13. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #14
    Ok, that's a good idea. I am taking apart the upper screen assembly to fix a dent in the lid as well as fix the pressure marks on the LCD. I think this laptop was shut in a door or trunk since it has a long crease along the bottom. I've been slowly bending the frame back and the lid was bent like a ~ so bending it back could've affected the latch.

  14. MacCubed macrumors 68000

    MacCubed

    Joined:
    Apr 26, 2014
    Location:
    Florida
  15. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #16
    When I get home ill post it.

  16. MacCubed macrumors 68000

    MacCubed

    Joined:
    Apr 26, 2014
    Location:
    Florida
  17. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #18
    Might've lost my temper a bit, I threw the back of the lid (alum) at the wall. Bent it a bit. I couldnt get the POS to snap back on. Not a super big deal about replacing it since I already ordered a new one from PBM. This one was dented and dinged really bad. Still feel bad about throwing it. Maybe this is something eyoungren is familiar with. Anyway, I might need help putting the new one on since this one was so darn stupid. The latch is fixed though. Lastly, I am on an email reminder for when the bottom case comes in. Its super cheap to buy a new one.

  18. MacCubed macrumors 68000

    MacCubed

    Joined:
    Apr 26, 2014
    Location:
    Florida
    #19
    My God Keaton... Glad you got the latch fixed at least! Lol

  19. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #20
    This is why I strongly advise replacing the entire LCD as a unit, versus trying to replace the damn LVDS cable or a screen.

    Lots of tiny, tiny hooks on thin aluminum (aluminium for you guys in the UK) strips. Damn near impossible to get the lid back on and you end up bleeding everywhere.

    35227_145825402101154_7460065_n.jpg 37909_145825582101136_7918012_n.jpg 38095_145825525434475_1573356_n.jpg 38396_145825488767812_2251896_n.jpg 39240_145825358767825_4569847_n.jpg 39345_145825545434473_3117306_n.jpg

  20. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #21
    Hey it's been a long day. My quad got stuck in a tree and it's really hot/humid.

  21. MacCubed macrumors 68000

    MacCubed

    Joined:
    Apr 26, 2014
    Location:
    Florida
    #22
    I cut the crap out of my thumb on that stupid G4 display when I took it apart... Theres still blood on the lid lol

  22. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #23
    That's exactly what's going on here. I might have to resort to a new display, but I'll try anyway.

  23. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #24

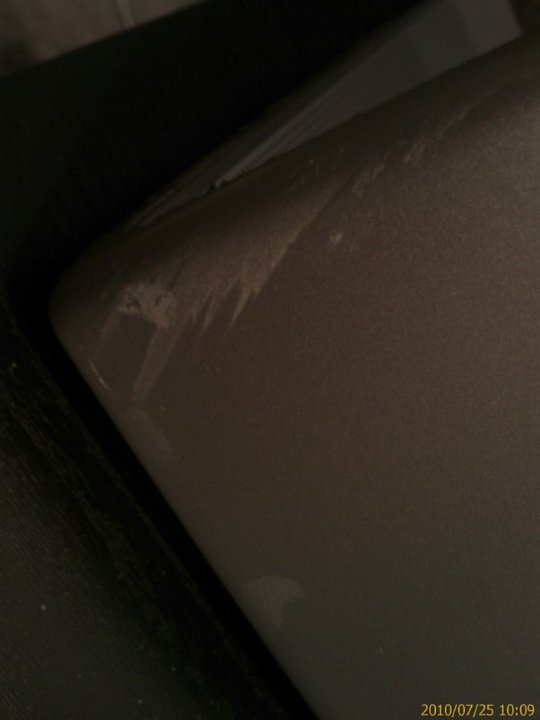

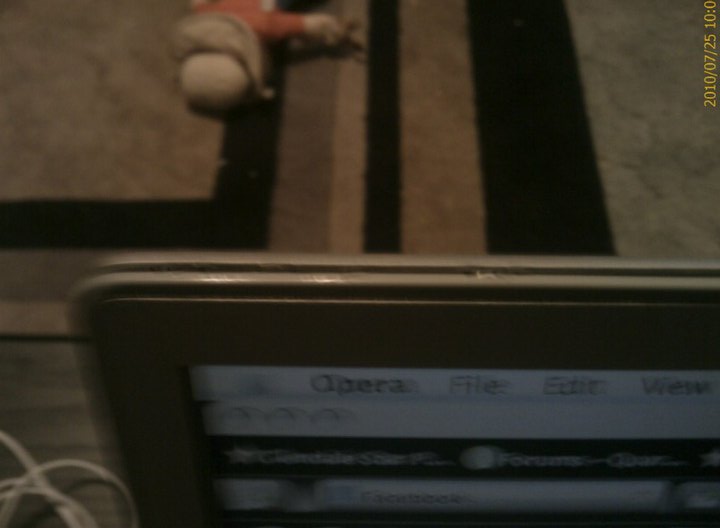

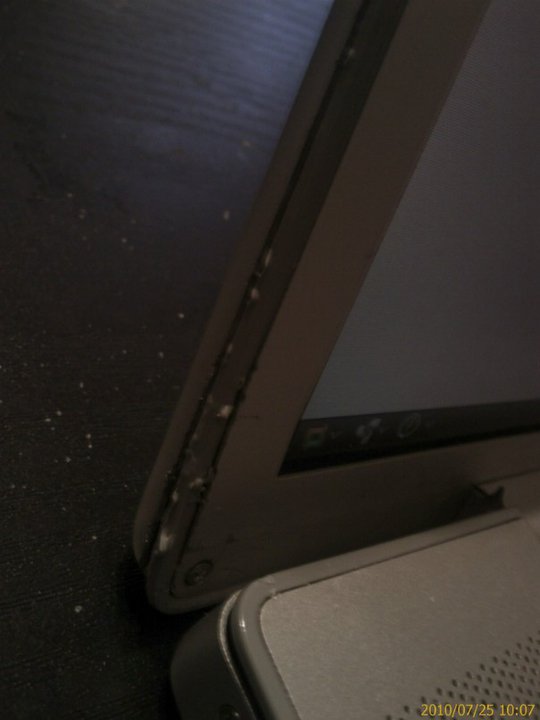

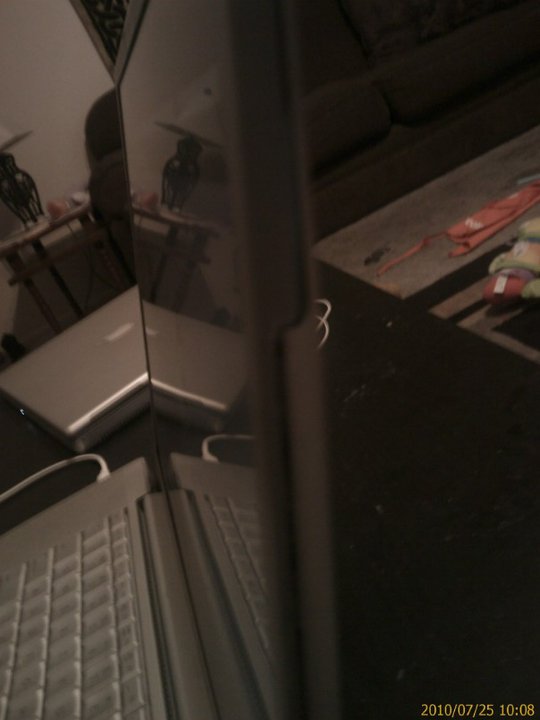

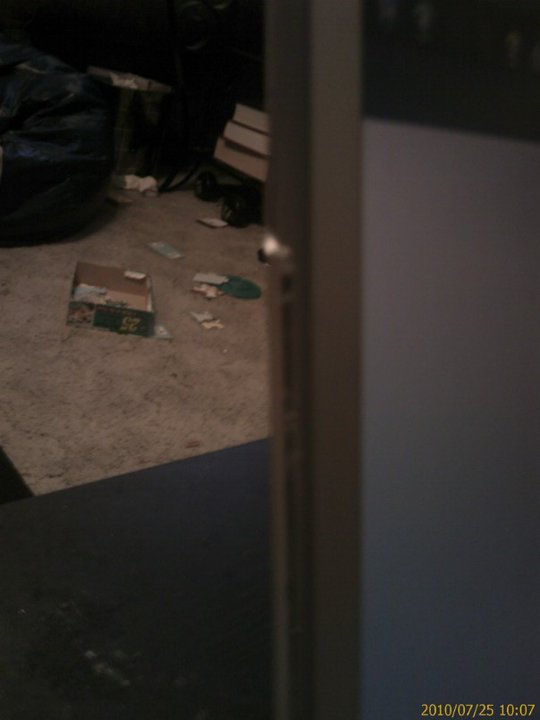

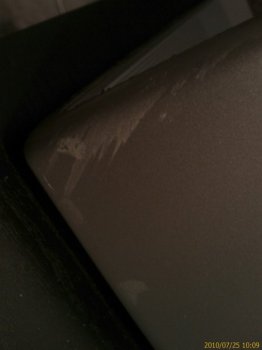

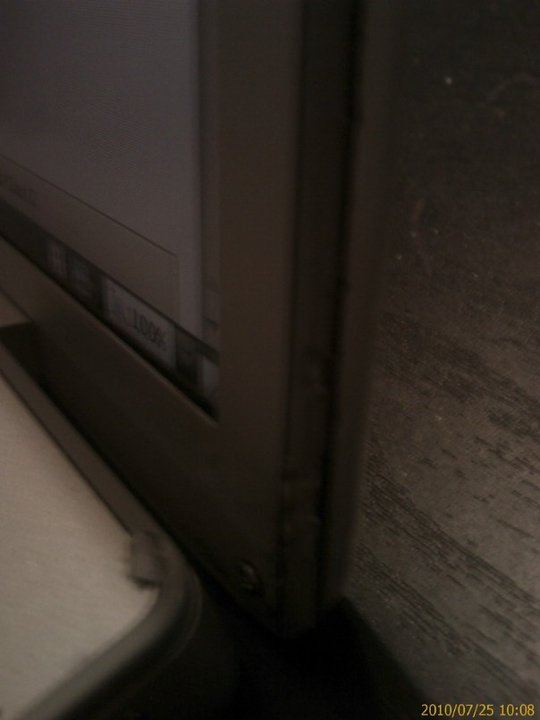

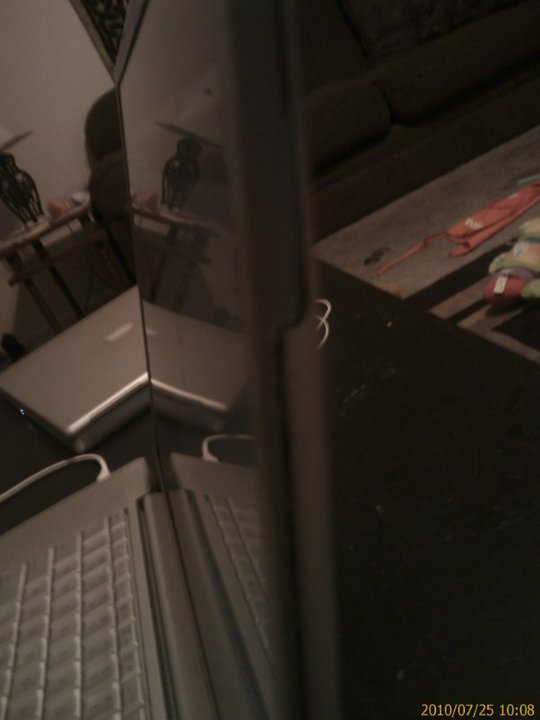

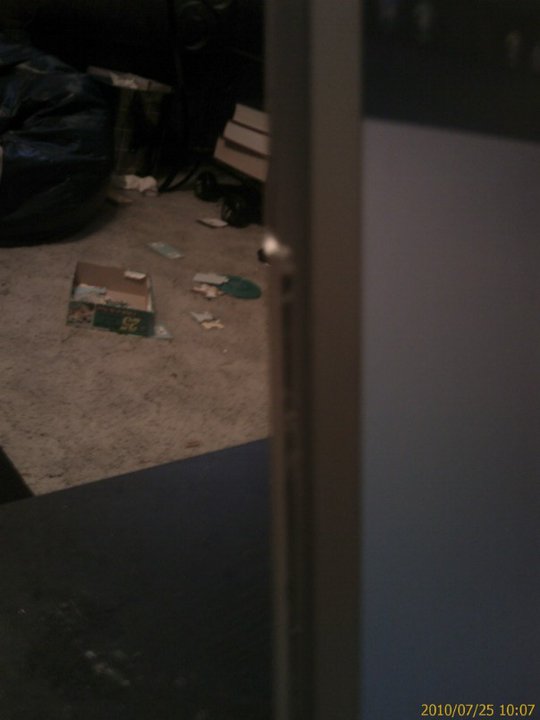

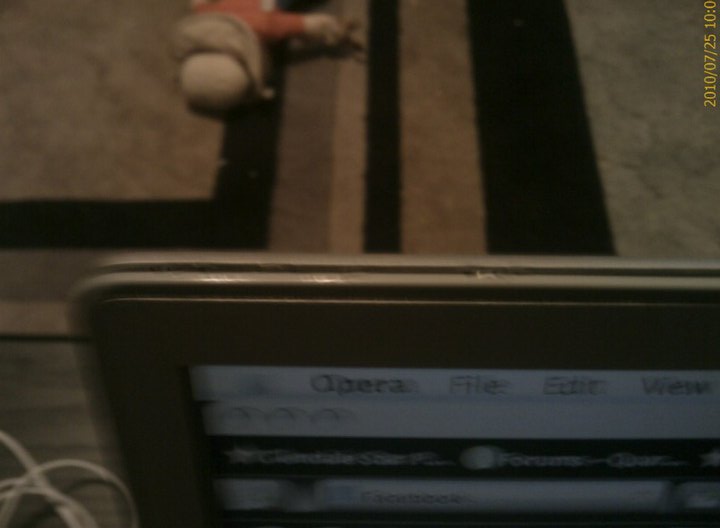

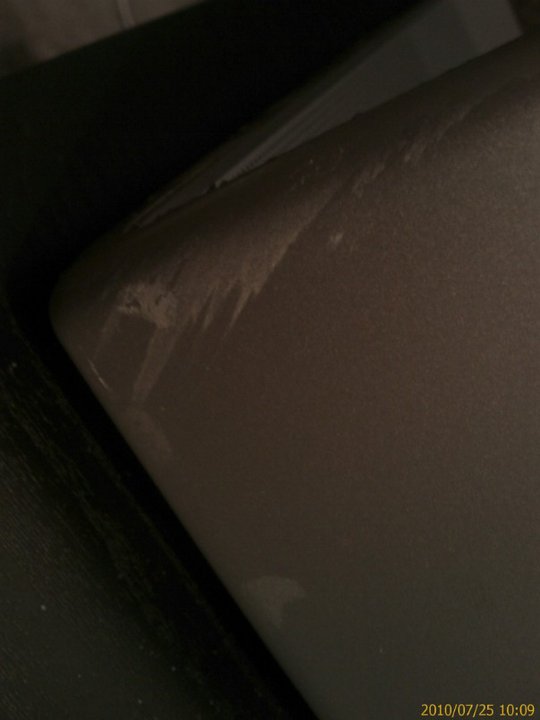

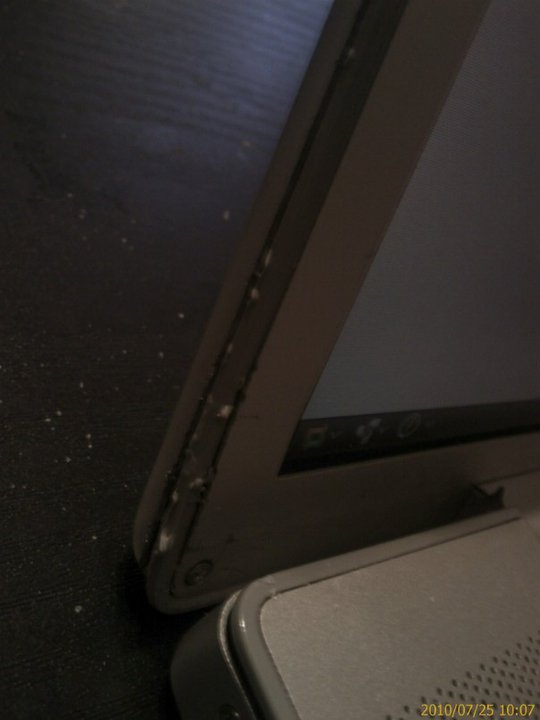

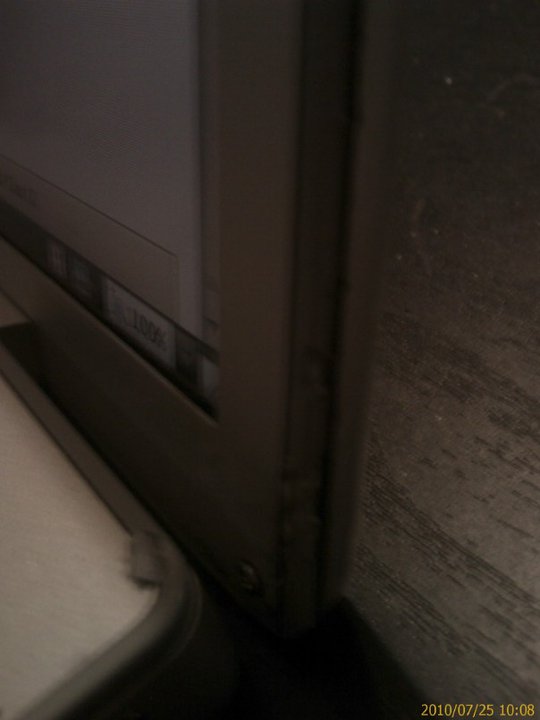

    Sorry man. My pathetic attempt to get the screen lid back on used more super glue than anything else. And the problem was that damn, rough and ugly gap which could also be a safety hazard if something got in there through the gap.

    I sucked it up and shilled out $80 for a new screen in 2010. I still have that screen and it's the most beautiful one I've had with my 17" Macs so far.

    However, I wasn't willing to transplant it into my pristine new A1013 when it already had a perfectly good display.

    PS. Is the hassle really worth the cost? I paid $25 for a working display for my wife's 12" PB. Still working. If you look you can find something in that price range, either a complete LCD or a dead 12" PB that you can strip extra parts from.

  24. 128keaton thread starter macrumors 68020

    128keaton

    Joined:
    Jan 13, 2013
    #25
    I wish I had a warning from iFixit about the difficulty of re-puttingbacktogether other than "to reassemble just follow the steps in reverse order"
