Retina MacBook Pro Thermal Paste Swap - Video

Discussion in 'MacBook Pro' started by Mabyboi, Sep 17, 2012.

  1. Mabyboi macrumors 6502

    Mabyboi

    Joined:
    Apr 23, 2010
    Location:
    Ontario, Canada
    #1
    Hey Guys,

    Im not sure if any of you even care for this anymore but there were a few people who asked for me to make a video about how to switch the thermal paste on the Retina MacBook Pro. So I made a video tutorial here, its two parts, disassembly and re assembly.



    Please excuse any shakiness in my hands or voice this was my first video tutorial.

    And for the step by step:

    Step One:

    Get a hold of a Pentalobe #5 Screw driver head, and a Torx #5. The Pentalobe head is for the exterior screws, the Torx is for the interior.

    Step Two:

    Take out the 10 screws in the bottom of the MacBook, be very careful with your Pentalobe screw driver to not strip the screws.

    Step Three

    Undo the Battery Connector, which is right under the "Warning" label.

    Step Four

    Remove the Four screws surrounding the CPU, the Four surrounding the GPU, the one silver screw to the CPU side, and the one silver screw to the GPU side under the rubber cap.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Step Five

    Remove the two rubber covers on either heatsink fan grate.

    Step Six

    Gently remove the heatsink from the unit and clean with a paper towl or alcohol swab.

    Step Seven

    Put on your choice of thermal paste, only a dab on either Processor.

    Step Eight

    Put the Heatsink back on, put in the 10 screws you removed along with the rubber cap.

    Step Nine

    Re attach the rubber covers to either side of the heatsink fan grates.

    Step Ten

    Re attach the battery plug

    Step Eleven

    Put the 10 screws back into the bottom plate

    [​IMG]

  2. afinch1992 macrumors 6502

    afinch1992

    Joined:
    Sep 13, 2012
    Location:
    Dallas, Tx
  3. sevimli macrumors 6502a

    sevimli

    Joined:
    Jun 26, 2007
    Location:
    ChiTown
    #3
    This is the most important part? Do you have the temp. readings before/after?

    Very nice tutorial btw!

  4. Mabyboi thread starter macrumors 6502

    Mabyboi

    Joined:
    Apr 23, 2010
    Location:
    Ontario, Canada
    #4
    Well you see heres the thing... I did my first swap 5 minutes after getting the machine and didn't do a reading before hand so.......

  5. Dark Void macrumors 68030

    Dark Void

    Joined:
    Jun 1, 2011
    Location:
    Cimmerian End
    #5
    Nice write up and videos, would have been nice to have a comparison - not a big deal though.

    Curious - why did you reapply it once you got it?

  6. ivoruest macrumors 6502

    ivoruest

    Joined:
    Jul 12, 2010
    Location:
    Guatemala
    #6
    So you actually managed to prepare the camera, camera guy, and everything plus installing the carbon look stickers in less than 5 minutes before making this video. That is fast bro!

  7. Mabyboi thread starter macrumors 6502

    Mabyboi

    Joined:
    Apr 23, 2010
    Location:
    Ontario, Canada
    #7
    Hahaha i did a secondary swap for video taking purposes..

  8. Mabyboi thread starter macrumors 6502

    Mabyboi

    Joined:
    Apr 23, 2010
    Location:
    Ontario, Canada
    #8
    I've had some bad experiences with my macs heating up far too much, and the solution was always to change the thermal paste. Figure it take it head on this time!

  9. tatical macrumors member

    Joined:
    Jun 7, 2009
    #9
    What were you temperatures afterwards? I can't get my CPU [2.7GHz] past 58° while all "8" (4+4) cores are at 100%, so I didn't even bother to change the thermal paste like I did with my last MacBook Pro [Core 2 Duo @ 2.8 GHz, from 106° down to 87°].

  10. shansoft macrumors 6502

    Joined:
    Apr 24, 2011
    #10
    How is that even possible to stay under 58c?

    I am pretty sure it's a reading error.

  11. Dark Void macrumors 68030

    Dark Void

    Joined:
    Jun 1, 2011
    Location:
    Cimmerian End
    #11
    Fair enough, as long as you know what you are doing. :)

  12. Elijen macrumors 6502

    Elijen

    Joined:
    May 8, 2012
    #12
    Why would you want to swap thermal paste on a brand new laptop? :eek:

  13. Hitrate macrumors regular

    Hitrate

    Joined:
    Mar 25, 2009
    Location:
    Copenhagen
  14. Queen6 macrumors 603

    Queen6

    Joined:
    Dec 11, 2008
    Location:
    Enjoying Better Things
    #14
    It`s not, more likely to be a measurement error not all temp monitors readout the correct CPU temp for the Retina

  15. Queen6 macrumors 603

    Queen6

    Joined:
    Dec 11, 2008
    Location:
    Enjoying Better Things
    #15
    Realistically the best you can hope for on a new machine is a reduction of a couple of degrees at best. Thermal paste is pretty much the same with some brands being marginally better than others, and as will all potentially a trade off for that margin. Large companies know this and tend to use a generic thermal paste as it`s a good as anything else over time.

  16. tatical macrumors member

    Joined:
    Jun 7, 2009
    #16
    I'm not sure. The machine gets warm, but not really hot (nothing like my 2.8GHz mid 2009 MBP). I'm using iStat Pro to get the temps. I don't know if its accurate, but I think it is because it won't get hot.

    I was going to change the thermal paste when I first got it, but I wanted to test it out first. When I saw the unusually low temperatures, I decided not to bother. But if I could lower the GPU temps by 10c or more, I might open it up.

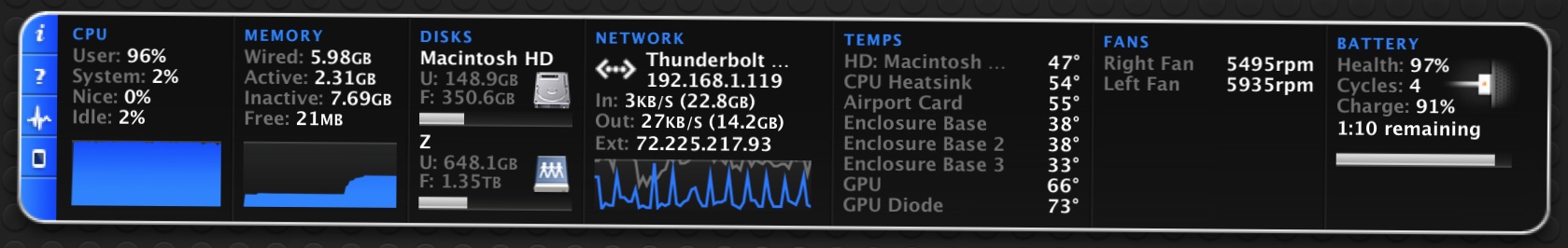

    Here's a pic of iStat, the CPU is under max load for about 10 minutes. The GPU gets much hotter than the CPU.


    Attached Files:

  17. XandeR803 macrumors member

    Joined:
    Jul 25, 2008
    #17
    That's the heatsink reading, not the cpu diode reading. The cpu diode could be +20 degrees from the heatsink when under load.

  18. klover macrumors 6502a

    Joined:
    Jun 7, 2009
  19. h3blade macrumors newbie

    Joined:
    Aug 19, 2012
    #19
    cool, i have been looking for this video and tutorial.

  20. FuNGi macrumors 65816

    FuNGi

    Joined:
    Feb 26, 2010
    Location:
    California
    #20
    Let me get this straight

    So you took apart a brand new computer to replace the thermal paste for the chance that it might lower temperatures yet omitted the chance to obtain real data?

    And by doing you believe the myriad of engineers at Apple handicapped this machine by overlooking the applications of advanced paste?

    So you believe in faith over reason? Speculation over data?

    :rolleyes:

  21. NutsNGum macrumors 68030

    NutsNGum

    Joined:
    Jul 30, 2010
    Location:
    Glasgow, Scotland
  22. Dyno-Mike macrumors regular

    Joined:
    Aug 19, 2012
    Location:
    United Kingdom
    #22
    Ive done a re-paste on mine with IC7 and the temps have stayed pretty much the same.

    Ive since noticed that the fan doesn't spin any faster until the CPU hits 95c so re-pasting is only going to slightly delay how quick it heats up but its still going to reach 95c in the end, but at least it does cool a little quicker once it speeds up.

    The only way you would notice a difference between factory paste and third party paste is if you control the fans yourself with SMC or Lubbos.

  23. ZipZap macrumors 601

    Joined:
    Dec 14, 2007
    #23
    I would bet that Apple uses the same compound & color everywhere. A good tech would know if you used a different compound.

    Yes, this voids your warranty....there is no doubt.

  24. Mabyboi thread starter macrumors 6502

    Mabyboi

    Joined:
    Apr 23, 2010
    Location:
    Ontario, Canada
    #24
    The techs can't tell which paste it is, it's the same color and looks the same.

    But yes this voids the warranty

  25. Mabyboi thread starter macrumors 6502

    Mabyboi

    Joined:
    Apr 23, 2010
    Location:
    Ontario, Canada
    #25
    Easy now, I've had bad experiences in the past so I took it into my own control and changed it. I know they redesigned the cooling in the retina, but I wanted to change it to help out in any way possible.

    I've had a ton of people ask me to do this video, wether or not it changes a whole lot, people still asked for it so I did it.

    If you were being sarcastic then take this post as a sincere rebutle.
