Sawtooth - what's this above Airport?

Discussion in 'PowerPC Macs' started by canhoto, Apr 3, 2011.

  1. canhoto macrumors member

    Joined:
    Mar 10, 2011
    #1
    Hi.

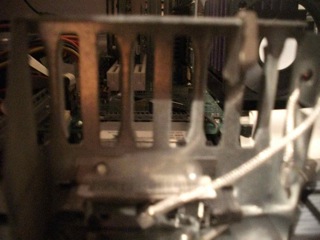

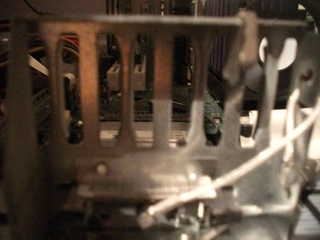

    Recently, when opening my Sawtooth for upgrading, I noticed that there are 4 numbered spaces (like slots) in the metal structure where the AirPort card is inserted, just above the Airport. Anyone knows what this is? Image attached.


    Attached Files:

  2. gr8tfly macrumors 603

    gr8tfly

    Joined:
    Oct 29, 2006
    Location:
    ~119W 34N
  3. canhoto thread starter macrumors member

    Joined:
    Mar 10, 2011
    #3
    ??? But aren't the PCI card slots on the other side?

  4. gr8tfly, Apr 3, 2011
    Last edited: Apr 3, 2011

    gr8tfly macrumors 603

    gr8tfly

    Joined:
    Oct 29, 2006
    Location:
    ~119W 34N
    #4
    If I'm looking at what I think I'm looking at, those are supports for long cards. Aren't there guides on the backside of the metal structure?

    Otherwise, back to the drawing board for me (the service manual), and I'll report back.

    Edit: Yes, those are support guides for long PCI cards. It has 4 slots probably because other configurations of this model (Digital Audio for one) have 4 PCI slots. The AGP model only has 3, plus the AGP slot.

  5. canhoto thread starter macrumors member

    Joined:
    Mar 10, 2011
    #5
    There are no guides. But they a bit aligned (although not perfectly) with the PCI slots, that's true. You cab see the PCI slots behind.

  6. gr8tfly macrumors 603

    gr8tfly

    Joined:
    Oct 29, 2006
    Location:
    ~119W 34N
    #6
    Check the other side (from your photo) - you should see where the metal is folded in from the openings, forming a slot. They sort of resemble a capital 'I', from the photo's point of view.

  7. canhoto thread starter macrumors member

    Joined:
    Mar 10, 2011
  8. MacHamster68, Apr 3, 2011
    Last edited: Apr 3, 2011

    MacHamster68 macrumors 68040

    MacHamster68

    Joined:
    Sep 17, 2009
    #8
    they are supports for full length pci cards , ok not common any more everything got smaller , but as these cards are "hanging " when installed and could depending what card be quiet heavy they had a support on the back

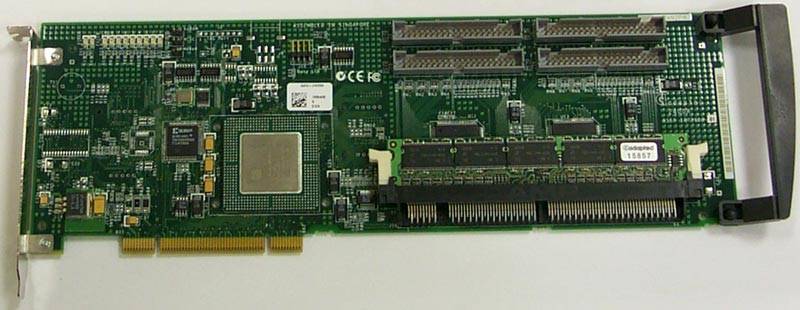

    just searched for a picture of such a card installed , could not find one quickly , but here a example of such a pci card and indeed these supports do not line up as you can see on the picture of the card why , the support that looks like some sort of handle is a bit out of line
    [​IMG]

  9. zen.state macrumors 68020

    zen.state

    Joined:
    Mar 13, 2005
    #9

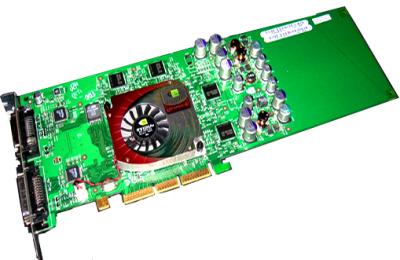

    It's to help hold extended cards like the one below in place. I have an 80mm fan mouted on the bracket and blowing air across the bottom of the heatsinnk and AGP/PCI slots.

    [​IMG]
    This is an actual Geforce 4 Ti for Mac.

  10. zen.state macrumors 68020

    zen.state

    Joined:
    Mar 13, 2005
    #10
    That card looks like it's from the 70's or 80's :)

  11. gr8tfly macrumors 603

    gr8tfly

    Joined:
    Oct 29, 2006
    Location:
    ~119W 34N
    #11
    No prob. Glad to help, and it's fun going back to those "older" machines.

    I have a slighty newer single 933MHz G4 (Quick Silver) that has Leopard Server on it. One if these days, I'll use it to replace my B&W G3 running Jaguar Server. That machine has been going strong 24/7 for going on 8 years! It provides: DNS, Mail, SSH, and Apache services. My main reason for the upgrade is a more up-to-date Mail server, which has much stronger spam filtering.

    Enjoy your PMG4!

  12. MacHamster68 macrumors 68040

    MacHamster68

    Joined:
    Sep 17, 2009
    #12
    its a old raid controller card from just about the same time of the QS (2002) at least at that time it was tested on a pentium3 pc in the article i found that long beast , hard to find these full size cards today :D
