SD reader flush solution?

F

Finskmann

macrumors newbie
Original poster
Oct 30, 2010
6
0
As I want to have the SD card installed permanently for storage of audio files, documents and other files that doesn't need a lot of read/write speed I found a possible solution.

http://www.dealextreme.com/details.dx/sku.5091

Found the link to this product on a forum discussing the same problem of the SD card sticking out of a windows computer and it was suggested to cut away the USB-part and using a microSDHC card.

If you look at the measures the cardreader/converter is about the same size as a standard SD card, so removing the USB part would make it flush with the Air making it unnoticeable?

Is there any reason why this won't work?

Finskmann said:
As I want to have the SD card installed permanently for storage of audio files, documents and other files that doesn't need a lot of read/write speed I found a possible solution.

http://www.dealextreme.com/details.dx/sku.5091

Found the link to this product on a forum discussing the same problem of the SD card sticking out of a windows computer and it was suggested to cut away the USB-part and using a microSDHC card.

If you look at the measures the cardreader/converter is about the same size as a standard SD card, so removing the USB part would make it flush with the Air making it unnoticeable?

Is there any reason why this won't work?
Click to expand...
I'm confused...you said you want an SD card installed permanently, but you want it to be flush. The product you showed is the same size as an SD card, so what would you be gaining? Maybe I'm missing something?

technopimp said:
I'm confused...you said you want an SD card installed permanently, but you want it to be flush. The product you showed is the same size as an SD card, so what would you be gaining? Maybe I'm missing something?
Click to expand...


Its the same size as an SD card until you cut away the USB part. Based on the picture it looks like the USB part is about 1cm/0.4inches. Could anyone with a macbook air pleas measure how much a standard SD card sticks out of their machine? With some sandpaper its probably possible to sand off a bit more too

re2st said:
Interesting. It's gonna be a bitch to take out though.. :p
Click to expand...

what he said - a lot of machines that use protruding SD card design don't bother making the port spring loaded as you can grip it by hand to remove it.

If there's no spring loading and you succeed in making it flush you'll have no method short of tweezers to get it back out.

re2st said:
Interesting. It's gonna be a bitch to take out though.. :p
Click to expand...

Shouldnt be a problem to sandpaper down the thickness at the end so it would be easy to take out with a tweezer. The SD-card reader is useless for me, except for permanent storage so I think i'll order that adapter from DE and try it out with a Micro SD-card from my old HTC D2.

I'm just wondering about two things:

1. Is there any difference between SD and SDHC (and SD micro/SDHC micro) in terms off design or will the adapter handle both?

2. Could this little project somehow harm the entire air (short circuit?) or just the SD-reader (if anything)

Finskmann said:
Its the same size as an SD card until you cut away the USB part. Based on the picture it looks like the USB part is about 1cm/0.4inches. Could anyone with a macbook air pleas measure how much a standard SD card sticks out of their machine? With some sandpaper its probably possible to sand off a bit more too
Click to expand...

I still don't get it...the USB port is on the side of the SD "Card"...so by cutting it off you're still essentially left with a normal-sized SD card. Why not just use one of those in the first place? Seems like a lot of trouble for no benefit...

Finskmann said:
As I want to have the SD card installed permanently for storage of audio files, documents and other files that doesn't need a lot of read/write speed I found a possible solution.

http://www.dealextreme.com/details.dx/sku.5091

Found the link to this product on a forum discussing the same problem of the SD card sticking out of a windows computer and it was suggested to cut away the USB-part and using a microSDHC card.

If you look at the measures the cardreader/converter is about the same size as a standard SD card, so removing the USB part would make it flush with the Air making it unnoticeable?

Is there any reason why this won't work?
Click to expand...

Just a guess, but if the card is a "double ender," meaning that both the USB interface and the SD interface both work with the same TF card, I'm betting there is some circuitry between those two connectors. So just hacking off one side of it isn't a guarantee the other side will still continue to function.

But it's like $4....why not try it and see?

Use a microcro sd.

You can shorten the pins from an adapter and solder in the micros sd and modify the adapter's housing so it's flush.

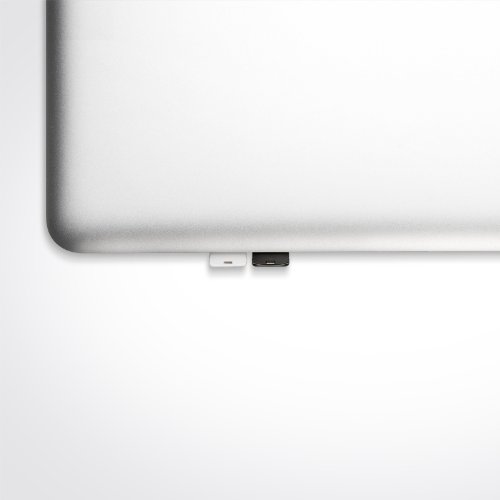

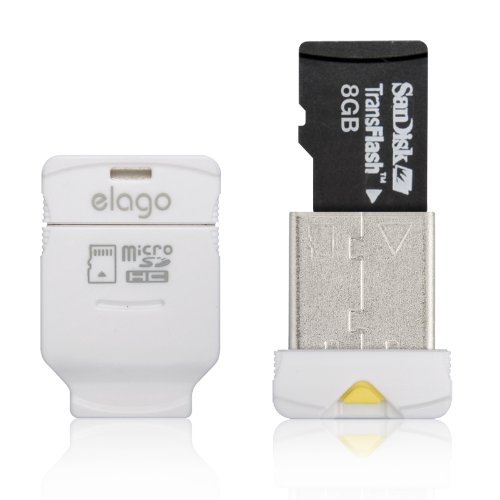

Here is what it looks like.


Attachments

  • Micro SD reader 1.jpg
    Micro SD reader 1.jpg
    21.9 KB · Views: 651
  • MicroSD reader 2.jpg
    MicroSD reader 2.jpg
    10.9 KB · Views: 494
I agree that flush would be better, but it is the best I've found so far. If anyone knows of lower profile memory cards or MicroSD readers please let me know.

Digging up an old thread, I know

So did anyone find a solution to the flush problem? I'd like to increase the storage of my macbook air, and has hoping the SD Card slot would be an option.

Thanks

thefreds said:
So did anyone find a solution to the flush problem? I'd like to increase the storage of my macbook air, and has hoping the SD Card slot would be an option.

Thanks
Click to expand...

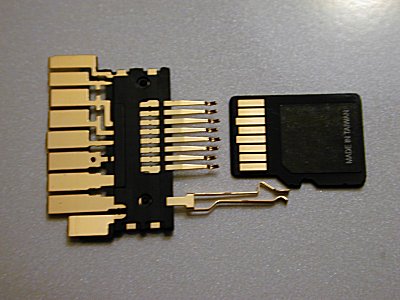

I also would like to see a solution. I ripped open a micro SD to SD converter and it seems like a mod is possible.

I'm thinking of opening it, then bending the connectors back and putting the micro SD card in backwards, reducing the size by half. Then repackage it, and plug it deep in and cross fingers. Could use an extra 32 gigs... flush.

GodlessGeek said:
Here is what it looks like.
Click to expand...

http://www.amazon.com/SIIG-JU-MR0612-S1-Ultra-microSD-Reader/dp/B0032ANCIC
I have this. Works great. Had it for 6 months now, no problems. Not sure why the Amazon reviews had so many issues. I'm running a 32GB Class 10 USB MicroSD thru it now and have it plugged in constantly in my 11" MBA. It's not flush, but its secure and quite small. Still fits in most sleeves with it in (esp. the neoprene ones) and is much less prone to damage (to it or the port).

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
jomo25 said:
http://www.amazon.com/SIIG-JU-MR0612-S1-Ultra-microSD-Reader/dp/B0032ANCIC
I have this. Works great. Had it for 6 months now, no problems. Not sure why the Amazon reviews had so many issues. I'm running a 32GB Class 10 USB MicroSD thru it now and have it plugged in constantly in my 11" MBA. It's not flush, but its secure and quite small. Still fits in most sleeves with it in (esp. the neoprene ones) and is much less prone to damage (to it or the port).
Click to expand...

How are the speeds?

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
LeakedDave said:
My Norcent from eBay shipped ;)

Also on the listing page it says it supports Micro SDHC.

Gonna pick up this 32gb class 10 micro sdhc and try it out:

http://www.amazon.com/Lexar-MicroSD...BSBNAR/dp/B004AM610M/ref=cm_cr_pr_product_top

Hopefully simply cutting off the USB part it'll still work !

If it does, that's 32GB of extra flush storage :)
Click to expand...

Just to let everyone here know, the Norcent works and fits perfectly after cutting the USB half off. WOOT. Now to test an SDHC.

2GB Micro SD works good.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
