some help on a w3670 cpu

Discussion in 'Mac Pro' started by philipma1957, Mar 11, 2011.

  1. philipma1957 macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #1
    http://cgi.ebay.com/NEW-Intel-Xeon-...EN_Servers&hash=item230e914a2e#ht_3265wt_1250


    this is from buy dot com on ebay price is 616 and I have a lot of coupons so I can get this at 500 for my quad core 2010 2.8

    it is intel part number bx80613w3670

    intel link is here;

    http://ark.intel.com/Product.aspx?id=47918&wapkw=(w3670)

    and all w3600 units are below.

    http://ark.intel.com/ProductCollection.aspx?series=48311


    so I feel good enough to pull the trigger at 500 or so (after discounts). I wanted to be sure this is the right one. TIA

  2. rmitchell248 macrumors 6502

    Joined:
    Mar 30, 2010
    Location:
    Liebsthal, Germany
  3. philipma1957, Mar 11, 2011
    Last edited: Mar 11, 2011

    philipma1957 thread starter macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #3
    YEAH looks that way to me too so I just pulled the trigger. Cost was 518 after discounts. That is about 400 lower then buying the w3680 from buy dot com on ebay. so 518 out of pocket vs 900.


    I can sell the quad 2.8 cpu for 200.

    http://shop.ebay.com/i.html?_nkw=in...w=w3530&_osacat=0&_trksid=p3286.c0.m270.l1313


    so for 318 net the machine should get a nice boost.


    this should give me scores of 14000 on geek bench vs the 9800 i get now.
    I will post the mod when i do it. this should be pretty easy? I hope



    http://cgi.ebay.com/NEW-Intel-Xeon-...EN_Servers&hash=item230e914a2e#ht_3265wt_1250


    this was pulled from above ad on ebay ^


    Intel Xeon UP W3670 3.20 GHz Processor - Socket B LGA-1366 Hexa-core - 12 MB Cache - 4.80 GT/s QPI - 1 x Box Pack
    THIS IS A BRAND NEW UNOPENED ITEM.
    Description
    Powering the highest performing single-processor workstations, the Intel Xeon processor 3600 series, with intelligent performance features delivers the scalable performance necessary for advanced 3D designs, enabling digital content creation, engineering, and financial users to create new ideas faster than ever before.

    Features
    Product Type Processor
    Manufacturer Part Number BX80613W3670
    Manufacturer Website Address intel
    Packaged Quantity 1
    Platform Support PC
    Process Technology 32 nm
    Clock Speed 3.20 GHz
    Manufacturer Intel Corporation
    Product Model W3670
    Product Name Xeon UP Hexa-core W3670 3.2GHz Processor
    Product Line Xeon UP
    Product Series 3600
    Processor Socket Socket B LGA-1366
    Brand Name Intel
    L1 Cache 384 KB
    L2 Cache 1.50 MB
    L3 Cache 12 MB
    Processor Technology Virtualization Technology
    Processor Technology Hyper-Threading Technology
    Processor Technology Enhanced SpeedStep Technology
    Processor Technology Extended Memory 64 Technology
    Processor Core Hexa-core
    64-bit Processing Yes
    Processor Manufacturer Intel
    QuickPath Interconnect 4.80 GT/s

    Tech Specs
    Thermal Specification 67.9°C
    Product Type Processor
    Manufacturer Part Number BX80613W3670
    Manufacturer Website Address intel.co.uk
    Packaged Quantity 1
    Manufacturer Intel Corporation
    Product Model W3670
    Product Name Xeon UP Hexa-core W3670 3.2GHz Processor
    Package Type Box
    Product Line Xeon UP
    Product Series 3600
    Brand Name Intel
    Platform Support PC
    Green Compliance Yes
    Green Compliance Certificate/Authority RoHS
    Input Voltage 1.4 V DC
    Thermal Design Power 130 W
    Process Technology 32 nm
    Clock Speed 3.20 GHz
    Processor Socket Socket B LGA-1366
    L1 Cache 384 KB
    L2 Cache 1.50 MB
    L3 Cache 12 MB
    Processor Technology Virtualization Technology
    Processor Technology Hyper-Threading Technology
    Processor Technology Enhanced SpeedStep Technology
    Processor Technology Extended Memory 64 Technology
    Processor Core Hexa-core
    64-bit Processing Yes
    Processor Manufacturer Intel
    QuickPath Interconnect 4.80 GT/s
    Standard Warranty 3 Year Limited



    below is what is in my quad 2.8 now.

    http://cgi.ebay.com/NEW-Intel-Xeon-...85?pt=CPUs&hash=item230ccc4a2d#ht_3073wt_1250

    Intel Xeon W3530 2.80 GHz Processor - Quad-core 4.80 GT/s QPI - 1 MB L2 - 8 MB L3 - Socket B LGA-1366
    THIS IS A BRAND NEW UNOPENED ITEM.
    Description
    Designed for highest performing single-processor workstations, the Intel Xeon processor W3500 series, with intelligent performance features delivers the scalable performance necessary for premium single processor workstation experience; enabling digital content creation, engineering, and financial users to create new ideas faster than ever before.

    Features
    Product Type Processor
    Manufacturer Part Number BX80601W3530
    Manufacturer Website Address intel
    Manufacturer Intel Corporation
    Product Model W3530
    Product Name Xeon W3530 Quad-core 2.8GHz Processor
    Product Line Xeon
    Product Series 3000
    Brand Name Intel
    Clock Speed 2.80 GHz
    Processor Socket Socket B LGA-1366
    L1 Cache 256 KB
    L2 Cache 1 MB
    L3 Cache 8 MB
    Processor Core Quad-core
    64-bit Processing Yes
    Processor Manufacturer Intel
    QuickPath Interconnect 4.80 GT/s

    Tech Specs
    Thermal Specification 154.4°F (68°C)
    Product Type Processor
    Manufacturer Part Number BX80601W3530
    Manufacturer Website Address intel
    Manufacturer Intel Corporation
    Product Model W3530
    Product Name Xeon W3530 Quad-core 2.8GHz Processor
    Product Line Xeon
    Product Series 3000
    Brand Name Intel
    Platform Support PC
    Thermal Design Power 130 W
    Process Technology 45 nm
    Clock Speed 2.80 GHz
    Processor Socket Socket B LGA-1366
    L1 Cache 256 KB
    L2 Cache 1 MB
    L3 Cache 8 MB
    Processor Technology Enhanced SpeedStep Technology
    Processor Technology Hyper-Threading Technology
    Processor Technology Extended Memory 64 Technology
    Processor Technology Virtualization Technology
    Processor Core Quad-core
    64-bit Processing Yes
    Processor Manufacturer Intel
    QuickPath Interconnect 4.80 GT/s


    Quite a difference in power and speed for the price.

  4. Transporteur macrumors 68030

    Joined:
    Nov 30, 2008
    Location:
    UK
    #4
    For $300 this definitely is a worthy upgrade. Would have done it myself.

    However, I hope you get the right stepping. AFAIK, not all steppings work with the Pro.

  5. Hellhammer Moderator

    Hellhammer

    Staff Member

    Joined:
    Dec 10, 2008
    Location:
    Finland
    #5
    There is only one version of W3670 and it has B1 stepping (same as W3680 and W3690).

  6. Transporteur macrumors 68030

    Joined:
    Nov 30, 2008
    Location:
    UK
    #6
    Oh, alright. It's a drop in replacement then.

    The sockets in all 2010 machines are lidded, so the upgrade is no different than on a PC.

  7. philipma1957 thread starter macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #7
    Yeah fingers crossed this will help a lot of 2.8 owners.

  8. ActionableMango macrumors G3

    ActionableMango

    Joined:
    Sep 21, 2010
  9. philipma1957, Mar 11, 2011
    Last edited: Mar 14, 2011

    philipma1957 thread starter macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #9
    will do


    part arrives monday. will post a photo. looking for some arctic silver links. I have none on hand. Item was delivered. came in sealed intel box. I have 30 days to return. this policy was a big reason I purchased it from buy dot on their ebay store.

    link to item

    http://cgi.ebay.com/NEW-Intel-Xeon-...EN_Servers&hash=item230e914a2e#ht_3265wt_1250


    I will tack a photo later. I also ordered an arctic silver kit from amazon dot com



    http://www.amazon.com/ArctiClean-3-...Y3MM/ref=sr_1_2?ie=UTF8&qid=1300119205&sr=8-2


    I am hoping to assemble this all next week.

  10. wispy007 macrumors member

    Joined:
    Jul 1, 2010
    Location:
    Melbourne, Australia
    #10
    Let me know how you get on as I am also looking at dropping this into my 2010 quad. :D

    Thanks.

  11. philipma1957 thread starter macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #11

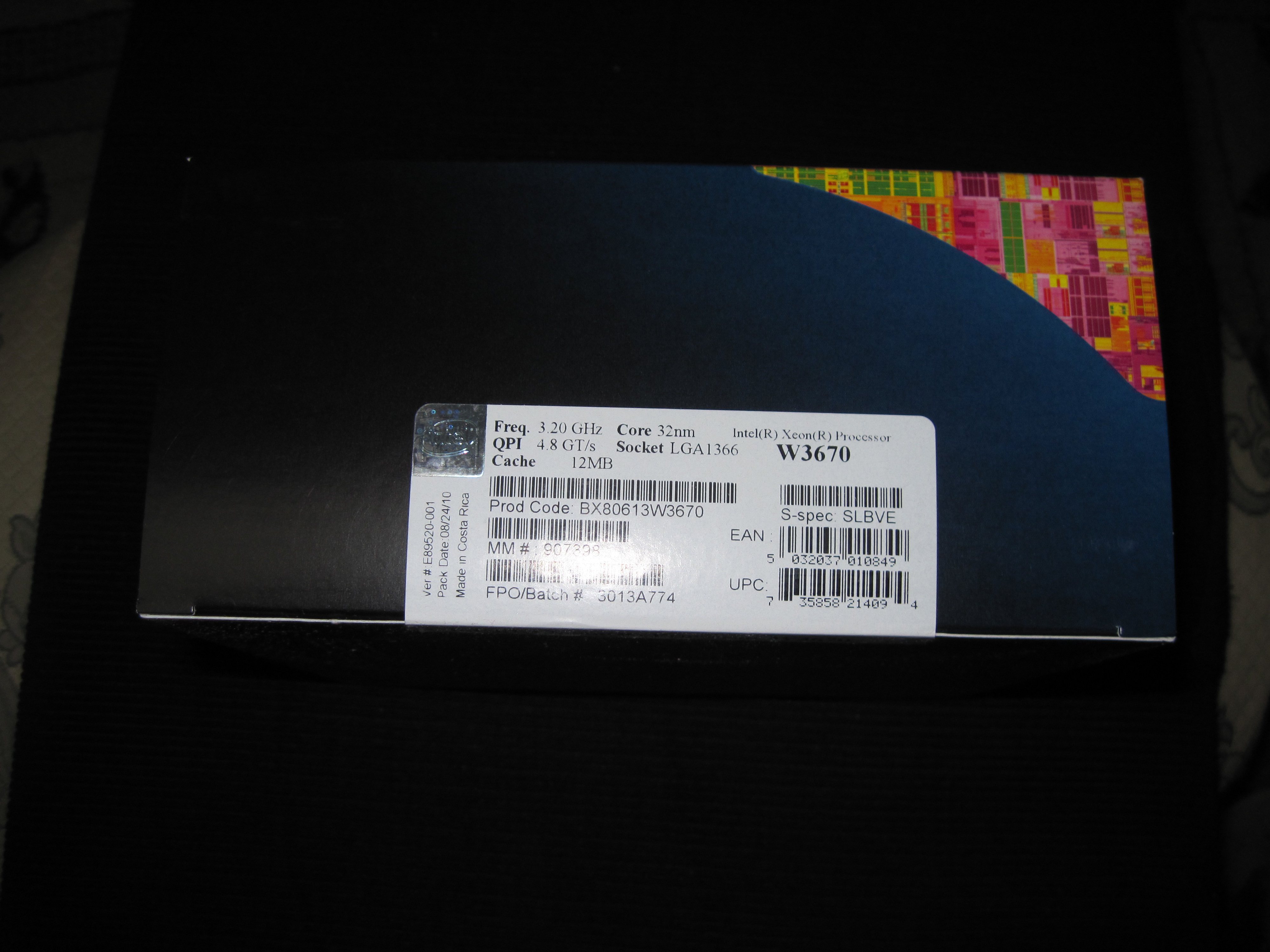

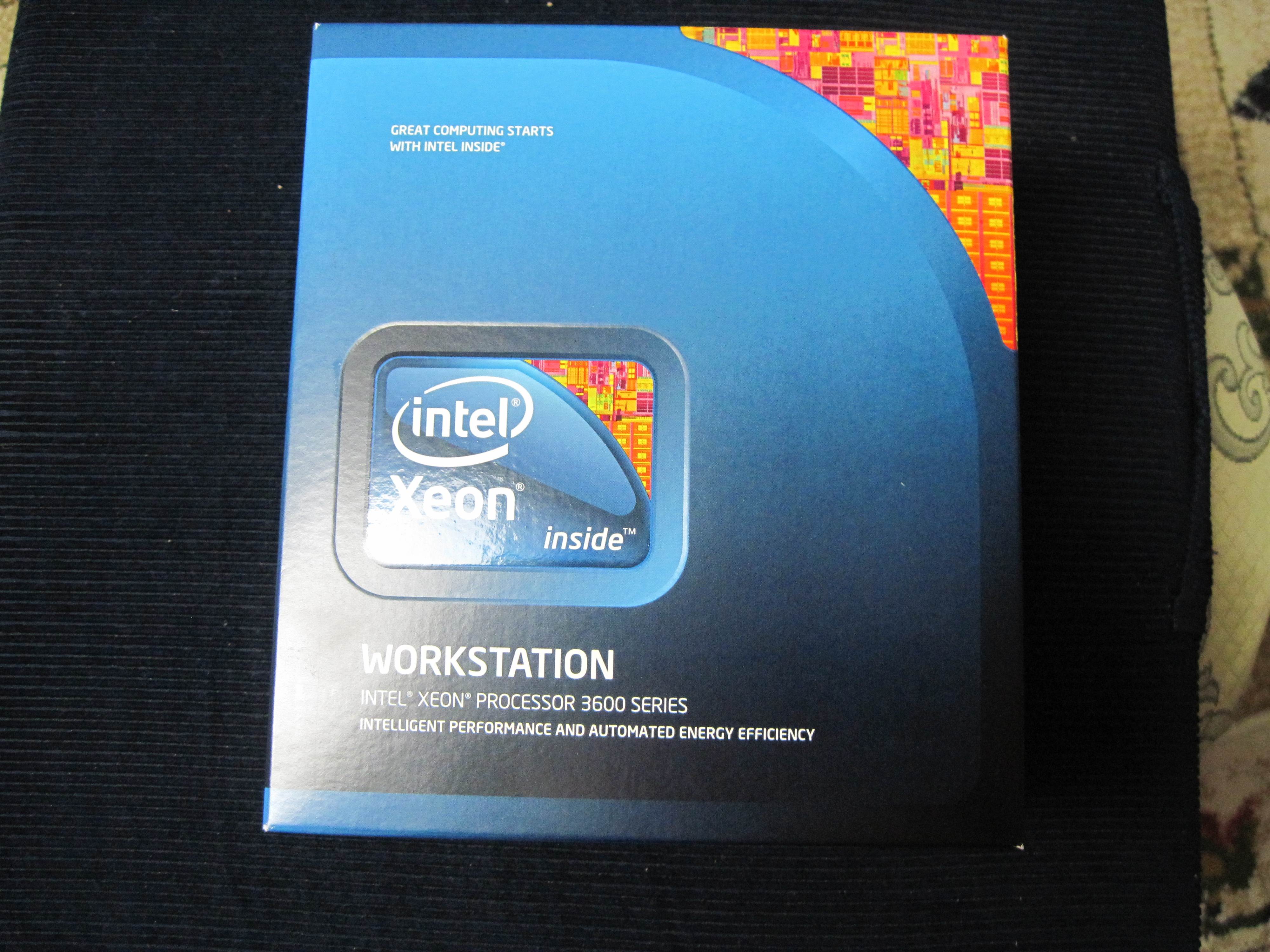

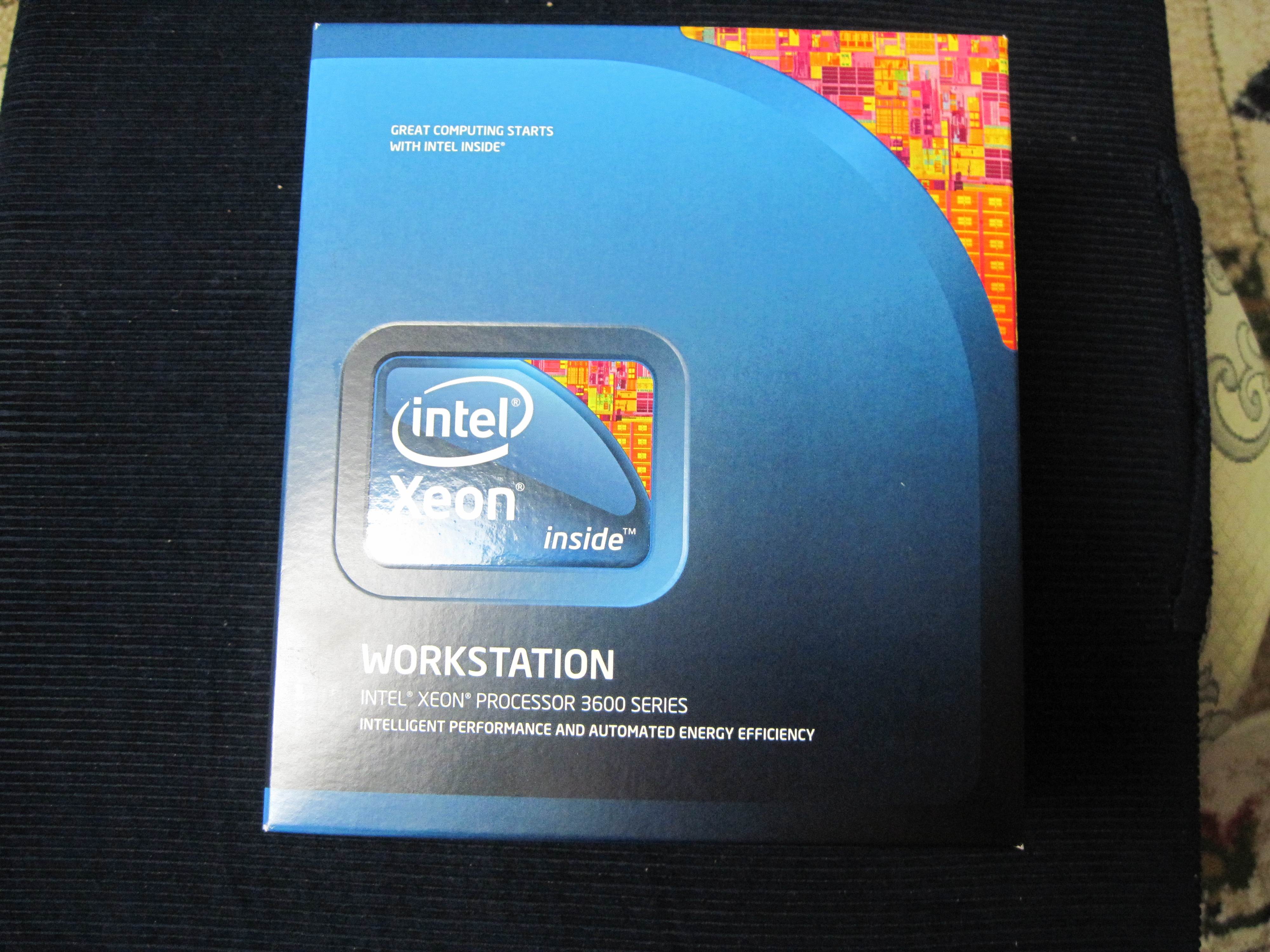

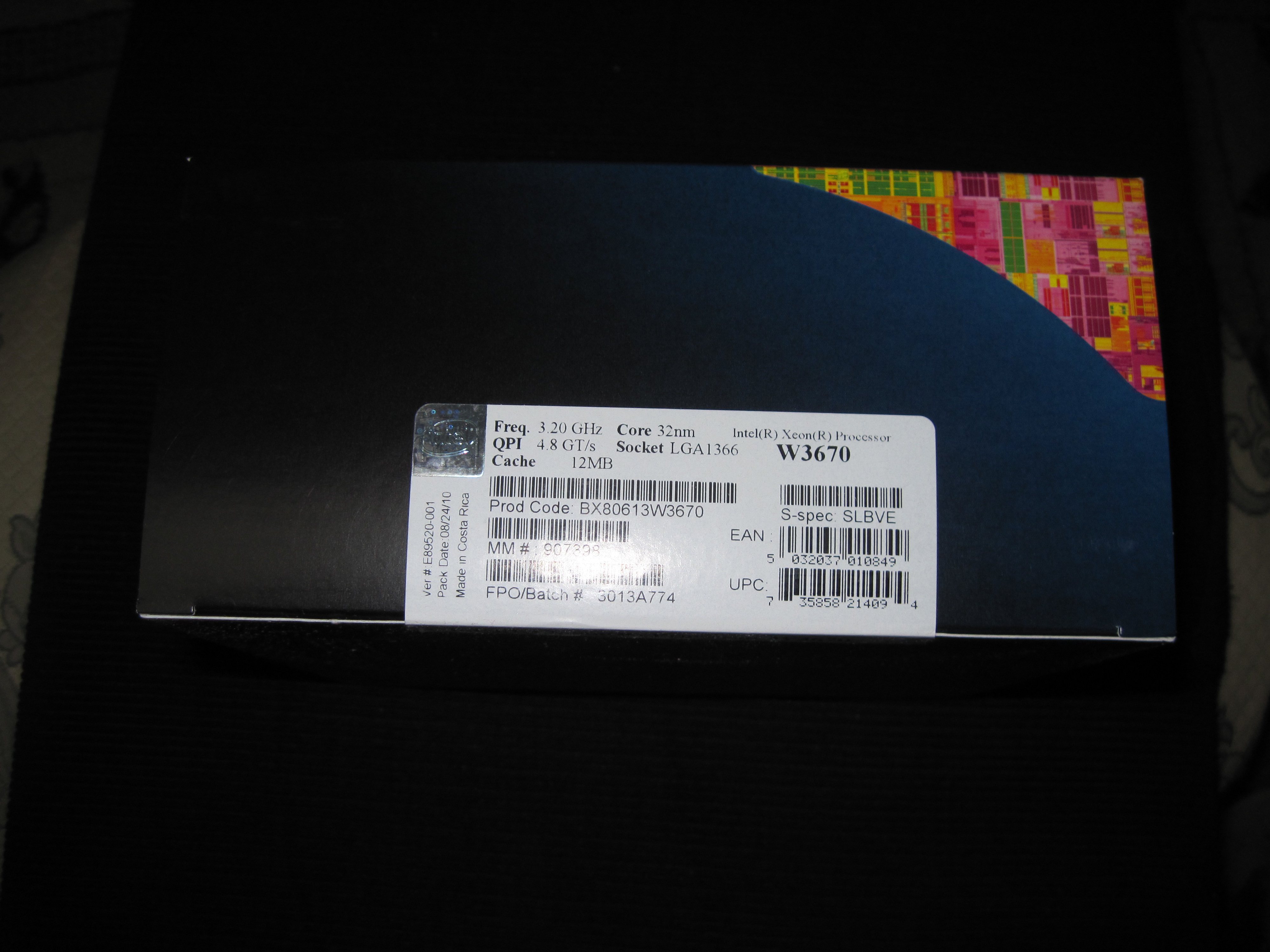

    yes the intel cpu arrived yesterday. Company sells it with full 3 yr warranty and a 30 day return policy. My arctic silver kit arrives on Thur the 24th. I hope to have a complete set of install photos near APR 1. A little eye candy two shots of sealed box.
