SSD "Card" Not Something New??

Discussion in 'MacBook Air' started by bperrella, Oct 18, 2010.

  1. bperrella macrumors regular

    Joined:
    Apr 8, 2010
    #1
    I was reading over the rumored specs of Wednesday's MBA, and couldn't help but thinking that this SSD Card is not an entirely new idea.. I owned a Dell Mini 9 netbook with a Mini PCI-E SSD that also resembled a stick of ram.. so what is the difference??

  2. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #2
    It's not a new idea, the only thing you have heard of such SSDs as your previously stated as PCIe SSDs. These are fastest in the market and at the same time carry a hefty premium.

    The difference here is that Apple is designing the entire layout and SSD capacity/responsiveness.

  3. alphaod macrumors Core

    alphaod

    Joined:
    Feb 9, 2008
    Location:
    NYC
    #3
    Mini PCIe SSDs are very slow because they use a cheap controller and cheap chips to keep the price low for the netbooks. The PCIe SSDs that jav6454 is talking about are for desktops and are a whole other animal. They are expensive because they are built for performance, not low cost.

    The Apple one looks like it is a custom chip which is both affordable while faster than the ones used in the netbooks.

  4. CaoCao macrumors 6502a

    Joined:
    Jul 27, 2010
    #4
    Those can have I/O that is over 1 GB/s :eek:
    Apple doesn't use what a consumer can tell is cheap crap. Apple will use a much faster SSD

  5. fuzzielitlpanda macrumors 6502a

    Joined:
    Mar 24, 2008
  6. cleric macrumors 6502a

    cleric

    Joined:
    Jun 7, 2008
    Location:
    Minneapolis, MN
    #6
    Makes sense if you are trying to make a small laptop junk the case and put it right on the board since it has no moving parts. In a computer where everyone already considers the ssd a must.

  7. happyslayer macrumors 6502a

    happyslayer

    Joined:
    Feb 3, 2008
    Location:
    Glendale, AZ
    #7
    I think fuzzielitlpanda has hit it right on the nose. Those Viking SSD-DIMMS look like just the thing for the new Airs. And they sort of look like the leaked picture.

    Can't wait for Wednesday!

  8. cleric macrumors 6502a

    cleric

    Joined:
    Jun 7, 2008
    Location:
    Minneapolis, MN
  9. cleric macrumors 6502a

    cleric

    Joined:
    Jun 7, 2008
    Location:
    Minneapolis, MN
    #9
  10. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #10
    Actually, those can have as much as 4GB/s. PCIe SSDs normally are grouped into RAID (RAID 0 commonly) configurations due to the fast controllers and multiple parallel NAND Flash modules. See OCZs PCIe SSDs.

    Also, PCIe 2.0 haxe 500MB/s per x1 lane, and many of these PCIe SSDs have x4, or x8 configurations giving them insane speeds 4GB/s or 2GB/s.

  11. joelypolly macrumors 6502

    Joined:
    Sep 14, 2003
    Location:
    Melbourne & Shanghai
    #11
    Also the Vikings require an open full size DIMM slot which is not going to happen on the MBA if not simply for size and height reasons.

  12. fuzzielitlpanda macrumors 6502a

    Joined:
    Mar 24, 2008
    #12

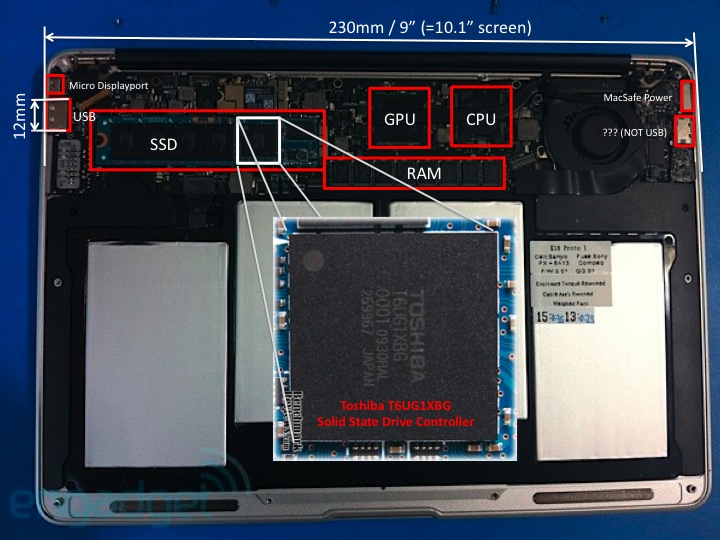

    i don't know if it will be viking branded or not, but it seems very likely that apple will be using the same type of form factor for the SSD:

    [​IMG]

    Whatever that "SSD" thing is, it sure looks like a DIMM. The latest rumors on AppleInsider say that the picture above is likely of the 11.6":

    http://www.appleinsider.com/article...book_air_photo_is_of_new_11_6_inch_model.html

  13. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #13
    Soldered in NAND flash chips don't require DIMM slots, just an open PCIe x1 port, which Intel's chipsets have.

  14. CaoCao macrumors 6502a

    Joined:
    Jul 27, 2010
    #14
    How many PCIe lanes it fits in doesn't matter as long as it exceeds the I/O, for example most GPUs run fine at x8 speeds.

    PS the reason they take that many slots is because they are too big to be supported otherwise

  15. aberrero macrumors 6502a

    Joined:
    Jan 12, 2010
    #15
    It is magical.


    Seriously though, I own a mini 9 as well and it is basically exactly the same thing.

  16. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #16
    In our case, the MacBook Air would have an PCIe 2.0 x1 interface for the Integrated SSD. That would give the Air a 500MB/s bandwidth; quite fast. However, knowing Apple, they may cripple it to save costs and thus make this a PCIe 1.1 x1 lane; thus cutting the transfer rate by half to 250MB/s. Still, an x1 @ 250MB/s transfers, that is still quite fast for the Air.

  17. joelypolly macrumors 6502

    Joined:
    Sep 14, 2003
    Location:
    Melbourne & Shanghai
    #17
    It would be cheaper for Apple to go with a Pin Compatible SATA connector as opposed to a mPCIe SSD as they currently use ribbon cables to break out to mSATA anyways on the MBA.

  18. jav6454 macrumors P6

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #18
    We are taking into account the reports of integrated SSD, so, the integrated means no ribbons around. Cheaper would mean, older and slower controller, in other words, PCIe 1.1 speeds.

  19. aberrero macrumors 6502a

    Joined:
    Jan 12, 2010
    #19
    It is possible that the Air will have no SATA controller at all...

    This will very heavily depend on what cpu/chipset/gpu they use though, and right now we basically have no clue what they are planning on doing.

  20. potatis macrumors 6502a

    potatis

    Joined:
    Dec 9, 2006
    #20
    The Air had a 1.8" SSD before, so maybe it's not a huge space saver, but is it much faster?
