SSD Random Read/Write Speed Survey
- Thread starter Thiol
- Start date
- Sort by reaction score
This is mine and there is no way to cheat.
Peter has a 256gb Apple SSD but it is in a MBP 13" 2008. His is substaintally slower then mine due being one of the original drives apple offered as an ssd.
Peter has a 256gb Apple SSD but it is in a MBP 13" 2008. His is substaintally slower then mine due being one of the original drives apple offered as an ssd.
OWC 240 gb
Not bad
Results 320.66
System Info
Xbench Version 1.3
System Version 10.6.5 (10H574)
Physical RAM 4096 MB
Model MacBookPro6,2
Drive Type OWC Mercury Extreme Pro SSD
Disk Test 320.66
Sequential 191.84
Uncached Write 284.83 174.88 MB/sec [4K blocks]
Uncached Write 278.12 157.36 MB/sec [256K blocks]
Uncached Read 91.49 26.77 MB/sec [4K blocks]
Uncached Read 355.36 178.60 MB/sec [256K blocks]
Random 976.23
Uncached Write 1294.98 137.09 MB/sec [4K blocks]
Uncached Write 515.33 164.98 MB/sec [256K blocks]
Uncached Read 2985.86 21.16 MB/sec [4K blocks]
Uncached Read 952.58 176.76 MB/sec [256K blocks]
Not bad
Results 320.66
System Info
Xbench Version 1.3
System Version 10.6.5 (10H574)
Physical RAM 4096 MB
Model MacBookPro6,2
Drive Type OWC Mercury Extreme Pro SSD
Disk Test 320.66
Sequential 191.84
Uncached Write 284.83 174.88 MB/sec [4K blocks]
Uncached Write 278.12 157.36 MB/sec [256K blocks]
Uncached Read 91.49 26.77 MB/sec [4K blocks]
Uncached Read 355.36 178.60 MB/sec [256K blocks]
Random 976.23
Uncached Write 1294.98 137.09 MB/sec [4K blocks]
Uncached Write 515.33 164.98 MB/sec [256K blocks]
Uncached Read 2985.86 21.16 MB/sec [4K blocks]
Uncached Read 952.58 176.76 MB/sec [256K blocks]
All of this was with 4GB RAM since finding other systems with 4GB is much easier than 8, and the 4GB is factory where as the 8 is Crucial.
Results 218.05
System Info
Xbench Version 1.3
System Version 10.6.6 (10J567)
Physical RAM 4096 MB
Model MacBookPro5,5
Drive Type OWC Mercury Extreme Pro SSD
CPU Test 180.18
GCD Loop 296.19 15.61 Mops/sec
Floating Point Basic 145.14 3.45 Gflop/sec
vecLib FFT 120.21 3.97 Gflop/sec
Floating Point Library 276.63 48.17 Mops/sec
Thread Test 363.64
Computation 495.21 10.03 Mops/sec, 4 threads
Lock Contention 287.31 12.36 Mlocks/sec, 4 threads
Memory Test 190.41
System 236.22
Allocate 408.33 1.50 Malloc/sec
Fill 183.18 8906.79 MB/sec
Copy 208.68 4310.22 MB/sec
Stream 159.48
Copy 152.65 3153.02 MB/sec
Scale 150.31 3105.31 MB/sec
Add 168.52 3589.86 MB/sec
Triad 168.25 3599.30 MB/sec
Quartz Graphics Test 194.14
Line 171.43 11.41 Klines/sec [50% alpha]
Rectangle 219.53 65.54 Krects/sec [50% alpha]
Circle 187.36 15.27 Kcircles/sec [50% alpha]
Bezier 197.81 4.99 Kbeziers/sec [50% alpha]
Text 201.05 12.58 Kchars/sec
OpenGL Graphics Test 165.14
Spinning Squares 165.14 209.48 frames/sec
User Interface Test 301.43
Elements 301.43 1.38 Krefresh/sec
Disk Test 248.38
Sequential 146.78
Uncached Write 228.43 140.26 MB/sec [4K blocks]
Uncached Write 226.39 128.09 MB/sec [256K blocks]
Uncached Read 64.10 18.76 MB/sec [4K blocks]
Uncached Read 350.21 176.01 MB/sec [256K blocks]
Random 806.83
Uncached Write 1295.34 137.13 MB/sec [4K blocks]
Uncached Write 400.51 128.22 MB/sec [256K blocks]
Uncached Read 1651.55 11.70 MB/sec [4K blocks]
Uncached Read 923.05 171.28 MB/sec [256K blocks]
I found this kinda cool. Here is a MBP exactly as mine with the original Vertex
http://db.xbench.com/merge.xhtml?doc2=374372
Now look at my OWC versus the Vertex 2...these are probably 2 of the fastest drives available...
http://db.xbench.com/merge.xhtml?doc2=461848
Overall, the Vertex 2 is slightly faster than the OWC, but it is pretty close. It's also worth noting that faster systems than the 13 inch 5,5 MBP have benchmarks for both the OWC and Vertex 2 showing MUCH faster speeds. Also, more RAM really changes my Uncached Read, which in this test with 4GB of RAM is pretty bad. Keep in mind SSDs often have rather low Uncached Read speeds.
It's also worth noting that the Crucial C300 is very underrated speed wise and despite not being SandForce controlled, it is still exceptionally fast.
CHECK OUT THIS OWC!!...it's almost 500 in an i7 MBP
Results 218.05
System Info
Xbench Version 1.3
System Version 10.6.6 (10J567)
Physical RAM 4096 MB
Model MacBookPro5,5
Drive Type OWC Mercury Extreme Pro SSD
CPU Test 180.18
GCD Loop 296.19 15.61 Mops/sec
Floating Point Basic 145.14 3.45 Gflop/sec
vecLib FFT 120.21 3.97 Gflop/sec
Floating Point Library 276.63 48.17 Mops/sec
Thread Test 363.64
Computation 495.21 10.03 Mops/sec, 4 threads
Lock Contention 287.31 12.36 Mlocks/sec, 4 threads
Memory Test 190.41
System 236.22
Allocate 408.33 1.50 Malloc/sec
Fill 183.18 8906.79 MB/sec
Copy 208.68 4310.22 MB/sec
Stream 159.48
Copy 152.65 3153.02 MB/sec
Scale 150.31 3105.31 MB/sec
Add 168.52 3589.86 MB/sec
Triad 168.25 3599.30 MB/sec
Quartz Graphics Test 194.14
Line 171.43 11.41 Klines/sec [50% alpha]
Rectangle 219.53 65.54 Krects/sec [50% alpha]
Circle 187.36 15.27 Kcircles/sec [50% alpha]
Bezier 197.81 4.99 Kbeziers/sec [50% alpha]
Text 201.05 12.58 Kchars/sec
OpenGL Graphics Test 165.14
Spinning Squares 165.14 209.48 frames/sec
User Interface Test 301.43
Elements 301.43 1.38 Krefresh/sec
Disk Test 248.38
Sequential 146.78
Uncached Write 228.43 140.26 MB/sec [4K blocks]
Uncached Write 226.39 128.09 MB/sec [256K blocks]
Uncached Read 64.10 18.76 MB/sec [4K blocks]
Uncached Read 350.21 176.01 MB/sec [256K blocks]
Random 806.83
Uncached Write 1295.34 137.13 MB/sec [4K blocks]
Uncached Write 400.51 128.22 MB/sec [256K blocks]
Uncached Read 1651.55 11.70 MB/sec [4K blocks]
Uncached Read 923.05 171.28 MB/sec [256K blocks]
I found this kinda cool. Here is a MBP exactly as mine with the original Vertex
http://db.xbench.com/merge.xhtml?doc2=374372
Now look at my OWC versus the Vertex 2...these are probably 2 of the fastest drives available...
http://db.xbench.com/merge.xhtml?doc2=461848
Overall, the Vertex 2 is slightly faster than the OWC, but it is pretty close. It's also worth noting that faster systems than the 13 inch 5,5 MBP have benchmarks for both the OWC and Vertex 2 showing MUCH faster speeds. Also, more RAM really changes my Uncached Read, which in this test with 4GB of RAM is pretty bad. Keep in mind SSDs often have rather low Uncached Read speeds.
It's also worth noting that the Crucial C300 is very underrated speed wise and despite not being SandForce controlled, it is still exceptionally fast.
CHECK OUT THIS OWC!!...it's almost 500 in an i7 MBP
I notice that some of the older SSDs perform better in these tests, but the newer drives with SandForce controllers tend to have better real world performance.
Results 242.85
System Info
Xbench Version 1.3
System Version 10.6.6 (10J567)
Physical RAM 8192 MB
Model MacBookPro7,1
Drive Type SSD G2 series 64GB
Disk Test 242.85
Sequential 143.63
Uncached Write 209.43 128.59 MB/sec [4K blocks]
Uncached Write 197.84 111.94 MB/sec [256K blocks]
Uncached Read 65.92 19.29 MB/sec [4K blocks]
Uncached Read 350.98 176.40 MB/sec [256K blocks]
Random 785.39
Uncached Write 1169.34 123.79 MB/sec [4K blocks]
Uncached Write 373.90 119.70 MB/sec [256K blocks]
Uncached Read 2105.09 14.92 MB/sec [4K blocks]
Uncached Read 918.88 170.50 MB/sec [256K blocks]
Results 242.85
System Info
Xbench Version 1.3
System Version 10.6.6 (10J567)
Physical RAM 8192 MB
Model MacBookPro7,1
Drive Type SSD G2 series 64GB
Disk Test 242.85
Sequential 143.63
Uncached Write 209.43 128.59 MB/sec [4K blocks]
Uncached Write 197.84 111.94 MB/sec [256K blocks]
Uncached Read 65.92 19.29 MB/sec [4K blocks]
Uncached Read 350.98 176.40 MB/sec [256K blocks]
Random 785.39
Uncached Write 1169.34 123.79 MB/sec [4K blocks]
Uncached Write 373.90 119.70 MB/sec [256K blocks]
Uncached Read 2105.09 14.92 MB/sec [4K blocks]
Uncached Read 918.88 170.50 MB/sec [256K blocks]
I've noticed the SandForce controlled SSDs have terrible Uncashed Read speeds on the 2009 era MBP...but the same drives on other computers, while still slow comparing to all other disk speed tests, are significantly faster. Any idea?
Mine:
Uncached Read 64.10 18.76 MB/sec [4K blocks]
Mine:
Uncached Read 64.10 18.76 MB/sec [4K blocks]
Disk Test 276.38
Sequential 165.67
Uncached Write 250.90 154.05 MB/sec [4K blocks]
Uncached Write 226.22 127.99 MB/sec [256K blocks]
Uncached Read 77.49 22.68 MB/sec [4K blocks]
Uncached Read 352.91 177.37 MB/sec [256K blocks]
Random 833.15
Uncached Write 1307.16 138.38 MB/sec [4K blocks]
Uncached Write 401.09 128.40 MB/sec [256K blocks]
Uncached Read 2145.30 15.20 MB/sec [4K blocks]
Uncached Read 928.79 172.34 MB/sec [256K blocks]
Hardware Overview:
Model Name: MacBook Pro
Model Identifier: MacBookPro5,1
Processor Name: Intel Core 2 Duo
Processor Speed: 2.93 GHz
Number Of Processors: 1
Total Number Of Cores: 2
L2 Cache: 6 MB
Memory: 8 GB
Bus Speed: 1.07 GHz
Boot ROM Version: MBP51.007E.B05
SMC Version (system): 1.41f2
I thought the benchmark showed rather poorly, but I am thinking it is the benchmark, not the system. Besides, I don't seem to do all that bad with my early 2009 MBP.
Better benchmark:
Sequential 165.67
Uncached Write 250.90 154.05 MB/sec [4K blocks]
Uncached Write 226.22 127.99 MB/sec [256K blocks]
Uncached Read 77.49 22.68 MB/sec [4K blocks]
Uncached Read 352.91 177.37 MB/sec [256K blocks]
Random 833.15
Uncached Write 1307.16 138.38 MB/sec [4K blocks]
Uncached Write 401.09 128.40 MB/sec [256K blocks]
Uncached Read 2145.30 15.20 MB/sec [4K blocks]
Uncached Read 928.79 172.34 MB/sec [256K blocks]
Hardware Overview:
Model Name: MacBook Pro
Model Identifier: MacBookPro5,1
Processor Name: Intel Core 2 Duo
Processor Speed: 2.93 GHz
Number Of Processors: 1
Total Number Of Cores: 2
L2 Cache: 6 MB
Memory: 8 GB
Bus Speed: 1.07 GHz
Boot ROM Version: MBP51.007E.B05
SMC Version (system): 1.41f2
I thought the benchmark showed rather poorly, but I am thinking it is the benchmark, not the system. Besides, I don't seem to do all that bad with my early 2009 MBP.
Better benchmark:
Screen shot 2011-01-17 at 9.29.32 PM by ssasal, on Flickr

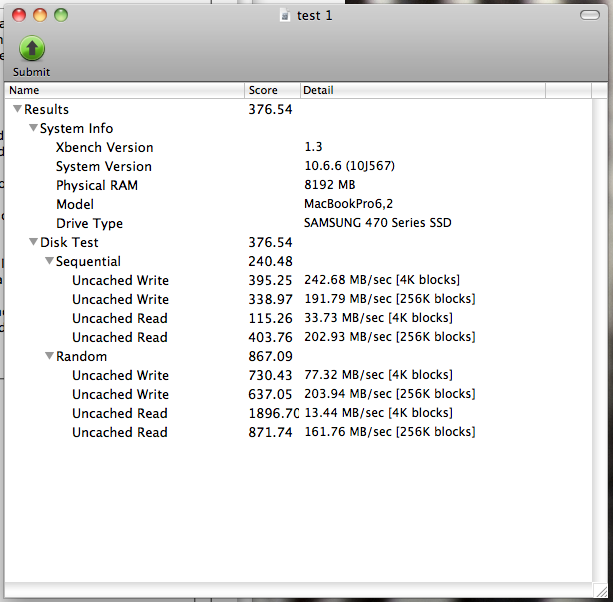

Here is my result. I just installed this drive on Saturday.
We have the same drive... Why are my results so much slower than yours? 3-day-old drive, fresh install... Macbook Pro 13" 2010 base model.
EDIT: Nevermind, I need to work on my reading comprehension skills.
Except that Xbench hardly dictates real world performance.
Absolutely, and it seems many people also question Xbench's reliability in predicting anything in a semi-precise manner.
I don't know how often it has been said on MacRumors;
DON'T use XBench any more, especially not for benching SSD's.
The software is 5 years old and was neither made for SSD's, nor for any other modern hardware. It just doesn't scale with today's tech and gives completely unreliable results.
I did an XBench with my Intel as well; results from 160 to 300. You can hardly rely on the numbers you get from that software, so best you can do is to select it, and press delete!
DON'T use XBench any more, especially not for benching SSD's.
The software is 5 years old and was neither made for SSD's, nor for any other modern hardware. It just doesn't scale with today's tech and gives completely unreliable results.
I did an XBench with my Intel as well; results from 160 to 300. You can hardly rely on the numbers you get from that software, so best you can do is to select it, and press delete!
XBench and all other benchmark programs are made to gauge and estimate capability. This is completely limited in real-world meaning because it cannot estimate the performance of the system based on the individual user's customization. Furthermore, the highest importance in regards to performance is user-satisfaction. All of the benchmark systems simply give you a bunch of numbers, which to most people means nothing.
Obviously, gauging hard drive speed gets even more complicated because no one uses a hard drive exactly in the manner that benchmarks test and the variation seen, which is largely dependent on the user, has no ability to account for this.
Obviously, gauging hard drive speed gets even more complicated because no one uses a hard drive exactly in the manner that benchmarks test and the variation seen, which is largely dependent on the user, has no ability to account for this.
