MP All Models Turn a "new" Sapphire RX580 PULSE into the "Mac Edition" card

h9826790 said:

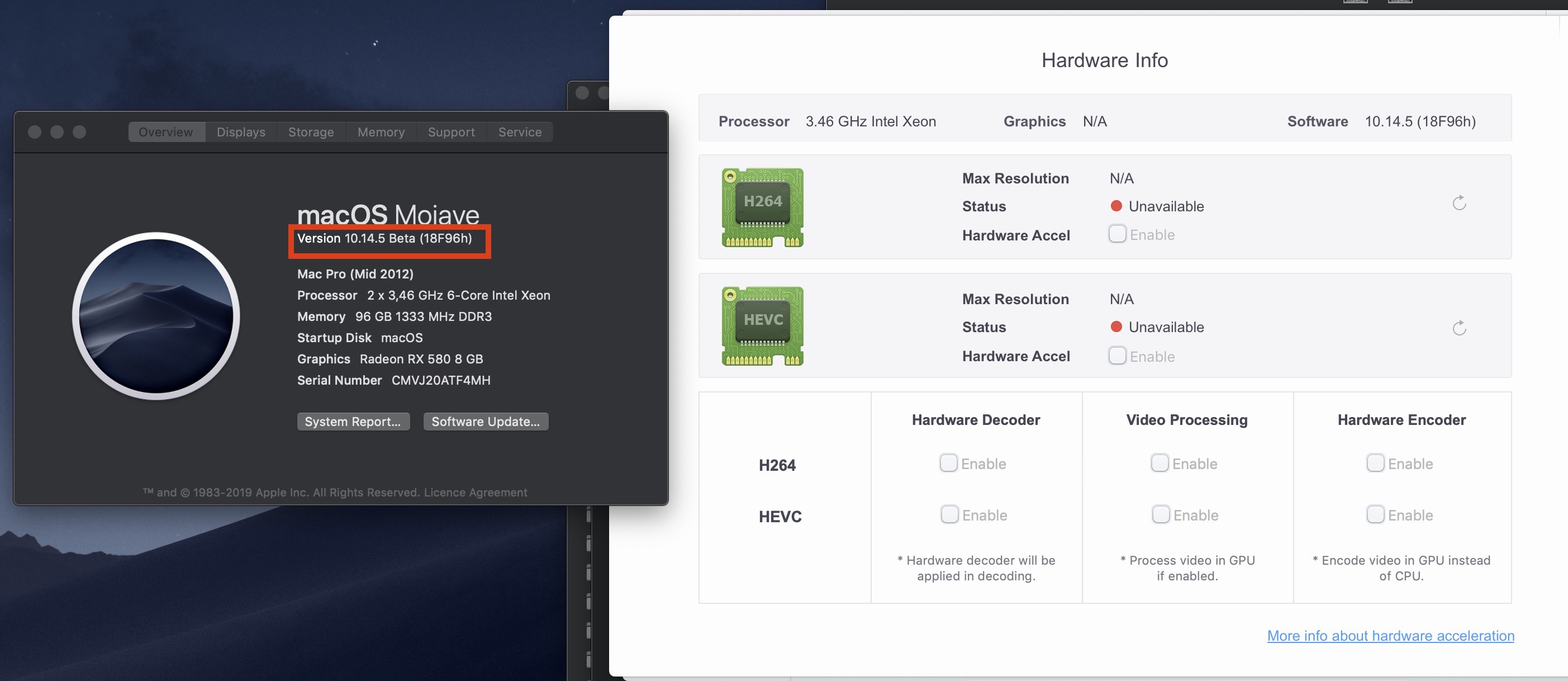

Thanks, do you mind I send your screen capture to Apple, and tell them none of the H264 / HEVC hardware acceleration is working?

I can remove your cMP's serial number if you don't want Apple's engineer see that.
Click to expand...
Of course i do not mind and my serial is not a secret (i do not use hackintosh).

But at first let us clear the situation out:

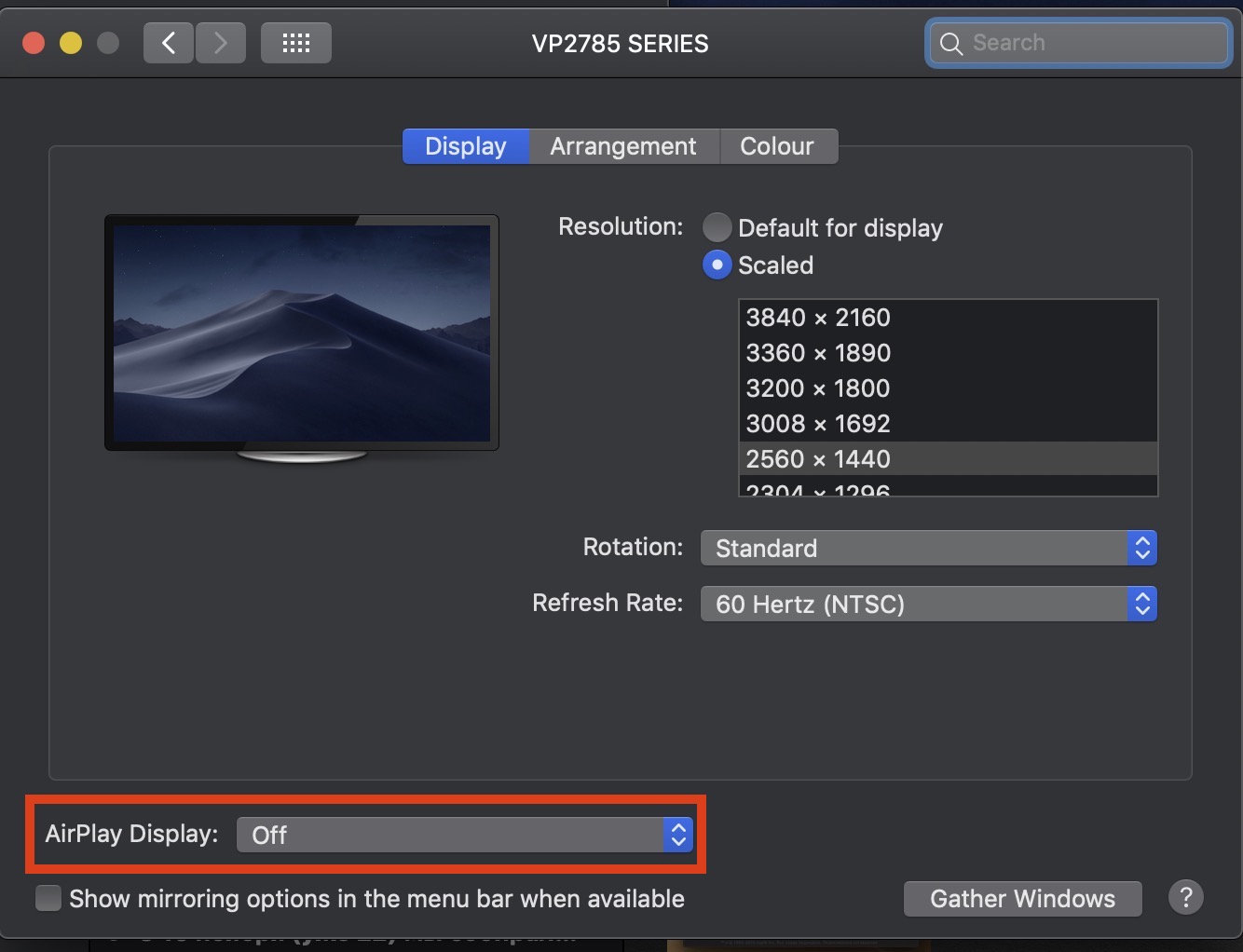

I see that airplay option appeared in display settings (as far as i know it is sign of hardware acceleration support):

Screenshot 2019-03-31 at 01.27.40.jpg

Also, support for DP sound finally appeared:

Screenshot 2019-03-31 at 01.29.24.jpg

I think, maybe Videoproc is not quite suitable to show info on this version of OS?

Are there any terminal commands to check hardware acceleration support?

slamjack said:
Of course i do not mind and my serial is not a secret (i do not use hackintosh).

But at first let us clear the situation out:

I see that airplay option appeared in display settings (as far as i know it is sign of hardware acceleration support):

View attachment 829508

Also, support for DP sound finally appeared:

View attachment 829509

I think, maybe Videoproc is not quite suitable to show info on this version of OS?

Are there any terminal commands to check hardware acceleration support?
Click to expand...

I assume you already try refresh, but still nothing, correct?
Screenshot 2019-03-30 at 22.17.53 copy.jpg


DP sound available in 10.14.4 official release as well.

Airplay should only available for Mac that has hardware acceleration. Is that really working on your cMP?

I don't know any macOS build-in terminal command can check that.

So, Airplay display founds my Apple TV and initiates desktop viewing, but TV`s screen becames simply black and that is all.
Refreshing in Videproc does not work.

I think that Apple engineers should know that -)

slamjack said:
So, Airplay display founds my Apple TV and initiates desktop viewing, but TV`s screen becames simply black and that is all.
Refreshing in Videproc does not work.

I think that Apple engineers should know that -)
Click to expand...

Thanks, I will report that to Apple engineers

slamjack said:
So, Airplay display founds my Apple TV and initiates desktop viewing, but TV`s screen becames simply black and that is all.
Refreshing in Videproc does not work.

I think that Apple engineers should know that -)
Click to expand...

exact the same

It seems Apple engineer is really trying to add H264 encode, HEVC encode, and HEVC decode for RX580.

Hackintosh group found this.
Screenshot 2019-03-31 at 8.11.08 PM.png

[doublepost=1554034797][/doublepost]
IndioX said:
exact the same
Click to expand...

Thanks for the confirmation.
[doublepost=1554035820][/doublepost]May I know if both of you have Orinoco frame buffer?
Screenshot 2019-03-31 at 8.36.20 PM.png

  • Like
Reactions: Synchro3 and bsbeamer
So let's recapitulate:

- RX 580 OOTB driver support since 10.12.6 and 10.13.0
- 10 Bit/30 Bit support
- native HDMI 2.0 support since 10.13.6
- Audio support over HDMI and DisplayPort since 10.14.4
- future HEVC encode/decode support (it seems only with Orinoco frame buffer)

The Sapphire RX 580 gets a lot of love from Apple... Unlike the Nvidia cards.

  • Like
Reactions: zedex and killawat
Purchased in August 2018 from Amazon (down to $190 right now):
https://www.amazon.com/dp/B06ZZ6FMF8

Label on box reads:
Sapphire Pulse Radeon RX 580 8GB GDDR5 Dual HDMI/DVI-D/Dual DP OC W/BP (UEFI)
PN 299-1E387-000SA
SKU 11265-05-20G

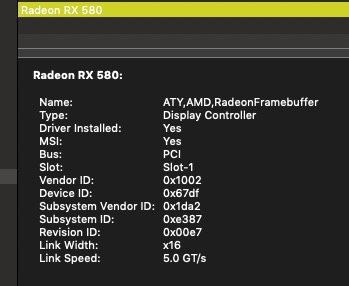

Radeon RX 580:
Name: ATY,AMD,RadeonFramebuffer
Type: Display Controller
Driver Installed: Yes
MSI: Yes
Bus: PCI
Slot: Slot-1
Vendor ID: 0x1002
Device ID: 0x67df
Subsystem Vendor ID: 0x1da2
Subsystem ID: 0xe387
Revision ID: 0x00e7
Link Width: x16
Link Speed: 5.0 GT/s

Screen Shot 2019-04-01 at 8.42.43 AM.png


Any lists available with native OOTB ATY,Orinoco GPUs that are currently available for purchase?

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
bsbeamer said:
Purchased in August 2018 from Amazon (down to $190 right now):
https://www.amazon.com/dp/B06ZZ6FMF8

Label on box reads:
Sapphire Pulse Radeon RX 580 8GB GDDR5 Dual HDMI/DVI-D/Dual DP OC W/BP (UEFI)
PN 299-1E387-000SA
SKU 11265-05-20G

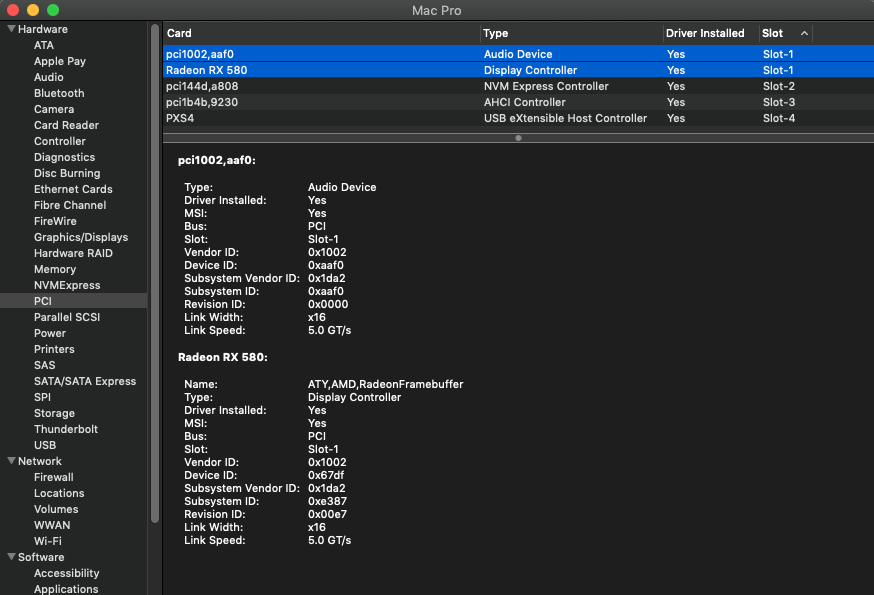

Radeon RX 580:
Name: ATY,AMD,RadeonFramebuffer
Type: Display Controller
Driver Installed: Yes
MSI: Yes
Bus: PCI
Slot: Slot-1
Vendor ID: 0x1002
Device ID: 0x67df
Subsystem Vendor ID: 0x1da2
Subsystem ID: 0xe387
Revision ID: 0x00e7
Link Width: x16
Link Speed: 5.0 GT/s

View attachment 829812

Any lists available with native OOTB ATY,Orinoco GPUs that are currently available for purchase?
Click to expand...

AFAIK, the dual ROM PULSE RX580 8GB V2 card has same ROM part number as the "Apple Blessed" card. That has native Orinoco framebuffer support. This card should be currently selling by Sapphire. However, I am not sure if all V2 card has that same part number at this moment. And I am not sure which reseller still selling V1 card.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
  • Like
Reactions: zoltm and LightBulbFun
Unfortunately, there are now "only" three versions being sold.
11265-05 SAPPHIRE PULSE RADEON RX 580 8GB
11265-06 PULSE RADEON RX 580 8GB
11265-33 PULSE RADEON RX 580 8GB

11265-05v2 was the DUAL BIOS version and it seems it's either no longer being offered, or it has been merged into the specs of another model. None of these three list the DUAL BIOS option that was specifically listed previously.

https://www.sapphiretech.com/en/consumer/pulse-rx-580-8g-g5#Specification

According to post #15 in this thread:
https://forums.macrumors.com/threads/sapphire-rx580-pulse-with-dual-bios.2143346/#post-26585680

This particular dual bios still used ATY,AMD,RadeonFramebuffer natively.

bsbeamer said:
Unfortunately, there are now "only" three versions being sold.
11265-05 SAPPHIRE PULSE RADEON RX 580 8GB
11265-06 PULSE RADEON RX 580 8GB
11265-33 PULSE RADEON RX 580 8GB

11265-05v2 was the DUAL BIOS version and it seems it's either no longer being offered, or it has been merged into the specs of another model. None of these three list the DUAL BIOS option that was specifically listed previously.

https://www.sapphiretech.com/en/consumer/pulse-rx-580-8g-g5#Specification

According to post #15 in this thread:
https://forums.macrumors.com/threads/sapphire-rx580-pulse-with-dual-bios.2143346/#post-26585680

This particular dual bios still used ATY,AMD,RadeonFramebuffer natively.
Click to expand...

I occasionally went to check the PULSE web page. It seems they rarely says anything about if dual BIOS available for the card. Lots of buyers have absolutely no idea their card will have dual BIOS when they purchase it.

I just check the PULSE page again, nothing in the spec, however, have a link about "how to use dual BIOS".
Screenshot 2019-04-02 at 8.32.26 PM.png

http://pulse.sapphiretech.com/en/580-8.html#specifications

Anyway, it seems not all dual BIOS PULSE RX580 can default to use Orinoco Framebuffer in macOS.

  • Like
Reactions: zoltm and Reindeer_Games
Reindeer_Games said:
I recently received a 11265-05-20G and it is a dual bios.
Click to expand...

What does the PN and SKU on the box say?
Is it ATY,AMD,RadeonFramebuffer or ATY,Orinoco natively?

My RX580 is PN 299-1E387-000SA with SKU 11265-05-20G and is single BIOS (no switch).

bsbeamer said:
What does the PN and SKU on the box say?
Is it ATY,AMD,RadeonFramebuffer or ATY,Orinoco natively?

My RX580 is PN 299-1E387-000SA with SKU 11265-05-20G and is single BIOS (no switch).
Click to expand...

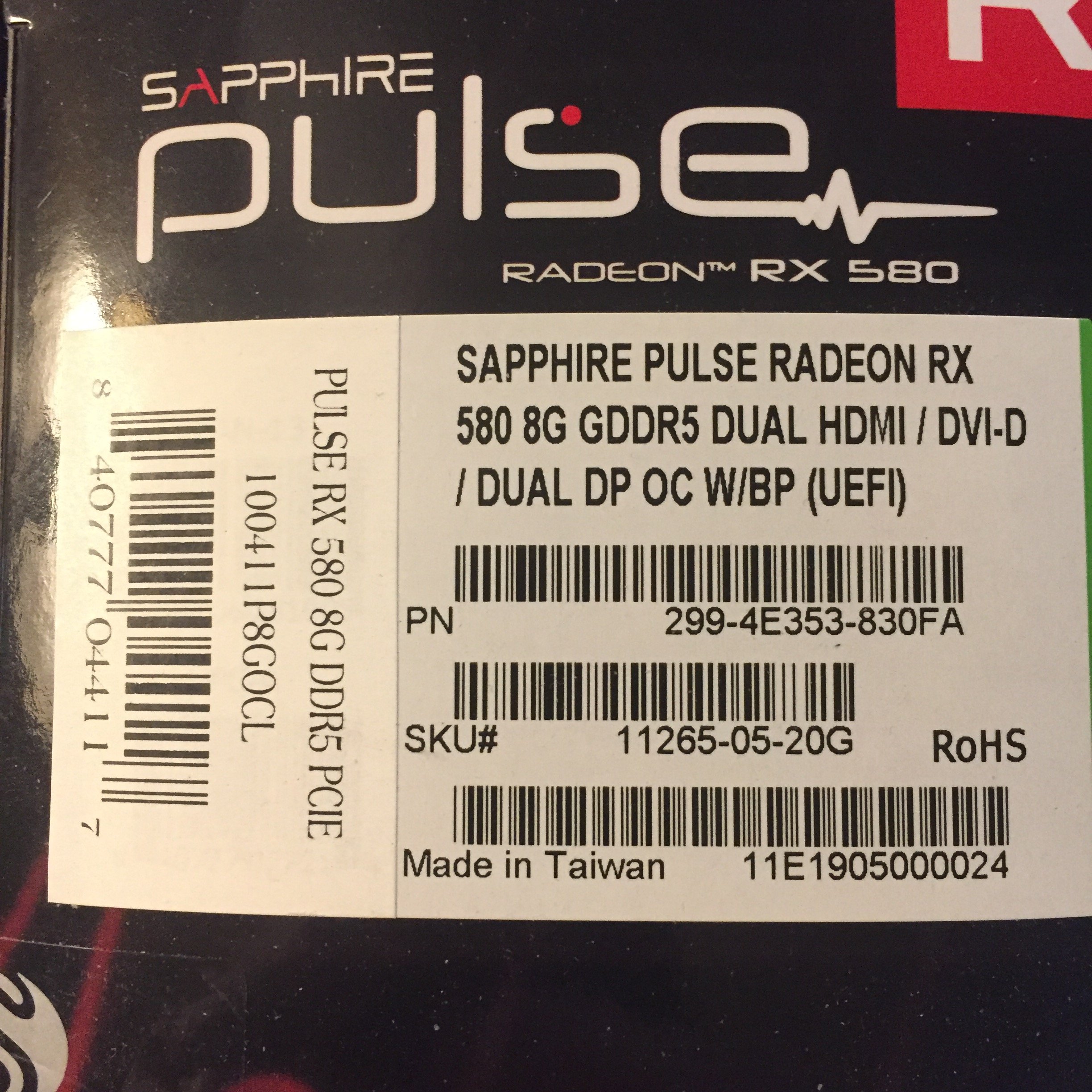

This is one I received after ordering and shipped by Newegg, not a third party vendor from their site:

Model: 100411P8G0CL
P/N: 299-4E353-830FA
SKU: 11265-05-20G
html: https://www.newegg.com/Product/Product.aspx?Item=N82E16814202278

I picked it up on sale last month, and they just came-off sale around ~$190'ish if you can wait for the next sale.

IMG_6652.JPG IMG_6654.jpg

Third-parties may ship the same one, I'd just suggest confirming it before expecting it.

Last edited:
Reindeer_Games said:
This is one I received after ordering and shipped by Newegg, not a third party vendor from their site:

Model: 100411P8G0CL
P/N: 299-4E353-830FA
SKU: 11265-05-20G
html: https://www.newegg.com/Product/Product.aspx?Item=N82E16814202278

I picked it up on sale last month, and they just came-off sale around ~$190'ish if you can wait for the next sale.

View attachment 830012

Third-parties may ship the same one, I'd just suggest confirming it before expecting it.
Click to expand...

Is it ATY,AMD,RadeonFramebuffer or ATY,Orinoco natively?

MBP11,3:
Screen Shot 2019-04-02 at 12.26.05 PM.png
MP5,1 with RX580:
Screen Shot 2019-04-02 at 12.31.26 PM.png

VideoProc not even detecting GPU presence on MP5,1 with RX580 in 10.14.4.
If I swap back to High Sierra or GPUs in the next week, will try to remember to test with GTX 1080 FE and GTX 680 Mac Edition.

  • Like
Reactions: tsialex and Reindeer_Games
MP5,1 with GTX 680 Mac Edition (Official EVGA Version):
Screen Shot 2019-04-02 at 2.17.31 PM.png
Same as above, Mojave 10.14.4 18E226.

If anyone actually has paid for VideoProc, reach out to their developers. Show them this documentation (or additional) and ask if/when GPU support will be added in MP5,1. HEVC might not be possible due to CPUs in MP5,1 but H264 should be supported with NVIDIA GPUs from GeForce 8-series (GT 8800 Mac Edition) and forward. This is/was directly from NVIDIA press releases at the time.
