Have you tried to change resolution to 2560 x 1600 and than reboot one more time?
While 30” is connected on DP of course.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Ultimate Thread: 4890 in Mac Pro
- Thread starter Cindori
- Start date
- Sort by reaction score
Have you tried to change resolution to 2560 x 1600 and than reboot one more time?
While 30” is connected on DP of course.
mfka
macrumors regular
I thought so, hm weird. Ok never mind, thanks for checking this for me mate.
I think ill leave it that way until series 5000 comes out on mac 😀
mfka
macrumors regular
Yeah, i have but i’m not really a fan of having multiple display setups around me.
Like to have things simple. My friends here are also confused about why i refuse to do so. 🙂
If you start with 2 displays you'll never come back to one, IMHO your friends are very cleaver 😀, and you are only at 10 or 15 euros away from 2 displays (the price of dp/dvi adaptor)
mfka
macrumors regular
Hehehe, thats what im afraid of. 😀
Maybe when i fell ready for two displays ill do it. 😀
One more thing 😀, you can if you want disconnect your 30" before starting MP and when you think windowserver has started you connect your 30" onto DVI port and voilà 🙂
One more thing 😀, you are not obliged to disconnect physically your 30", you just switch it off before starting MP and switch it on when you think windowserver has started and voilà 🙂
mfka
macrumors regular
mfka
macrumors regular

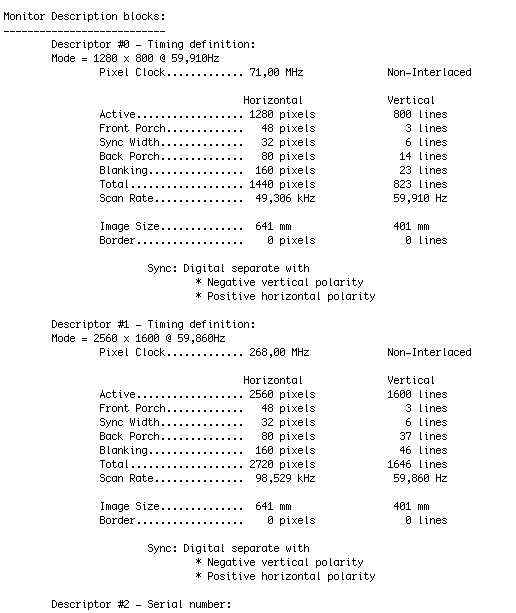

IMveryHO, for 30" connected to DP/DVI port at 1280 x 800, it's a matter of EDID contained within PROM of the display:
30" EDID has two descriptors,
#0 : 1280 x 800 at 59,910Hz
and
#1 : 2560 x 1600 at 59,860Hz
Dual link use #1, single link #0

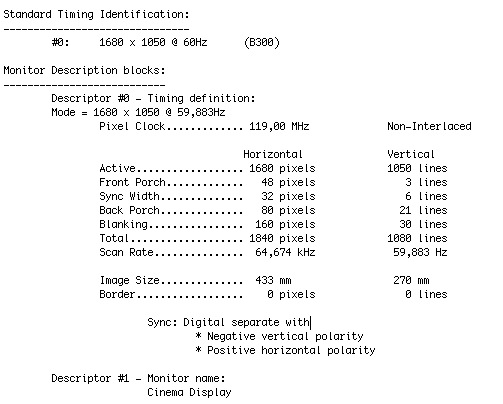

20" EDID has one descriptor,
#0 : 1680 x 1050 at 59,883 Hz
All EDID informations extracted with SwitchResX from Stéphane Madrau
http://www.madrau.com/indexSRX4.html
Attachments
mfka
macrumors regular
These information are display passport, they don't change according to environment, IMHO descriptors are natives resolutions.
Did you try to capture your 30" EDID?
mfka
macrumors regular

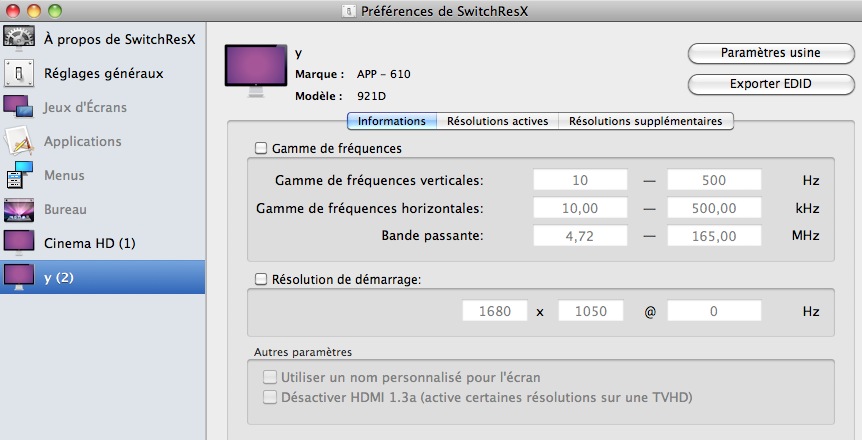

Yeap install it and
after go to "System Preferences"
you'll see a logo within "others", click on it, a window pops up,
click onto the logo, a new window pops up and click on the top right of this last window "export EDID"
You'll have the birth date of your display😱
Attachments
mfka
macrumors regular
Descriptor #0 - Timing definition:
Mode = 1280 x 800 @ 59,910Hz
Pixel Clock............. 71,00 MHz Non-Interlaced
Horizontal Vertical
Active.................. 1280 pixels 800 lines
Front Porch............. 48 pixels 3 lines
Sync Width.............. 32 pixels 6 lines
Back Porch.............. 80 pixels 14 lines
Blanking................ 160 pixels 23 lines
Total................... 1440 pixels 823 lines
Scan Rate............... 49,306 kHz 59,910 Hz
Image Size.............. 641 mm 401 mm
Border.................. 0 pixels 0 lines
Sync: Digital separate with
* Negative vertical polarity
* Positive horizontal polarity
Descriptor #1 - Timing definition:
Mode = 2560 x 1600 @ 59,860Hz
Pixel Clock............. 268,00 MHz Non-Interlaced
Horizontal Vertical
Active.................. 2560 pixels 1600 lines
Front Porch............. 48 pixels 3 lines
Sync Width.............. 32 pixels 6 lines
Back Porch.............. 80 pixels 37 lines
Blanking................ 160 pixels 46 lines
Total................... 2720 pixels 1646 lines
Scan Rate............... 98,529 kHz 59,860 Hz
Image Size.............. 641 mm 401 mm
Border.................. 0 pixels 0 lines
Sync: Digital separate with
* Negative vertical polarity
* Positive horizontal polarity
Descriptor #2 - Monitor name:
Cinema HD
Descriptor #3 - Monitor name:
Display
Mode = 1280 x 800 @ 59,910Hz
Pixel Clock............. 71,00 MHz Non-Interlaced
Horizontal Vertical
Active.................. 1280 pixels 800 lines
Front Porch............. 48 pixels 3 lines
Sync Width.............. 32 pixels 6 lines
Back Porch.............. 80 pixels 14 lines
Blanking................ 160 pixels 23 lines
Total................... 1440 pixels 823 lines
Scan Rate............... 49,306 kHz 59,910 Hz
Image Size.............. 641 mm 401 mm
Border.................. 0 pixels 0 lines
Sync: Digital separate with
* Negative vertical polarity
* Positive horizontal polarity
Descriptor #1 - Timing definition:
Mode = 2560 x 1600 @ 59,860Hz
Pixel Clock............. 268,00 MHz Non-Interlaced
Horizontal Vertical
Active.................. 2560 pixels 1600 lines
Front Porch............. 48 pixels 3 lines
Sync Width.............. 32 pixels 6 lines
Back Porch.............. 80 pixels 37 lines
Blanking................ 160 pixels 46 lines
Total................... 2720 pixels 1646 lines
Scan Rate............... 98,529 kHz 59,860 Hz
Image Size.............. 641 mm 401 mm
Border.................. 0 pixels 0 lines
Sync: Digital separate with
* Negative vertical polarity
* Positive horizontal polarity
Descriptor #2 - Monitor name:
Cinema HD
Descriptor #3 - Monitor name:
Display
he he and the birth date is ok ?
What about EDID version ? at the top of the file just under raw data
Mine is 1.3, EDID version now is 2.0
What about EDID version ? at the top of the file just under raw data
Mine is 1.3, EDID version now is 2.0
mfka
macrumors regular
This one? Poor baby was in a box for too long. 😀
EDID Version........1.3
Manufacturer........APP
Product Code........8338 (2092) (9220)
Serial Number.......0200XXXX
Manufactured........Week 43 of year 2004
Max H Size..........64 cm
Max V Size..........40 cm
Gamma...............2,20
EDID Version........1.3
Manufacturer........APP
Product Code........12946 (3292) (9232)
Serial Number.......0200XXXX
Manufactured........Week 33 of year 2006
Max H Size..........64 cm
Max V Size..........40 cm
Gamma...............2,20
Popopopo mine is old but younger than yours 😀 😀
mfka
macrumors regular
Well i dont see any dead pixels around or any other malfunctions, besides
i can easily change it for 24 LED which i certainly wont do. 😀
30" is a good size for screen, + 24 " = the best, you'll have to update your signature.
