Well... I screwed up my PBG4 DLSD

[weckart]

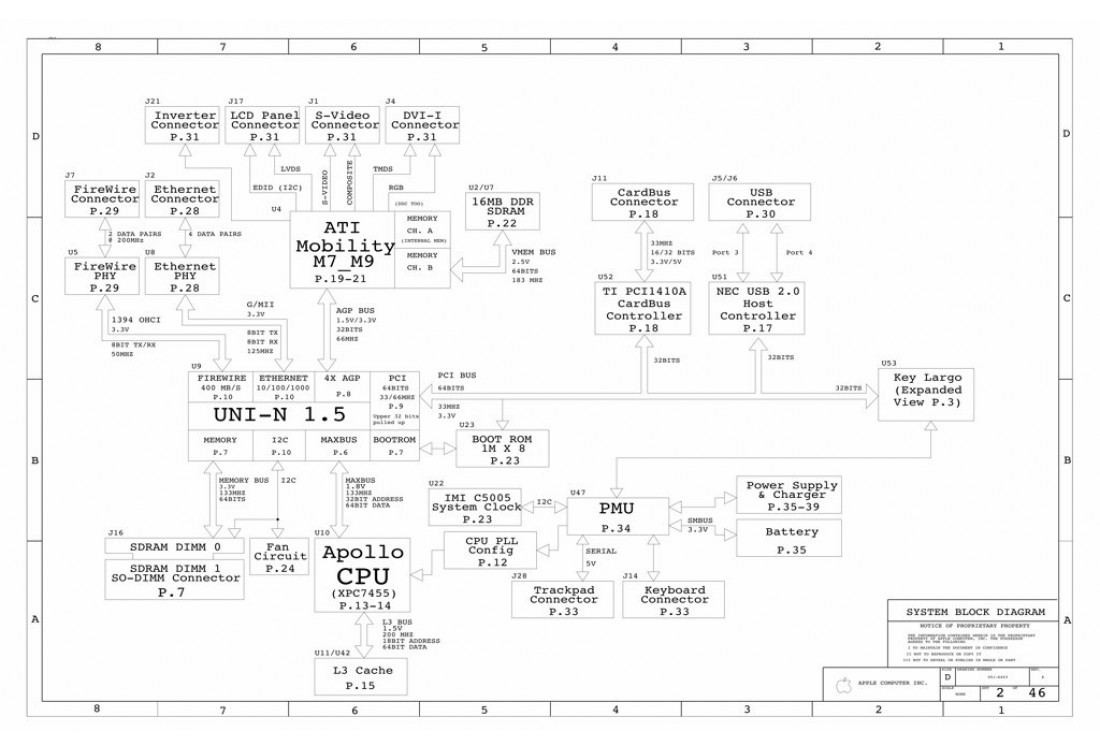

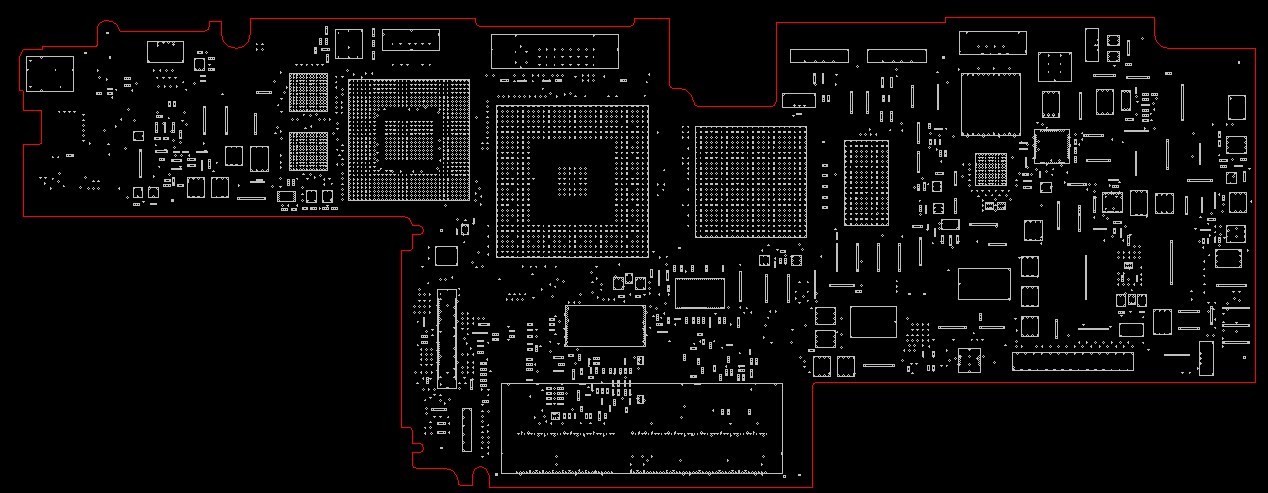

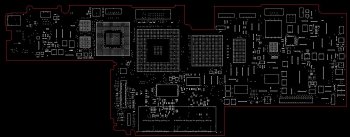

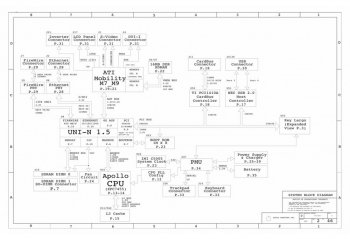

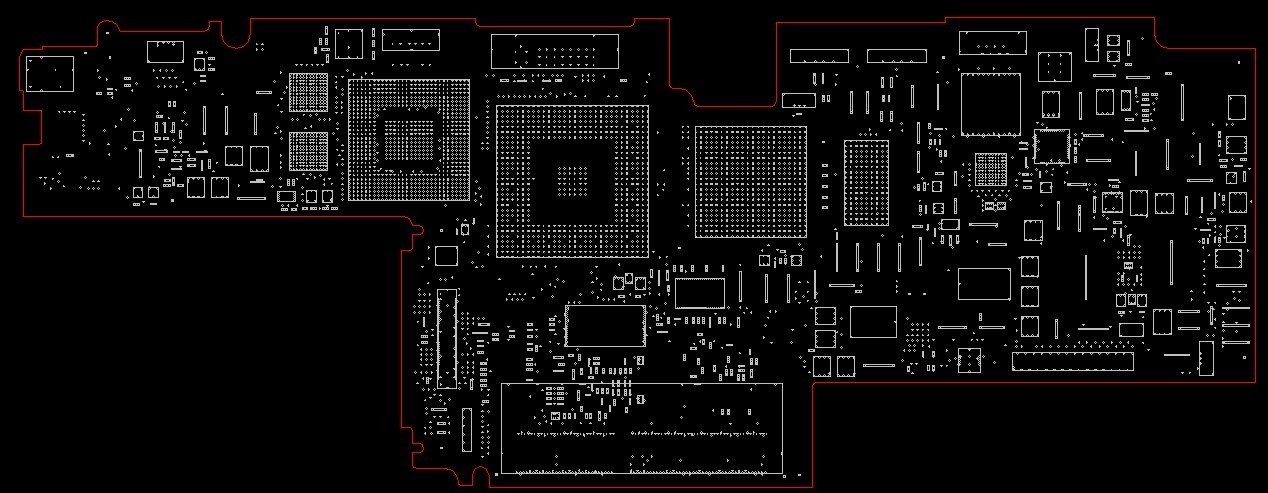

I've only found a couple of crude ones, which are little better than block diags but they do contain some other info. The board diagram is not labelled so you would have to somehow combine both infos to get a detailed schematic.



[JoyBed]

I've only found a couple of crude ones, which are little better than block diags but they do contain some other info. The board diagram is not labelled so you would have to somehow combine both infos to get a detailed schematic.



View attachment 924058

View attachment 924059

Nothing about addressing in these too. You specifically need the wiring diagram.



[Macbookprodude]

Ok, I found the developer site for the 1Ghz titanium G4

Ok, I found the developer site for the 1Ghz titanium G4

https://powerbook.micahgartman.com/dev/dn_g4_sd.pdf

Joybed, left link for you and it is the full developer of the Titanium G4 1Ghz.



[weckart]

Ok, I found the developer site for the 1Ghz titanium G4.

Not sure I would call it that. micahgartman posts here occasionally. You could try messaging him. He might have access to more detailed diagrams.



[Macbookprodude]

Wow, maybe Apple has it locked in a storage site.. It has schematics though as I read through it and the good news is the 1ghz supports LBA-48 as someone on here pointed out.

PowerBook G4 Titanium: 48bit addressing or not?

It does, yes. I stuck OS 9 and Tiger on a 60GB partition because I use Leopard mainly. All three operating systems work flawlessly on it.

forums.macrumors.com

I knew it did because the 1ghz titanium came out around the time of the 2nd quicksilver revision which allows LBA-48. Now, I can get a 512GB MSATA M2 and use that for leopard - allocating 128GB for OS 9.2.2 only.
