What have you done with a PowerPC today?

So... The story continues 🙂.
Received ordered batteries, changed one in Canister. Also cleared RAM modules contacts with isopropyl alcohol. After powering on - Sorbet leopard started sucessfully 😀. No booted from OS9 CD, looking how to install it to one of 4 IDE drives 😀.

  • Like
Reactions: Amethyst1
mectojic said:
Today, after a few weeks of on and off attempts, I decided to give up for a while on my G4 Blue and White 'Yikes' project. No matter what I do, I can't figure out how to get a stable build of OSX and OS9 to work on it.
It's essentially a G4 Yikes, as I swapped the motherboard and CPU together into a B&W case. Try as I might with previously confirmed and tested CD drives, I can't get it to boot properly off an OS 9 or OSX Tiger CD. I'm using an SSD for the installs, and tried running it on a SATA-ATA adapter and through a SATA PCI card, neither worked.
The only way I managed to install OSX was by doing it on my G4 Sawtooth, then swapping the SSD into the B&W. This allows it to boot, maybe once if lucky, then it goes back to a bunch of errors and crashes. Sometimes I get a grey blocked symbol, sometimes I don't even get to the logo, and sometimes it boots but may crash at any moment. Verbose mode sometimes says blocked IOATA controller or something.
It would be nice if it would just work. At one point I thought the Ram was causing problems, but I can't guarantee it. No idea what is truly causing the problem. One thing's for sure, the B&W and Yikes board were never truly intended for OSX.
I actually used to have a working OS9 SSD install running on the SATA PCI card. It was very stable on this machine and felt great with the Radeon 9200. Sadly I wiped it, and ever since I can't get OS9 to boot in any capacity.
Click to expand...
What about going back to the basics and using more period specific hardware? For example use a spinner instead of an SSD. Might help to get something installed.

Dronecatcher said:
Played some Prog Rock on a Moog inside my Powerbook 😉

Click to expand...
WOW, interesting
wonder if one can play Aquatarkus on the mini Moog and this software
substituting or adding the bass pedals effects featured on the quad polymoog?

back in the day my moog™s would not work in humidity and they would stutter or just play one note.
I also had to carry extra fuses because they would shorten out if not plugged in correctly with the round system.
and happy Korg™ took care of all this in the 80's!

  • Like
Reactions: Dronecatcher
MBAir2010 said:
wonder if one can play Aquatarkus on the mini Moog and this software
substituting or adding the bass pedals effects featured on the quad polymoog?
Click to expand...
Well you can run multiple instances and this mini goes polyphonic if needs be 🙂

Really though, most Moog like sounds can be done on the soft synths within Propellerheads Reason - and at much better CPU efficiency - but of course, there's no substitute for the real thing 😉

Never thought i'd see Aquatarkus referenced on this forum 😀

  • Like
Reactions: TheShortTimer and MBAir2010
Got MacOs9 Universal ISO from macos9lives.com. Burned it to CD-RW. At least - it boots now. But something is wrong (Canister or image itself..?) After full system startup - resolution drops from display-native 1600x1200 (NEC2090UXi, used, got it from second-hand market for good price) to 1280x1024. Second - mouse just stop works (plugged to apple pro keyboard, black, don't remember model). But it all works at boot with native resolution & mouse... Third - after starting recovery program (and replugging about 10 times mouse to make it click OK in dialog) - system says something about Checksum mismatch... Drive is prepared from another OS9 installer. This Canister is doomed 😀. I have no ideas how I can install OS9 from images I already downloaded. M.b. there is correct image for this model (I think - G4 MDD 2002)?

Hello everyone!
I got a PowerMac G4 MDD Dual 1GHz and an Apple Cinema Display 22" this saturday for 150€
I bought a SSD (with PATA Adapter) and I repasted the CPU with some Artic MX-4, but i noticed that the system was still loud!
So i bought 2 Noctua NF-A6X25 FLX (Thanks @reddrag0n for his fan mod) and a SickleFlow 120mm Fan, and this thing is now WHISPER QUIET!! I can hear the CD seeking now!!!

  • Like
Reactions: MarkC426 and Amethyst1
Andd..... the joy is short lived. The PowerMac has a weird issue with the Apple Cinema Display where sometimes it goes black until i disconnect the power cord to the Mac. The strangest thing is that the Apple Cinema Display light stays on EVEN when the Mac is powered off!! Has this happen to anyone here?
Nightphase said:
Hello everyone!
I got a PowerMac G4 MDD Dual 1GHz and an Apple Cinema Display 22" this saturday for 150€
I bought a SSD (with PATA Adapter) and I repasted the CPU with some Artic MX-4, but i noticed that the system was still loud!
So i bought 2 Noctua NF-A6X25 FLX (Thanks @reddrag0n for his fan mod) and a SickleFlow 120mm Fan, and this thing is now WHISPER QUIET!! I can hear the CD seeking now!!!
Click to expand...

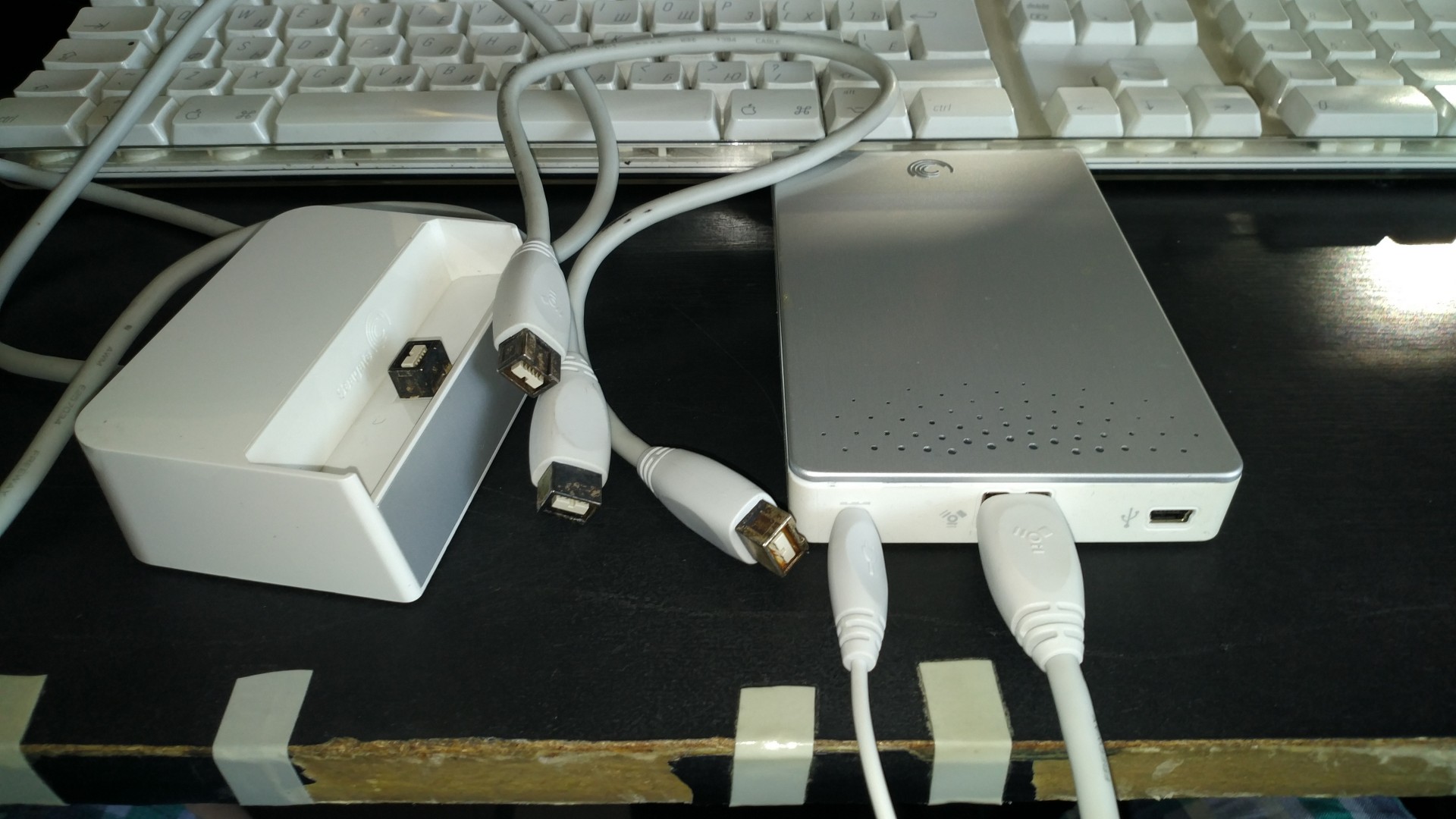

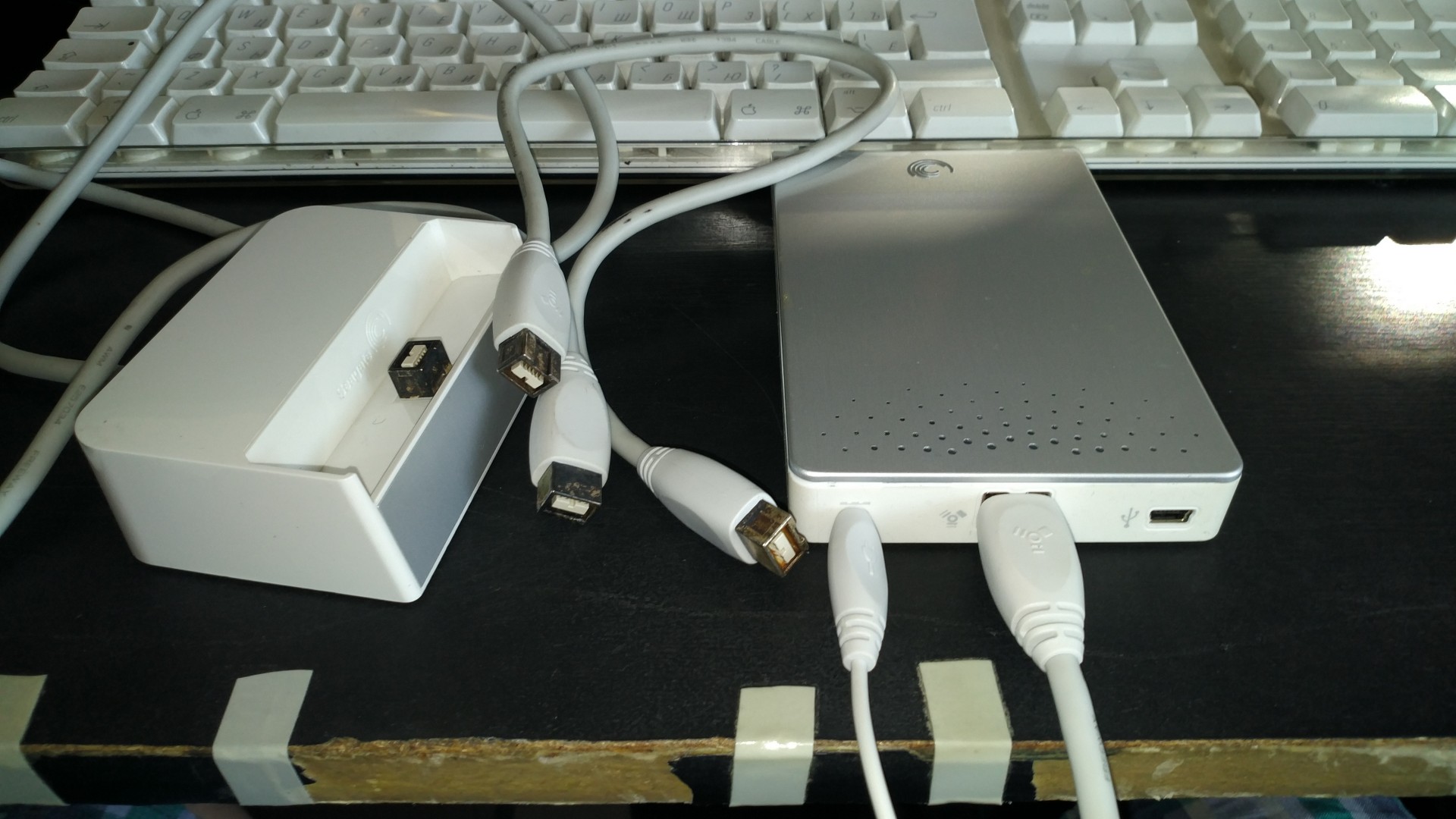

Received FW-drive 🙂. Planning to create Multi-OS installer for PowerMacs with it.


Attachments

  • IMG_20230318_152626.jpg
    288.7 KB · Views: 82
  • Like
Reactions: MacFoxG4, Amethyst1, mmphosis and 3 others
Got problems. Please drive in right direction 🙂. What OS version I need to use for proper disk partitioning & how much bootable partitions can I made with APM? Made it with Leopard's DiskUtility - only successful boot was with 10.3 installer...

Tratkazir_the_1st said:
Got problems. Please drive in right direction 🙂. What OS version I need to use for proper disk partitioning & how much bootable partitions can I made with APM? Made it with Leopard's DiskUtility - only successful boot was with 10.3 installer...
Click to expand...
What is APM? I usually use Disk Utility (Mac OS 10.5) to check disks, erase and set up partitions. I probably create too many bootable partitions, it depends on how much disk space I have available. I just got this old firewire enclosure going and I might try what you are doing and partition it for a pile of different os: 10.5, 10.4, 10.3 and earlier, Sorbet, various Linux and BSDs. I'd also like to do the same using network booting.

Tratkazir_the_1st said:
9.2, 10.0, 10.1, 10.2, 10.3, 10.4, 10.5, planned - Debian. Machine - Canister, G4 MDD 2x1GHz.
Click to expand...
9.2.2 (universal), 10.2, 10.4 and 10.5 should boot just fine on it. Did you try booting them from a hard drive inside the MDD? If they boot fine then, the problem may be the MDD's FireWire ports, the FireWire enclosure or the hard drive inside the enclosure.

Now, for 10.0 and 10.1, I'd start by changing the model identifier it reports from PowerMac3,6 (which 10.0 and 10.1 don't know and will panic on) to e.g. PowerMac3,5 (which 10.0 and 10.1 know). Boot into OpenFirmware and enter:

Code:
dev /
.properties
" PowerMac3,5" encode-string " model" property
" PowerMac3,5" encode-string " MacRISC" encode-string encode+ " MacRISC2" encode-string encode+ " Power Macintosh" encode-string encode+ " compatible" property

10.0 or 10.1 might boot then (type multi-boot to bring up the Alt/Option boot menu), or they may panic because they don't like some other piece of hardware in the MDD, such as the graphics card.

Amethyst1 said:
9.2.2 (universal)
Click to expand...
Not works, I've described what I've experienced earlier in this thread (IMMSW).
Amethyst1 said:
Did you try booting them from a hard drive inside the MDD?
Click to expand...
I suppose system have to be installed somehow before booting..? My idea of creating multi-bootable installer is based on bootabilty of installer from HD partition.

Amethyst1 said:
Now, for 10.0 and 10.1, I'd start by changing the model identifier it reports
Click to expand...
I didn't got troubles with this (yet). Installer of 10.1 just fails to boot ("still waiting for root device"). Don't remember what happened with 10.0.

Tratkazir_the_1st said:
I suppose system have to be installed somehow before booting..? My idea of creating multi-bootable installer is based on bootabilty of installer from HD partition.
Click to expand...
No, it’s totally possible to boot an OS X installer from a hard disk partition. I meant to try booting the installer from an internal HD to test if that works.

Tratkazir_the_1st said:
Installer of 10.1 just fails to boot ("still waiting for root device").
Click to expand...
IIRC the only version of 10.1 that recognises the MDD’s (and original Xserve’s) ATA-100 controller is 10.1.5 Server because it includes AppleKauaiATA.kext. I’d give this installer a try even if booting from FireWire. This is the newest 10.1 installer out there so it has the highest chance of booting on a machine newer than itself.

Last edited:
Didn't do much, save for some maintenance on Fauxsamer (my PM7500 with a G3 in it... A faux Gossamer of some sort), swapped the glued piecemeal mess that the original CD drive was in favor of a 12X AppleCD, swapped the RAM modules to take advantage of interleaving (and found out I have 4x32MB and a lone 16mb module).. I broke the power button's "crossbow" and the zip drive's carrier sled, but frankly I can glue them back and nobody will notice 😉

And tangentially related, I tried to set up a Netatalk2.x server on my RPiB+ (I have a LaCie 2big Quadra that would have handled the storage side of things) to easily shuttle files from my different PPC Macs, but unfortunately that took a dramatic turn after I accidentally shorted out my RPi, now when I plug it in, it doesn't do anything and both LEDs are solidly lit... That kinda gives me hope that it somehow borked the SD card.

"The lights are on, but nobody's home."

(Edit: I reflashed the SD card and even tried a known good one, didn't change a thing. Regardless I'll set it aside and see if I can find someone who could try and fix it.)

I guess I'll try and pick up a newer Mac Mini (or find a PSU for my 2006 that I already have on hand, I don't even know if it even works), in the meantime that I find a RPi that is reasonably priced (I had originally paid 5 euros on a garage sale for that Pi B+, that stings.)

Last edited:
  • Like
Reactions: lepidotós

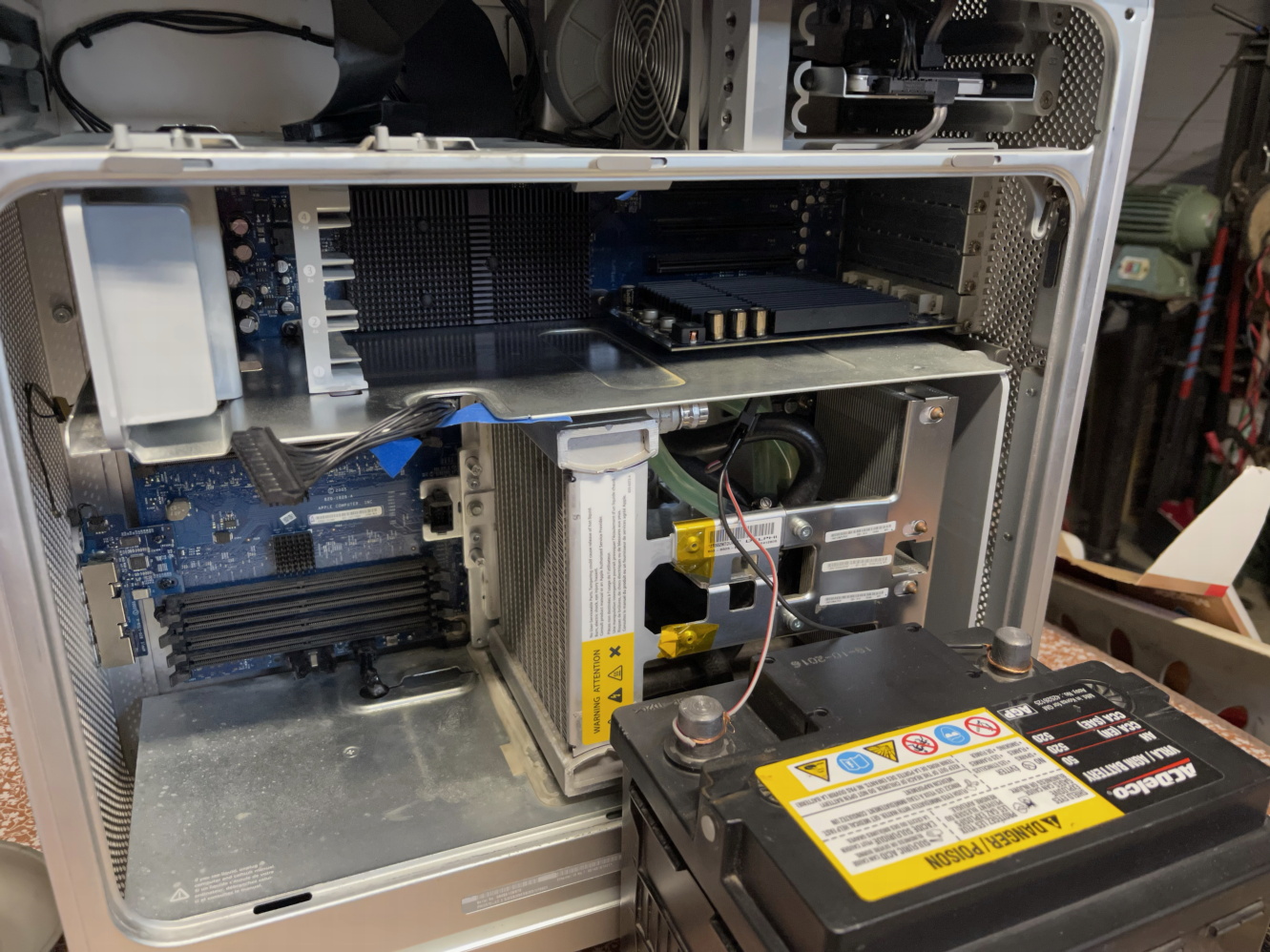

Today (well, actually, this week), my rebuild of the dead Quad G5 was successful and the machine booted after a replacement power supply, total clean out of dust and junk, and a partial flush and repasting of the LCS and CPUs. It lives!

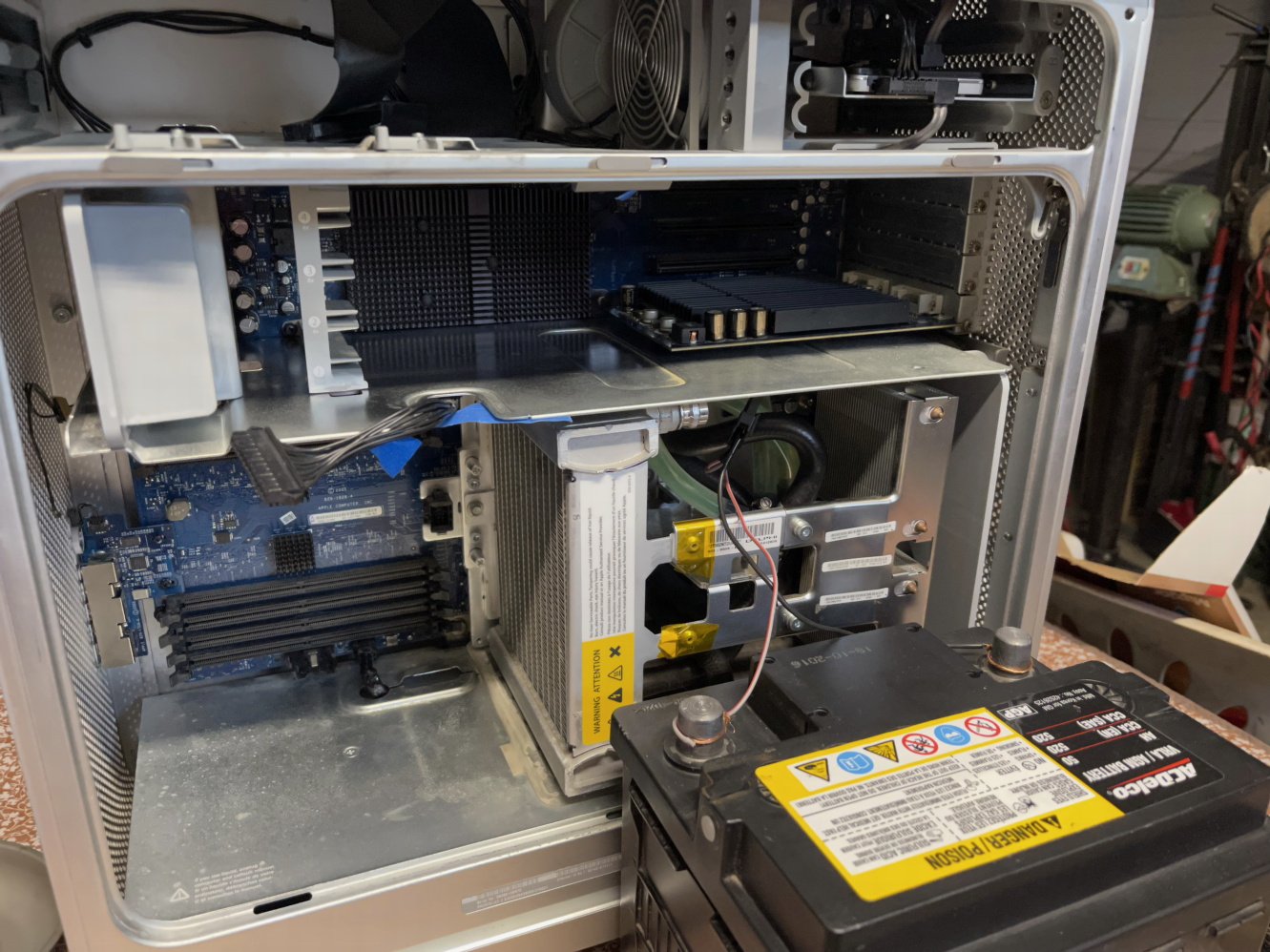

Here's a pic checking the LCS for air bubbles while installed in the case using a 12V car battery to drive the pump. It still needs some super cleaning, but now I will pause to clean the shop and play a little.


Attachments

  • IMG_2828D.JPG
    499.1 KB · Views: 90
Last edited:
  • Like
Reactions: cellularmitosis

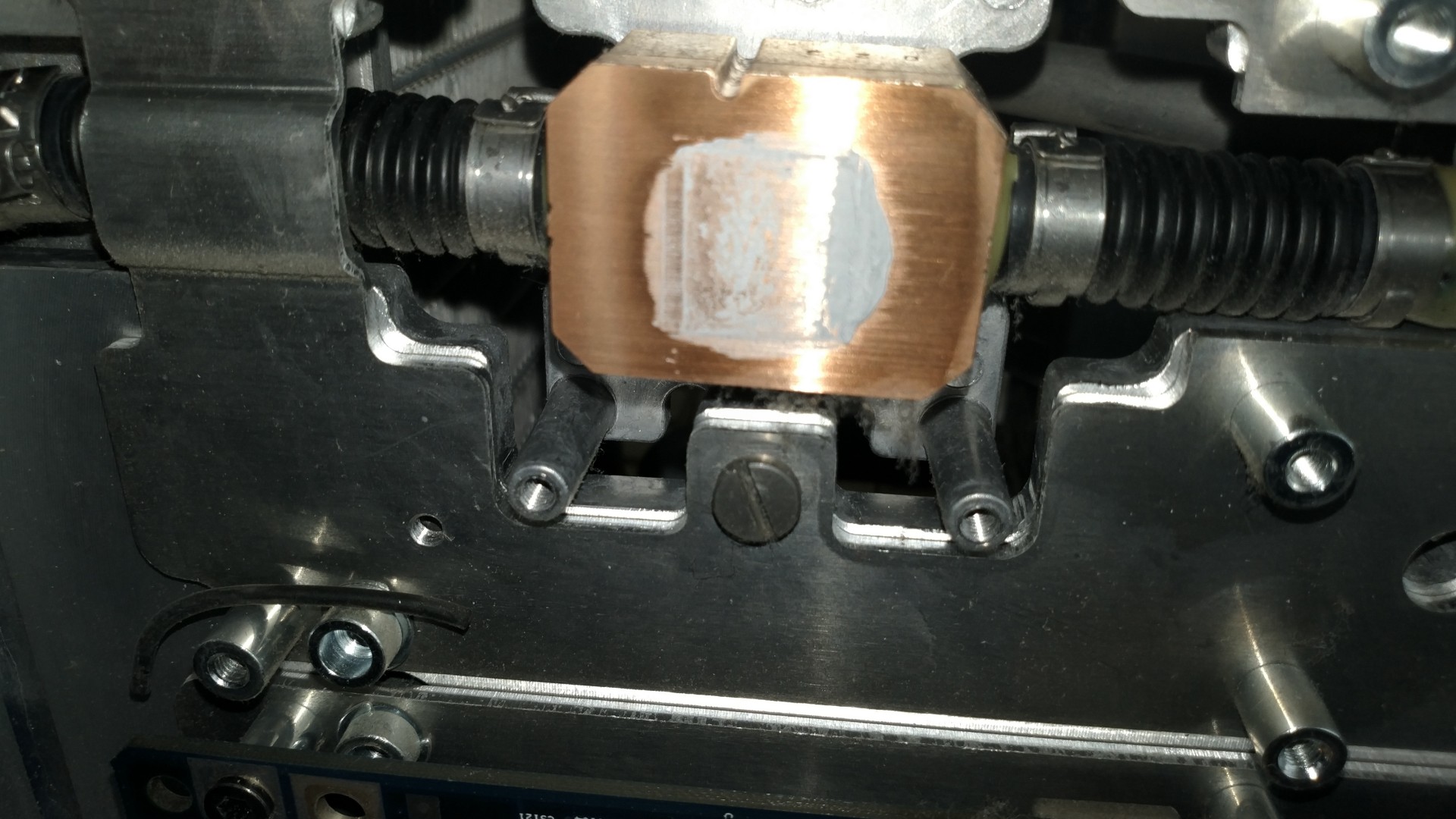

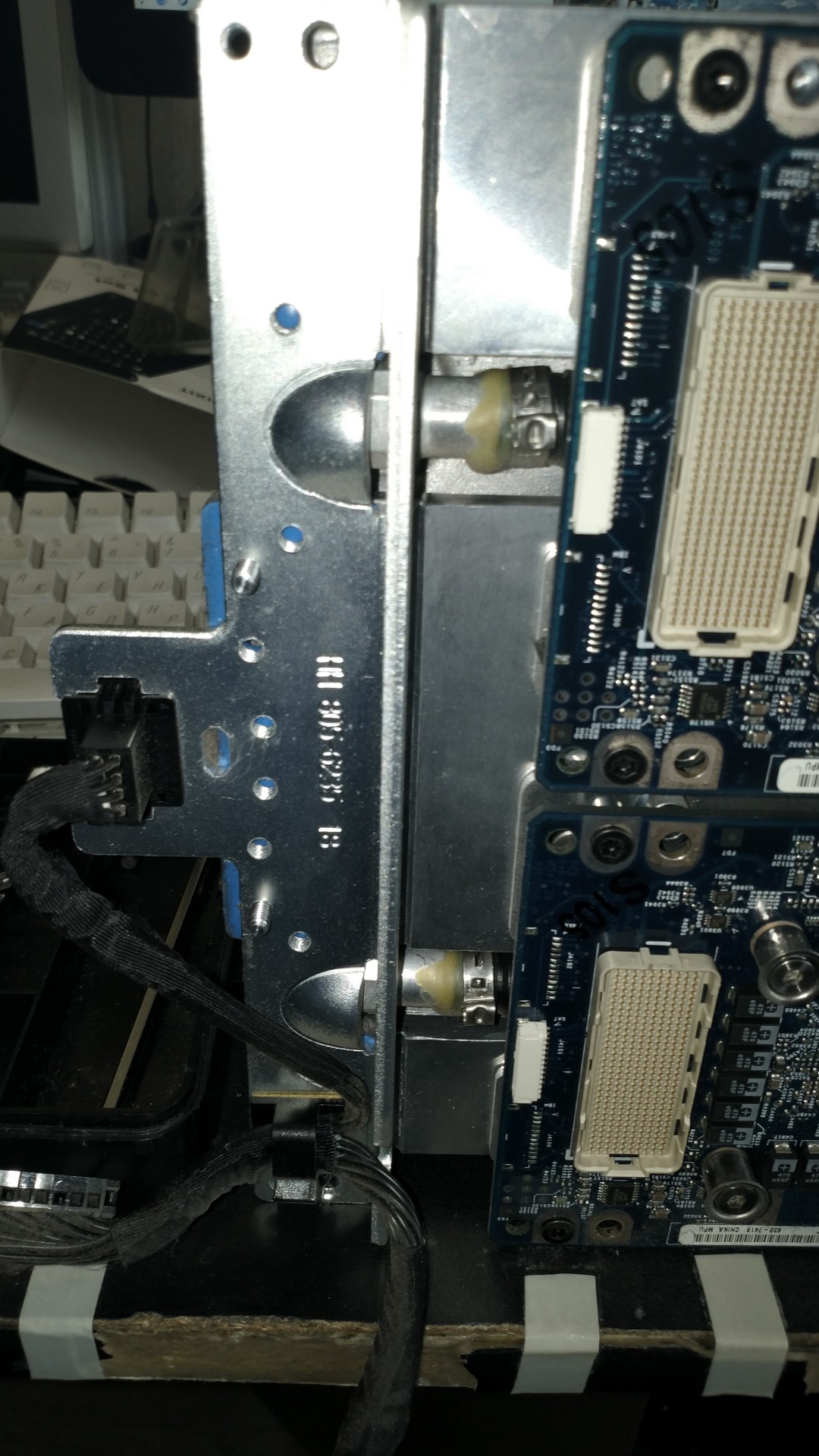

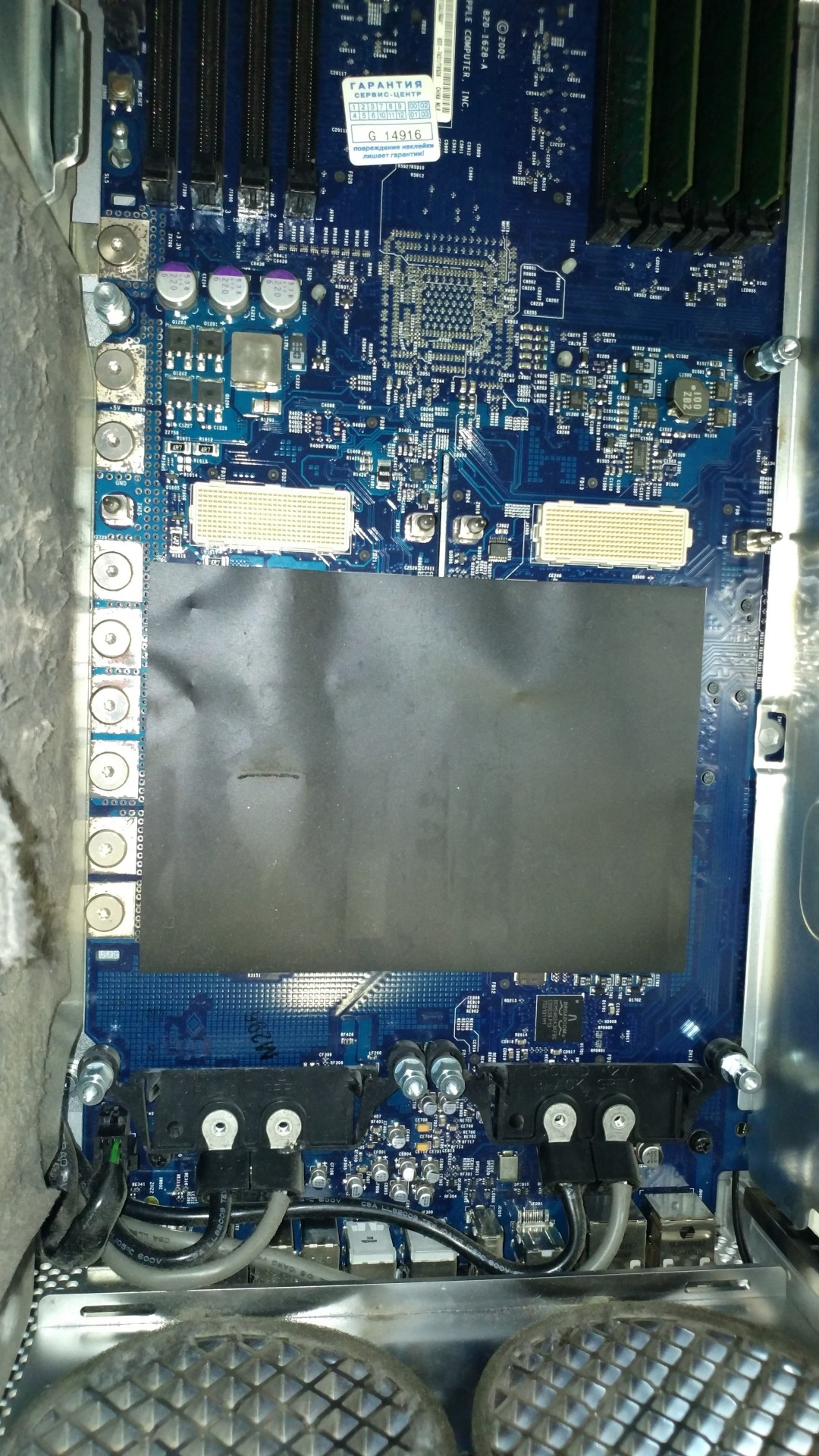

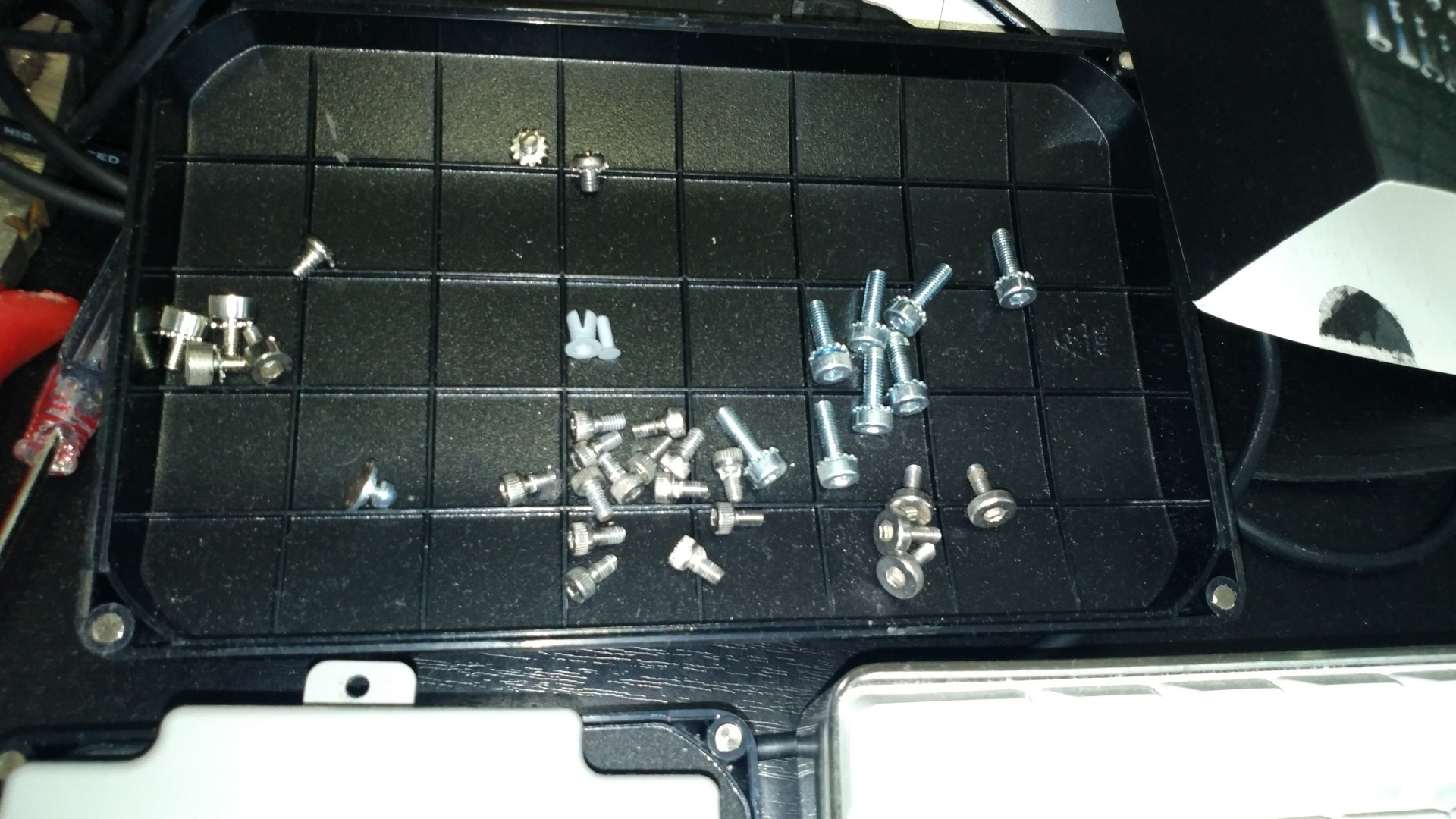

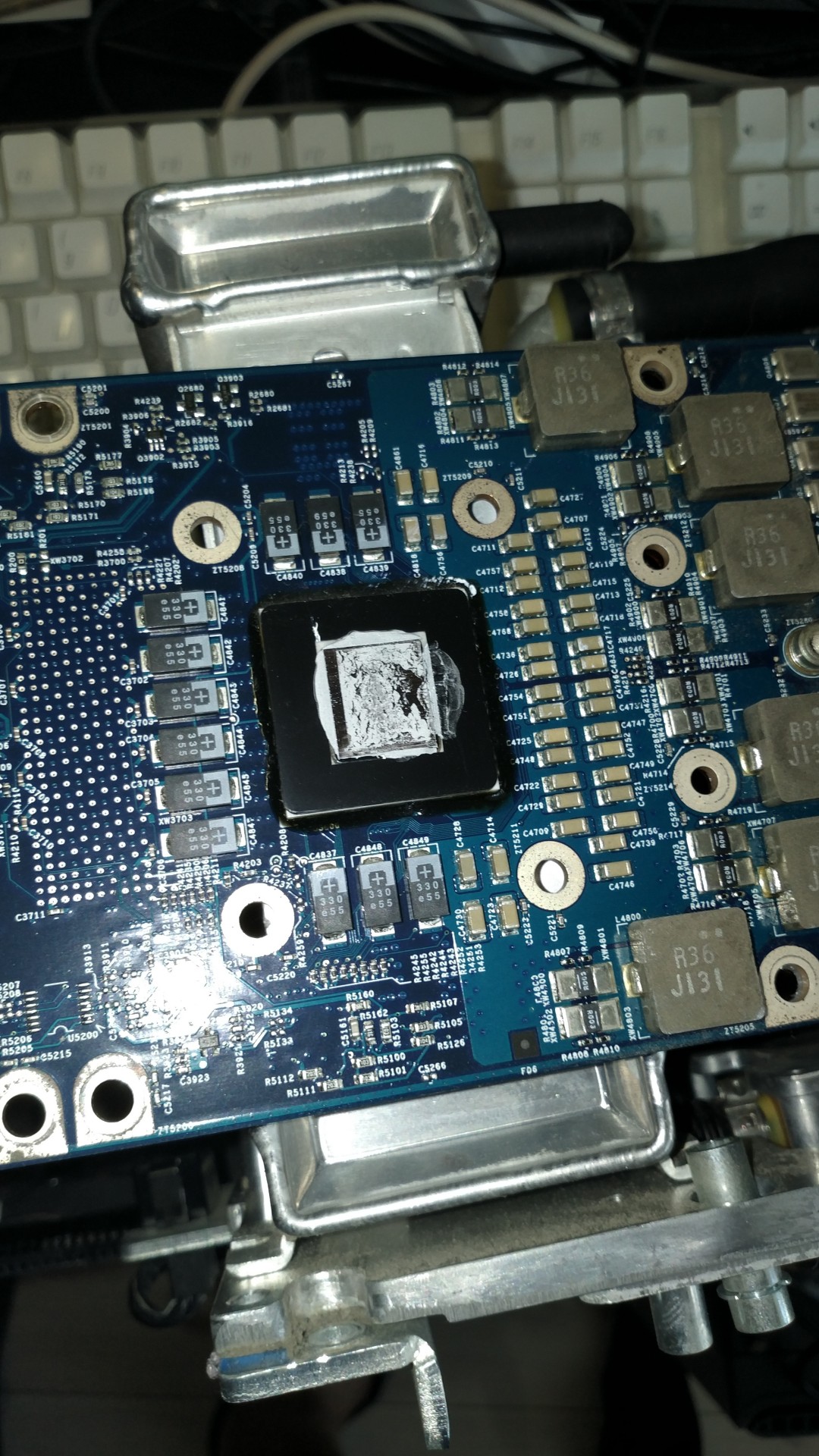

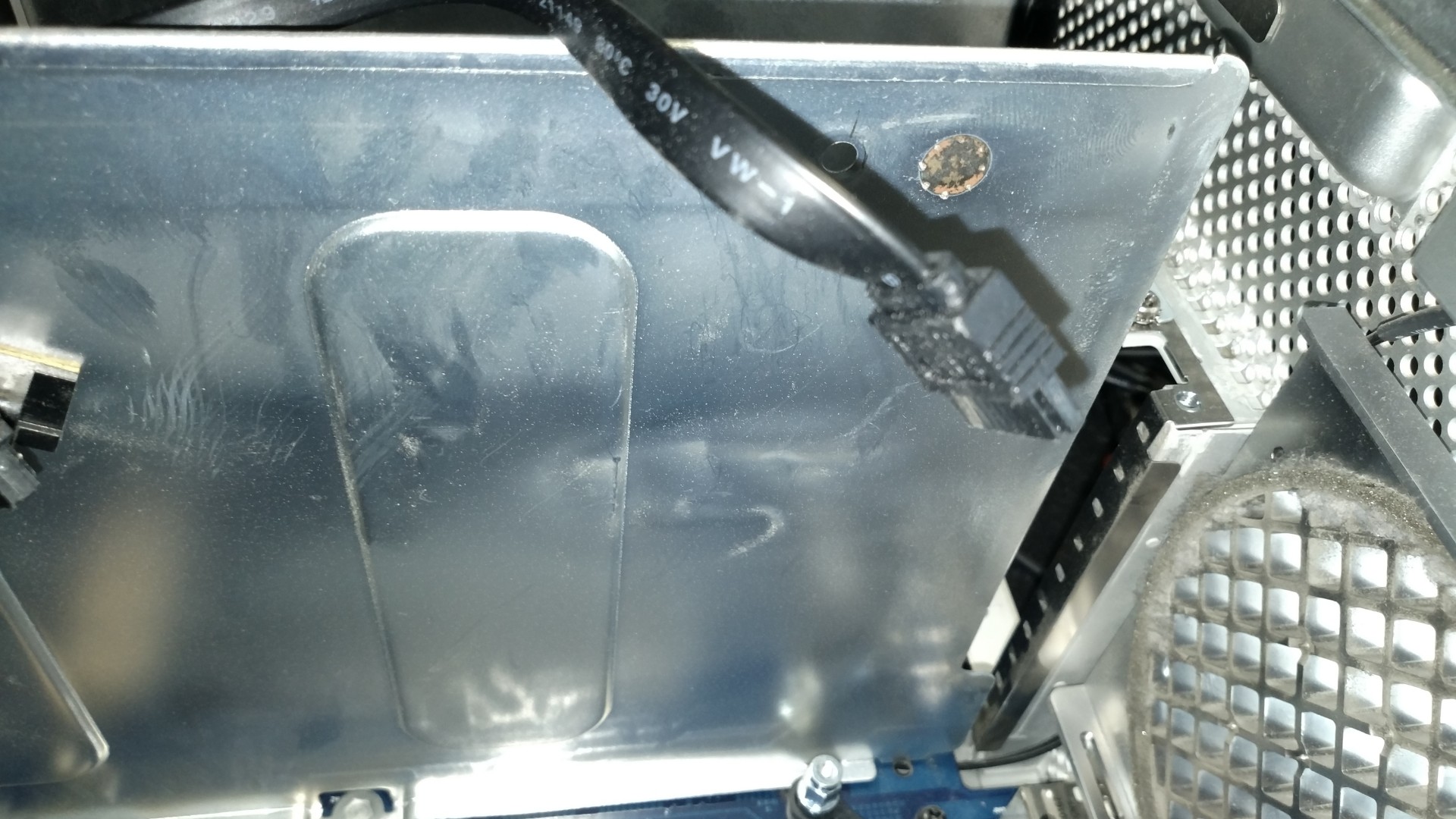

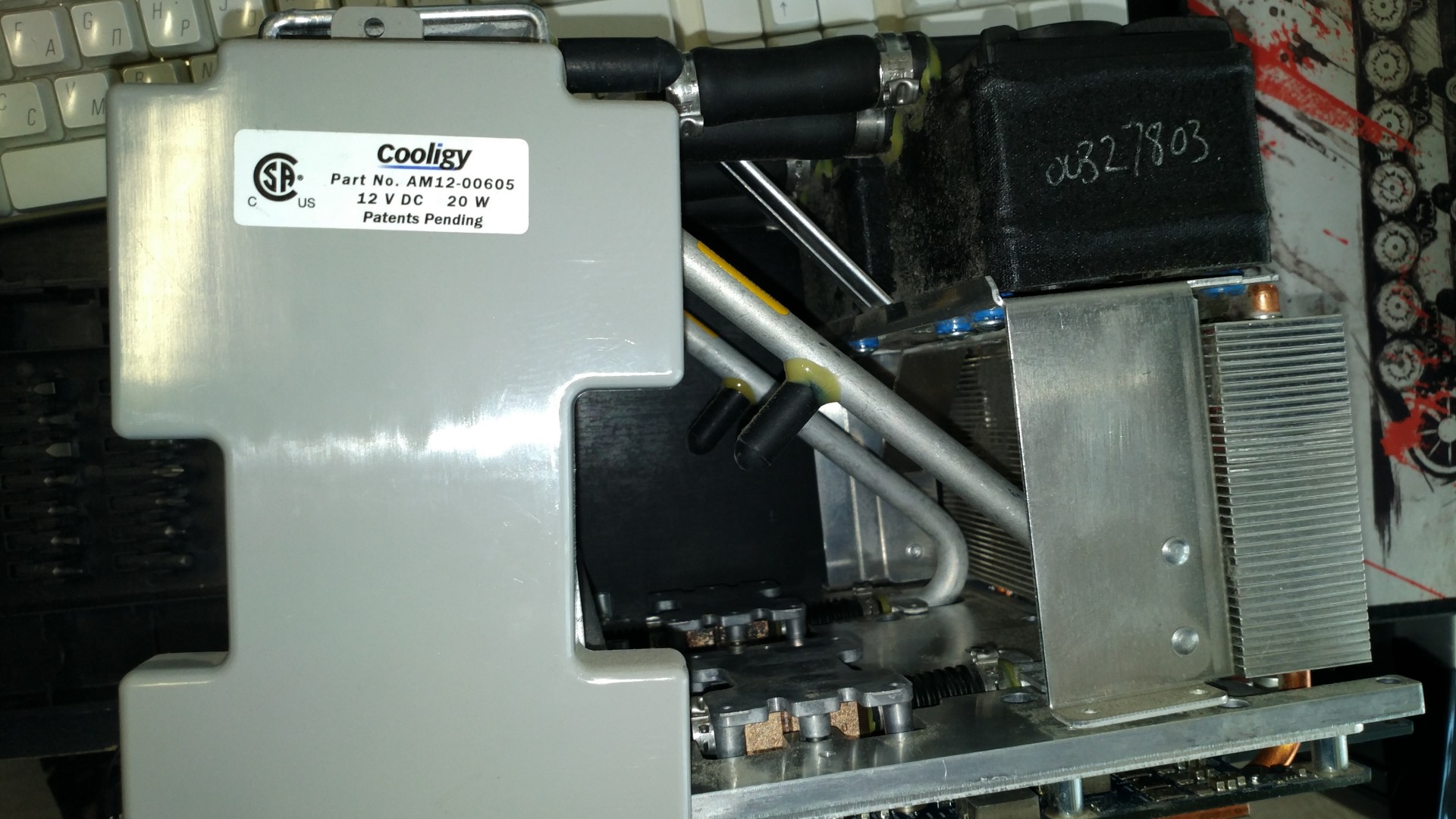

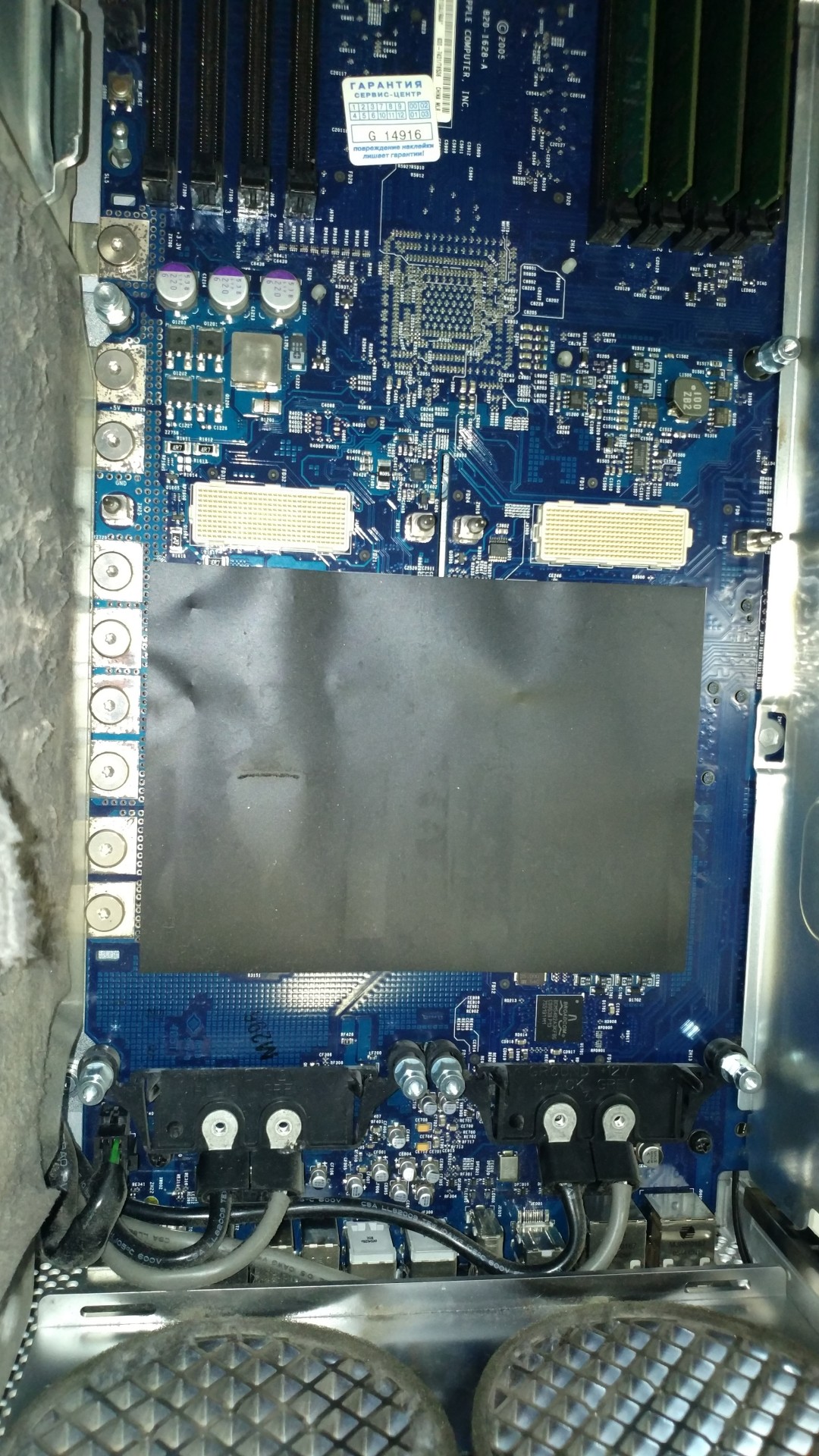

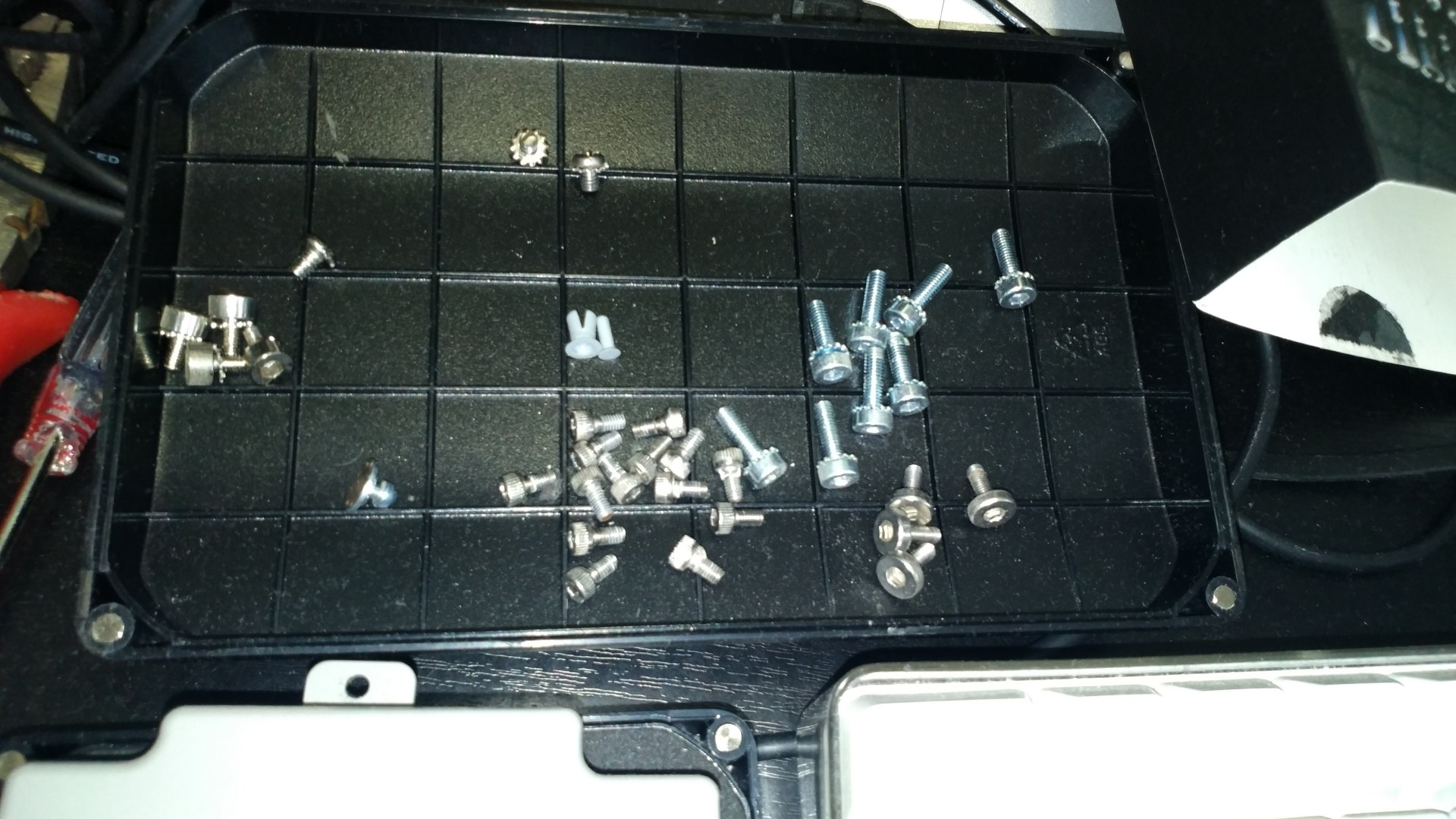

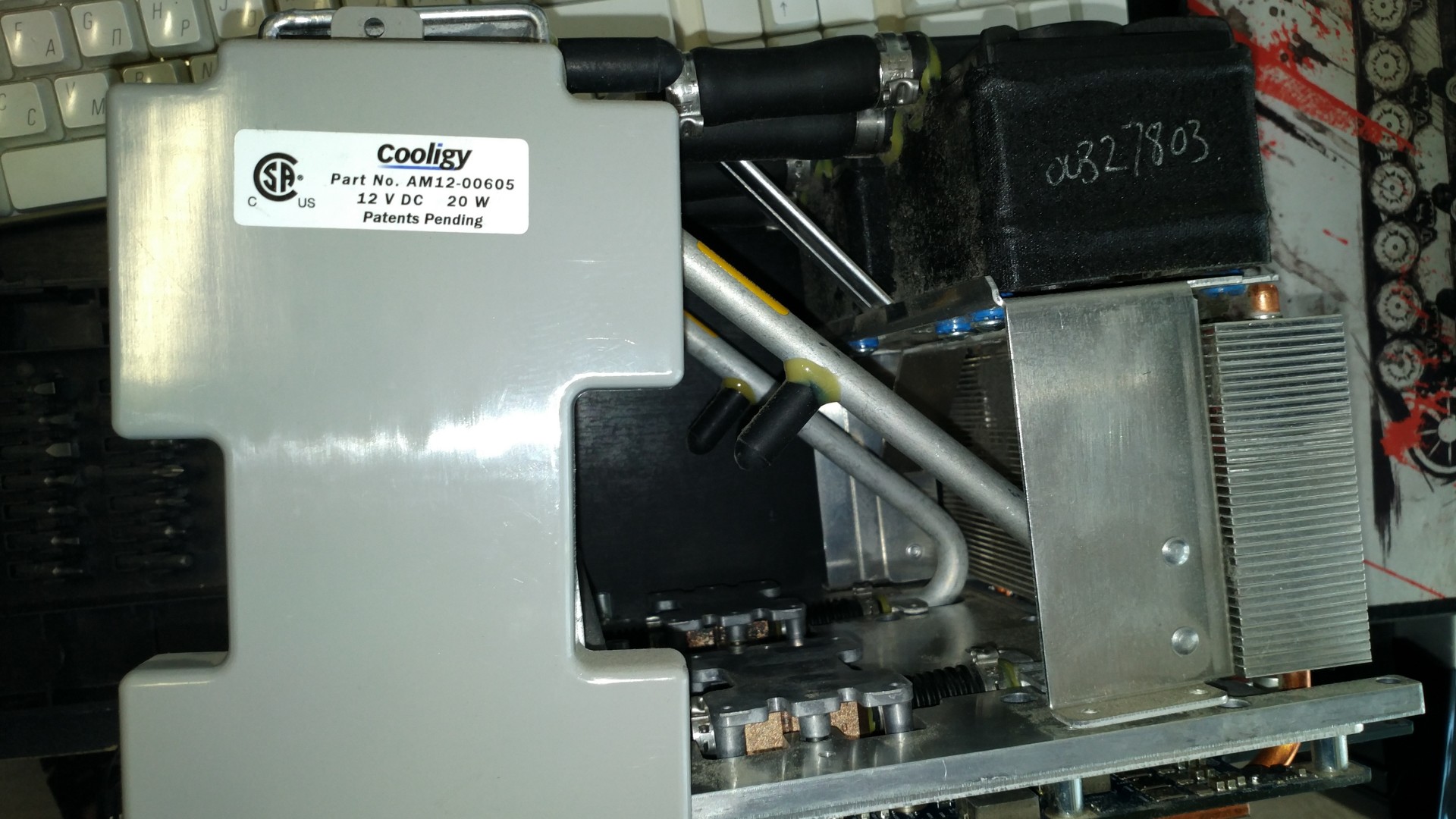

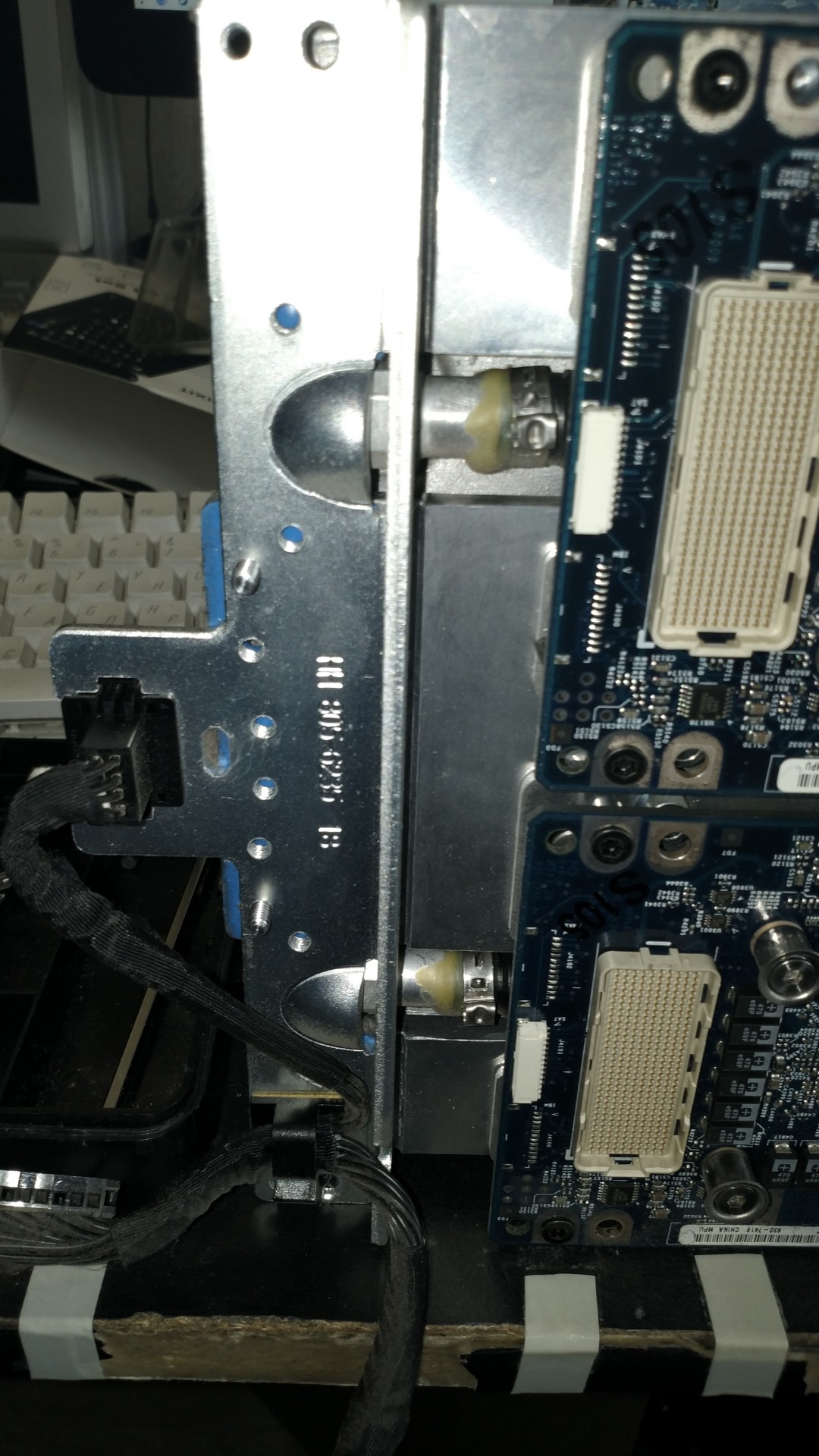

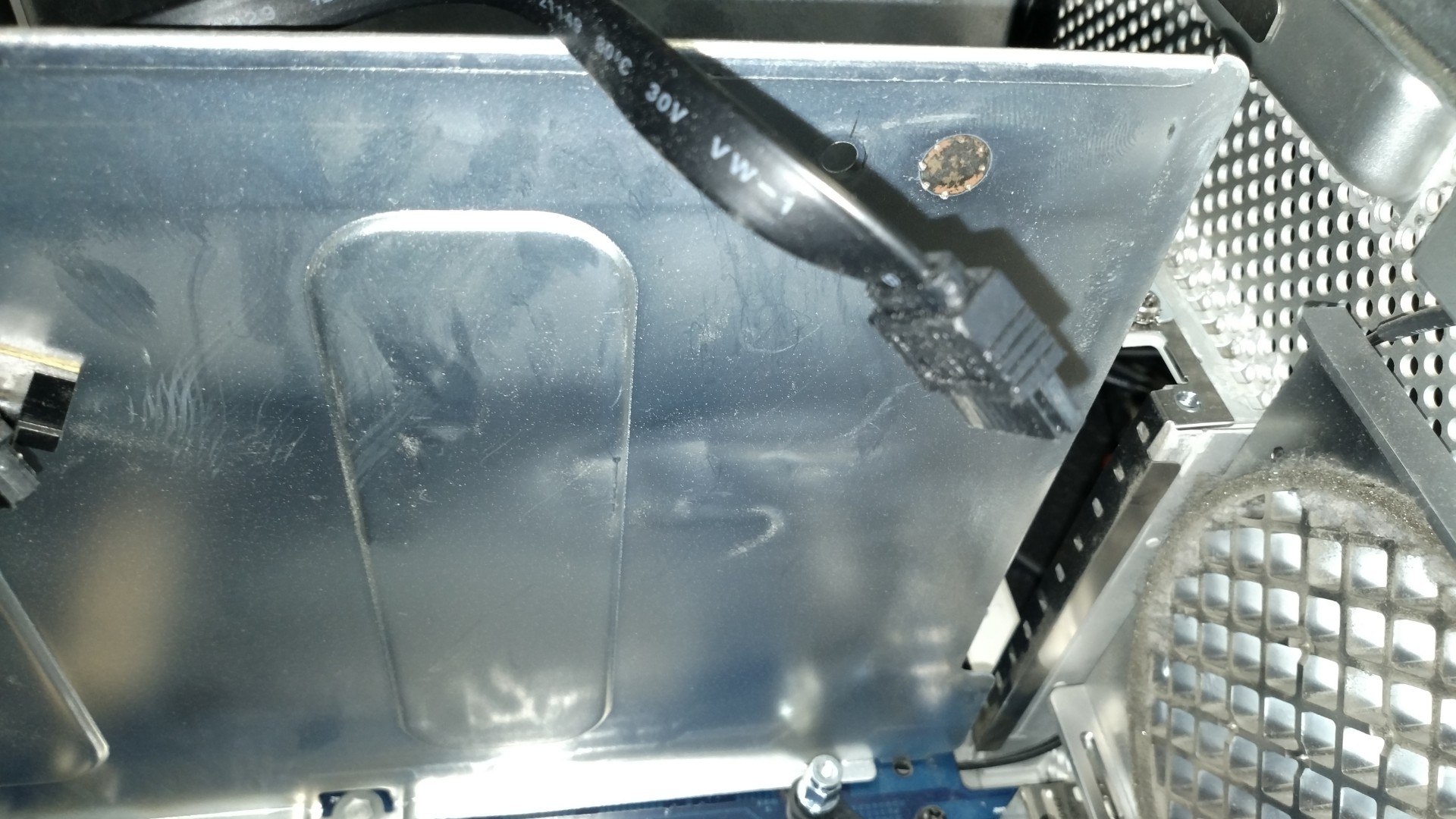

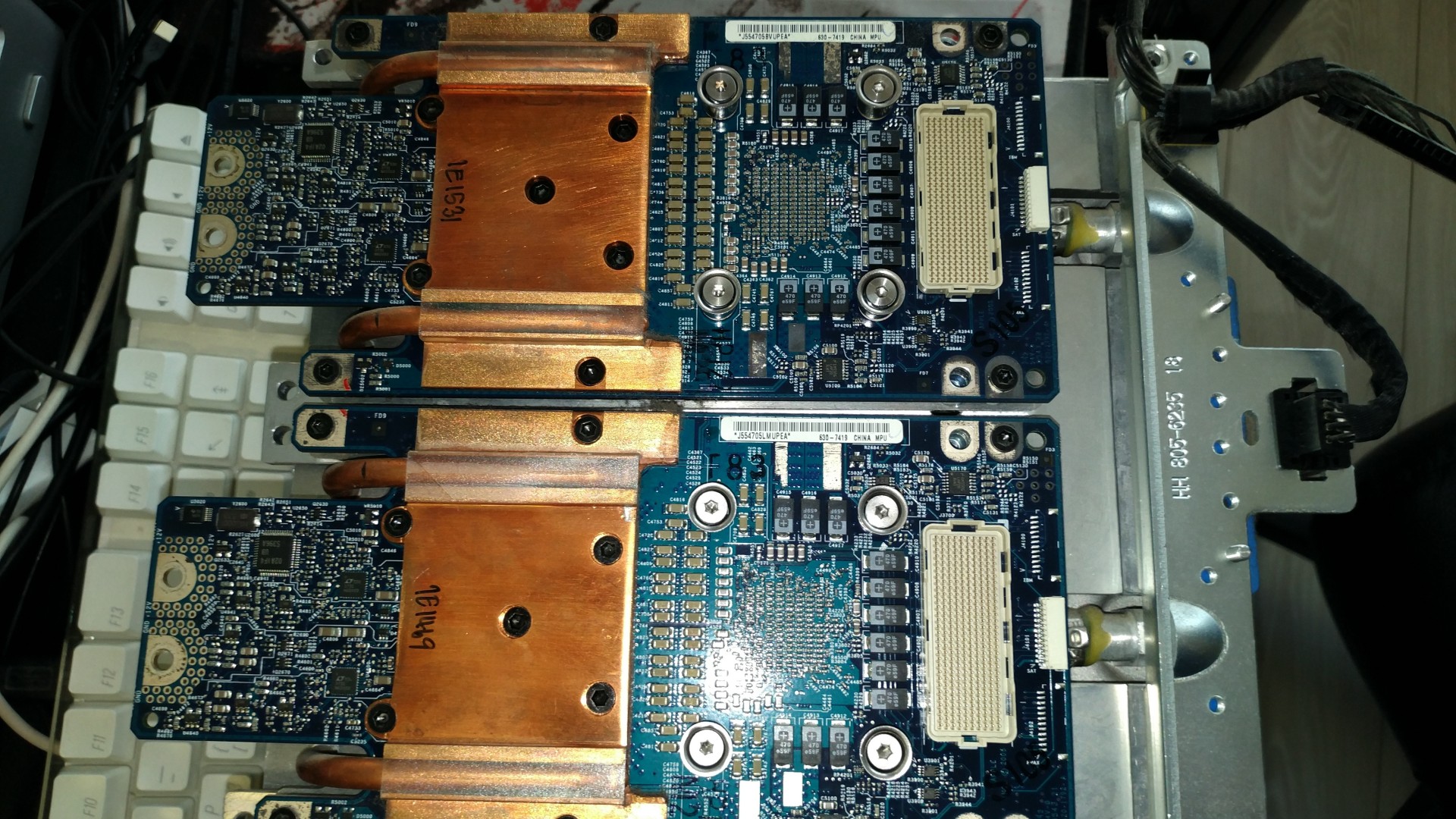

Attempted to repaste CPUs (G5 Quad). First half completed (pair of screws undoecumented or I didn't read manuals well). Second part - reassembly - is large PiA, incompleted for now (take quite entire day, not to mention some family activities). This is hell - to unscrew all this screws of different kind, and to operate inside... (m.b. I'm doing something entirely wrong.)


Attachments

  • IMG_20230319_161318.jpg
    605.2 KB · Views: 90
  • IMG_20230319_161249.jpg
    558.5 KB · Views: 94
  • IMG_20230319_161310.jpg
    373 KB · Views: 91
  • IMG_20230319_161303.jpg
    379.1 KB · Views: 83
  • IMG_20230319_161412.jpg
    368.8 KB · Views: 81
  • IMG_20230319_162214.jpg
    515 KB · Views: 81
  • IMG_20230319_161335.jpg
    358.1 KB · Views: 98
  • IMG_20230319_162222.jpg
    330.8 KB · Views: 89
  • Like
Reactions: mortlocli
