What is the Apple 1TB Fusion Drive Model Number?

Discussion in 'Mac mini' started by AnilPani, Nov 20, 2014.

  1. AnilPani macrumors newbie

    Joined:
    Jul 31, 2010
    #1
    I just purchased a 2012 Mac Mini with a 2.3GHz i7 processor off of Fleabay and it was supposed to have a genuine Apple SSD.

    Unfortunately, I have found that the SSD does not have TRIM support (it is running Yosemite), suggesting that it was user installed.

    Do you know what the model number is of the factory installed Apple Fusion drive which would be listed in the System Information utility?

    Thanks,
    Pani

  2. philipma1957, Nov 21, 2014
    Last edited: Nov 21, 2014

    philipma1957 macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    Location:
    Howell, New Jersey
    #2

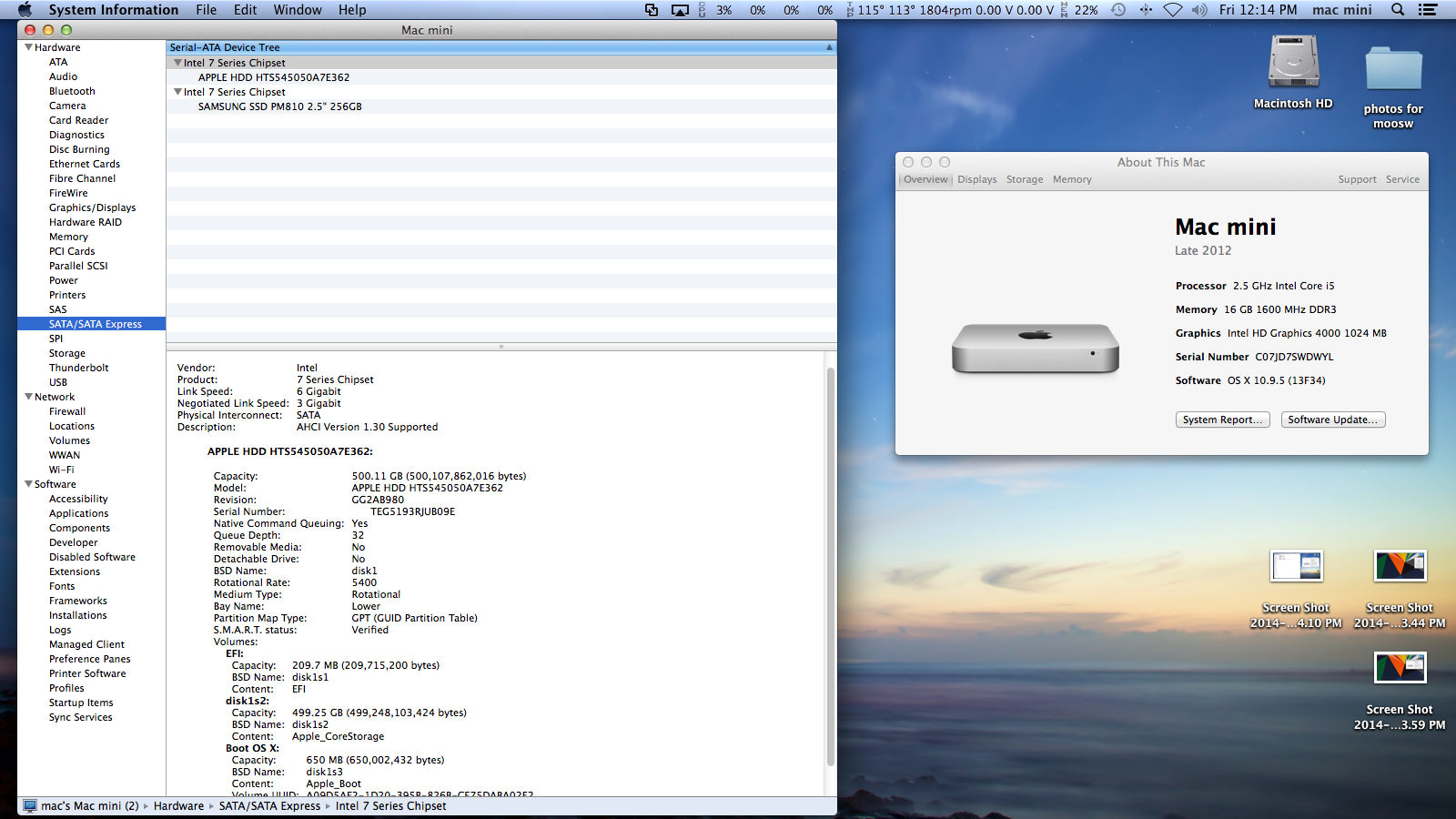

    no but if you show us the right info I can tell you what you have. give me 1 minute to walk to a diy fusion on a mini in my other room.

    this 2012 i-5 base has the stock 500gb hdd blended with a samsung 250 gb ssd.

    see that second screen post that screen for us and I will tell you if he lied to you.


    Attached Files:

  3. Ccrew macrumors 68020

    Joined:
    Feb 28, 2011
    #3
    The Fusion drive shouldn't have a model attached to it, it should be just a UUID which changes from machine to machine. If you're looking for the SSD model it'll be under Hardware/SATA under the chipset or Hardware/Storage under Physical Volumes. Now that said, Apple uses several brands for SSD's in the Mini, almost all of which are Samsung or Toshiba.

  4. AnilPani thread starter macrumors newbie

    Joined:
    Jul 31, 2010
    #4

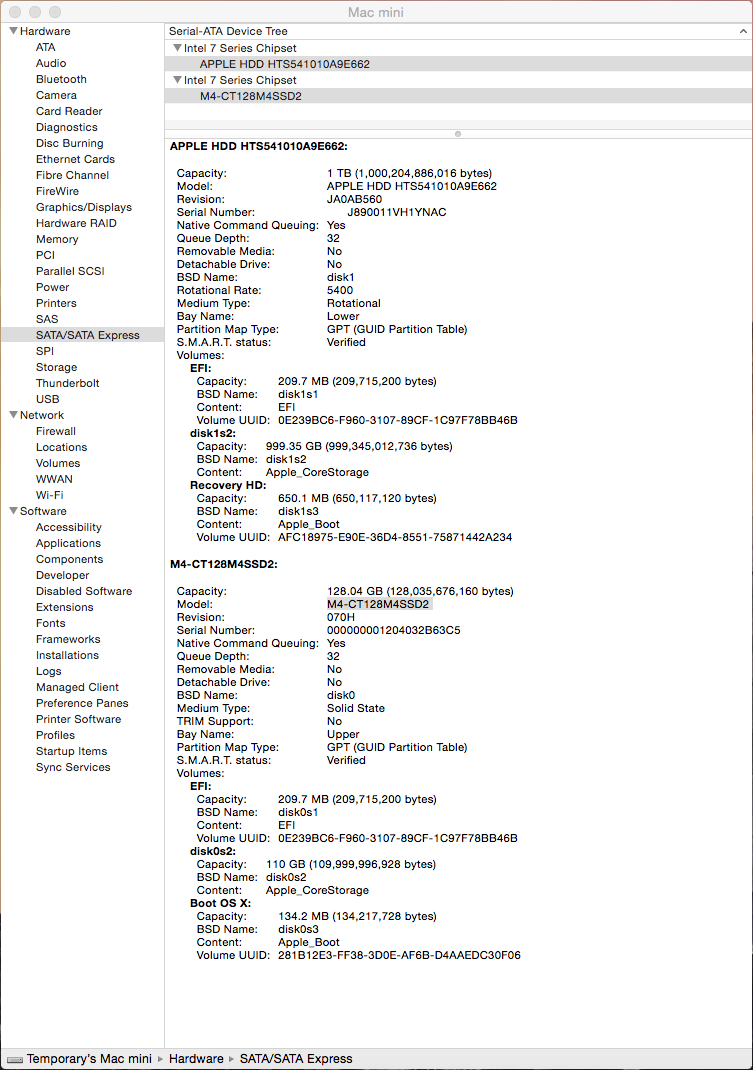

    Thanks for the information guys. Attached is the drive information as listed in the System Information Utility. As you can see TRIM is not supported.

    A cursory google search shows that the SSD model number matches a Crucial M4 SSD.

    Am I correct in concluding that this guy cheated me and that I do not have a genuine Apple Fusion Drive (which should have full TRIM support)?

    Thanks again,
    Pani


    Attached Files:

  5. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #5
    Just to clarify. A Fusion drive is not really one drive. If is a SSD and HDD striped together in Disk Util to show as one "Fusion" drive.

    In a normal, factory Fusion setup you would have an Apple SSD with a Apple branded hard drive striped together to make the Fusion drive.

    What you have is the Apple branded hard drive with a Crucial M4 aftermarket SSD combined to make a Fusion drive.

    What it looks like happened is the previous owner had a hard drive only iMac, then added the Crucial M4 himself to make a "homemade" Fusion drive.

    So yes, if he is saying this is an OEM Apple Fusion setup he is not being truthful. That M4 is clearly aftermarket.

  6. AnilPani thread starter macrumors newbie

    Joined:
    Jul 31, 2010
    #6
    Okay, understood.

    Thanks for the info. Now to see if I can get my money back!

    Best regards,
    Pani

  7. KrisLord macrumors 65816

    Joined:
    Sep 12, 2008
    Location:
    Northumberland, UK
    #7

    There's very little difference between an apple and non-Apple fusion drive, so unless you consider you overpaid, I wouldn't be too concerned.

  8. Celerondon macrumors 6502a

    Celerondon

    Joined:
    Oct 17, 2013
    Location:
    Southern Cal
    #8
    Good Luck with that refund Pani!

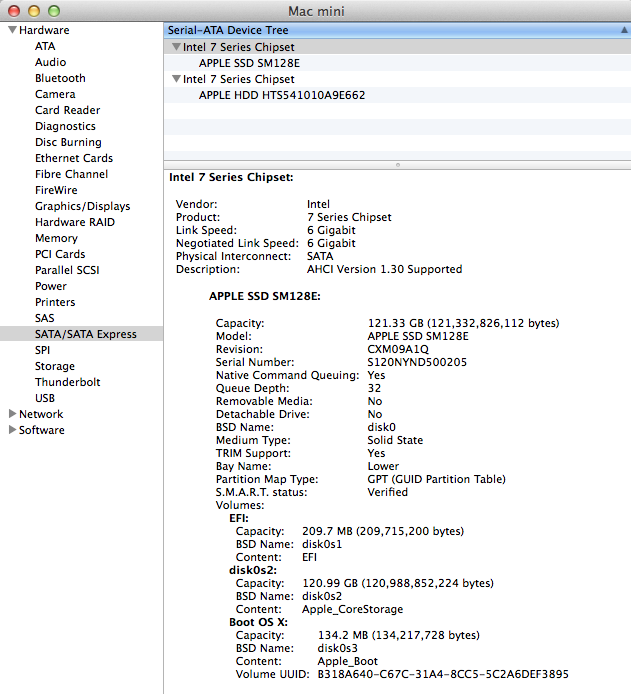

    For some more confirmation of your Trim support assumption here is an image of a Mavericks system report with a factory Fusion Drive. Note the trim support status.


    Attached Files:

  9. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #9
    For me the issue with the non-OEM SSD is you need to mess around with a hack to enable TRIM on the drive. Now with the changes in Yosemite, that has become more complex.

  10. KrisLord macrumors 65816

    Joined:
    Sep 12, 2008
    Location:
    Northumberland, UK
    #10

    I agree there's some messing round, but trim enabler does make it pretty easy. I've not had any issues during the Yosemite pre release beta testing or the testing for 10.10.1 with KEXT signing preventing a boot. The worst I've seen is trim becoming disabled after an update but trim enabler has an option to warn you if the patch isn't active.

    I can understand the OP being annoyed the drive isn't as promised but I'd take the price paid into account rather than immediately return it. I suspect there is very little price premium for an official SSD on the used market.

  11. AnilPani, Nov 22, 2014
    Last edited: Nov 22, 2014

    AnilPani thread starter macrumors newbie

    Joined:
    Jul 31, 2010
    #11
    I don't think it is so much about the SSD itself, but more about the lack of TRIM support for non-original equipment drives.

    In fact, AnandTech specifically mentioned poor garbage handling in the Crucial M4 as a reason to avoid using this drive with an OS that does not have TRIM support.

    http://www.anandtech.com/show/4253/the-crucial-m4-micron-c400-ssd-review/2

    That was the reason I was looking for a Mac Mini with an Apple SSD as part of a Fusion configuration. I am not keen on disabling kext signature verification in order to use Trim Enabler and then having to worry about other potential issues with each OS update. Anyway, we'll see what happens. I haven't heard back from the seller yet and may have to get eBay or my CC company involved. :(
