reddemonic

macrumors member
Original poster
Dec 8, 2012
36
1

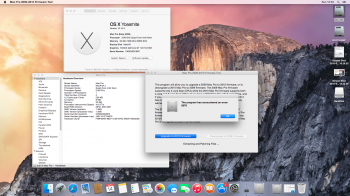

see attached screenshot. i keep getting the "5570" error pop up. message

thanks :)


Attachments

  • Screen Shot 2015-06-14 at 12.33.49.png
    Screen Shot 2015-06-14 at 12.33.49.png
    2.6 MB · Views: 2,930

Inutopia

macrumors 6502
Apr 8, 2009
299
84
South of Heaven
I don't think you've done what was suggested.

Mount the DMG you downloaded then run the firmware hack with the official update mounted. The problem which error 5570 is that it can't find the update, because apple moved it. I came up against the same problem and found the answer on Google in about 5 seconds.


flehman

macrumors 6502
Feb 21, 2015
352
193
I don't think you've done what was suggested.

Mount the DMG you downloaded then run the firmware hack with the official update mounted. The problem which error 5570 is that it can't find the update, because apple moved it. I came up against the same problem and found the answer on Google in about 5 seconds.

This is correct. See link to netkas forum thread below and read posts 808 and 817:

http://forum.netkas.org/index.php/topic,852.795.html

I encountered this error when upgrading my own Mac Pro 4,1 to the 5,1 firmware. I followed the procedure in post 808 and successfully finished the update. The simpler approach in post 817 should work as well although I did not personally employ it.


carpsafari

Suspended
Sep 13, 2015
277
57
the Netherlands
I hope someone knows the answer why my Mac Pro 2009 quad-core 4.1 is failing to accept the 5.1 firmware.

Although I encountered the error 5570, I managed to get through the procedure,...but.....after rebooting, waiting for the light to flicker...than the chime......and after almost 10 minutes booted up again as firmware 4.1.

I've PRAM'ed and tried at least 5 times, everytime the same thing,....flicker and chime, rebooting and....nothing!


Synchro3

macrumors 68000
Jan 12, 2014
1,984
844
I hope someone knows the answer why my Mac Pro 2009 quad-core 4.1 is failing to accept the 5.1 firmware.

Although I encountered the error 5570, I managed to get through the procedure,...but.....after rebooting, waiting for the light to flicker...than the chime......and after almost 10 minutes booted up again as firmware 4.1.

I've PRAM'ed and tried at least 5 times, everytime the same thing,....flicker and chime, rebooting and....nothing!

You don't have to reboot, you have to shut down the machine completely. Then hold the power button until the display shows the firmware update progress bar.

Last edited:

Bubalight

macrumors member
Apr 22, 2015
38
18
The update will not install with a non EFI video card installed. You need to put the original apple card back in while you run the update, or it will never work.


Synchro3

macrumors 68000
Jan 12, 2014
1,984
844
Thanks @Synchro3, but I failed to state I did shut down, before holding the power button. (English is not my native tongue)

ps I run a PC card, not flashed, so I don't see the progress bar!

Yeah, this is the problem: The firmware upgrade is only working with a Mac EFI card. Do you still have an other original Mac card?


0488568

Cancelled
Feb 17, 2008
406
107
The firmware itself didn't change, but the EFIupdate did (they say). You're fine.

Although it seems you don't need it running those quads.

Im thinking of maxing it out in the near future with the dual 6 core 3,4ghz Xeons.

Thanks for the update.


Fangio

macrumors 6502
Jan 25, 2011
375
473
10717

Flocarino

macrumors regular
Jun 4, 2010
238
35
Montreal, Canada
Sorry for this thread but I am going desperate here as I got a ''new'' 4.1 cMP dual 2.66Ghz and it is impossible to apply the firmware with all the tricks mentioned here and on Netkas website. I downgraded to OX Yosemite from El Capitan, disable SIP...etc... NOTHING works...always get the 5570 ERROR.
These are the actual settings:
Boot ROM Version: MP41.0081.B07
SMC Version (system): 1.39f5
SMC Version (processor tray): 1.39f5

I downloaded the 1.5 Firmware and applied the manual trick....NOTHING

Please help me before I get rid of the Mac Pro. Thank you!

PS. by the way, the GPU is a 7970 Radeon 3GB Gigabyte (flashed) Boot Screen


tsialex

macrumors G4
Jun 13, 2016
10,856
11,355
Sorry for this thread but I am going desperate here as I got a ''new'' 4.1 cMP dual 2.66Ghz and it is impossible to apply the firmware with all the tricks mentioned here and on Netkas website. I downgraded to OX Yosemite from El Capitan, disable SIP...etc... NOTHING works...always get the 5570 ERROR.
These are the actual settings:
Boot ROM Version: MP41.0081.B07
SMC Version (system): 1.39f5
SMC Version (processor tray): 1.39f5

I downloaded the 1.5 Firmware and applied the manual trick....NOTHING

Please help me before I get rid of the Mac Pro. Thank you!

PS. by the way, the GPU is a 7970 Radeon 3GB Gigabyte (flashed) Boot Screen
I can't do this immediately, maybe on Monday/Tuesday, but I can reconstruct 140.0.0.0.0 for your MP4,1 if you send your BootROM dump and a photo of the ESN label.

I'll PM instructions.


To anyone reading this.

Please read the first post of the thread:


Pay attention to the notes, see what is blocking your upgrade. Reconstruction is a complex process, takes a lot of time/effort/lot's of infos need to be gathered, and it's a last resort only.

Last edited:

tsialex

macrumors G4
Jun 13, 2016
10,856
11,355
I'll sure need instructions as I have no clue about Boot Rom Dump and ESN label:oops:
PM sent, read the instructions, look at the photos, disable SIP, do the BootROM dump etc.

To anyone reading this.

Please read the first post of the thread:


Pay attention to the notes, see what is blocking your upgrade. Reconstruction is a complex process, takes a lot of time/effort/lot's of infos need to be gathered, and it's a last resort only.

Last edited:
