Worthwhile Upgrade?

Discussion in 'PowerPC Macs' started by Ih8reno, Feb 3, 2015.

  1. Ih8reno macrumors 65816

    Ih8reno

    Joined:
    Aug 10, 2012
    #1
    Picked up a Sonnet Crescendo G3 500MHZ upgrade card tonight on the cheap and was going to put it in my Power Macintosh 9600. Problem is I'm not sure if it will be worth installing the upgrade. The plan was to upgrade to Tiger but with such an old machine will it even function well. Any suggestions
    [​IMG]

  2. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #2
    With the proper video card, Tiger is oddly perky on that machine.

  3. proxyLain macrumors newbie

    proxyLain

    Joined:
    Dec 17, 2014
    #3
    Think i used to surf the net back in the days on one of those machines, at my dads work. :) Try to upgrade to Tiger, if it doesn't work...use it as a Mac OS 9 machine?

  4. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #4
    Folks who have actually used these can probably advise you better than I on the specifics, although I think that Xpostfacto will get you up to 10.4. I know that Intell, who frequents this forum, put a G4 upgrade in his 8600 and installed Leopard.

    I can speak from experience, though, and tell you that your life will be much easier if you install a PCI graphics card. OS X in any form really taxes the built in graphics. Even a lowly PCI Mac-edition Rage 128(the standard card in the B&W G3 and Yikes!) which should set you back ~$15 on Ebay will be miles ahead of the onboard graphics and is adequate(although not great) for Tiger. This also gets you VGA out, which makes the computer easy to use with a modern LCD panel or other current monitor(although in my experience a 1920x1080p panel will really tax it, even under OS 9)

    If you want to spend a few more bucks, the best Mac-edition PCI graphics card is the Radeon 9200. This has 128mb of VRAM as well as VGA, DVI, and S-Video out. I have one of these cards in my G4-upgraded B&W G3, and it's a superb card under Tiger, although it does lack Core Image support.

    There's also an option between these two-I think it's the Radeon 7500, although may have the exact number wrong.

    And, finally, if you don't mind playing around with flashing, there are PC editions of the GEForce FX5200 in PCI. Unlike the Mac version of this card(which was standard on many G5s) most of the PC editions have 128mb or even 256mb of VRAM. I have a 256mb one that I've been playing around with, although haven't been successful in flashing it yet. The 5200 supports Core Image. Tiger doesn't rely on Core Image as much as Leopard, but it still definitely benefits from having a card which supports it.

  5. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #5
    The GeForce 5200 doesn't work in Old World Macs like the 9600. Its ROM never had Old World support coded into it. The best video card for Old World PCI Macs is the ATI 9200.

  6. Ih8reno thread starter macrumors 65816

    Ih8reno

    Joined:
    Aug 10, 2012
    #6
    I have a spare ATI Rage Pro PC edition laying around, would this work if I figure out how to flash it

  7. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #7
    It'll work, if you can flash it. But it's a poor performing card for Tiger. A good choice for a cheap one would be the Mac ATI Radeon or ATI 7000/7500. Just keep in mind that a PCI video card is required as 10.3 and higher cannot use the built in video on older Old World Macs like the 9600.

  8. MatthewLTL, Feb 4, 2015
    Last edited: Feb 4, 2015

    MatthewLTL macrumors 68000

    MatthewLTL

    Joined:
    Jan 22, 2015
    Location:
    Rochester, MN
    #8
    Why Not? Also I have a PCI PC nVIDIA GeForce FX 5500. What mac firmware could i flash to it?

  9. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #9
    The GeForce 5200 never had Old World OpenFirmware support coded into its ROM as it was only ever an AGP New World card.

  10. QSDP-User, Feb 4, 2015
    Last edited: Feb 4, 2015

    QSDP-User macrumors regular

    QSDP-User

    Joined:
    Jan 13, 2015
    Location:
    California, USA
    #10
    About 9 yrs ago,
    I saw a PM9600 with a G3 900MHz upgrade (OWC) and
    a Radeon 32MB PCI Vid Card.
    RAM wasn't full, but a decent amount existed to try an attempt with OSX
    (can't remember the exact RAM amount).

    xPostFacto got Panther installed & running.
    ...the glee the owner had back then for such an accomplishment ;)
    YouTube ran a bit choppy in a small window
    (Jake from Hawaii playing his ukelele, "While My Guitar Gently Weeps").

    But now, thinking of this OSX performance chugging through a 50MHz system bus...:(

    Personally, I'd think the 9600 with all its PCI slots would make a great old Mac OS Classic machine
    for running all those old Audio/Visual software/hardware packages that one reads about in the past.
    But then that means looking for those old sw/hw packages (for cheap only) on eBay & craigslist.
    But for a collector/tinkerer, that's kinda cool.

    I'd definitely install that G3 500 upgrade for whatever purpose.

  11. poiihy macrumors 68020

    poiihy

    Joined:
    Aug 22, 2014
    #11
    Does that include the beige G3 and the on-board chipset?
    If so then no wonder it wouldn't complete the boot...
    I asked on my thread if I required anything like a PCI craphics card but nobody said anything about that.

  12. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #12
    Yes, 10.3 and later cannot use the on board video on beige G3 machines.

  13. Ih8reno thread starter macrumors 65816

    Ih8reno

    Joined:
    Aug 10, 2012
    #13

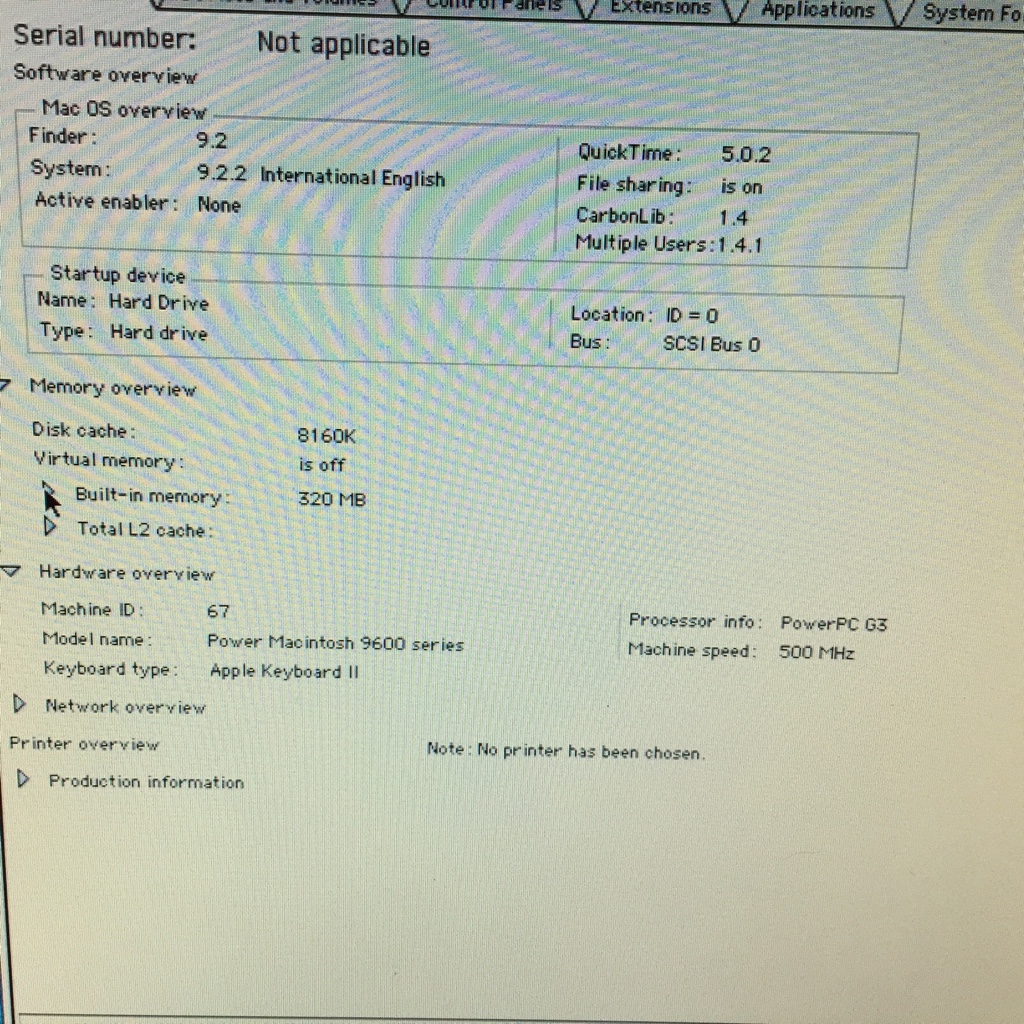

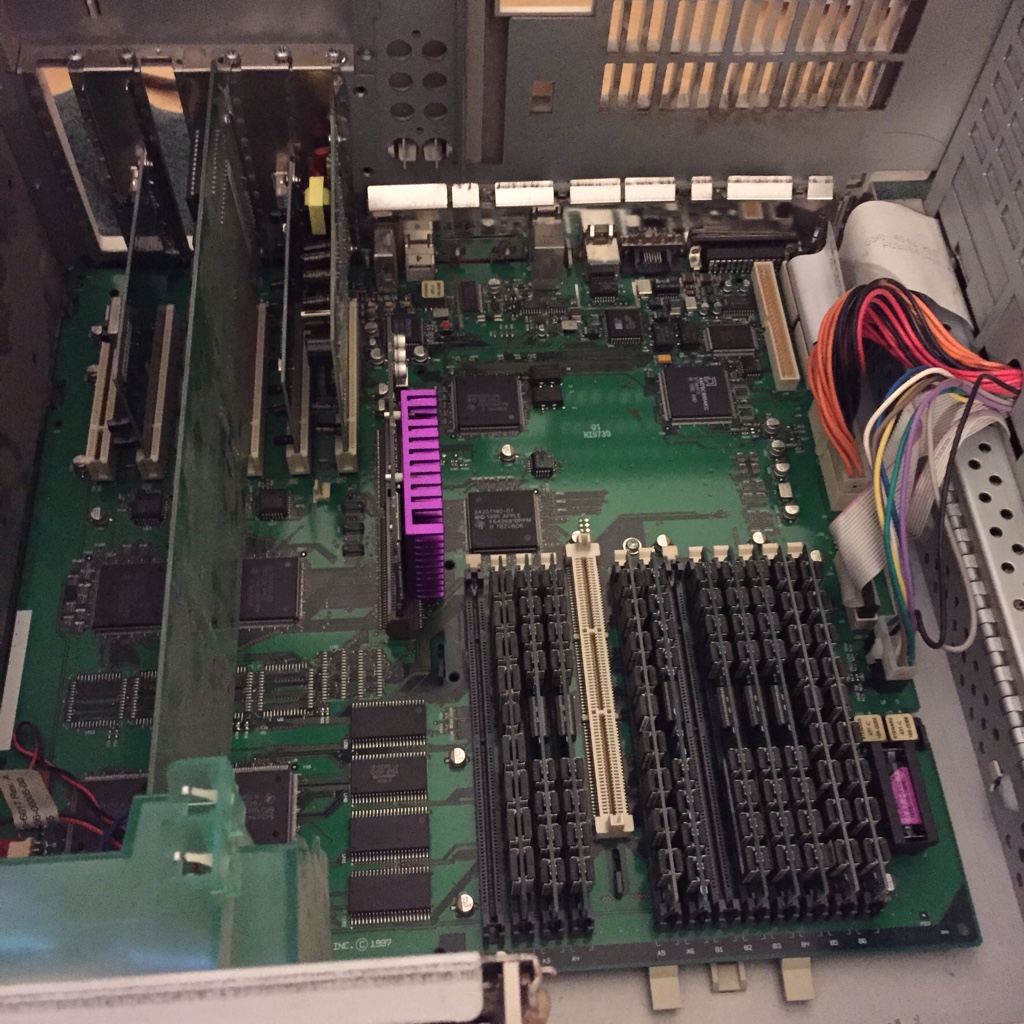

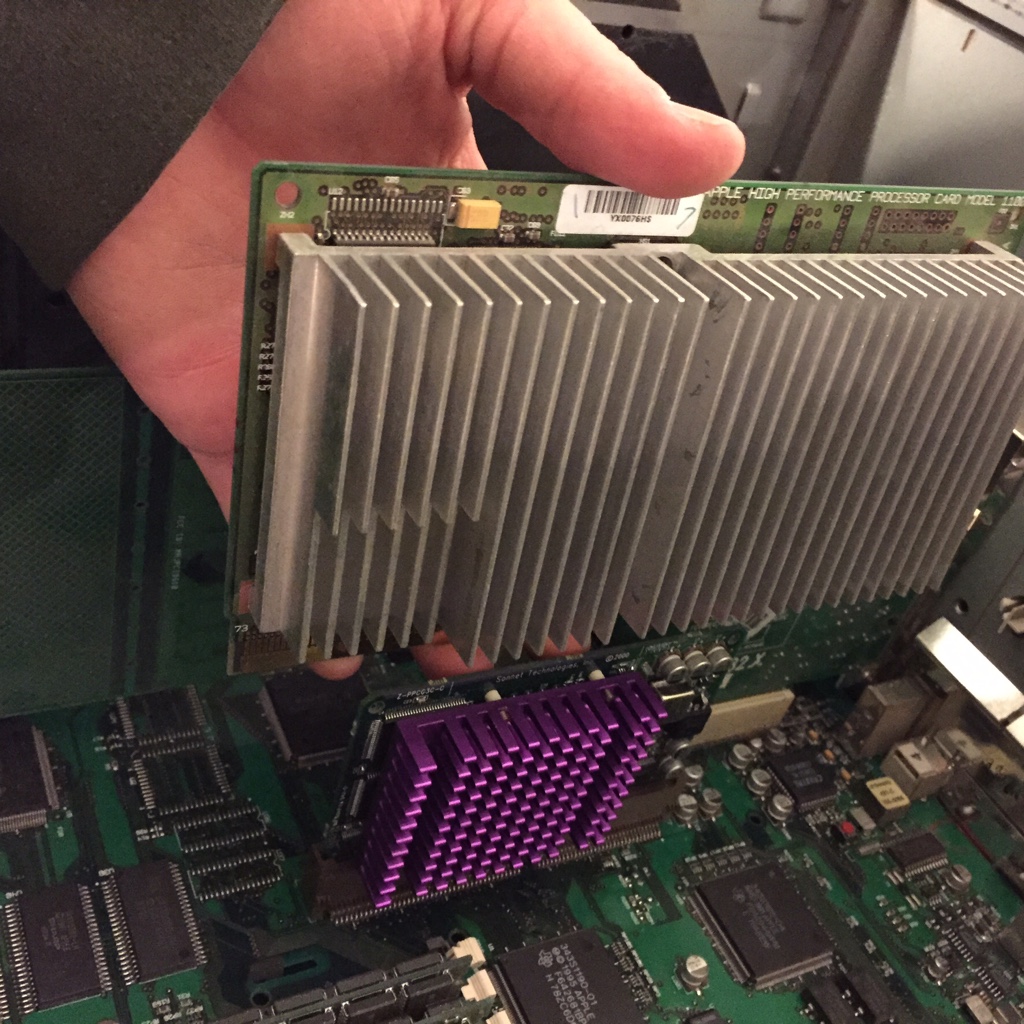

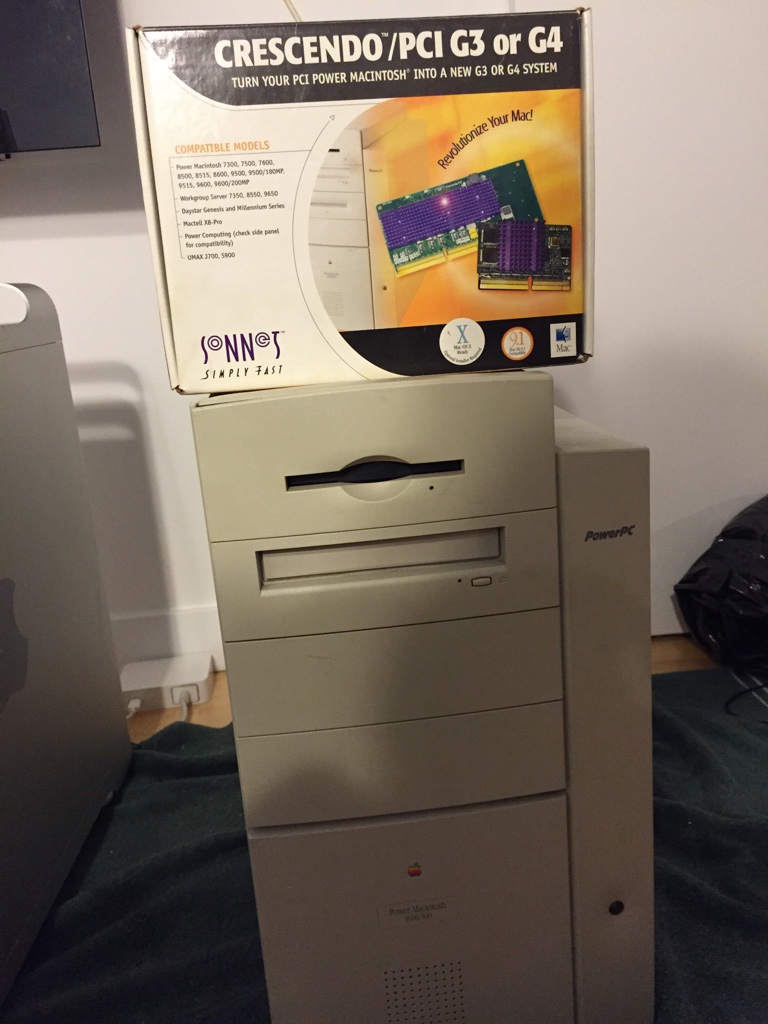

    Did the install tonight. All it entailed was installing some sonnet software, removing the original 300mhz card pressing the reset cuda switch and then putting in the new processor. Not sure if I will go install OS X as there is only 320mb of ram installed and I doubt it would work very well. Here are some pics and a comparison of the original and upgrade card.

    [​IMG][​IMG][​IMG]

  14. poiihy macrumors 68020

    poiihy

    Joined:
    Aug 22, 2014
    #15

    Woah :eek: Are all those modules with big fat chips the RAM?!

  15. Ih8reno thread starter macrumors 65816

    Ih8reno

    Joined:
    Aug 10, 2012
    #16
    Yeah, 320mb in 32mb chips

  16. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #17
    You still have two empty slots :)

    I've been looking for a 9600 for a little while now(I have a WTB up in the sales corner for one)...seeing your photos just makes me want one even more! There's something really appealing about all those RAM slots and all those PCI slots. They truly are beasts of computers.

  17. Ih8reno thread starter macrumors 65816

    Ih8reno

    Joined:
    Aug 10, 2012
    #18
    Yeah it certainly is, its next to my mac pro 1,1 right now and looks pretty cool to see the evolution of Macs. The only thing that bothers me with it is that is sounds like a vacuum cleaner when its on!

  18. poiihy macrumors 68020

    poiihy

    Joined:
    Aug 22, 2014
    #19
    384mb is fine for Tiger or older. Panther and older require 128MB minimum and Tiger requires 256MB minimum. Tiger may be a little sluggish. Panther should be good.

    ----------

    Fans probably on their way out... They're probably sleeve bearing fans. Try oiling them; if that doesn't work then just replace them. Fans are cheap :D

  19. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #20
    OWC has the 128mb DIMMs for $6 each...I say spend the $72 to load that baby up!

    http://eshop.macsales.com/item/Other World Computing/5MD128MBG/

    The thought of having 1.5gb in this computer is formidable, although admittedly the 47mhz bus speed is always going to be a bit of a handicap.

    By the way, I'm curious as to how well your computer works without any ROM :)

  20. Ih8reno thread starter macrumors 65816

    Ih8reno

    Joined:
    Aug 10, 2012
    #21
    would pc 100 or 133 ram work? I have a bunch of that

  21. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #22
    I don't think so...even though both are 168 pin, I think that the DIMMs used in these are a little bit different. If nothing else, I think that the keys are slightly different between the "correct" RAM and PC66/100/133.

    That's at least the answer I got when looking into RAM for my 8500.

  22. Ih8reno thread starter macrumors 65816

    Ih8reno

    Joined:
    Aug 10, 2012
    #23
    ah ok. Well the mac works just fine, simply loud though, louder then my dual 1.42 mdd if you can believe it. I shoehorned 9.2.2 into it even though it only is supposed to go to 9.1. The seller of the card said he may have some ram so I wrote to him and will see if I can get some from him rather then ship it in from the US (in Canada here).

  23. poiihy macrumors 68020

    poiihy

    Joined:
    Aug 22, 2014
    #24
    Oil the fans or replace if that doesnt work

  24. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #25
    There's no need to mess with the fans in a 9600. They're loud like that and always have been.
