m11rphy

macrumors 6502a
Original poster
Dec 26, 2009
642
372
Hi all, I just got a 2009 Mac Pro with dual 2.26 processors and Apple 30 inch display, what is the newest MacOS I can install?


orph

macrumors 68000
Dec 12, 2005
1,884
393
UK
  • Like
Reactions: crjackson2134

m11rphy

macrumors 6502a
Original poster
Dec 26, 2009
642
372
do you know if the cmp4,1 has been upgraded at all?
what gpu is instaled?
what OS is it on now?

you may want to look at this topic for osx 10.14
https://forums.macrumors.com/thread...-mojave-bootrom-upgrade-instructions.2142418/

then you may want to look at this on on osx10.15 beta
https://forums.macrumors.com/thread...to-make-catalina-work-with-macpro5-1.2183978/

osx10.15 beta is the newest os you can instal, with a small bit of work arounds
No it hasn't been upgraded at all, its got Geforce G120 Gard in it currently. Happy to buy a new card if needed


orph

macrumors 68000
Dec 12, 2005
1,884
393
UK
both links outline what you have to do and need.

it's a good time to move to osx10.14 it's got all the bugs worked out, id not look at osx10.15 yet as it's still beta so there will be problems but nice to know you can instal it when final comes.

do check any legacy apps before updating


MIKX

macrumors 68000
Dec 16, 2004
1,815
692
Japan
m11rphy

A good first step to upgrading would be to go to your Macrumors member profile and make a " signature " to describe your current Mac pro setup.

My signature is at the end of this post.

Having a SIGNATURE alone will speed up replies to your questions and save members having to eternally ask you about your cMP setup.

===================

If I were you, my 2nd. step would be to flash your Mac Pro from 4,1 to 5,1.

The search button is your friend.


m11rphy

macrumors 6502a
Original poster
Dec 26, 2009
642
372
m11rphy

A good first step to upgrading would be to go to your Macrumors member profile and make a " signature " to describe your current Mac pro setup.

My signature is at the end of this post.

Having a SIGNATURE alone will speed up replies to your questions and save members having to eternally ask you about your cMP setup.

===================

If I were you, my 2nd. step would be to flash your Mac Pro from 4,1 to 5,1.

The search button is your friend.

Thanks I will do that, my new MSI RX560 will be going into night so hopefully I should have Mojave up and running. So far I have updated firmware from 4.1 to 5.1 so Im now running High Serra

I'm also looking to buy 2 delided X5690 CPUs from a seller on ebay, Could some a good how to guide


MIKX

macrumors 68000
Dec 16, 2004
1,815
692
Japan
m11rphy

Next step ; put your Mac Pro info into your SIGNATURE.

After that search the forums for upgrading your Mac Pro Bootrom version.

( My cMP is at bootrom 144.0.0.0.0

What is your current bootrom version ?
Go to "About This Mac" at top left of your Finder window - then click System Report then go to "Hardware". (don't tell anyone your Mac pro serial number. )

You can use Preview to take a screenshot - don't include your Serial Number.


m11rphy

macrumors 6502a
Original poster
Dec 26, 2009
642
372
m11rphy

Next step ; put your Mac Pro info into your SIGNATURE.

After that search the forums for upgrading your Mac Pro Bootrom version.

( My cMP is at bootrom 144.0.0.0.0

What is your current bootrom version ?
Go to "About This Mac" at top left of your Finder window - then click System Report then go to "Hardware". (don't tell anyone your Mac pro serial number. )

You can use Preview to take a screenshot - don't include your Serial Number.
New RX560 fitted and Im now running Mojave, CPU upgrade next


SnakeCoils

macrumors regular
Oct 17, 2018
133
60
Italy
I was also considering to purchase an MSI RX 560 to use with Mojave on a updated MacPro 2009 (5.1) so I have a couple of questions to ask to a first-hand user about it:

1) Do the framebuffer show as "Orinoco" or "Radeon"?
2) Is the HDMI audio functional without kext mods?
3) Do it drain its power from PCIe slot only or extra help is needed?

Thank you in advance!


m11rphy

macrumors 6502a
Original poster
Dec 26, 2009
642
372
I was also considering to purchase an MSI RX 560 to use with Mojave on a updated MacPro 2009 (5.1) so I have a couple of questions to ask to a first-hand user about it:

1) Do the framebuffer show as "Orinoco" or "Radeon"?
2) Is the HDMI audio functional without kext mods?
3) Do it drain its power from PCIe slot only or extra help is needed?

Thank you in advance!

1. how do I check this?
2. HDMI audio works without any additional hacks
3. PICe Slot power only no addition power cables needed


MIKX

macrumors 68000
Dec 16, 2004
1,815
692
Japan
m11rphy


EDIT : Not sure re: the RX 560 but the RX 580 8gb MUST use the cable shown below.

===========================================

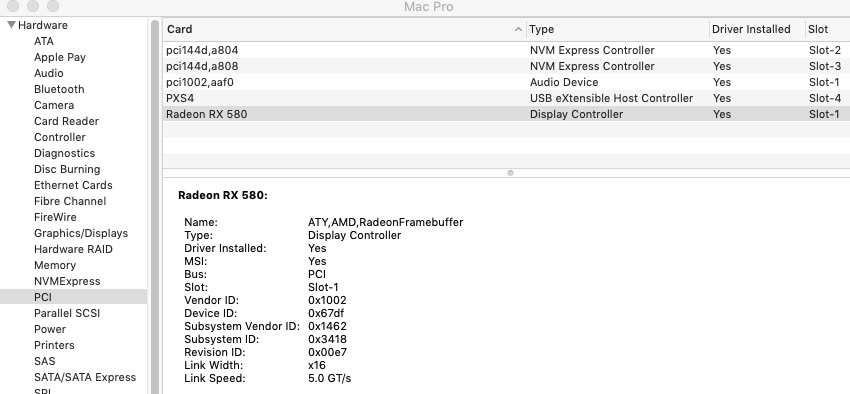

1. About this Mac / System Report / PCI /

01 GPU PCIe.jpg

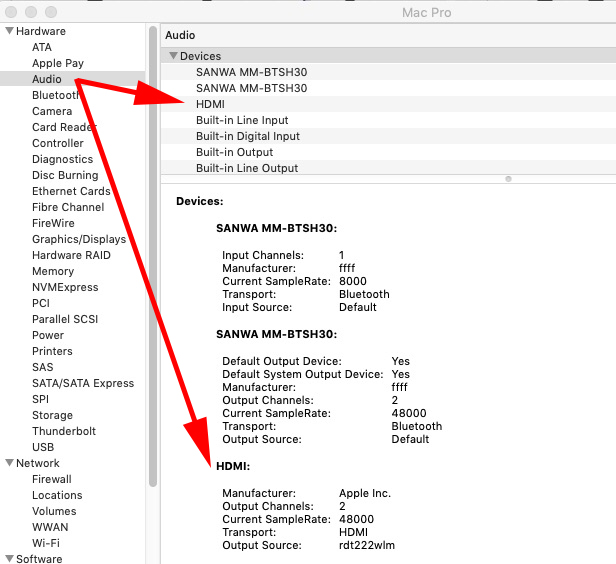

2. HDMI works in my 4,1>5,1 MSI RX 580 - HDMI shows in Audio out put.
I connect from RX 580 Display port - to HDMI adaptor to monitor's HDMI.

01 GPU PCIe.jpg



02 Sys Infor Audio HDMI.jpg




3. Definitely not `for RX 580 !

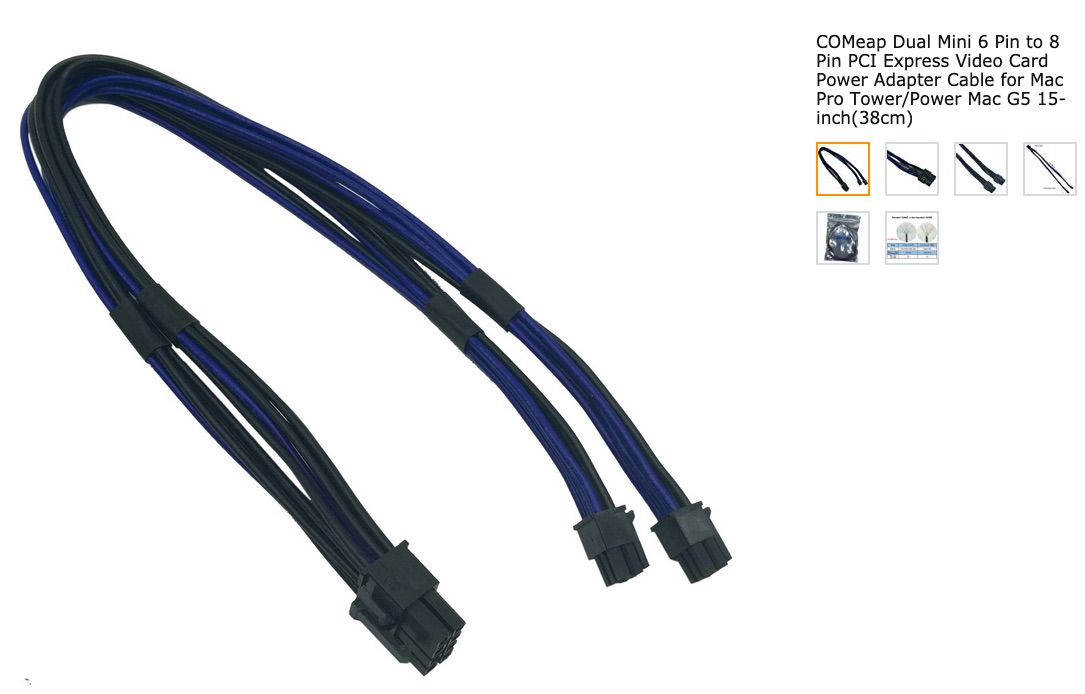

You MUST get a 2 x Mini-6 pin to single 8 pin cable.

https://www.amazon.com/COMeap-Express-Video-Adapter-15-inch/dp/B07J336WY4

04 dual Mini 6 pin to single 8 pin.jpg




HDMI Audio works in my setup in Mojave 10.14.6 full 6.05gb clean install.

==================================================

You need to do more research regarding your cMP 4,1 improvements.

It pays to study, work slowly, carefully, take notes, measure twice .. cut once etc.


Attachments

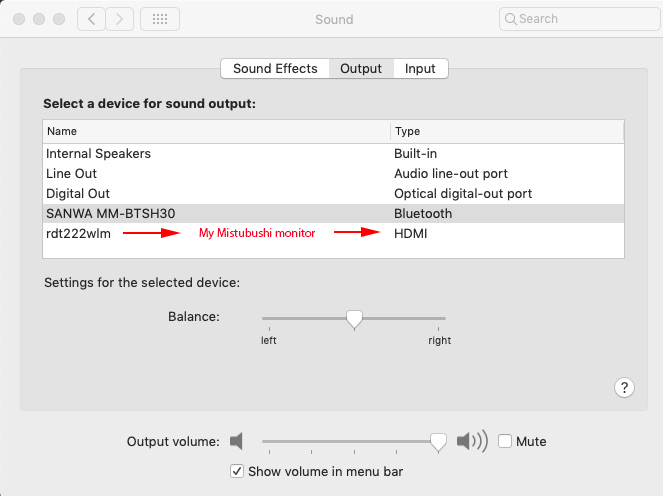

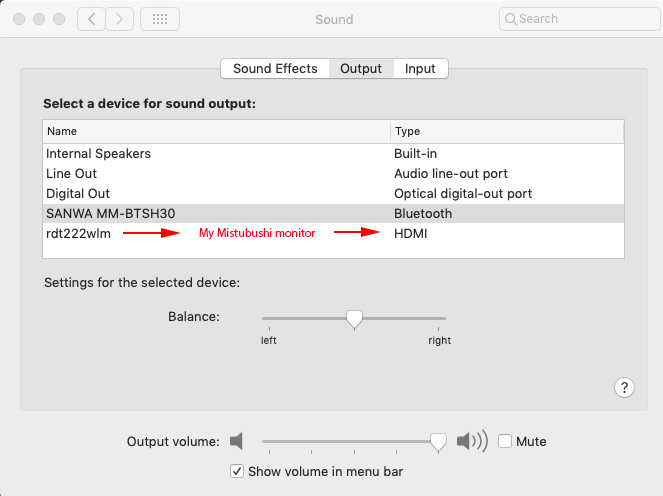

  • o3 Audio output HDMI.jpg
    o3 Audio output HDMI.jpg
    95.9 KB · Views: 106

m11rphy

macrumors 6502a
Original poster
Dec 26, 2009
642
372
m11rphy


EDIT : Not sure re: the RX 560 but the RX 580 8gb MUST use the cable shown below.

===========================================

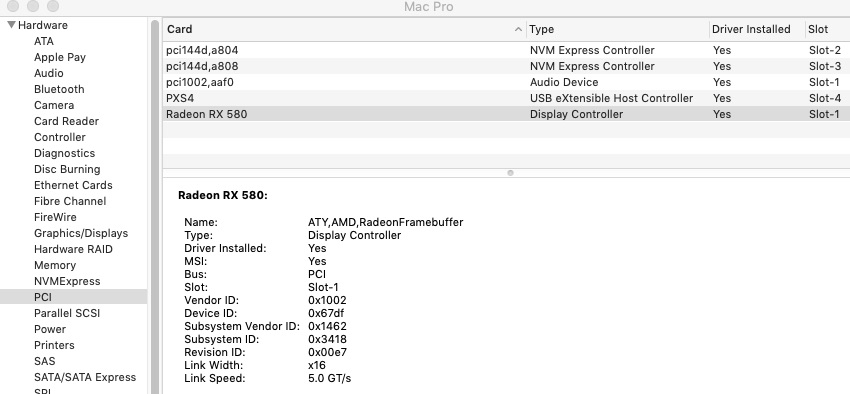

1. About this Mac / System Report / PCI /

View attachment 853442

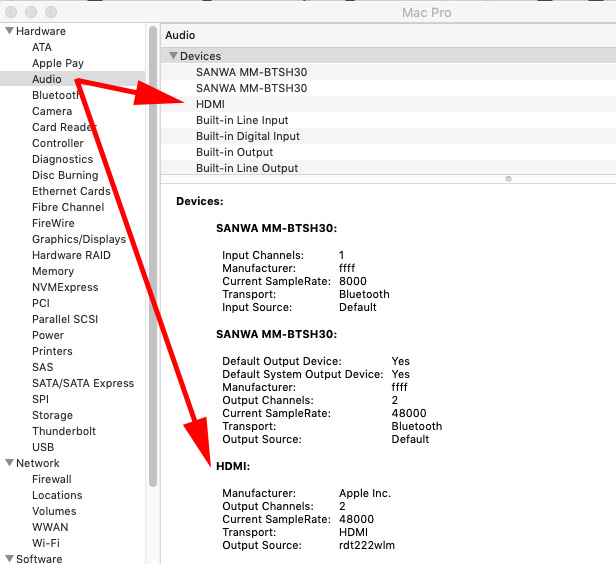

2. HDMI works in my 4,1>5,1 MSI RX 580 - HDMI shows in Audio out put.
I connect from RX 580 Display port - to HDMI adaptor to monitor's HDMI.

View attachment 853442


View attachment 853444



3. Definitely not `for RX 580 !

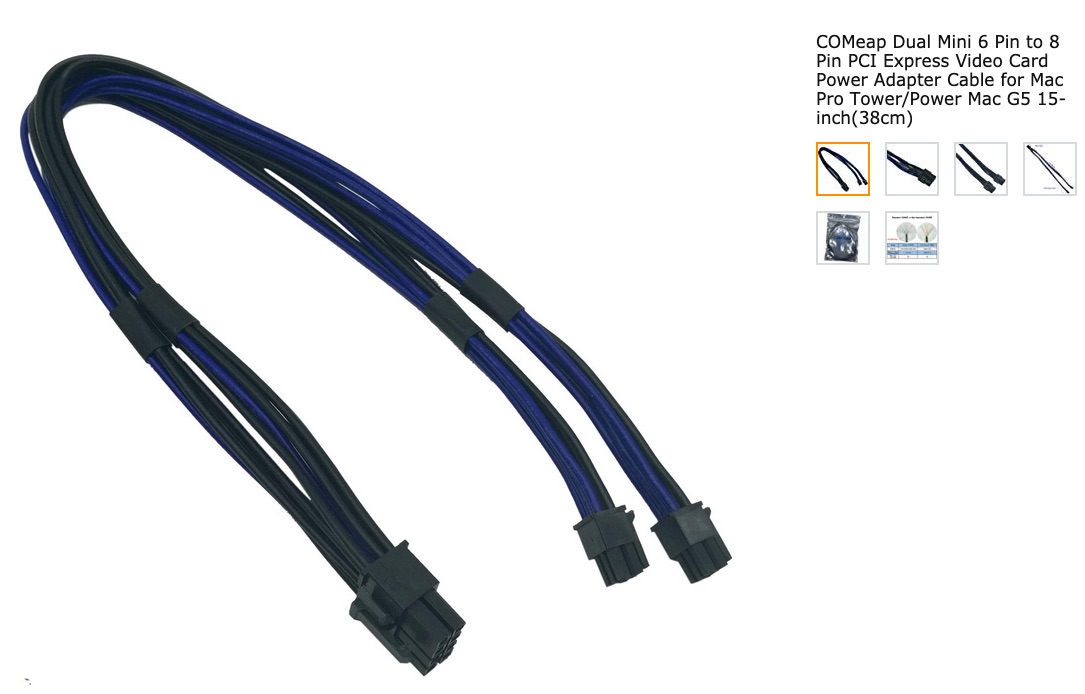

You MUST get a 2 x Mini-6 pin to single 8 pin cable.

https://www.amazon.com/COMeap-Express-Video-Adapter-15-inch/dp/B07J336WY4

View attachment 853448



HDMI Audio works in my setup in Mojave 10.14.6 full 6.05gb clean install.

==================================================

You need to do more research regarding your cMP 4,1 improvements.

It pays to study, work slowly, carefully, take notes, measure twice .. cut once etc.

Why do I need to do more research? My RX560 doesn't need extra power and is working just fine including HDMI audio. Your comment was very patronising


MIKX

macrumors 68000
Dec 16, 2004
1,815
692
Japan
It's after midnight after a long, hot humid, busy day here in Japan,

I did send answers to what seemed to be your 3 questions. The first finished with a question mark.

My apologies, I won't make that mistake again.


SnakeCoils

macrumors regular
Oct 17, 2018
133
60
Italy
Thank you very much, I only still need the info about the RX560 framebuffer and I'm done.
I already own an RX580 with the original firmware (4E353) needed to be recognized as "Orinoco" along with the necessary Y cable (6+6 to 8 pin) for the required power, I am evaluating the purchase of a "recommended" RX560 to set up another MacPro I have on the floor to use as media center and game station (classic console and arcade games, no need of 3D brute force). If the MSI RX560 does not require extra current but have all the nice features the RX580 have (I know the performance are about the half but GPU power was not the purpose of my planned purchase).
On a separate thread I am going to ask if the RX560 benefits from the same Kext modification in H264/HEVC acceleration the RX580 already have.


m11rphy

macrumors 6502a
Original poster
Dec 26, 2009
642
372
It's after midnight after a long, hot humid, busy day here in Japan,

I did send answers to what seemed to be your 3 questions. The first finished with a question mark.

My apologies, I won't make that mistake again.
The first was a question to SnakeCoils, 2 & 3 were answers to SnakeCoils


kohlson

macrumors 68020
Apr 23, 2010
2,425
737
Why do I need to do more research?
https://www.tomshardware.com/reviews/amd-radeon-rx-560-4gb,5254-14.html
Because there are actual circumstances where an RX560 can exceed the PCIe spec of 75 watts. Yes, AMD and MSI list this as a 60-watt card, but TomsHardware did some actual testing.

Everyone on MR, and in my experience especially on the cMP thread, wants to help extend the useful like of some great computing platforms. There is an unbelievable amount of knowledge here, without which my cMP wouldn't be nearly as capable as it is today. The knowledge comes from insight, intellect, and experimentation. That is, an investment in time on their part to build up the collective knowledge. I, for one, am grateful - especially since it costs me nothing except my time to read it.

I also try and be cognizant of the fact that this is a global community, and as the saying goes, "some is lost in translation." Again, I am grateful that the default language for MR is English, otherwise it would have just a fraction of the benefit for me. I really don't know how those contributors whose first language is not English do this, but I am grateful they make the effort. My cMP is better than new because of contributions from people around the world.

In my years on this site, I've come to learn that it's helpful, at least for me, to try and understand where people are coming from. I really do believe that most here want to help. One way to help determine this is to go more "in-depth" on a user's post, and see what else they're like. For example, people with dual-processor cMPs may be interested in @MIKX 's work on how to properly cool both CPUs. It's a good series of posts.

Anyway, best of luck on your cMP journey.
