2012 Mac Pro + SAPPHIRE Pulse Radeon RX 580

Discussion in 'Mac Pro' started by BlueBubba, Sep 10, 2017.

  1. BlueBubba macrumors member

    Joined:
    Jan 5, 2012
    #1
    Hello,

    I'm back on a Mac Pro after 2 years, so I'm a bit out of the loop. From reading through the threads it seems the recommended GPU for a 2012 Mac Pro is the SAPPHIRE Pulse Radeon RX 580.

    Will it work out of the box? Do I need to buy anything else? Are there any compatibility issues? Etc..?

    Any help will be appreciated.
    Thanks.

  2. Synchro3 macrumors 68000

    Synchro3

    Joined:
    Jan 12, 2014
    #2
    It should work out of the box with OS X 10.13. I'm waiting since two months for this card. How did you get it?

  3. BlueBubba thread starter macrumors member

    Joined:
    Jan 5, 2012
    #3
    I don't have it. Just checking I'm not going to have any issues.

    Are the pin connectors and power draw etc... all compatible with the Mac Pro?

    Cheers.

  4. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #4
    In terms of driver support, it's OOTB.

    But power draw still under testing at this moment. It may draw more than 75W from the slot in extreme condition (exceed the official limit). But so far, seems didn't cause any real issue yet.

  5. PowerMac G4 MDD macrumors 68000

    PowerMac G4 MDD

    Joined:
    Jul 13, 2014
    Location:
    At the intersection of Conch and Coral.
    #5

    I use one under OSX, and it's running like a champ! So far, so good. To connect it, you need a cable which adapts its 8-pin connection to dual mini-6-pin. You can find the cable on Amazon, for 13 USD.

  6. GCSMatt macrumors newbie

    GCSMatt

    Joined:
    Oct 24, 2017
    #6
    Has anyone put up Amazon Links to the power connectors necessary for this card and a 2010 Mac Pro?

  7. Squuiid macrumors 65816

    Squuiid

    Joined:
    Oct 31, 2006
    #7
  8. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #9
  9. GCSMatt macrumors newbie

    GCSMatt

    Joined:
    Oct 24, 2017
    #10
  10. Squuiid macrumors 65816

    Squuiid

    Joined:
    Oct 31, 2006
    #11
    Wow, WHERE did you find one?
    And we look forward to hearing how you get on.

  11. GCSMatt macrumors newbie

    GCSMatt

    Joined:
    Oct 24, 2017
    #12
    Squid, I got one from eBay! There are several more up there!

  12. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #13
  13. GCSMatt macrumors newbie

    GCSMatt

    Joined:
    Oct 24, 2017
    #14

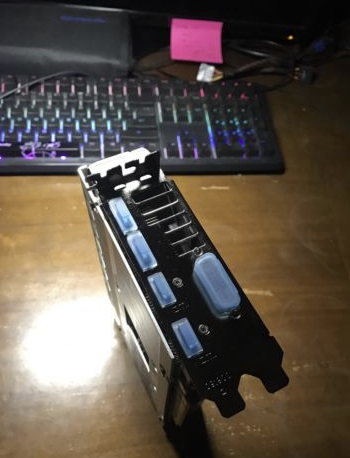

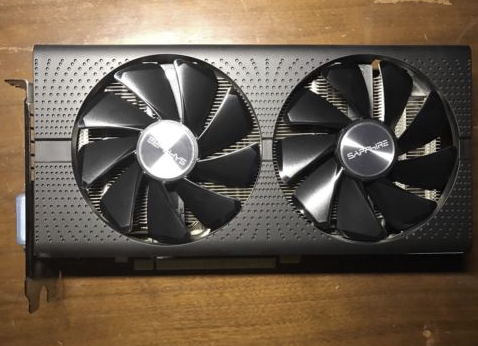

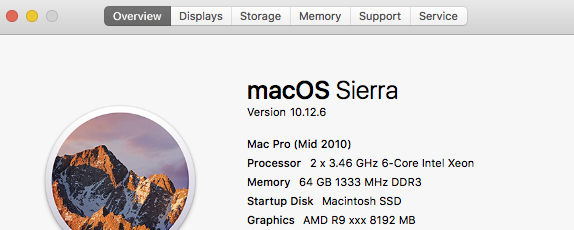

    Ok, I just installed my Sapphire Pulse RX580 - but I do not get the boot screen, except for just a second or 2 right at the end, and it shows up as an R9 XXX. Is there more than one iteration of the Sapphire Pulse RX580? Mine has 2 HDMI, 2 DP and 1 DVI. Pics attached.


    Attached Files:

  14. MarkC426 macrumors 6502

    Joined:
    May 14, 2008
    Location:
    UK
    #15
    You will not get the boot screen with an RX580, and the R9..... description is normal in Sierra.
    I believe in High Sierra it lists correctly, as its the card in Apple's eGpu.
    This is the same card I have in my mac.

  15. GCSMatt macrumors newbie

    GCSMatt

    Joined:
    Oct 24, 2017
    #16
    Ok, I incorrectly assumed that working OOTB meant that the card would have the boot screen. So that is my bad.

  16. MarkC426 macrumors 6502

    Joined:
    May 14, 2008
    Location:
    UK
    #17
    OOTB meaning no setup, no drivers required..... unfortunately no boot screen :)
    But, really is it required?
    One thing I recently discovered, is to upgrade to HS, you need an Apple EFI card to perform a firmware update.
    Luckily I still have my old card.

  17. GCSMatt macrumors newbie

    GCSMatt

    Joined:
    Oct 24, 2017
    #18
    I'm going to run a few Benchmarks to see if it's worth it to ditch the R9280x, and go to the RX580. What should I run aside from Geekbench.

  18. MarkC426 macrumors 6502

    Joined:
    May 14, 2008
    Location:
    UK
    #19
    Sorry thats out of my expertise, I don't dabble with benchmarks/speeds etc, just plug it in and use it.
    Have a look at the other threads, these benchmarks have all been done by others.

  19. GCSMatt macrumors newbie

    GCSMatt

    Joined:
    Oct 24, 2017
    #20
    Here are my scores.

    With the R9 280x

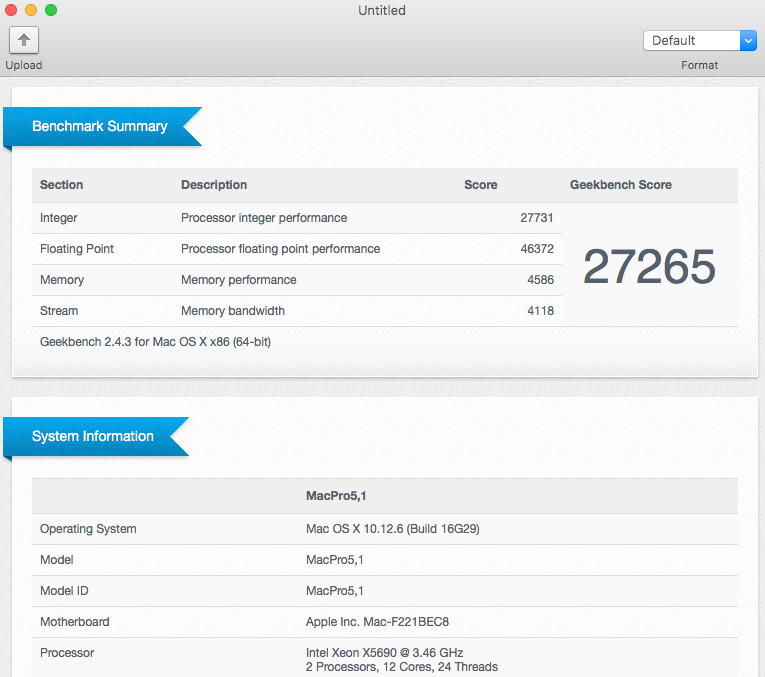

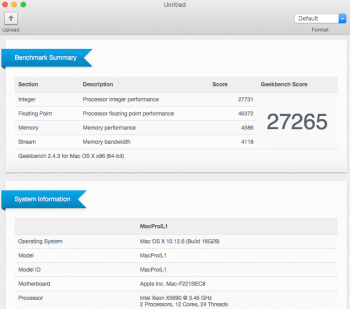

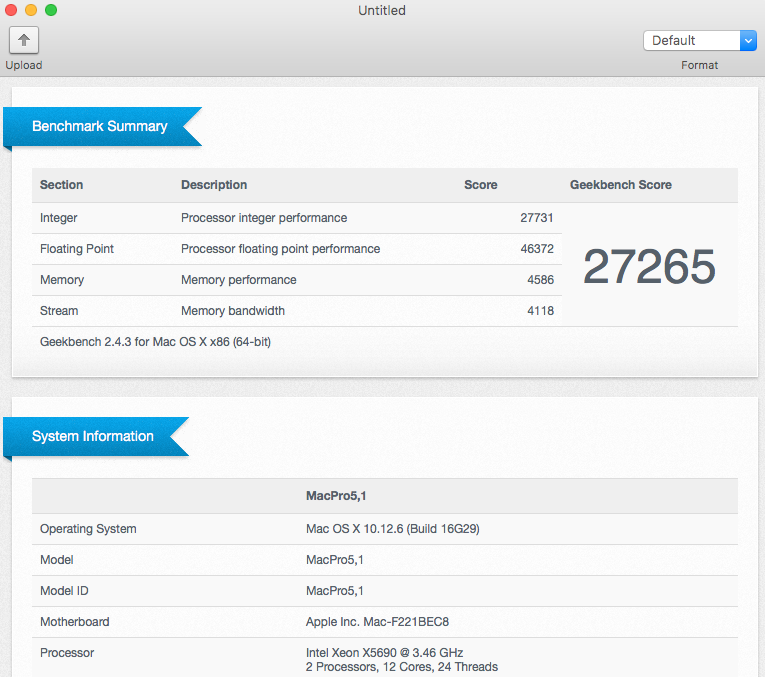

    Geekbench: 27265

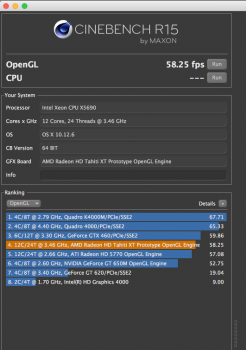

    Cinebench 58.25 fps

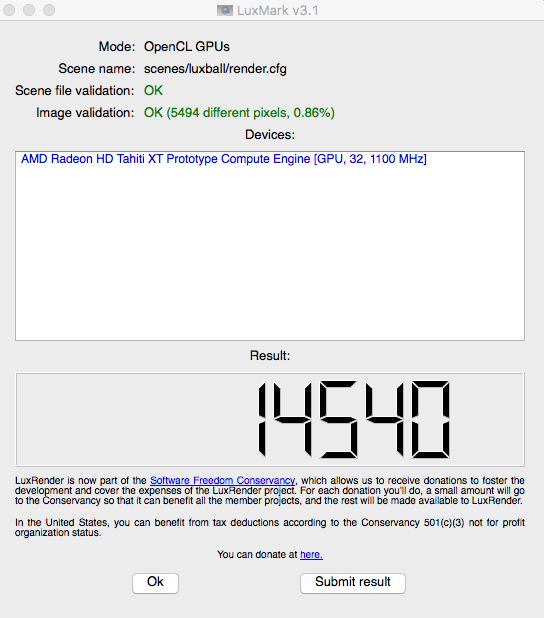

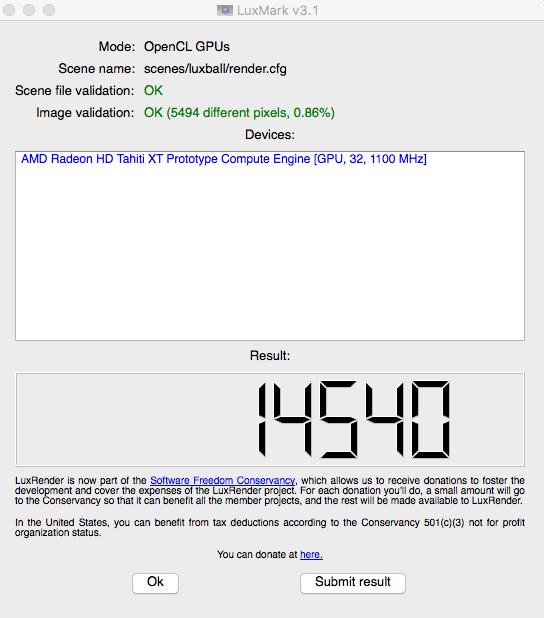

    Luxmark 14540
    BruceX: 42 seconds

    with the RX580

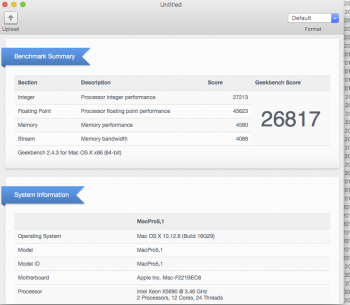

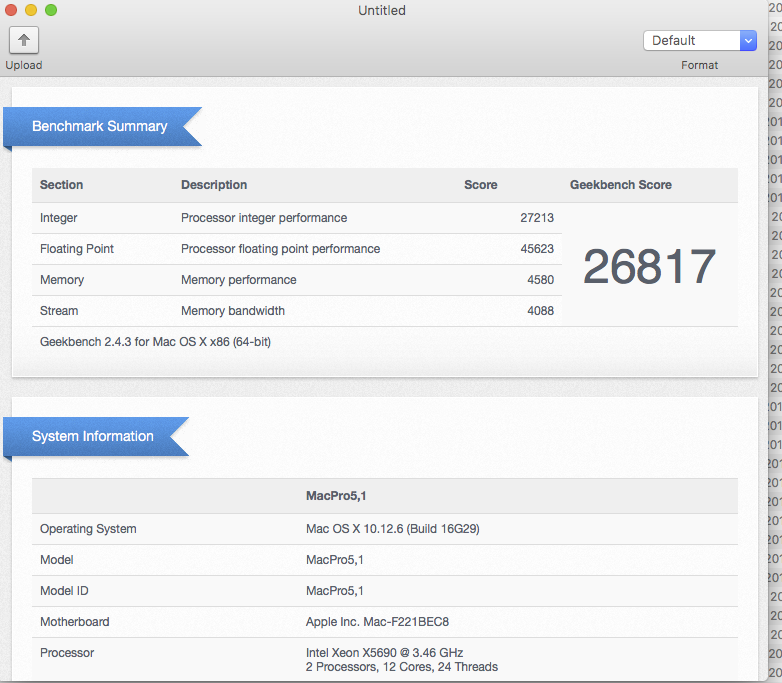

    Geekbench: 26817

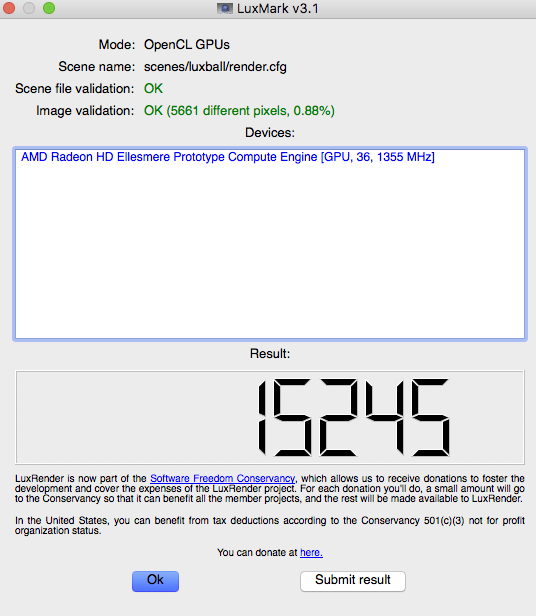

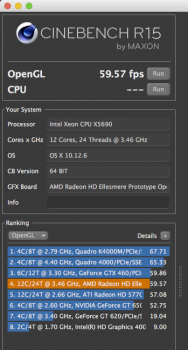

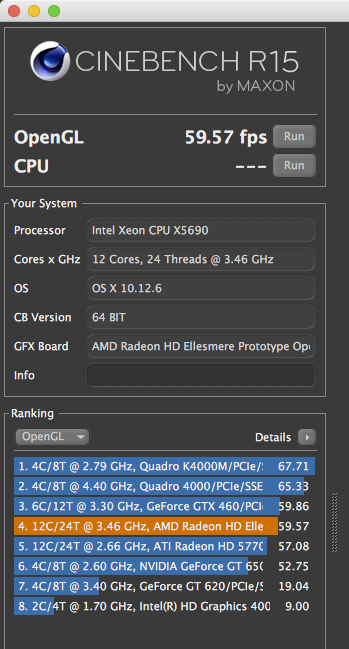

    Cinebench 59.57 fps

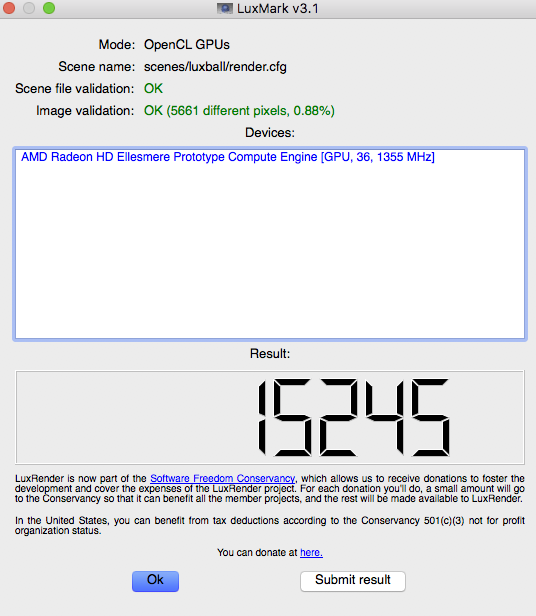

    Luxmark 15245
    BruceX: 38 Seconds
    --- Post Merged, Nov 2, 2017 ---
    Unless if someone can make sense of this for me and tell me something I don't know - I'm not sure the RX580 is all that much better than the R9280x.


    Attached Files:

  20. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #21
    CineBench and Geekbench is benchmarking the CPU, not GPU. If you want to see why upgrade to RX580, try some real OpenGL benchmark (e.g. Unigine Valley, or Unigine Heaven, etc).

    Anyway, Luxmark 3 should be a good OpenCL benchmark.

  21. Squuiid macrumors 65816

    Squuiid

    Joined:
    Oct 31, 2006
    #22
    Another benefit, and to me the primary benefit, is that you can now run 4K and 5K displays (in theory) due to the RX580 having the more modern DisplayPort 1.4 and HDMI2.0 standards.
    --- Post Merged, Nov 3, 2017 ---
    Yep, as someone else has pointed out, you would need High Sierra to have the correct name shown.
    Indeed the drivers in High Sierra will likely be more up to date and probably perform better than the RX580 driver in Sierra.

  22. rakesh0385 macrumors newbie

    rakesh0385

    Joined:
    Nov 3, 2017
    #23
    Does anyone know where to get this cable in the UK?
    Could not find the dual 6 pin ones on ebay :(

  23. Squuiid macrumors 65816

    Squuiid

    Joined:
    Oct 31, 2006
    #24
    I suggest you read the thread before posting, just a common courtesy to other users.

  24. devon807 macrumors 6502

    devon807

    Joined:
    Dec 31, 2014
    Location:
    Virginia
    #25
    The RX 580 should be running 19-20 seconds on bruceX. 38 seconds seems a bit high.
