APFS support enabled in High Sierra for cMP

Squuiid

macrumors 68000
Original poster
Oct 31, 2006
1,546
800
Thought I'd start a thread where we can analyse Apple's APFS support for cMP in the latest High Sierra beta out today.
Release notes state Mid 2012 only. I'm hoping that's not the case!
Please post any findings below.

Last edited:
  • Like
Reactions: LightBulbFun

Draeconis

macrumors 6502a
May 6, 2008
968
264
Thought I'd start a thread where we can analyse Apple's APFS support for cMP in the latest High Sierra beta out today.
Release notes state Mid 2012 only. I'm hoping that's not the case!
Please post any findings below.
Be interested to see if this strictly applies to the 'mid 2012' model, despite the fact it's identical to the mid 2010. And barely different from the 2009..

  • Like
Reactions: LightBulbFun

LightBulbFun

macrumors 68020
Nov 17, 2013
2,226
2,081
London UK
Yeah you get a firmware update! :eek: first time the 5,1 has gotten a firmware update in ages! I did not get it when updating from DP1 to DP5 but if you make a DP5 installer, it says you must update your boot rom before you can install and it tells you how, the shut down button did not work for me but going to the apple menu and hitting shut down worked for me :) then i followed the normal hold power button until flashing power light and bam it did the firmware update! and im using a flashed 4,1 to 5,1 Mac Pro! so yeah looks like flashed 4,1s are so identicial they happily take the High sierra boot rom update! :D

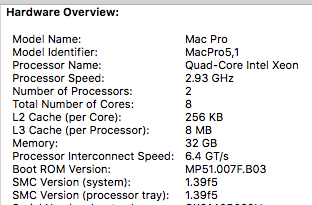

this is the old boot rom

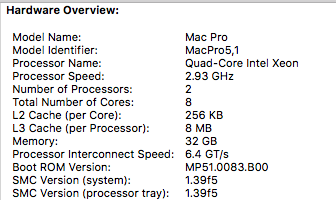

and this is the new boot rom!


Synchro3

macrumors 68000
Jan 12, 2014
1,978
833
Yes! :D

Does it work with third party EFI cards without issues?

NVME support?

PCI-E fan issue after cold start solved?

Support for non EFI cards?

Network install support?

USB 3 boot support? (totally forgot that, thanks to ActionableMango!)

Last edited:
  • Like
Reactions: Squuiid

LightBulbFun

macrumors 68020
Nov 17, 2013
2,226
2,081
London UK
yeah im not sure what the change are would be nice if apple gave us a change log for this stuff :D , im going to guess APFS support is one LOL but i wonder if anything else changed, I did notice that instead of it going say from MP51.007F.B03 to say B05 like what macs normally do when they get a firmware update, it went to MP51.0083.B00 so yeah... make of that what you will (interestingly the MacBookPro9,1 also did the same reset to B00 thing with its firmware update included in B5 where as in other firmware updates its just gone up from say B17 to B22)

BTW I just checked in CPU Z and the BIOS date is the 27th of the 7th 2017 :) ...

  • Like
Reactions: Synchro3

Squuiid

macrumors 68000
Original poster
Oct 31, 2006
1,546
800
LBF, do you have a non-EFI video card? Any changes on that front? Boot screen perhaps ?:p

  • Like
Reactions: Chung123

LightBulbFun

macrumors 68020
Nov 17, 2013
2,226
2,081
London UK
ill have to make some tests, but I do have several video cards i can test but I dont own any Mac OS X supported USB3 cards sadly or any NVMe drives... (im also curious if windows will boot in EFI mode with the 7950 running mac EFI as before it would crash at the EFI windows boot loader stage way before any sort of video drivers load plus it also happened with a USB installer and those dont contain video drivers, if i removed the 7950 or switched it to legacy BIOS it would boot fine...)

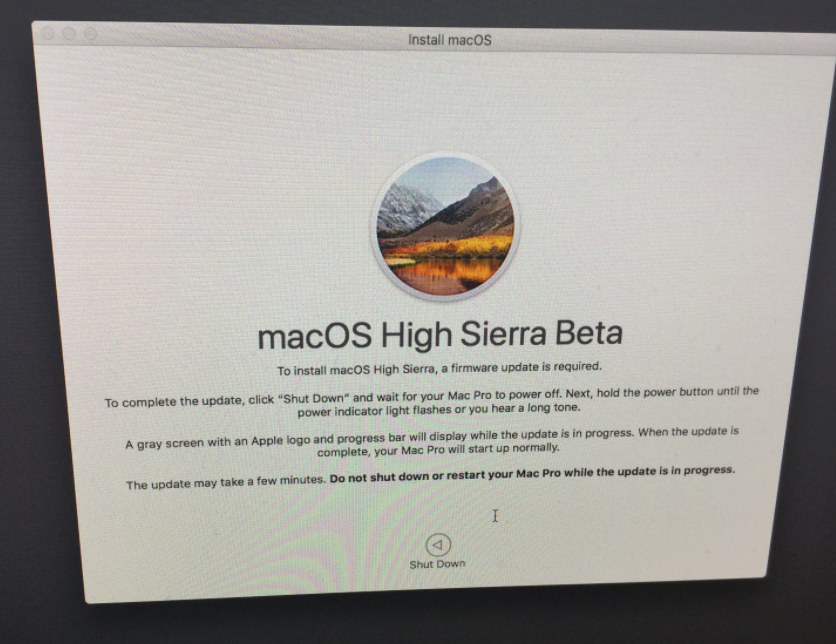

BTW here is the Firmware update thingy i mentioned earlier


Jul 4, 2015
4,488
2,548
Paris
Proof that Apple screwed 4,1 customers. It was always natively able to support a firmware update direct from Apple without external hacks. This company has zero value for its customers.

They should add 4,1 back to list of supporters machines according to your successful firmware update.

And they should make sure wifi, Bluetooth and graphics drivers aren't crippled in any of the OS they support.


LightBulbFun

macrumors 68020
Nov 17, 2013
2,226
2,081
London UK
Proof that Apple screwed 4,1 customers. It was always natively able to support a firmware update direct from Apple without external hacks. This company has zero value for its customers.
do keep in mind that this Mac Pro 4,1 had been updated to the usual 5,1 firmware before hand, but it does show once a 4,1 is updated to 5,1 firmware apple has basically no way of telling them apart :) hell the 4,1 and 5,1 share the same board ID for example, which is VERY unusual for a Mac (im pretty sure they are the only Macs to do so...) other macs like Mac Mini 1,1s and iMac 4,1s do have different board IDs to their 2,1 and 5,1 counterparts so even when flashed to said 2,1 and 5,1 firmware OS X Lion for example, will still complain about an unsupported mac due to the flashed macs still having their 1,1 and 4,1 respective board IDs


Draeconis

macrumors 6502a
May 6, 2008
968
264
do keep in mind that this Mac Pro 4,1 had been updated to the usual 5,1 firmware before hand, but it does show once a 4,1 is updated to 5,1 firmware apple has basically no way of telling them apart :) hell the 4,1 and 5,1 share the same board ID for example, which is VERY unusual for a Mac (im pretty sure they are the only Macs to do so...) other macs like Mac Mini 1,1s and iMac 4,1s do have different board IDs to their 2,1 and 5,1 counterparts so even when flashed to said 2,1 and 5,1 firmware OS X Lion for example, will still complain about an unsupported mac due to the flashed macs still having their 1,1 and 4,1 respective board IDs
Not so unusual when you think that between the 2009 and 2010 Mac Pro there's basically no difference.

Funny if you think about this really; between 2009 and 2017, Apple only released one true newer model of the Mac Pro. And by all accounts.. the new Mac Pro will be in 2019. So one new model.. in a decade.

Jul 4, 2015
4,488
2,548
Paris
Not so unusual when you think that between the 2009 and 2010 Mac Pro there's basically no difference.

Funny if you think about this really; between 2009 and 2017, Apple only released one true newer model of the Mac Pro. And by all accounts.. the new Mac Pro will be in 2019. So one new model.. in a decade.
And they hardly updated the graphics APIs we rely on since Jobs died. So we can say that this decade has been a non-event for Mac Pro community.


LightBulbFun

macrumors 68020
Nov 17, 2013
2,226
2,081
London UK
If they really wanted to bother, I imagine they could poll the SMC firmware version or the hardware serial number. Obviously not worth the effort though.
the problem I could see with that is especially with the Serial number, those are subject to change, and if you use those as a check for something and some users genuine machine has something wrong with that, it could end up screwing over that genuine user, for example I have come across macs that have missing serial numbers, I own a PowerMac G4 Sawtooth that has no serial number in OpenFirmware for example.
[doublepost=1502141000][/doublepost]BTW in the EFI partition of the APFS formatted HDD (and only HDD i had installed at the time) I found these 2 files, maybe someone like MVC or @netkas could dig around in them and see if theres anything of interest :)


  • Like
Reactions: Synchro3

Kris Kelvin

macrumors regular
Dec 28, 2005
221
131
I failed to upgrade the firmware on my Mac Pro 2009 (flashed to MacPro5,1). After the regular firmware update procedure (flickering light, beep, 5 minute wait, automatic reboot), the firmware is still MP51.007F.B03.

Since I'm using a Radeon RX 580, I don't have a bootscreen and can't tell if the progress bar is actually displayed and/or if a kernel panic occurs somewhere along the way.

What I've tried (unsuccessfully):
  • Removing external devices
  • Removing PCIe SSD
  • Removing PCIe USB 3 Adapter
How long did the firmware upgrade take for you?

PS: No need to peek at the EFI partition. The firmware files are also found in the installer package in
/Contents/Resources/Firmware.

Last edited:
  • Like
Reactions: LightBulbFun

LightBulbFun

macrumors 68020
Nov 17, 2013
2,226
2,081
London UK
I failed to upgrade the firmware on my Mac Pro 2009 (flashed to MacPro5,1). After the regular firmware update procedure (flickering light, beep, 5 minute wait, automatic reboot), the firmware is still MP51.007F.B03.

Since I'm using a Radeon RX 580, I don't have a bootscreen and can't tell if the progress bar is actually displayed and/or if a kernel panic occurs somewhere along the way.

What I've tried (unsuccessfully):
  • Removing external devices
  • Removing PCIe SSD
  • Removing PCIe USB 3 Adapter
How long did the firmware upgrade take for you?

PS: No need to peek at the EFI partition. The firmware files are also found in the installer package in
/Contents/Resources/Firmware.
Just a heads up to update the firmware on a Mac Pro 4,1 or 5,1 you have to install an EFI video card (this is true also if your flashing a 4,1 to a 5,1) if you dont have a EFI video card then it wont update

Thanks for the path :) ill have to poke around in there.


Draeconis

macrumors 6502a
May 6, 2008
968
264
Just a heads up to update the firmware on a Mac Pro 4,1 or 5,1 you have to install an EFI video card (this is true also if your flashing a 4,1 to a 5,1) if you dont have a EFI video card then it wont update

Thanks for the path :) ill have to poke around in there.
Now that's interesting. Luckily I still have my Mac Edition 680 :)

  • Like
Reactions: LightBulbFun

haralds

macrumors 65816
Jan 3, 2014
1,158
344
Silicon Valley, CA
I have a Mid 2010 5,1 with upgraded processors (3.06GHz 6 cores), GPU, and WiFi board. The update did not touch the firmware. Looks like that will need hacking.

Boot ROM Version: MP51.007F.B03 - before and after update.

Last edited:
  • Like
Reactions: handheldgames

Fangio

macrumors 6502
Jan 25, 2011
336
335
Can confirm the firmware upgrade works with 4,1/5,1 and a flashed EFI card (280X).

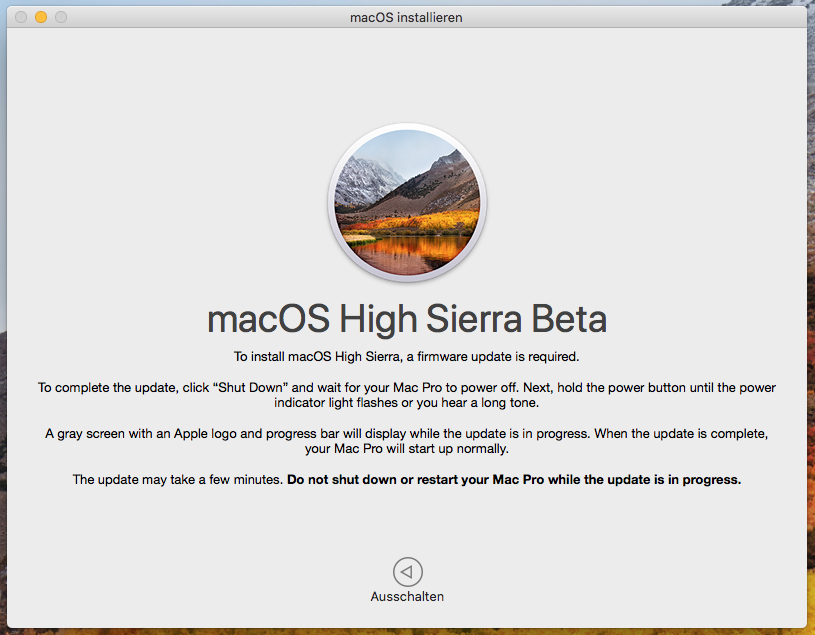

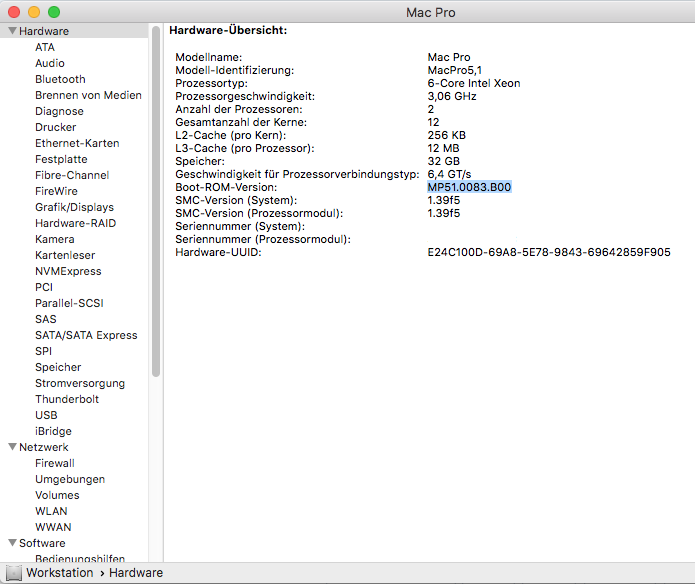

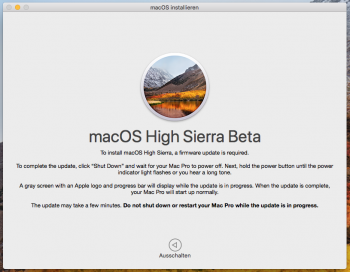

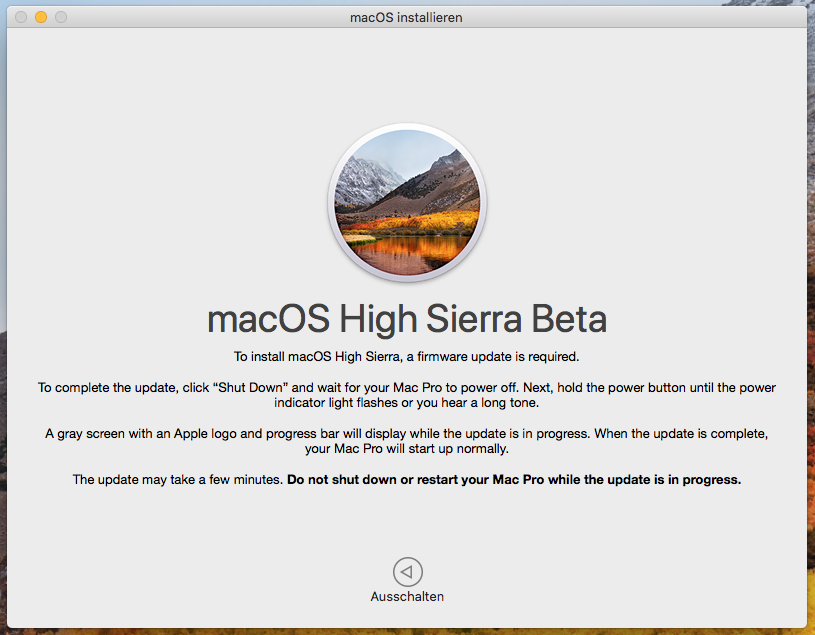

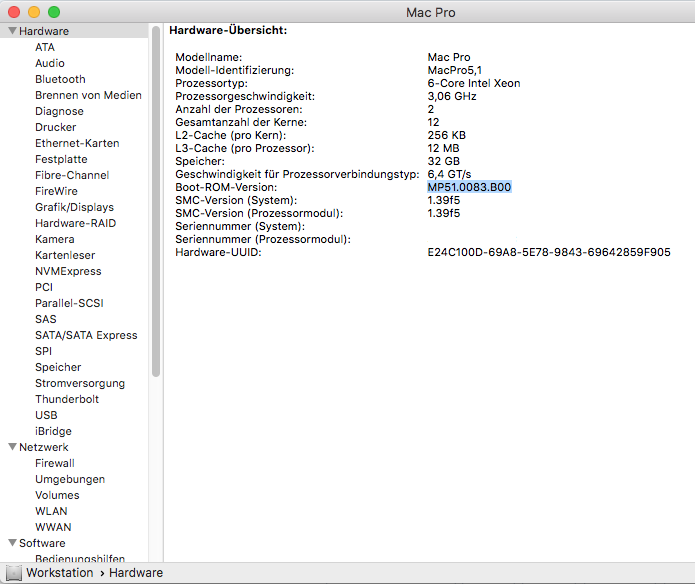

Had already updated to 17A330h. I've then downloaded the full installer from the Appstore, and when it started I was greeted with the same instructions as shown by LBF. Performed the firmware upgrade, automatic reboot, and now have MP51.0083.B00.


Attachments

Last edited:

Faraday

macrumors member
Mar 25, 2004
38
5
Melbourne Australia
Yeah you get a firmware update! :eek: first time the 5,1 has gotten a firmware update in ages! I did not get it when updating from DP1 to DP5 but if you make a DP5 installer, it says you must update your boot rom before you can install and it tells you how, the shut down button did not work for me but going to the apple menu and hitting shut down worked for me :) then i followed the normal hold power button until flashing power light and bam it did the firmware update! and im using a flashed 4,1 to 5,1 Mac Pro! so yeah looks like flashed 4,1s are so identicial they happily take the High sierra boot rom update! :D

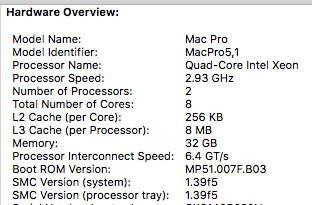

View attachment 712003 this is the old boot rom

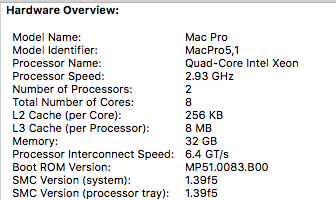

View attachment 712005 and this is the new boot rom!
PLEEEEEEASE let this include booting from PCIe NVME m.2 SSDs...

Anyone tested yet ?


haralds

macrumors 65816
Jan 3, 2014
1,158
344
Silicon Valley, CA
Can confirm the firmware upgrade works with 4,1/5,1 and a flashed EFI card (280X).

Had already updated to 17A330h. I've then downloaded the full installer from the Appstore, and when it started I was greeted with the same instructions as shown by LBT. Performed the firmware upgrade, automatic reboot, and now have MP51.0083.B00.
Guess. I might try the full installer.
