Apple Studio Display Windows Compatibility

[Eric_WVGG]

holy crap! I'm shocked… uncool.

I think the active Thunderbolt cable would have a much better chance of working, but the one at the Apple Store absolutely should have been one.

Again, I'd try the bootcamp drivers, and also any native Dell/Intel/Windows drivers that are available for the laptop.



[Eric_WVGG]

I'm using an Apple Studio Display with a Macbook, and a Windows PC using that DisplayPort -> USB-C adapter everyone else uses.

The Studio Display only works with the Windows PC if it is plugged in before the PC boots; plugging in after it's booted does nothing.

Furthermore, if I ever need to unplug the display and hook it up to the Mac, the screen will not turn on when plugged back into the Windows computer.

Has anyone else encountered this? Any suggestions? (I have all the latest bootcamp drivers installed on the Windows PC. Also I tried a KVM and it had all the same issues.)

I've replaced the cable with a WJESOG and it's a night-and-day difference. Highly recommend to any Windows user with DisplayPort (no good for HDMI though).



[Voyageur]

Hi people. I optionally use ASD with my WinPC (RTX4080) via a Belkin VR cable for Huawei and in general everything works well except for image tearing (even with V sync enabled in games properties). The problem was partially solved in the Nvidia system settings by forcing vertical synchronization to be turned on.

However, this does not help when DLSS 3 is turned on with Frame generation and the image diverges in layers (checked in "The Witcher 3" and "Hogwarts Legacy"). Does anyone know a solution to this problem?



[xraydoc]

Hi people. I optionally use ASD with my WinPC (RTX4080) via a Belkin VR cable for Huawei and in general everything works well except for image tearing (even with V sync enabled in games properties). The problem was partially solved in the Nvidia system settings by forcing vertical synchronization to be turned on.

However, this does not help when DLSS 3 is turned on with Frame generation and the image diverges in layers (checked in "The Witcher 3" and "Hogwarts Legacy"). Does anyone know a solution to this problem?

The ASD does not support variable frame rates, so anything that isn’t 60 fps (or an even multiple under 60) will tear.



[kreasu_]

The ASD does not support variable frame rates, so anything that isn’t 60 fps (or an even multiple under 60) will tear.

To add to this it looks like you can turn on this feature in vids control panel but it won’t do anything



[xraydoc]

To add to this it looks like you can turn on this feature in vids control panel but it won’t do anything

It doesn't do anything because the ASD has a fixed 60Hz refresh rate.



[roosvelt]

Hi guys, I plan to change my iMac 27" late 2020, last Intel product, for a Mac Studio with one or 2 ASD

At work, I've a HP 845 G7 with AMD Ryzen 5 Pro CPU and an integrated AMD Radeon Graphics "GPU" so no Thunderbolt for this model

HP EliteBook 845 G7 Notebook PC Specifications | HP® Support

Specifications page for HP EliteBook 845 G7 Notebook PC.

support.hp.com

Sorry for my noob question but I'd like to be sure, even if it's AMD, there's 2 USB 3.1 Gen 2 Type-C connector (Alt mode) so do you think it'll work to connect an ASD with an USB C Thunderbolt 4 cable ?

If yes, could we imagine that I can buy 2 ASD and use the 2 USB 3.1 Gen 2 Type-C connector (Alt mode) or perhaps the integrated AMD card won't be powerful enough ?



[roosvelt]

Any advice about my question ?



[kreasu_]

Hi guys, I plan to change my iMac 27" late 2020, last Intel product, for a Mac Studio with one or 2 ASD

At work, I've a HP 845 G7 with AMD Ryzen 5 Pro CPU and an integrated AMD Radeon Graphics "GPU" so no Thunderbolt for this model

HP EliteBook 845 G7 Notebook PC Specifications | HP® Support

Specifications page for HP EliteBook 845 G7 Notebook PC.

support.hp.com

Sorry for my noob question but I'd like to be sure, even if it's AMD, there's 2 USB 3.1 Gen 2 Type-C connector (Alt mode) so do you think it'll work to connect an ASD with an USB C Thunderbolt 4 cable ?

If yes, could we imagine that I can buy 2 ASD and use the 2 USB 3.1 Gen 2 Type-C connector (Alt mode) or perhaps the integrated AMD card won't be powerful enough ?

You have to check what your maximum outputs are most computers can't handle too much over one connection specifically the USB c driver chip I don't know enough about that model sorry

You'll just have to test and return if it doesn't work



[roosvelt]

You have to check what your maximum outputs are most computers can't handle too much over one connection specifically the USB c driver chip I don't know enough about that model sorry

You'll just have to test and return if it doesn't work

Thanks for your reply Kreasu_
According to the manual, pages 31 and 34, it seeems like the AMD controller can manage 6 external displays with a hub and using MultiStream Transport
https://h10032.www1.hp.com/ctg/Manual/c06627510.pdf

On hp's forum, a guy indicate the 845 G7 can be connected to 3 external monitors without saying if it's a Intel or AMD processor model he own (for Thunderbolt)
https://h30434.www3.hp.com/t5/Noteb...ok-845-G7-can-connect-4-monitors/td-p/8655693

I've found a post in Reddit too, it seems the 845 G7 can be connected to 2 displays 4K 60Hz with a hub through DP ports

https://www.reddit.com/r/Hewlett_Packard/comments/tkrgej

However, you're agree I juste have to buy an usb C alt display mode to usb C thunderbolt 4 cable to test like this one ?

https://www.amazon.com/Cable-Matters-40Gbps-Thunderbolt-Adapter/dp/B084Z65YJQ?th=1



[PaulD-UK]

The HP 845 G7 specs say Radeon graphics, and pre-Navi AMD chipsets (like maybe integrated Radeon?) don't support Display Stream Compression, which is needed to get 5K over USB-C (Alt-mode) cables.
So at best it looks like you would only get 4K?



[roosvelt]

The HP 845 G7 specs say Radeon graphics, and pre-Navi AMD cards (like Radeon) don't support Display Stream Compression, which is needed to get 5K over USB-C (Alt-modE) cables.
So at best it looks like your would only get 4K?

Hi PaulD-UK thanks for this information
Never mind, if I'll get "only" 4K
I just want to be sure that even with no Thunderbolt ports, USB C display port Alt-mode would be enough to connect 1 or 2 ASD with the cable I linked before or another one.



[Eric_WVGG]

If you want a retina-grade 4k display, the 24" LG Ultrafine is not bad at all, they ironed out the issues with the pre-2020 models IMO. I am uncertain of how well it runs without Thunderbolt, though.



[HappyIntro]

Hi roosvelt. I've got an HP EliteBook 845 G9 and it's a 100% no-go. Using a couple different thunderbolt cables, my ASD screen remains blank no matter what I did. That's my experience. Not even 4k.



[roosvelt]

If you want a retina-grade 4k display, the 24" LG Ultrafine is not bad at all, they ironed out the issues with the pre-2020 models IMO. I am uncertain of how well it runs without Thunderbolt, though.

Thanks for your advice Eric_WVGG
I went to Sven.de website, it seems with 24" with an UHD resolution 3840x2160 you've 183,58 PPI, I'm not sure it's HiDPI aka Retina

DPI Calculator / PPI Calculator

I'd like to keep 5K resolution with an ASD and my futur Mac Studio and use the ASD in 4K for work because of old notebook waiting for a newer one.



[roosvelt]

Hi roosvelt. I've got an HP EliteBook 845 G9 and it's a 100% no-go. Using a couple different thunderbolt cables, my ASD screen remains blank no matter what I did. That's my experience. Not even 4k.

Thanks for your feedback HappyIntro.

I've asked technical support of my company, they told me the best model in the authorized list is the 850 G9 which have 2 Thunderbolt ports (if running Intel processor) but it's out of stock actually.



[roosvelt]

Hi roosvelt. I've got an HP EliteBook 845 G9 and it's a 100% no-go. Using a couple different thunderbolt cables, my ASD screen remains blank no matter what I did. That's my experience. Not even 4k.

Did you download drivers with brigadier ?



[HappyIntro]

Did you download drivers with brigadier ?

I did not do that. For me, getting it to work would only been a "nice to have" feature, not a necessity, as my MBP drives my ASD.



[roosvelt]

I did not do that. For me, getting it to work would only been a "nice to have" feature, not a necessity, as my MBP drives my ASD.

I understand but maybe this is a solution for you



[roosvelt]

I ordered on the refurb an ASD, arrived today and work perfectly with the cable I've bought without doing anything.

Cable Matters [Certifié Intel Câble Thunderbolt 4 40 Gbit/s de 0,8 m avec vidéo 8K et charge de 240 W – Rétrocompatible avec câble USB4 Thunderbolt 3 et USB-C

Connectez-vous plus avec les produits Cable Matters

amzn.eu

Maybe a lead for you @HappyIntro

I'm so happy it works !!

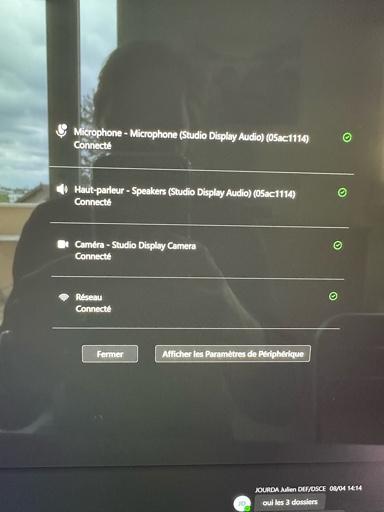

Even the camera, the mic and speakers work with Teams !!



[kreasu_]

I've ordered on the refurbished an ASD, arrived today and work perfectly with the cable I've bought without doing anything.

Cable Matters [Certifié Intel Câble Thunderbolt 4 40 Gbit/s de 0,8 m avec vidéo 8K et charge de 240 W – Rétrocompatible avec câble USB4 Thunderbolt 3 et USB-C

Connectez-vous plus avec les produits Cable Matters

amzn.eu

Maybe a lead for you @HappyIntro

I'm so happy it works !!

Even the camera, the mic and speakers work with Teams !!

I assume you can't control the brightness nor colorspace I have a post about that if needed (the first post of this thread)



[roosvelt]

I assume you can't control the brightness nor colorspace I have a post about that if needed (the first post of this thread)

You're right, I can't, I'll have a look thanks kreasu_

Especially since I have the good firmware version, I did well not to upgrade to Sonoma otherwise the ASD would have been the firmware version 17



[roosvelt]

I assume you can't control the brightness nor colorspace I have a post about that if needed (the first post of this thread)

Hi kreasu_,
I installed the library, the same device filter, restarted the PC and run the program StudioDisplayBrightnessController.exe.

Unfortunately, as you report on your first post, my ambient brightness value is 0 and doesn't change even if I've the good firmware version, 16.4.

The dash under the monitor picture in the main application window is red not green, means no connection between the application and the monitor.

I'm connected via a USB-C cable and a Thunderbolt interface, I've tried the 2 USB-C ports, it's the same, no green dash under the monitor picture in the main application.

I even uninstalled driver and restarted a fresh install, it's the same.



[kreasu_]

Hi kreasu_,
I've installed the library, the same device filter, restarted the PC and run the program StudioDisplayBrightnessController.exe.

Unfortunately, as you report on your first post, my ambient brightness value is 0 and doesn't change even if I've the good firmware version, 16.4.

The dash under the monitor picture in the main application window is red not green, means no connection between the application and the monitor.

I'm connected via a USB-C cable and a Thunderbolt interface, I've tried the 2 USB-C ports, it's the same, no green dash under the monitor picture in the main application.

I even uninstalled driver and restarted a fresh install, it's the same.

Try the brigader method using bootcamp



[roosvelt]

Try the brigader method using bootcamp

Yes this is what I planned to do , I'll report my feedback.
