Apple's New A6X iPad Chip Adopts PowerVR SGX 554MP4 Graphics

MacRumors

macrumors bot
Original poster
Apr 12, 2001
49,973
11,251



AnandTech reports on an examination of the A6X chip found in the fourth-generation iPad. The work, performed by Kishonti Informatics, reveals that Apple has adopted Imagination Technologies' quad-core PowerVR SGX 554MP4 graphics in the new chip.
The A6X retains the 128-bit wide memory interface of the A5X (and it keeps the memory controller interface adjacent to the GPU cores and not the CPU cores as is the case in the A5/A6). It also integrates two of Apple's new Swift cores running at up to 1.4GHz (a slight increase from the 1.3GHz cores in the iPhone 5's A6). The big news today is what happens on the GPU side. A quick look at the GLBenchmark results for the new iPad 4 tells us all we need to know. The A6X moves to a newer GPU core: the PowerVR SGX 554.

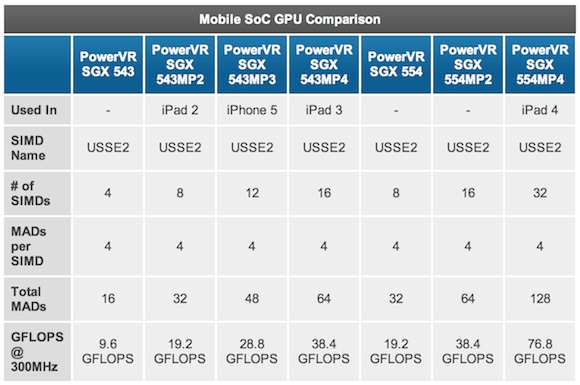

Unsurprisingly, the SGX 554MP4 represents a significant improvement over the quad-core SGX 543MP4 used in the A5X chip of the third-generation iPad and the triple-core SGX 543MP3 used in the A6 chip of the iPhone 5.


A full suite of graphics benchmarks reveals improvements of 15-100% compared to the third-generation iPad, with frame rates in the Egypt HD benchmark jumping from 25 frames per second (fps) on the third-generation iPad to nearly 52 fps on the fourth-generation iPad.
Ultimately it looks like the A6X is the SoC that the iPad needed to really deliver good gaming performance at its native resolution. I would not be surprised to see more game developers default to 2048 x 1536 on the new iPad rather than picking a lower resolution and enabling anti-aliasing. The bar has been set for this generation and we've seen what ARM's latest GPU can do, now the question is whether or not NVIDIA will finally be able to challenge Imagination Technologies when it releases Wayne/Tegra 4 next year.
The A6X is one of several enhancements to the fourth-generation iPad, including a new FaceTime HD camera and Apple's new Lightning connector, although the device appears nearly identical to its predecessor from the outside.

Article Link: Apple's New A6X iPad Chip Adopts PowerVR SGX 554MP4 Graphics


jav6454

macrumors P6
Nov 14, 2007
16,925
1,717
1 Geostationary Tower Plaza
I wonder what the constraints are concerning power. Also, if, having 2x 543 cores gives 19.2 GFLOPS of compute GPU power, why didn't Apple opted for a single core 554 that has the same specs as two 543s in their A6 chip? There are no differences in core count, bandwidth, compute, or anything else. Eliminate a core, deliver greater performance no?


shoes222

macrumors member
Sep 4, 2012
87
4
Considering this is one of the fastest Apple products to be discontinued...they should offer a $100 trade-in upgrade program for the 4th gen iPad or SOMETHING. It would create goodwill among the hardcore base, and then they could take customers' iPad 3's which are in perfectly good condition and slap them on the refurb store. It would such easy money lining Apple's pockets, I don't know why they don't do this.


silverf1re

macrumors regular
Mar 3, 2011
211
8
Hope games like Infinity Blade Dungeons got pushed back because they recognize the graphics potential of the ipad 4 (What ever you call it)


whooleytoo

macrumors 604
Aug 2, 2002
6,576
660
Cork, Ireland.
Incredible improvements in performance... From a gaming perspective, it'll be interesting to see how these compare with current-gen consoles, considering they're on ~10 year upgrade cycles and the iPad's last iteration lasted about 6 months.


gnasher729

macrumors P6
Nov 25, 2005
17,234
4,350
And someone posted here that he bought an iPad 3, because of the rumour that the iPad 4 graphics would be slower...


Aluminum213

macrumors 68040
Mar 16, 2012
3,527
3,948
And someone posted here that he bought an iPad 3, because of the rumour that the iPad 4 graphics would be slower...
I remember that exactly, they said the iPad 4 would be slower because the A6 chip would only have a triple GPU


commander.data

macrumors 65816
Nov 10, 2006
1,017
105
I wonder what the constraints are concerning power. Also, if, having 2x 543 cores gives 19.2 GFLOPS of compute GPU power, why didn't Apple opted for a single core 554 that has the same specs as two 543s in their A6 chip? There are no differences in core count, bandwidth, compute, or anything else. Eliminate a core, deliver greater performance no?
Anand's chart is kind of misleading because he is focusing on ALU performance which incidentally is the main thing that changes between the SGX554MP and SGX543MP. When you go from a SGX543MP2 to a SGX543MP4 everything doubles including the ALU, TMU and ROP count. Going from the SGX543MP to SGX554MP only the ALU count doubles. As such, the 2x performance increase from A5X to A6X is very nuanced. Due to doubled ALU count and a small clock speed increase, the theoretical ALU increase for shaders is actually greater than 2x. However, the ROP count has not increased and so fill rate has only increased modestly due to clock speed only, which means that on a raw pixel pushing measure, the iPad 4 still hasn't fully accounted for the 4x increase in pixel count over the iPad 2. And so compared to the iPad 3, developers can't just double everything but will have to be more selective over how and what graphical effects they increase.

For the iPhone 5, since the resolution didn't increase significantly over the previous iPhones, Apple probably could have used a SGX554MP2 to double ALU performance over the iPhone 4S and use a small clock speed bump for a modest increase in fill rate to account for the increased resolution. However, risk may have been an issue. The iPhone 5 had to ship this fall and with an already new CPU architecture, going with a tried and true SGX543MP design was the safer option. The iPad 4 was already a bit of a surprise and didn't necessarily have to ship this year since there several iDevices that continue to use the 30-pin connector anyways, so Apple had some flexibility to take additional risk with the SGX554MP in the A6X.


jack92029

macrumors member
Oct 23, 2012
30
0
Exynos 5250

It would be very interesting to see a side by side comparison of how the A6X compares to the new Samsung Exynos 5250


jimN

macrumors 6502a
Jun 23, 2005
935
10
London
More to the point, look where the Nexus 10 sits on all these charts. I appreciate that it's pushing a lot of pixels but the experience it delivers is consistently worse than the new iPad, the iPhone and, more often than not, the 3rd gen iPad too. Plus its battery was woeful on the Engadget review.

People might be knocking Apple but their products are still at the bleeding edge performance wise.


commander.data

macrumors 65816
Nov 10, 2006
1,017
105
It would be very interesting to see a side by side comparison of how the A6X compares to the new Samsung Exynos 5250
Anand's comparison already includes the Nexus 10 with Exynos 5250 and Mali-T604. The A6X and SGX554MP4 are ahead decisively.


GorgonPhone

macrumors 6502a
Dec 12, 2010
630
0
Incredible improvements in performance... From a gaming perspective, it'll be interesting to see how these compare with current-gen consoles, considering they're on ~10 year upgrade cycles and the iPad's last iteration lasted about 6 months.
they wont compare until apple offers an official proper controller cause the touch screen control are useless in most good games..


WilliamG

macrumors G3
Mar 29, 2008
9,121
2,591
Seattle
What about iPhone 5 owners?

I might hold on to my 4s a little longer.
Why would iPhone 5 users be crying? The 5 is noticeably, noticeably faster than the 4S. The iPad 3 wasn't at all noticeably faster than the iPad 2 (heck, I didn't think it was at all faster). It comes as no surprise that Apple would refresh it.

The iPhone 5's GPU doesn't need to be anywhere near the speed of iPad 4's, since it's not pushing anywhere near that number of pixels.


Judas1

macrumors 6502a
Aug 4, 2011
794
42
The ipad 4 sounds more awesome everyday. But if you buy the ipad 4, you'd only feel as bad when the slimmed down ipad 5 arrives. Nothing but heartaches in the tech game.


shaown

macrumors regular
Mar 24, 2011
116
20
Soooo -
iPad 5 will probably bring a new pretty design, with similar (maybe slightly better internals). So people will cry - I want pretty design. But then iPad 6 willl come with new internals (A7x?) etc etc, and people will cry - but my iPad 5 was outdated when it came out!!!.

I am a happy iPad 3 owner - will consider the 5 when it comes out. Why - because 99% of apps will work fine on the iPad 3 for the next year or so, after all the Mini is just now out on a A5 base, and iPad 3 is about the same speed as the mini (considering A5x + retina). So I am not expecting any issues for the next 15 months or so. And I am on a 24 month refresh cycle.

Thanks,
-Shaown
