Blurry Photos Show Logic Board for Next-Generation iPhone with Shielding Removed

OrangeSVTguy said:
Why blurry? Were they taken in a hurry? :rolleyes:
Click to expand...

For those who care:

Be happy that these are not taken as inside underwear shots, assuming somebody stuck a logic board into their briefs smuggles them into th etoilet.

Takes shot.... blurry is good.....never mind.........

For the first time in my life, I have iPhone rumor fatigue. Anybody else in the same boat? Sep 12th can't come soon enough.

Thunderhawks said:
For those who care:

Be happy that these are not taken as inside underwear shots, assuming somebody stuck a logic board into their briefs smuggles them into th etoilet.

Takes shot.... blurry is good.....never mind.........
Click to expand...

It's been a sh**** day and that just gave me a nice chuckle. :p

My guess is an A5X variant.

It will essentially be a 4S with a die shrink.

The phone doesn't need a quad-core GPU, so they will either up-clock
the older dual core or down-clock a quad core. Either way, it will
yield faster synthetic benchmarks.

Apple is all about feeding us "what we need", instead of raw specs.

It'll have 1GB of RAM
32nm Dual-Core CPU
Dual or Quad GPU [toss-up on that one]


It will have to have something unbelievably amazing for me to stay with Apple this time around. A stretched screen wont cut it. It needs width, damn it!

Edd.Dantes said:
My guess is an A5X variant.

It will essentially be a 4S with a die shrink.

The phone doesn't need a quad-core GPU, so they will either up-clock
the older dual core or down-clock a quad core. Either way, it will
yield faster synthetic benchmarks.

Apple is all about feeding us "what we need", instead of raw specs.

It'll have 1GB of RAM
32nm Dual-Core CPU
Dual or Quad GPU [toss-up on that one]


It will have to have something unbelievably amazing for me to stay with Apple this time around. A stretched screen wont cut it. It needs width, damn it!
Click to expand...

If it's not a quad-core GPU, it's not an A5X variant, it's an A5 variant. Also, as OP mentions, RAM on package is essential. So while through process shrink and underclocking it may be possible to fit the RAM without the heat concerns of the iPad 3, I think we're much more likely to see a 32nm A5 variant with tweaked GPU and/or CPU cores (including quad possibility).

I don't think we'll see quad CPU or GPU though because it seems excessive given how iOS runs and the iPhone resolution.

apolloa said:
Not really as I'm not sure the A15's are out yet? It only needs a dual core A15 with a dual core PowerVR 6 series GPU, or even a single core one, and it will comfortably hold it's own for a good while then :)
Don't need any of this quad core malarkey in a 4" phone, better to have a battery life.
Click to expand...

Samsung and Ti have had A15 chips out now for a while and are starting to now become increasingly available. Nvidia will be launching their next Tegra series early next year as well.

A15 has great performance per watt, so It would behoove apple to transition to it.

Apple will find a way to make the SoC just good enough for iOS 6 but definitely not good enough for iOS 7. I would guess 1.2GhZ A5 (Not X) W/ more RAM inside.

32nm DC with a possible speed bump (not likely, but I think the possibility is there, 1.2ghz max) with 1GB of RAM. It doesn't need anything else. The 4S runs just fine as is. I won't even flinch if it turns out there's only 512MB of RAM in there.

Only major thing I'm expecting is some sort of NFC capability. Everything else is known and expected.

This is really just going to be an iPhone 4GS.

Those were the only useable shots. The photographer was wildly wanking over the Apple hardware and further shots were actually covered by his own "shot".

Bearxor said:
This is really just going to be an iPhone 4GS.
Click to expand...

We wish it's going to be a 4GS (3GS was arguably the biggest jump in terms of performance in the iPhone history) But it's probably going to be iPhone 4. A relatively small jump in performance but has a shiny new body with a completely different build method as well as a new display.


gto55 said:
so no Arm A15 :confused: whereas samsung has already introduced the Exynos 5250 http://www.androidauthority.com/samsung-exynos-5-dual-specs-features-106609/
Click to expand...

Apple needed a massive number of chips before the production began. I doubt Samsung was ready to provide Apple with enough of those A15 chips in the past few months. The sheer quantity of iPhone is often underestimated but I"m sure it's really a quite undertaking for all parties involved to ramp up the production so much within a short period of time for the launch.

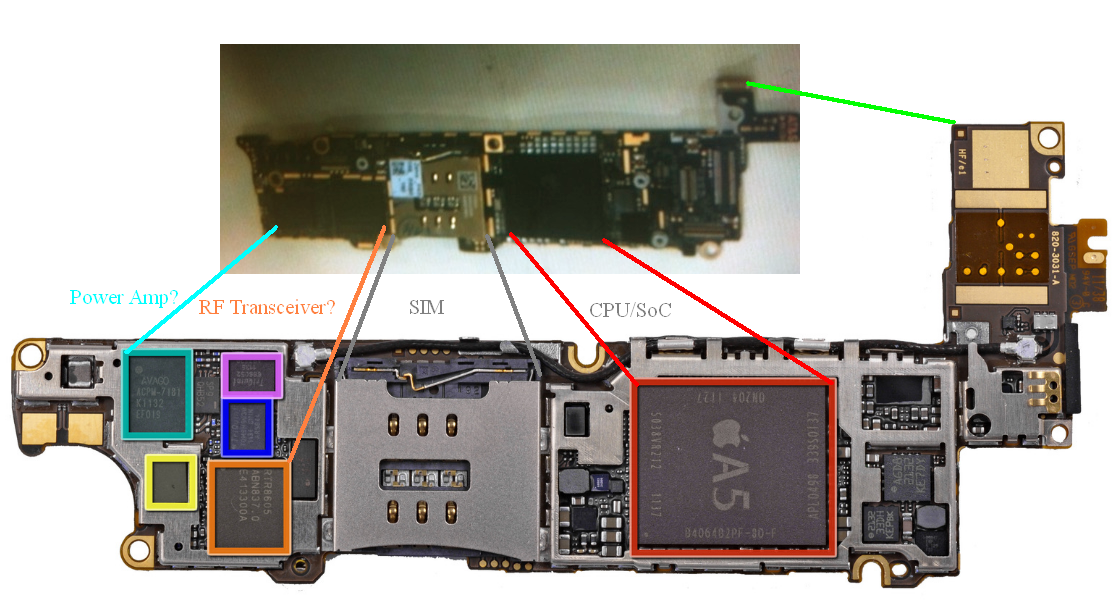

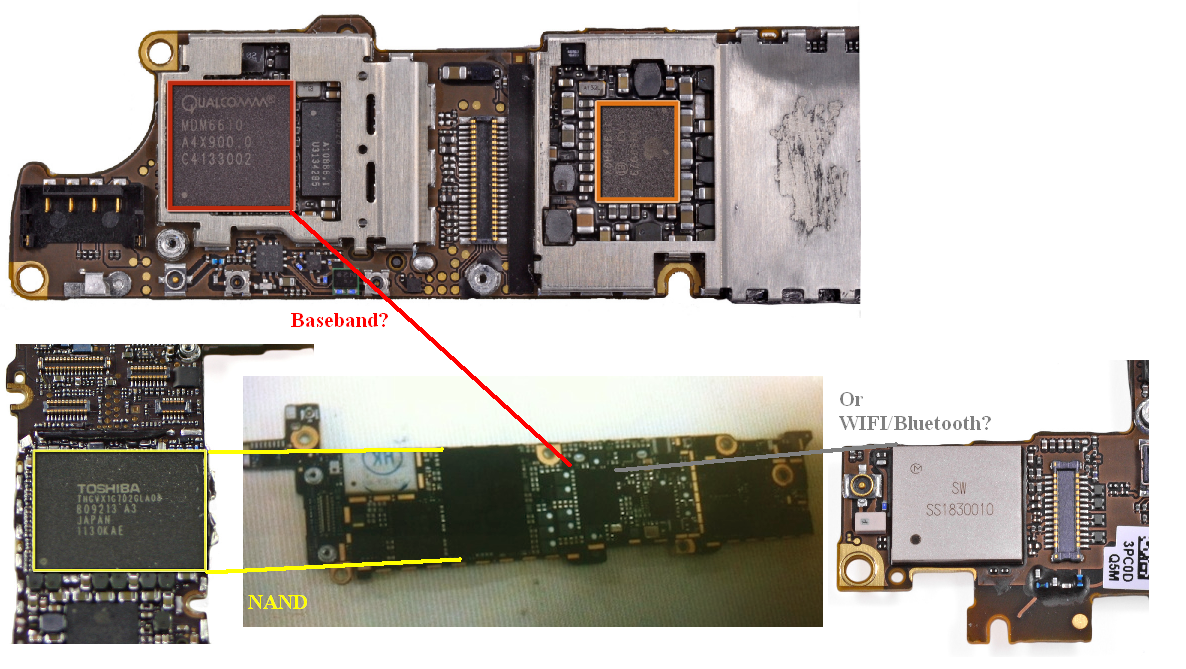

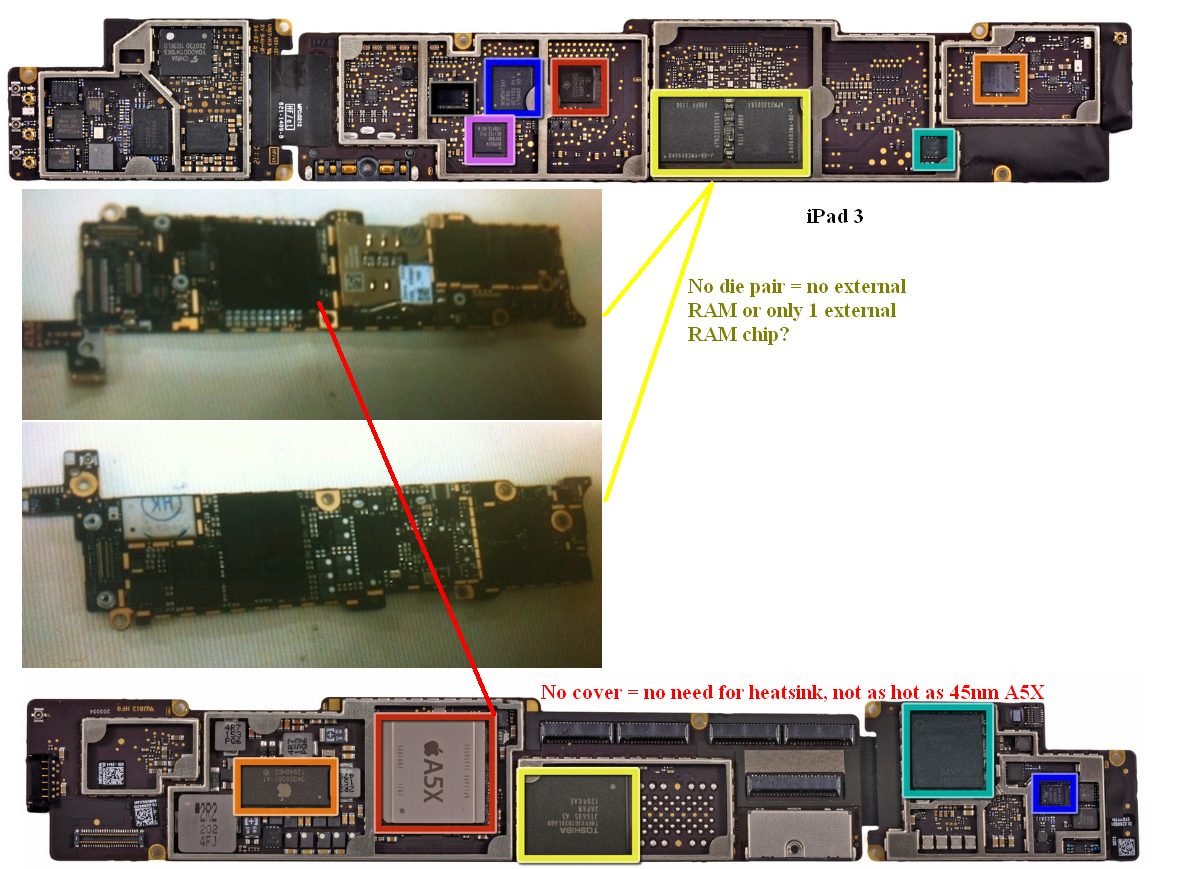

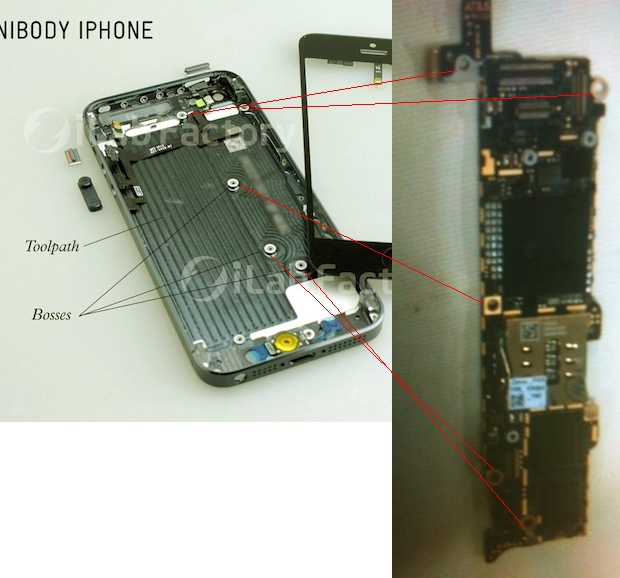

Let's dive in. 4S/iPad 3 photos courtesy iFixIt.
http://www.ifixit.com/Teardown/iPhone-4S-Teardown/6610/2
http://www.ifixit.com/Teardown/iPad-3-4G-Teardown/8277/3

longofest said:
Samsung and Ti have had A15 chips out now for a while and are starting to now become increasingly available. Nvidia will be launching their next Tegra series early next year as well.

A15 has great performance per watt, so It would behoove apple to transition to it.
Click to expand...

Samsung just formally announced their Exynos 5. Given their new Galaxy Tab doesn't have it and the Note 2 is rumored to not have it, we'd have to wait until at least late Fall to see an Exynos 5 product from Samsung. Since they are on the once a year flagship cycle like Apple, it seems unlikely we'll see an Exynos 5 phone this year, particularly given a Nexus phone launch this fall is unlikely with android release cycle slowing down and KLP not coming until next year.

Supposedly OMAP 5 has availability this quarter, but no products have been announced with it, much less rumored. We may see some A15 devices before the end of the year, but they're likely to start arriving en masse next year.


Attachments

  • front.PNG
    859.6 KB · Views: 163
  • back.PNG
    1.1 MB · Views: 177
  • ipad3.PNG
    1.4 MB · Views: 170
  • legit.PNG
    516 KB · Views: 145
Last edited:
SBlue1 said:
Taken with a cheap chinese ZTE android phone probably. The same I have. Peace of junk. Can't wait to throw it into the nearest lake as soon as I have my first iPhone. :cool:
Click to expand...

Why didn't you buy a good Android phone to begin with?

My guess, it's just an A5, but at 1ghz instead of 800mhz. It's probably a newer revision as well, so a touch more efficient.

The reason? Because the iPhone doesn't need more, but the small clock difference will return a noticeable increase in synthetic benchmarks.

OrangeSVTguy said:
Why blurry? Were they taken in a hurry? :rolleyes:
Click to expand...

It's because they were taken with iPhone camera (or any other phone camera to that matter). Phone cameras suck big way when you need to shoot anything but a family photo under the perfect sun.

Apple's SoC's may be designed in house, but I'd bet the ARM cores in them are shared with Samsung. There's probably still a deal between Sammy and Intrinsity with regards to the low power trickery. Apple has no real reason to work on their own version of ARM on Samsung process when Samsung's done that already. So far iPhone's cores always used whatever Samsung had on offer at the time, starting with stock Samsung SoCs, followed by a very slightly rehashed A4 that shared a great deal of similarity with Samsung's version through the A5.

The point being - there's an A15 Exynos out now, it's practically given this is the basis of an A6 in the new iPhone.

Bearxor said:
32nm DC with a possible speed bump (not likely, but I think the possibility is there, 1.2ghz max) with 1GB of RAM. It doesn't need anything else. The 4S runs just fine as is. I won't even flinch if it turns out there's only 512MB of RAM in there.

Only major thing I'm expecting is some sort of NFC capability. Everything else is known and expected.

This is really just going to be an iPhone 4GS.
Click to expand...

How do we know this isn't the board from the updated price dropped 4S?

Switch it to 32nm A5 they've been using in the AppleTV and iPad2 refresh.

WOW, Who cares at this point. It's an iPhone 4s with an extra row if icons. And for that, you get to buy all new chargers, docking units, cases, etc. You get to have different cables for your iPad/iPhone.

If the rumors are correct, which I am rather hesitant to believe Apple would be this lame, then I'M OUT. (as they say on Shark Tank) :)

neilw said:
A5x makes no sense for an iPhone. However, I'm happy about this rumor because thus far there has been almost no discussion of what chip is going in the phone. I assume an A6 or the reduced-power A5 that's in the new iPad 2, although the latter could be viewed as a "disappointment" vs. competing Android phones using either quad-core or much faster dual cores. If it's an A6, I don't know what would be in it... faster A9 cores? quad core? dual A15 cores? Don't know how Apple might be thinking here.
Click to expand...


Dude trust me they don't need it, check out this website www.glbenchmark.com

The 4s is way beyond every other phone (and most tablets) out there, even the quad core firecracker of a phone Samsung calls the "S III" is barely close to matching the 4s
