Broken Iphone 3g Ribbon Cable Connector
- Thread starter uncletammy
- Start date
- Sort by reaction score
Hello, I am yet another person who managed to break the #3 connector
. I ordered replacement part from digi-key (thank to that thread for pointing out). Divideby, would it be possible for you to scan the instructions you get from eBay and share them with us (or PM me if you do not want to publish them in the thread). Thank you in advance.since ive been reprimanded for "soliciting" my services, I'm here to offer help to anyone that wants to try this out themselves. it is not for the inexperienced solderer though, be warned.

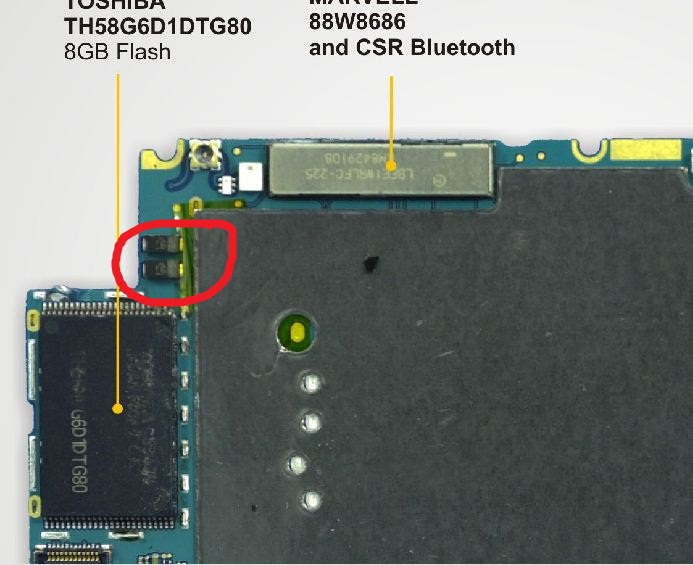

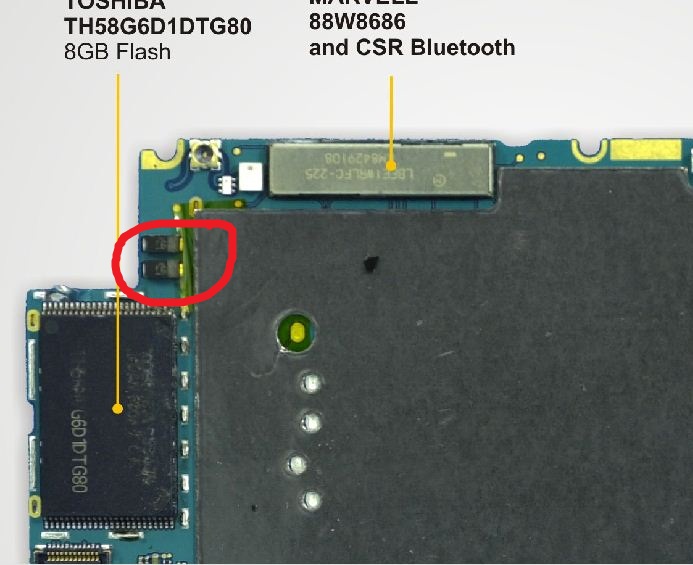

Gr8 post!!! I have the same ribon issue and also on the back of the iphone 3g next to the flash module there is to black diodes(I Think) one of them broke off. What are they called and where would I find one of them - It has the no. 97 written on it. I have atteched an image. ALso would it be worth trying to fix this. Phone doesnt show any sign of life but when I attache it to my usb port windows say usb port malfuction so it means somthing is happening. Thanks in advanced
Attachments
That seems like a big problem. not sure if that "diode" is even replaceable, but if you can find the same exact one, you can surely resolder it on. or have someone do it. how did you lose such a piece?
Well add me to the list too! Replaced my battery recently and accidentally broke off the little clip. Located it but tried for about 30 minutes to get it back on the connector on the board and you guys know how much of a nightmare that is!
The actual connector on the board is still there though, and so far I've just tried to get away with pushing the FPC into the connector and wedging it. The earpiece and light sensor look to be broken.
I guess my question is, does the hook actually serve any purpose other than to just secure the connector? i.e does it actually make the contacts? I'm guessing the FPC is faulty as I was a bit heavy handed with it (likewise the camera, which I've ordered a replacement for). So I'll get myself a new FPC too and am hoping that using my 'wedge' method I'll get away with having the earpiece work again. Am I likely to be successful?
Cheers! Neil
The actual connector on the board is still there though, and so far I've just tried to get away with pushing the FPC into the connector and wedging it. The earpiece and light sensor look to be broken.
I guess my question is, does the hook actually serve any purpose other than to just secure the connector? i.e does it actually make the contacts? I'm guessing the FPC is faulty as I was a bit heavy handed with it (likewise the camera, which I've ordered a replacement for). So I'll get myself a new FPC too and am hoping that using my 'wedge' method I'll get away with having the earpiece work again. Am I likely to be successful?
Cheers! Neil
I have the same issue where I can't hear out of the speaker after replacing a battery, does anyone know if I just didn't insert the ribbon in all the way? the bottom part that it connects to is not broken. Thanks in advance.
*Update well that's that, I was trying to press on the back of the cable and it was enough to rip the cheap plastic and knock the clamp out, looks like I'll need a new board unless someone wants to teach me how to solder on that new ribbon connecter.
*Update well that's that, I was trying to press on the back of the cable and it was enough to rip the cheap plastic and knock the clamp out, looks like I'll need a new board unless someone wants to teach me how to solder on that new ribbon connecter.
a couple of people have the same issue here too.
http://modmyi.com/forums/hardware/691164-broke-connector-3-locking-mechanism.html#post5085683
http://modmyi.com/forums/hardware/691164-broke-connector-3-locking-mechanism.html#post5085683
hi dave
i was wandering if you still have any of these connectors as i broke mine. i live in hampshire.
Chris
beware of soliciting or asking about this stuff on the public forum. I got banned for a few days for soliciting my services. keep it to the PMs if you can.
i found a seller on ebay,
http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=290391807215&ssPageName=STRK:MESELX:IT
Side-buttons / cable #3 / I'tunes won't recongnise + WSOD
Great Post, I feel like contributing my painful experience at changing my back cover, without the proper tools (specially a MAGNETIC screwdriver and the so useful magnifier-on-stand)
First, I ripped the thing apart breaking the white little clamp on my way. Changed the back cover. Managed to put everything back together and started the phone..... No response, the freaking thing was dead. I freaked out ... opened it up again, my hands almost shaking, reassembled it.... nothing. So, I repeated the same process again, plugged it into the computer and Voila! (Don’t know why) The empty battery icon goes on.... the boot logo....and the….White Screen Of Death. From there, tried everything. I was unable to Restore or DFU Mode etc...So I kept the routine of letting the phone battery died and bring it back to life by connecting it to my computer...wait for the boot logo and pray. Until at some point I started pressing on the Home button when the boot logo appeared. Well, It worked! I kept pressing until the lock screen showed up.
Sigh! With the Phone working, I was now able to realized that the side-buttons/ Mute / earphones jack / power buttons weren’t working, as well as, the Light sensor / earphone (on the phone). Plus, It wouldn’t be discovered by any manner by my computer.
My research led me to think that the ribbon connecting the side / mute / ear-plug/power buttons was somehow busted. So, I successfully ordered and changed the ribbon, and they all work now, except for the earphones mic and control (Which, I suspect is the result of either the quality of the parts or my handling). I’m now at the point of changing ribbon # 3 for the Light sensor / earphone, (it seems like the thing should work even without the white clamp.) I’ll keep you posted on this.
OOhh and if I had not jailbreak the phone before this happened, I wouldn’t have be able to lock or power off the phone or communicate with the phone at all. (Thanks SSH )
Now, if anyone knows something about the charging/synch craziness other than the dfu mode thing, I’ll appreciate to know.
Thanks
Great Post, I feel like contributing my painful experience at changing my back cover, without the proper tools (specially a MAGNETIC screwdriver and the so useful magnifier-on-stand)
First, I ripped the thing apart breaking the white little clamp on my way. Changed the back cover. Managed to put everything back together and started the phone..... No response, the freaking thing was dead. I freaked out ... opened it up again, my hands almost shaking, reassembled it.... nothing. So, I repeated the same process again, plugged it into the computer and Voila! (Don’t know why) The empty battery icon goes on.... the boot logo....and the….White Screen Of Death. From there, tried everything. I was unable to Restore or DFU Mode etc...So I kept the routine of letting the phone battery died and bring it back to life by connecting it to my computer...wait for the boot logo and pray. Until at some point I started pressing on the Home button when the boot logo appeared. Well, It worked! I kept pressing until the lock screen showed up.
Sigh! With the Phone working, I was now able to realized that the side-buttons/ Mute / earphones jack / power buttons weren’t working, as well as, the Light sensor / earphone (on the phone). Plus, It wouldn’t be discovered by any manner by my computer.
My research led me to think that the ribbon connecting the side / mute / ear-plug/power buttons was somehow busted. So, I successfully ordered and changed the ribbon, and they all work now, except for the earphones mic and control (Which, I suspect is the result of either the quality of the parts or my handling). I’m now at the point of changing ribbon # 3 for the Light sensor / earphone, (it seems like the thing should work even without the white clamp.) I’ll keep you posted on this.
OOhh and if I had not jailbreak the phone before this happened, I wouldn’t have be able to lock or power off the phone or communicate with the phone at all. (Thanks SSH )
Now, if anyone knows something about the charging/synch craziness other than the dfu mode thing, I’ll appreciate to know.
Thanks
hey folks,
FORGET ABOUT REPAIRING THIS! it is just toooo tiny. no earthian non-dwarf cannot solder this together. its just impossible. dont buy any replacement. throw the iphone away, buy a new one and learn from this.
IMPOSSIBLE i say...
FORGET ABOUT REPAIRING THIS! it is just toooo tiny. no earthian non-dwarf cannot solder this together. its just impossible. dont buy any replacement. throw the iphone away, buy a new one and learn from this.
IMPOSSIBLE i say...
#3 ribbon cable
There is a guy in California that I found his website and called him. I cant remember the name off hand but it said something about penny diagnosis. anyway I talked to him about it. he said you need to find a shop in your town that does "micro soldering" and they can fix it for you. he said it was expensive around $100 but it is better than throwing it away.
There is a guy in California that I found his website and called him. I cant remember the name off hand but it said something about penny diagnosis. anyway I talked to him about it. he said you need to find a shop in your town that does "micro soldering" and they can fix it for you. he said it was expensive around $100 but it is better than throwing it away.
Fixed it without new connector
Broke mine yesterday while replacing the camera. Spend all evening to fix it and finally succeeded. I gently pushed the cable under the pins of the connector and checked if they made contact using an hour glass. Next used sticky tape to keep everything in place. After 5 attempts the speaker works again.
Only the camera is not what I hoped for: fixed macro focus. I'm not going to try to fix this as well. I'll keep my phone closed from now on till there is a new model on the market and I can get a new abo.
Broke mine yesterday while replacing the camera. Spend all evening to fix it and finally succeeded. I gently pushed the cable under the pins of the connector and checked if they made contact using an hour glass. Next used sticky tape to keep everything in place. After 5 attempts the speaker works again.
Only the camera is not what I hoped for: fixed macro focus. I'm not going to try to fix this as well. I'll keep my phone closed from now on till there is a new model on the market and I can get a new abo.
It isnt IMPOSSIBLE. I have done over 20+ phones already. You just need the right tools and equipment. http://modmyi.com/forums/hardware/691164-broke-connector-3-locking-mechanism.html
Broken ribbon 3 connector
Hi Dave I have had the same problem I seem to have managed to break the connector for ribbon 3 do you stiil have any left and are you able to fit it
cheer steven
Hi Dave I have had the same problem I seem to have managed to break the connector for ribbon 3 do you stiil have any left and are you able to fit it
cheer steven
please help me! mikeyb151! i detached the iphone 3g pcb connector for #3
please help me! mikeyb151! i detached the iphone 3g pcb connector for #3
