First iPhone 5 Teardown Surfaces Ahead of Official Launch

MacRumors

macrumors bot
Original poster
Apr 12, 2001
51,557
13,181

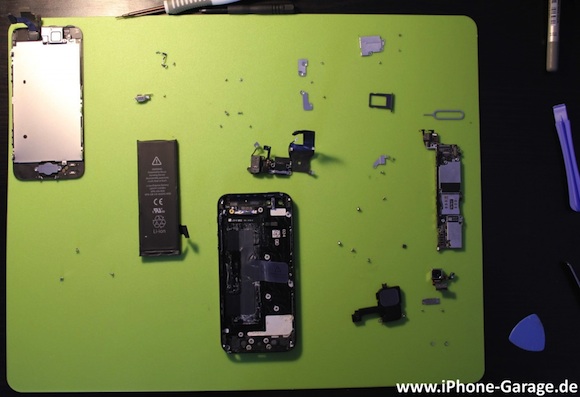

The iPhone 5 does not officially launch until tomorrow, but a few units have been trickling out and German site iPhone-Garage has been able to obtain one of these units and perform an initial teardown of the device.




While the teardown lacks the details and analysis that we will see later from iFixit and other teardown specialists and many of the internal components have already been seen over the past few months in part leaks, this first teardown does provide some confirmation of the internal layout of the device through an extensive set of photos.

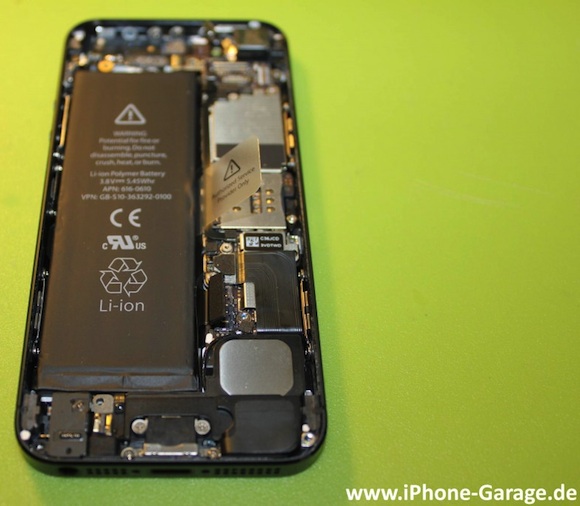

With all of the components in place, it is clear how tightly Apple has managed to pack in the internals, revamping much of the interior structure of the device compared to its predecessor.

As had been previously seen in leaked photos, the battery has been flipped over to accommodate access from the front of the device rather than the rear and the headphone jack has been moved to the bottom, resulting in significant changes to the overall layout. The move to a taller and thinner body has also pushed Apple toward other innovations such as the new Lightning connector in order to achieve a design that is 18% thinner and 20% lighter than the iPhone 4S.

Article Link: First iPhone 5 Teardown Surfaces Ahead of Official Launch


slrandall

macrumors 6502
Jun 15, 2011
412
0
That's some seriously impressive engineering. The hardware team threw down the gauntlet; let's see the software team come up with something as impressive in iOS 7.

Last edited:
Comment

SatManager

macrumors 6502
Feb 20, 2012
277
12
Las Vegas
I am hoping that heat buildup isn't going to be much of a problem. Hate to burn my leg putting my phone in my pant pocket. Lol

Comment

nexsta

macrumors 6502
Jul 21, 2007
301
0
I'm still waiting for the first iPhone 5 drop test. Let's see if it's still such a fragile beauty.

Comment

scottwaugh

macrumors 6502
Jul 22, 2002
359
12
Chicago
It looks like it should be pretty straightforward to replace the battery on this one...very nice and better than I was expecting.

Comment

Advil

macrumors 6502a
Oct 4, 2008
860
230
I can see the leaks before the next redesign now.

"Apple secretly employs Tetris champions from around the world"
