Glowing Apple Logo on iPhone kit

Offshore1 said:
Anyone ever recieve thier new back panel? I haven't. :mad:
Click to expand...

I received mine today. I don't have it installed yet because I am unsure where the red wire on the light panel connects to on a CDMA iPhone 4. KO gadget has only posted the instructions for the GSM model.

DeLoMan said:
For that price I would hope for metal mounting tabs.
Click to expand...

The one I recieved has a metal mounting tab at the top as well as metal screw posts on the bottom.

I've got mine installed and working. The connecting point for the red wire on a cdma model or 4s is between the power button cable and the front facing camera cable

Offshore1 said:
Was it hard to install?
Click to expand...

It is a bit tedious to get the red wire connected and to stay attached to its connecting point with double stick tape but its not impossible.

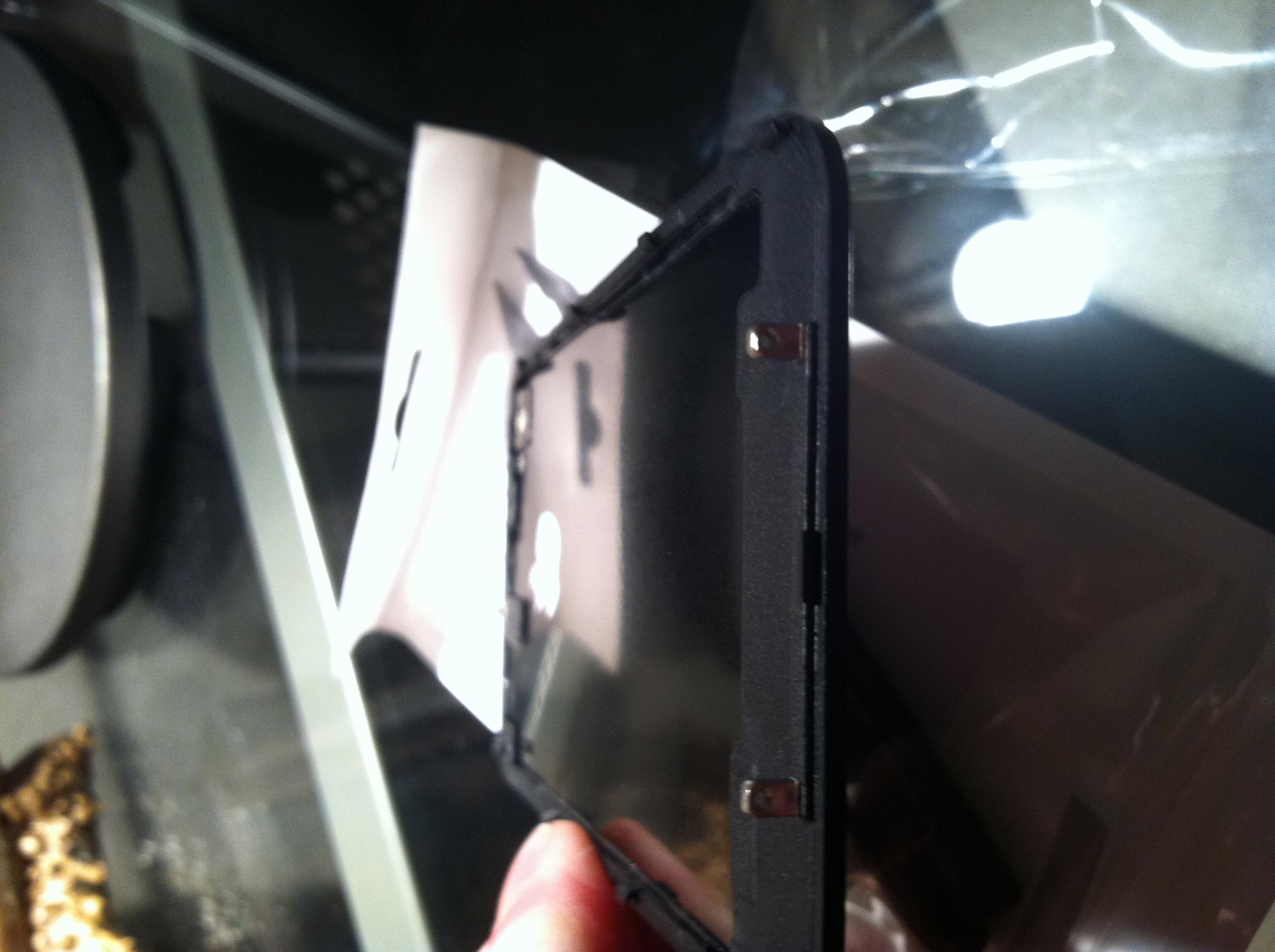

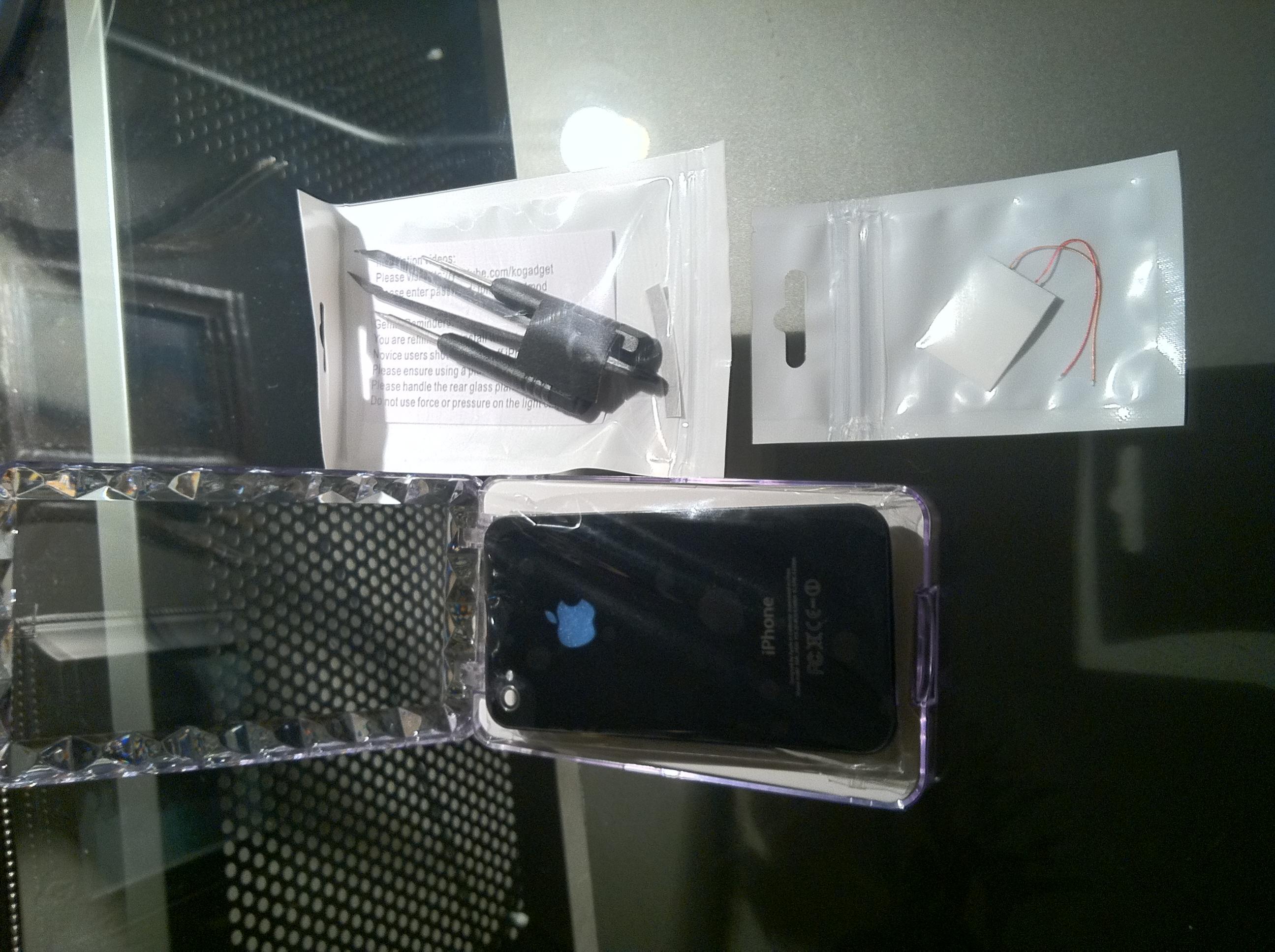

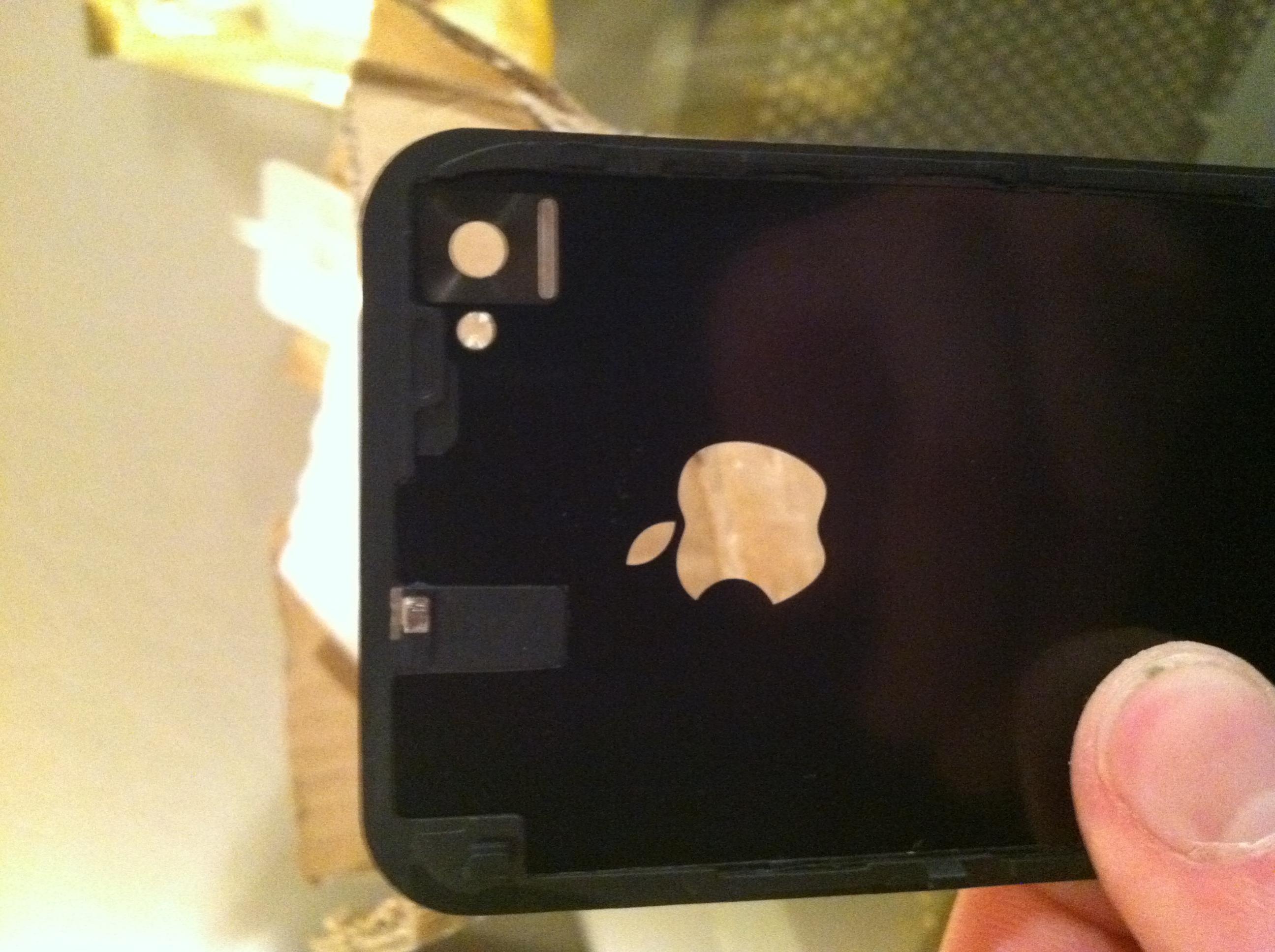

Here are a few quick pictures.


Attachments

  • IMG_0817.jpg
    567.4 KB · Views: 142
  • IMG_0818.jpg
    399.4 KB · Views: 134
  • IMG_0822.jpg
    493.5 KB · Views: 127
  • IMG_0829.jpg
    493.5 KB · Views: 135
todd2fst4u said:
It is a bit tedious to get the red wire connected and to stay attached to its connecting point with double stick tape but its not impossible.

Here are a few quick pictures.
Click to expand...

Can you post pics of the connection itself? Thanks for the pics.

Also, the web page now shows "improved" light kit. If you ordered on the 17th which one did you get? Thx.

Mine left Hong Kong on 1/6/11. Can't wait, sucks that they prioritized their Facebook orders over direct orders from their site.

todd2fst4u said:
It is a bit tedious to get the red wire connected and to stay attached to its connecting point with double stick tape but its not impossible.

Here are a few quick pictures.
Click to expand...

Can you give us more details, is the fitting of the backcover fine? No shadows when taking pictures with the camera? Can you take more detail pictures?

Anyone thats got one had issues with the position of the camera lens on the rear case being a few mm too low?

PNutts said:
Can you post pics of the connection itself? Thanks for the pics.

Also, the web page now shows "improved" light kit. If you ordered on the 17th which one did you get? Thx.
Click to expand...

It's a pretty shoddy hack if you ask me , and given the quality I'm surprised people are spending $50-80 for cheap Chinese knockoff parts

The + wire is "connected" by lying it on top of a resistor and is held on by nothing more than contact pressure

Shenaniganz08 said:
It's a pretty shoddy hack if you ask me , and given the quality I'm surprised people are spending $50-80 for cheap Chinese knockoff parts

The + wire is "connected" by lying it on top of a resistor and is held on by nothing more than contact pressure
Click to expand...

You are welcome to solder and heatshrink tube it.

Has anyone in the US received their order???

I ordered via Facebook around Dec. 17 and have not received any correspondence or confirmation of shipment.

I have submitted an inquiry a week ago with no reply yet received.

I received mine from KO Gadget today. My fingers are too big and my hand shakes a bit for me to do this installation.

Last edited:
gottafly said:
Has anyone in the US received their order???

I ordered via Facebook around Dec. 17 and have not received any correspondence or confirmation of shipment.

I have submitted an inquiry a week ago with no reply yet received.
Click to expand...

I got mine yesterday. Did you look up the tracking number by your order number on their website? They listed all of the Facebook orders that they shipped on their site.

So, I installed mine this morning, and it really wasn't as hard as I thought. It took me about an hour to install, and it was pretty easy overall. I wish it was
A little brighter, and had a warmer tint. And it does stay on for extended periods of time sometimes, but I've noticed no effect on battery life. Haven't decided if its a keeper or not. Might sell it to get a transparent back

Votekinky06 said:
So, I installed mine this morning, and it really wasn't as hard as I thought. It took me about an hour to install, and it was pretty easy overall. I wish it was
A little brighter, and had a warmer tint. And it does stay on for extended periods of time sometimes, but I've noticed no effect on battery life. Haven't decided if its a keeper or not. Might sell it to get a transparent back
Click to expand...

what color and model did you get?

Can anyone with this mod confirm that the logo stays lit while listing to music or Pandora with the screen turned off? Mine does and I'm not too happy about it. :mad:

Shenaniganz08 said:
soldering a wire onto a SMD resistor... yeah that's a great idea :rolleyes:
Click to expand...

Yeah, it was a poor attempt at a joke. I used to dabble (and dribble) back in the day.

Since ordering mine in December i decided to upgrade to the 4S so now I have a light kit and no phone to put it on. Craigslist / eBay / MacRumors Marketplace / street corner, here I come!

Last edited:
PNutts said:
Yeah, it was a poor attempt at a joke. I used to dabble (and dribble) back in the day.

Since ordering mine in December i decided to upgrade to the 4S so now I have a light kit and no phone to put it on. Craigslist / eBay / MacRumors Marketplace / street corner, here I come!
Click to expand...

What 4S did you get? I might have a black 4S kit for sale soon.
