HELP! HD locked on reinstall!

flashyx

macrumors newbie
Original poster
Mar 1, 2013
3
2
hi lovely peeps!

So I'm stuck, I wanted to start my Mac from scratch with a fresh install of EI Capitan but now my hard drive is locked! Please see the attached images.

https://www.dropbox.com/s/s023l3g3di72hhi/2016-01-17 13.00.51.jpg?dl=0
https://www.dropbox.com/s/fv3ffcyobuxp26j/2016-01-17 13.01.38.jpg?dl=0

So this is what I did to stuff it up...
I rebooted my computer and held down cmd+r
I entered disk utilities and erased the main hard drive and made it for journaled
A failure error occurred mid way through
Most buttons are grayed out now and my hard drive is locked and I have now way of booting back into OS X.

How can I fix this?

Last edited:

Erdbeertorte

Suspended
May 20, 2015
1,180
500
In Disk Utility should be an unlock option in the File menu. Try that and enter the Password of your user name.


Weaselboy

Moderator
Staff member
Jan 23, 2005
30,295
10,014
California
I'm not quite sure how you got in this mess, but here is how to fix it. (I am assuming here there is not some underlying hardware issue that got all this started).

Hold command-option-r at boot and select your wifi when asked. Then you will see a spinning globe while the recovery utility downloads and installs. Once that is done you will see the recovery screen. From there launch Terminal from the Utilities menu and enter the line below exactly like I have it, including the quotes. That will blow off the Fusion drive.

Code:
diskutil cs delete "Fusion Drive"

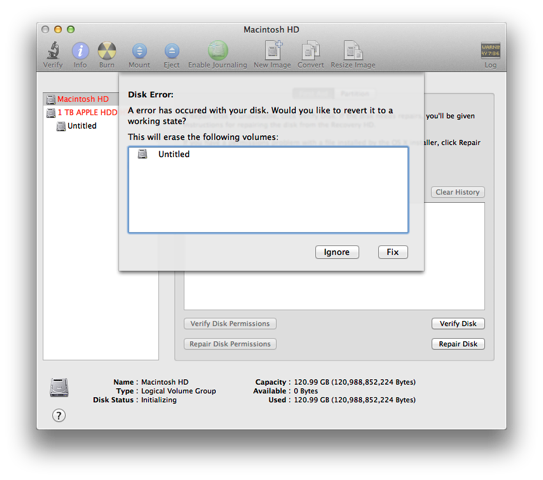

Now quit Terminal and launch Disk Utility. You should see a screen like this offering to fix the Fusion drive. Go ahead and click Fix to rebuild the Fusion drive.



Now quit Disk Utility and click reinstall OS X at the top and wait for it to finish and restart. This will put you on the OS X version that came from the factory. You can update to El Capitan after if you like.

What you are seeing locked there in your second screenshot is the Recovery HD partition, and that is as it should be and not the problem. The problem is you borked the Fusion drive somehow and this will fix it.


flashyx

macrumors newbie
Original poster
Mar 1, 2013
3
2
I'm not quite sure how you got in this mess, but here is how to fix it. (I am assuming here there is not some underlying hardware issue that got all this started).

Hold command-option-r at boot and select your wifi when asked. Then you will see a spinning globe while the recovery utility downloads and installs. Once that is done you will see the recovery screen. From there launch Terminal from the Utilities menu and enter the line below exactly like I have it, including the quotes. That will blow off the Fusion drive.

Code:
diskutil cs delete "Fusion Drive"
Now quit Terminal and launch Disk Utility. You should see a screen like this offering to fix the Fusion drive. Go ahead and click Fix to rebuild the Fusion drive.

View attachment 610983

Now quit Disk Utility and click reinstall OS X at the top and wait for it to finish and restart. This will put you on the OS X version that came from the factory. You can update to El Capitan after if you like.

What you are seeing locked there in your second screenshot is the Recovery HD partition, and that is as it should be and not the problem. The problem is you borked the Fusion drive somehow and this will fix it.
Dude! Thank you so so much for helping me out! I'm so greatful you replied as it worked for me! Apple couldn't even work it out and they wanted me to drive 4 hours to get it fixed!! I really hope this post can help others as it seems to be a common problem out there.

Thanks again!


wunnspeed

macrumors newbie
Feb 20, 2009
17
5
Mettmenstetten, Switzerland
I'm currently in exactly in the same state with an iMac. I don't have the option of Terminal in Disk Utilities. Also, mine doesn't ask for wifi as it's already plugged into the router.

When I get info. on the Fusion drive (mine says Fusion Drive instead of Mac HD), the answer to all the questions is NO (i.e. Writable... No).

  • Like
Reactions: George Dawes

Weaselboy

Moderator
Staff member
Jan 23, 2005
30,295
10,014
California
I'm currently in exactly in the same state with an iMac. I don't have the option of Terminal in Disk Utilities. Also, mine doesn't ask for wifi as it's already plugged into the router.

When I get info. on the Fusion drive (mine says Fusion Drive instead of Mac HD), the answer to all the questions is NO (i.e. Writable... No).
So you are in the recovery screen? From the recovery screen click the Utilities menu up top and you should see Terminal there.

  • Like
Reactions: Dean Malhotra

wunnspeed

macrumors newbie
Feb 20, 2009
17
5
Mettmenstetten, Switzerland
O.K. it took me a bit to figure out exactly which screen was the Recovery screen.

So, I typed in exactly as above in Terminal and it returned the following....
"Fusion Drive does not appear to be a valid Core Storage Logical Volume Group UUID or Name"
[doublepost=1453397916][/doublepost]Interestingly, on Disk Utility, that's almost word for word what it's description is...
Fusion Drive
1.12 TB CoreStorage Logical Volume Group


Weaselboy

Moderator
Staff member
Jan 23, 2005
30,295
10,014
California
Well, it says a lot. It goes up to disk image 15.

The first three are GUID_partition_scheme (no name)
Then EFI Name EFI

What are you or am I looking for to make it a bit easier?
There should be a line that looks something like this with the name of the core storage (Fusion) drive. That is the name of the volume you want to delete with that command earlier.

2: Apple_CoreStorage Macintosh HD 120.5 GB disk0s2

  • Like
Reactions: Dean Malhotra

wunnspeed

macrumors newbie
Feb 20, 2009
17
5
Mettmenstetten, Switzerland
There are two:

2: Apple_CoreStorage Macintosh HD 121.0 GB disk0s2

2: Apple_CoreStorage Macintosh HD 999.3 GB disk1s2

Then, after that, there's

1: Apple_HFS OS X Base System 1.3 GB disk2s1


So, I input...

diskutil cs delete disk0s2

Is that correct? I'm just trying not to mess it up any further than I have already.

By the way, thanks for the help.


Weaselboy

Moderator
Staff member
Jan 23, 2005
30,295
10,014
California
You have something odd going on there. Normally there would be only one core storage volume listed that is the Fusion'd single logical volume.

Run this and tell me what it says. This will show the layout of the core storage volume.

Code:

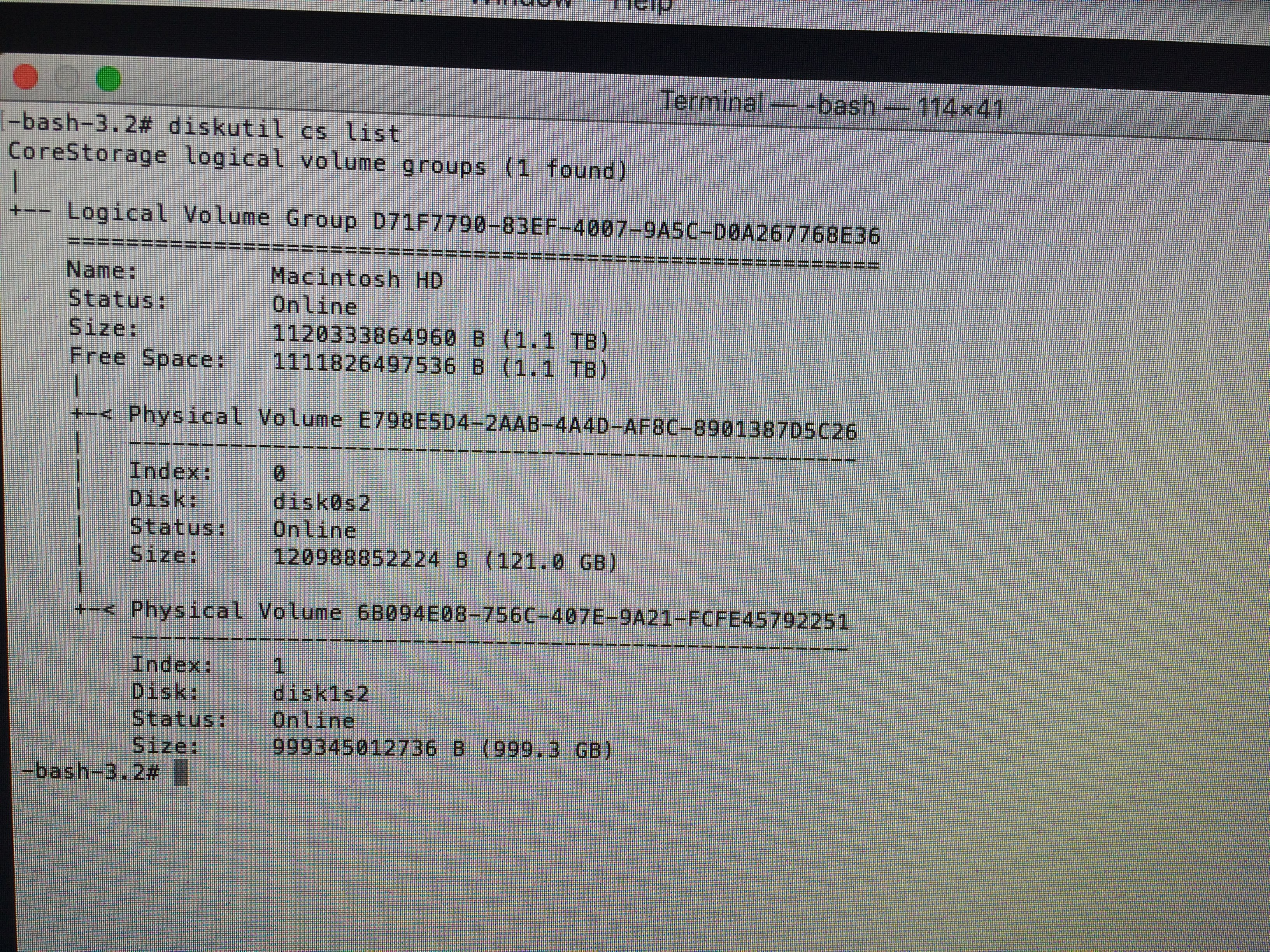

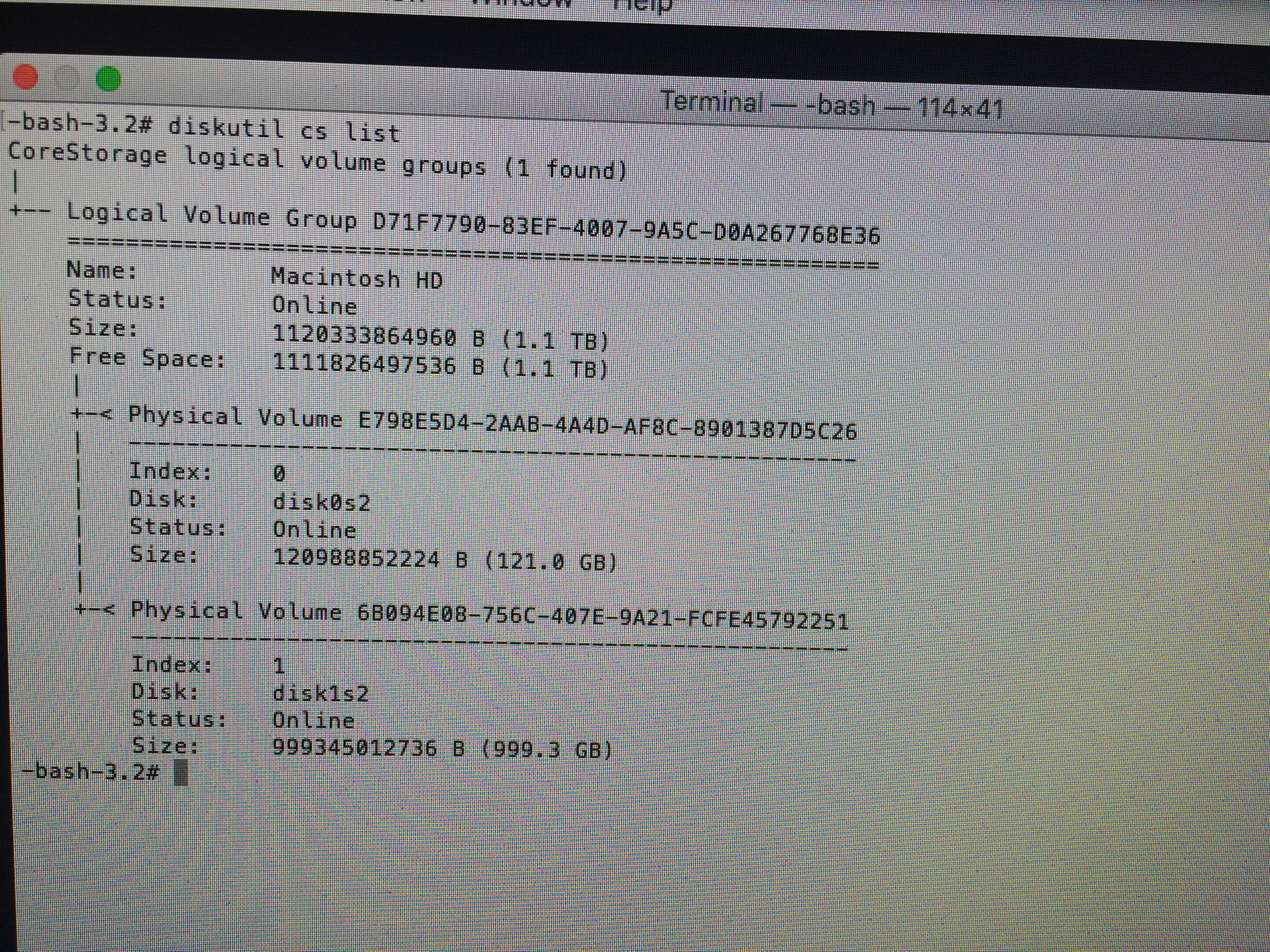

diskutil cs list


wunnspeed

macrumors newbie
Feb 20, 2009
17
5
Mettmenstetten, Switzerland
Wow! That worked. Cool and thanks.

Now, for reinstalling OS X, I have three choices... Untitled 999.35 GB/Recovery HD 650.1MB/Untitled 120.99 GB... which do I choose?
[doublepost=1453477954][/doublepost]Just for kicks.... I clicked on the Recovery HD and it said that it's Locked.
[doublepost=1453478019][/doublepost]And the 3rd one, 120.99 GB says it has S.M.A.R.T. errors and can't be repaired. I assume that means that I really need to get it in for a new HD. Correct?


Weaselboy

Moderator
Staff member
Jan 23, 2005
30,295
10,014
California
And the 3rd one, 120.99 GB says it has S.M.A.R.T. errors and can't be repaired. I assume that means that I really need to get it in for a new HD. Correct?
Yeah... that sounds like a goner.

Once you get the new drive in you need to get to Internet recovery and start Disk Utility like I showed in my earlier post and it will offer to remake the Fusion drive. After that you will no longer see those two drives to chose from, but only the one Fusion drive.

  • Like
Reactions: Dean Malhotra

Thereallynx

macrumors newbie
Jul 17, 2016
13
0
You have something odd going on there. Normally there would be only one core storage volume listed that is the Fusion'd single logical volume.

Run this and tell me what it says. This will show the layout of the core storage volume.

Code:
diskutil cs list
When i do that code for me it says "No CoreStorage logical volume groups found" please help.


Thereallynx

macrumors newbie
Jul 17, 2016
13
0
It just means you don't have a Fusion or Core Storage drive configured and not necessarily that anything is wrong.

Can you explain what problem you are having?
While trying to reinstall os x both of my hard drive disk are locked, so i wont be able to install it, is there a way to delete both of those Hard drives?


Weaselboy

Moderator
Staff member
Jan 23, 2005
30,295
10,014
California
Assuming you don't need any data off the drive, try opening Disk Utility form the recovery screen and go to the erase tab then format Macintosh HD to Mac OS Extended (Journaled). Then quit Disk Util and try the install.

If that won't work, run the command below in Terminal and tell me what it says.

Code:

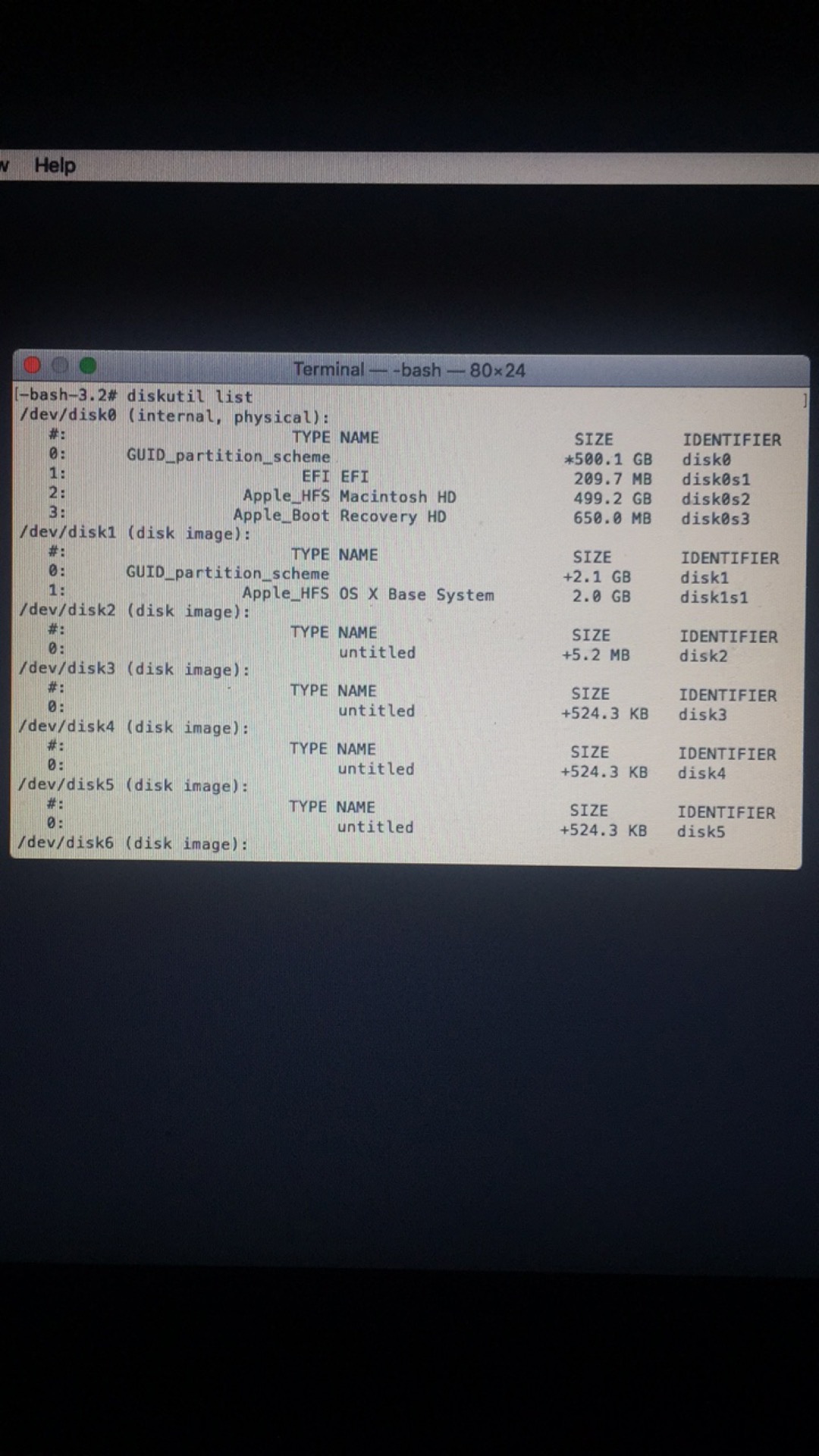

diskutil list

  • Like
Reactions: Dean Malhotra

Thereallynx

macrumors newbie
Jul 17, 2016
13
0
Im not able to install because the second hard drive on the picture is still locked. And,...


Thereallynx

macrumors newbie
Jul 17, 2016
13
0
I'm not seeing anything wrong there. Once you have command-r booted to recovery can you not select that 499GB Macintosh HD volume as the install target?

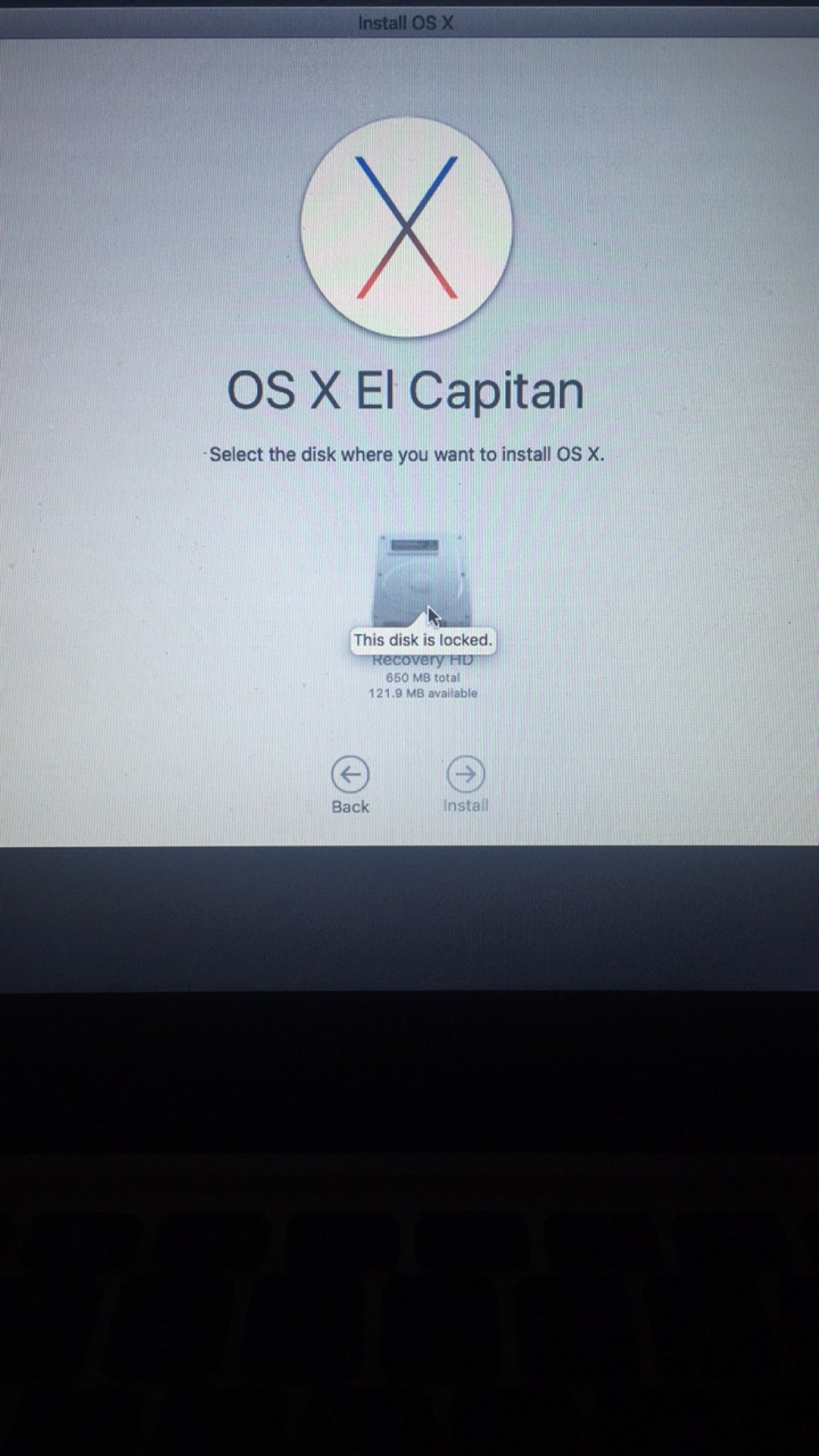

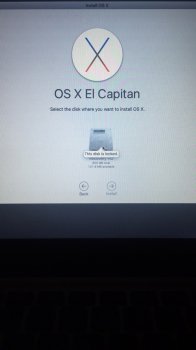

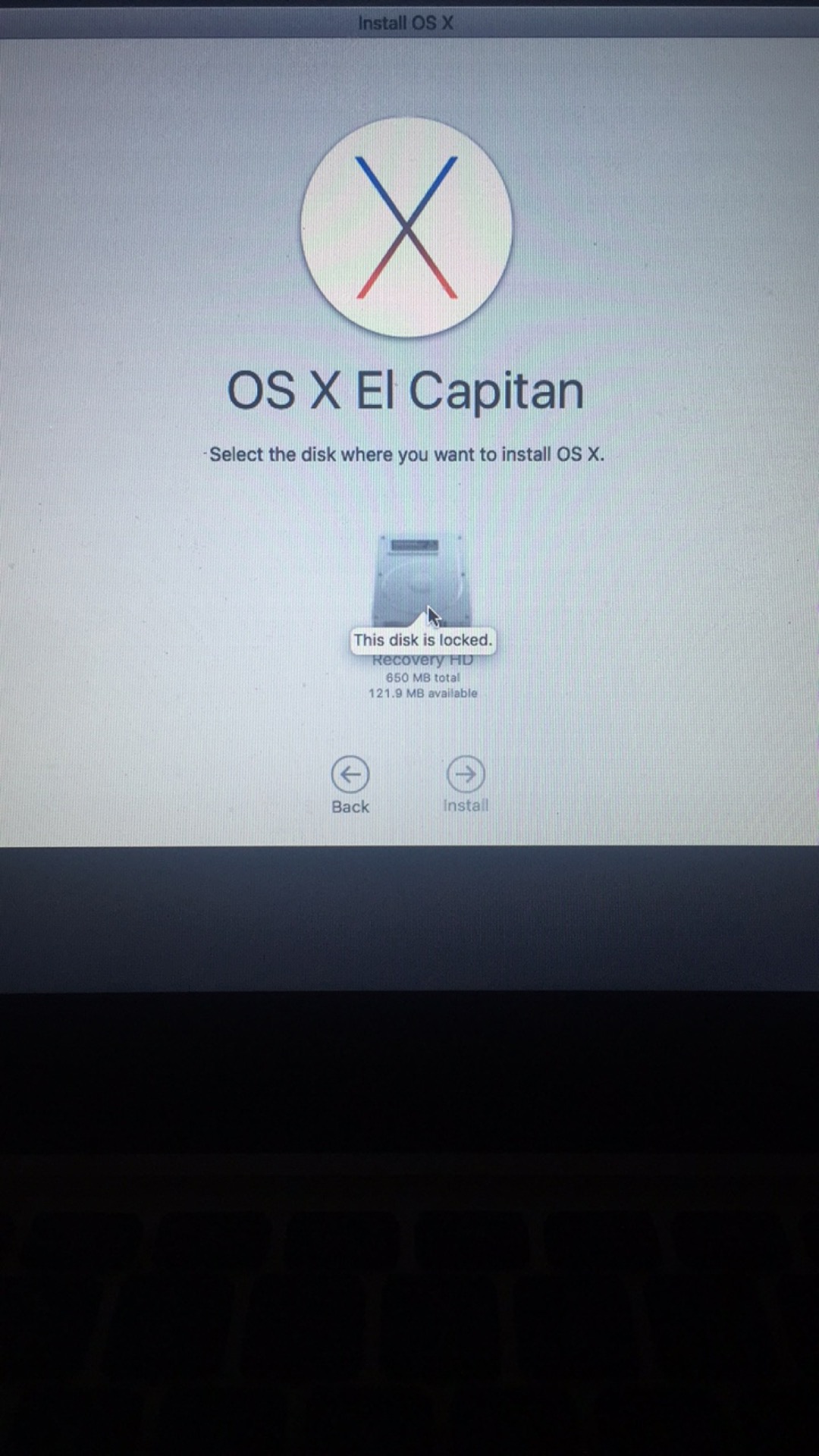

There is no Macintosh HD because it is not in one of the install targets, the only one there are Recovery HD and it is locked.
