Ok - so what's the skinny on keeping the pixel number the same? The ppi would have to be outrageous :)

Faketastic.

Don't drink the Kool-Aid. There are plenty of mobile devices with higher PPI than the iPhone. A 2.8" screen with the iPhone's resolution wouldn't be anything unique.

No noticeable weight difference

Black or white instead of metal? Meh. If they do that, it had better at least reduce the weight.

Changing from aluminum (aluminium for our Brits) to any sort of plastic will not change the perceived weight at all, as you're talking about a probable difference of a few decimal places to the right. I think aluminum is the superior choice for strength, rigidity, durability and appearance. In addition, because of the strength and the fact that it would be thinner than a plastic cover it allows more room for the components--half millimeters count in this product. It also may a better heat sink than plastic.

Aluminum is perceived to be the better choice for environmental reasons--although you'd really have to look at the impact from start to finish (and figure out what plastic it is) to determine that--mining and drilling, processing energy usage, transportation, recyclability, etc.

As far as radio reception/interference, don't know.

2001 Space Odyssey was fantastic

Right. If they put an other one, this thing might become alive!
I can picture myself trying to turn off the ringer and the iPhone says: "What are you doing, Dave?"... ;)

Great post.

"Sorry, Dave. I can't allow that."

The movie might seem really dorky or dated to younger folks, but when 2001 came out the whole idea of computers in daily life was pretty remote, much less a rogue computer taking over. It's where they got the idea for the Terminator movies too. The cinematography and special effects were astounding for the time. Of course there were a few holes in the plot and some unexplained mysteries, but...

Looking at the "Laurel and Hardy" pic (the original iphone and moc-up).

All my senses are screaming, "it cant be that thin!!!" :eek: Must....have....battery...life.

The iPT is a great device, but it would be greater if it had a bigger battery.

I hope that the iPhone doesn't drop in battery life, I want it to improve with better circuitry and keep the battery the same. The current thickness is fine.

Looking at the "Laurel and Hardy" pic (the original iphone and moc-up).

All my senses are screaming, "it cant be that thin!!!" :eek: Must....have....battery...life.

The iPT is a great device, but it would be greater if it had a bigger battery.

I hope that the iPhone doesn't drop in battery life, I want it to improve with better circuitry and keep the battery the same. The current thickness is fine.

yeah i agree... the iphone doesn't need to be thinner especially if battery life is sacrificed... i think the second gen will be probably right around the same thickness

Don't drink the Kool-Aid. There are plenty of mobile devices with higher PPI than the iPhone. A 2.8" screen with the iPhone's resolution wouldn't be anything unique.

Good point. What if Apple quadrupled the resolution? Whatever happened to the resolution agnostic sizing of the OS? Could Apple bump the resolution and get away with it?

Yeah, 'cause iPhone doesn't ALREADY HAVE A CAMERA. Good Lord. The camera in the iPhone will support video recording even if EDGE is not the best mobile medium for video chat. It's just the software doesn't (yet) support video.

I'm not sure what the point of video chat on iPhone might be. It's been built into laptops and iMacs for years and no one really uses it. People like their chat with the typing part.

LOL,what are you smoking? Perhaps YOUR friends don't use video chat, but lots of people I know use it... :)

LOL,what are you smoking? Perhaps YOUR friends don't use video chat, but lots of people I know use it... :)

Marlboro Ultra Lights, these days, sadly enough. Anyway, there was a bit of hyperbole in that. People use it. Most people don't. The adoption rate of "free" voice and/or video chat is not what was expected; that's been studied and documented. Someone mentioned it's a commonly used 3G feature in the EU on mobiles. I have no data on that, but I'll take the posters word.

Still, the States, especially due to unregulated contract requirements and such in the wireless industry, remains by far the most profitable iPhone market for Apple. And actual, not theoretical, 3G throughput in the States remains poor compared to the EU, not much better than 2.5G (EDGE); and even worse, coverage is sorely limited. They may not even allow iTunes Store purchases on 3G in the States -- in fact, calling it the iTunes WiFi store would tend indicate they won't

I can certainly see Apple releasing a feature in the 3G iPhone that will play okay in the States and well in the EU, but not a 3G iPhone with a feature that will go down like a lead zeppelin in the States, but do well in the EU. And Apple very much tends toward, to the irritation of the rest of the Apple-using world, favoring their home market for features and services.

At any rate, my main jab was at the "if the new iPhone has a camera, that's worth waiting for" remark someone posted. It's not properly positioned for good video chat -- really, it would be silly -- and it can however does not yet support video, but the current iPhone DEFINITELY has a camera.

[Video/voice chat adoption may be a generational thing. I'm 40, and everyone I know well, roughly 27 - 45, we grudgingly use text-based IM chat for quick convenience, no voice, no video, even though almost all of us use modern Macs with requisite inbuilt hardware -- we're all writers and/or musicians, or film people, and a couple physicians and attorneys -- and we type, rather inexpediently, in complete, complex and compound sentences. We even type corrections to our grammar and spelling when we catch it. By our ages and professional/educational backgrounds, we're a crowd accustomed to e-mail, a technology which is in essence just a really, really quickly delivered letter.]

you are not getting it

3G means video in a big way. HSDPA will help capacity, and also to bring 2 cam phones to be a bit more represented in the US...

AT&T will not have video 2 way HSDPA or not this year. It is not able to be deployed on the network. And they are behind on several things to enable it. Europe and Asia oh very possibile. But it will not happen.

Sorry to disipoint you all, btw At&t is not even convinced to ever offer 2 way video streaming like in the eu.

not a true comparison

there phone may be loading the same page but not at the same time. look at the clock there not the same time. therefore it cant be fair.

Why are people saying that AT&T wont do video chat because it will bog down there system. AT&T already does video chat. They've had it for a while now. In fact my POS year old phone can do it.

Good point. What if Apple quadrupled the resolution? Whatever happened to the resolution agnostic sizing of the OS? Could Apple bump the resolution and get away with it?

Well, more resolution = more processing to display = less battery life, so it might not pay off.

Ok - so what's the skinny on keeping the pixel number the same? The ppi would have to be outrageous :)
Faketastic.

Nah, many other phones (although mostly unreleased in the US) have half-VGA, VGA (640x480) and even wide-VGA (800x480) screens above and below the 3" size.


all the rumors about 2 way video it can't happen at&t does not have that on the roadmap or budget. Don't think 3G means video it will provide better data speeds that is all. At&t is still about a year or more away. Sorry all it helps to have inside info. The only thing even deployed on the network in about 10,000 people with handsets that will do one way video. Meaning I'm holding a 3G phone with a camera and I can transmit my image but I can't see you.

AT&T will not have video 2 way HSDPA or not this year. It is not able to be deployed on the network. And they are behind on several things to enable it. Europe and Asia oh very possibile. But it will not happen. Sorry to disipoint you all, btw At&t is not even convinced to ever offer 2 way video streaming like in the eu.

Video is DATA, and Voice is data. you shoudn't need any type of special network to do general video calling. All that has to happen is to combine normal video transmission over the data network with a normal cell phone call. Due to the fact that UMTS phones can maintain a data connection while also on a phone call, I don't see why this would require any type of special equipment or carrier intervention; nor what it is exactly that you are referring to AT&T not being capable of.

Assuming the next iPhone (or current one with a software update) supports video recording, there is really nothing stopping someone from writing software that:

1) Inititates a data connection over the web to another phone via an intermediary server.
2) Begins streaming video from the camera in real-time to the server.
3) Initiates a standard phone call (audio) to the receiving party.
4) The software on the other phone, having received notification, would being streaming it's video to the other party.
BINGO! full-duplex video calling.

On the other hand, an even easier way to accomplish video calling is by coupling your video streaming with a standard VOIP connection --- utilizing VOIP for the phone call/"audio link". Again, The iphone would just need to support video capture from the camera and a simple VOIP functionality (which it already does). Everything else is straightforward and can be done in software.

1) Software app initiates data connection to VOIP/SIP server (aka skype)
2) Software app initiates video capture and streaming to server
3) Software on the second phone receives the VOIP connection, and beings streaming return video

This would accomplish the same effect of standard video calling, the only difference being that you would "dial" the other user through the VOIP application, instead of using the actual phone part of the iPhone. VOIP + video streaming for video calling is especially important give that I have seen how AT&T markets their current one-way "video sharing" nonsense. You actually have to buy a chunk of "video share minutes" from AT&T for the "privelege", EVEN IF YOU HAVE AN UNLIMITED DATA PACKAGE. I'm really sick of that type of ******** nickel and diming. I can't even see that being popular if they are going to charge those types of rates.

On a similar note, AFAIK, AT&T's current UMTS/3G rollout is limited to HSDPA (aka fast, low latency, downlink) and will be rolling out HSUPA (fast, low latency uplink) sometime this year. So for now, UMTS/3G data uploads are limited to a possible maximum of 384kbps. Although that may not be ideal for good resolution, 30fps video calling, it should definitely suffice -- and would be 2-3X better than EDGE.



Yeah, 'cause iPhone doesn't ALREADY HAVE A CAMERA. Good Lord. The camera in the iPhone will support video recording even if EDGE is not the best mobile medium for video chat. It's just the software doesn't (yet) support video.
.... It's been built into laptops and iMacs for years and no one really uses it....

And how exactly would you look at your iPhone screen while the existing rear camera is pointed towards your face? Video calling is popular in Europe and Asia, and most 3G phones have a secondary forward facing camera. the carriers in the USA actually make the device manufacturers remove that for US models.

As far as your "no one uses it" statement, I'm getting sick of pointing out the absurdity of using superlatives and absolute statements on this forum.


The adoption rate of "free" voice and/or video chat is not what was expected; that's been studied and documented.
What exactly are you referring to? what is "free" voice chat? If you are talking about computer applications such as skype that combine a chat application with free VOIP "internet calling", then I'd have to say the 80+ million users of Skype ALONE would disagree with you.
Besides, cellphones are an entirely different medium than desktop/laptop chat and video calling. I mean, it's PRIMARY PURPOSE is for remote phone calls. So obviosly, an average person would be much more inclined to use VOIP and Video chat on their cellphone than in an akward headset setup on their personal computer.

And actual, not theoretical, 3G throughput in the States remains poor compared to the EU, not much better than 2.5G (EDGE); and even worse, coverage is sorely limited. They may not even allow iTunes Store purchases on 3G in the States -- in fact, calling it the iTunes WiFi store would tend indicate they won't

I would have to completey disagree. Do you actually have experience with 3G data service in more than one location? I'm been using 3G phones and laptop cards for a few years, and I definitely get a better data rate than any EDGE service. In fact, it's quite easy to get 500-900kbps downloads, and 300-500kbps uploads. And apparently, I'm not alone. go look at DSLreports.com and look at their mobile phone network speed tests from site users.

Regarding 3G coverage, ATT's has been lacking in the recent past, but they have been improving tremendously in the past year. CDMA 3G service from Verizon and Sprint is much more widespread. The situation is certainly not as bad as many people think it is.



I can certainly see Apple releasing a feature in the 3G iPhone that will play okay in the States and well in the EU, but not a 3G iPhone with a feature that will go down like a lead zeppelin in the States, but do well in the EU.

... At any rate, my main jab was at the "if the new iPhone has a camera, that's worth waiting for" remark someone posted. It's not properly positioned for good video chat -- really, it would be silly -- and it can however does not yet support video, but the current iPhone DEFINITELY has a camera.

Can you predict the stock market as well? AFAIK, 2-way full-duplex video calling has NEVER been offered on a cellphone in the United States. I think if they prices are reasonable, it may be fairly popular, especially among youth and young adults. I do however think It will definitely be much more popular when utilized as a VOIP "video conferencing" service used over Wifi ala Skype. In that case, it should be FREE after a software download.

[Video/voice chat adoption may be a generational thing. I'm 40, and everyone I know well, roughly 27 - 45, we grudgingly use text-based IM chat for quick convenience, no voice, no video, even though almost all of us use modern Macs with requisite inbuilt hardware -- we're all writers and/or musicians, or film people, and a couple physicians and attorneys -- and we type, rather inexpediently, in complete, complex and compound sentences. We even type corrections to our grammar and spelling when we catch it. By our ages and professional/educational backgrounds, we're a crowd accustomed to e-mail, a technology which is in essence just a really, really quickly delivered letter.]

At least you recognize you may not be the best source to speculate on the popularity of new technology trends. I'm never seen numbers on the users of Mac iChat video conferencing, or any video-conferencing in general, but I do know VOIP is very popular and video VOIP is a natural extension of that. Even more imporant, as I previously mentioned, is that VOIP and video calling has not been something that's been readily available for average cell phone users. Its yet to be determined how popular a simple to use, iPhone "iChat" or Skype-based video calling solution would be.

Don't drink the Kool-Aid. There are plenty of mobile devices with higher PPI than the iPhone. A 2.8" screen with the iPhone's resolution wouldn't be anything unique.

PPI isn't the be all and end all though:

Current Apple iPhone, 320x480, 3.5": 160ppi vs (from Brandon Miniman's post on pocketnow.com)

Sony Xperia 1 480 by 8003" wide ?? WM 6.1 though
Palm Treo 750, 240x240, 2.6": 130ppi
HTC Touch, Wizard, Hermes, and Kaiser, 240x320, 2.8": 132ppi
HTC Athena X7501, 640x480, 5": 160ppi
Motorola Q, 320x240, 2.4": 166ppi
HTC S710 Vox, 240x320, 2.4": 166ppi
Samsung BlackJack, 320x240, 2.3": 173ppi
Dell Axim X50v/X51v, 480x640, 3.8": 210ppi
HTC Universal, 640x480, 3.6": 222ppi
i-mate Ultimate 9150, 480x640, 2.6", 307ppi (Cancelled?)
Toshiba G900, 800x480, 3": 310ppi

Fashion phones:
128×220 Samsung F210
240×400 LG favorite. Prada and Viewty.
Handheld touchscreens of the iPhone variety:
240×440 Various Palm and HP
240×480 LG KF700
Typical Palm/Blackberry form factor. US enterprise with portrait or square displays:
240×240 Samsung F210
240×260 Blackberry Pearl 8100
320×240 Various
320×320 Palm and Samsung
[Clamshell
640×480 HTC X7500, Qtek 9000, etc.
800×352 Nokia E90 Communicator
800×400 Sony Ericsson Xperia X1


- How much sharper does a 3.5@ screen need to be?
- Do you degrade other performance over 160ppi? (readability of screen, battery usage etc)
- Is the screen needing work more than say the speaker?

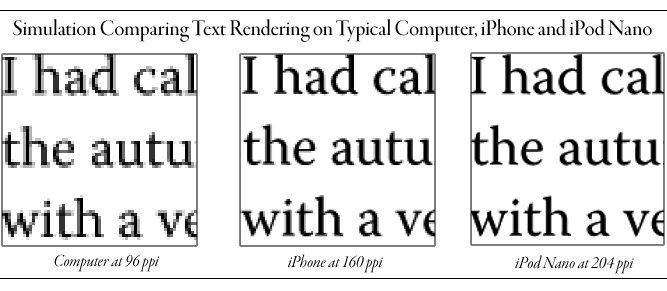

- Other reference points: The 3rd gen nano is 204 ppi. The 30″ ACD is 102 ppi.
- WM mostly use 16 bit colour afaik, while the Iphone uses 24 bit afaik.
- It's got visibility, color sorted. Whilst we'd like it sharper, we don't want to compromise I imagine.

http://news.deviantart.com/article/12488/

http://www.mbricks.no/blog/ also has some info:
They say 240 x 320 is the dominant screen size overall. (A good article to read, the above info and 2 of the pictures comes from their April 2008 article on screens).

At a certain density, the eye can no longer see any difference. If the specs are correct, the upcoming Sony Ericsson Xperia X1 will have a pixel density of 298. That is the highest I’ve seen on a mobile phone yet. The human eye can resolve about 340 dpi at one foot viewing distance IIRC, but tests show that most people don’t see much difference between a 150 and a 300 dpi image. So 298 dpi should be plenty

However, pixel density doesn't give us more brightness. And it can be an excessive strain on resources? I haven't seen the Toshiba G900 in action, but from the boards, Carnivore quotation with some alteration for clarity
RUBBBISH!!! you cannot play video at native resolution, you get about 1 fps

You may think you can argue with the gpu's in each device, well the G900 has a Nvidia Go 5500 GPU, which should clearly handle the resolution even in 3d environments, but no, it was so badly implemented it was worse than the Imate Jasjar 640x480 resolution and only just on a par with older 320x200 resolution ppc's.
It is sharp, but its so small its actually harder to read, even with the dpi corrected to make text proportionally look the same as a lower res devices. With lag here there and everywhere. Sometimes you can get 1/2 rings out the speaker before the screen has changed to the phone app.
The plus side is as long as your eyes can take it you can see more information, 5 mins before my eyes start bleeding in my case.
Pretty much why im on a iphone now, and pretty understandable why, and as it cost £400 it makes the iphone a really good deal.
If 800x480 is to work effictively only a company like apple will make it work in a realistic ergonomic way.


Seeing as the SDK will demand font sizes large enough for the ppi to be ok, it kinda takes away having the ppi being too high.

Picture for reference only. I'm sure someone can do a better show, but it's useful for a quick and dirty first look between 96, 160 and 204 ppi. Anyone got numbers for Crackberrys (esp the 3G one that's been delayed due to the v2 iPhone launch? :D)


Attachments

  • wowio wordpress.png
    wowio wordpress.png
    26.9 KB · Views: 181

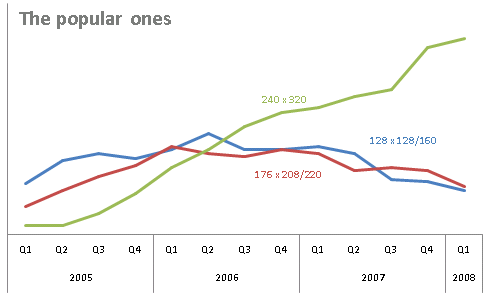

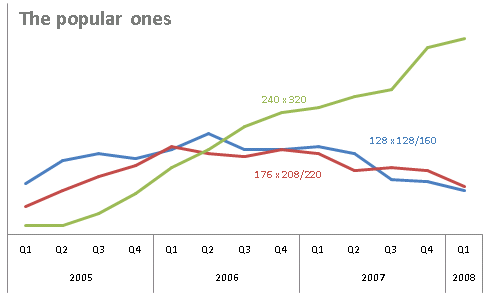

  • mobilescreenpop.png
    12 KB · Views: 177
  • screensizesgrsmall.png
    11.2 KB · Views: 240

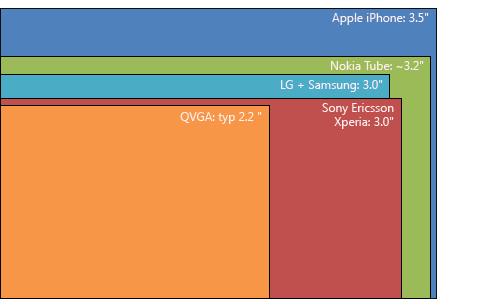

  • physicalscreens.png
    6.1 KB · Views: 257

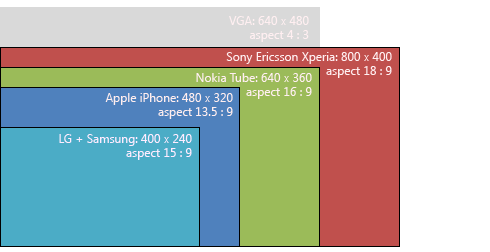

  • physicalscreensmore.png
    9.4 KB · Views: 215
QVGA in context. It's the second smallest on this picture from Wikipedia.

As an aside: http://www.tuaw.com/2007/11/01/the-case-of-the-missing-resolution-independence/
Where did resolution independence go? It was slated for Leopard, but didn't really show up. It's not that applicable to iPhone or Touch iPod, but useful for other screens.

http://wimleers.com/blog/new-cinema-displays-will-bring-resolution-independence

The tech is there, but Apple didn't push it onto developers - they have to specifically code for it. They also need some larger icons and other graphics to their application.
they may well push for it soon though. Those ACD's haven't been refreshed in a long time... Maybe it will even link in to an Apple Photosynth rival?

http://arstechnica.com/staff/fatbits.ars/2006/4/23/3720


Attachments

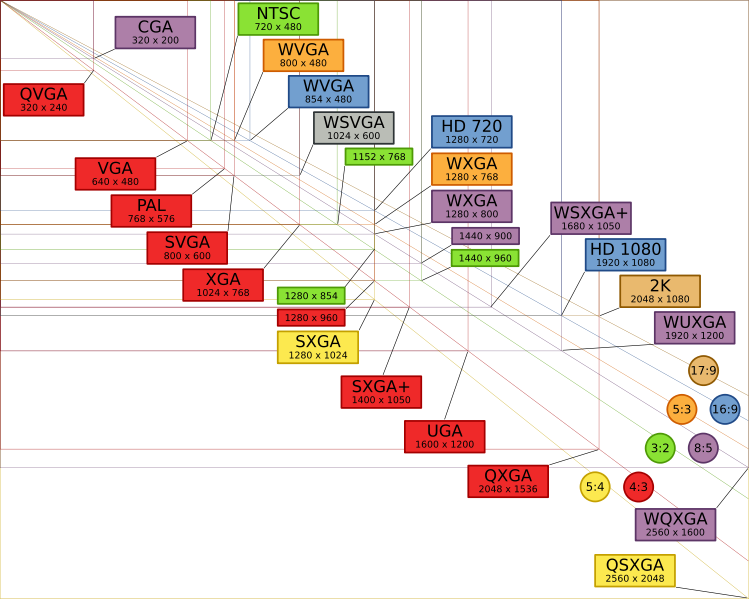

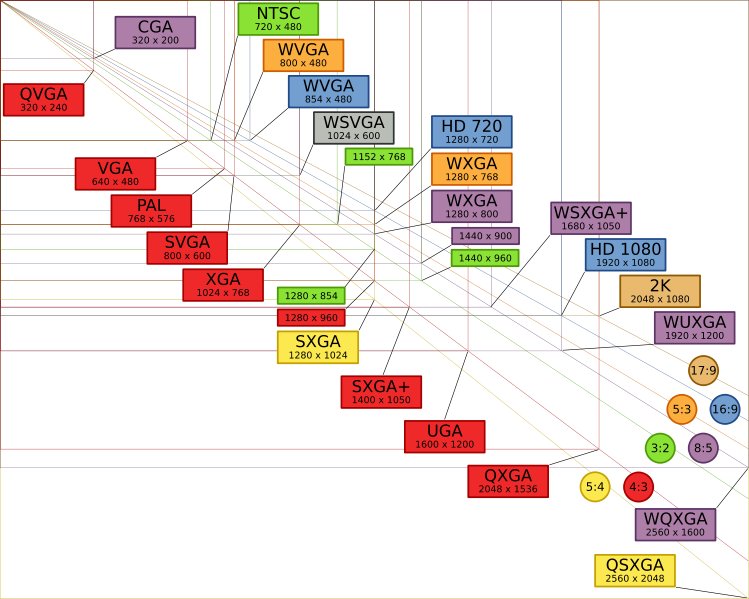

  • 749px-Vector_Video_Standards2.svg.png
    138.4 KB · Views: 182
- WM mostly use 16 bit colour afaik, while the Iphone uses 24 bit afaik.

Some Nokias are 24 bit, some WM phones are 18 bit. But yes, most are 16 bit.

We don't know what the iPhone's screen color depth is, because Apple carefully avoids that topic.

When a company leaves that information out, something's not right. Apple just had to settle out of court for lying about their MacBook LCDs (which were only 18-bit or 262,000 colors), because they claimed millions of colors.

Since Apple does not say "millions of colors" on their website for the iPhone specs, then it's a good bet that it's 18 bit or less. I also haven't been able to find a supplier with a 320x480 panel with more than 262K colors.
