juliovg

macrumors member
Original poster
Oct 4, 2018
74
5
Hello guys, i have a problem installing and config my Titan Ridge 2
I follow all those videos (4)


parte 0:

parte 1:

parte 2:

parte 3:

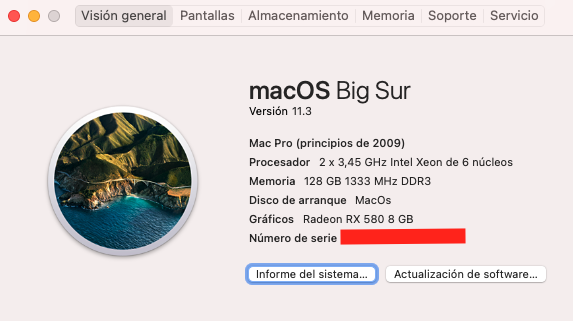

And this is how my Titan Ridge looks like on my Mac settings (see image attached)

I'm using opencore 0.6.8
and my config file looks like (attached file)

Now i'm trying to connect an USB using apple connector (link product) and also trying to connect ElGato Thunderbolt 3 Pro but doesn't recognize.

What could be wrong?

Regards



Attachments

  • Captura de pantalla 2021-04-27 a las 18.43.14.png
    Captura de pantalla 2021-04-27 a las 18.43.14.png
    87.5 KB · Views: 819
  • Captura de pantalla 2021-04-27 a las 18.43.38.png
    Captura de pantalla 2021-04-27 a las 18.43.38.png
    77.1 KB · Views: 251
  • config_copy.plist.txt
    14.4 KB · Views: 110

juliovg

macrumors member
Original poster
Oct 4, 2018
74
5
Did you enable the TB3 SSDT?
Hello @h9826790 yes my card is enable , if you see my config.plist file attached, you can see that is TRUE the corresponding tag.
But after restart 3 times today, it doesn't work, my mac pro 5.1 doesn't recognize. Yesterday at nigth it works, i don't know how, but it works and my ElGato dock also works. But today nothing


h9826790

macrumors P6
Apr 3, 2014
15,559
7,785
Hong Kong
Hello @h9826790 yes my card is enable , if you see my config.plist file attached, you can see that is TRUE the corresponding tag.
But after restart 3 times today, it doesn't work, my mac pro 5.1 doesn't recognize. Yesterday at nigth it works, i don't know how, but it works and my ElGato dock also works. But today nothing

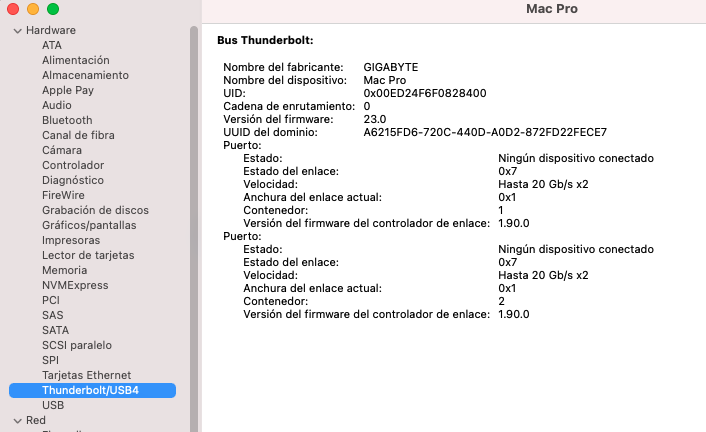

I was on mobile device, and haven't check your config. But the screen capture doesn't looks right to me. Your card still recognize as a Gigabyte device, but not an Apple device.


juliovg

macrumors member
Original poster
Oct 4, 2018
74
5
I was on mobile device, and haven't check your config. But the screen capture doesn't looks right to me. Your card still recognize as a Gigabyte device, but not an Apple device.
How config apple device?

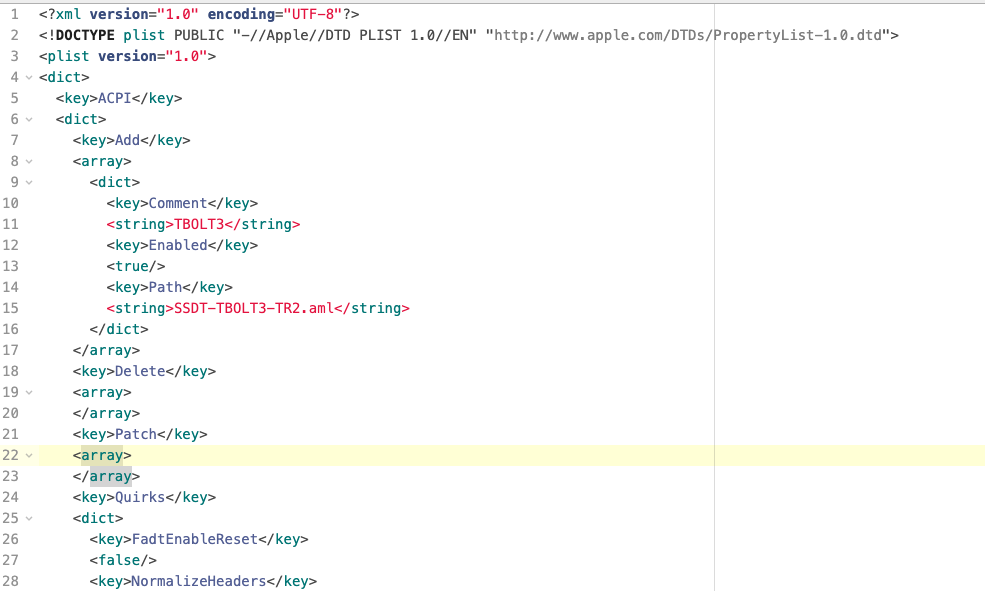

I modify the config file again today, just how you see on the image attached


I don't how about Apple device, how should i do this?
I found this link : https://zephyrsmarket.com/collectio...titan-ridge-thunderbolt-3-flashed-for-mac-pro

and I follow all again, but my mac pro 5.1 doesn't recognize


Attachments

  • Captura de pantalla 2021-04-28 a las 15.54.53.png
    Captura de pantalla 2021-04-28 a las 15.54.53.png
    94.6 KB · Views: 167

KevinClark

macrumors 6502
Feb 28, 2019
297
32
Try with my package from Martin Lo and mine I have enabled thunderbolt for my flashed titan ridge v2 + radeon boost Catalina and big sur and videoproc


Attachments

  • New KCP Opencore 069 Martin Lo Mai 2021.zip
    11.1 MB · Views: 234

webbp

macrumors member
May 26, 2021
31
4
Out of curiosity: what would happen if you booted a Mac Pro with a Titan Ridge with connected Mini DisplayPort, but no GPU? Would it use the CPU for graphics, or give no video output at all?


juliovg

macrumors member
Original poster
Oct 4, 2018
74
5
I don't use Mini Display port, i just want connect ElGato Dock hub


juliovg

macrumors member
Original poster
Oct 4, 2018
74
5
Hello everybody
After a lot of time and several clean install .... I GOT

And this is how it looks

Thanks for all guys

Regards


Attachments

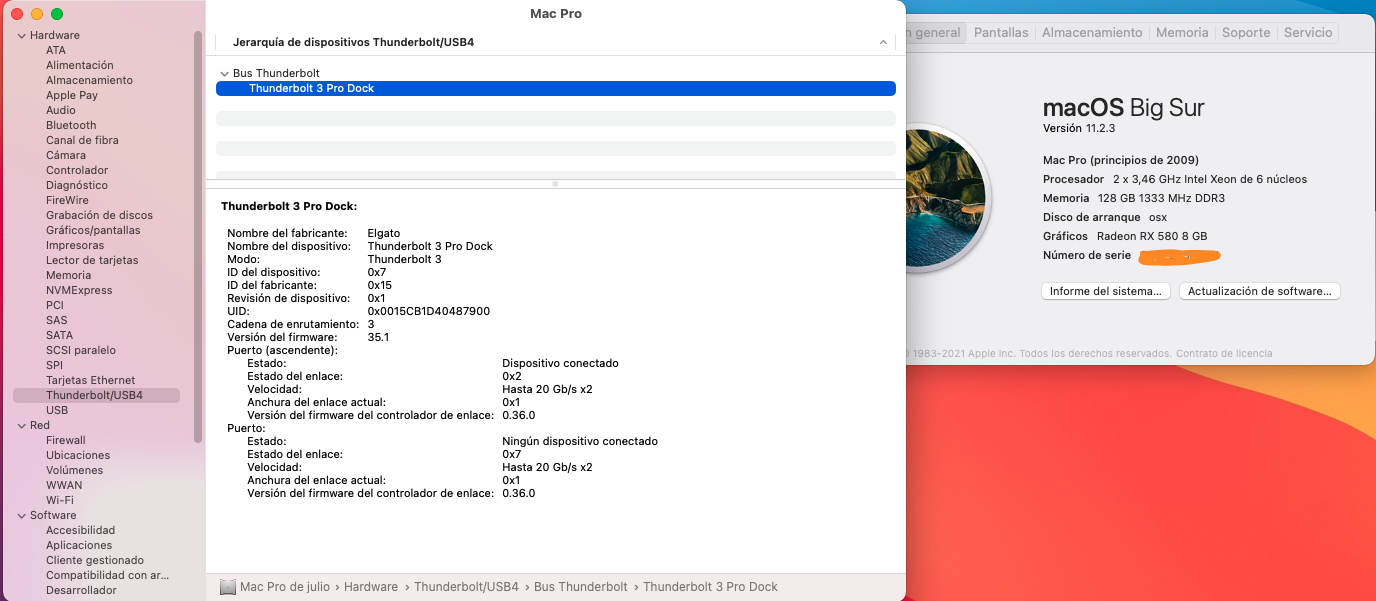

  • Captura de pantalla 2021-06-13 a las 11.42.48.png
    Captura de pantalla 2021-06-13 a las 11.42.48.png
    379.5 KB · Views: 371

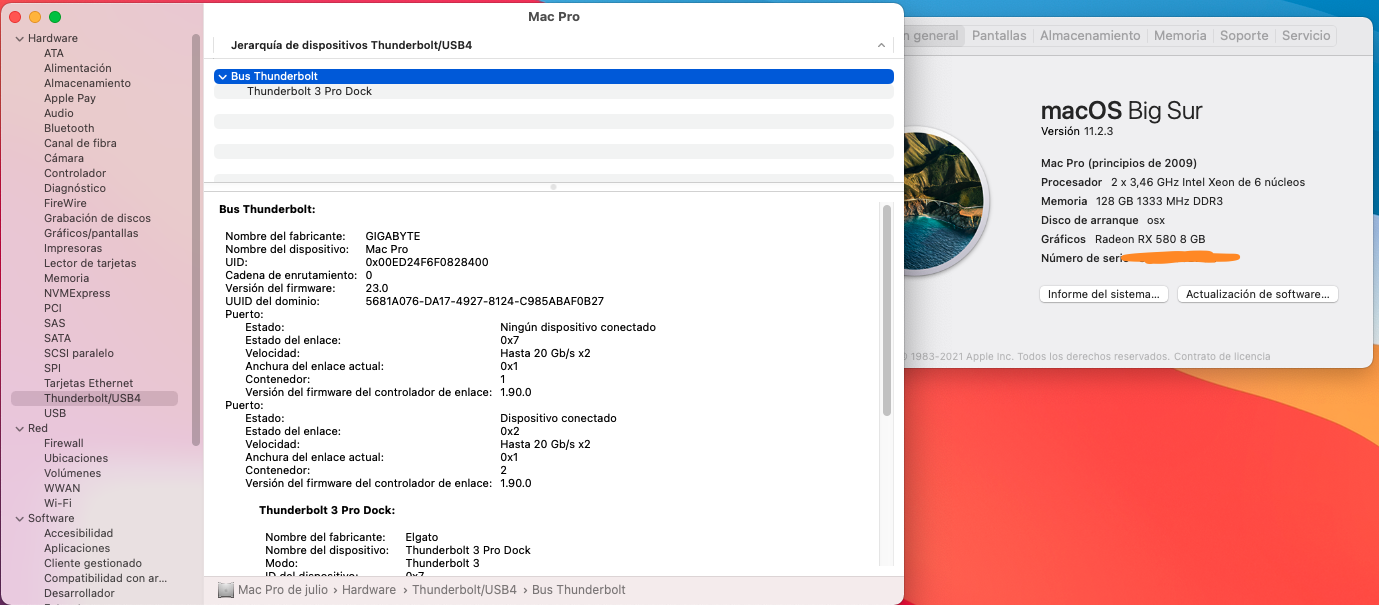

  • Captura de pantalla 2021-06-13 a las 11.42.29.png
    Captura de pantalla 2021-06-13 a las 11.42.29.png
    396.4 KB · Views: 409

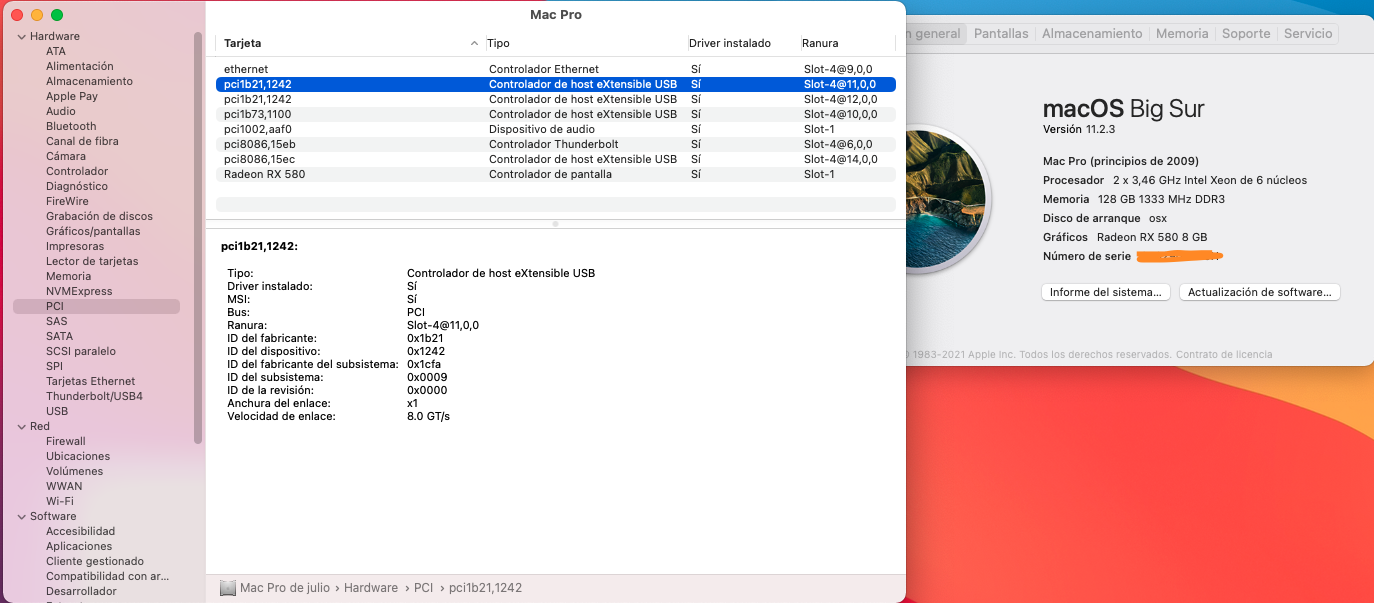

  • Captura de pantalla 2021-06-13 a las 11.43.24.png
    Captura de pantalla 2021-06-13 a las 11.43.24.png
    383.2 KB · Views: 373

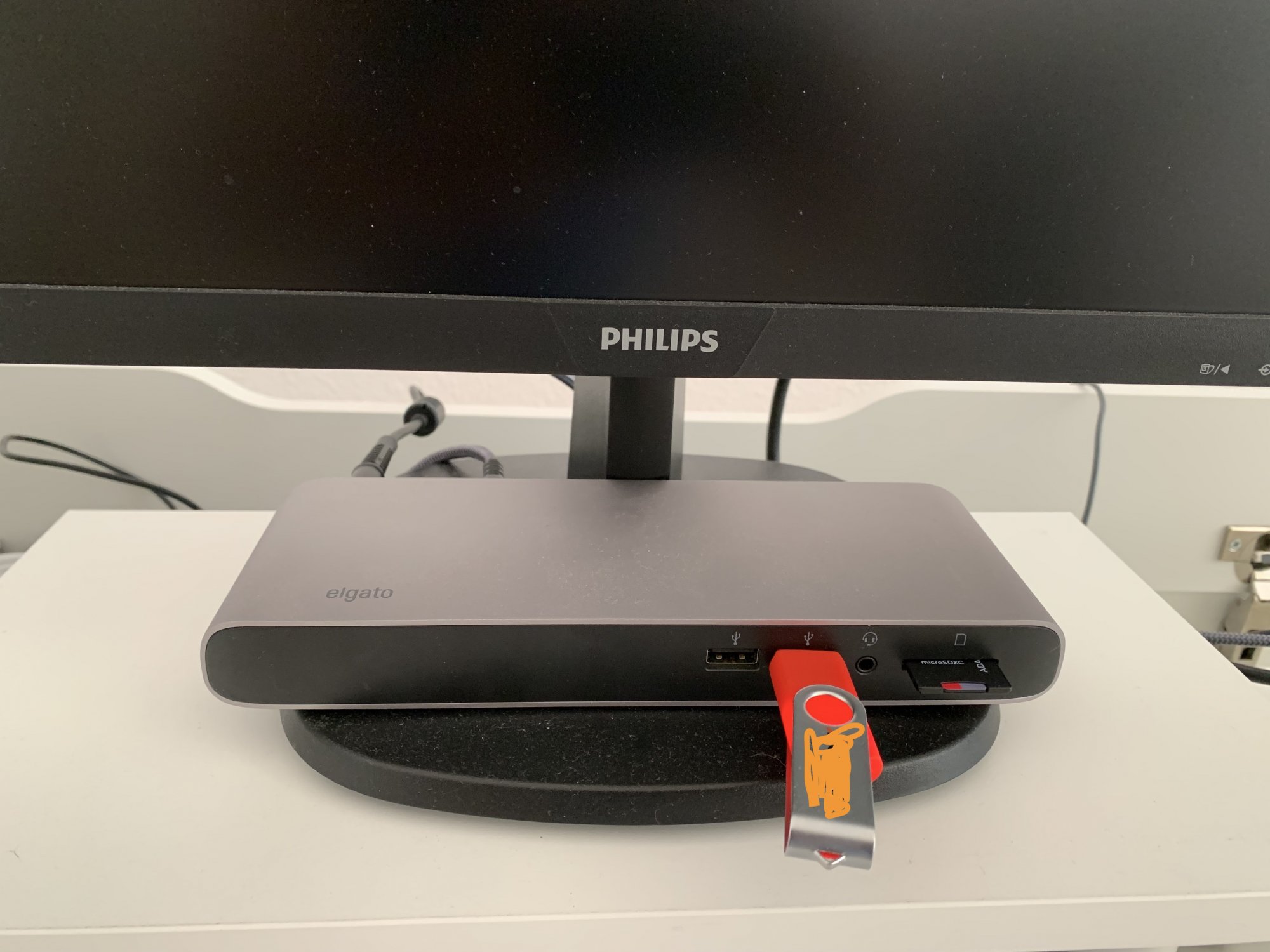

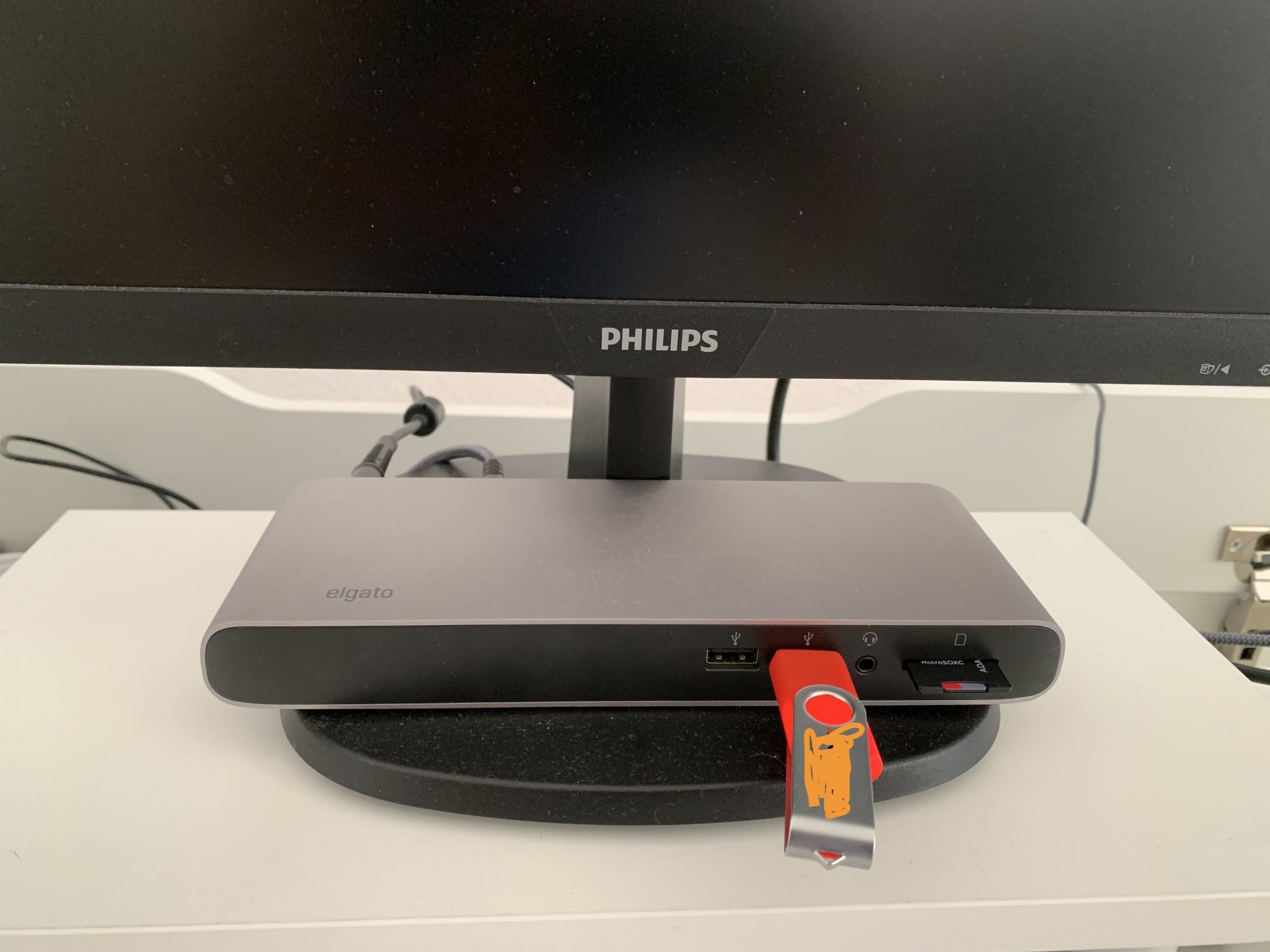

  • IMG_1350.jpg
    252 KB · Views: 365

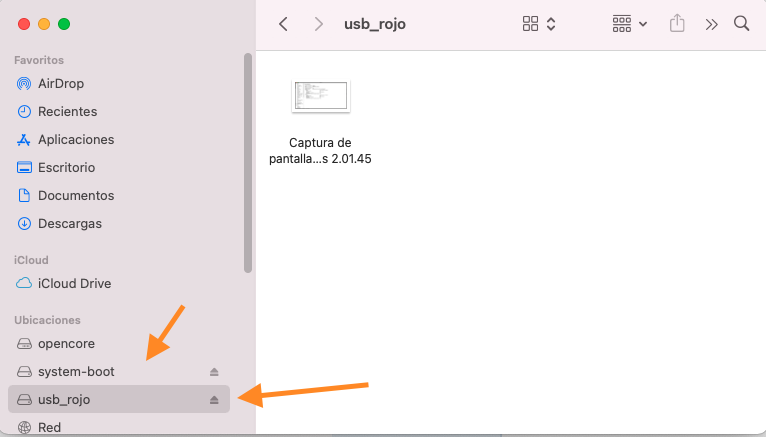

  • Captura de pantalla 2021-06-13 a las 11.48.34.png
    Captura de pantalla 2021-06-13 a las 11.48.34.png
    44.5 KB · Views: 388
  • Like
Reactions: dabotsonline

joevt

Contributor
Jun 21, 2012
5,317
3,083
Out of curiosity: what would happen if you booted a Mac Pro with a Titan Ridge with connected Mini DisplayPort, but no GPU? Would it use the CPU for graphics, or give no video output at all?
Mac Pro CPU doesn't have GPU.
Mini DisplayPort is for input to the Titan Ridge.
The two Mini DisplayPort ports are the only GPU inputs to the Titan Ridge. If they are not connected to a GPU, then the Thunderbolt ports cannot output DisplayPort to a display or tunnel DisplayPort to a Thunderbolt dock/hub/device/display.

  • Like
Reactions: dabotsonline

nnrecord

macrumors newbie
Dec 13, 2019
19
0
With my case and G-DRIVE Hard Drives. I need to boot up a second time for my Mac Pro to notice G-DRIVER. If you only start it once, you will not notice the Hard Driver from the Finder. You try to boot again when at the Login screen


serr

macrumors regular
Mar 8, 2010
216
24
Does the Titan-Ridge card require the opencore install?
So far it shows up in System Report/Thunderbolt but I have nothing with target disk mode over thunderbolt in either direction. Running OSX 10.13.6


serr

macrumors regular
Mar 8, 2010
216
24
Well, either this is a DOA or it just doesn't work. I see it in System Report but it doesn't connect.


KevinClark

macrumors 6502
Feb 28, 2019
297
32
You mean Mapple ridge could work as the titan ridge but needs to be flashed if It not using with windows 10 ?


tsialex

macrumors G4
Jun 13, 2016
10,830
11,333
You mean Mapple ridge could work as the titan ridge but needs to be flashed if It not using with windows 10 ?
MacPro5,1 firmware don't support and don't initialize any TB controllers, it was designed long before TB - zero support by the SMBIOS.

You need OC + flashing the TB card or need to boot Windows to initialize the card, then warm boot macOS.
