MP 1,1-5,1 MacPro 5.1 & high capacity hard drives
- Thread starter JM-Prod
- Start date
- Sort by reaction score
arw
macrumors 65816
Afaik all Helium disks require a new drive sled, so I tried the following in the optical bay just for the sake of this post:
- Working, also on reboot:
- 18 TB Toshiba (MG09ACA18TE)
- Working (without 3rd pin mod), doesn't survive reboot:
- 8 TB HGST/WD Ultrastar HE10 (DC HC510 / HUH721008ALE600)
- 10 TB WD Red (WD100EFAX)
- 12 TB HGST/WD Ultrastar HE12 (HUH721212ALE600)
Last edited:
h9826790
macrumors P6
Most likely due to the HDD pin 3 is the PWDIS pin
amarmot
macrumors member
I remember reading a lot of speculation about this, but I'm not sure there was a clear conclusion. A dominant hypothesis was that big drives may take slightly longer to spin up. The boot routine may time out if it does not immediately detect a drive on the SATA 2 bus, so moves on until it finds a system. Drives connected via native USB 2 are not a problem because this interface is designed to detect when a new device is attached. But SATA 2 is not hot swapable, so perhaps if a drive is not detected in time, it never will be. Cold boot may provide more time before the boot sequence looks for the drives, so less chance of missing it.
amarmot
macrumors member
I know that was a problem for many people. In my case the usual solutions (eg taping the pin with kapton) didn't help. PWDIS also doesn't readily explain why the drives were booting fine during a cold restart.
I had this problem with a 10TB WD drive. I taped up pin 3 to get it working in the Mac Pro. it would mount on cold boot but would not survive a warm reboot.
Because it was just used to archive data and not as a boot drive I used a app (jettison or mountain) to "prevent mount on startup". This allowed the drive to survive the warm reboot and I could mount it on the desktop whenever I needed it.
After a few years ithe drive became noisy and started clicking so I replaced it with a 12TB WD which works perfectly without any need for any modifications or software.
General question to the community:
In terms of internal drives, does anyone know what the cMP5,1 does differently between a power-on start and a warm-reboot? To my way of thinking, the answer to the not-seen-warm-reboot part of this lies somewhere within that delta given the the drives do work fine after a power-on boot.
In terms of internal drives, does anyone know what the cMP5,1 does differently between a power-on start and a warm-reboot? To my way of thinking, the answer to the not-seen-warm-reboot part of this lies somewhere within that delta given the the drives do work fine after a power-on boot.
Last edited:
arw
macrumors 65816
According to the link in post #43:
But it's above my understanding how that could be the case as my disks don't spin down and I even hear/feel the reading head move before the OC boot picker is displayed. And yet they are invisible to the Mac.
Jettison didn't make a difference. Haven't tried Mounty.
Last edited:
DigitalSurgery
macrumors newbie

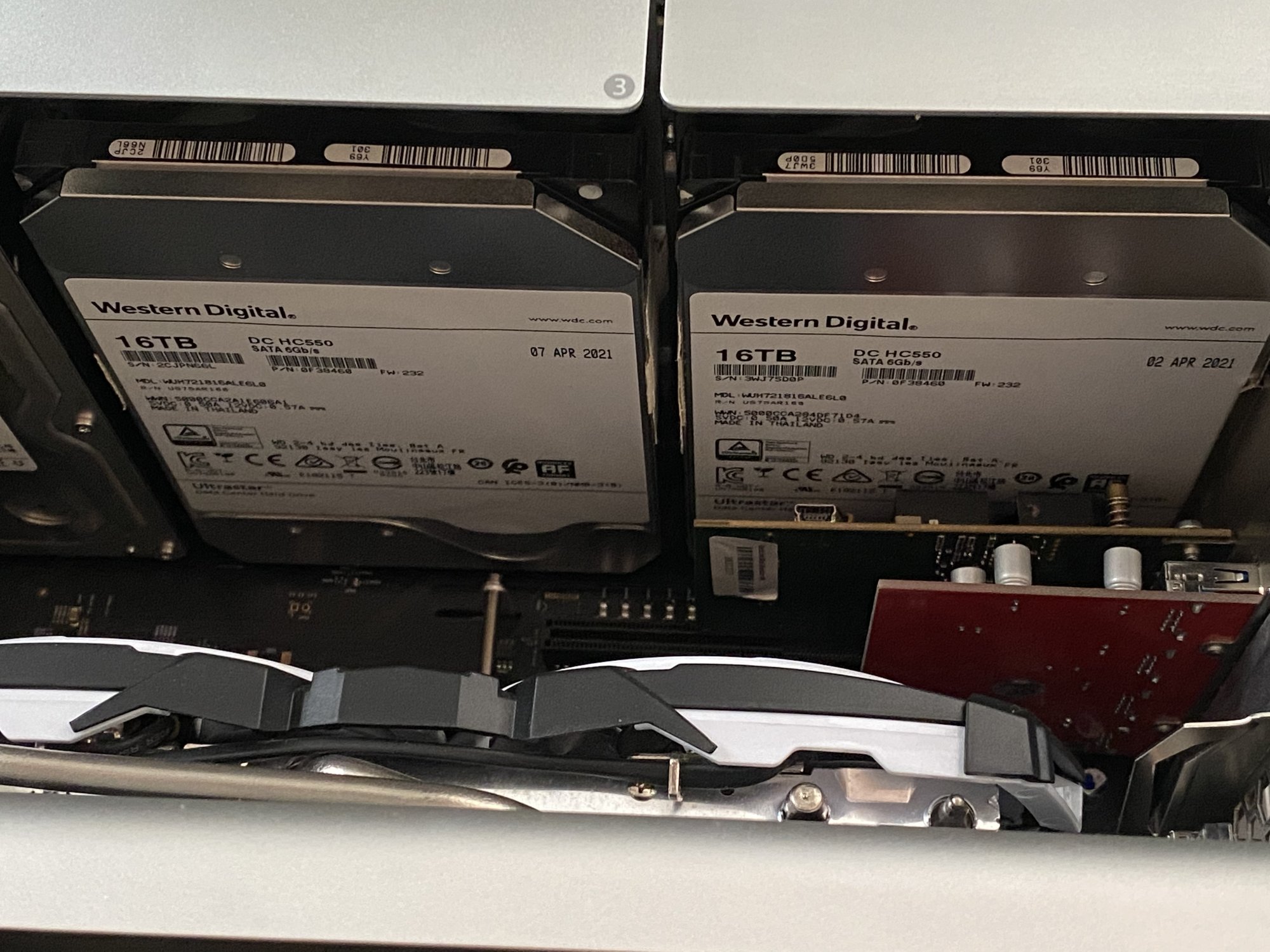

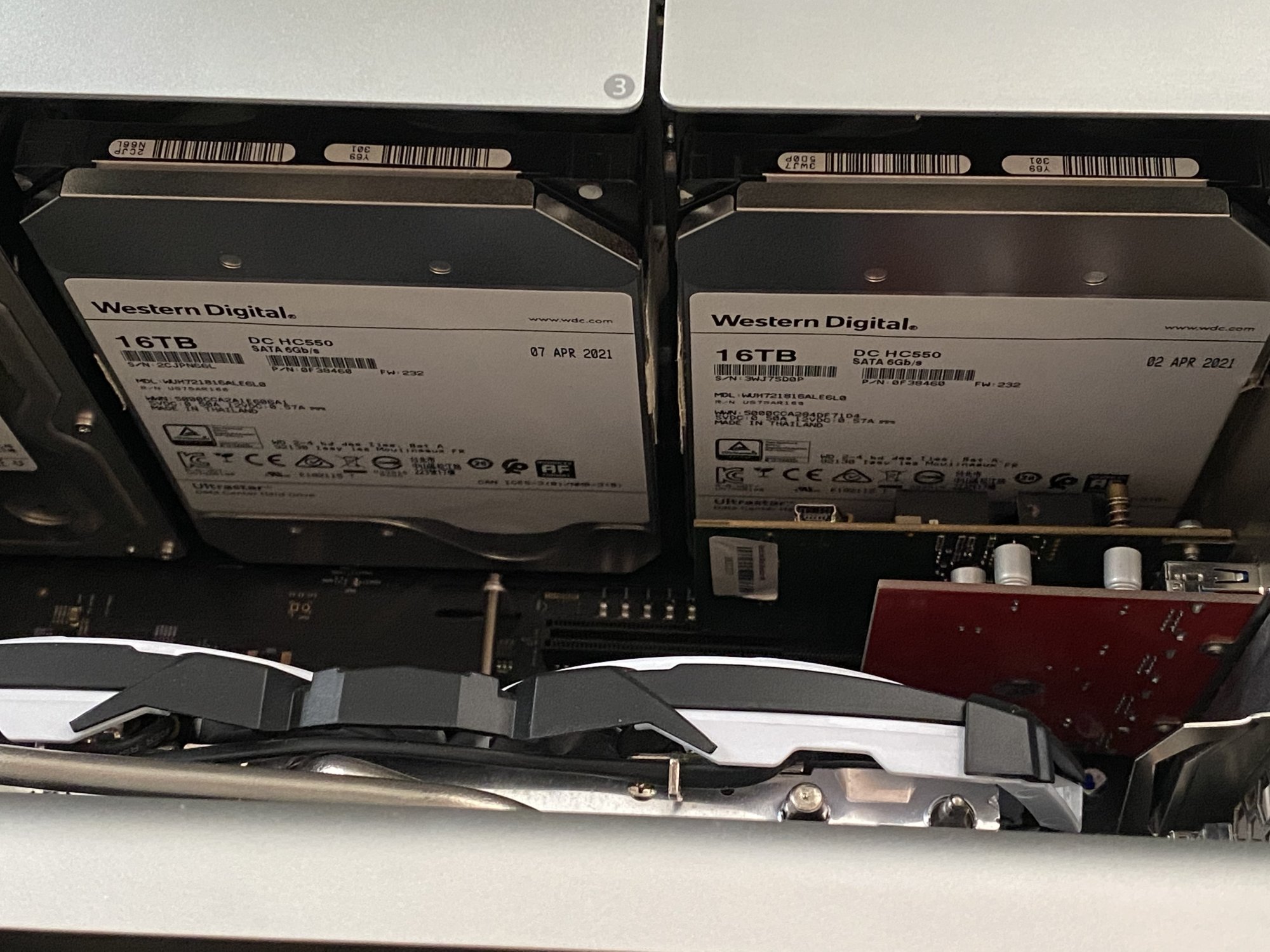

Just installed 2x 16TB Western Digital Ultrastar DC HC550 (SATA 6Gb/s) WUH721816ALE6L0 512e ISE in a JBOD softraid with Raid Assistant. Upgrading from 4x 6TB HGST which worked fine for years.

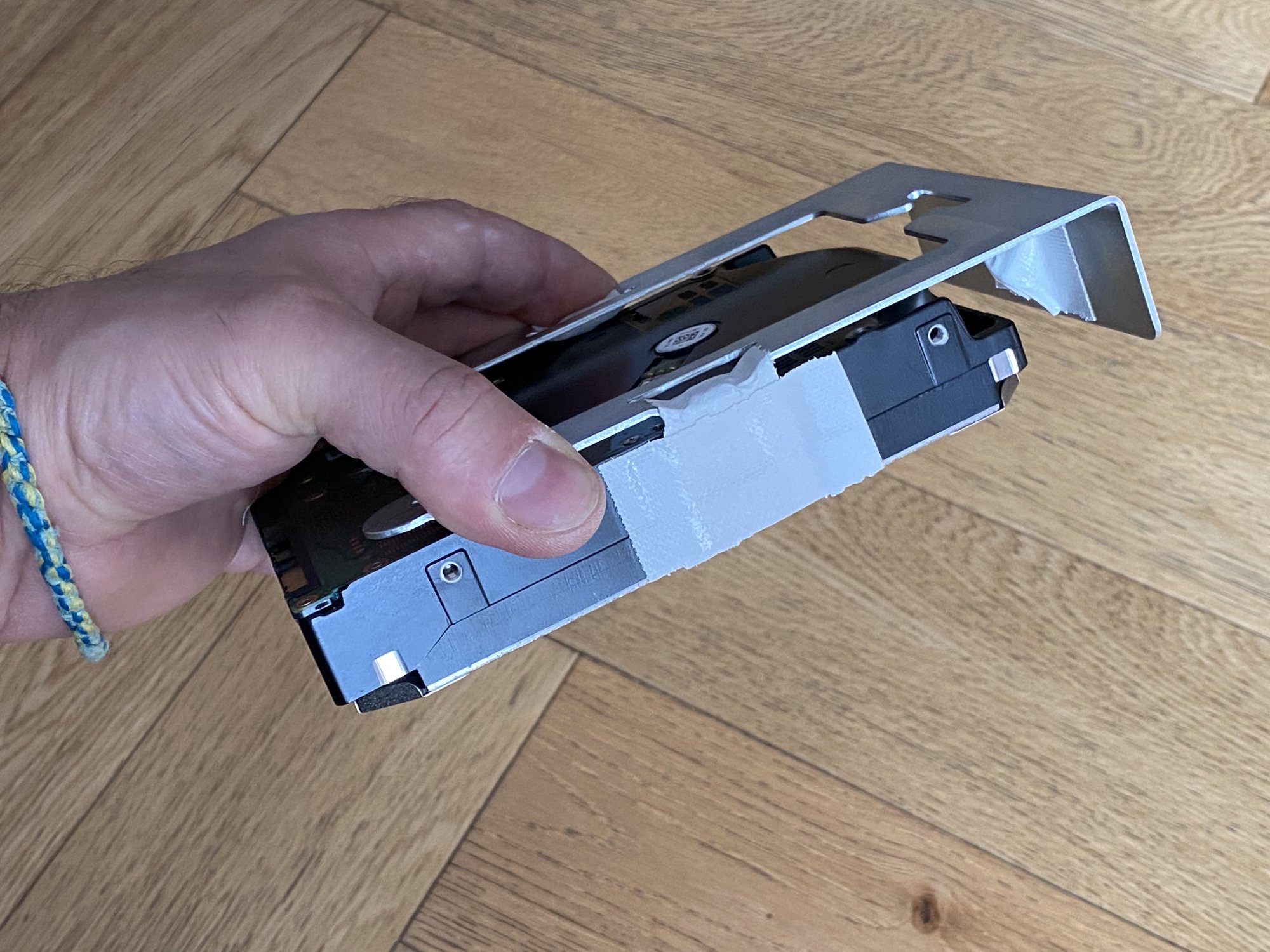

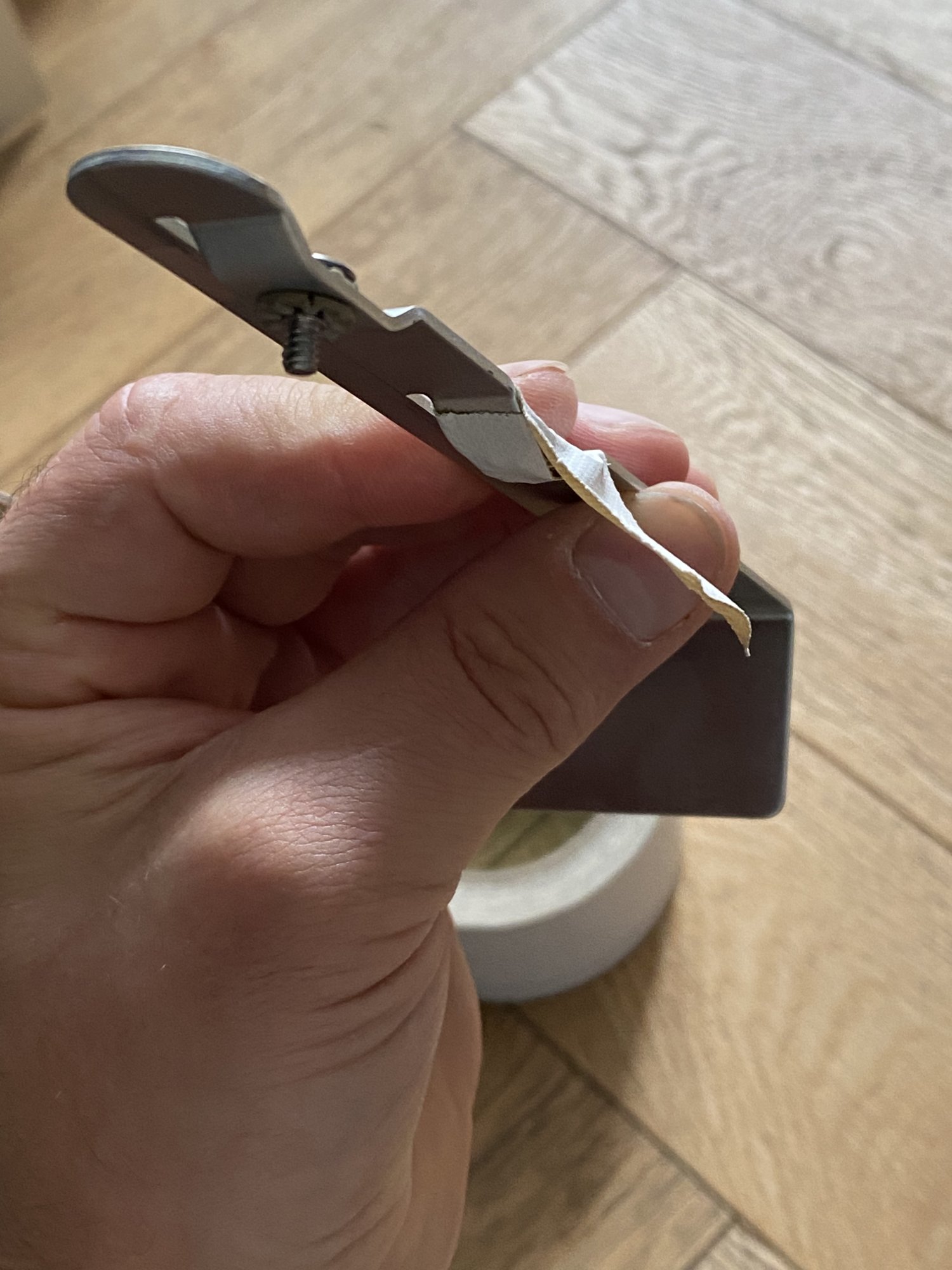

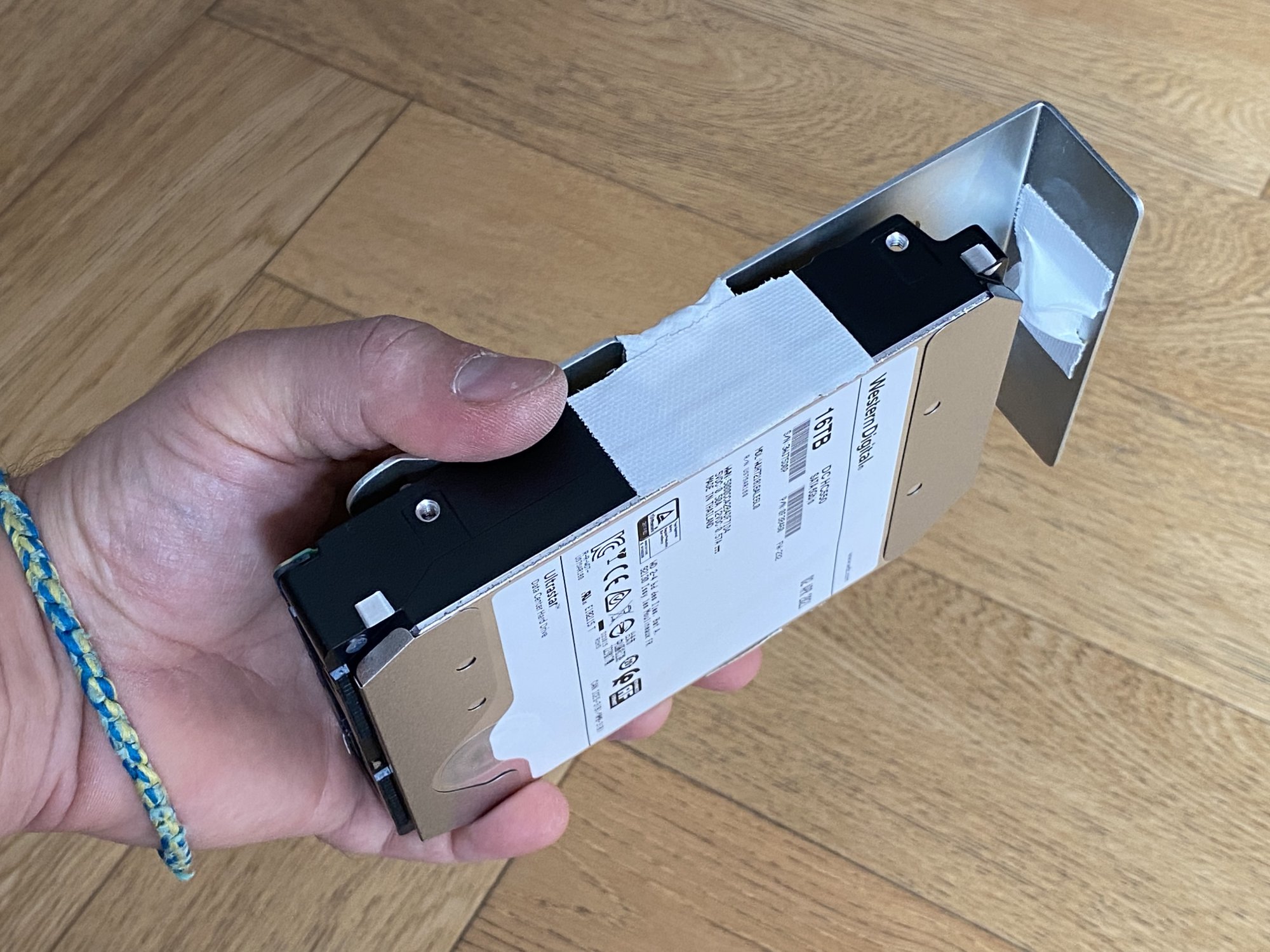

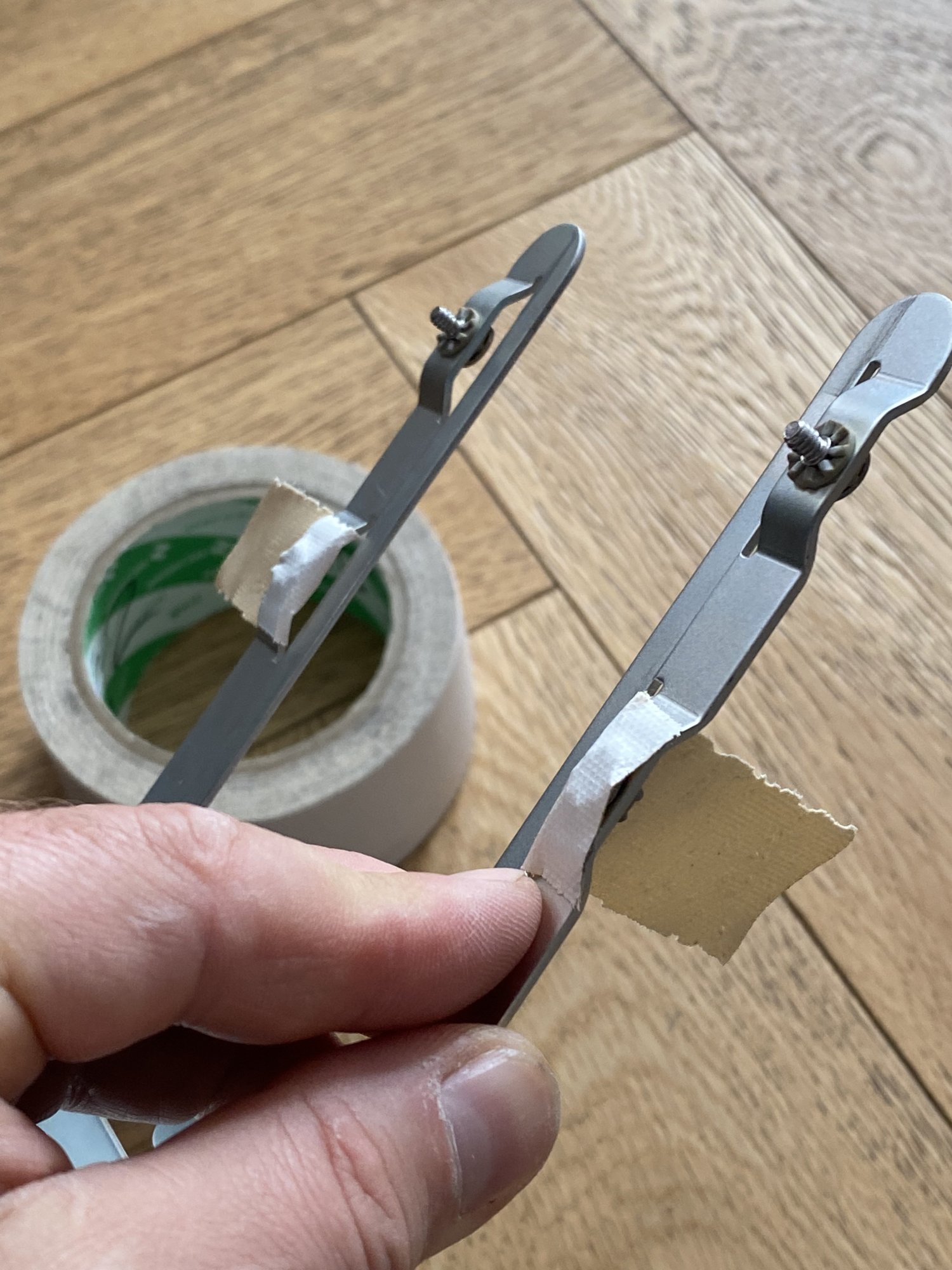

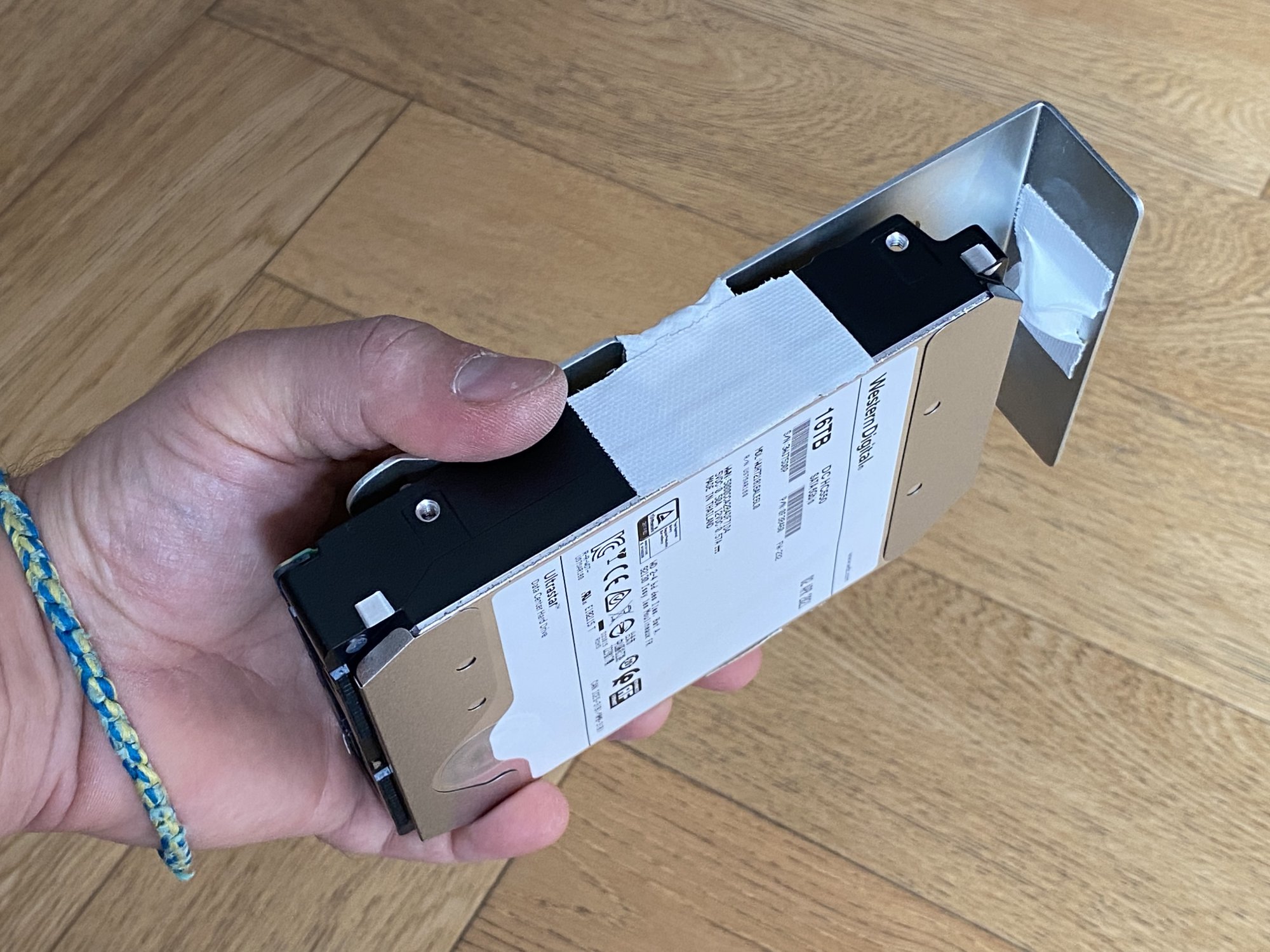

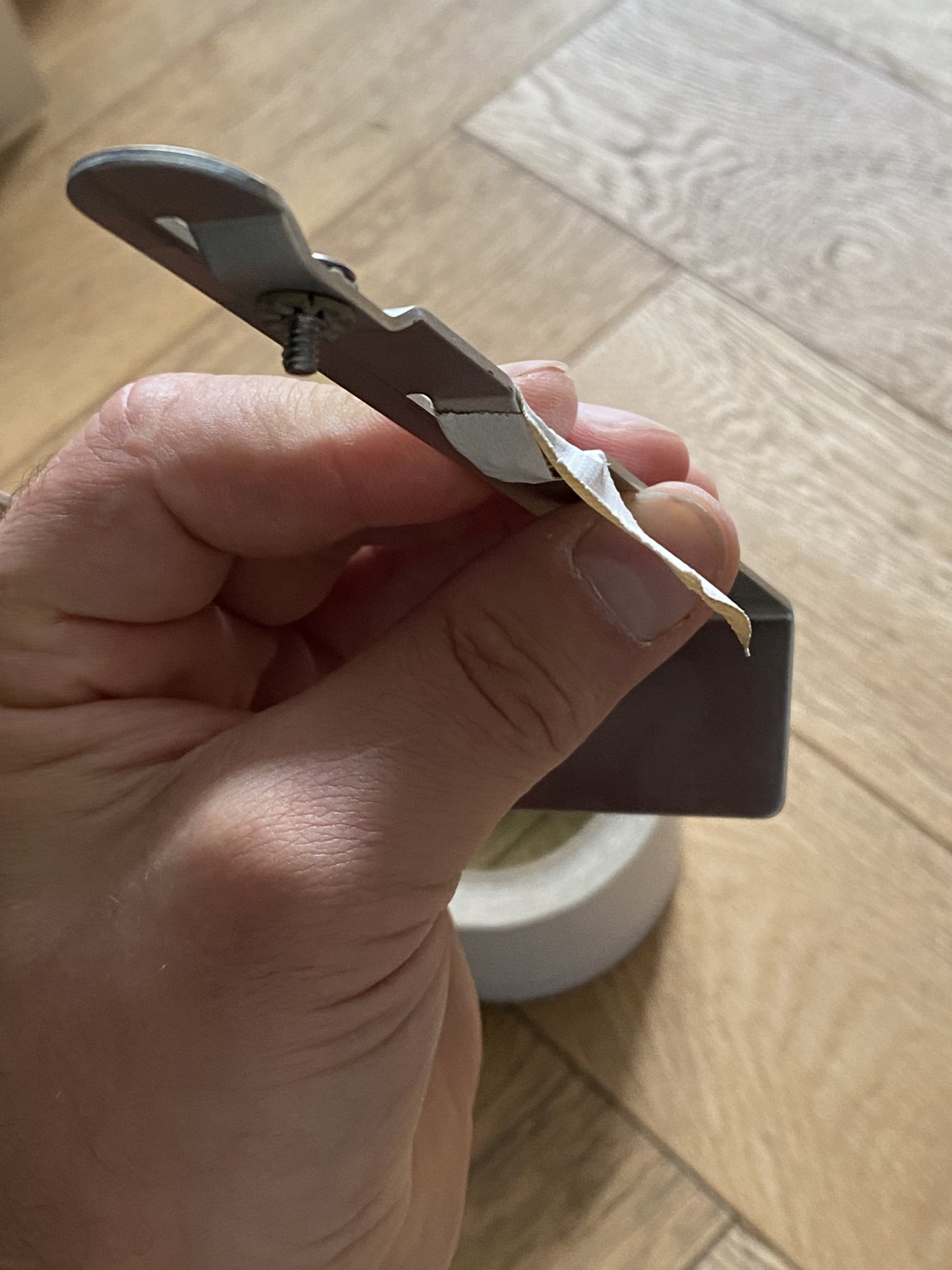

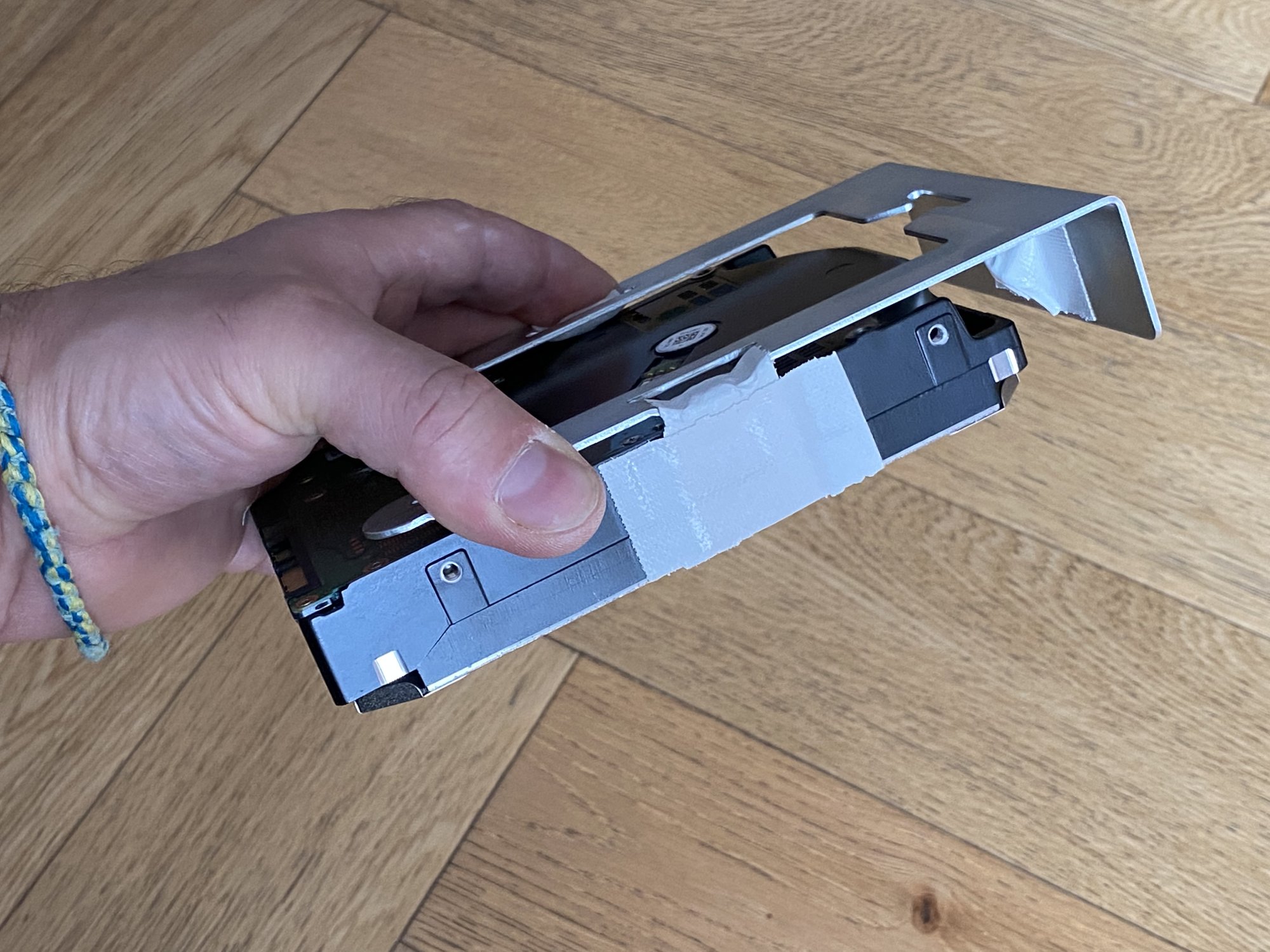

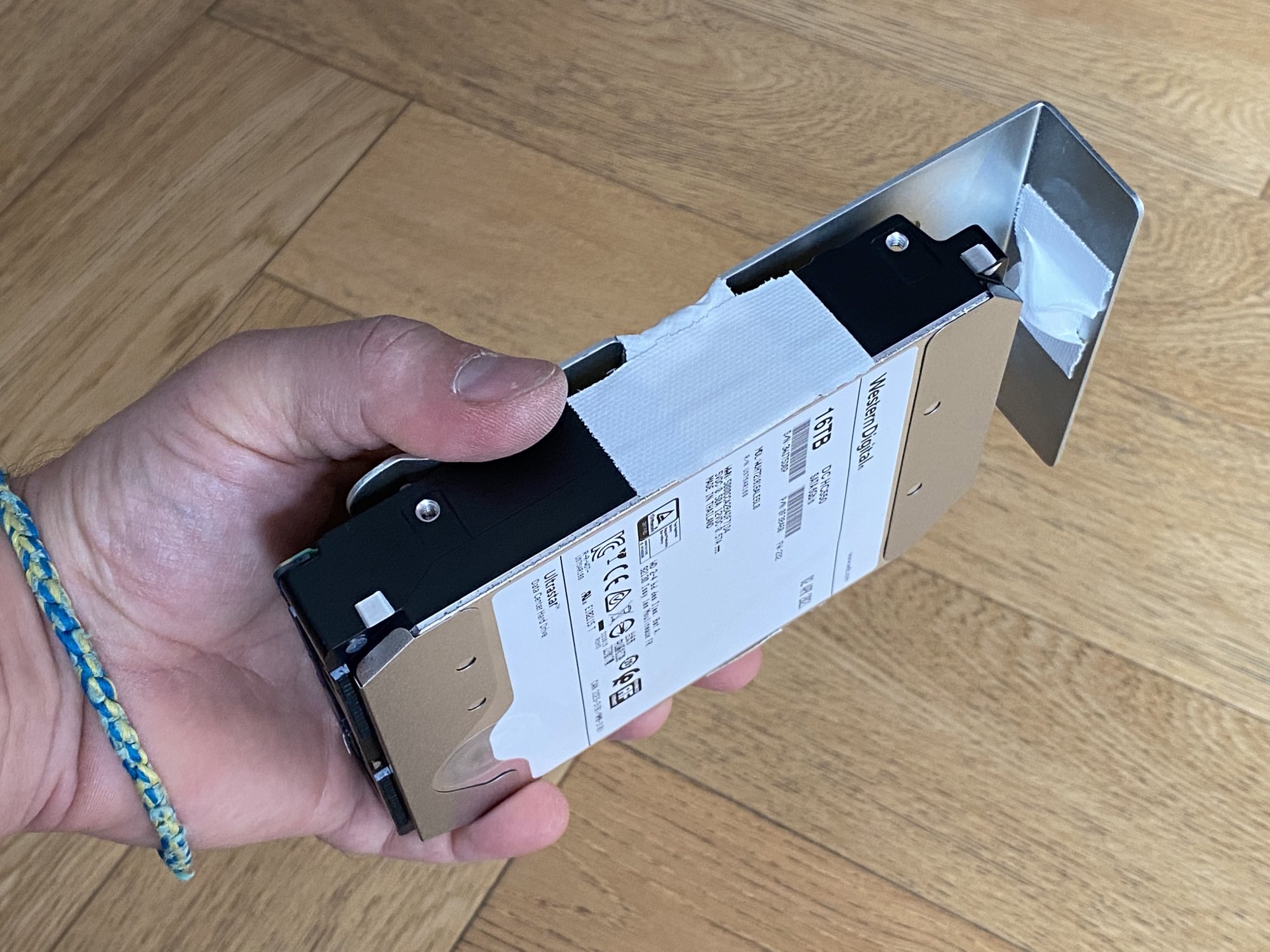

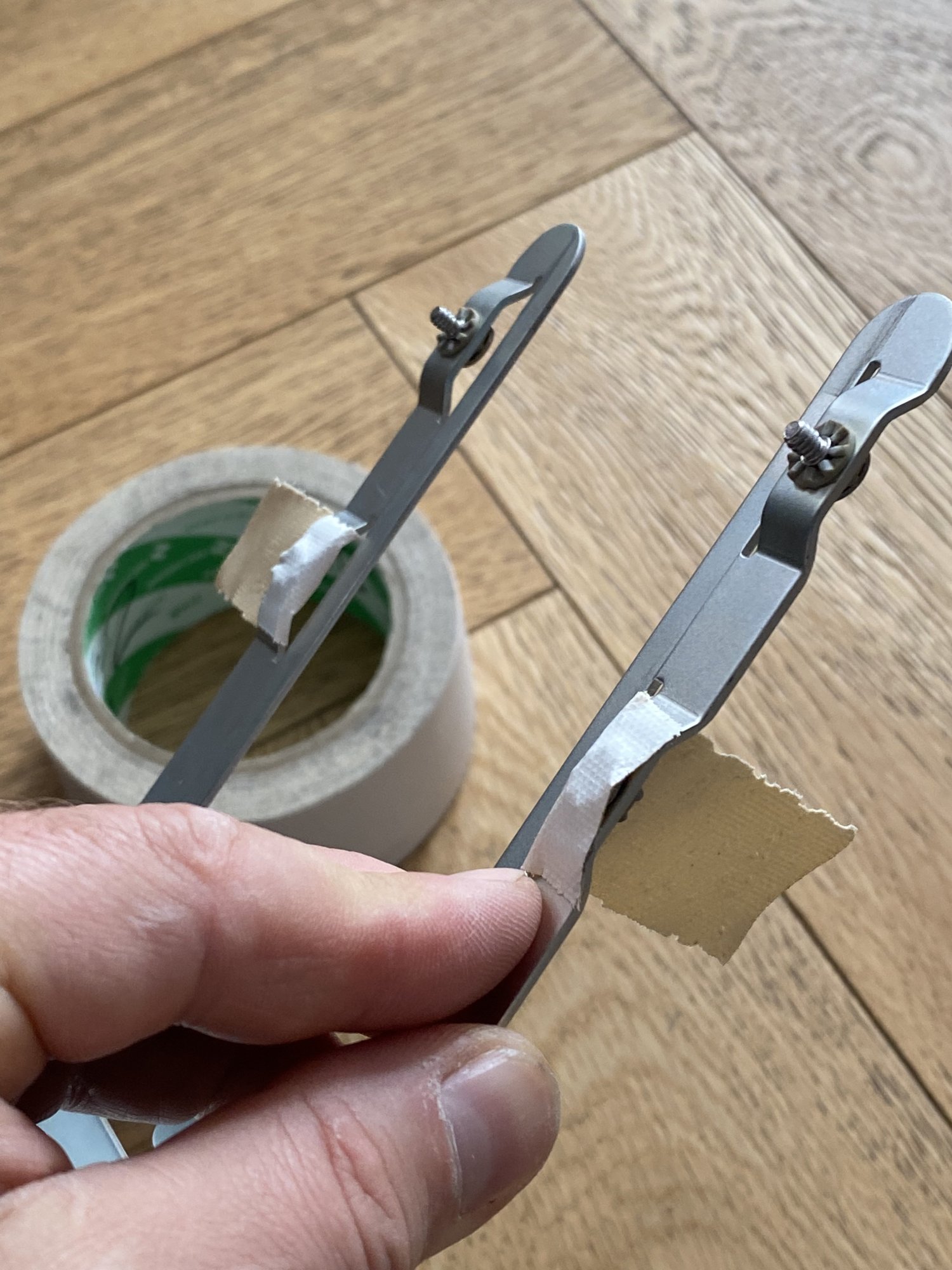

All works on a cold boot but not on a warm one. Used gaffer tape for mounting with the traditional sleds. Placed the redundant screws also with piece of gaffer behind the handle. All works fine on Monterey 12.5.1 😎
Cheers!
All works on a cold boot but not on a warm one. Used gaffer tape for mounting with the traditional sleds. Placed the redundant screws also with piece of gaffer behind the handle. All works fine on Monterey 12.5.1 😎
Cheers!
Attachments
dickiedunn
macrumors regular
dickiedunn
macrumors regular
Thanks, I like the gaffer tape idea with the traditional threads. Any long term experience with how that will hold up over time? Or I guess we'll find out. I'm not sure what you mean by them not working on a warm boot though.
Soba
macrumors 6502
I do not recommend this approach.
Tape adhesive does not hold up long term, especially in situations where it's exposed to heat or oscillating temperature changes. Over time, that tape is likely to fail and the drive will fall loose from the sled at an angle, which will torque the drive connector on your backplane/main board and destroy the board, your drive, your data, and possibly other components in your system in the process.
If you're going to use a poor man's solution like this, try wrapping the drive tightly in a complete circle of tape (more than once) so the length of tape acts as a restraint (or safety net, if you will) against the drive falling. Better, but still not a great solution.
A great solution: Buy a new tray. They cost less than $20 and that's a tiny investment to guarantee the safety of your (very expensive) equipment and your data!
zachek
macrumors member
He means it won't recognize the drives after a restart (warm boot), but if the machine is off and booted (cold boot) it *will* recognize them normally.
DigitalSurgery
macrumors newbie
Hi Soba, I know from experience that proper gaffers tape will hold, even if it will get hot. But you have to use real Gaffa tape, preferably from a brand like Nichiban not a fake one like duct tape. The difference is described here:
Gaffers Tape vs. Duct Tape
<p>Have you ever wondered why gaffers tape is more expensive than duct tape?
www.findtape.com
Of course a dedicated tray is a better option, but this solution works fine for me atm. Cheers!
DigitalSurgery
macrumors newbie
Exactly, and probably when not combined in a soft raid they will show up in a warm boot. I’ve heard that it has to do with the drives/raid not showing up fast enough when warm booting to be recognized. My other 10TB drive is normally recognized on a warm boot.
macguru9999
macrumors 6502a
Some sata 3 drives are not backwards compatible with sata 2 in the 5,1 trays, those will not show up on warm boot. like the samsung qvo ssd drives etc. Also its crazy having heavy drives taped in like that, get the correct trays from OWC. I would move the incompatible drives to usb 3 housings and replace them with drives that work properly in 5,1s. Drives that others have verified work. seagate 8tb spinners work but i suppose fewer and fewer new models will as they expect to be used on sata 3 buses.
DigitalSurgery
macrumors newbie
Thanks for responding. Yeah I know it’s looks ‘crazy’ to use Gaffa tape, but you would be surprised how often tape is being used in high-end applications nowadays. And I don’t want to spend money just for cosmetical reasons while this works perfectly. Remember, the drives are still in place by two screws, the tape is just to hold the drives ‘up’ and it does the trick great. Personally being a fan of DIY solutions I prefer to stick 😉 with this method, but anyone is free to do otherwise.
zedex
macrumors 6502
I too am all for certainty and specificity and so without further ado:
FROM PAGE 32 OF THE APPLE TECHNICIANS MANUAL..
"When the computer is started up after being fully shut down, a self test in the computer’s ROM is automatically run. (The test is not run if the computer is only restarted.)"
The fact is, I always have to go to Alex if I need an answer that is 'precisely correct'.
I think "POST" stands for Pre-Operating-System-Test (or maybe Pre-Os-Self-Test). Either way you finally have a 'precisely correct' answer to the question posed above..
COLD BOOT runs "POST"
WARM BOOT does *not* run "POST"
Amazing huh! I tripped across this paragraph earlier this morning so I am happy I could help
m1maverick
macrumors 68000
POST = Power On Self TestI think "POST" stands for Pre-Operating-System-Test (or maybe Pre-Os-Self-Test). Either way you finally have a 'precisely correct' answer to the question posed above..
COLD BOOT runs "POST"
WARM BOOT does *not* run "POST"
Amazing huh! I tripped across this paragraph earlier this morning so I am happy I could help
Thanks - makes senses so if that is truly the only delta, then the questions now are: (a) can it be fixed; or (b) is there any way to have the POST run even know there is no power-on event? I believe both are doubtful - "A" because I believe POSTs reside in true-ROM and "B" because I would bet that code is hardwired to only get accessed during an actual power-on event with no other way to trigger its execution...
tsialex
Contributor
Both models of Seagate 5TB and 6TB that I shucked from external USB drives have the standard screw arrangement and work correctly.
5TB part number is ST5000DM000.
arw
macrumors 65816
I remember reading due to the additional sealing requirements all helium drives moved said holes away from the middle.
That doesn‘t mean there aren‘t also non-Helium drives with the new holes (to fit slightly larger or more platters) but Helium should be a dead giveaway.
edit: seems like 4 disks is the limit for Seagate:
- The 3 disk 6TB ST6000DM003 and the 4 disk 8TB ST8000DM004 have the standard mounting points
Seagate BARRACUDA ST8000DM004 Product Manual (Page 23 of 34) | ManualsLib
www.manualslib.com

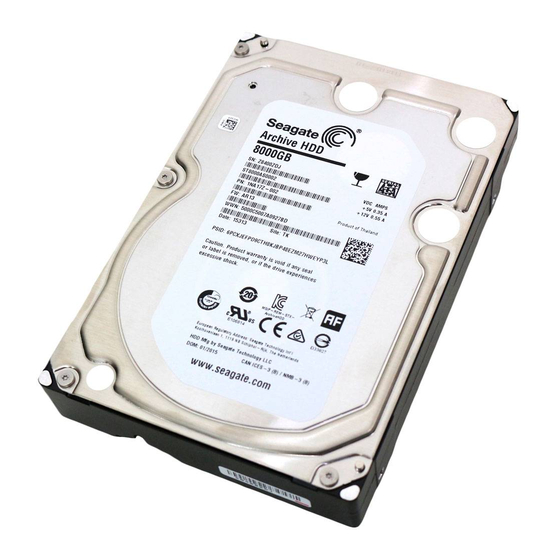

Drive Mounting - Seagate ST8000AS0002 Product Manual [Page 23]
Seagate ST8000AS0002 Manual Online: Drive Mounting. Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes. Refer to for drive mounting dimensions. Follow these important mounting Figure 3 precautions when...
www.manualslib.com
Last edited:
